USER MANUAL KC110.9 KRESS

Mechanical device with articulated arm and connector (no visible text or symbols)

Cordless Grass Trimmer	EN	P03
Akku-Rasentrimmer	D	P19
Coupe-bordure sans fil	F	P36
Decespugliatore senza fili	I	P52
Cortabordes a batería	ES	P68
Aparador de relva sem fio	PT	P84
Snoerloze grastrimmer	NL	P100
Akkumulátoros szegélynyíró	HU	P116
Motocoasă fără fir	RO	P133
Bezprzewodowa podkaszarka do trawy	PL	P149
Bezdrátová strunová sekačka na trávu	CZ	P166
Akumulátorová kosačka na trávu	SK	P182
Brezžični obrezovalnik trave	SL	P198
Akumulatorski trimer za travu	HR	P214
Ledningsfri græstrimmer	DK	P229
Akkukäyttöinen ruohotrimmeri	FIN	P244
Trådløs gresstrimmer	NOR	P259
Sladdløs grästrimmer	SV	P274

KC110 KC110.X

TABLE OF CONTENTS

Introduction....3

Component List....4

Product Safety....6

Assembly & Operation....10

Transportation....13

Maintenance....13

Cleaning....14

Storage....14

Troubleshooting....15

Technical Data....16

Environmental Protection....17

Declaration of Conformity....17

INTRODUCTION

Dear Customer,

Thank you for buying this Kress Commercial product. We are dedicated to developing high quality products to meet your commercial landscaping requirements.

The Kress brand is synonymous with premium quality service. Over the years of your product's life, if you have any questions or concerns about your product, please contact your dealer or our Customer Service Team for assistance.

We are confident you will enjoy working with your Kress product for years to come.

INTENDED USE

This machine is intended for cutting grass and high weeds that cannot be reached with a lawn mower. This machine is also used on areas with slopes not conducive to mowing.

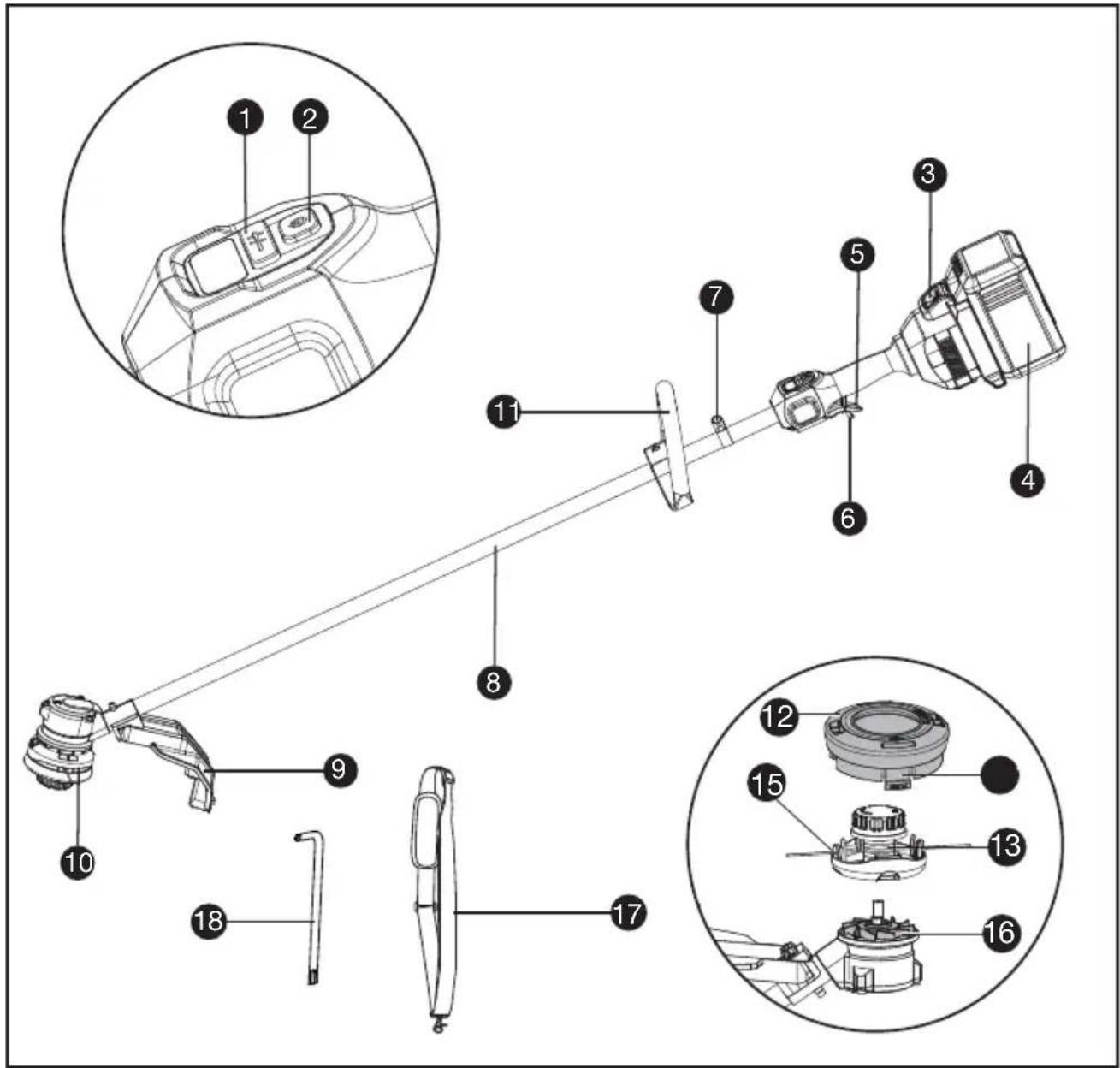

Technical diagram of a mechanical assembly with numbered components and detailed cross-sections

COMPONENT LIST

* Not all the accessories illustrated or described are included in standard delivery.

EN

ORIGINAL INSTRUCTIONS PRODUCT SAFETY GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and

specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not operate the machine in rain or wet conditions. This may increase the risk of electric shock. If the machine becomes wet in the rain during operation, the machine and the battery should be dried before storing or charging. Remove the battery and reinsert it if the machine fails to turn on. Keep battery connection free of dirt and debris, and clean with a soft and dry brush or cloth.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check

for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs.

Service of battery packs should only be performed by the manufacturer or authorized service providers.

ADDITIONAL SAFETY WARNING FOR BRUSH CUTTER AND BRUSH SAW

a) Do not use the machine in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
b) Thoroughly inspect the area for wildlife where the machine is to be used. Wildlife may be injured by the machine during operation.
c) Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones, and other foreign objects. Thrown objects can cause personal injury.
d) Before using the machine, always visually inspect to see that the cutter or blade and the cutter or blade assembly are not damaged. Damaged parts increase the risk of injury.
e) Follow instructions for changing accessories. Improperly tightened blade securing nuts or bolts may either damage the blade or result in it becoming detached.
f) The rated rotational speed of the blade must be at least equal to the maximum rotational speed marked on the machine. Blades running faster than their rated rotational speed can break and fly apart.
g) Wear eye, ear, head and hand protection. Adequate protective equipment will reduce personal injury by flying debris or accidental contact with the cutting line or blade.
h) While operating the machine, always wear safety footwear. Do not operate the machine when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with a moving cutter, line or blade.
i) While operating the machine, always wear long trousers. Exposed skin increases the likelihood of injury from thrown objects.
j) Keep bystanders away while operating the machine. Thrown debris can result in serious personal injury.
k) Always use two hands when operating the machine. Holding the machine with both hands will avoid loss of control.
I) Hold the machine by the insulated gripping surfaces only, because the cutting line or blade may contact hidden wiring. Cutting line or blades contacting a "live" wire may make exposed metal parts of the machine "live" and could give the operator an electric shock.
m) Always keep proper footing and operate the machine only when standing on the ground. Slippery or unstable surfaces may cause a loss of balance or control of the machine.

n) Do not operate the machine on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
o) When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
p) Keep all parts of the body away from the cutter, line or blade when the machine is operating. Before you start the machine, make sure the cutter, line or blade is not contacting anything. A moment of inattention while operating the machine may result in injury to yourself or others.
q) Do not operate the machine above waist height. This helps prevent unintended cutter or blade contact and enables better control of the machine in unexpected situations.
r) When cutting brush or saplings that are under tension, be alert for spring back. When the tension in the wood fibres is released, the brush or sapling may strike the operator and/or throw the machine out of control.
s) Use extreme caution when cutting brush and saplings. The slender material may catch the blade and be whipped toward you or pull you off balance.
t) Maintain control of the machine and do not touch cutters, lines or blades and other hazardous moving parts while they are still in motion. This reduces the risk of injury from moving parts.
u) Carry the machine with the machine switched off and away from your body. Proper handling of the machine will reduce the likelihood of accidental contact with a moving cutter, line or blade.
v) When transporting or storing the machine, always fit the cover on metal blades. Proper handling of the machine will reduce the likelihood of accidental contact with the blade.
w) Only use replacement cutters, lines, cutting heads and blades specified by the manufacturer. Incorrect replacement parts may increase the risk of breakage and injury.
x) When clearing jammed material or servicing the machine, make sure the switch is off and the battery pack is removed. Unexpected starting of the machine while clearing jammed material or servicing may result in serious personal injury.

BLADE THRUST CAUSES AND RELATED WARNINGS

Blade thrust is a sudden sideways, forward or backward motion of the machine, which may occur when the blade jams or catches on an object such as a sapling or a tree stump. It can be violent enough to cause the machine and/or operator to be propelled in any direction, and possibly lose control of the machine.

Blade thrust and its related hazards can be avoided by taking proper precautions as given below.

a) Maintain a firm grip with both hands on the machine and position your arms to resist blade thrust. Position your body to the left side of the machine. Blade thrust can increase the risk of injury due to the machine moving unexpectedly. Blade thrust can be controlled by the operator if proper precautions are taken.
b) If the blade binds, or when interrupting a cut for any reason, switch the machine off and hold the machine motionless in the material until the blade comes to a complete stop. While the blade is binding, never attempt to remove the machine from the material or pull the machine backward while the blade is in motion, otherwise blade thrust may occur. Investigate and take corrective actions to eliminate the cause of blade binding.
c) Do not use blunt or damaged blades. Blunt or damaged blades increase the risk of jamming or catching on an object, resulting in blade thrust.
d) Always maintain good visibility of the material being cut. Blade thrust is more likely to occur in areas where it is difficult to see the material being cut.
e) If you are approached by another person while operating the machine, switch the machine off. There is an increased risk of injury to other persons being struck by the moving blade in the event of blade thrust.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Keep battery pack clean and dry.

g) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
i) Do not maintain battery pack on charge when not in use.
j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
k) Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment.
I) Do not use any battery pack which is not designed for use with the equipment.
m) Keep battery pack out of the reach of children.
n) Retain the original product literature for future reference.
o) Remove the battery from the equipment when not in use.
p) Dispose of properly.
q) Do not mix cells of different manufacture, capacity, size or type within a device.
r) Keep the battery away from microwaves and high pressure.
s) Warning! Do not use non-rechargeable batteries.

USER MANUAL REQUIREMENTS FOR WIRELESS PRODUCT

a) Operation of this device is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

b) Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
c) NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a

circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual
	Wear eye, ear and head protection
	Wear slip-resistant footwear
	WARNING – The distance between the machine and bystanders shall be at least 15 m (50 ft)
	WARNING – Beware of thrown objects
	WARNING – Beware of blade thrust
	WARNING – Disconnect battery before maintenance
	Wear hand protection
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
	Do not burn
	Make sure the battery is removed prior to changing accessories.
Li-Ion	Li-Ion battery This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.
	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
	Trimming

NOTE: Before using the tool, read the instruction book carefully.

BEFORE OPERATION:

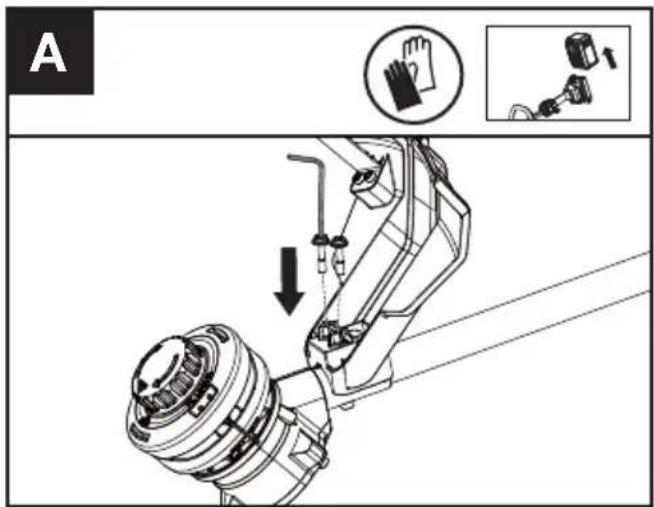

Assembling the debris guard (See Fig. A)

1. Install the correct Debris Guard for the trimmer head.
2. Secure the guard in place using the screw and torx key.

A

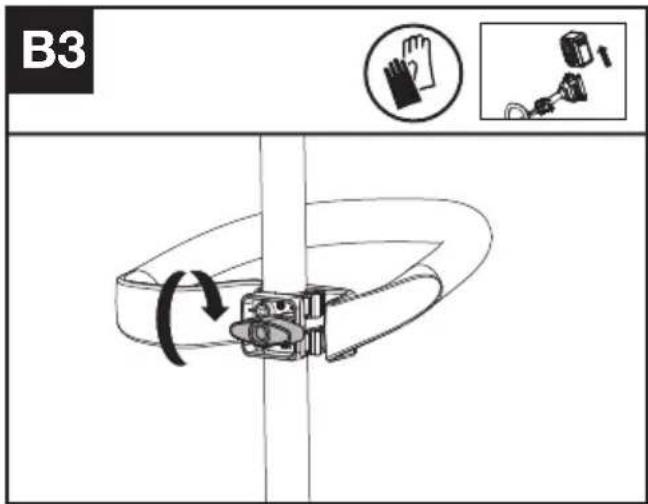

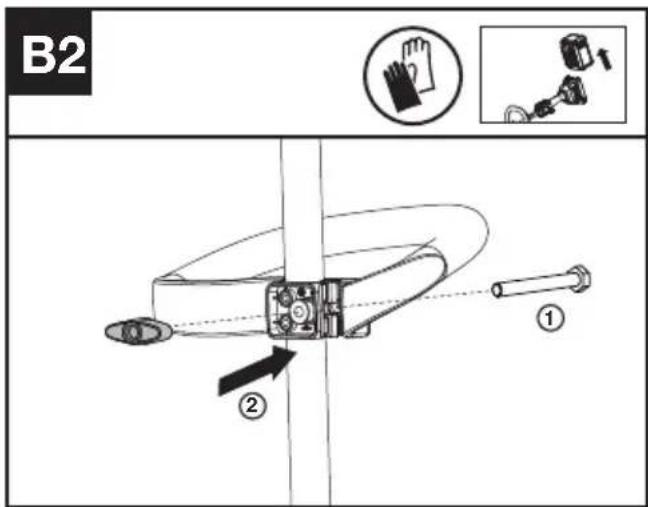

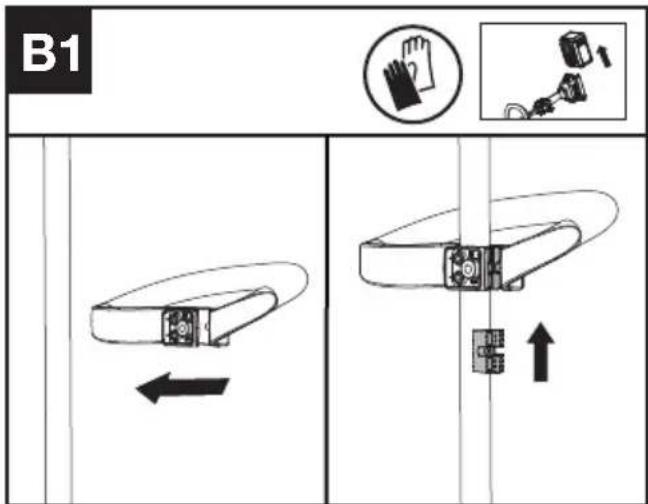

Assembling the Front Handle (See Fig. B1, B2, B3, B4)

1. Attach the Front Handle to the shaft of the grass trimmer and secure it with the Front Handle Spacer.
2. Insert the screw and attach the knob loosely.
3. Adjust the Front Handle to the desired position,

between the two limit labels, and then tighten the knob clockwise to secure it.

WARNING: When assembling the Front Handle, align the arrow of the Front Handle e label. (See Fig. B4)

WARNING: Adjust the Front Handle as desired so as to make sure your front arm is at when using the trimmer.

B1 ← ↑

B2 ① ②

B3 ↑2 ←1

B4

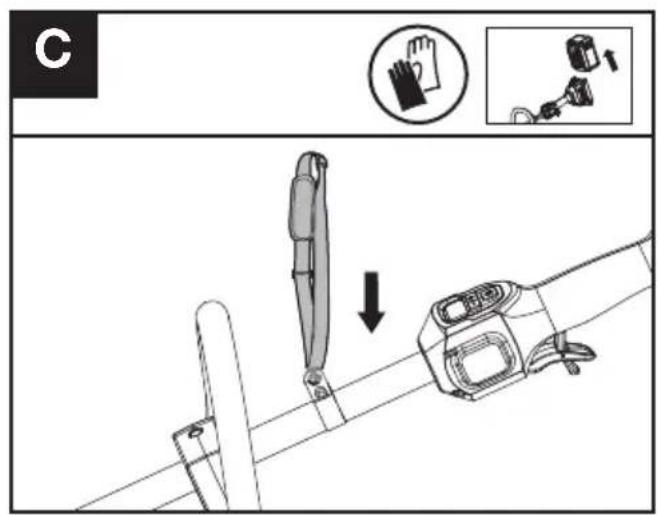

Fitting the shoulder strap (Sold Separately) (See Fig. C)

1. Adjust the length of shoulder strap to make sure that the carabiner is about a hand's width below the top of your hip.
2. Connect the carabiner of the accessory shoulder strap to the mounting point on the shaft of the trimmer.

Diagram illustrating a medical procedure for adjusting a device, with labeled parts and instructional icons.

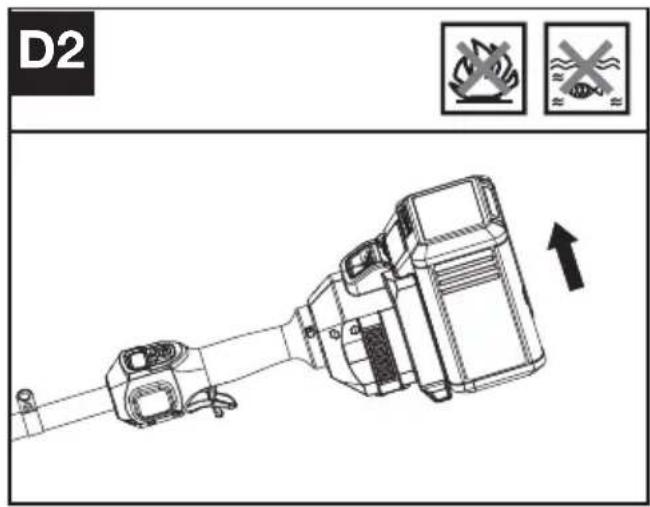

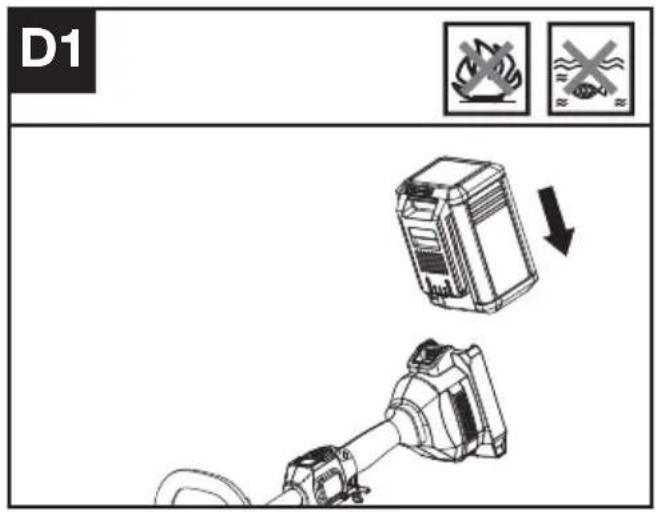

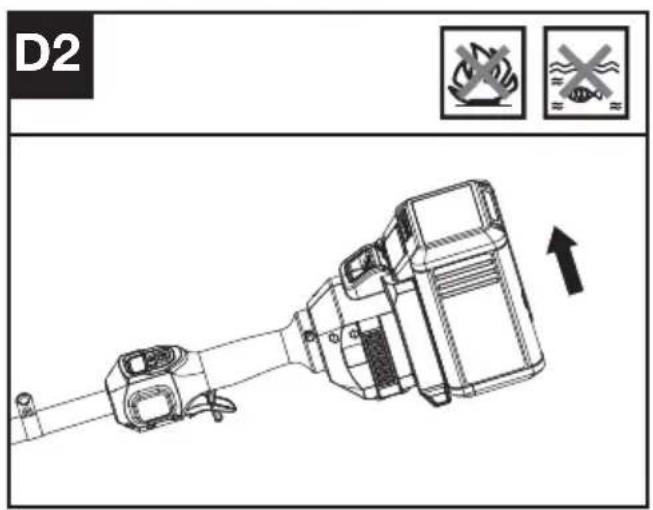

Installing & removing the battery pack (See Fig. D1, D2)

D1

D2 ↑

1. Slide the battery pack into the battery compartment until you hear a click.
2. Press the battery pack release to release battery pack from your tool.

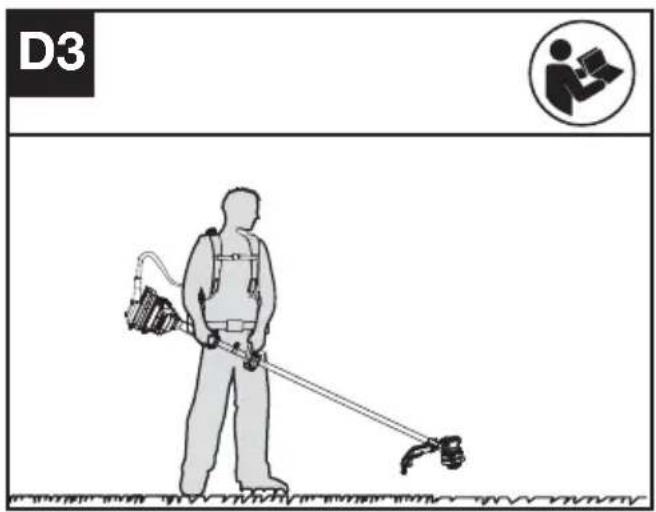

Connecting with the backpack harness (See Fig. D3)

The trimmer can be connected with an accessory backpack harness (not supplied) and weight kit (not supplied). Refer to the backpack harness manual for more information.

D3

TESTING THE TRIMMER AND BATTERY (See Fig. E)

Checking the controls Safety Lock Off Lever and Throttle Trigger

1. Remove the battery.
2. Try to press the Throttle Trigger. If the Throttle Trigger can be pressed without pushing the Safety Lock Off Lever, the Safety Lock Off Lever is defective. Stop using the trimmer and contact the service agent.
3. Push the Safety Lock Off Lever first, then press the Throttle Trigger.
4. Release the Throttle Trigger and the Safety Lock Off Lever. If the Throttle Trigger or the Safety Lock Off Lever is stuck and cannot spring back to its original position. Stop using the trimmer and contact the service agent.

E a b

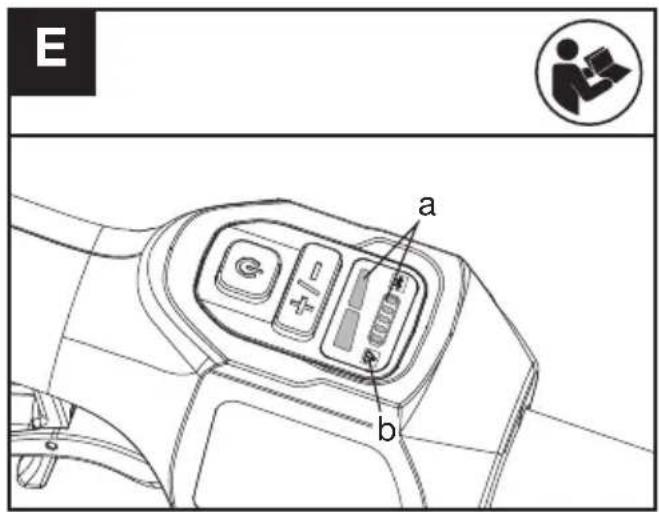

Checking the display

1. Insert the battery.
2. Hold and press the On / Off Switch.
   The product is switched on when the LED (a) is lit.
   The product is switched off when the LED (a) is out.
3. Push the Safety Lock Off Lever first, then press the Throttle Trigger to start the machine. The Trimmer Head rotates.
4. If the warning indicator (b) lights up or is flashing, refer to Troubleshooting for solutions.
5. Release the Throttle Trigger. The Trimmer Head stops rotating after a short delay. If the Trimmer Head continues to rotate, remove the battery and contact the service agent.

OPERATION:

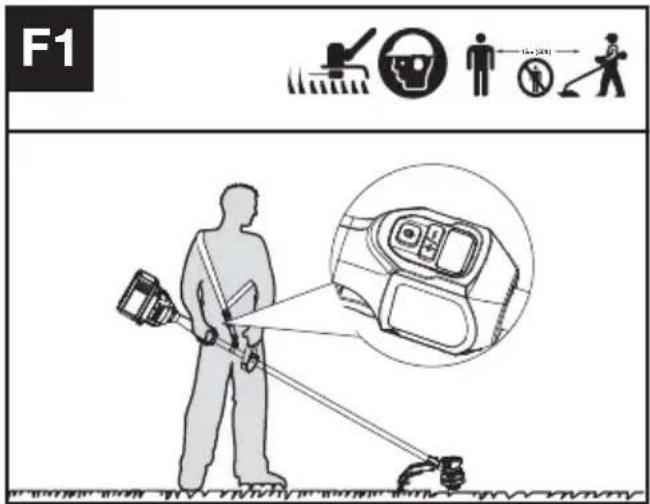

Starting the trimmer (See Fig. F1, F2)

F1 100% 100% (24) 100% (24)

1. Hold the trimmer firmly with your right hand on the control handle – wrap your thumb around the handle. Hold the trimmer with your left hand on the Front Handle– wrap your thumb around the handle.
2. Hold and press the On / Off Switch until the green LED is lit. The green LED shows the power level.

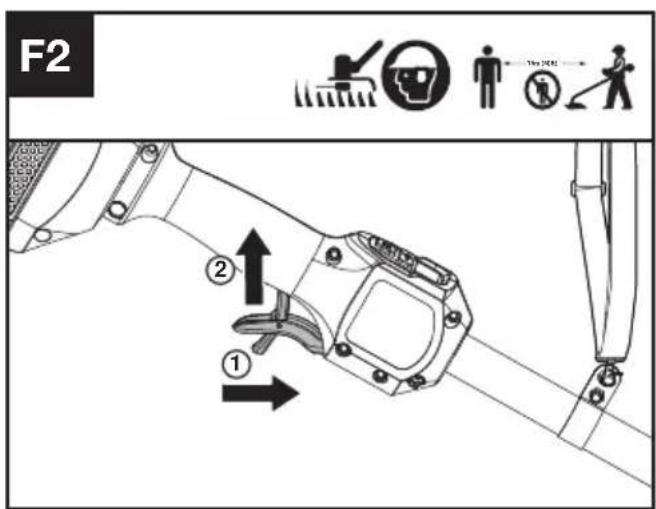

3. Push the Safety Lock Off Lever first, then press the Throttle Trigger to start the machine.

NOTE: The Safety Lock Off Lever is designed to prevent accidental operation. When you push the Safety Lock Off Lever it releases the Throttle Trigger.

F2 ① ②

Selecting the speed

2 Power Levels can be selected depending on the application. Use the +/- to control the speed, which is as indicated by the LEDs. The higher the power level, the faster the tool runs.

Stopping the trimmer

Release the Throttle Trigger to stop the machine.

WARNING! The cutting head continues to rotate after the trimmer has been switched off; wait until it has completely stopped then lay down the tool.

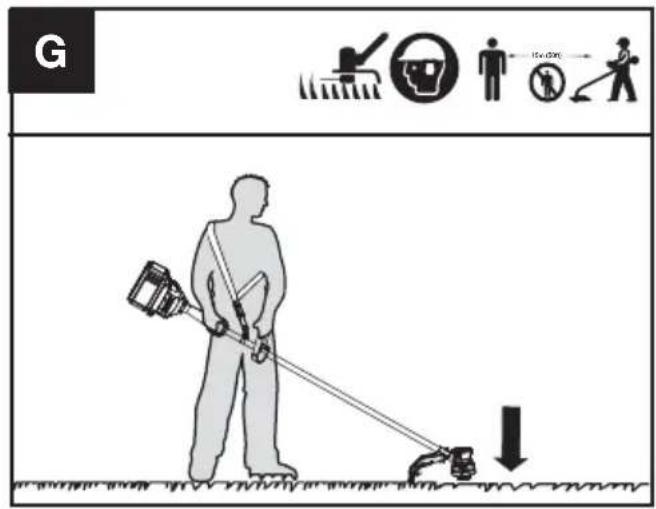

Bump-line feed system (See Fig. G)

The trimmer is equipped with a bump-line system. Just bump the trimmer head while the machine is running, new line will feed out.

G 150.000

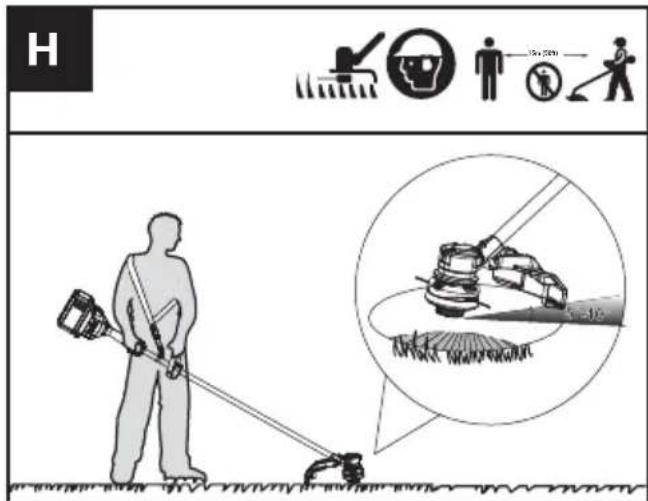

Cutting Tips (See Fig. H)

H 15+20h 15-10h

1. Swing the trimmer from side to side across the area to be cut.
2. Use the tip of the cutting line to do trimming; do not force the trimmer head into uncut grass.
3. Wire and picket fences may cause extra cutting line wear and breakage. Stone and brick walls, curbs, and wood may wear cutting line rapidly.
4. Avoid trees and shrubs. Tree bark, wood moldings, siding, and fence posts can easily be damaged by the cutting line.
5. The selected power level affects the battery's runtime. The lower the power level, the longer the runtime. It is recommended to use the lowest power level unless in worse cutting condition.

For Battery tools

The recommended ambient temperature range for discharging is -20^ 45^ ( -4^ 113^ ).

The recommended ambient temperature range for the charging system during charging is -5°C\~45°C (23°F\~113°F).

TRANSPORTATION

Transporting the trimmer

1. Switch off the trimmer and remove the battery.
2. When transporting your trimmer by hand, hold the middle of the shaft with the cutting head to the rear and make sure that your machine is parallel to the ground.
3. When transporting your trimmer in a vehicle, secure and position it to prevent movement or damage.

Transporting the battery

1. Ensure the battery is in a safe condition.
2. Use non-conductive packaging when transporting the battery.
3. The contained Li-Ion batteries are subject to the dangerous goods legislation requirements.
   Transport batteries only when the battery housing is undamaged. Pack up the batteries in such a manner that cannot move around in the packaging.

MAINTENANCE

WARNING! Always remove battery before conducting any maintenance on the trimmer.

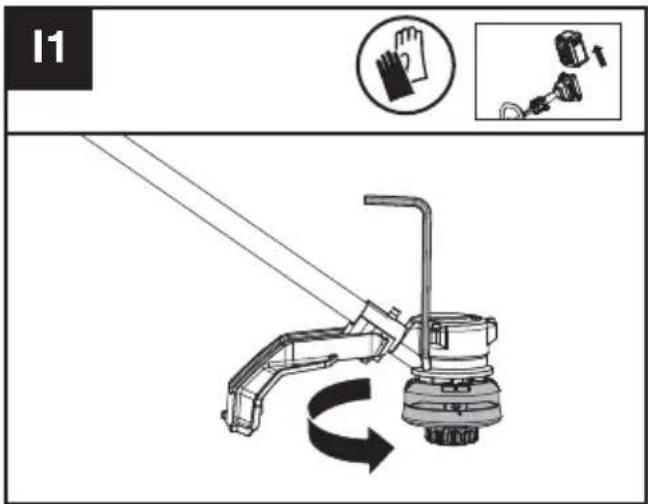

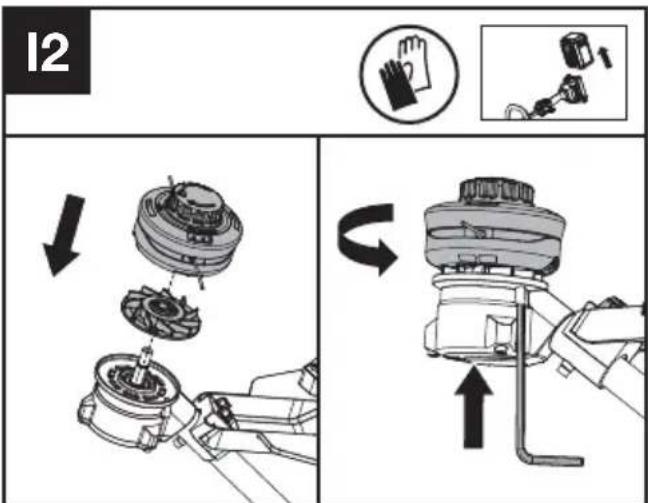

Replacing the trimmer head (See Fig. I1, I2)

WARNING! Use of wire or metal-reinforced line is not authorized and could be extremely dangerous. Use only the cutting line recommended in this manual, in combination with the recommended debris guard.

WARNING! A damaged or loose cutting attachment head may vibrate, crack, break or come off the trimmer, which may result in serious or fatal injury or property damage. Make sure the trimmer head are properly and securely tightened and in good condition before starting work.

11

12 ↓ ←

1. Insert the torx key into the hole and rotate the trimmer head to remove it.
2. Fit the Fan and the new cutting head. Insert the torx key into the hole and rotate the trimmer head counterclockwise until it stops in a locked position.

WARNING: When installing the Fan, ensure that the side with the "Outside" indicator is facing outward.

Winding the line (See Fig. J1, J2, J3)

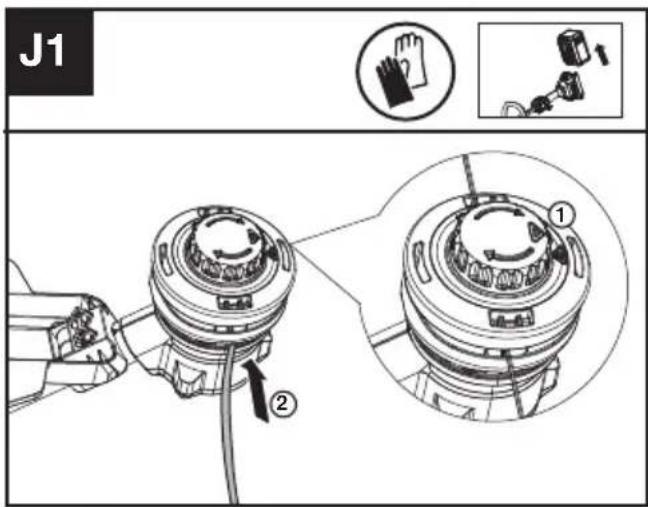

1. Rotate the spool cap until the two triangle icons are aligned. (See Fig. J1)

J1 ① ②

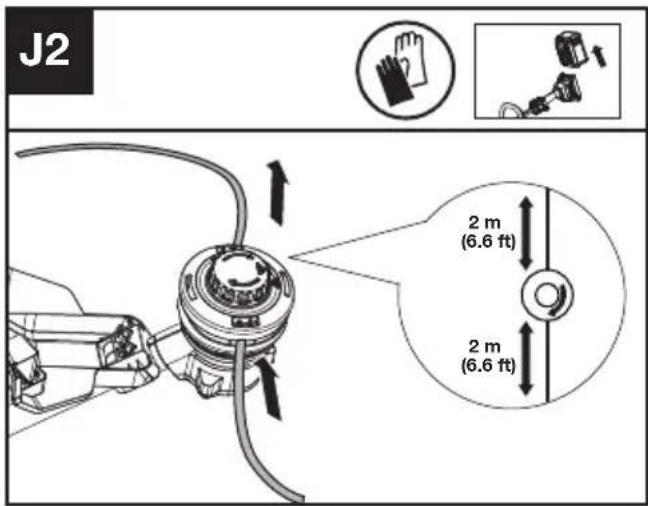

J2 2 m (6.6 ft) 2 m (6.6 ft)

1. Insert the replacement line through the eyelet (Line In) and feed it out through the other eyelet. Ensure both ends of the line are even on each end of the trimmer head (recommended 2 m (6.6 ft)) and cut the line. (See Fig. J2)

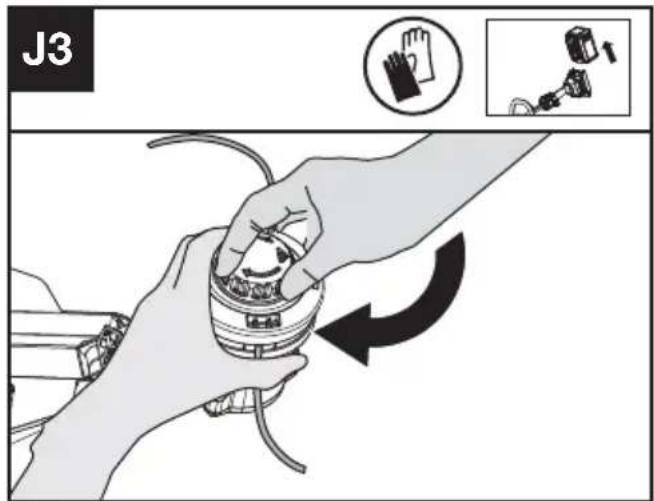

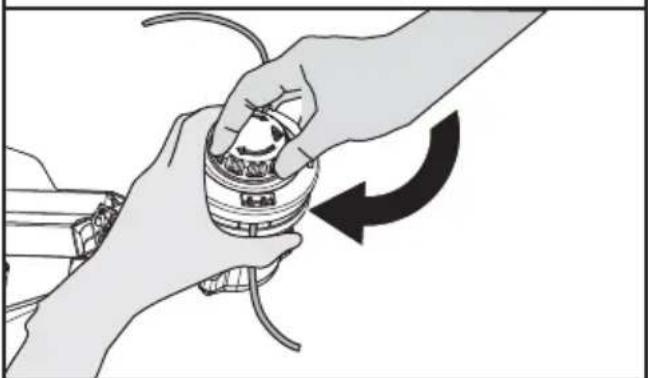

2. Turn the dial clockwise to wind the line around the spool until about 16 cm (6") remains on either side. (See Fig. J3)

J3

CLEANING

1. Switch off the trimmer and remove the battery.
2. Do not use aggressive detergents or solvents. Clean the machine after use with a damp cloth dipped in mild detergent.
3. Keep battery connection free of dirt and debris, and clean with a soft and dry brush or cloth.
4. Do not spray water onto the motor and electrical components.
5. Do not use pressure washer to clean your machine.

STORAGE

1. Remove the battery pack from the trimmer before storage.
2. If the machine becomes wet in the rain during operation, the machine and the battery should be dried before storing or charging. Remove the battery and reinsert it if the machine fails to turn on.
3. Store the trimmer and the battery in a dry and secure place that is inaccessible to children and other unauthorized people.

Remove the cutting attachment if it will not be used for a long time.

1. Store the battery only within a temperature range between 5 °C (41 °F) and 25 °C (77 °F). As an example, do not leave the battery in the car in summer time.

TROUBLESHOOTING

The following table gives problems and actions that you can perform if your machine does not operate correctly.

WARNING: Switch the machine off and remove the battery prior to any troubleshooting.

TRIMMER

Problems Possible	Causes Corrective Action
Battery indicator LED flashing	Low battery voltage. Charge the battery.
Error LED flashing Overload.	The cutting attachment is jammed.
	Temperature issue. Let the product cool down.
	The Throttle Trigger and the start/stop button are pressed at the same time.	Release Throttle Trigger. Perform the starting sequence again.
	Other problems Contact Service Agent
The product does not start Debris in the battery connectors.		Clean the battery connectors with compressed air or a soft brush.
Trimmer runs intermittently The battery is not fully inserted to the machine.		Insert the battery fully.
Excessive vibrations/ noise. Line balance issue. Rewind the line.

EN

BATTERY

Problems Possible	Causes Corrective Action
Error LED lit The battery is discharged	Charge the battery. If battery fails to charge, contact your Service Agent.
	Temperature issue. Use the battery in surroundings where temperatures are between -5°C and 45°C (23°F to 113°F) for charge; -20°C to 45°C (-4°F to 113°F) for discharge.
	Others Contact your Service Agent.

TECHNICAL DATA

Type Designation: KC110 KC110.X (1-designation of machinery, representative of Cordless Grass Trimmer)

	KC110 KC110.X **
Voltage	60 V --- MAX ***
Cutting speed	4500 / 5500 rpm
Cutting diameter	42 cm (16.5")
Line diameter	2.4 / 2.7 mm (0.095'' / 0.105'') nylon line
Degree of protection IPX 4
Machine weight (Bare tool)	3 kg (6.6 lbs)

** X=1-999, A-Z, M1-M9 they are only used for different customers, there are no safety relevant changes between these models.
*** Voltage measured without workload. Initial battery voltage reaches maximum of 60 volts. Nominal voltage is 54 volts.

SUGGESTED BATTERIES AND CHARGERS

Battery Capacity Charger Amperage
KAC804 4.0 Ah		KAC840 30 A
KAC810(With Backpack Harness and Weight Kit)	11.0 Ah

We recommend that you purchase your accessories from the same Dealer that sold you the tool. Refer to the accessory packaging for further details. Your Dealer can assist you and offer advice.

TECHNICAL DATA FOR BATTERY PACK (OPTIONAL)

Frequency bands for Bluetooth 2400-2483.5 MHz
Maximum Output Power for Bluetooth	8 dBm

COMBINATIONS OF CUTTING ATTACHMENTS, DEFLECTORS, AND CARRYING SYSTEMS

Cutting attachment Debris	guard Barrier bar Carrying system
- 4" Trimmer head (KAC100 / KAC106) - 5" Trimmer head (KAC101) (Optional, not included)	- compact trimmer head guard (KAC184)	- Optional
- Knife blade (KAC171)	- compact blade guard (KAC185)	- Required

NOISE INFORMATION

A weighted sound pressure L	_pA = 76.1 dB(A)
K_pA	3 dB(A)
A weighted sound power L	_wA = 88.77 dB(A)
K_wA	5.66 dB(A)
Wear ear protection.

VIBRATION INFORMATION

Typical weighted vibration a	_h < 2.5 m/s^2
Uncertainty K = 1.5 m/s^2

WARNING: The vibration emission value during actual use of the power tool can differ

from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained The use the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use

should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimise your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate)

If the tool is to be used regularly then invest in anti vibration accessories.

Plan your work schedule to spread any high vibration tool use across a number of days.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please

recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Postfach 680194, 50704 Cologne, Germany

On behalf of Positec declare that the product

Description Cordless Grass Trimmer

Type KC110 KC110.X (1-designation of machinery, representative of Cordless Grass Trimmer)

Function cutting grass and similar soft vegetation and for trimming grass edges

Complies with the following Directives:

2006/42/EC

2014/30/EU

2011/65/EU&(EU)2015/863

2000/14/EC amended by 2005/88/EC

2000/14/EC amended by 2005/88/EC:

- Conformity Assessment Procedure as per

Annex VI

- Measured Sound Power Level 94.4 dB (A)

- Declared Guaranteed Sound Power Level 96 dB (A)

The notified body involved

Standards conform to

EN 62841-1, FprEN IEC

62841-4-4:2020+FprAA:2021-02, EN 62233,

EN ISO 3744, EN IEC 55014-1, EN IEC 55014-2, EN IEC 63000

The person authorized to compile the technical file,

Name Marcel Filz

Address Positec Germany GmbH

Postfach 680194, 50704 Cologne, Germany

A# C€

2024/01/23

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

DECLARATION OF CONFORMITY

We,

Positec (UK & Ireland) Ltd

PO Box 6242, Newbury, RG14 9LT, UK

On behalf of Positec declare that the product

Description Cordless Grass Trimmer

Type KC110 KC110.X (1-designation of machinery, representative of Cordless Grass Trimmer)

Function cutting grass and similar soft vegetation and for trimming grass edges

Complies with the following Directives:

Supply of Machinery (Safety) Regulations 2008

Electromagnetic Compatibility Regulations 2016

The Restriction of the Use of Certain Hazardous

Substances in Electrical and Electronic

Equipment Regulations

Noise Emission in the Environment by Equipment for Use Outdoors Regulations

- Conformity Assessment Procedure as per SCHEDULE 9

- Measured Sound Power Level 94.4 dB (A)

- Declared Guaranteed Sound Power Level 96 dB (A)

The notified body involved

Standards conform to

BS EN 62841-1, FprBS EN IEC

62841-4-4:2020+FprAA:2021-02, BS EN 62233,

BS EN ISO 3744, BS EN IEC 55014-1, BS EN IEC

55014-2, BS EN IEC 63000

The person authorized to compile the technical file,

Name Jim Kirkwood

Address Positec (UK & Ireland) Ltd,

PO Box 6242, Newbury, RG14 9LT, UK

A#207

UK CA

2024/01/23

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INHALTSVERZEICHNIS

Einführung....19

Komponenten....20

Technical diagram of a mechanical device with numbered components and exploded views, including a close-up inset of the engine compartment.

KOMPONENTEN

F1 5v 220

F2 ① ②

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SOMMAIRE

Introduction....36

Technical diagram of a mechanical assembly with numbered components and detailed cross-sections

LISTE DES COMPOSANTS

1. BOUTONS DE RÉGLAGE DE LA VITESSE
2. INTERRUPTEUR MARCHE/ARRÊT
3. VERROU DE PACK BATTERIE
4. PACK BATTERIE *
5. MANETTE DES GAZ
6. LEVIER DE DÉSACTIVATION DE SÉCURITÉ
7. SUPPORT DE BANDOULIÈRE
8. FLASQUE
9. PROTECTION ANTI-DÉBRIS
10. TÊTE DE COUPE
11. FRONT HANDLE
12. COUVERCLE DE BOBINE
13. BOBINE

14. LOQUET DE DÉVERROUILLAGE DE COUVERCLE

15. ŒILLET

16. VENTILATEUR

17. BANDOULIÈRE *

18. CLÉ TORX

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INDICE

Introduzione....52

Technical diagram of a mechanical assembly with numbered parts and detailed cross-sections for identification.

ELENCO COMPONENTI

1. CONTROLLO DELLA VELOCITA'
2. INTERRUTTORE ON/OFF
3. SERRATURA A SCATTO UNITÀ BATTERIA
4. UNITÀ BATTERIA *
5. GRILLETTO DELL'ACCELERATORE
6. LEVA DI SICUREZZA DISATTIVAZIONE
7. SUPPORTO PER TRACOLLA
8. ALBERO
9. PROTEZIONE ANTI-DETRITI
10. TESTA DI TAGLIO
11. MANIGLIA ANTERIORE
12. COPRI BOBINA

13. BOBINA

14. CHIUSURA DI RILASCIO DEL CAPPUCCIO

15. OCCHIELLO
16. VENTOLA
17. TRACOLLA *
18. CHIAVE TORX

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

ÍNDICE

Introducción....68

Lista de componentes....69

Technical diagram of a mechanical assembly with numbered components and detailed cross-sections

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

ÍNDICE

Introdução....84

Lista de componentes....85

Technical diagram of a mechanical assembly with numbered components and detailed cross-sections

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INHOUDSOPGAVE

Inleiding....100

Technical diagram of a mechanical assembly with numbered components and detailed cross-sections

ONDERDELENLIJST

1. SNELHEIDSREGELING
2. AAN/UIT-SCHAKELAAR
3. ACCU-ONTGRENDELING
4. ACCUPACK *
5. GASHENDEL
6. VEILIGHEIDSONTGRENDELINGSHENDEL
7. SCHOUDERRIEMBEVESTIGING
8. SCHACHT
9. BESCHERMKAP
10. FIJNAFSTEMMINGSKOP
11. VOORSTE HANDGREEP
12. SPOELKAP

13. SPOEL

14. KAPONTGRENDELING

15. HANGOOG
16. VENTILATOR
17. SCHOUDERRIEM *
18. TORX-SLEUTEL

D1 No. 1 No. 2

D2 ↑

WAARSCHUWING:De trillings emissie

WAARSCHUWING: Voor de

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

TARTALOMJEGYZÉK

Bevezető....116

Technical diagram of a mechanical assembly with numbered components and detailed cross-sections

G 100% 2000

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

CUPRINS

Introducere....133

Technical diagram of a mechanical assembly with numbered components and detailed cross-sections

LISTĂ DE COMPONENTE

1. CONTROLUL VITEZEI
2. BUTON DE PORNIRE/OPRIRE
3. BUTON DE ELIBERARE A ACUMULATORULUI
4. ACUMULATOR *
5. BUTONUL DE ACCELERATIE
6. MANETĂ DE BLOCARE A SIGURANȚEI
7. SUPORT CUREA DE UMĂR
8. ARBORE
9. PROTECTIE ÎMPOTRIVA RESTURILOR
10. CAPUL MOTOCOASEI
11. MÂNER FRONTAL
12. CAPAC BOBINĂ

13. BOBINĂ

14. OPRITOR ELIBERARE CAPAC

15. ORIFICIU
16. VENTILATOR
17. CUREA DE UMĂR *
18. CHEIE HEXAGONALĂ

F1 100% 100%

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SPIS TREŚCI

Wprowadzenie....149

Technical diagram of a mechanical assembly with numbered components and detailed views for identification.

LISTA KOMPONENTÓW

WYKASZARKI DO TRAWY/ZAROŚLI I PIŁ TARCZOWYCH

2 m (6.6 ft) 2 m (6.6 ft)

J3

Illustration of hands assembling a mechanical component with an arrow indicating rotation (no text or symbols present)

CZYSZCZENIE

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

OBSAH

Úvod....166

Technical diagram of a mechanical assembly with numbered components and detailed cross-sections

SEZNAM KOMPONENTŮ

1. REGULACE RYCHLOSTI
2. HLAVNÍ VYPÍNAČ
3. UVOLŇOVACÍ TLAČÍTKO BATERIOVÉ SADY
4. BATERIOVÁ SADA *
5. SPOUŠT ŠKRTICÍ KLAPKY
6. BEZPEČNOSTNÍ ODJIŠTOVACÍ PÁKA
7. DRŽÁK NA RAMENNÍ POPRUH
8. TĚLO
9. OCHRANNÝ KRYT PROTI NEČISTOTÁM
10. HLAVA VYŽÍNAČE
11. PŘEDNÍ RUKOJEŤ
12. KRYT CÍVKY

13. CÍVKA

14. UVOLŇOVACÍ ZÁPADKA KRYTU

15. OČKO
16. VĚTRÁK
17. RAMENNÍ POPRUH *
18. TORX KLÍČ (HVĚZDIČKOVÝ KLÍČ)

INFORMACE TÝKAJÍCÍ SE HLUČNOSTI

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

OBSAH

Úvod....182

Technical diagram of a mechanical assembly with numbered components and detailed cross-sections

ZOZNAM SÚČASTÍ

1. OVLÁDANIE RÝCHLOSTI
2. TLAČIDLO ZAPNÚŤ/VYPNÚŤ
3. UVOLŇOVACÍ TLAČÍTKO BATERIE
4. BATÉRIOVÝ *
5. ŠKRTIACA KLAPKA
6. PÁKA BEZPEČNOSTNÉHO ZÁMKU
7. DRŽIAK NA RAMENNÝ POPRUH
8. TYČ
9. OCHRANNÉHO KRYTU PROTI ÚLOMKOM
10. JEMNE VYLADENÁ HLAVA
11. PREDNEJ RUKOVÄTE
12. UZÁVER CIEVKY

13. CIEVKA

14. ZÁPADKA NA UVOL'NENIE VIEČKA

15. OČKO
16. VENTILÁTOR
17. RAMENNÝ POPRUH *
18. TORX KLÚČ

Diagram illustrating a person using a tool to clean a machine, with corresponding icons and a magnified view of the machine's working position.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

KAZALO VSEBINE

Uvod....198

Sestavni deli....199

Varnost izdelka....201

Sestavljanje in delovanje....205

Prevoz....209

Vzdrževanje....209

Čiščenje....210

Shranjevanje....210

Technical diagram of a mechanical assembly with numbered parts and detailed cross-sections for identification.

SESTAVNI DELI

1. KRMILNIK HITROSTI
2. STIKALO ZA VKLOP/IZKLOP
3. GUMB ZA SPROSTITEV AKUMULATORJA
4. AKUMULATOR *
5. SPROŽILEC PLINA
6. VARNOSTNA ROČICA ZA ZAKLEPANJE
7. NASTAVEK ZA NARAMNI PAS
8. GREDI
9. ŠČITNIK ZA OBREZKE
10. GLAVA OBREZOVALNIKA
11. SPREDNJI ROČAJ
12. POKROVČEK MOTKA

13. MOTEK

14. ZAPAH ZA SPROSTITEV POKROVČKA

15. OBROČEK
16. VENTILATOR
17. NARAMNI PAS *
18. TORX KLJUČ

F1 ✓ ○ ↑ ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← →

F2 ① ②

Izbiranje hitrosti

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SADRŽAJ

Uvod....214

Popis komponenti....215

Sigurnost proizvoda....217

Sastavljanje i rad....221

Transport....224

Održavanje....225

Čišćenje....226

Skladištenje....226

Otklanjanje poteškoća....226

Tehnički podaci....227

HR

Zaštita okoliša....228

Izjava o sukladnosti....228

UVOD

Poštovani,

Technical diagram of a mechanical assembly with numbered parts and detailed cross-sections for identification.

POPIS KOMPONENTI

1. KONTROLA BRZINE

2. PREKIDAČ ON/OFF (UKLJUČENO/ISKLJUČENO)

3. OTVARANJE BATERIJSKOG MODULA

4. BATERIJSKI KOMPLET *

5. AKTIVATOR GASA

6. SIGURNOSNA RUČICA ZA ISKLJUČIVANJE

7. MONTIRANJE NARAMENICE

8. OSOVINA

9. ŠTITNIK OD KRHOTINA

10. GLAVA TRIMERA

11. PREDNJA RUČKA

12. POKLOPAC KALEMA

13. KALEM

14. ZASUN ZA OTPUŠTANJE POKLOPCA

15. UŠICA
16. VENTILATOR
17. NARAMENICA *
18. TORX KLJUČ

* Standardna isporuka ne obuhvaća sav ilustriran ili opisan pribor.

ORIGINALNE UPUTE

ZA RAD

SIGURNOST

PROIZVODA

UOBIČAJENA

SIGURNOSNA

UPOZORENJA ZA

ELEKTRIČNE

ALATE

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INDHOLDSFORTEGNELSE

Introduktion....229

Technical diagram of a mechanical device with numbered components and exploded views, including a close-up inset of the engine compartment.

(1) This device may not cause harmful interference, and

H 100% 200%

KC110 KC110.X (1-dpegning af

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SISÄLLYSLUETTELO

Johdanto....244

Komponenttiluettelo....245

Technical diagram of a mechanical assembly with numbered components and detailed cross-sections

KOMPONENTTILUETTELO

1. NOPEUDENSÄÄTÖ
2. ON/OFF-VIRTAKYTKIN
3. AKKUYKSIKÖN VAPAUTUSPAINIKE
4. AKKUYKSIKKÖ *
5. KAASULIIPAISIN
6. TURVALUKON VAPAUTUSVIPU
7. OLKAHIHNAN ASENNUSKOHTA
8. VARI SI
9. ROSKASUOJA
10. TRIMMERIPÄÄ
11. ETUKAHVA
12. KELAN KORKKI
13. KELA

14. KORKIN VAPAUTUSSALPA

15. SILMUKKA

16. TUULETIN

17. OLKAHIHNA *

18. TORX-AVAIN

F1 5v 0.25m

F2 ① ②

G 100% 25% ↓

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

FIN

YMPÄRISTÖNSUOJELU

Technical diagram of a mechanical assembly with numbered components and detailed cross-sections

KOMPONENTLISTE

1. HASTIGHETSKONTROLL
2. AV/PÅ-BRYTER
3. LÅS FOR BATTERIPAKKE
4. BATTERIPAKKE *
5. GASSBRYTER
6. SIKKERHETSLÅSSPAKE
7. SHOULDER STRAP MOUNT
8. SHAFT
9. BESKYTTELSESSKJERMEN
10. FINJUSTERINGSHODE
11. HÅNDTAKET FORAN
12. SPOLEDEKSEL

13. SPOLE

14. LÅS FOR UTL∅SNING AV DEKSEL

15. MALJE
16. VIFTE
17. SKULDERREM *
18. TORXN∅KKEL

H 100% 200%

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INNEHÅLLSFÖRTECKNING

Introduktion....274

Komponenter....275

Produktsäkerhet....277

Transportation....284

Underhåll....284

Rengöring....285

Förvaring....285

Felsökning....286

Tekniska data....286

Miljöskydd....288

Technical diagram of a mechanical assembly with numbered components and detailed cross-sections

KOMPONENTER

1. HASTIGHETSKONTROLL
2. STRÖMBRYTARE PÅ/AV
3. BATTERIPAKETETS LÅSNING
4. BATTERIPAKET *
5. GASREGLAGE FÖR DRIFT
6. SÄKERHETSLÅSSPAK
7. AXELREMSFÄSTE
8. SKAFT
9. SKRÄPSKYDD
10. FINJUSTERANDE HUVUD
11. FRÄMRE HANDTAG
12. SPOLLOCK

13. SPOLE

14. LÅSHAKE LOCK

15. ÖGLA
16. FLÄKT
17. AXELREM *
18. VRIDMOMENTNYCKEL

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Kress Commercial

Copyright © 2024, Positec. All Rights Reserved.

AR01749400
