Product type	Type K temperature probe
Use	Measurement of air and gas temperature
Measurement range	-50 °C to 800 °C
Accuracy	±2.5 °C (-50 °C to 333 °C) / ±0.75 % (333 °C to 800 °C)
Dimensions (W x H x D)	22 x 295 x 22 mm (without cable)
Weight	106 g
Cable length	0.4 to 1.2 m
Handle	High-temperature resistant
Compatibility	ThermoMaster, ThermoMaster Plus, ThermoSpot XP, CondenseSpot XP, MultiMeter XP, ClampMeter XP
Operating conditions	-10 °C to 60 °C, max humidity 80% RH, max altitude 4000 m
Storage conditions	-20 °C to 70 °C, max humidity 80% RH
Maintenance	Clean with a slightly damp cloth; avoid abrasive products and solvents
Safety	Do not use in explosive areas or for medical diagnostics; do not modify the instrument; do not expose to external voltages
Power supply	Passive probe, powered by the host device
Included accessories	Connection cable (1 piece)
Repairability	Not user-repairable; contact customer service
Standards	Compliant with EU and WEEE directives

Frequently Asked Questions - ThermoSensor Air Laserliner

How to connect the ThermoSensor Air probe to my device?

Plug the type K connector into the corresponding input of your compatible measuring device (ThermoMaster, etc.).

What is the temperature range of the Air probe?

The measurement range is -50 °C to 800 °C.

Can I use this probe in liquids?

No, it is designed for air and gases only. Use the Tip or Touch models for liquids.

How to clean the probe?

Clean it with a slightly damp cloth. Do not use abrasive products or solvents.

Is the probe compatible with all thermometers?

It is compatible with ThermoMaster, ThermoMaster Plus, ThermoSpot XP, CondenseSpot XP, MultiMeter XP and ClampMeter XP from Laserliner.

What to do if the probe displays an incorrect temperature?

Check the connection and make sure it is properly plugged in. Consult the manual of your host device.

Can I immerse the probe in a liquid to measure temperature?

No, this probe is intended for air and gases. Use the Tip or Touch models for liquids.

What safety precautions should be taken?

Do not use in explosive atmospheres or for medical measurements. Do not expose to extreme temperatures beyond the specified range (-50 °C to 800 °C).

Does the probe require a battery?

No, it is a passive probe that draws power from the measuring device.

Where can I find the warranty?

Refer to the booklet "Additional notes and warranty information" provided with the packaging.

USER MANUAL ThermoSensor Air Laserliner

ThermoSensor Air / Tip / Touch

-50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 820°C 820°C 820°C 820°C 820°C 820°C 820°C 820°C 820°C 820°C 820°C 820°C

Laserliner

DE 02 EN 04 NL 06 DA 08 FR 10 ES 12 IT 14 PL 16 FI 18 PT 20 SV 22 NO 24 TR 26 RU 28 UK 30 CS 32 ET 34 RO 36 BG 38 EL 40

Laserliner

!

Diagram of a soldering iron plug with labeled parts including terminal and pin connections

1 K-Type-Anschluss

3 Messfläche

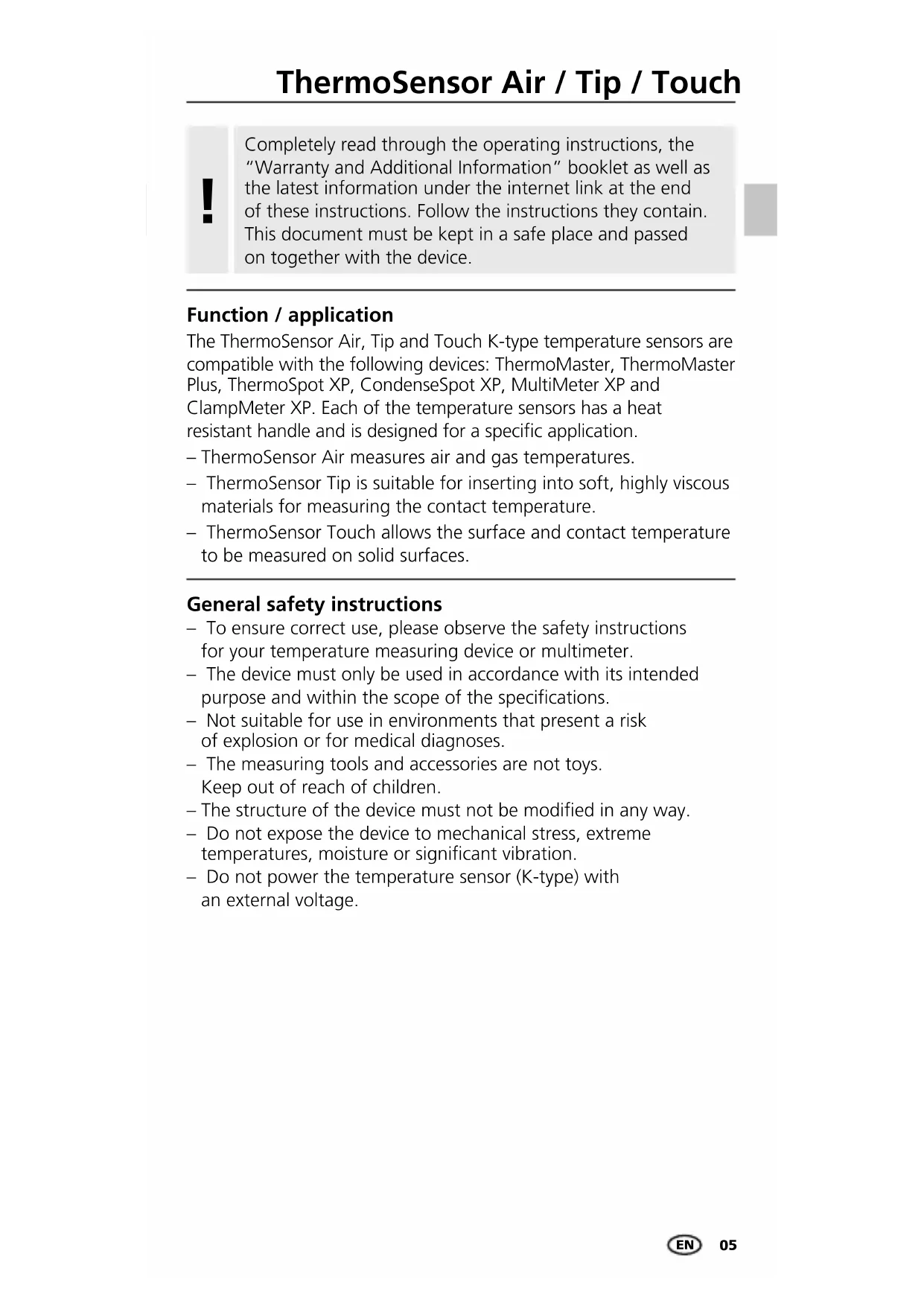

Completely read through the operating instructions, the "Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / application

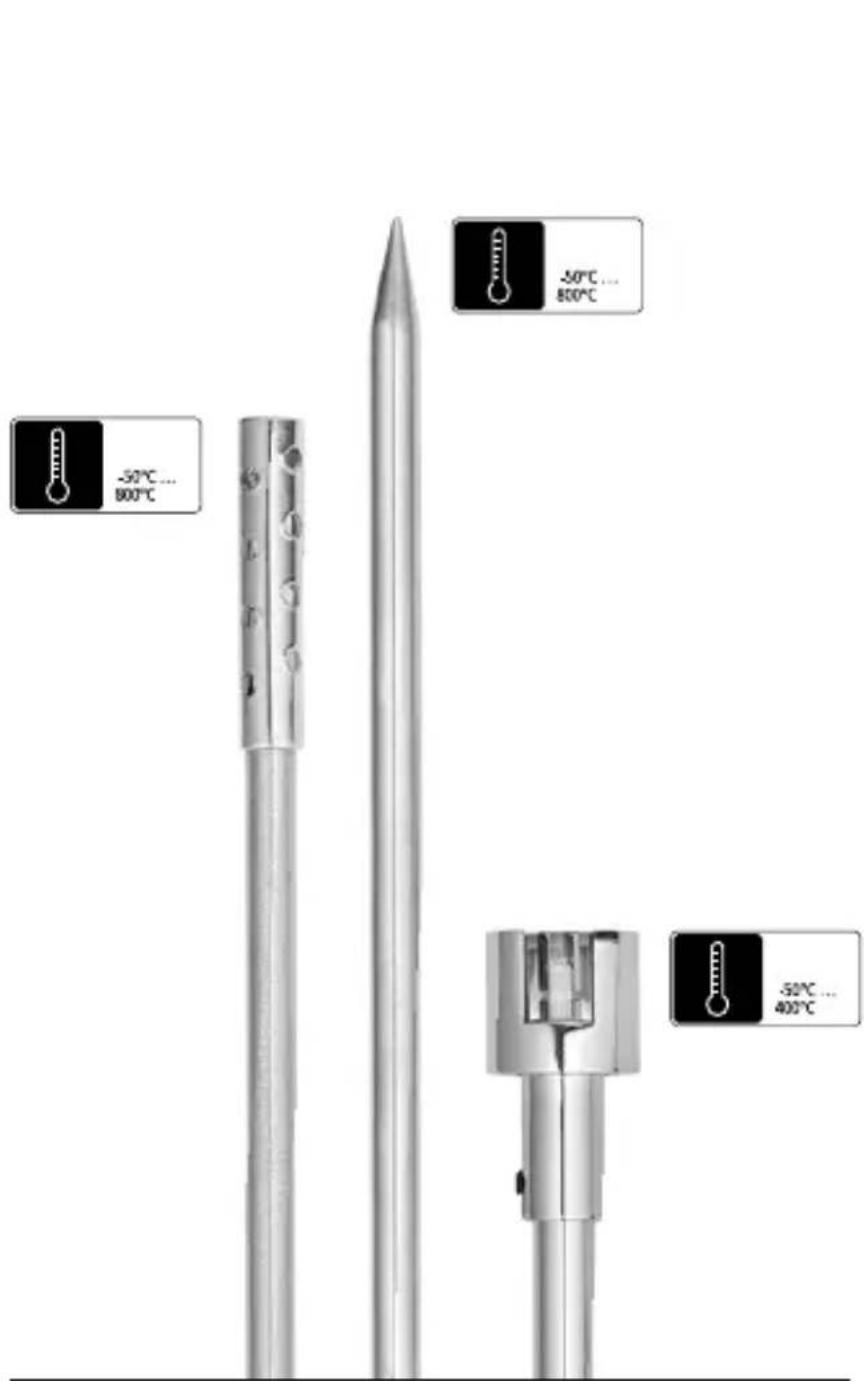

The ThermoSensor Air, Tip and Touch K-type temperature sensors are compatible with the following devices: ThermoMaster, ThermoMaster Plus, ThermoSpot XP, CondenseSpot XP, MultiMeter XP and ClampMeter XP. Each of the temperature sensors has a heat resistant handle and is designed for a specific application.

– ThermoSensor Air measures air and gas temperatures.
- ThermoSensor Tip is suitable for inserting into soft, highly viscous materials for measuring the contact temperature.
- ThermoSensor Touch allows the surface and contact temperature to be measured on solid surfaces.

General safety instructions

• To ensure correct use, please observe the safety instructions for your temperature measuring device or multimeter.
• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• Not suitable for use in environments that present a risk of explosion or for medical diagnoses.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• Do not power the temperature sensor (K-type) with an external voltage.

Laserliner

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Store the device in a clean and dry place.

Diagram of a soldering iron with labeled parts including plug, solder rod, and terminal connectors

1

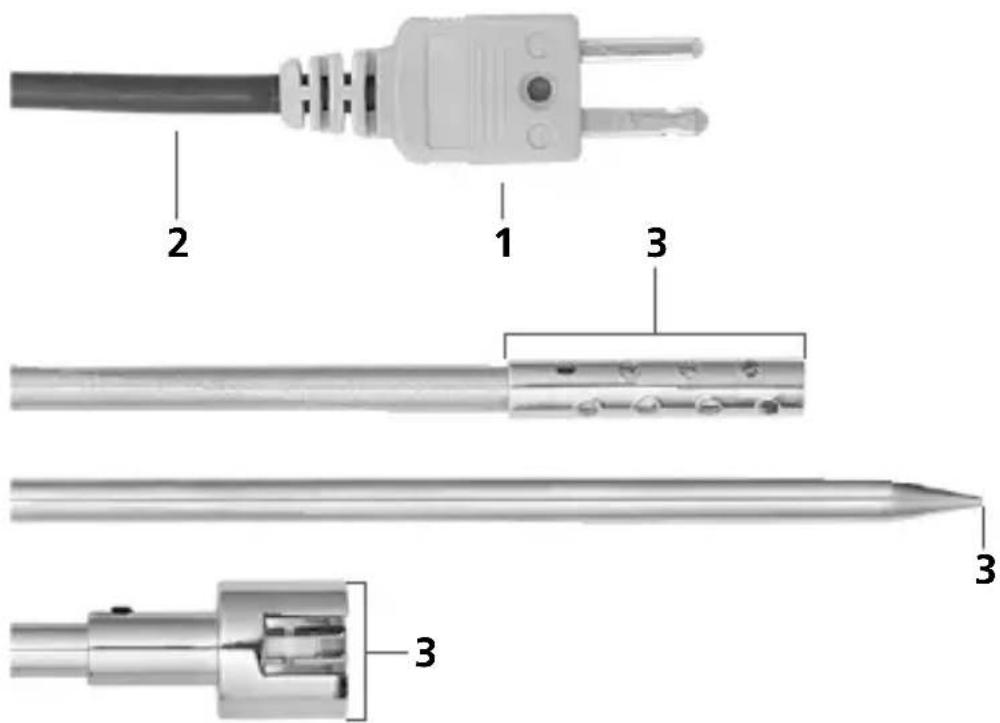

3 Measuring surfacesK-type connection

2 Cable, 0.4 - 1.2 m

Technical data (Subject to technical changes without notice 21W30)

Measurement range Air / Tip -50°C ... 800°C
Measurement range Touch -50°C	... 400°C
Accuracy Air / Tip	± 2.5°C (-50°C ... 333°C) ± 0.75% (333°C ... 800°C)
Accuracy Touch	± 2.5°C (-50°C ... 333°C) ± 0.75% (333°C ... 400°C)
Operating conditions	-10°C ... 60°C, Max. humidity 80% rH, no condensation, Max. working altitude 4000 m above sea level
Storage conditions	-20°C ... 70°C, Max. humidity 80% rH
Cable length 40 ... 120 cm
Sensor Air 165 mm
Sensor Tip 185 mm
Sensor Touch 115 mm
Dimensions (W x H x D) Air	22 x 295 x 22 mm (without cable)
Dimensions (W x H x D) Tip	22 x 315 x 22 mm (without cable)
Dimensions (W x H x D) Touch	22 x 245 x 22 mm (without cable)
Weight Air 106 g
Weight Tip 104 g
Weight Touch 96 g

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info
