Product type	Type K temperature probe for contact
Measuring range	-50°C to 400°C
Accuracy	±2.5°C (from -50°C to 333°C); ±0.75% (from 333°C to 400°C)
Dimensions (L x W x H)	22 x 245 x 22 mm (without cable)
Weight	96 g
Cable length	40 to 120 cm
Power supply	Powered by the connected measuring device (not included)
Main functions	Contact and surface temperature measurement on solid supports
Compatibility	Compatible with ThermoMaster, ThermoMaster Plus, ThermoSpot XP, CondenseSpot XP, MultiMeter XP, ClampMeter XP
Working conditions	-10°C to 60°C, max. relative humidity 80% rH (non-condensing), max. altitude 4000 m
Storage conditions	-20°C to 70°C, max. relative humidity 80% rH
Care and cleaning	Clean with a slightly damp cloth; do not use cleaning agents, abrasives or solvents. Store in a dry, clean place.
Safety	Do not use in explosive areas; do not modify the instrument; keep out of reach of children; do not apply external voltage to the probe.
Spare parts and repairability	No detachable parts; probe not repairable.
General information	Electrical device subject to WEEE directive; CE conformity. Additional remarks and warranty: laserliner.com/info
Handle material	High temperature resistant

Frequently Asked Questions - ThermoSensor Touch Laserliner

What is the measuring range of the ThermoSensor Touch?

The measuring range of the ThermoSensor Touch probe is -50°C to 400°C. It is designed for contact and surface measurements on solid supports.

Which devices is the ThermoSensor Touch compatible with?

This type K temperature probe is compatible with the following devices: ThermoMaster, ThermoMaster Plus, ThermoSpot XP, CondenseSpot XP, MultiMeter XP and ClampMeter XP.

How to clean and maintain the ThermoSensor Touch probe?

Clean the probe with a slightly damp cloth. Do not use aggressive cleaning agents, abrasives or solvents. Store it in a dry, clean place.

Can I use the ThermoSensor Touch in an explosive environment?

No, the ThermoSensor Touch probe is not suitable for explosion-hazard areas. Follow the safety instructions of your measuring device.

What is the accuracy of the ThermoSensor Touch?

The accuracy is ±2.5°C for the range -50°C to 333°C and ±0.75% of the measured value for the range 333°C to 400°C.

What is the cable length of the ThermoSensor Touch?

The probe cable has a length between 40 and 120 cm.

Where can I find additional information on safety and warranty?

Refer to the enclosed booklet 'Additional remarks and warranty information' or visit laserliner.com/info for complete information.

How to store the ThermoSensor Touch probe correctly?

Store the probe in a dry, clean place at a temperature between -20°C and 70°C and a maximum relative humidity of 80% rH.

Does the ThermoSensor Touch probe need a power supply?

No, the probe is passive. It is powered directly by the compatible measuring device it is connected to (not included).

What are the dimensions of the ThermoSensor Touch probe?

The dimensions (without cable) are 22 x 245 x 22 mm (width x height x depth). The probe weighs 96 g.

USER MANUAL ThermoSensor Touch Laserliner

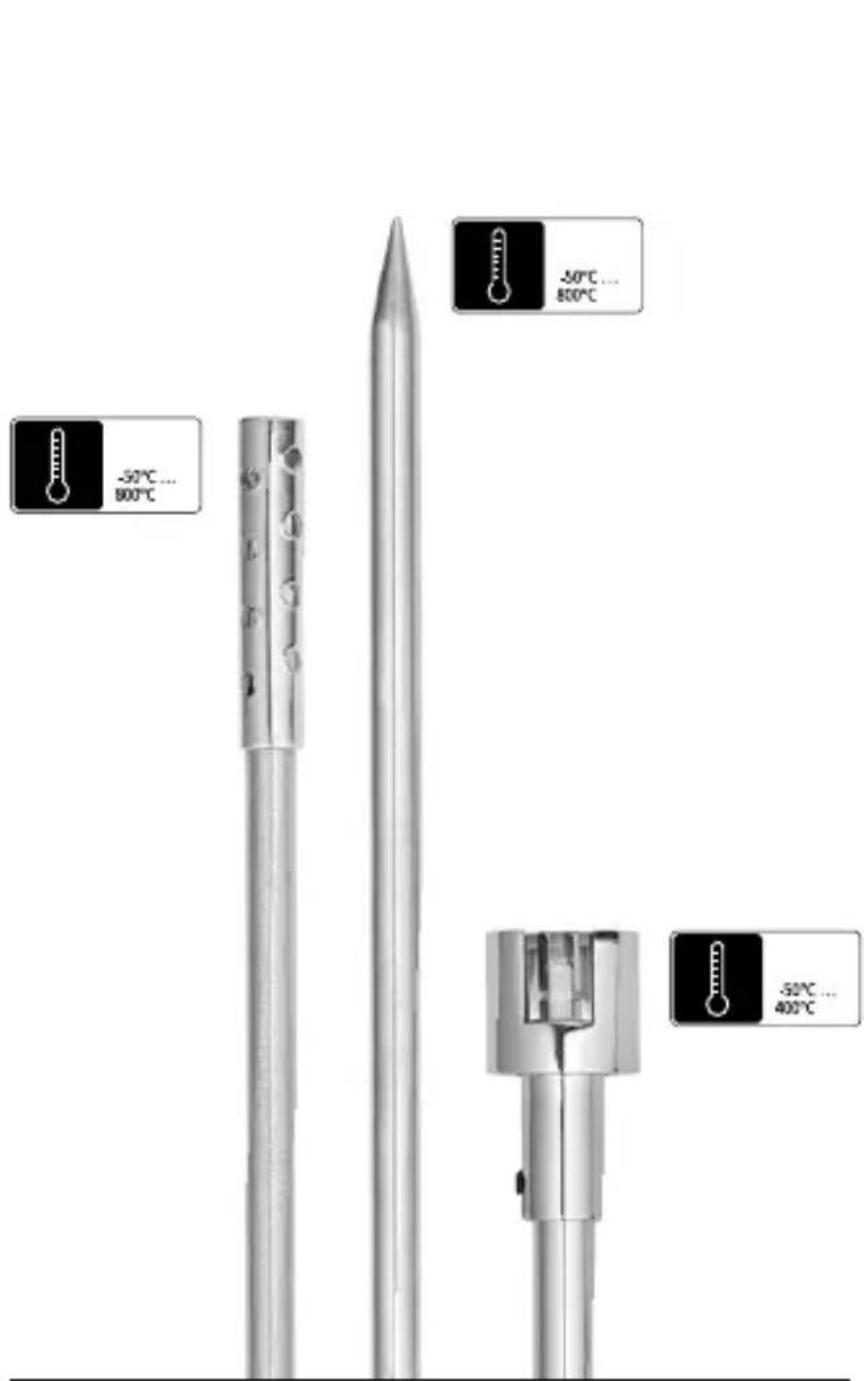

ThermoSensor Air / Tip / Touch

-50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 820°C 820°C 820°C 820°C 820°C 820°C 820°C 820°C 820°C 820°C 820°C 820°C

Laserliner

DE 02 EN 04 NL 06 DA 08 FR 10 ES 12 IT 14 PL 16 FI 18 PT 20 SV 22 NO 24 TR 26 RU 28 UK 30 CS 32 ET 34 RO 36 BG 38 EL 40

Laserliner

!

Diagram of a soldering iron plug with labeled parts including terminal and pin connections

1 K-Type-Anschluss

3 Messfläche

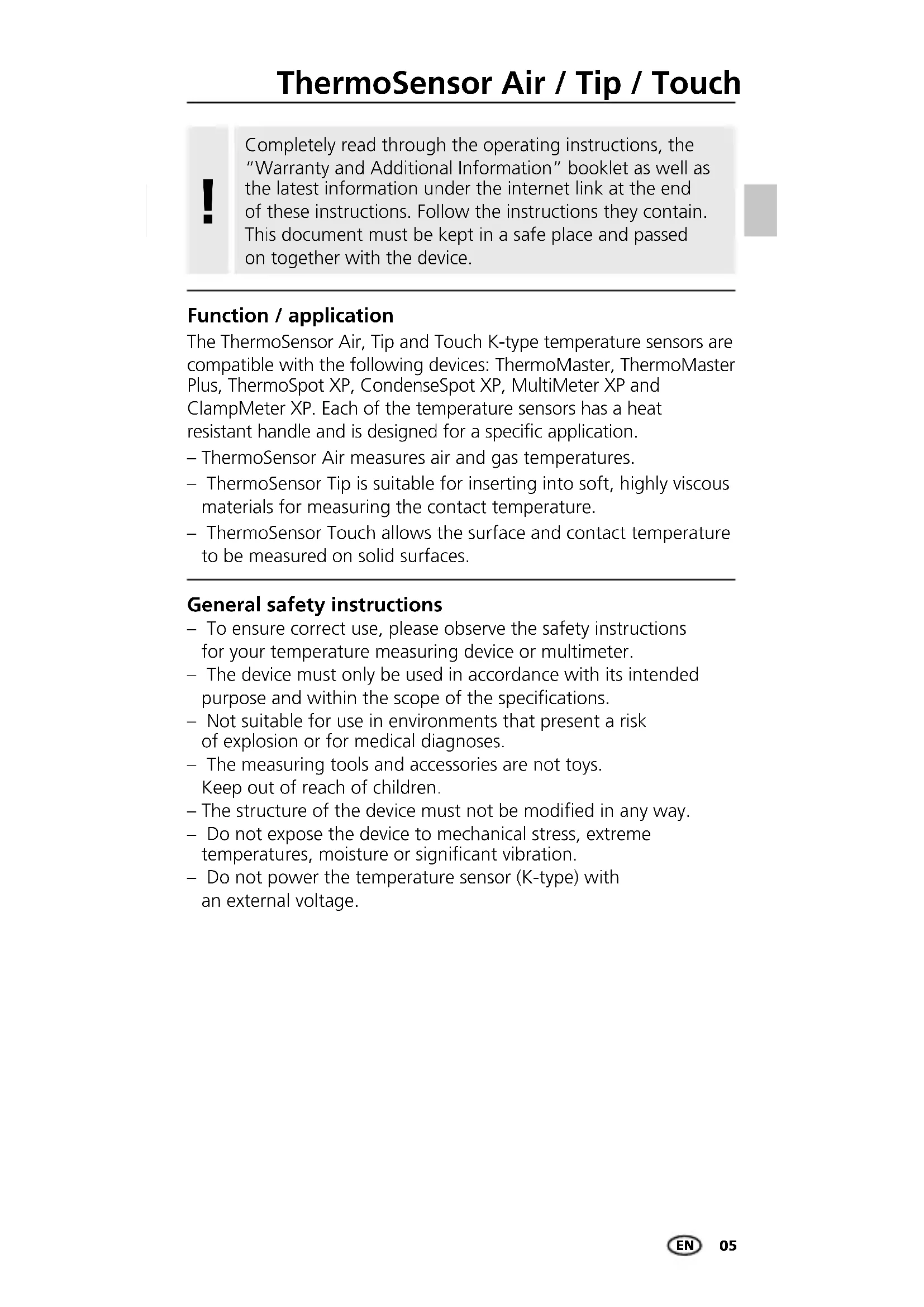

Completely read through the operating instructions, the "Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / application

The ThermoSensor Air, Tip and Touch K-type temperature sensors are compatible with the following devices: ThermoMaster, ThermoMaster Plus, ThermoSpot XP, CondenseSpot XP, MultiMeter XP and ClampMeter XP. Each of the temperature sensors has a heat resistant handle and is designed for a specific application.

– ThermoSensor Air measures air and gas temperatures.
- ThermoSensor Tip is suitable for inserting into soft, highly viscous materials for measuring the contact temperature.
- ThermoSensor Touch allows the surface and contact temperature to be measured on solid surfaces.

General safety instructions

• To ensure correct use, please observe the safety instructions for your temperature measuring device or multimeter.
• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• Not suitable for use in environments that present a risk of explosion or for medical diagnoses.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• Do not power the temperature sensor (K-type) with an external voltage.

Laserliner

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Store the device in a clean and dry place.

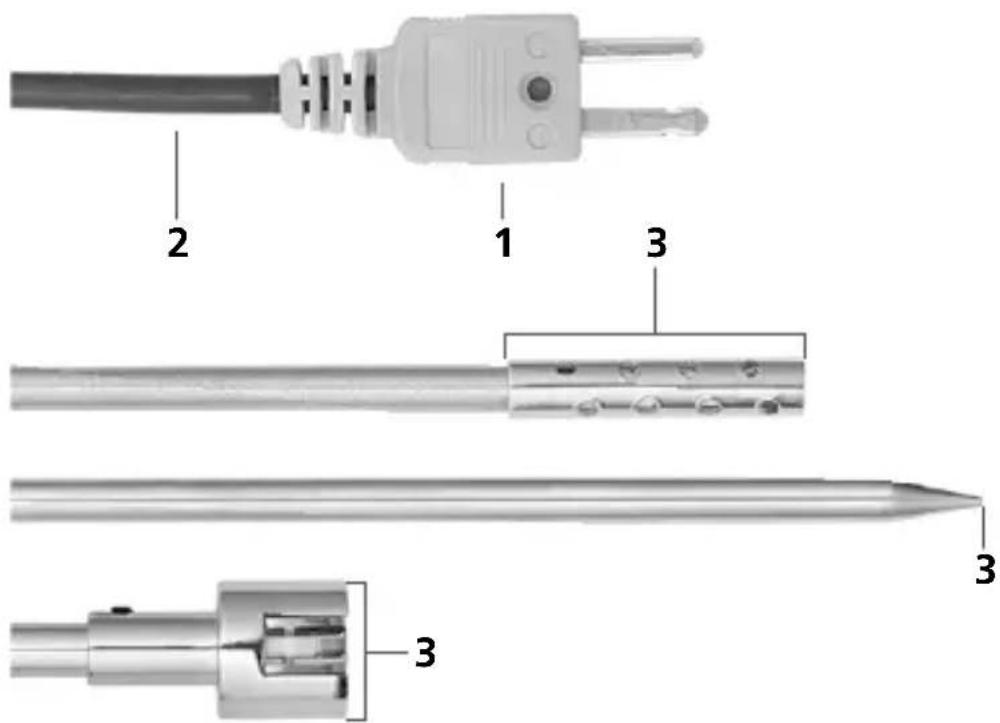

Diagram of a soldering iron with labeled parts including plug, socket, and terminal connectors

1

3 Measuring surfacesK-type connection

2

Cable, 0.4 - 1.2 m

Technical data (Subject to technical changes without notice 21W30)

Measurement range Air / Tip -50°C ... 800°C
Measurement range Touch -50°C	... 400°C
Accuracy Air / Tip	± 2.5°C (-50°C ... 333°C) ± 0.75% (333°C ... 800°C)
Accuracy Touch	± 2.5°C (-50°C ... 333°C) ± 0.75% (333°C ... 400°C)
Operating conditions	-10°C ... 60°C, Max. humidity 80% rH, no condensation, Max. working altitude 4000 m above sea level
Storage conditions	-20°C ... 70°C, Max. humidity 80% rH
Cable length 40 ... 120 cm
Sensor Air 165 mm
Sensor Tip 185 mm
Sensor Touch 115 mm
Dimensions (W x H x D) Air	22 x 295 x 22 mm (without cable)
Dimensions (W x H x D) Tip	22 x 315 x 22 mm (without cable)
Dimensions (W x H x D) Touch	22 x 245 x 22 mm (without cable)
Weight Air 106 g
Weight Tip 104 g
Weight Touch 96 g

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info

CE UK CA —

Laserliner

!

Diagram of a three-pin electrical plug with labeled parts including terminal, socket, and cable.

1

Diagram of a soldering iron with labeled parts including plug, tip, and terminal connectors

1

3 MålefladerTilslutning type K

Diagram of a three-pin electrical plug with labeled parts including terminal, socket, and cable.

1

Diagram of a soldering iron with labeled parts including plug, solder rod, and terminal connectors

1

Diagram of a power plug with labeled parts including terminal, socket, and cable connections

1

Diagram of a soldering iron with labeled parts including plug, tip, and terminal connectors

Diagram of a soldering iron with labeled parts including plug, solder rod, and terminal connectors

1

Diagram of a soldering iron plug with labeled parts including terminal and pin connections

1

3 MätytorK-typsanslutning

2 Sladd 0,4 - 1,2 m

Diagram of a soldering iron plug with labeled parts including terminal and pin connections

1

Diagram of a soldering iron with labeled parts including plug, socket, and terminal connectors

1 Контакт К-типа

Diagram of a soldering iron with labeled parts including plug, tip, and terminal connectors

Diagram of a soldering iron with labeled parts including plug, wire, and terminal pins

1

Diagram of a soldering iron plug with labeled parts including terminal and pin connections

1

Diagram of a soldering iron plug with labeled parts including terminal and pin connections

1

Diagram of a soldering iron with labeled parts including plug, socket, and terminal connectors

1

Illustration of a gas stove with a digital thermometer and probe connected to a control panel (no text or symbols visible)
