Product type	Type K temperature probe
Brand	Laserliner
Model	ThermoSensor Tip
Category	Thermometer
Measuring range	−50°C to 800°C
Accuracy	±2.5°C (−50°C to 333°C) / ±0.75% (333°C to 800°C)
Probe length	185 mm
Dimensions (W x H x D) without cable	22 x 315 x 22 mm
Weight	104 g
Cable length	40 to 120 cm
Compatibility	ThermoMaster, ThermoMaster Plus, ThermoSpot XP, CondenseSpot XP, MultiMeter XP, ClampMeter XP
Working conditions	−10°C to 60°C, max. 80% RH, non-condensing
Storage conditions	−20°C to 70°C, max. 80% RH
Maintenance and cleaning	Slightly damp cloth, no solvents
Safety	Do not use in explosive atmospheres or for medical diagnosis; no external voltage on the probe
Regulations	EU compliant, WEEE

Frequently Asked Questions - ThermoSensor Tip Laserliner

What is the measuring range of the ThermoSensor Tip?

The measuring range extends from −50°C to 800°C, ideal for soft and viscous materials.

Which devices is this probe compatible with?

It is compatible with ThermoMaster, ThermoMaster Plus, ThermoSpot XP, CondenseSpot XP, MultiMeter XP, and ClampMeter XP devices from Laserliner.

How to properly clean the probe?

Use a slightly damp cloth without cleaning agents, abrasives, or solvents. Store it in a dry and clean place.

Can I use this probe in explosive areas or for medical diagnostics?

No, it is not suitable for explosive areas or medical diagnostic measurements. Follow the safety instructions.

What is the measurement accuracy?

The accuracy is ±2.5°C between −50°C and 333°C, and ±0.75% of the measured value from 333°C to 800°C.

What is the cable length of the probe?

The cable measures between 40 and 120 cm, depending on the version.

What are the dimensions and weight of the probe?

The dimensions are 22 x 315 x 22 mm without cable, and the weight is 104 g.

Can I modify or repair the probe myself?

No, it is forbidden to modify the construction of the instrument. In case of malfunction, contact after-sales service.

What are the working and storage conditions?

Working: −10°C to 60°C, max. humidity 80% RH. Storage: −20°C to 70°C, max. humidity 80% RH.

How to dispose of the device at the end of its life?

In accordance with the WEEE directive, it must be collected separately from household waste for recycling.

USER MANUAL ThermoSensor Tip Laserliner

ThermoSensor Air / Tip / Touch

-50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C -50°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 800°C 820°C 820°C 820°C 820°C 820°C 820°C 820°C 820°C 820°C 820°C 820°C

Laserliner

DE 02 EN 04 NL 06 DA 08 FR 10 ES 12 IT 14 PL 16 FI 18 PT 20 SV 22 NO 24 TR 26 RU 28 UK 30 CS 32 ET 34 RO 36 BG 38 EL 40

Laserliner

!

Diagram of a soldering iron plug with labeled parts including terminal and pin connections

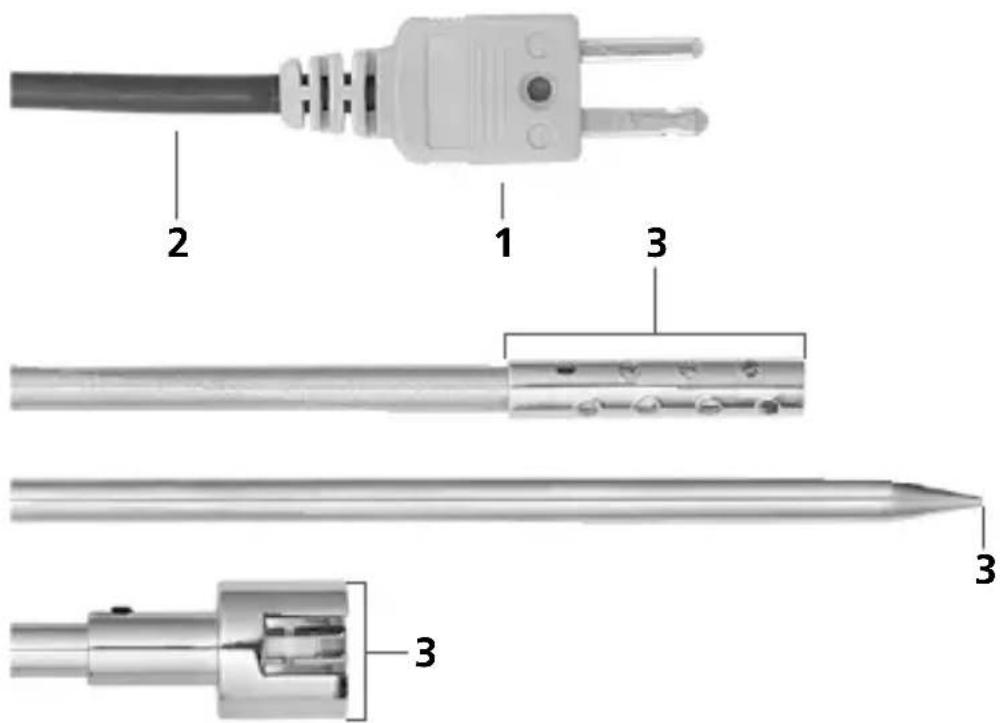

1 K-Type-Anschluss

3 Messfläche

Completely read through the operating instructions, the "Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / application

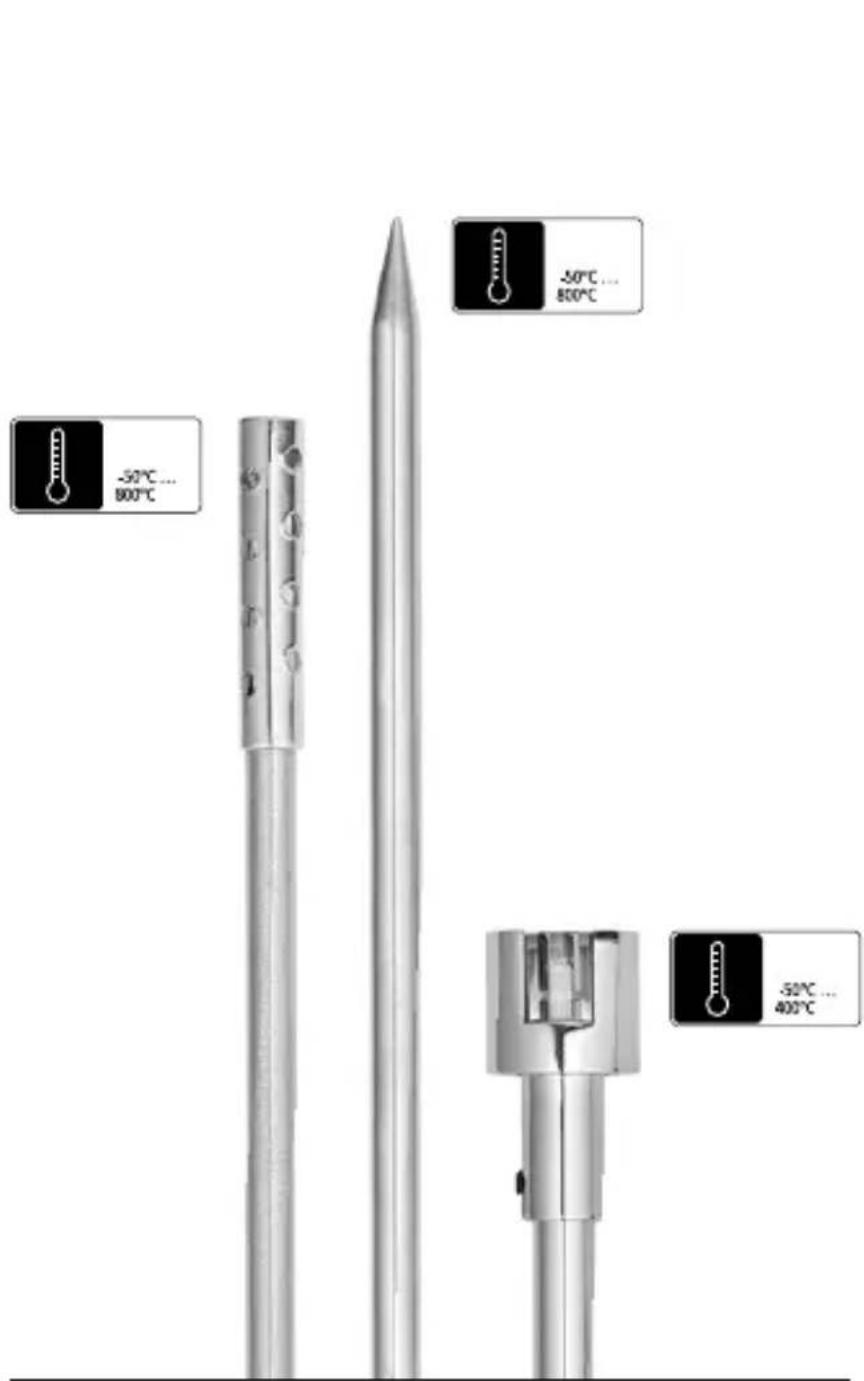

The ThermoSensor Air, Tip and Touch K-type temperature sensors are compatible with the following devices: ThermoMaster, ThermoMaster Plus, ThermoSpot XP, CondenseSpot XP, MultiMeter XP and ClampMeter XP. Each of the temperature sensors has a heat resistant handle and is designed for a specific application.

– ThermoSensor Air measures air and gas temperatures.
- ThermoSensor Tip is suitable for inserting into soft, highly viscous materials for measuring the contact temperature.
- ThermoSensor Touch allows the surface and contact temperature to be measured on solid surfaces.

General safety instructions

• To ensure correct use, please observe the safety instructions for your temperature measuring device or multimeter.
• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• Not suitable for use in environments that present a risk of explosion or for medical diagnoses.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• Do not power the temperature sensor (K-type) with an external voltage.

Laserliner

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Store the device in a clean and dry place.

Diagram of a soldering iron with labeled parts including plug, socket, and terminal connectors

1

3 Measuring surfacesK-type connection

2

Cable, 0.4 - 1.2 m

Technical data (Subject to technical changes without notice 21W30)

Measurement range Air / Tip -50°C ... 800°C
Measurement range Touch -50°C	... 400°C
Accuracy Air / Tip	± 2.5°C (-50°C ... 333°C) ± 0.75% (333°C ... 800°C)
Accuracy Touch	± 2.5°C (-50°C ... 333°C) ± 0.75% (333°C ... 400°C)
Operating conditions	-10°C ... 60°C, Max. humidity 80% rH, no condensation, Max. working altitude 4000 m above sea level
Storage conditions	-20°C ... 70°C, Max. humidity 80% rH
Cable length 40 ... 120 cm
Sensor Air 165 mm
Sensor Tip 185 mm
Sensor Touch 115 mm
Dimensions (W x H x D) Air	22 x 295 x 22 mm (without cable)
Dimensions (W x H x D) Tip	22 x 315 x 22 mm (without cable)
Dimensions (W x H x D) Touch	22 x 245 x 22 mm (without cable)
Weight Air 106 g
Weight Tip 104 g
Weight Touch 96 g

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info
