| Brand | Alpha Tools |
| Model | A-BSG 310 |
| Product Type | Drill Sharpener |
| Mains Voltage | 230-240 V ~ 50 Hz |
| Power Consumption | 55 W (S3 50% 2 min) |
| No-load Speed | 1500 rpm |
| Compatible Drill Diameter | 3 to 10 mm (16 guide holes) |
| Protection Class | II / 回 |
| Weight | 2.1 kg |
| Sound Pressure Level LpA | 76 dB(A) (uncertainty 3 dB) |
| Sound Power Level LWA | 89 dB(A) (uncertainty 3 dB) |
| Intended Use | Sharpening HSS drill bits for metal |
| Switch | On/Off (I/0) |
| Dust Extraction | Opening at the bottom of the device |
| Replacement of Sharpening Disc | Send the device to ISC GmbH customer service |
| Carbon Brushes | Check and replacement by a specialist |
| Storage Temperature | 5 to 30 °C, dark and dry place |
| Warranty Period | 5 years (excluding professional use) |
| Included Accessories | User manual, safety instructions |
| Country of Origin | Germany (ISC GmbH) |
Frequently Asked Questions - A-BSG 310 Alpha Tools
User questions about A-BSG 310 Alpha Tools
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Sharpener in PDF format for free! Find your manual A-BSG 310 - Alpha Tools and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. A-BSG 310 by Alpha Tools.
USER MANUAL A-BSG 310 Alpha Tools
GBR Original operating instructions Drill bit grinder
Anl_A-BSG_310_SPK7.indd 2
-2-
23.02.12 14:49
DEU
3,0 mm; 6,5 mm;
3,5 mm; 7,0 mm;
4,0 mm; 7,5 mm;
4,2 mm; 8,0 mm;
4,5 mm; 8,5 mm;
5,0 mm; 9,0 mm;
5,5 mm; 9,5 mm;
6.0 mm; 10 mm

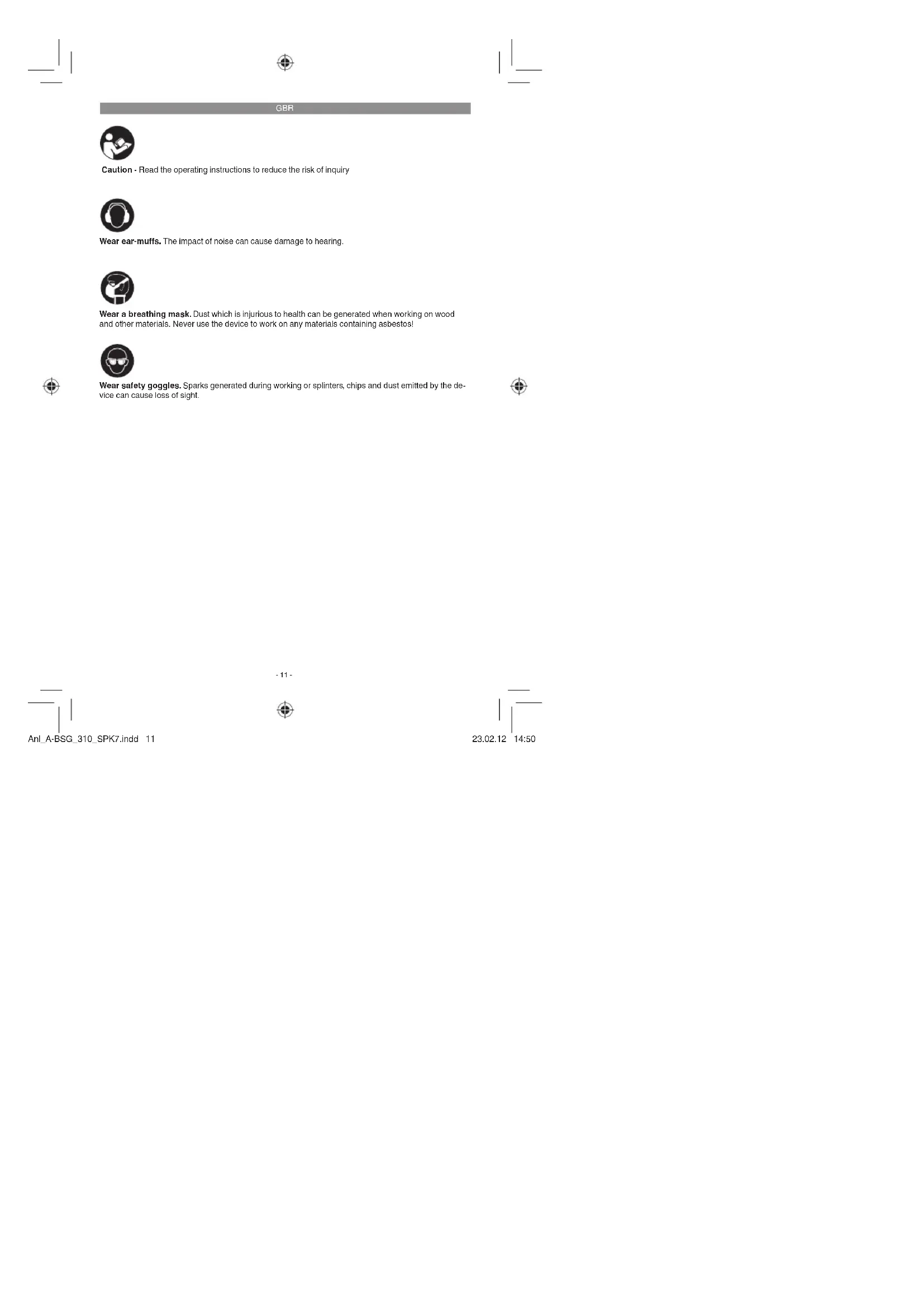

Caution - Read the operating instructions to reduce the risk of inquiry
Wear ear-muffs. The impact of noise can cause damage to hearing.
Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!
Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
-11-
Anl_A-BSG_310_SPK7.indd 11
23.02.12 14:50
GBR
▲ Important!
When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.
1. Safety regulations
The corresponding safety information can be found in the enclosed booklet.
Caution!
Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.
2. Layout and items supplied
2.1 Layout (Fig. 1)
-
Handle
-
Drill bit guide hole
- Opening for emptying grinding dust
- On/Off switch
- Power cable
2.2 Items supplied
- Open the packaging and take out the equipment with care.
- Remove the packaging material and any packaging and/or transportation braces (if available).
- Check to see if all items are supplied.
- Inspect the equipment and accessories for transport damage.
- If possible, please keep the packaging until the end of the guarantee period.
Important!
The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!
- Drill bit grinder
• Original operating instructions
• Safetyinstructions
3. Proper use
The drill bit grinder is designed for grinding drill bits for working with metal (HSS bits) with diameters of 3-10 mm.
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.
4. Technical data
Mains voltage: 230-240 V \~ 50 Hz Power consumption: 55 W S3 50% 2 min Idling speed: 1500 min ^-1 Drill bit diameter: 3-10 mm Protection class: II / ☐ Weight: 2,1 kg
S3 50% : Intermittent mode, no start-up, no braking (cycle duration 2 minutes). In intermittent mode, the percentage load factor (50%) is always quoted so that the heat generated during this period can be dissipated during breaks in operation by convective cooling. Intermittent mode consists of the on time and the cooling breaks, known as the duty cycle. The period of consideration is 2 minutes. 50% load factor means that the electric tool can be operated for one minute at the rated performance, followed by a cooling phase of one minute.
Sound and vibration
Sound and vibration values were measured in accordance with EN 60745.
-12-
Anl_A-BSG_310_SPK7.indd 12
23.02.12 14:50
GBR
L_pA sound pressure level 76 dB(A)
K_b uncertainty 3 dB
L_m sound power level 89 dB(A)
K_m uncertainty 3 dB
Wear ear-muff s.
The impact of noise can cause damage to hearing.
Keep the noise emissions and vibrations to a minimum.
• Only use appliances which are in perfect working order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
- Switch the appliance off when it is not in use.
Residual risks
Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:
- Lung damage if no suitable protective dust mask is used.
- Damage to hearing if no suitable ear protection is used.
5. Before starting the equipment
Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.
Always pull the power plug before making adjustments to the equipment.
6. Operation
6.1 ON/OFF switch (Fig. 1/Item 4)
Switching on:
Set the ON/OFF switch (4) to "I".
To switch off
Set the ON/OFF switch (4) to "0".
6.2 Drill bit guide holes (Fig. 2 / Item 2)
The sixteen drill bit guide holes (2) are each marked with a value which corresponds to the diameter in mm of a drill bit (see Fig. 2). Check whether the drill bit you wish to grind is marked with one of the diameters listed below.
3,0 mm; 6.5 mm;
3,5 mm; 7,0 mm;
4,0 mm; 7.5 mm;
4,2 mm; 8,0 mm;
4,5 mm; 8,5 mm;
5,0 mm; 9,0 mm;
5,5 mm; 9,5 mm;
6,0 mm; 10 mm
6.3 Grinding drill bits (Fig. 2+3)
• Switch on the machine. See 6.1
- Insert the drill bit in the required drill bit guide hole (2) with the blunt tip of the drill bit first. See also 6.2
- Hold the drill bit as shown in Fig. 3 and press the drill bit for approx. 5-10 seconds by applying light pressure to it
• The time required to grind the drill bit may be longer or shorter depending on the thickness of the bit
- Then take the drill bit out and turn it through 180° in order to grind the other end of the drill bit tip
- Insert the drill bit in the equipment again for another 5-10 seconds
- Repeat the process until the grinding results meet your expectations.
- Now you can remove the ground drill bit and use it for drilling again
Important.
Switch off the equipment when you no longer use
it
-13-
Anl_A-BSG_310_SPK7.indd 13
23.02.12 14:51
GBR
7. Replacing the power cable
If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.
8. Cleaning, maintenance and ordering of spare parts
Always pull out the mains power plug before starting any cleaning work.
8.1 Emptying grinding dust
You can remove grinding dust from the equipment through the opening for emptying grinding dust (3). To do so, tap the equipment gently with the opening for emptying grinding dust (3) facing down on the floor or on some other surface.
8.2 Cleaning
- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished using it.
- Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device.
8.3 Carbon brushes
In case of excessive sparking, have the carbon brushes checked only by a qualified electrician. Important! The carbon brushes should not be replaced by anyone but a qualified electrician.
8.4 Maintenance
The grinding wheel must be replaced at the latest when the grinding results start to deteriorate after a certain time. To do so, please send the drill bit grinder to the address below:
iSC GmbH
Eschenstraße 6
D-94405 Landau
8.5 Ordering replacement parts:
Please quote the following data when ordering replacement parts:
• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required
For our latest prices and information please go to www.isc-gmbh.info
9. Disposal and recycling
The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.
The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.
10. Storage
Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.
-14-
Anl_A-BSG_310_SPK7.indd 14
23.02.12 14:51
GBR
For EU countries only
Never place any electric power tools in your household refuse.
To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.
Subject to technical changes
-15-
Anl_A-BSG_310_SPK7.indd 15
23.02.12 14:51
Warranty certifi cate
Dear Customer,
In the unlikely event that your device develops a fault, we are truly sorry for this, and suggest that you please contact our service department at the address shown on this guarantee card, or contact the nearest authorised DIY store. Please note the following terms, under which guarantee claims can be made:
- These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
- Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. This applies in particular to rechargeable batteries for which we nevertheless issue a guarantee period of 12 months. The guarantee is rendered null and void if any attempt is made to tamper with the device.
- The guarantee is valid for a period of 5 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.
- In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.
-16-
Anl_A-BSG_310_SPK7.indd 16
23.02.12 14:51
FRA
3,0 mm; 6,5 mm;
3,5 mm; 7,0 mm;
4,0 mm; 7,5 mm;
4,2 mm; 8,0 mm;
4,5 mm; 8,5 mm;
5,0 mm; 9,0 mm;
5,5 mm; 9,5 mm;
6,0 mm; 10 mm
3,0 mm; 6,5 mm;
3,5 mm; 7,0 mm;
4,0 mm; 7,5 mm;
4,2 mm; 8,0 mm;
4,5 mm; 8,5 mm;
5,0 mm; 9,0 mm;
5.5 mm; 9.5 mm;
6.0 mm: 10 mm
6.3 Afilado de brocas (fig. 2+3)
3,0 mm; 6,5 mm;
3,5 mm; 7,0 mm;
4.0 mm 7.5 mm;
4,2 mm; 8,0 mm;
4,5 mm; 8,5 mm;
5,0 mm; 9,0 mm;
5,5 mm; 9,5 mm;
6,0 mm; 10 mm
Negotovost K _WA 3 dB
3,0 mm; 6,5 mm;
3,5 mm; 7,0 mm;
4,0 mm; 7,5 mm;
4,2 mm; 8,0 mm;
4,5 mm; 8,5 mm;
5,0 mm; 9,0 mm;
5,5 mm; 9,5 mm;
6,0 mm; 10 mm.
6.3 Brušenje vrtalnikov (sliki 2+3)
4,2 mm; 8,0 mm;
4,5 mm; 8,5 mm;
5,0 mm; 9,0 mm;
5,5 mm; 9,5 mm;
6.0 mm; 10 mm.
3.0 mm; 6.5 mm;
3.5 mm; 7.0 mm;
4.0 mm; 7.5 mm;
4.2 mm; 8.0 mm;
4.5 mm; 8.5 mm;
5.0 mm; 9.0 mm;
5.5 mm: 9.5 mm:
6.0 mm: 10 mm
3,0 mm; 6,5 mm;
3,5 mm; 7,0 mm;
4,0 mm; 7,5 mm;
4,2 mm; 8,0 mm;
4,5 mm; 8,5 mm;
5,0 mm; 9,0 mm;
5,5 mm; 9,5 mm;
6.0 mm; 10 mm
Jääkriskid
GB explains the following conformity according to EU directives and norms for the following product
□90/396/EC 2009/142/EC
□89/686/EC 96/58/EC
2011/65/EC
X2006/42/EC
Annex IV
Notified Body. Notified Body No.
Reg. No.
□2000/14/EC_2005/88/EC
Annex V
Annex VI
Notified Body: LWA = dB (A); guaranteed LWA = dB (A)
P = KW, DQ = cm Nexti ed Bady:
2006/28/EC
Emission No.:
Standard references: EN 61029-1; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3
Subject to change without notice
Archive-File/Record: NAPR005463
Documents registrar: Riedel Wisconsin 70, D. 54195 London/Seal
