Product type	Table saw
Brand	PowerPlus
Model	POWX07595
Rated power	2000 W (S6 25%) / 1800 W (S1)
Rated voltage	220-240 V ~ 50 Hz
Speed	5000 min⁻¹
Blade diameter	250 mm
Blade bore	30 mm
Blade thickness	2.8 mm
Number of teeth	24
Max. cutting depth at 90°	85 mm
Max. cutting depth at 45°	63 mm
Table dimensions	563 x 583 mm
Table height (with stand)	820 mm
Protection class	II
Weight	Approx. 35 kg
Blade tilt angle	0° to 45°
Main functions	Rip cut, crosscut, miter cut
Safety equipment	Blade guard, riving knife, push stick, anti-tilt device
Maintenance and cleaning	Clean with a brush or damp cloth; regularly check the blade and connections
Spare parts and repairability	Interchangeable saw blade (standard ref. 250x30 mm); wrenches provided for replacement

Frequently Asked Questions - POWX07595 PowerPlus

What is the power of this table saw?

The PowerPlus POWX07595 table saw has a rated power of 2000 W in S6 25% mode and 1800 W in S1 mode.

What blade diameter can I use?

Only use a blade with an outer diameter of 250 mm and a bore of 30 mm. Recommended thickness is 2.8 mm and 24 teeth.

How to adjust the cutting height?

Turn the hand crank on the side of the machine. Turn counterclockwise to lower the height, and clockwise to raise it. Adjust so that the blade protrudes one tooth above the workpiece.

Can I cut at an angle with this saw?

Yes, the blade can be tilted from 0° to 45°. Loosen the locking knob, tilt the blade to the desired angle, and retighten.

How to use the rip fence?

Insert the rip fence into the scale rail, set the cutting width, then lower the locking lever to lock it.

What to do in case of overload?

The overload protection cuts the power. Let the tool cool down for at least 30 minutes, press the black reset button, then the green start button.

How to replace the saw blade?

Unplug the tool, remove the removable plate, raise the blade to maximum, unscrew the fixing screw with the provided wrenches, replace the blade respecting the rotation direction (arrow), then reassemble.

What materials can I cut?

Solid wood, laminate, chipboard, plywood and other wood materials. Not suitable for metal, hard plastic or round materials.

How to maintain the saw?

Regularly clean sawdust with a brush or damp cloth. Check the condition of the blade, the riving knife adjustment (3-5 mm clearance), and tighten screw connections if necessary.

Is this saw suitable for professional use?

No, it is designed for domestic use, not professional use. Do not use it in an explosive environment.

USER MANUAL POWX07595 PowerPlus

POWERPLUS® HIGH QUALITY TOOLS

POWX07595

Yellow power plant machine with black metal frame and visible circuit board (no text or symbols on main body)

i

NL NEDERLANDS VERTAALDE VERSIE VAN DE ORIGINELE HANDLEIDING

FR FRANÇAIS TRADUCTION DU MODE D'EMPLOI D'ORIGINE

EN ENGLISH ORIGINAL INSTRUCTION MANUAL

Close-up of a yellow mechanical component with white levers and a numbered label '15' pointing to it (no readable text or symbols beyond the number)

Yellow vehicle chassis with black mesh cushion and labeled component '14' (no text or symbols beyond label)

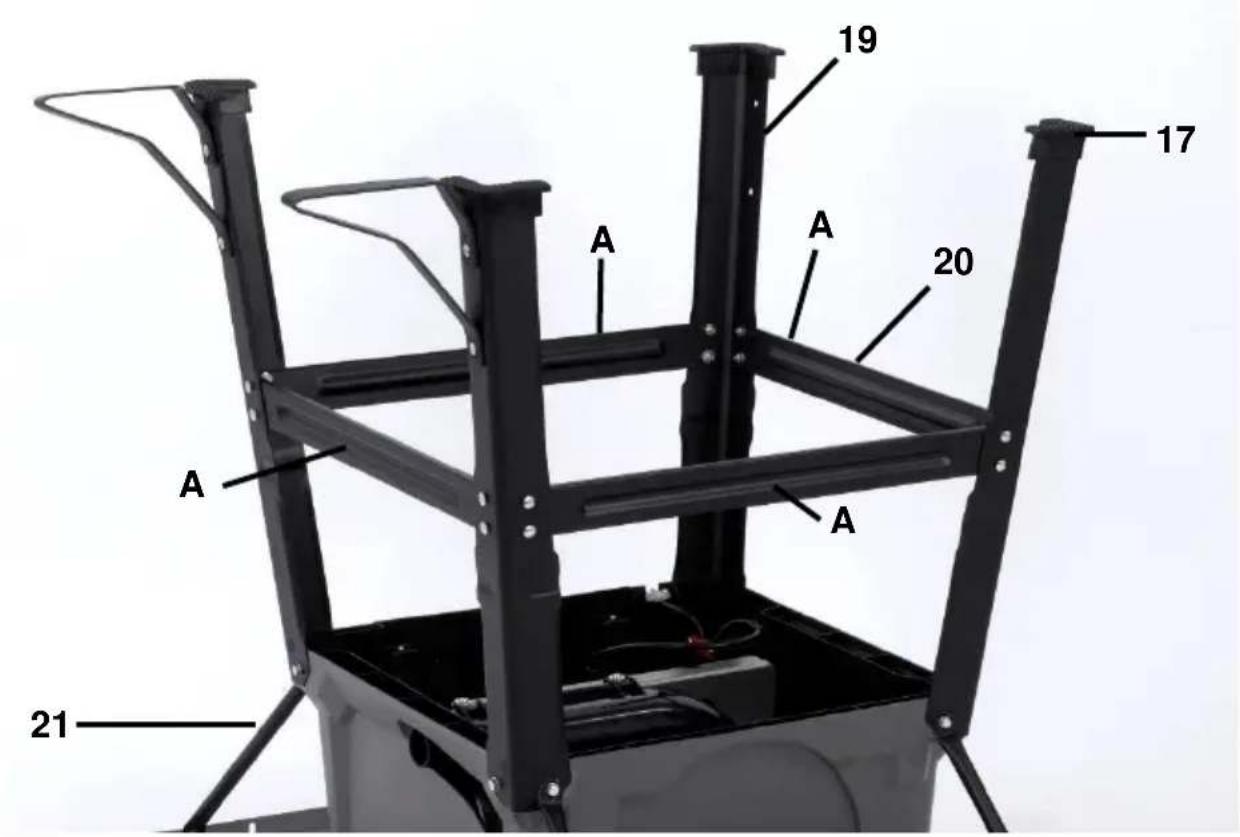

19 17 A A 20 A A 21

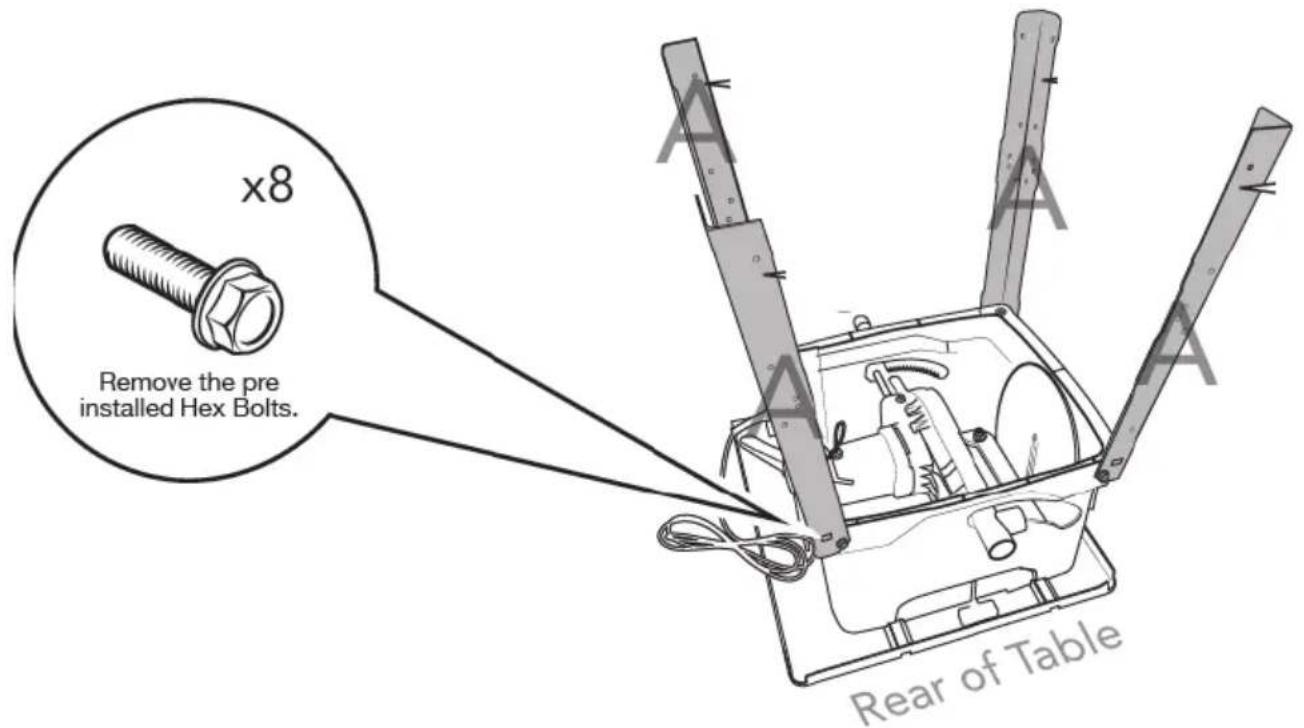

x8 Remove the pre installed Hex Bolts. Rear of Table

Fig 1

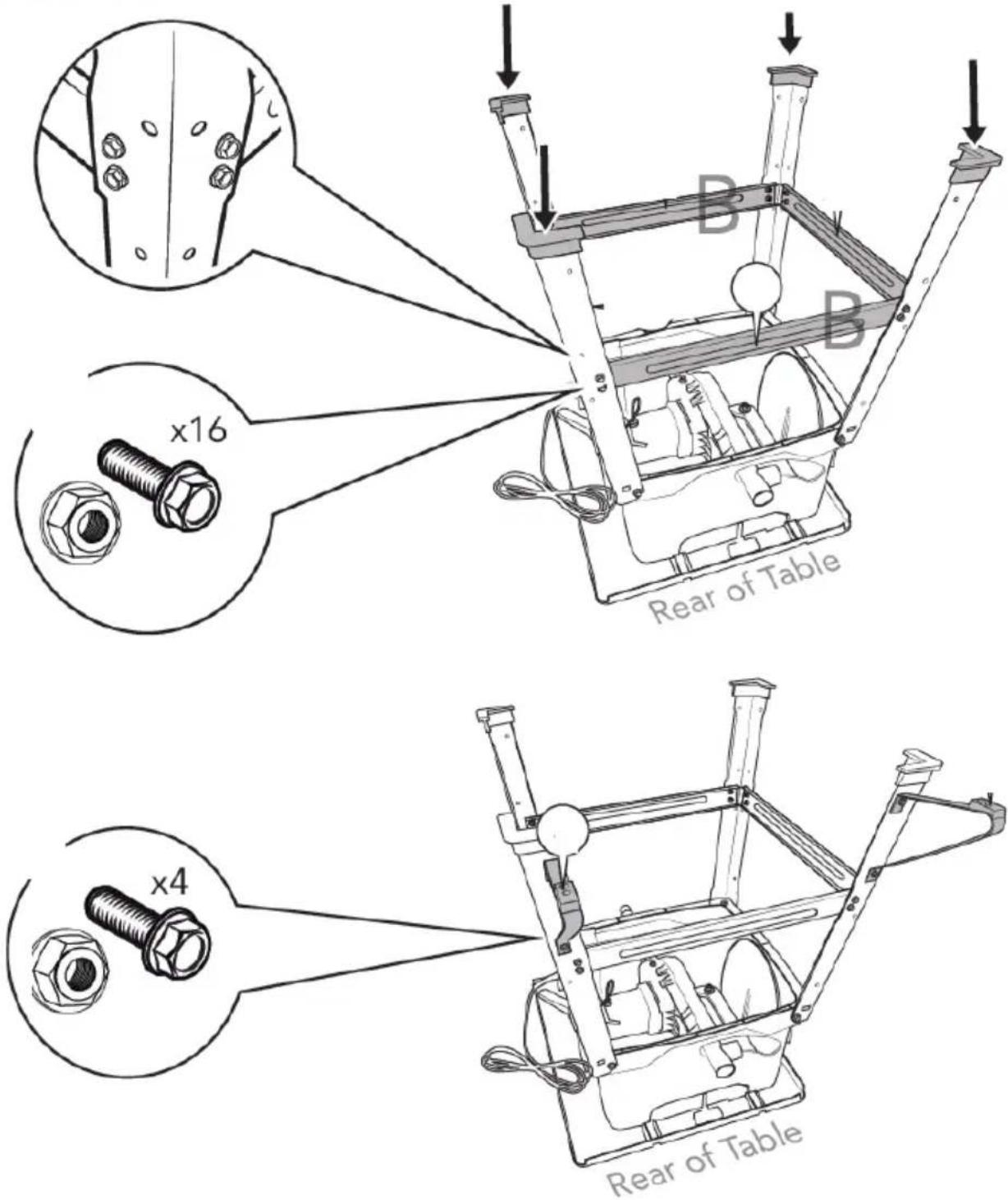

Rear of Table x16 x4 B B Rear of Table Rear of Table

Fig 1

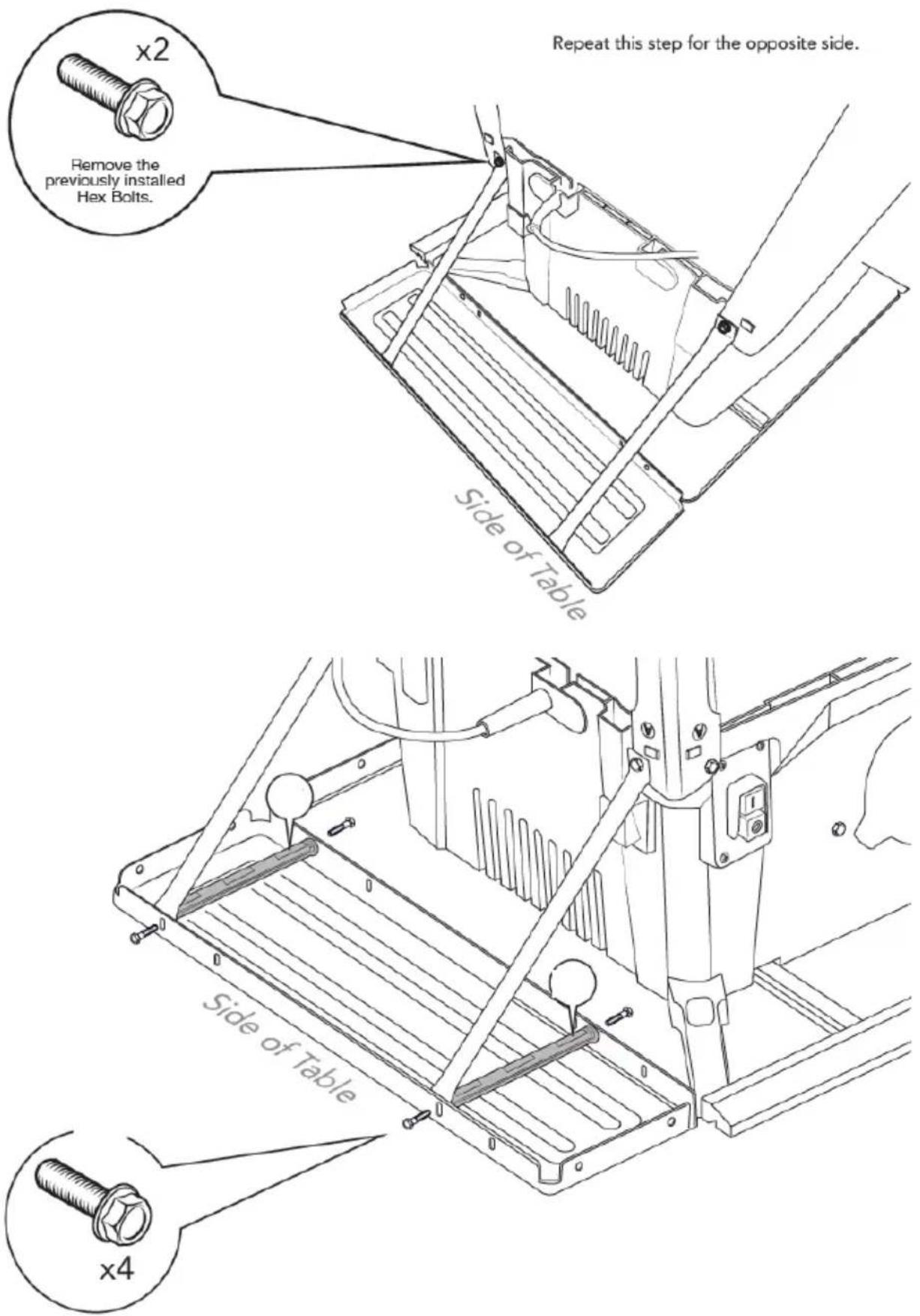

x2 Remove the previously installed Hex Bolts. Repeat this step for the opposite side. Side of Table Side of Table x4

Fig 1

Pure mechanical part diagram without any text, numbers, or symbols

Fig. 2

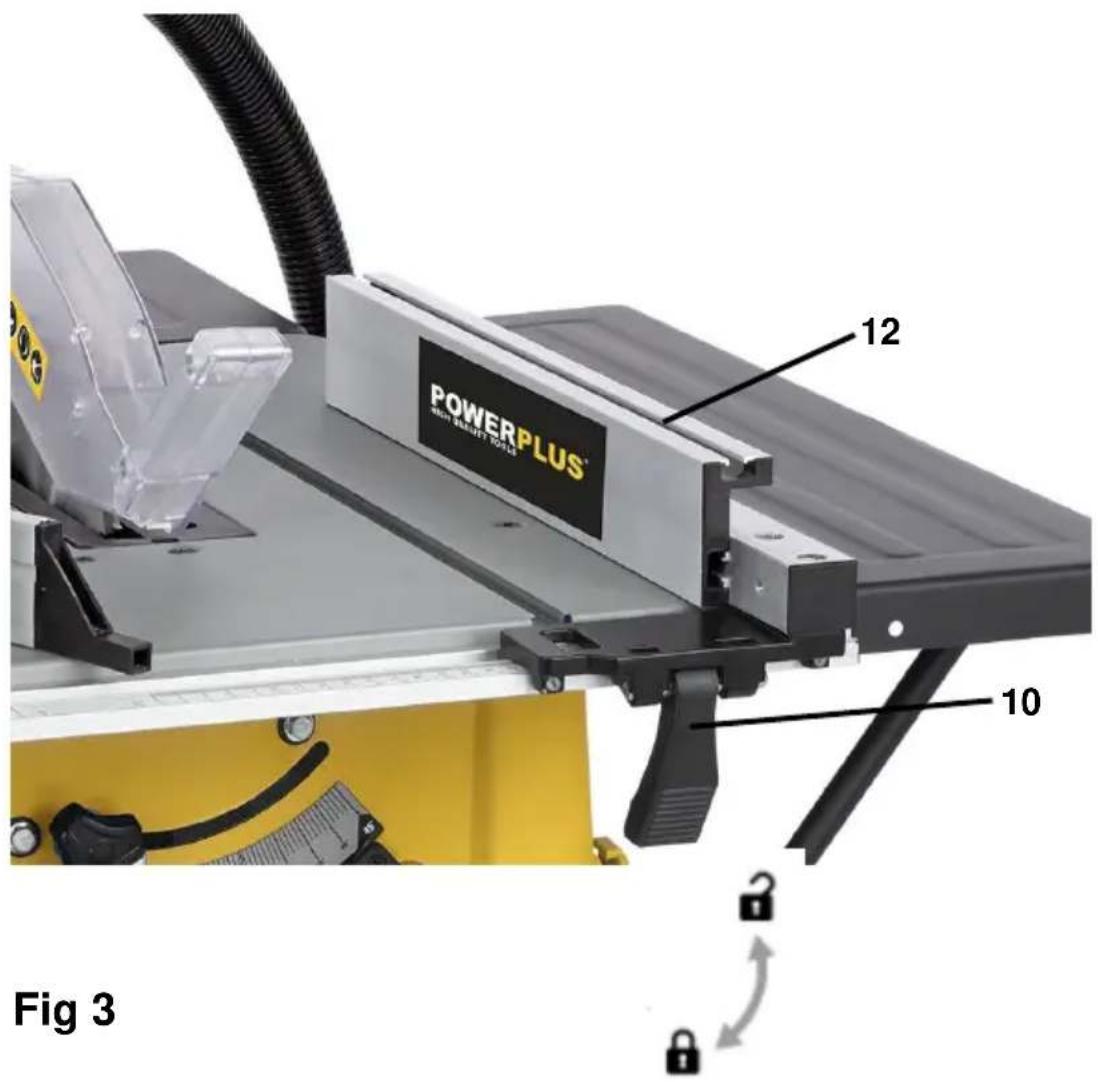

POWERPLUS® 12 10 Fig 3

C A B D 11

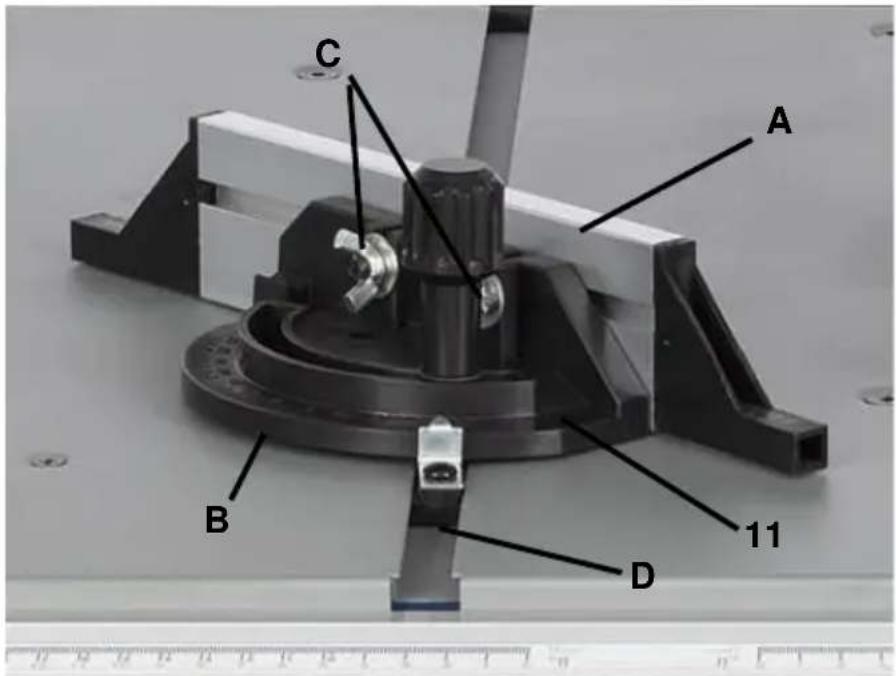

Fig. 4

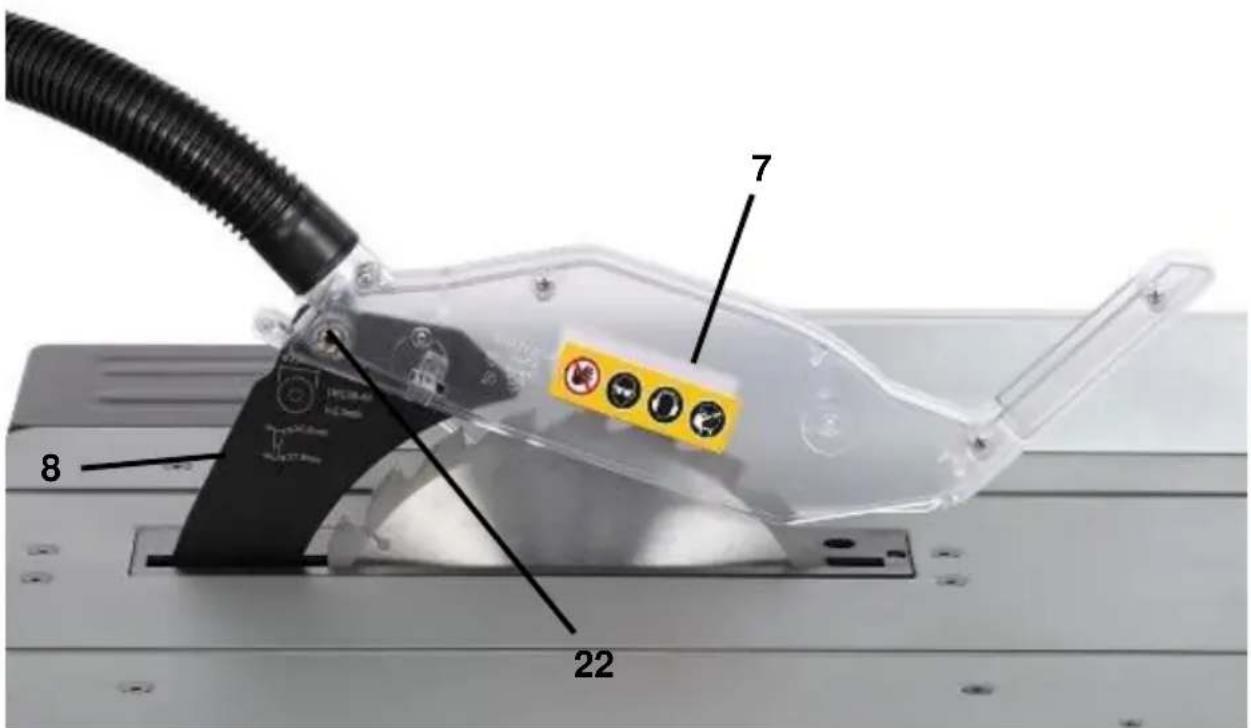

7 8 22

Fig. 5

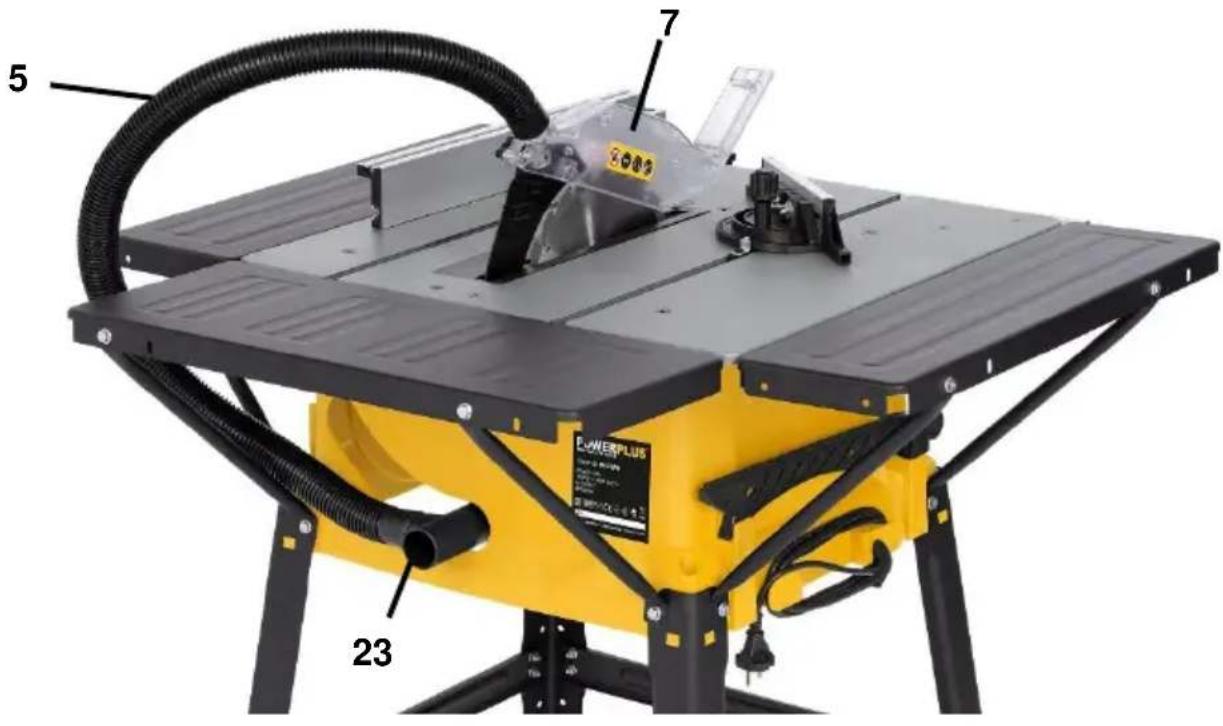

5 7 23 POWERPLUS

Fig. 6

A B C

Fig. 7

Yellow industrial machine with black handle and labeled parts (A, 3), no visible text or symbols beyond labels

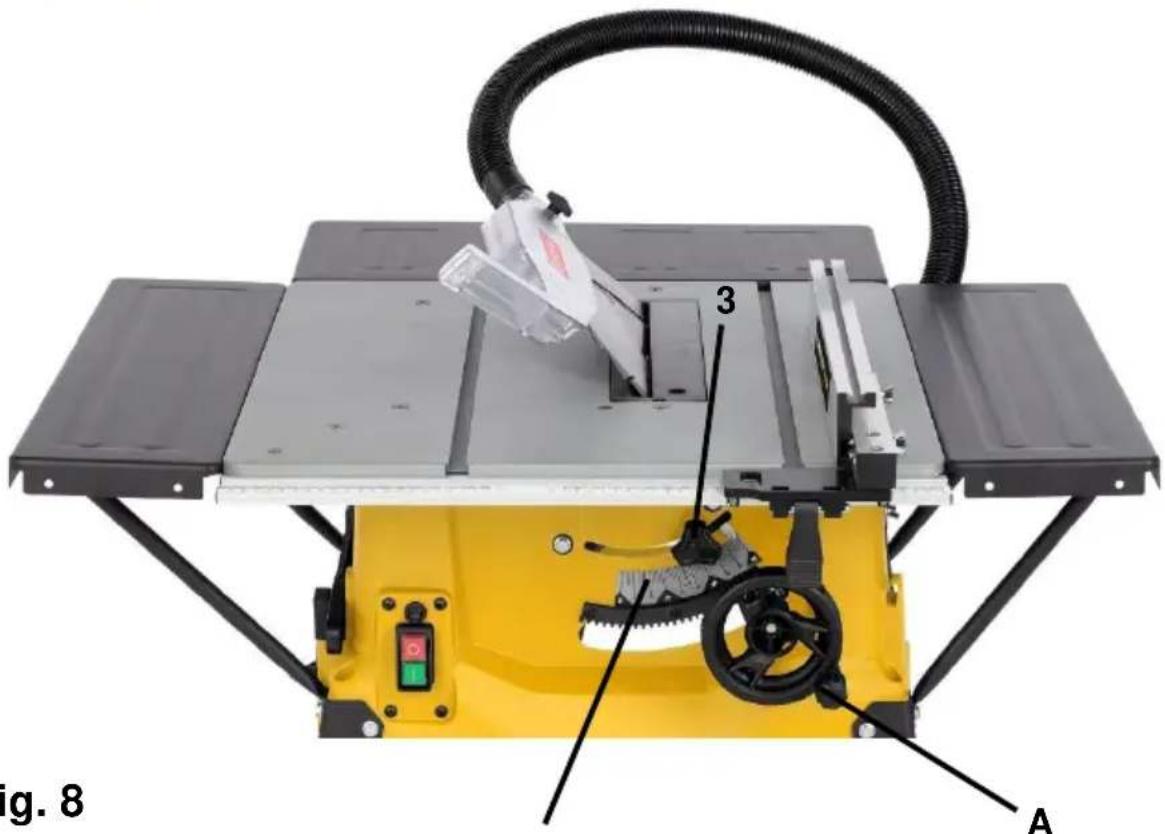

Fig. 8

24 Fig. 9 4 15

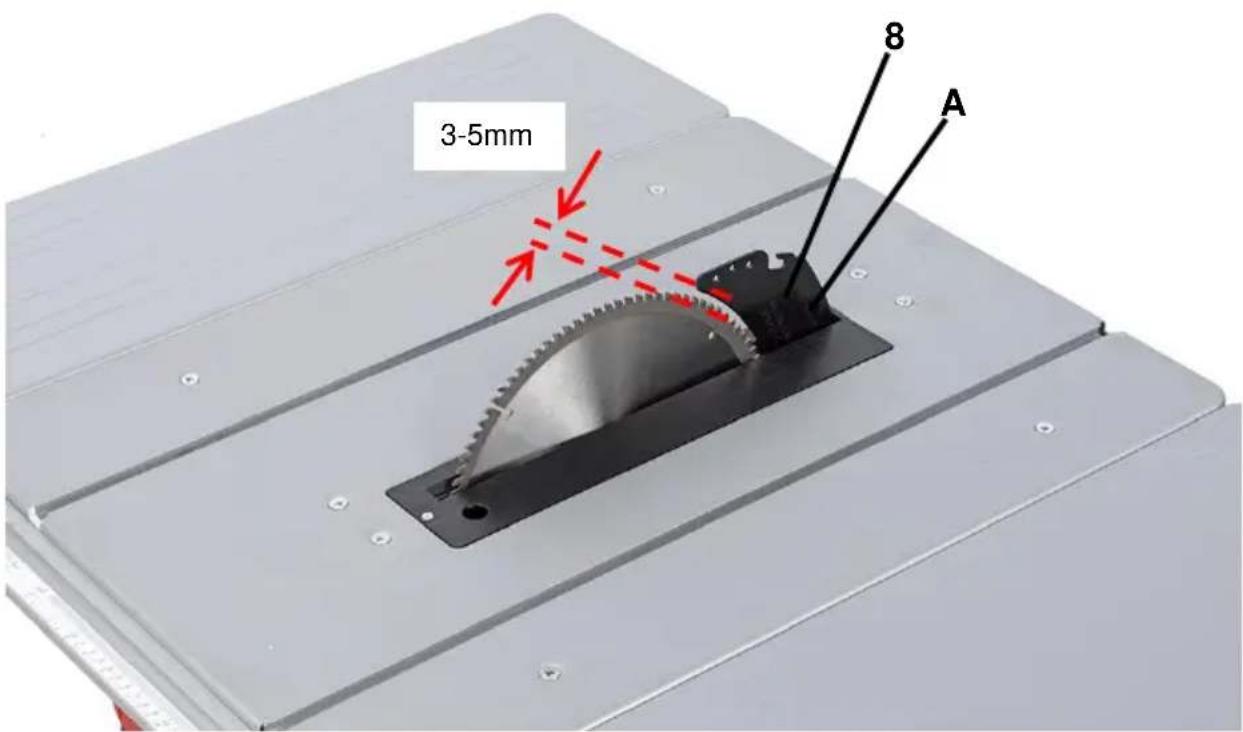

3-5mm 8 A

Fig. 10

1 SYMBOLS 2
2 GENERAL POWER TOOL SAFETY WARNINGS ....2
2.1 Working area....2
2.2 Electrical safety....2
2.3 Personal safety 3
2.4 Power tool use and care....3
2.5 Service....3
3 NOISE....4
4 WARRANTY....4
5 ENVIRONMENT 4
6 DECLARATION OF CONFORMITY 5

TABLE SAW 2000W-250MM

POWX07595

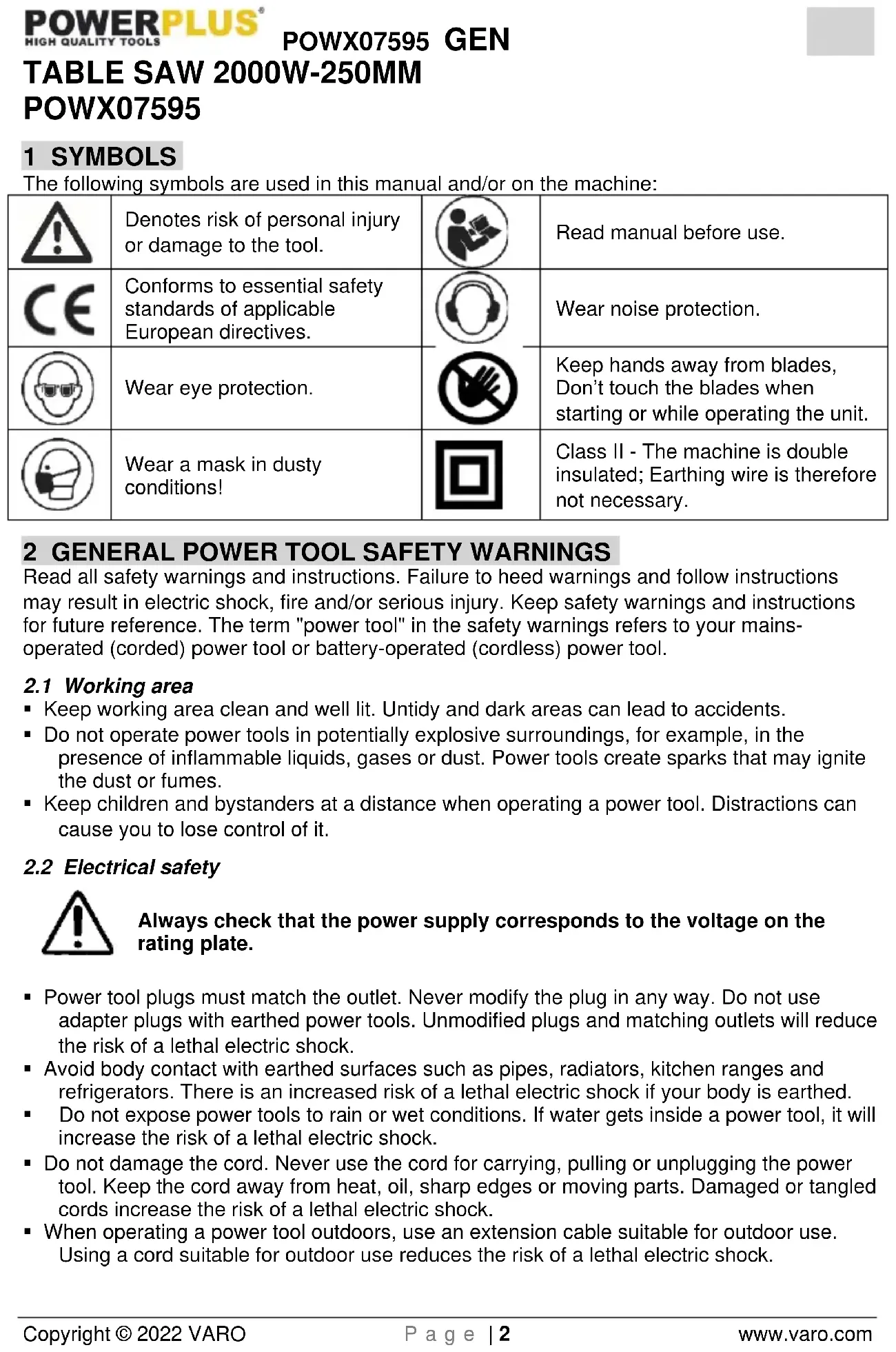

1 SYMBOLS

The following symbols are used in this manual and/or on the machine:

	Denotes risk of personal injury or damage to the tool.		Read manual before use.
	Conforms to essential safety standards of applicable European directives.		Wear noise protection.
	Wear eye protection.		Keep hands away from blades, Don't touch the blades when starting or while operating the unit.
	Wear a mask in dusty conditions!		Class II - The machine is double insulated; Earthing wire is therefore not necessary.

2 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

2.1 Working area

- Keep working area clean and well lit. Untidy and dark areas can lead to accidents.

- Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks that may ignite the dust or fumes.

- Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.

2.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

- Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of a lethal electric shock.

- Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of a lethal electric shock if your body is earthed.

- Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of a lethal electric shock.

- Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or tangled cords increase the risk of a lethal electric shock.

- When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of a lethal electric shock.

- If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of a lethal electric shock.

2.3 Personal safety

- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.

- Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.

- Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.

- Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury.

- Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you to retain control over the power tool in unexpected situations.

- Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.

- If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.

2.4 Power tool use and care

- Do not expect the power tool to do more than it was designed to do. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the circumstances for which it was designed.

- Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.

- Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

- Store power tools when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.

- Maintenance. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.

- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.

- Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

2.5 Service

- Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.

3 NOISE

Noise values measured according to relevant standard. (K=3)

Acoustic pressure level LpA

74 dB(A)

Acoustic power level LwA

107 dB(A)

ATTENTION! The sound power level may exceed 85 dB(A), in this case individual hearing protection shall be worn.

4 WARRANTY

• This product is warranted as provided by law for a 36-month period effective from the date of purchase by the first user.
• This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.
• Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.
• We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.
• Repairs may only be carried out by an authorised customer service centre for Powerplus tools.
• You can always obtain more information at the number 00 32 3 292 92 90.
• Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.
• At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.
• Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.
• Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.
• Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.
• We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).
• Your purchase receipt must be kept as proof of date of purchase.
• Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

5 ENVIRONMENT

Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

VARO N.V. - Vic. Van Rompuy N.V.- Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

product: Table saw trade mark: PowerPlus model: POWX07595

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature); 2011/65/EU 2014/30/EC 2006/42/EC

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN62841-1:2015
EN62841-3-1:2014
EN55014-1:2017
EN55014-2:2015
EN IEC 61000-3-2:2019
EN61000-3-11:2000

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Philippe Vankerkhove Certification Manager 16/09/2021, Lier - Belgium

1 TOEPASSING 3

2 BESCHRIJVING (FIG. A) 3

3 INHOUD VAN DE VERPAKKING 3

4 BIJKOMENDE VEILIGHEIDSINSTRUCTIES 4

2 BESCHRIJVING (FIG. A)

4.1 Guard related warnings....4

4.2 Cutting procedures warnings....4

4.3 Kickback causes and related warnings....4

4.4 Table saw operating procedure warnings....5

5 SAFETY EQUIPMENT 5

5.1 Cleaving wedge....5

5.2 Saw blade protector....5

5.3 Push stick....5

6 UNPACKING AND ASSEMBLY 5

6.1 Assembly (Fig. 1)....6

6.2 Attaching the tilt protection (Fig. 2)....6

6.3 Fitting the parallel fence (Fig. 3)....6

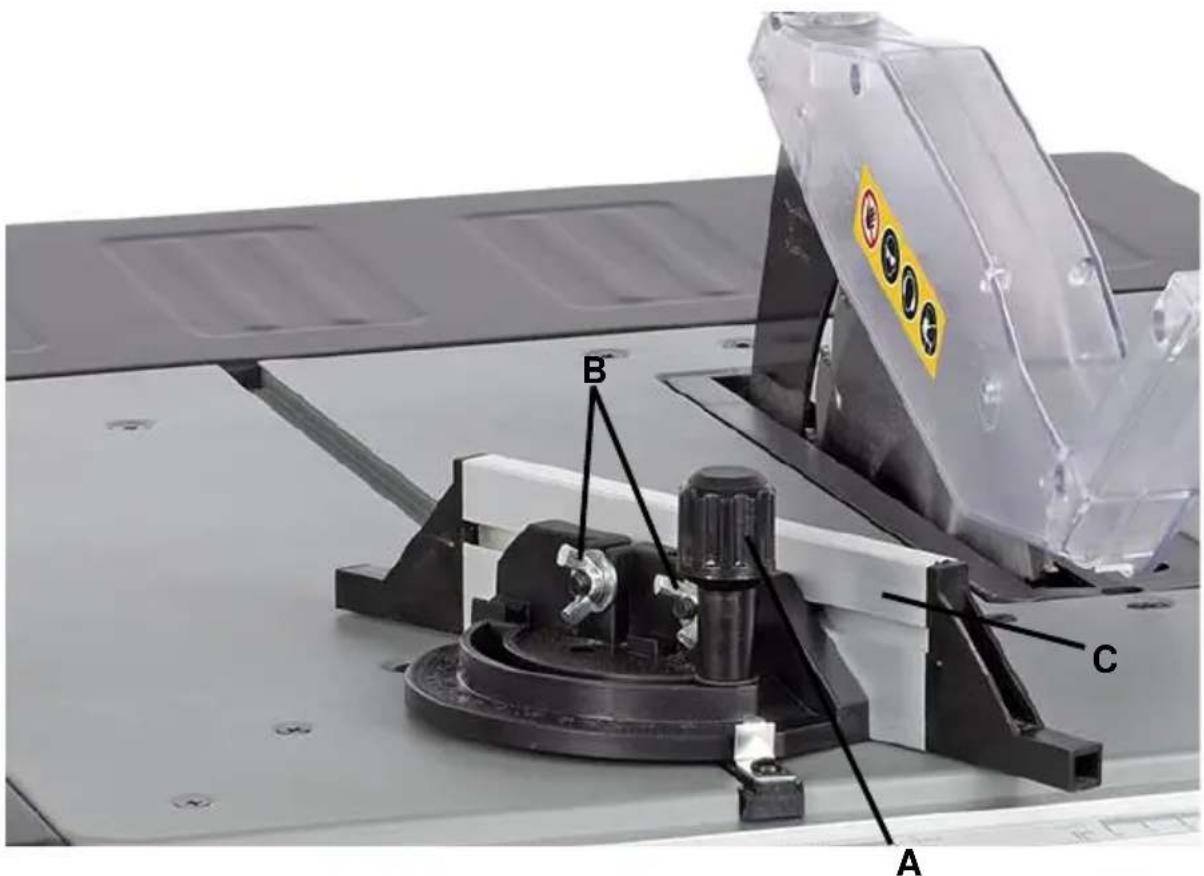

6.4 Mounting mitre angle stop (Fig. 4)....6

6.5 Mounting the saw blade guard (Fig. 5)....6

6.6 Mounting the extraction hose (Fig. 6)....6

7 OPERATION....7

7.1 Check before starting the device!....7

7.2 Operating elements....7

7.2.1 On/off switch....7

7.2.2 Overload Protection (18)....7

7.2.3 Setting mechanism for the tilt angle....7

7.2.4 Hand crank for setting the cutting height 7

7.3 Workpiece stops 7

7.3.3 Setting the stop rail of the parallel stop....8

7.3.4 Parallel stop....8

POWERPLUS® HIGH QUALITY TOOLS

POWX07595 EN

7.4 Setting the cutting height (Fig. 8)....8
7.5 Setting the saw blade angle (Fig. 8)....8
7.6 Sawing....9
8 CLEANING AND MAINTENANCE....9
8.1 Cleaning and maintenance overview....9
8.2 Cleaning the device 9
8.3 Unit maintenance....10

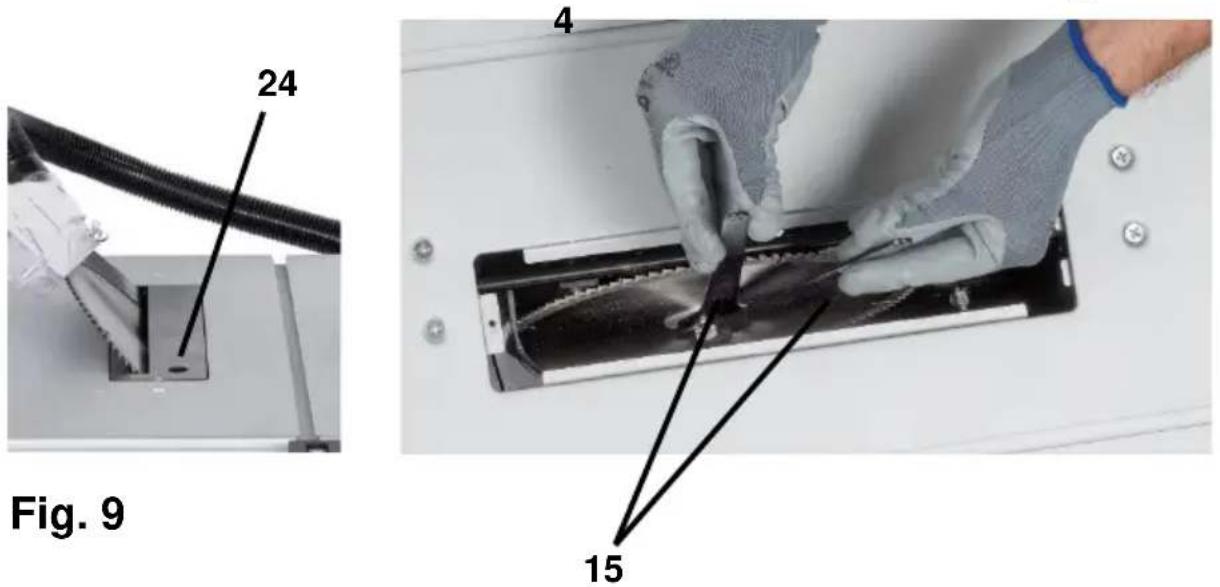

8.3.1 Fitting and changing the saw blade (Fig. 9)....10
8.3.2 Adjusting the cleaving wedge (Fig. 10)....10
9 STORAGE, TRANSPORTATION ....10
9.1 Storage 10
9.2 Transportation....11
10 TECHNICAL DATA 11

TABLE SAW 2000W-250MM POWX07595

1 APPLICATION

The device is designed to cleave and-cross-cut solid wood, laminated wood, chipboard, wood core plywood and similar wooden materials. Round pieces may not be sawed as the rotating saw blade may cause them to roll. Only those materials may be processed for which the particular saw blade is designed. Only saw blades suitable for the unit (carbide and chrome vanadium blades) may be used. The use of high-speed steel blades and cutting wheels of any type is not permitted. The unit may not be used in areas where there is an explosion hazard. Not suitable for professional use.

WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions.

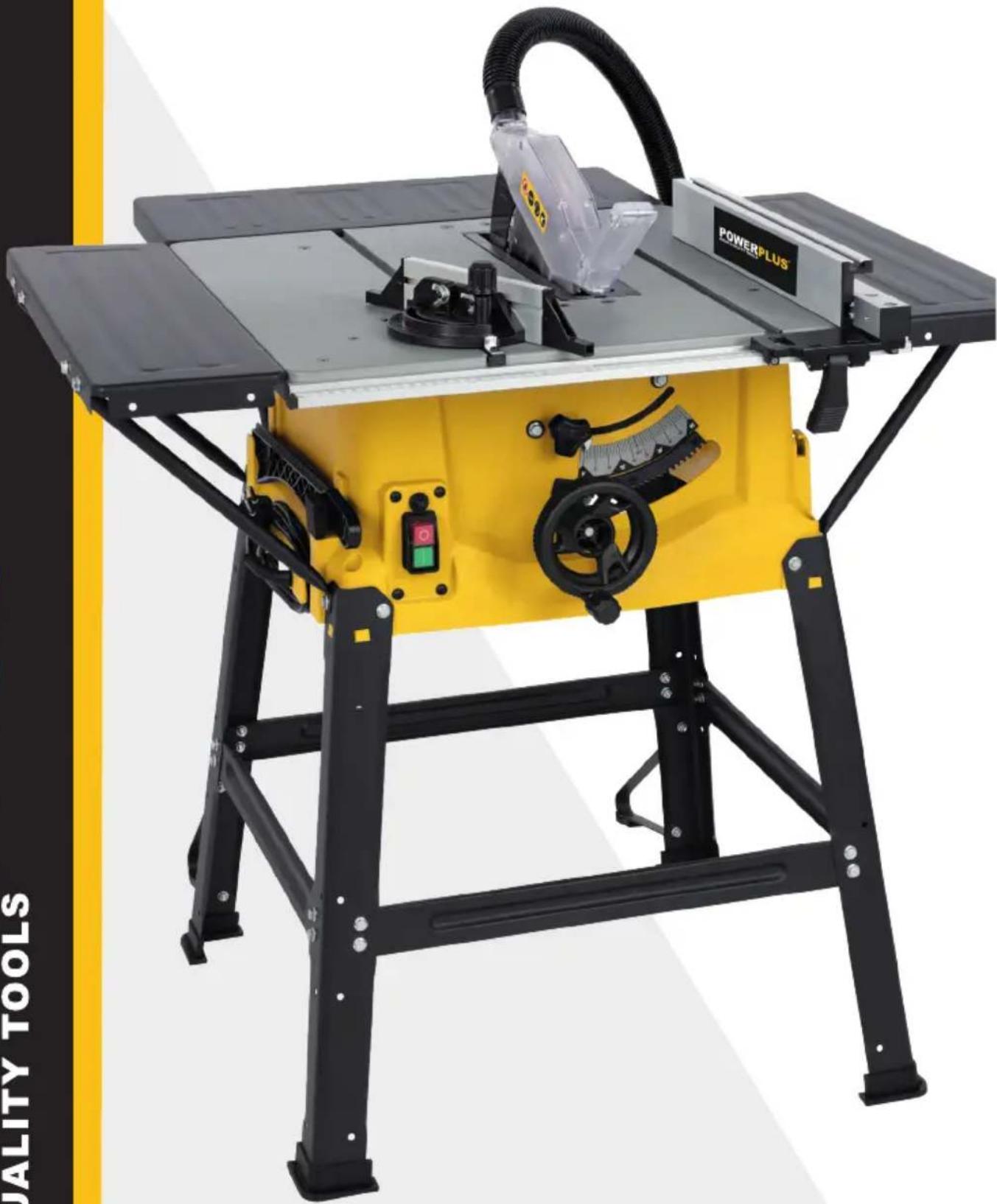

2 DESCRIPTION (FIG. A)

1. On switch I (green)/ Off switch 0 (red)/ emergency stop
2. Saw blade height and tilt angle adjustment (crank)
3. Locking knob of the saw blade (rotary knob)
4. Cut angle indicator
5. Extraction hose
6. Table extension
7. Saw blade guard

8. Cleaving wedge

9. Bracket

10. Locking lever for parallel stop

11. Mitre angle stop
12. Parallel stop
13. Base frame

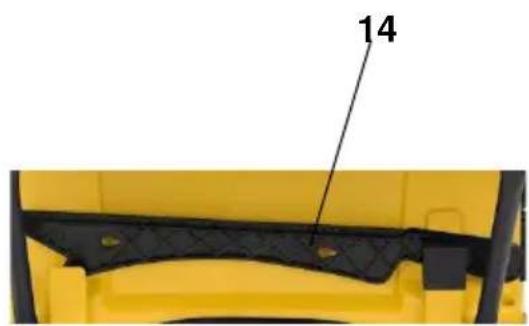

14. Push stick
15. Open-ended spanner
16. Tilt protection
17. Rubber feet
18. Overload protection
19. Measuring scale

3 PACKAGE CONTENT LIST

■ Remove all packaging.
- Remove remaining packing and packing inserts (if included).
- Check that the package contents are complete.
- Check the appliance, the power cord, the power plug and all accessories for transportation damage.
- Keep the packaging until expiration of the warranty period. Then take it to your local waste disposal system.

WARNING: Packaging materials are not toys! Children must not play with plastic bags! There is a danger of suffocation!

Table saw 2000W

Saw blade mounted

Blade guard

3 saw bench extenders

6 brackets

Parallel fence

Angle fence

Push-stick

2 spanners for blade

change

Bag with small parts

Vacuum hose

2 tilt protection devices

4 supporting legs

Operating Instructions

If any parts are missing or damaged, please contact your dealer.

4 DDITIONAL SAFETY INSTRUCTIONS

4.1 Guard related warnings

• Keep guards in place. Guards must be in working order and be properly mounted.
  ■ Always use saw blade guard, riving knife for every through-cutting operation.
• Immediately reattach the guarding system after completing an operation (such as resawing cuts) which requires removal of the guard, riving knife.
• Make sure the saw blade is not contacting the guard, riving knife or the workpiece before the switch is turned on.
• Adjust the riving knife as described in this instruction manual.
  ■ For the riving knife to work, they must be engaged in the workpiece.
  ■ Use the appropriate saw blade for the riving knife.

4.2 Cutting procedures warnings

Never place your fingers or hands in the vicinity or in line with the saw blade.

■ Feed the workpiece into the saw blade or cutter only against the direction of rotation.
- Never use the mitre gauge to feed the workpiece when ripping and do not use the rip fence as a length stop when cross cutting with the mitre gauge.
- When ripping, always apply the workpiece feeding force between the fence and the saw blade. Use a push stick when the distance between the fence and the saw blade is less than 150 mm, and use a push block when this distance is less than 50 mm.
- Use only the push stick provided by the manufacturer or constructed in accordance with the instructions.
■ Never use a damaged or cut push stick.
- Do not perform any operation "freehand". Always use either the rip fence or the mitre gauge to position and guide the workpiece.
■ Never reach around or over a rotating saw blade.
- Provide auxiliary workpiece support to the rear and/or sides of the saw table for long and/or wide workpieces to keep them level.
- Feed workpiece at an even pace. Do not bend or twist the workpiece. If jamming occurs, turn the tool off immediately, unplug the tool then clear the jam.
■ Do not remove pieces of cut-off material while the saw is running.
- Use an auxiliary fence in contact with the table top when ripping workpieces less than 2 mm thick.

4.3 Kickback causes and related warnings

Kickback is a sudden reaction of the workpiece due to a pinched, jammed saw blade or misaligned line of cut in the workpiece with respect to the saw blade or when a part of the workpiece binds between the saw blade and the rip fence or other fixed object.

Most frequently during kickback, the workpiece is lifted from the table by the rear portion of the saw blade and is propelled towards the operator.

Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

• Never stand directly in line with the saw blade. Always position your body on the same side of the saw blade as the fence.
  ■ Never reach over or in back of the saw blade to pull or to support the workpiece.
  ■ Never hold and press the workpiece that is being cut off against the rotating saw blade.
• Align the fence to be parallel with the saw blade.
• Use a featherboard to guide the workpiece against the table and fence when making non-through cuts such as resawing cuts.

POWX07595 EN

■ Use extra caution when making a cut into blind areas of assembled workpieces.
■ Support large panels to minimise the risk of saw blade pinching and kickback..
- Use extra caution when cutting a workpiece that is twisted, knotted, warped or does not have a straight edge to guide it with a mitre gauge or along the fence.
- Never cut more than one workpiece, stacked vertically or horizontally.
- When restarting the saw with the saw blade in the workpiece, centre the saw blade in the kerf so that the saw teeth are not engaged in the material..
- Keep saw blades clean, sharp, and with sufficient set. Never use warped saw blades or saw blades with cracked or broken teeth.

4.4 Table saw operating procedure warnings

• Turn off the table saw and disconnect the power cord when removing the table insert, changing the saw blade or making adjustments to the riving knife or saw blade guard, and when the machine is left unattended.
• Never leave the table saw running unattended. Turn it off and don't leave the tool until it comes to a complete stop.
• Locate the table saw in a well-lit and level area where you can maintain good footing and balance. It should be installed in an area that provides enough room to easily handle the size of your workpiece.
• Frequently clean and remove sawdust from under the saw table and/or the dust collection device.
  ■ The table saw must be secured.
  ■ Remove tools, wood scraps, etc. from the table before the table saw is turned on.
• Always use saw blades with correct size and shape (diamond versus round) of arbour holes.
• Never use damaged or incorrect saw blade mounting means such as flanges, saw blade washers, bolts or nuts.
• Never stand on the table saw, do not use it as a stepping stool.
• Make sure that the saw blade is installed to rotate in the proper direction. Do not use grinding wheels, wire brushes, or abrasive wheels on a table saw.

5 SAFETY EQUIPMENT

5.1 Cleaving wedge

The cleaving wedge (8) prevents a workpiece being caught by the ascending teeth and being thrown against the operator. The cleaving wedge must remain in place during operation.

5.2 Saw blade protector

The saw blade guard (7) protects the user from accidentally touching the saw blade and from flying splinters. The saw blade protector must always remain in place during operation.

5.3 Push stick

The push stick (14) serves as an extension of the hand and protects the user from accidentally touching the saw blade. The push stick must always be used when the gap between the stop and the saw blade is less than 120 mm.

6 UNPACKING AND ASSEMBLY

Unpack the unit and make sure all of the pieces are there.

Lower the saw blade underneath the table surface (see 8.4 Setting cutting height)

Turn the saw table up-side down

Note: If any of the parts is missing or damaged contact the retailer.

Assembly parts packed in carton box under machine motor!!!

6.1 Assembly (Fig. 1)

First attach left, right and rear table extensions to the table saw (without the brackets)

Mount the base frame and attach it to the table saw

The base frame (13) consists of four table legs with cross braces that must be mounted.

Required tools:

2 combination spanners

• Attach the four table legs (19) to the corners of the saw table. Note that the legs on the rear must be mounted so that the holes for the assembly of the tilt protection devices face the rear of the machine.
• Mount the cross braces A on the front and rear between legs (13).
• Mount the cross braces A on the sides between legs (13).

Do this by attaching each cross brace on the inside to each table leg with two screws, washers and locking nuts.

- Push the rubber feet (17) onto the supporting legs.

- Finally, fit the four brackets (21) with the table extension and the table legs.

The brackets (21) are fitted through the screw holes in the housing.

Note: Only place the device on a level, skid-proof surface. The device must not wobble.

6.2 Attaching the tilt protection (Fig. 2)

- Bolt the tilt protection to the rear supporting legs using bolts (A), washers, spring washers and nuts.

6.3 Fitting the parallel fence (Fig. 3)

Insert the parallel fence (12) into the rail of the measuring scale. Check the setting at the window. Push the locking lever (10) downwards to lock the parallel fence (12) into place. In order to obtain a perfectly parallel cut, you should check the gap between the fence and the saw blade at two positions using a meter rule.

6.4 Mounting mitre angle stop (Fig. 4)

The mitre angle stop (11) consists of two parts - the stop plate (A) and the angle adjustment (B) that must be assembled together.

- Insert the stop plate (A) into the gaps of the angle adjustment (B) with both adjusting screws (C), push into the required position and tighten the adjusting screws.

Push the gliding bar (D) of the mitre angle stop into the required bar of the table surface.

Right-handed operators prefer to push the mitre angle stop into the left bar of the table surface.

6.5 Mounting the saw blade guard (Fig. 5)

Risk of injury! The saw blade must be at least set to 30mm height.

■ First, mount the crank (2).
- Put the blade in the highest position.
- Position the saw blade protection on the cleaving wedge (8) so that bolt (22) engages in the hole. Push and at the same time tighten the bolt..

6.6 Mounting the extraction hose (Fig. 6)

- Place the vacuum hose (5) on the connecting piece of the saw blade guard (7).

- Put the vacuum hose (5) on the vacuum connecting piece (23) on the rear of the device

7 OPERATION

Risk of injury! In the event of a functional fault, immediately press the red button 0 on the On / Off switch and unplug.

7.1 Check before starting the device!

Risk of injury! The device may only be put into operation if there are no defects. If a part is defective danger it must be replaced before the device is used again.

Check to make sure the device is in safe operating condition:

• Check to make sure there are no visible defects.
• Check to make sure all device components are correctly mounted.
• Check to make sure the safety equipment is functioning properly.
• Check to make sure that the saw blade runs freely.
• Check whether the adjusting screw for setting the angle of tilt is tightened.

7.2 Operating elements

7.2.1 On/off switch

• Switching on: Pressing the green button I on the On / Off switch (1) switches on the saw. Before starting to saw, wait until the blade has reached maximum speed.
• Switching off: Pressing the red button 0 on the On / Off switch (1) switches off the saw.

7.2.2 Overload Protection (18)

The machine is fitted with an overload protection (18). Allow the machine to cool down for at least 30 minutes before switching it on again. For this first press the black button next to the switch, then press the green button (1) to restart the machine.

7.2.3 Setting mechanism for the tilt angle

The saw blade can be adjusted to any angle between 0^ and 45^ . Loosen the locking knob (3), press the lever (2) and turn to the desired tilt angle and tighten the locking knob (3).

7.2.4 Hand crank for setting the cutting height

The cutting height of the saw blade must be adjusted to the height of the workpiece. The saw blade must always be set to one blade tooth higher than the workpiece. You can set this by turning the hand crank to left or right.

Note: In order to make use of the full range of 45^ settings, the cutting height must be reduced accordingly.

7.3 Workpiece stops

The stop can be adjusted by a maximum of 120 mm for mitre cutting.

Risk of injury! Do not push the stop (Fig. 4 A) too far in the direction of the saw blade. The gap between the stop (Fig. 4 A) and the saw blade should be approximately 2 cm.

• Push the mitre angle stop (11) into the required slot of the table surface.
• Loosen adjusting screw (A), set the required angle and then tighten the adjusting screw again.
• If necessary, push the stop plate backwards or forwards. For this, loosen both adjusting screws (B), push stop plate (C) and then retighten adjusting screws (B).

7.3.3 Setting the stop rail of the parallel stop

The stop rail can be removed and repositioned after both wing nuts have been loosened: High stop edge:

■ To saw tall workpieces.
Low stop edge:
■ To saw flat workpieces.
■ If the saw blade is angled.

7.3.4 Parallel stop

■ Loosen the locking lever (10) by turning the knob.
- Set the parallel stop to the required cutting width by pushing on the scale.
■ Press down the locking lever (10).

7.4 Setting the cutting height (Fig. 8)

Risk of injury! Parts of the body or objects located in the adjustment area may be caught by the operating saw blade! Only adjust the cutting height when the saw blade is at a standstill!

• Adjust the cutting depth by turning the hand crank (A).
• Turning the hand crank counterclockwise reduces the cutting depth. Turning the hand crank clockwise Increases the cutting depth.

Note: To balance out play in the cutting height setting, always raise the saw blade from below to the required position.

The cutting depth is optimally set when the saw blade is one blade tooth higher than the workpiece.

7.5 Setting the saw blade angle (Fig. 8)

Risk of injury! Parts of the body or objects located in the adjustment area may be caught by the operating saw blade! Only adjust the blade angle when the saw blade is at a standstill!

■ Loosen the fixing screw (3).
- Set the required angle of tilt.
- The set tilt angle can be read from the scale (4).
- Tighten the fixing screw (3).

Notes: In order to make use of the full range of 44^ settings, the cutting height must be reduced accordingly.

7.6 Sawing

Risk of injury! If the gap between the parallel stop and the saw blade is less than 120 mm, the push stick must be used.

Risk of injury! Always hold the guided workpiece, not the section of workpiece that is being cut off.

Machine damage

Check the wood to be processed carefully. Foreign objects such as nails, screws and other similar objects may seriously damage the unit

• Set the required gap of the parallel stop to the saw blade
• Set the required angle of the cross stop.
• Set the saw blade cutting height.
• Set the required tilt angle of the saw blade.
• Place the workpiece up against the cross stop.
• Switch the circular saw bench on by pressing the green button I on the On / Off switch (1).
• Push the workpiece evenly towards the back and saw in a single process. Make sure that the saw is not overloaded.
• Use the red button 0 on the On / Off switch (1) to switch the unit off if you are not going to continue working immediately.

8 CLEANING AND MAINTENANCE

8.1 Cleaning and maintenance overview

Prior to each use

What?	How?
Check the saw blade to ensure it is correctly positioned and fixed in place.	Changing the saw blade
Check the saw blade protector box for wood chippings/saw dust Remove chippings if necessary.	Use compressed air to blast the chippings/dust out or use a brush.
Check that the gap between the saw blade and the cleaving wedge is set to 3 to 5 mm; correct if necessary.	Adjusting the cleaving wedge
Check the connection cable for any signs of damage	Conduct a visual inspection and have the cable replaced by an electrician if necessary.
Regularly and according to operating conditions
What?	How?
Screw connections	Check all screw connections and tighten if necessary.
Clean the ventilation slots on the motor to remove dust	Use a vacuum or a brush to remove the chippings/dust.

8.2 Cleaning the device

Risk of electric shock! Never splash with water or expose to water. Never use detergents or solvents to clean. These may cause irreparable damage to the unit The plastic pieces may be corroded by the chemicals.

Careful treatment and regular cleaning will ensure that the unit remains functional and performs well for a long time.

■ Remove dirt with a brush.
■ Wipe the tool with a damp cloth.
- Keep ventilation slots clean and free of dust

8.3 Unit maintenance

Risk of injury! Before conducting any maintenance work make sure the device is unplugged (disconnect the power supply).

Risk of injury! Shortly after sawing, the saw blade may be very hot. Allow a hot blade to cool down. Never dean a hot saw blade with flammable liquids.

A still saw blade can cause injury! Use gloves to change the saw blade.

8.3.1 Fitting and changing the saw blade (Fig. 9)

Caution! Unplug from power source.

Caution! Ensure that the saw housing is well lit.

■ Remove the screw (24) of the front of the table insert.
- Remove the table insert
- Use the crank and turn to the left to bring the saw blade as far up as it will go.
- Use the spanners (15) to remove the screw on the saw blade (Fig. 9) and exchange the blade with a suitable replacement. Watch the direction of operation! See the arrow on the saw blade. The teeth must point towards the on/off switch (1).

8.3.2 Adjusting the cleaving wedge (Fig. 10)

The gap between the external edge of the saw blade and the cleaving wedge (8) must be between three and five millimetres.

• Bring saw blade angle to the 0° position and tighten.
  ■ Bring the saw blade into the upper position.
  ■ Remove the saw blade protector.
• Remove the table surface.
• Loosen the screw (A) slightly with a suitable combination spanner until the cleaving wedge (8) is released (do not remove screw)
• Set the cleaving wedge lower or higher by pushing upward or downward in the long hole.
• Mount all dismantled parts in reverse sequence.

9 STORAGE, TRANSPORTATION

9.1 Storage

Risk of injury! Store the unit in such a way that it cannot be started by unauthorised persons. Ensure that no one is able to injury themselves on the stored unit.

Machine damage! Do not store unprotected in a damp environment.

9.2 Transportation

Note: Only lift the unit using the handles.

• Crank the saw blade down as far as it will go.
• Parts that extend beyond the saw should be removed.
• Transport the unit with the assistance of another person and use the handles.
• When dispatching, try to use the original packaging, if possible.

10 TECHNICAL DATA

Rated Voltage	220-240 V
Rated Frequency	50 Hz
Rated Power	S1:1800W S6 25% 2000W
Protection class	II
Rotation speed	5000 min-1
Diameter of saw blade (external)	250 mm
Saw blade hole (internal)	30 mm
Saw blade thickness	2.8 mm
Number of teeth	24T
Max. cutting depth at 90°	85 mm
Max. cutting depth at 45°	63 mm
Table size	563 x 583 mm
Table height (+stand)	820 mm
Dust extraction outlet	∅ 35.5mm

1 EINSATZBEREICH 3

7.2.1 Interruptor Ligado (On)/Desligado (Off) 8

7.2.1 Interruptor Ligado (On)/Desligado (Off)

4.2 Advarsler for saying 4

6.1 Montering (Fig. 1)....6

4.2 Advarsler for saging

3 FÖRPACKNINGSINNEHÅLL 3

4 EXTRA SÄKERHETSINSTRUKTIONER....4

6.1 Montering (Fig. 1)....6

3 FÖRPACKNINGSINNEHÅLL

PÖYTÄSAHA 2000 W – 250 MM POWX07595

1 KÄYTTÖ

4 DODATNE SIGURNOSNE UPUTE....4

4.1 Upozorenja u svezi štitnika ....4

4.2 Upozorenja u svezi postupaka rezanja....4

4.3 Uzroci povratnog udara i povezana upozorenja 4

4.4 Upozorenja u svezi postupaka korištenja pile sa stolom ....5

5 SIGURNOSNA OPREMA....5

5.1 Klin za kalanje 5

5.2 Štitnik lista pile....5

5.3 Štap za guranje 6

6 RASPAKIRAVANJE I SASTAVLJANJE....6

6.1 Sastavljanje (slika 1)....6

6.2 Sklapanje zaštite od naginjanja (slika 2) 6

4 DODATNE SIGURNOSNE UPUTE

4.1 Upozorenja u svezi štitnika

4 DODATNA BEZBEDNOSNA UPUTSTVA....4

4 DODATNA BEZBEDNOSNA UPUTSTVA

STOLNÍ OKRUŽNÍ PILA 2000 W – 250 MM POWX07595

1 OBLAST POUŽITÍ

2 OPIS (RYC. A)....3

3 SPIS CZEŚCI....3

4 DODATKOWE INSTRUKCJE BEZPIECZEŃSTWA....4

6 ADDITIONAL SAFETY INSTRUCTIONS 6

6.1 Guard related warnings....6

6.2 Cutting procedures warnings....6

6.3 Kickback causes and related warnings....6

6.4 Table saw operating procedure warnings....7

7 DROŠĪBAS APRĪKOJUMS......7

7.1 Škelšanas kīlis ....7

6 ADDITIONAL SAFETY INSTRUCTIONS

6.1 Guard related warnings

- Keep guards in place. Guards must be in working order and be properly mounted.

- Always use saw blade guard, riving knife for every through-cutting operation.

- Immediately reattach the guarding system after completing an operation (such as resawing cuts) which requires removal of the guard, riving knife.

- Make sure the saw blade is not contacting the guard, riving knife or the workpiece before the switch is turned on.

- Adjust the riving knife as described in this instruction manual.

- For the riving knife to work, they must be engaged in the workpiece.

- Use the appropriate saw blade for the riving knife.

6.2 Cutting procedures warnings

Never place your fingers or hands in the vicinity or in line with the saw blade.

- Feed the workpiece into the saw blade or cutter only against the direction of rotation.

- Never use the mitre gauge to feed the workpiece when ripping and do not use the rip fence as a length stop when cross cutting with the mitre gauge.

- When ripping, always apply the workpiece feeding force between the fence and the saw blade. Use a push stick when the distance between the fence and the saw blade is less than 150 mm, and use a push block when this distance is less than 50 mm.

- Use only the push stick provided by the manufacturer or constructed in accordance with the instructions.

■ Never use a damaged or cut push stick.

- Do not perform any operation "freehand". Always use either the rip fence or the mitre gauge to position and guide the workpiece.

■ Never reach around or over a rotating saw blade.

- Provide auxiliary workpiece support to the rear and/or sides of the saw table for long and/or wide workpieces to keep them level.

- Feed workpiece at an even pace. Do not bend or twist the workpiece. If jamming occurs, turn the tool off immediately, unplug the tool then clear the jam.

- Do not remove pieces of cut-off material while the saw is running.

- Use an auxiliary fence in contact with the table top when ripping workpieces less than 2 mm thick..

6.3 Kickback causes and related warnings

Kickback is a sudden reaction of the workpiece due to a pinched, jammed saw blade or misaligned line of cut in the workpiece with respect to the saw blade or when a part of the workpiece binds between the saw blade and the rip fence or other fixed object.

Most frequently during kickback, the workpiece is lifted from the table by the rear portion of the saw blade and is propelled towards the operator.

Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

- Never stand directly in line with the saw blade. Always position your body on the same side of the saw blade as the fence.

- Never reach over or in back of the saw blade to pull or to support the workpiece.

■ Never hold and press the workpiece that is being cut off against the rotating saw blade.

• Align the fence to be parallel with the saw blade..
• Use a featherboard to guide the workpiece against the table and fence when making non-through cuts such as resawing cuts.
  ■ Use extra caution when making a cut into blind areas of assembled workpieces.
  ■ Support large panels to minimise the risk of saw blade pinching and kickback..
• Use extra caution when cutting a workpiece that is twisted, knotted, warped or does not have a straight edge to guide it with a mitre gauge or along the fence.
• Never cut more than one workpiece, stacked vertically or horizontally.
• When restarting the saw with the saw blade in the workpiece, centre the saw blade in the kerf so that the saw teeth are not engaged in the material..
• Keep saw blades clean, sharp, and with sufficient set. Never use warped saw blades or saw blades with cracked or broken teeth.

6.4 Table saw operating procedure warnings

• Turn off the table saw and disconnect the power cord when removing the table insert, changing the saw blade or making adjustments to the riving knife or saw blade guard, and when the machine is left unattended.
• Never leave the table saw running unattended. Turn it off and don't leave the tool until it comes to a complete stop.
• Locate the table saw in a well-lit and level area where you can maintain good footing and balance. It should be installed in an area that provides enough room to easily handle the size of your workpiece.
• Frequently clean and remove sawdust from under the saw table and/or the dust collection device.
  ■ The table saw must be secured.
• Remove tools, wood scraps, etc. from the table before the table saw is turned on.
• Always use saw blades with correct size and shape (diamond versus round) of arbour holes.
• Never use damaged or incorrect saw blade mounting means such as flanges, saw blade washers, bolts or nuts.
• Never stand on the table saw, do not use it as a stepping stool.
• Make sure that the saw blade is installed to rotate in the proper direction. Do not use grinding wheels, wire brushes, or abrasive wheels on a table saw.

7 DROŠĪBAS APRĪKOJUMS

7.1 Škelšanas kīlis

Assembly parts packed in carton box under machine motor!!!

8.1 Montāža (1. att.)

First attach left, right and rear table extensions to the table saw (without the brackets)

Yellow industrial machine with metal components and a curved handle, mounted on a black frame (no visible text or symbols)

varo

WWW.VARO.COM

DESIGNED AND MARKETED BY VARO

©copyright by varo

VARO - VIC. VAN ROMPUY nv

JOSEPH VAN INSTRAAT 9 - 2500 LIER - BELGIUM

OFFICES:
