USER MANUAL Concealed Hinge Jig Kreg

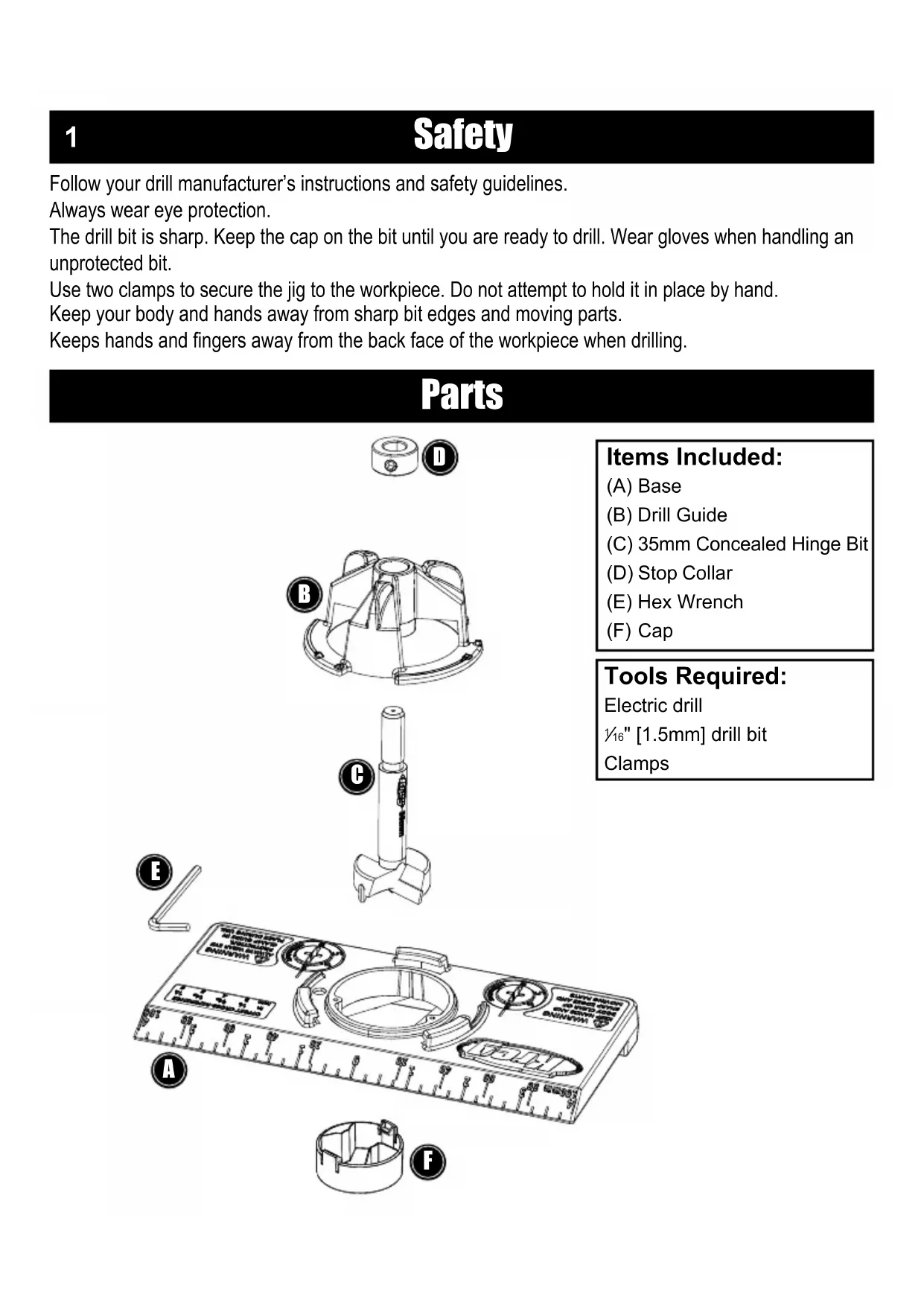

Follow your drill manufacturer’s instructions and safety guidelines. Always wear eye protection. The drill bit is sharp. Keep the cap on the bit until you are ready to drill. Wear gloves when handling an unprotected bit. Use two clamps to secure the jig to the workpiece. Do not attempt to hold it in place by hand. Keep your body and hands away from sharp bit edges and moving parts. Keeps hands and ngers away from the back face of the workpiece when drilling. Parts

Items Included: (A) Base(B) Drill Guide(C) 35mm Concealed Hinge Bit(D) Stop Collar(E) Hex Wrench(F) Cap Tools Required: Electric drill ⁄16" [1.5mm] drill bitClamps FAssembly

Turn the Drill Guide counterclockwise and remove it from the Base. Insert the 35mm Concealed Hinge Bit into the Drill Guide and slide the Stop Collar onto the bit shaft until it is seated on the shaft shoulder. Tighten the set screw with the Hex Wrench. Set the Drill Guide/35mm Bit aside. Consult your hinge manufacturer’s instructions for the distance from the edge of the door to the edge of the 35mm hinge-cup hole. Using a at-blade screwdriver, turn the Edge Indexers so the appropriate dimension aligns with the line on the Base. The edge- of-door to edge-of-hole dimension usually is given in millimetres. For a dimension given as a fraction of an inch, see the cross-reference table directional. Stop Collar Edge indexer WARNING The drill bit is sharp. Keep the cap on the bit until you are ready to drill. Wear gloves when handling an unprotected bit.

ATTENTION The drill bit included with this jig is a custom length with a shoulder for accurately positioning the Stop Collar. Use only a Kreg 35mm Concealed Hinge Bit as a replacement.

Dimension given as fraction of an inch Set Edge Indexers to millimetre dimension 1/8" 3mm 5/32" 4mm 3/16" 5mm 1/4" 6mm Shaft shoulderUsingtheJig Position the Base with the Edge Indexer cams on the bottom of the Base against the hinge edge of the door. Set the distance from the top or bottom edge of the door by using the scale on the bevelled edge of the Base (3½" mark aligned with edge shown) or by aligning a marked centreline with “0” on the scale. Clamp the Base to the door with two clamps, one above and one below the Drill Guide socket. ATTENTION To keep both Edge Indexer cams in contact with the door, the distance from the top or bottom end of the door to the centre of the hinge- cup hole must be at least 2" [51mm].

Mark on scale aligned with edgeCentreline notchesHinge centreline mark When manufacturer’s instructions specify the distance from the edge of the door to the centre of the hinge-cup hole, see the table directional for the correct Edge Indexer setting. Distance from door edge to hole centre Edge Indexer setting 21mm 3mm 22mm 4mm 23mm 5mm 24mm 6mm ATTENTION If installation instructions supplied with your hinges are vague, incomplete or nonexistent, please contact the manufacturer or hardware supplier for complete installation information. Major hardware manufacturers have this information on their Web sites.

Assembly 3Chuck the Drill Bit into an electric drill, remove the cap from the drill bit and install the Drill Guide/Drill Bit in the Base, turning the Drill Guide clockwise until it engages the detents. Switch on the drill, wait until it comes up to full speed and drill the hole. Stop when the Stop Collar contacts the Drill Guide. With the drill still running, withdraw the bit and turn off the drill. Remove the Drill Guide/Drill Bit from the Base. Chuck a

⁄16" [1.5mm] drill bit into the electric drill. Insert the bit into the hinge-screw drill guides on the Base and drill pilot holes into the door. Unclamp the Base and move it to the next hinge location. ATTENTION To avoid accidentally drilling through the door when drilling the hinge-screw pilot holes, wrap a piece of masking tape around the drill bit ⅞" [22mm] from the tip (½" [13mm] for the Base thickness plus ⅜" [10mm] for the depth of the pilot hole).

Follow your hinge manufacturer’s instructions for positioning the hinge-mounting plates in the cabinet. Hinge screw drill guides Masking tape marks drilling depth UsingtheJig

⁄16" [1.5mm] pilot hole. Check the pilot-hole size for your hinge screws before drilling. !Sicherheit
