Product Type	Hand blender (stand mixer with whisks and dough hooks)
Brand	Beko
Model	HMM 62444 W
Power	425 W
Supply Voltage	220-240 V ~ 50/60 Hz
Bowl Capacity	Bowl provided (capacity not specified, suitable for mixtures of at least 200 ml)
Speeds	1 to 4, + Turbo function (momentary maximum power)
Included Accessories	2 whisks, 2 dough hooks, bowl, mixing stand
Stand Use	Yes, the unit snaps onto the stand and locks (click)
Continuous Use Duration	Whisks: max 10 min then 5 min rest; Dough hooks: max 2 min then 1 min rest; Turbo: max 1 min
Accessory Material	Metal whisks and hooks (dishwasher safe)
Cleaning	Whisks and hooks: dishwasher; Bowl: warm water and dish soap; Unit: damp cloth, do not immerse
Safety	Do not use for hot, dry or hard foods; debone/pit before use; unplug before cleaning or changing accessories
Approximate Weight	Approx. 2 kg (estimated)
Dimensions (L×W×H)	Not specified (height approx. 30 cm with stand)
Warranty	Not mentioned (refer to Beko customer service)
Repairability	Spare parts available from Beko authorized service
Protection Rating	Do not immerse the appliance, cable or plug

Frequently Asked Questions - HMM 62444 W BEKO

How to use the whisks and dough hooks?

The whisks (for liquids, egg whites) and the hooks (for thick doughs) are inserted into the slots on the unit. Both must always be used together. Never reverse the mounting direction: each accessory has a specific peg.

Can I use the mixer for hot foods?

No, the appliance is designed for room temperature or cold foods. Hot foods may damage the motor or cause splashing. Allow preparations to cool before mixing.

How to clean the accessories after use?

The whisks and hooks are dishwasher safe. The bowl is cleaned with hot water and dish soap. The mixer unit is wiped with a damp cloth, never immersed. Dry all parts thoroughly before reassembling.

What to do if the mixer stops during use?

Check if the appliance has overheated: let it cool for 5 to 10 minutes. Ensure the plug is properly connected and the bowl contains enough liquid. If the problem persists, contact a Beko authorized service.

Can I blend fruits with pits or bones?

No, it is mandatory to remove pits, bones or other hard elements before blending. Hard substances can damage the blades or motor and void the warranty.

Is the bowl dishwasher safe?

The bowl is not specifically indicated as dishwasher safe. It is recommended to wash it by hand in warm soapy water to preserve its finish. Only the whisks and hooks are certified dishwasher safe.

Which speed to choose for whipping egg whites?

Start at speed 1, then gradually increase to speed 4. Use the Turbo button for a final whip (max 1 minute). Ensure you use a perfectly clean and dry bowl.

Can I leave the mixer plugged in permanently?

For safety reasons, always unplug the appliance after use, especially before cleaning, changing accessories or storing. Do not leave it plugged in unattended.

Can the dough hooks scratch my mixing bowl?

Yes, the metal hooks can scratch non-stick coatings or Teflon bowls. Use a stainless steel or glass bowl instead to avoid scratches.

How to use the mixing stand?

Place the unit on the stand by tilting the back first, then lower until it clicks. Use the release button to lift the unit after use. Ensure that the whisks/hooks are not attached when mounting on the stand.

USER MANUAL HMM 62444 W BEKO

Simple line drawing of a teapot inside a container with liquid, no text or symbols present.

HMM 62444 W

EN / DE / FR / ES / IT / PL / SL / CS / SR / SQ / MK / RO / RU / AR

CONTENTS

ENGLISH	03-16
DEUTSCH 17-33
FRANÇAIS	34-47
ESPAÑOL 48-63
ITALIANO	64-79
POLSKI	80-96
SLOVENŠČINA	97-110
CZECH	111-124
СРБИН	125-138
SHQIPTARE	139-152
МАКЕДОНСКИ	153-168
ROMÂNĂ	169-186
RUSSIAN	187-207
ARABIC	01-14

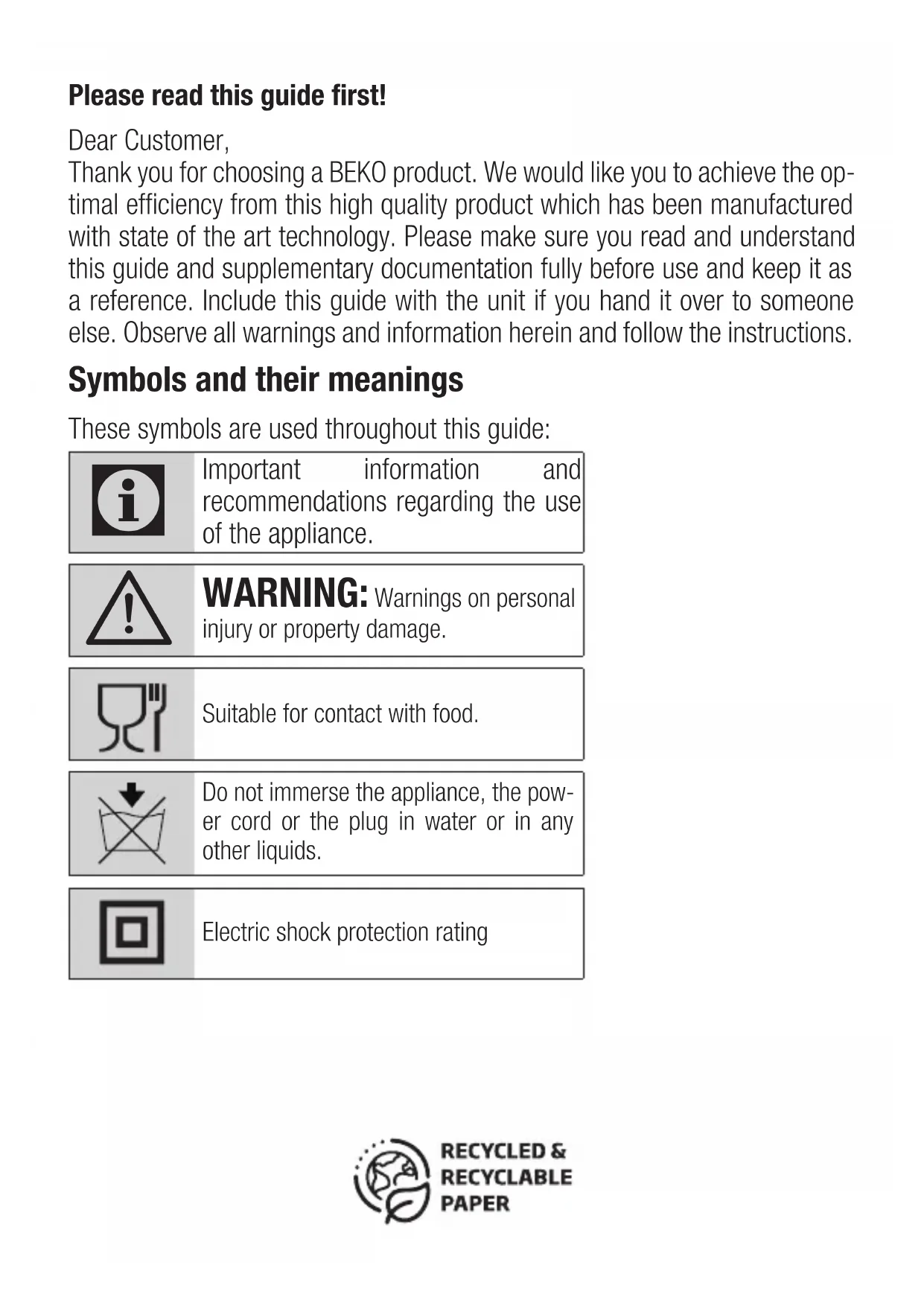

Please read this guide first!

Dear Customer,

Thank you for choosing a BEKO product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of the art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference. Include this guide with the unit if you hand it over to someone else. Observe all warnings and information herein and follow the instructions.

Symbols and their meanings

These symbols are used throughout this guide:

Important information and recommendations regarding the use of the appliance.

WARNING: Warnings on personal injury or property damage.

Suitable for contact with food.

Do not immerse the appliance, the power cord or the plug in water or in any other liquids.

Electric shock protection rating

1 Important safety and environmental instructions

This section contains safety instructions to prevent hazards that can result in injury or property damage.

Any warranty is void if these instructions are not followed.

1.1 General safety

•This appliance complies with the international safety standards.
- This appliance can be used by people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, provided that they are supervised or they understand the instructions with regard to safe use of the product and potential dangers.
•This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments,
- farm houses, by clients in hotels, motels and other residential type environments,
- bed and breakfast type environments

1 Important safety and environmental instructions

•This appliance cannot be used by children.
- Keep the appliance and the power cable out of the reach of children.
- Do not use it if the power cable or the appliance itself is damaged. Contact an authorised service.
- Unplug the appliance when left unattended, while installing/removing accessories or before cleaning.
- Only use the original parts or parts recommended by the manufacturer.
- Do not attempt to dismantle the appliance.
-Your mains power supply should comply with the information supplied on the rating plate of the appliance.
- Do not use the appliance with an extension cord.
- Do not pull the power cable when unplugging the appliance.
- Unplug the appliance before cleaning, disassembly, accessory replacement and wait for it to stop completely.
- Do not touch the plug of the appliance with damp or wet hands.

1 Important safety and environmental instructions

• Do not use the device for hot food.
• Remove bones and stones from food to prevent the the appliance from getting damaged.
  •This appliance is not suitable for dry or hard foods.
  •To prevent overheating, do not use whisking continuously for more than 10 minutes. Leave to cool for 5 minutes in between each 10 minutes of operation.
  •To prevent overheating, do not use mixing with spirals continuously for more than 2 minutes. Leave to cool for 1 minute in between each 2 minutes of operation.
• Follow all warnings to prevent injuries due to incorrect use.
  •After cleaning, dry the appliance and all parts before connecting it to mains supply and before attaching the parts.
• Before using the appliance for the first time, clean all parts carefully which come into contact with food. Please see full details in the “Cleaning” section.

1 Important safety and environmental instructions

• Do not immerse the appliance, power cable, or power plug in water or any other liquids.
• Do not operate or place any part of this appliance or its parts on or near hot surfaces.
• If you keep the packaging materials, store them out of the reach of children.
• If you keep the packaging materials, store them out of the reach of children.

1.2 Compliance with the WEEE Regulations and Waste Disposal

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1 Important safety and environmental instructions

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Packaging information

The product's packaging is made of recyclable materials, in accordance with the National Legislation. Do not dispose the packaging waste with the household waste or other wastes, dispose it to the packaging collection areas specified by local authorities.

1.5 What to do for energy saving

Follow the times recommended in the manual during use. Unplug the cord of appliance after use.

2 Your blender

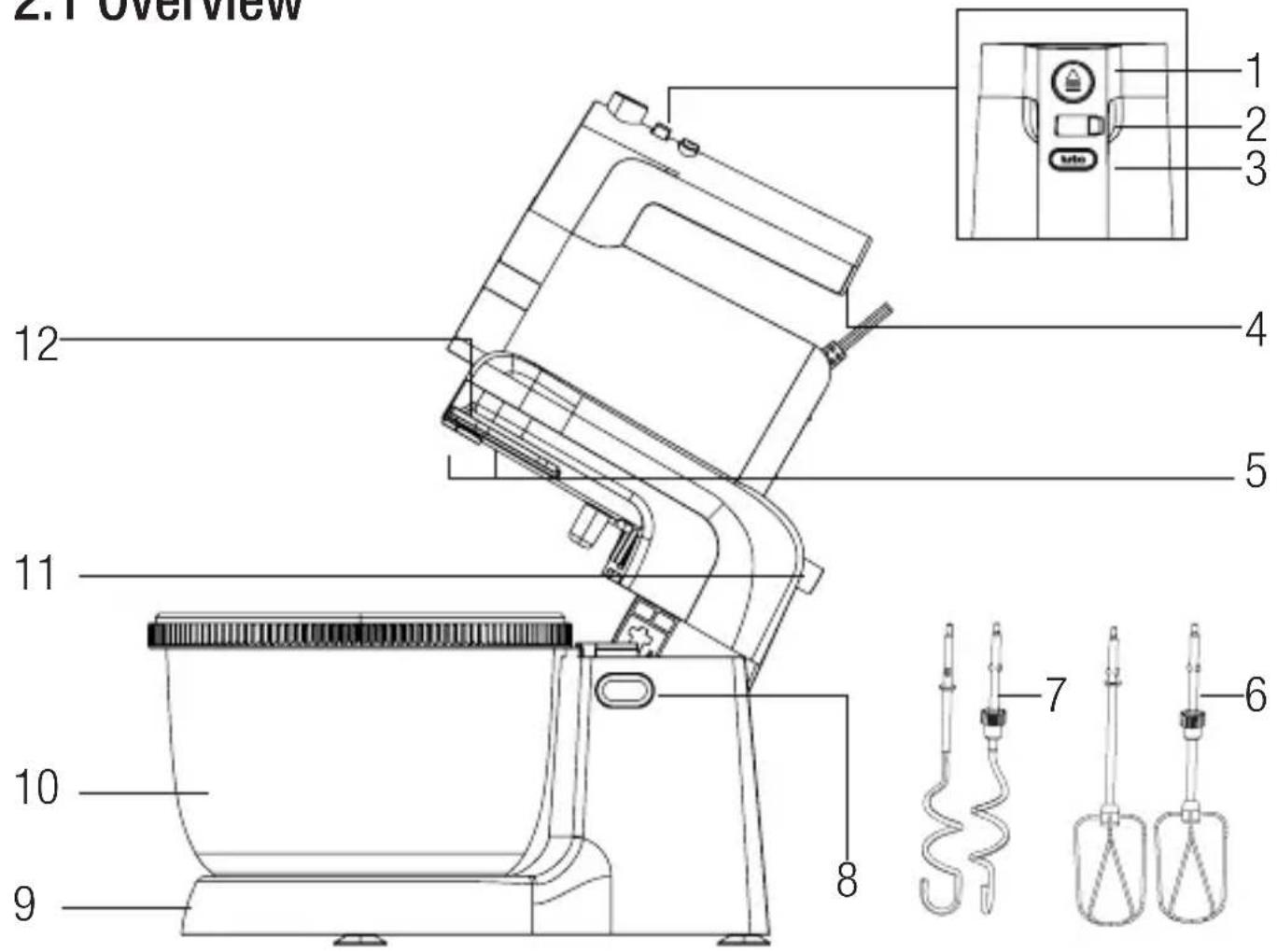

2.1 Overview

2.1 Overview 1 2 3 4 5 6 7 8 9 10 11 12

1. Accessory release switch
2. Speed control
3. Turbo button
4. Handle
5. Accessory slots for beaters and dough hooks
6. Beaters
7. Dough hooks
8. Housing opening/closing button

9. Stand

10. Mixing bowl

11. Mixer detaching button
12. Mixer housing

2.2 Technical Data

Voltage: 220-240 V\~, 50-60 Hz Power: 425 W

The rights to make technical and design changes are reserved.

2 Operation

2.1 Intended use

The appliance is intended for home use only, it is not suitable for professional use.

2.2 First operation

Clean the parts of the appliance before the first use.

2.3 Beater / Mixer

Diagram illustrating a gun firing process with labeled components and directional arrows

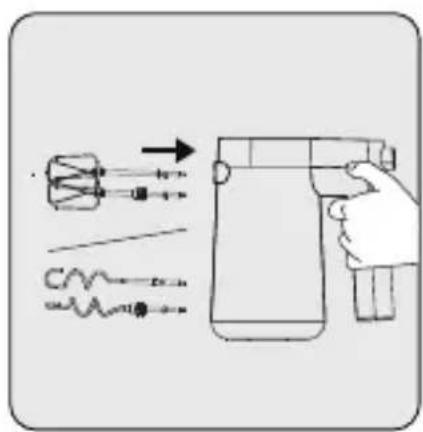

Insert beaters (6) or dough hooks (7) into the inlets for beater (5) or dough hook until they settle.

Diagram illustrating a water filtration or gas collection process with labeled components and an arrow indicating direction.

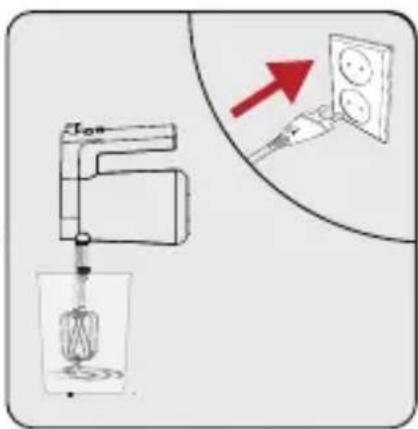

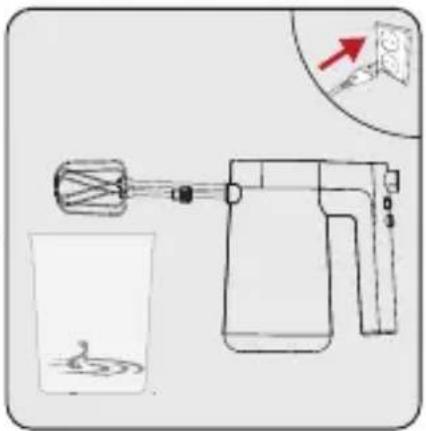

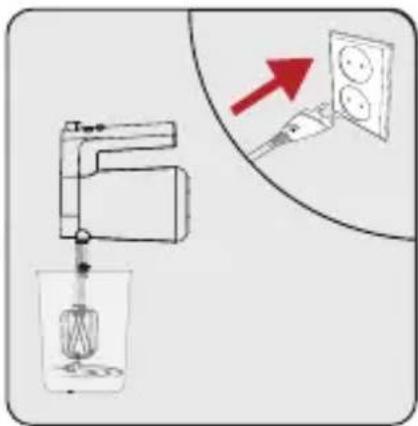

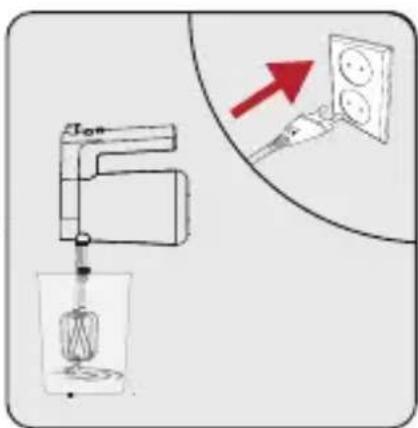

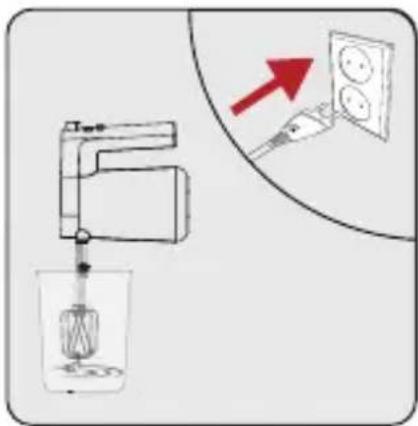

Plug in the power cord. Put the beaters (6) and the dough hooks (7) into the batter before turning on the stick blender.

012345 1 2

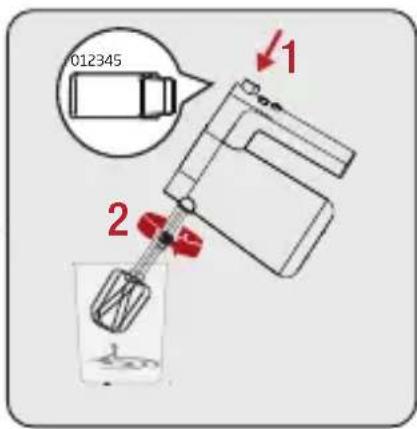

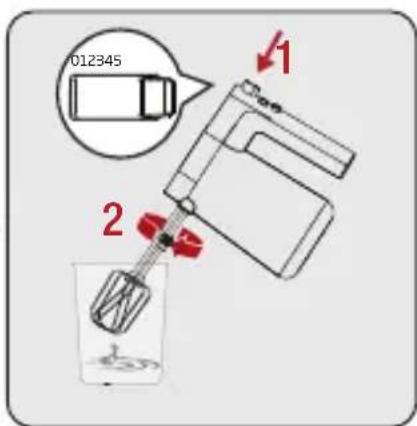

Speed setting is between 1 and 4. Increase the speed starting from level 1.

• Do not use the beater and dough hooks together.
• Never press the accessory release switch (1) unless the speed control is on position 0 and the appliance is disconnected from the wall socket.

When mixing ingredients, start with a lower speed. Foods may spatter around if you start with high speed.

2 Operation

012345 1 2

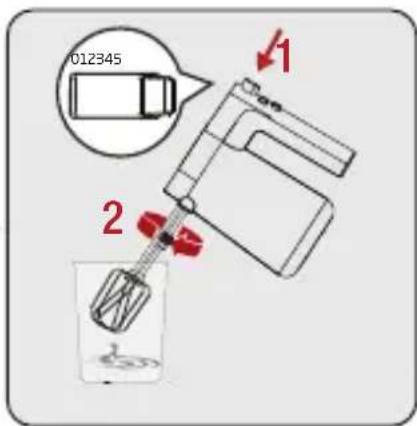

When the process is completed, leave the speed setting button at "0" position.

Illustration of a spray gun with a beaker and water droplet, showing a magnified view of the spray bottle (no text or symbols)

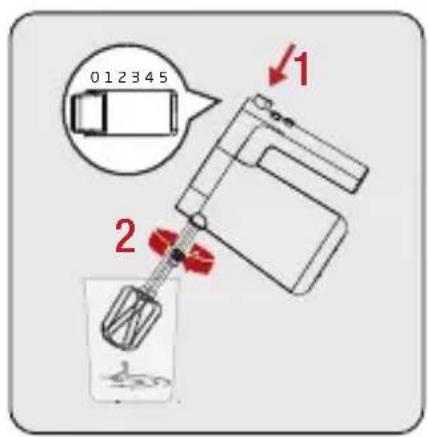

Wait until your appliance is completely stopped. Unplug and remove the beater/mixer accessories from the batter.

012345

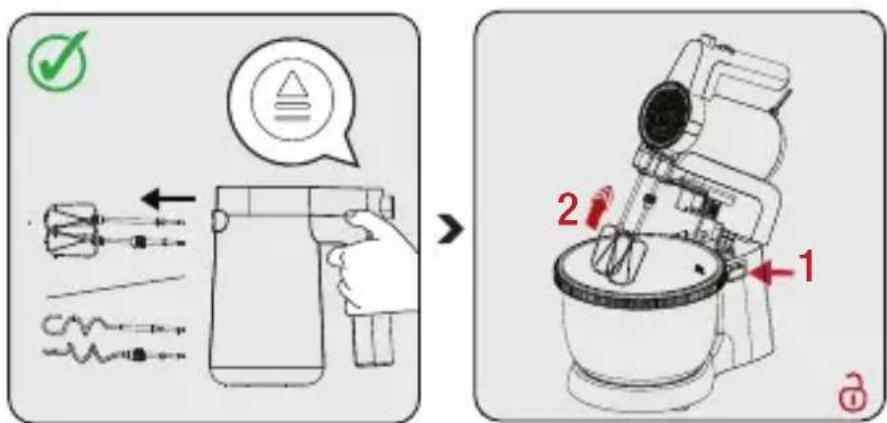

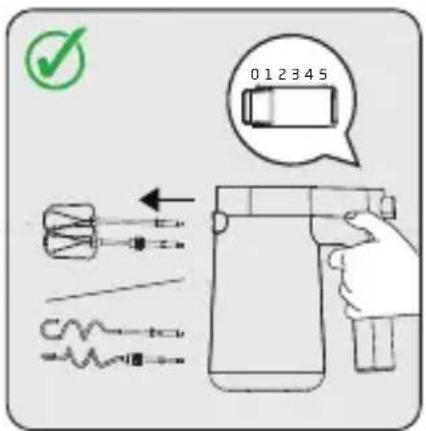

You can remove the beater and mixer accessories by pushing the accessory release button (3) when the power button is on "0" position.

2.3.1 Beaters

• Always use both beaters.
- Teflon coated containers may be scratched.

Use it to beat liquid ingredients like cake batter, sauce, soup.

2.3.2 Dough Hooks

• Always use both dough hooks.
- Teflon coated containers may be scratched.
- Use it for dough dough.

2 Operation2 Operation

2.4 TURBO button

Push and hold the TURBO button when you need sudden high speed, and unhold when you no longer need.

Do not use the TURBO feature for longer than 1 minute.

2.5 Maximum quantities and processing time

Food Type Weight		Operation time	Speed adjustment
Maltose 100g
Honey 600g (-7°C)		15 s Turbo
Wheat flour 100 g

2.6 Mixing on the stand

• When attaching the mixer to the housing, make sure that the whiskers and dough hooks are not attached.
• Do not place knife, metal spoon, fork and so on into bowl when operating.

2 Operation

Line drawing of a kitchen mixer with handle and side panel (no text or symbols)

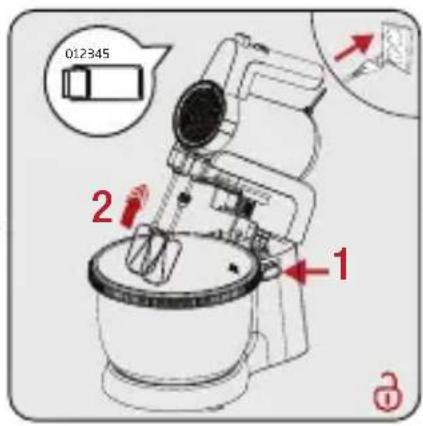

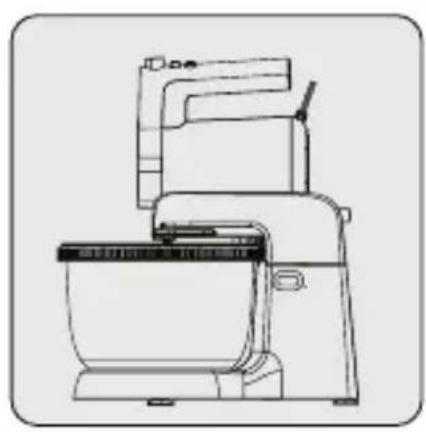

Start from the rear part of the mixer to place it into its housing.

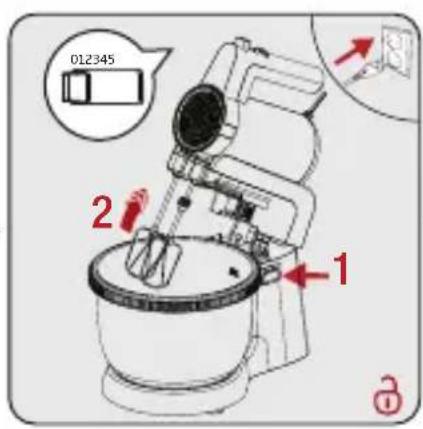

- Click will be heard. Press the housing opening button to lift the housing.

012345 2 1

Put the ingredients into the mixing bowl. Fit the whisker/dough hook with double notches to the small accessory housing (5), and fit the whisker/dough hook with a single notch to the large accessory housing (5).

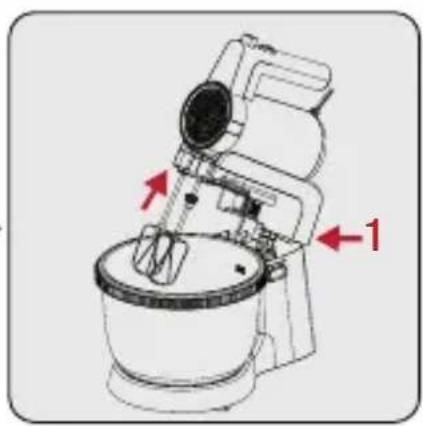

Press the housing opening button to close the housing downwards.

- Click will be heard. Operate the appliance.

Line drawing of a kitchen mixer with red directional arrows indicating components (no text or symbols)

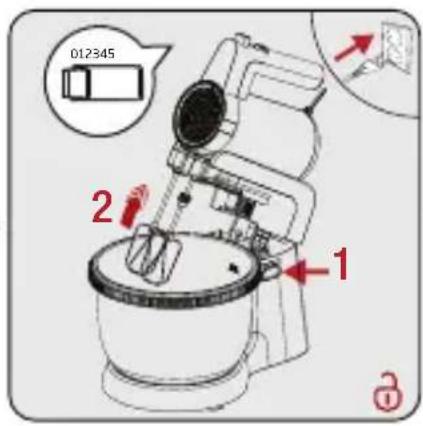

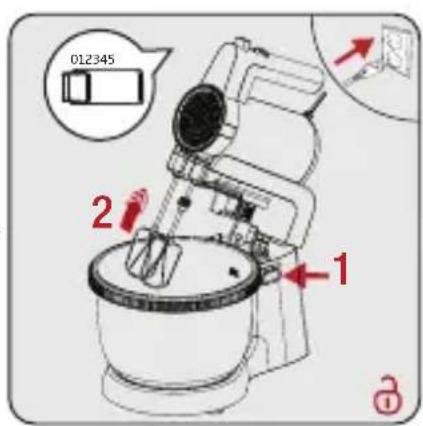

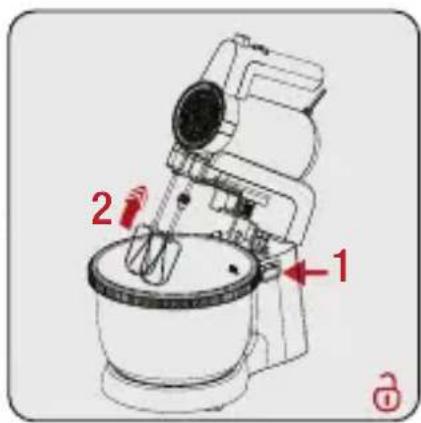

Once mixing/kneading is done, set the speed controller to "0" and unplug the appliance. Press the housing opening button to lift the housing.

- The max operation time per time shall not exceed 10 minutes, then have a rest for a appropriate time until your hand / stand mixer cooling between two consecutive cycles. When kneading yeast dough, we suggest that the speed selector should be at low speed firstly and then use high speed to achieve the best results.

2 Operation

Diagram illustrating a washing machine operation with labeled steps: check, call, and press application.

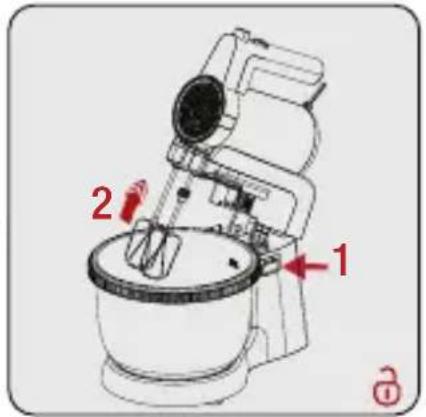

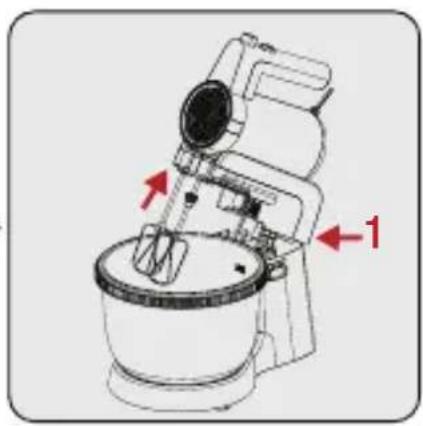

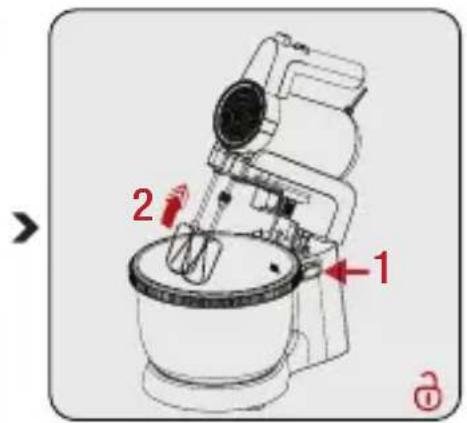

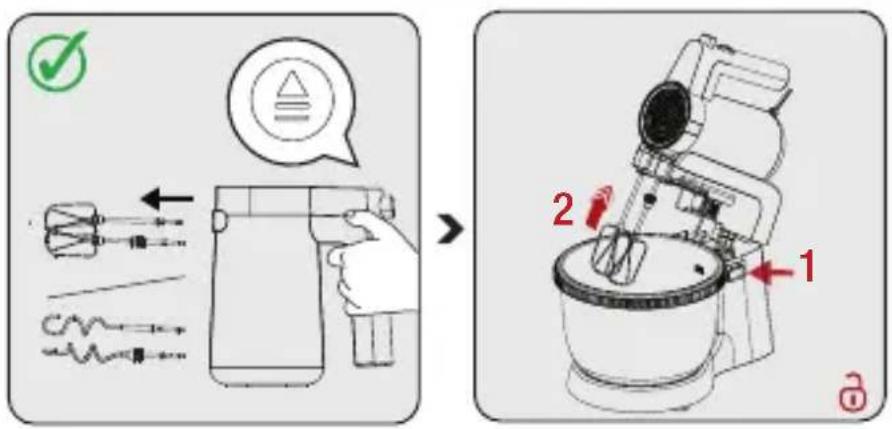

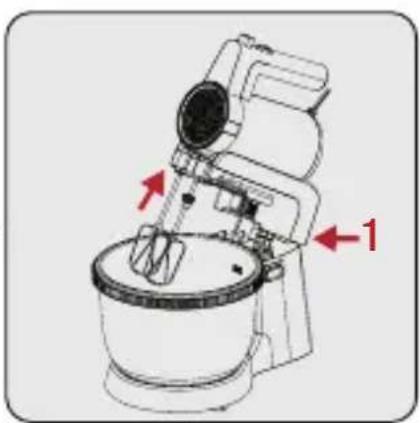

Grab the whiskers or kneading hooks by one hand and press the accessory detaching button.

Press the mixer detaching button to take out the mixer.

• For better results, use it for at least 200 ml mixtures.
• Beaters are for mixing egg white or mixing other liquid. Dough hooks are for kneading the dough Beaters are for mixing egg white or mixing other liquid. Dough hooks are for kneading the dough.
• Beaters and dough hooks, the one with gear can only be inserted into the socket with graphics and the other one can only be inserted into the other socket. The two beaters and two dough hooks cannot be inserted in reverse.

4 Cleaning and maintenance

4.1 Cleaning

Do not use benzene, solvents, abrasive cleaners, metal objects or hard brushes to clean the appliance.

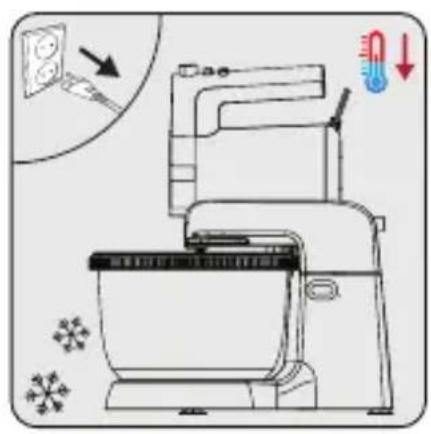

Diagram of a kitchen appliance with temperature and cooling indicators, showing a fan blade and water drop symbol.

Turn the appliance off and disconnect it from the wall socket.

Let the appliance cool down completely.

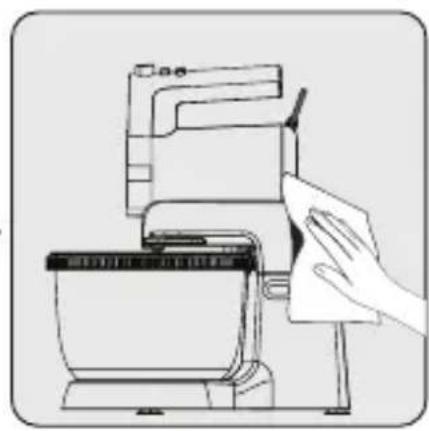

Line drawing of a hand cleaning a kitchen mixer machine (no text or symbols)

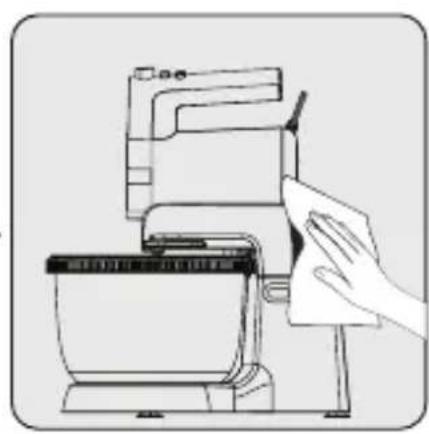

Use a damp and soft cloth to clean the outer surface of the appliance and the stand.

Illustration of a kitchen sink with water being poured into a container, no text or symbols present

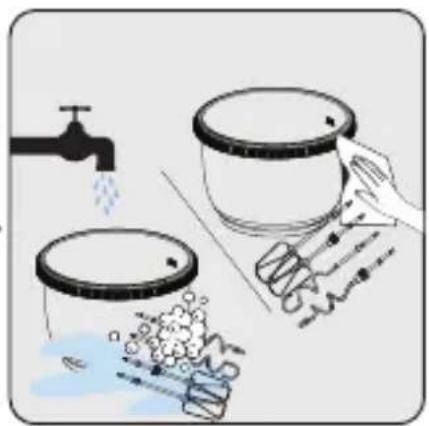

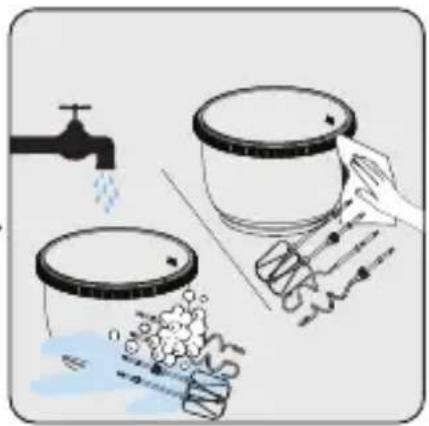

Use some dishwashing liquid and hot water to clean the whiskers (6), dough hooks (7) and the bowl. Then dry all parts thoroughly. Whiskers and dough hooks are dishwasher-safe.

Never put the appliance or power cord in water or any other liquids and never hold them under running water.

• Beaters and dough hooks are dishwasher-safe.
• Before using the appliance after cleaning, dry all parts carefully using a soft towel.

4 Cleaning and maintenance

4.2 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance before putting away.
• Store the appliance in a cool dry place.
• Store the appliance and its cord out of the reach of children.
• Store the power cord should be same as below picture.

Line drawing of a handheld device with a power outlet and cable (no text or symbols)

4.3 Transport and shipping

• During transport and shipping, carry the appliance with its original packaging. The packaging of the appliance will protect the appliance against physical damage.
• Do not put heavy objects on the appliance or its packaging. Otherwise the appliance may be damaged.
• If the appliance is dropped, the appliance may not operate or permanent damage may occur.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Diagram illustrating a gun firing process with labeled components and directional arrows

Diagram illustrating a water filtration or gas collection process with labeled components and an arrow indicating direction.

Diagram showing a spray gun with water being poured into a beaker, accompanied by an instructional arrow and magnified view.

Line drawing of a kitchen toilet with handle and side panel (no text or symbols)

Line drawing of a kitchen mixer with directional arrows indicating components (no text or symbols)

Diagram illustrating a washing machine operation with labeled steps and instructions in Chinese

Diagram of a kitchen appliance with temperature and directional arrows indicating heating and cooling conditions.

Line drawing of a hand cleaning a kitchen mixer machine (no text or symbols)

Illustration of a kitchen cleaning procedure showing a faucet, water drop, and cleaning tools (no text or symbols)

Line drawing of a portable electric shaver with power cord and plug (no text or symbols)

Cher/Chère client(e),

Simple line drawing of a trash bin with no text or symbols

Diagram illustrating a gun firing process with labeled components and directional arrows

Diagram illustrating a water filtration or gas collection process with labeled components and an arrow indicating direction.

Illustration of a spray gun with a beaker and water droplet, showing a magnified view of the spray bottle (no text or symbols)

Line drawing of a kitchen appliance with a side-mounted fan and keyboard (no text or symbols)

Line drawing of a kitchen mixer with red directional arrows indicating components (no text or symbols)

Diagram illustrating a washing machine operation with labeled steps 1 and 2, showing tool selection and component placement.

Diagram of a kitchen appliance with temperature and cooling indicators, showing a fan blade and water level indicator.

Line drawing of a hand cleaning a kitchen mixer (no text or symbols)

Illustration of a kitchen cleaning procedure showing a faucet, container with water, and tool handling (no text or symbols)

Line drawing of a handheld device with a power outlet and cable (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Diagram illustrating a hand holding a handgun with labeled parts and directional arrows indicating motion or force.

Diagram illustrating a mechanical device being inserted into a beaker, with an inset showing a close-up of the device's internal components.

Diagram of a spray gun with a beaker and water droplet, showing a magnified view of the spray bottle (no text or symbols)

Line drawing of a kitchen toilet with handle and side panel (no text or symbols)

Line drawing of a kitchen mixer with directional arrows indicating components (no text or symbols)

Diagram illustrating a hand operating a spray gun and a mixing bowl, with labeled steps 1 and 2.

Diagram of a kitchen appliance with temperature and cooling indicators, showing a fan blade and heat source.

Line drawing of a hand cleaning a kitchen mixer machine (no text or symbols)

Illustration of a kitchen sink with water being poured into a container, no text or symbols present

Line drawing of a handheld device with a power outlet and cable (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Diagram illustrating a gun shipment process with labeled components and directional arrows

Diagram illustrating a hand pouring liquid into a container with an arrow indicating direction, alongside an inset showing electrical outlet.

Diagram of a spray gun with a beaker and water droplet, showing a magnified view of the spray bottle (no text or symbols)

Line drawing of a kitchen mixer with handle and side panel (no text or symbols)

Illustration of a kitchen mixer with red arrows indicating motion direction (no text or symbols)

Diagram illustrating a washing machine operation with labeled steps 1 and 2, showing tool selection and component placement.

Diagram of a kitchen appliance with temperature and cooling indicators, showing a fan blade and water drop symbol.

Line drawing of a hand cleaning a kitchen mixer (no text or symbols)

Illustration of a kitchen cleaning procedure showing a faucet, water drop, and cleaning tools (no text or symbols)

Line drawing of a portable electric shaver with power cord and plug (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Diagram illustrating a gun with labeled components and directional arrows, likely illustrating a gun's internal structure or motion.

Diagram illustrating a mechanical device being inserted into a beaker, with an inset showing a close-up of the device's electrical socket.

Illustration of a spray gun with a beaker and water droplet, showing a magnified view of the spray bottle (no text or symbols)

Line drawing of a kitchen toilet with handle and side panel (no text or symbols)

Line drawing of a kitchen mixer with red directional arrows indicating components (no text or symbols)

Diagram illustrating a hand operating a spray gun before and after using a kitchen mixer, with labeled parts and directional arrows.

Diagram of a kitchen mixer with temperature and cooling indicators, showing fan, water cooler, and thermometer readings.

Line drawing of a hand cleaning a kitchen mixer (no text or symbols)

Illustration of a kitchen cleaning procedure showing a faucet, water drop, and cleaning tools (no text or symbols)

Line drawing of a handheld electric shaver with a power outlet (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste, and a black rectangular bar below (no text or labels)

Diagram illustrating a gun firing process with labeled components and directional arrows

Diagram illustrating a water filtration or gas collection process with labeled components and an arrow indicating direction.

Vključite napajalni kabel. Metlice za stepanje (6) in mešalce za testo (7) vsta-vite v maso preden vklopite mešalnik.

012345 1 2

Diagram illustrating a water spray gun with a beaker and water droplet, showing an inset image of a device with a red arrow.

Počakajte, da se naprava popolnoma ustavi. Izključite iz napajanja in odstranite metlice za stepanje/metlice iz testa.

012345

Line drawing of a kitchen toilet with handle and side panel (no text or symbols)

Line drawing of a kitchen mixer with red directional arrows indicating components (no text or symbols)

Diagram illustrating a washing machine operation with labeled steps 1 and 2, showing tool selection and component placement.

Diagram of a kitchen appliance with temperature and cooling indicators, showing a fan blade and water drop symbol.

Line drawing of a hand cleaning a kitchen mixer machine (no text or symbols)

Za čiščenje zunanje površine naprave in stojala uporabite vlažno in mehko krpo.

Illustration of a kitchen sink with water being poured into a container, no text or symbols present

Line drawing of a portable electric shaver with cable and power plug (no text or symbols)

4.3 Prevoz in dostava

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

2.1 Prensed 1 2 3 4 5 12 11 10 9 8 7 6

Diagram illustrating a gun firing process with labeled components and directional arrows

Diagram illustrating a water filtration or gas collection process with labeled components and an arrow indicating direction.

Diagram illustrating a water spray gun with a beaker and water droplet, showing an inset image of a device with a red arrow.

Line drawing of a kitchen toilet with handle and side panel (no text or symbols)

Line drawing of a kitchen mixer with directional arrows indicating motion (no text or symbols)

Diagram illustrating a washing machine operation with labeled steps and instructions in Chinese

Diagram of a kitchen appliance with temperature and cooling indicators, showing a fan blade and water drop symbol.

Line drawing of a hand cleaning a kitchen mixer machine (no text or symbols)

Illustration of a kitchen cleaning procedure showing a faucet, water drop, and cleaning tools (no text or symbols)

Line drawing of a handheld electric shaver with power cord and plug (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, enclosed in a rectangular frame (no text or labels)

Ovaj simbol označava da se ovaj proizvod ne sme odlagati zajedno s ostalim kućnim otpadom na kraju njegovog radnog veka. Korišćeni uređaj mora se vratiti na službeno mesto za sakupljanje za recikliranje električnih i elektronskih uređaja. Da biste pronašli ove sisteme za sakupljanje, obratite se lokalnim nadležnim telima ili prodavcu gde je proizvod kupljen. Svako domaćinstvo igra važnu ulogu u obnavljanju i recikliranju starog uređaja. Odgovarajuće odlaganje korišćenog uređaja pomaže u sprečavanju potencijalnih negativnih posledica po životnu sredinu i zdravlje ljudi.

Diagram illustrating a gun with labeled components and directional arrows, likely illustrating a gun's internal structure or motion.

Ubacite mutilice (6) ili spirale za testo (7) u otvore za mutilice (5) ili spiralu za testo dok se ne uklope.

Diagram illustrating a mechanical device being inserted into a beaker, with an inset showing a close-up of the device's electrical socket.

Priključite kabl za napajanje. Stavite mutilice (6) ili spirale za testo (7) u testo pre nego što uključite štapni blender.

012345 1 2

Brzina se može podesiti između 1 i 4. Povećavajte brzinu počev od nivoa 1.

Diagram of a spray gun with a beaker and water droplet, showing a magnified view of the spray bottle (no text or symbols)

Line drawing of a kitchen mixer with handle and side panel (no text or symbols)

Počnite od zadnjeg dela miksera da biste ga postavili u njegovo kućište.

- Začuće se klik. Pritisnite dugme za otvaranje kućišta da biste podigli kućište.

012345 2 1

Stavite sastojke u posudu za miksanje. Postavite mutilicu/spiralu za testo sa duplim urezima u malo kućište za dodatke (5) i montirajte mutilicu/spiralu za testo sa jednim urezom na veliko kućište za dodatke (5).

Pritisnite dugme za otvaranje kućišta da zatvorite kućište nadole.

Line drawing of a kitchen mixer with red directional arrows indicating components (no text or symbols)

Kada se mešanje/mesenje završi, podesite regulator brzine na „0“ i isključite uređaj. Pritisnite dugme za otvaranje kućišta da biste podigli kućište.

- Maksimalno vreme rada ne sme da prelazi 10 minuta, a zatim napravite odgovarajuću pauzu dok se vaš ručni mikser/mikser s posudom ne ohladi između dva uzastopna ciklusa. Kada mesite testo sa kvascem, predlažemo da birač brzine prvo bude na maloj brzini, a zatim da koristite veliku brzinu da biste postigli najbolje rezultate.

2 Rad

Diagram illustrating a washing machine operation with labeled steps and instructions in Chinese

Diagram of a kitchen appliance with temperature and directional arrows indicating heating and cooling zones

Line drawing of a hand cleaning a kitchen mixer (no text or symbols)

Illustration of a kitchen sink with water being poured into a container, with a hand holding a lid and utensils nearby (no text or symbols)

lsključite aparat i izvucite kabl za napajanje iz zidne utičnice.

Ostavite uređaj da se potpuno ohladi.

Vlažnom i mekanom krpom očistite spoljnu površinu uređaja i postolje.

Koristite malo tečnosti za pranje sudova i tople vode da očistite mutilice (6), spirale za testo (7) i činiju. Zatim dobro osušite sve delove. Mutilice i spirale za mesenje testa mogu se prati u mašini za pranje posuđa.

Line drawing of a handheld device with wires and power plug (no text or symbols)

4.3 Transport i otprema

• Za vreme transporta i otpreme, uređaj nosite u originalnom pakovanju. Ambalaža uređaja ga štiti od fizičkih oštećenja.
• Nemojte stavljati teške predmete na uređaj ili njegovu ambalažu. U suprotnom, uređaj se može oštetiti.
• Ako uređaj padne, uređaj možda neće raditi ili može doći do trajnih oštećenja.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Diagram illustrating a gun with labeled components and directional arrows, likely illustrating a gun's internal structure or motion.

Diagram illustrating a mechanical device being inserted into a beaker, with an inset showing a close-up of the device's electrical socket.

Illustration of a spray gun with a beaker and water droplet, showing a magnified view of the spray bottle (no text or symbols)

Line drawing of a kitchen toilet with handle and side panel (no text or symbols)

Line drawing of a kitchen mixer with directional arrows indicating motion (no text or symbols)

Diagram illustrating a hand operating a kitchen mixer with labeled parts and steps

Diagram of a kitchen appliance with temperature and cooling indicators, showing a fan blade and water drop symbol.

Line drawing of a hand cleaning a kitchen mixer machine (no text or symbols)

Illustration of a kitchen sink with water being poured into a container, no text or symbols present

Line drawing of a handheld device with a power outlet and cable (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Illustration of a hand holding a handheld device with multiple tool tips and a schematic diagram (no text or symbols)

Diagram showing a hand pouring liquid into a container with a magnified inset showing a wall-mounted socket connected to a plug.

012345 1 2

Diagram of a spray gun with a beaker and water droplet, showing no text or symbols

Line drawing of a kitchen mixer with control panel and side-mounted dish (no text or symbols)

012345 2 1

Line drawing of a kitchen mixer with directional arrows indicating components (no text or symbols)

Diagram illustrating a hand holding a device with labeled components and a checkmark, accompanied by a speech bubble containing a triangle symbol.

2 1

Diagram of a kitchen mixer with temperature control arrows and decorative snowflakes

Line drawing of a hand cleaning a kitchen mixer (no text or symbols)

Illustration of a kitchen sink with water being poured into a container, with a faucet and utensils nearby (no text or symbols)

Line drawing of a handheld electric shaver with a power outlet (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Diagram illustrating a gun with labeled components and directional arrows, likely illustrating a gun's internal structure or motion.

Diagram illustrating a mechanical device being inserted into a beaker, with an inset showing a close-up of the device's electrical socket.

Diagram illustrating a water spray gun with a beaker and water droplet, showing an inset image of a device with a red arrow.

Line drawing of a toilet with handle and side panel (no text or symbols)

Line drawing of a kitchen mixer with red arrows indicating component positions (no text or symbols)

Diagram illustrating a washing machine operation with labeled steps and instructions in Chinese

Diagram of a kitchen mixer with temperature and cooling indicators, showing fan, fan blade, and thermometer readings.

Line drawing of a hand cleaning a kitchen mixer (no text or symbols)

Illustration of a kitchen cleaning procedure showing a faucet, water drop, and cleaning tools (no text or symbols)

Line drawing of a handheld electric shaver with power cord and plug (no text or symbols)

Simple line drawing of a teapot inside a container with liquid, no text or symbols present.

HMM 62444 W

RU

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Illustration of a hand holding a handheld device with three tool tips and a directional arrow (no text or symbols)

Diagram showing a hand washing a water tap with a magnified view of the socket, including a red arrow indicating direction.

012345 1 2

Illustration of a hand washing a water dispenser with a beaker below, showing a water swirl (no text or symbols)

Line drawing of a kitchen mixer with control panel and side-mounted dish (no text or symbols)

012345 2 1

Line drawing of a kitchen mixer with directional arrows indicating components (no text or symbols)

Diagram illustrating a hand holding a device with labeled components and a checkmark, accompanied by explanatory text.

2 1

Diagram of a kitchen mixer with temperature control arrows and snowflake symbols indicating components

Line drawing of a hand cleaning a kitchen mixer (no text or symbols)

Illustration of a kitchen sink with water being poured into a container, using a tool to clean food (no text or symbols)

Line drawing of a portable electric shaver with power cord and plug (no text or symbols)

4.3 Транспортировка

(Guangdong XINBAO Electrical Appliances Holdings Co., Ltd. South Zhenghe Road, Leliu Town, Shunde District, Foshan City, Guangdong, China Tel: [phone]) Китай

Line drawing of a portable electric shaver with power cord and plug (no text or symbols)

4.3 النقل والشحن

Diagram of a kitchen mixer with temperature indicators and decorative snowflakes, showing action arrows and color-coded zones.

Line drawing of a kitchen mixer with a hand cleaning the cup (no text or symbols)

Illustration of a kitchen sink with water being washed, showing a hand holding a container and cleaning tools (no text or symbols)

Diagram illustrating a hand holding a device with directional arrows and a checkmark, accompanied by a speech bubble containing a triangle symbol.

2 1

Line drawing of a kitchen toilet with handle and side panel (no text or symbols)

012345 2 1

Line drawing of a kitchen mixer with red arrows indicating motion (no text or symbols)

Line drawing of a spray gun with a beaker and magnified inset showing a water droplet (no text or symbols)

Illustration of a hand holding a spray gun with multiple tool tips and a schematic diagram (no text or symbols)

Diagram illustrating a hand pouring liquid into a container with an inset showing a magnified view of a wall-mounted device.

Simple line drawing of a teapot inside a container with liquid, no text or symbols present.

HMM 62444 W

AR
