HMM7350DX - Hand blender BEKO - Free user manual and instructions

Product type	Hand blender
Brand	Beko
Model	HMM7350DX
Power	350 W
Voltage	220-240 V ~ 50/60 Hz
Number of speeds	5 speeds + Turbo function
Turbo function	Yes, for maximum power
Included accessories	2 beaters, 2 dough hooks
Accessory material	Stainless steel
Usage	Household use only
Cleaning accessories	Dishwasher safe
Cleaning the motor unit	Wipe with a damp cloth
Immersion protection	Do not immerse in water
Dimensions (L x W x H)	Approximately 20 x 10 x 15 cm
Weight	Approximately 0.8 kg
Compliance	WEEE, RoHS

Frequently Asked Questions - HMM7350DX BEKO

How to use the Turbo function?

Press and hold the TURBO button to achieve maximum speed. Release it when no longer needed. Do not use it for more than 1 minute continuously.

Can I clean the accessories in the dishwasher?

Yes, the beaters and dough hooks are dishwasher safe. The motor unit should be wiped with a damp cloth.

What foods can I prepare with this blender?

It is ideal for mixing liquid ingredients such as cake batter, sauces or soups. The dough hooks are designed for kneading dough.

Can you blend hot foods?

No, do not use the appliance to process hot foods. Let them cool down before blending.

How to adjust the speed?

Turn the speed adjustment knob from 1 to 5. Always start at low speed to avoid splashing.

Can I use only one beater or dough hook?

No, always use both beaters or both dough hooks together for optimal operation.

What to do if the appliance does not work?

Check that the appliance is plugged in and the speed knob is not set to 0. If the problem persists, contact an authorized service.

Does the appliance have overheating protection?

To avoid overheating, do not operate the appliance for more than 2 minutes continuously. Let it cool down for 1 minute between uses.

How to detach the accessories?

Make sure the appliance is unplugged and the speed is set to 0. Press the eject button to release the accessories.

Can I use the appliance to chop dry or hard foods?

No, this appliance is not designed for chopping dry or hard foods. Remove bones and stones before use.

USER MANUAL HMM7350DX BEKO

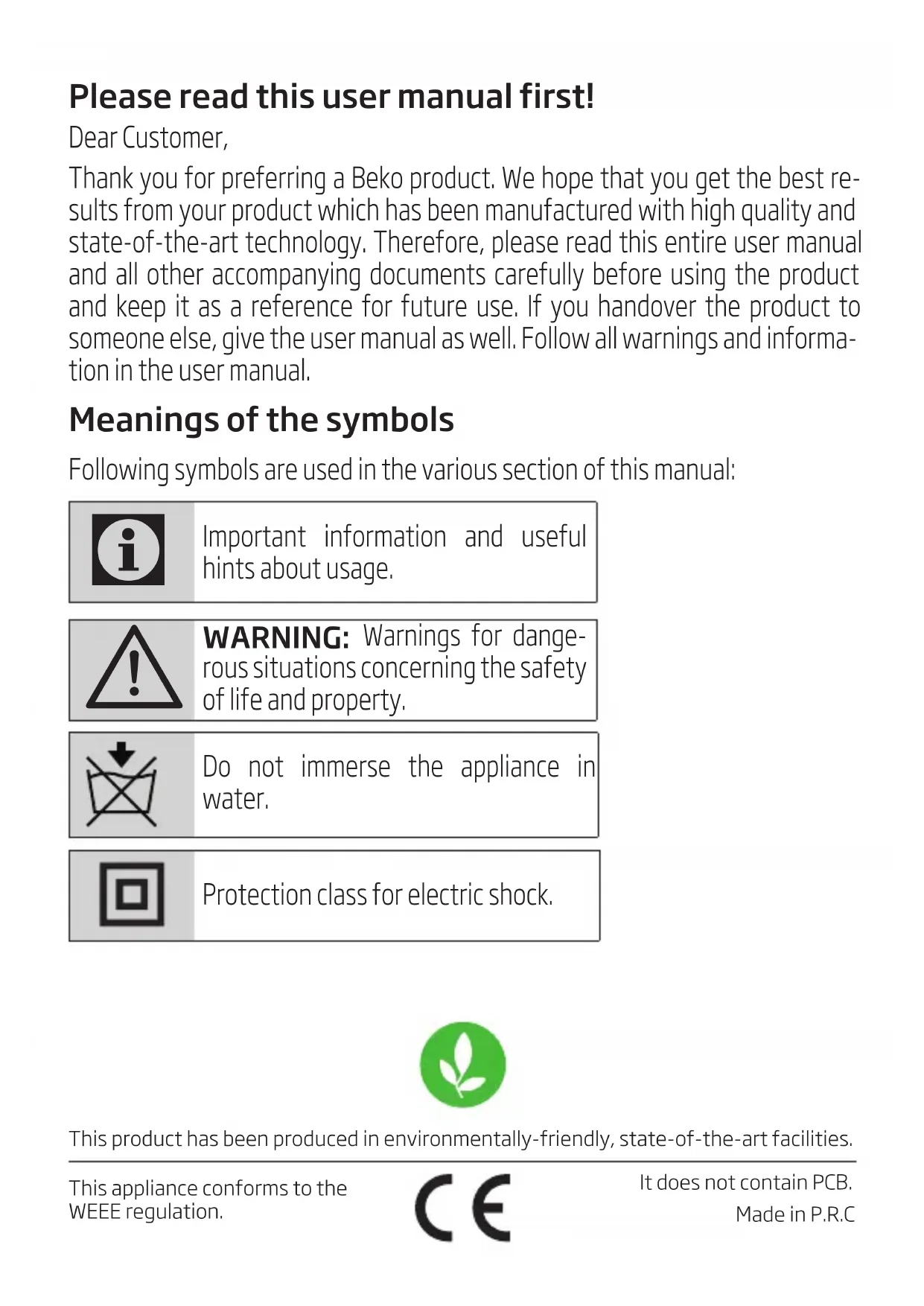

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about usage.

WARNING:Warnings for dangerous situations concerning the safety of life and property.

Do not immerse the appliance in water.

Protection class for electric shock.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

1. Motor unit
2. Accessory slots
3. Accessory release button
4. Operation and speed adjustment button
5. TURBO Button
6. Whiskers (6a/6b)
7. Dough kneading spirals (7a/7b)

Technical data

Voltage: 220 - 240V 50 / 60Hz

Power: 350 W

Technical and design modifications reserved.

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international safety standards.
• This appliance can be used by people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, provided that they are supervised or they understand the instructions with regard to safe use of the product and potential dangers.
• This appliance cannot be used by children.
• Keep the appliance and the power cable out of the reach of children.
• Do not use it if the power cable or the appliance itself is damaged. Contact an authorised service.

1 Important safety and environmental instructions

• Unplug the appliance when left unattended, while installing/removing accessories or before cleaning.
• Only use the original parts or parts recommended by the manufacturer.
• Do not attempt to dismantle the appliance.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• Do not use the appliance with an extension cord.
• Do not pull the power cable when unplugging the appliance.
• Unplug the appliance before cleaning, disassembly, accessory replacement and wait for it to stop completely.
• Do not touch the plug of the appliance with damp or wet hands.
• Do not use the device for hot food.
• Remove bones and stones from food to prevent the the appliance from getting damaged.
• This appliance is not suitable for dry or hard foods.

1 Important safety and environmental instructions

• To prevent overheating, do not use mixing with spirals continuously for more than 2 minutes. Leave to cool for 1 minute in between each 2 minutes of operation.
• Follow all warnings to prevent injuries due to incorrect use.
• After cleaning, dry the appliance and all parts before connecting it to mains supply and before attaching the parts.
• Do not immerse the appliance, power cable, or power plug in water or any other liquids.
• Do not operate or place any part of this appliance or its parts on or near hot surfaces.
• If you keep the packaging materials, store them out of the reach of children.
• If you keep the packaging materials, store them out of the reach of children.

1

Important safety and environmental instructions

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer

where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take

them to the packaging material collection points designated by the local authorities.

2 Operation

2.1 Intended use

This appliance is intended only for household use; it is not suitable for professional use.

2.2 Whisking / Blending

WARNING:

• Do not use whisker accessory together with mixer spirals.
• Place the container to be used for processing on a stable and flat surface.
• Speed levels range between 1-5. Increase speed by starting with level 1.
• Set the speed adjustment button to "0" position when processing is over.
• When operation button is in "0" position, you can press accessory release button to release whisker and mixer accessories.

Start mixing in low speed while mixing ingredients. Ingredients may be spattered when you start with high speed.

2.3.1 Whiskers

Always use both whiskers.
- Teflon-coated pots can be scratched.
Use for whisking liquid ingredients such as cakes, sauces, soup.

2 Operation

2.3.2 Mixer spirals

Always use both mixer spirals.
- Teflon-coated pots can be scratched.
Use to knead dough.

2.4 TURBO button

When you need extra high speed, press and hold TURBO button and release when you do not need.

WARNING: Do not use TURBO feature for more than 1 minute.

3 Cleaning and care

3.1 Cleaning

WARNING:

• Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.
  Whiskers and kneading spirals are dishwasher safe.

3.2 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance before lifting it.
• Store the appliance in a cool and dry place.
• Keep the appliance and cable out of the reach of children.

3.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.
