Product Type	Hand Blender
Model	HMM 70420 B
Brand	Beko
Power Consumption	700 W
Voltage / Frequency	220-240 V / 50-60 Hz
Speed Settings	Variable speed with turbo boost
Blending Shaft Material	Stainless steel
Accessories Included	Stainless steel blending arm, whisk, 600 ml beaker
Beaker Capacity	600 ml
Cord Length	1.2 m
Dimensions (L x W x H)	40 x 7 x 8 cm
Weight	0.7 kg
Noise Level	< 80 dB
Housing Material	Plastic with soft-grip handle
Safety Features	Overheat protection, non-slip handle
Dishwasher Safe Parts	Blending shaft and whisk
Cleaning Method	Detachable shaft for easy rinsing
Maintenance	Remove plug before cleaning; wipe motor unit with damp cloth
Spare Parts Availability	Replacement blending shafts and whisks available from Beko service centers
Repairability Index	7.2 / 10

Frequently Asked Questions - HMM 70420 B BEKO

How do I clean the hand blender?

Detach the blending shaft and whisk, rinse under running water or place in dishwasher. Wipe the motor unit with a damp cloth. Never immerse the motor unit in water.

Can I blend hot liquids?

Yes, but let liquids cool slightly to avoid splashing. Do not exceed 80°C. Use the beaker provided for best results.

What is the maximum operating time?

The hand blender is designed for intermittent use. Blend for a maximum of 1 minute continuously, then let it cool for 2 minutes before next use.

How do I change the speed?

Use the sliding switch on the handle to adjust speed. Press the turbo button for maximum power.

Can I crush ice with this blender?

No, this hand blender is not designed for crushing ice. Use it for soft fruits, vegetables, soups, sauces, and milkshakes.

What should I do if the blender stops working?

Check if the power cord is plugged in. If the appliance overheated, let it cool down for 15 minutes. The thermal fuse will reset automatically. If still not working, contact Beko service.

Is the blending shaft dishwasher safe?

Yes, the stainless steel blending shaft and whisk are dishwasher safe. Place them on the top rack.

Can I use the whisk to whip cream or eggs?

Yes, the whisk attachment is perfect for whipping cream, egg whites, and light batters. Use low speed to avoid splashing.

What is the warranty period?

Beko offers a 2-year manufacturer's warranty for this hand blender. Register your product online to activate.

Where can I find spare parts?

Contact Beko customer service or authorized service centers. Use original parts to maintain safety and performance.

USER MANUAL HMM 70420 B BEKO

Technical line drawing of a portable device with two coiled handles and a handle (no text or symbols)

HMM70420B

EN

01M-8819423200-1420-01

CONTENTS

ENGLISH

08-15

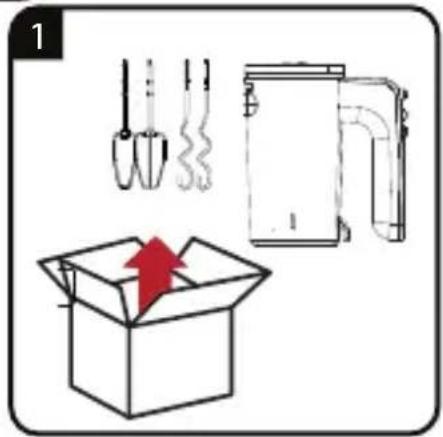

Illustration of a box with an upward arrow and three tools above it, no text or symbols present.

Illustration of a hand cleaning a cylindrical device with a cloth (no text or symbols)

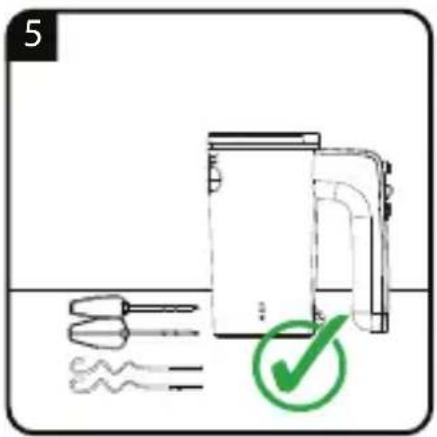

Simple line drawing of a hand mixer with a green checkmark indicating inspection (no text or symbols)

Line drawing of a hand cleaning a cylindrical container with a cloth (no text or symbols)

Illustration of a kitchen appliance with a checkmark indicating inspection (no text or symbols present)

EN OPERATION CLEANING AND CARE

Please read this manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING:Warnings for dangerous situations concerning the safety of life and property.

Suitable for contact with food.

Do not immerse the appli- ance in water.

Protection class for elec- tric shock.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

1. Whiskers
2. Dough kneading accessories
3. Motor unit

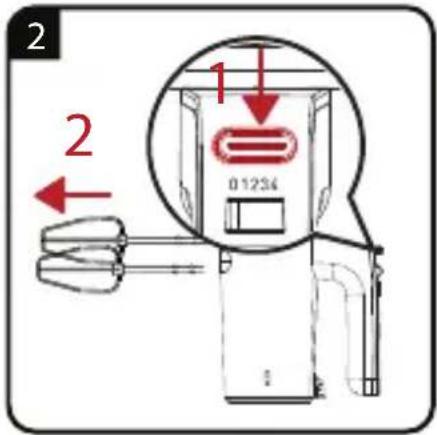

4. Accessory release button
5. Operation and speed adjustment button
6. TURBO Button
7. Accessory slots

Technical data

Power supply: 220 - 240 V \~, 50-60 Hz

Power:425 W

Rights to make technical and design changes are reserved.

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or material damage. Failure to follow these instructions voids any granted warranty.

1.1 General safety

• This appliance complies with international safety standards.
• This appliance cannot be used by people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, provided that they are supervised or they understand the instructions with regard to safe use of the product and potential dangers.
• Children should not play with the appliance. Cleaning and maintenance works should not be performed by children.
  • This appliance cannot be used by children.
• Keep the appliance and the power cable out of the reach of children.

1 Important safety and environmental instructions

• Do not use it if the power cable, blades or the appliance itself is damaged. Contact an authorised service.
• Only use the original parts or parts recommended by the manufacturer.
• Do not attempt to dismantle the appliance.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• Do not use the appliance with an extension cable.
• Do not pull the power cable when unplugging the appliance.
• Unplug the appliance when left unattended and wait for it to stop completely while installing/removing accessories or before cleaning.
• Do not touch the plug of the appliance with damp or wet hands.
• Do not use the device for hot food.
  • This appliance is not suitable for dry or hard foods.

1 Important safety and environmental instructions

• To prevent overheating, do not use the appliance continuously for more than 10 seconds. Leave to cool for 1 minute in between each 10 seconds of operation.
• To prevent overheating, do not use mixing with spirals continuously for more than 2 minutes. Leave to cool for 1 minute in between each 2 minutes of operation.
• Use the appliance only with the supplied base and container.
• Do not operate the appliance without the ingredients in the bowl.
• Remove bones and stones from food to prevent the blades and the appliance from getting damaged.
• This appliance is not suitable for dry or hard foods as this will quickly cause the blades to become dull.
• Follow all warnings to prevent injuries due to incorrect use.
• When emptying the container, during cleaning and grabbing chopping blades with bare hands serious injuries could result due to incorrect use.

1 Important safety and environmental instructions

Use the plastic section trying to hold the chopping blade.

• After cleaning, dry the appliance and all parts before connecting it to mains supply and before attaching the parts.
- Do not immerse the appliance, power cable, or power plug in water or any other liquids.
- Do not operate or place any part of this appliance or its parts on or near hot surfaces.
- If you keep the packaging materials, store them out of the reach of children.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of

1 Important safety and environmental instructions

used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packag-

ing material collection points designated by the local authorities.

1.5 Things to do for energy saving

Switch off and unplug the appliance after using it.

1.6 Plug Wiring

The moulded plug on this appliance incorporates a 13 A fuse. Should the fuse need to be replaced an ASTA approved BS1362 fuse of the same rating must be used. Do not forget to refit the fuse cover. In the event of losing the fuse cover, the plug must not to be used until a replacement fuse cover has been fitted. Colour of the replacement fuse cover must be the same colour as that visible on the pin face of the plug Fuse covers are available from any good electrical store.

1 Important safety and environmental instructions

Fiting a different plug

- As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals on your plug, proceed as follows:

• Brown cable = L (Live)
• Blue cable = N (Neutral)

- Green/yellow cable must be connected to ground (E) line

- With the alternative plugs a 13 A fuse must be fitted either in the plug or adaptore or in the main fuse box. If in doubt contact a qualified electrician.

2 Usage

2.1 Intended use

This appliance is intended only for household use; it is not suitable for professional use.

2.2 Whisking/Dough kneading

WARNINGS:

• Do not use the whisker and the kneading accessories together.
• Leave the speed adjustment button at "0" position.
• Place the container to be used for processing on a stable and flat surface.
• Speed levels range between 1-4. It should be increased incrementally starting from 1.
  • Always use both of the whiskers together.
  • Always use both of the kneading accessories together.
  • Teflon-coated pots can be scratched.

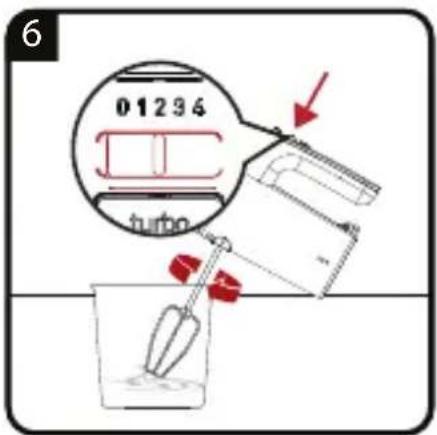

2.3 TURBO button

When you need extra high speed, press and hold TURBO button and release when you do not need.

WARNING: Do not use TURBO feature for more than 1 minute.

3 Cleaning and care

3.1 Cleaning and care

WARNING: Never use gasoline, solvents or abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

3.2 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance before lifting the appliance and its cable.
  • Store the appliance in a cool and dry place.
• Keep the appliance out of the reach of children.

3.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.
