USER MANUAL HD12 SCHEPPACH

Chip extraction system Translation of original instruction manual

Explanation of the symbols on the equipment Warning - Read the operating manual to reduce the risk of injury Wear a dust protection mask. Dust which is injurious to health can be generated when work- ing on wood and other materials. Never use the device to work on any materials containing asbestos! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight. Wear hearing protection. Excessive noise can result in a loss of hearing. m Attention! We have marked points in these operating instructions that impact your safety with this symbol Table of contents: Page: 1. Introduction ........................................................................................................ 14

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed. We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

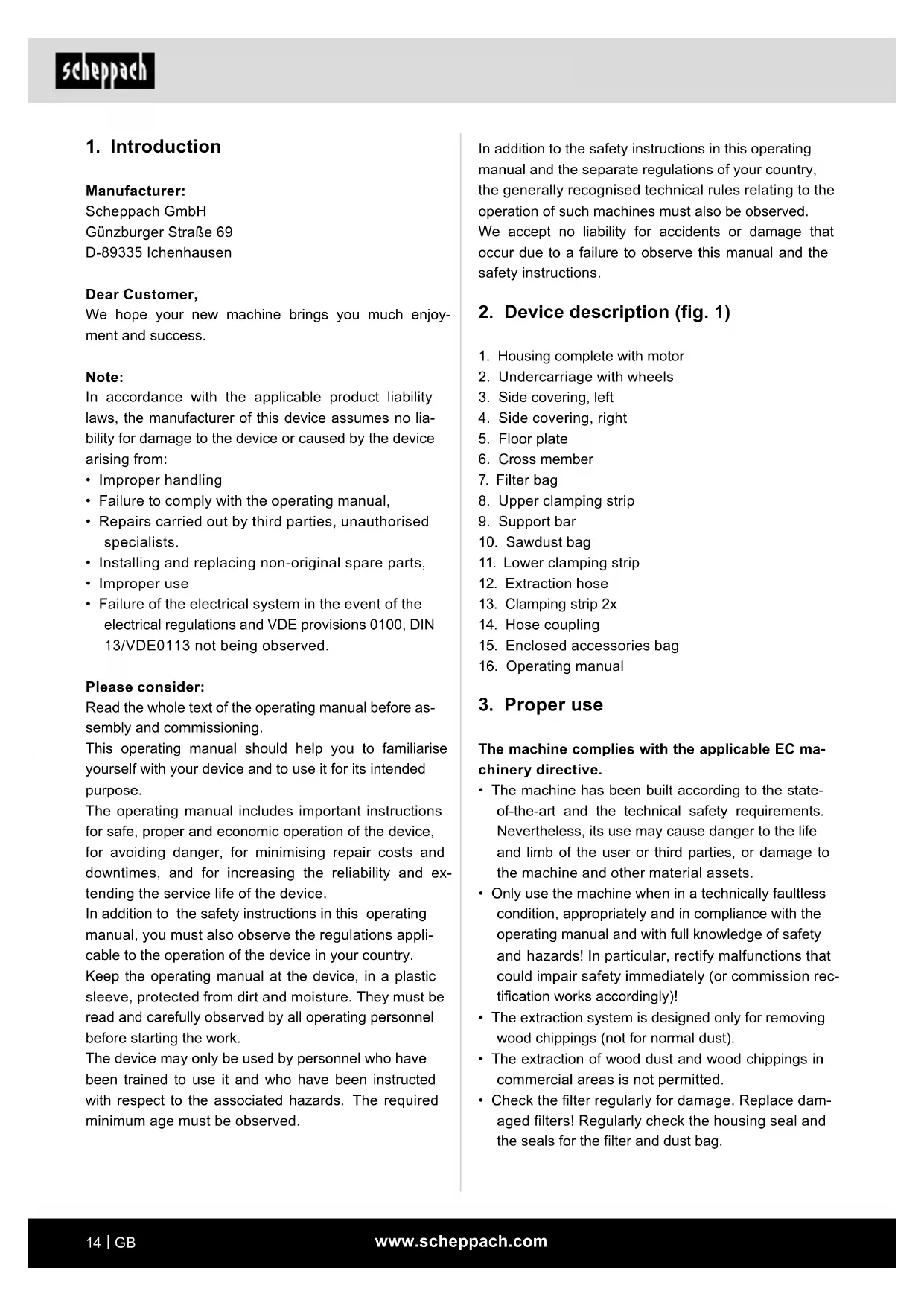

2. Device description (g. 1)

1. Housing complete with motor

2. Undercarriage with wheels

15. Enclosed accessories bag

The machine complies with the applicable EC ma- chinery directive.

• The machine has been built according to the state- of-the-art and the technical safety requirements. Nevertheless, its use may cause danger to the life and limb of the user or third parties, or damage to the machine and other material assets.

• Only use the machine when in a technically faultless condition, appropriately and in compliance with the operating manual and with full knowledge of safety and hazards! In particular, rectify malfunctions that could impair safety immediately (or commission rec- tication works accordingly)!

• The extraction system is designed only for removing wood chippings (not for normal dust).

• The extraction of wood dust and wood chippings in commercial areas is not permitted.

• Check the lter regularly for damage. Replace dam- aged lters! Regularly check the housing seal and the seals for the lter and dust bag.

Manufacturer: Scheppach GmbH Günzburger Straße 69 D-89335 Ichenhausen Dear Customer, We hope your new machine brings you much enjoy- ment and success. Note: In accordance with the applicable product liability laws, the manufacturer of this device assumes no lia- bility for damage to the device or caused by the device arising from:

• Failure to comply with the operating manual,

• Repairs carried out by third parties, unauthorised specialists.

• Installing and replacing non-original spare parts,

• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 13/VDE0113 not being observed. Please consider: Read the whole text of the operating manual before as- sembly and commissioning. This operating manual should help you to familiarise yourself with your device and to use it for its intended purpose. The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and ex- tending the service life of the device. In addition to the safety instructions in this operating manual, you must also observe the regulations appli- cable to the operation of the device in your country. Keep the operating manual at the device, in a plastic sleeve, protected from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work. The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.www.scheppach.com

• Check extension cables regularly and replace them when damaged.

• Only use extension cables that have been approved and appropriately labelled for use outdoors.

• Pay attention to what you are doing. Remain sen- sible when working. Do not use the tool when you are fatigued.

• Do not use any tools on which the switch cannot be switched on and o󰀨.

• Warning! The use of other insertion tools and other accessories can entail a danger of injury.

• Pull out the mains plug for any adjustment or repair tasks.

• Pass the safety instructions on to all persons who work on the machine.

• Before commissioning, check that the voltage on the device type plate corresponds to the mains voltage.

• If an extension cable is required, make sure that its cross-section is su󰀩cient for the current consump- tion of the device. Minimum cross section 1.5 mm

• Only use the cable drum when unrolled.

• Check the mains connection cable. Never use any faulty or damaged connection cables.

• Do not use the cable to pull the plug out of the outlet. Protect the cable from heat, oil and sharp edges.

• Do not expose the machine to rain and do not use the machine in a damp or wet environment.

• Ensure good lighting.

• Do not use in the vicinity of combustible uids or gases.

• When working outdoors, anti-slip footwear is rec- ommended. Tie long hair back in a hair net. Avoid abnormal posture

• The operating person must be at least 18 years of age; trainees must be at least 16 years, however only under supervision.

• Keep children away from the device when connect- ed to the mains.

• Keep the workplace free of wood debris and parts lying around.

• Disorder in the work area can lead to accidents.

• Do not allow other persons, especially children, to touch the tool or the mains cable. Keep such per- sons away from the workplace.

• Personnel working on the machine must not be dis- tracted.

• Only carry out modications, adjustment, measuring and cleaning work when the engine is switched o󰀨. - Pull the mains plug -

• Before switching on, make sure that keys and adjust- ing tools are removed.

• When using the cleaning nozzles, do not suck up any foreign bodies such as screws, nails, pieces of plastic or wood.

• The machine may only be operated with original parts and original accessories from the manufac- turer.

• Any use beyond this is improper use. The manufac- turer is not responsible for the resulting damages; the user solely bears the risk.

• The safety, operating and maintenance specica- tions of the manufacturer, as well as the dimensions specied in the technical data, must be observed.

• The applicable accident prevention regulations and the other generally accepted safety rules must be observed.

• The machine may only be used, maintained or re- paired by persons who are familiar with it and have been informed of the dangers. Any liability of the manufacturer for damages resulting from arbitrary changes to the machine is excluded. Please observe that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the equipment is used in commercial or industrial applications, or for equivalent work.

4. Safety instructions

Attention! The following basic safety measures must be observed when using electric tools for protection against electric shock, and the risk of injury and re. Read all these notices before using the electric tool and store the safety instructions well for later refer- ence. Safe work

• Warning: When using power tools, the following ba- sic safety measures must be observed for protection against re, electric shock, and personal injury.

• Follow all these instructions before and while work- ing with the machine.

• Store these safety instructions safely.

• Protect yourself from electric shock! Avoid physical contact with earthed parts.

• Unused devices should be stored in a dry, locked place and out of reach of children.

• Keep tools sharp and clean in order to be able to work better and more safely.

• Check the cable of the tool regularly and have it re- placed by a recognised specialist when damaged.www.scheppach.com

Residual risks The machine has been built according to the state- of-the-art and the recognised technical safety re- quirements. However, individual residual risks can arise during operation.

• Risk to health from wood dust or wood chippings. Wearing personal protective equipment such as pro- tective goggles and dust masks is mandatory.

• Dust inhalation may occur when closing and chang- ing the dust collection bag. Please note the instruc- tions concerning proper disposal in the operating manual (e.g. the use of P2 dust masks) to prevent dust inhalation.

• Risk to health due to noise. The permissible noise level is exceeded during operations. It is essential that personal protective equipment, such as hearing protection, is worn.

• Hazard due to electrical power, with the use of im- proper electrical connection cables.

• Furthermore, despite all precautions having been met, some non-obvious residual risks may still re- main.

• Residual risks can be minimised if the “Safety In- structions” and the “Intended Use” together with the operating manual as a whole are observed. Warning! This power tool generates an electromag- netic eld during operation. This eld can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool. Ensure careful storage of the safety instructions.

• Switch o󰀨 the engine and pull out the mains plug when leaving the workplace.

• All protection and safety equipment must be reas- sembled immediately after repair or maintenance work is completed.

• The safety, operating and maintenance information of the manufacturer, as well as the dimensions spec- ied in the technical data, must be observed.

• The applicable accident prevention regulations and the other generally accepted safety rules must be observed.

• Do not use low-output machines for heavy work.

• Do not use the cable for purposes for which it is not intended!

• Make sure that you have secure footing and always maintain your balance.

• Check whether the moving parts function faultlessly and do not jam or whether parts are damaged. All parts must be correctly mounted and all conditions must be fullled to ensure fault-free operation of the tool.

• Damaged protective devices and parts must be repaired properly or replaced by a recognised spe- cialist workshop unless otherwise specied in the usage instructions.

• Have damaged switches replaced by a customer service workshop.

• This tool conforms to the applicable safety regula- tions. Repairs may only be performed by an elec- trician using original spare parts. Otherwise, acci- dents can occur.

• If necessary, wear suitable personal protective equipment. This could include: - Hearing protection to avoid the risk of becoming hearing impaired; - Respiratory protection to avoid the risk of inhaling harmful dust.

• The operator must be informed about the conditions that inuence the noise generation.

• Errors in the machine must be reported to the per- son responsible for safety as soon as they are dis- covered.

• This device is not designed to collect dangerous dust.

• This device is not designed to be operated by per- sons (including children) with impaired physical, sensory or mental capabilities, or who have insuf- cient experience and/or insu󰀩cient knowledge unless they are being supervised by a person who is responsible for their safety or they are receiving instruction about how this device is to be used. Chil- dren should not be left unattended, to ensure they do not play with the device.www.scheppach.com

For packaging reasons, your machine is not completely assembled.

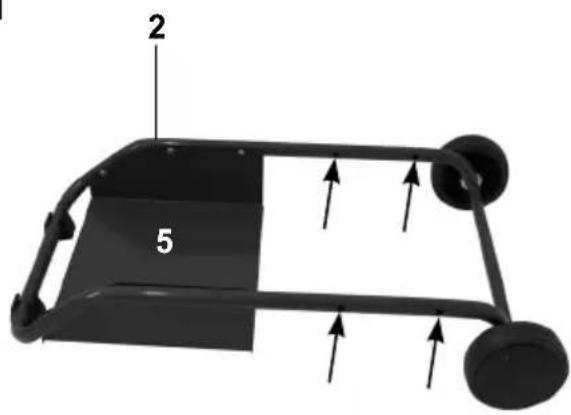

• Attach the side covering loosely to the base frame using at-head screws M8 x 40 mm and screw nuts. Do not tighten completely. g. 2, 3

• Attach the cross member to the side covering left and right with at-head screws M 8 x 12 and screw nuts. g. 4, 5

• Remove all screws and nuts from the housing.

• Attach the housing to the side coverings using at- head screws M5 x 20 and screw nuts. Securely tight- en all nuts. g. 6

• Slide the clamping strip through the loops on the l- ter bag and x the lter bag on the container. g. 7

• Position the support bar into the housing and hang the lter bag from it. g. 1

• Attach the sawdust bag to the lower air ventilator us- ing the clamping strip. g. 7

• Attach the extraction hose to the nozzle on the hous- ing and a󰀩x it with a hose clamp. g. 8

• Attach the hose coupling to the other end of the hose using a hose clamp. g. 9 The extraction system should be cleaned every time the sawdust bag is changed. Damaged lters and bags must be immediately changed in order to keep the amount of dust that es- capes into the work environment as low as possible.

Attention! Always make sure the device is fully assembled before commissioning! Observe the safety instructions before the commis- sioning. The data on the motor type plate (voltage and frequency) must match the mains voltage and frequen- cy. After connecting to the mains, the extraction system is ready for operation.

For all maintenance and cleaning work, turn o󰀨 the mo- tor and pull out the mains plug.

• Installation, repairs and maintenance work on the electrical equipment may only be carried out by electricians. Pressure di󰀨erence 1600 Pa Filter area of lter bag approx. 1 m

Sawdust bag volume 75 l Engine output Electric motor 220 - 240 V~ / 50 Hz Rated input P1 0.55 kW Motor speed 2850 1/min Subject to technical modications! Information concerning noise emission measured ac- cording to relevant standards: Sound pressure L

= 3 dB Wear ear-mu󰀨s. The impact of noise can cause damage to hearing.

6. Before commissioning

• After unpacking check all parts for transport dam- age. In the event of complaints the carrier must be informed immediately. Later claims will not be rec- ognised.

• Check whether the shipment is complete.

• Familiarise yourself with the product by means of the operating instructions before using for the rst time.

• With accessories as well as wearing parts and re- placement parts use only original parts. Replace- ment parts can be obtained from your scheppach dealer.

• When ordering please provide our article number as well as type and year of manufacture for your equipment. m Attention! The device and the packaging material are not chil- dren‘s toys! Do not let children play with plastic bags, lms or small parts! There is a danger of choking or su󰀨ocating!www.scheppach.com

The insulation on electrical connection cables is often damaged. Causes are:

• Pressure points, where connection cables are passed through windows or doors.

• Kinks where the connection cable has been improp- erly fastened or routed.

• Places where the connection cables have been cut due to being driven over.

• Insulation damage due to being ripped out of the wall outlet.

• Cracks due to the insulation ageing. Such damaged electrical connection cables must not be used and are life-threatening due to insu- lation damage. Check the electrical connection cables for damage regularly. Ensure that the connection cables are dis- connected from electrical power when checking for damage. Electrical connection cables must comply with the ap- plicable VDE and DIN provisions. Only use connection cables with designation H07-RN. The printing of the type designation on the cable is mandatory. AC motor

• The mains connection is protected with a 16 A slow- blow fuse. Please provide the following information in the event of any enquiries:

• Type of current for the motor

• Machine data - type plate

• Data of switch type plate When returning the motor always send in the complete drive unit with switches.

• For constant performance, periodically shake out lter bag vigorously. Between cleanings, beating the bag with the hand several times is su󰀩cient.

• The sawdust bag must be replaced at the latest when the sawdust is within 10 cm of the housing collar. Service information With this product, it is necessary to note that the follow- ing parts are subject to natural or usage-related wear, or that the following parts are required as consuma- bles. Wearing parts*: lter bag, sawdust bag, extraction hose, nozzle attachments

• may not be included in the scope of supply! Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page. Special accessories Filter bag art. no. 3906301013 Returnable sawdust bag 20 pcs. art. no. 75001500

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children. The op- timum storage temperature lies between 5 and 30 ˚C. Store the electric tool in its original packaging.

11. Electrical connection

Connections and repair work on the electrical equip- ment may only be carried out by electricians. The electrical motor installed is connected and ready for operation. The connection complies with the appli- cable VDE and DIN provisions. The customer‘s mains connection as well as the ex- tension cable used must also comply with these reg- ulations. Important information Damaged electrical connection cables If the power cable is damaged, it must be replaced by the manufacturer or their service department or a simi- lar qualied person in order to avoid hazards.www.scheppach.com

• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Un- ion, di󰀨erent regulations may apply to the disposal of waste electrical and electronic equipment.

12. Disposal and recycling

Notes for packaging The packaging materials are recy- clable. Please dispose of packag- ing in an environmentally friendly manner. Notes on the electrical and electronic equipment act [ElektroG] Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of sepa- rately!

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal. Their disposal is regulated by the battery law.

• Owners or users of electrical and electronic devices are legally obliged to return them after use.

• The end user is responsible for deleting their per- sonal data from the old device being disposed of!

• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

• Waste electrical and electronic equipment can be handed in free of charge at the following places: - Public disposal or collection points (e.g. municipal works yards) - Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or o󰀨er to do so voluntarily. - Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity. - Further supplementary take-back conditions of the manufacturers and distributors can be ob- tained from the respective customer service.

• If the manufacturer delivers a new electrical appli- ance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer’s customer service for this.www.scheppach.com
