221624 - Electric blender Hendi - Free user manual and instructions

Product type	Professional electric mixer for milk and coffee
Brand	Hendi
Model	221624
Supply voltage	220-240 V ~ 50 Hz
Rated power	400 W
Beaker capacity	0.75 - 0.95 L
Speeds	2 speeds: I (15,000 rpm) and II (19,000 rpm)
Dimensions (W x D x H)	170 x 196 x 490 mm
Net weight	4.9 kg
Protection class	Class I (earthing mandatory)
Sound level	< 75 dB(A)
Beaker materials	Stainless steel and polycarbonate
Included accessories	2 single-layer stirrers, 2 double-layer stirrers, 2 beakers (stainless steel and polycarbonate)
Main functions	Mix milk, coffee with ice and aerate to create foam
Intended use	Professional use in restaurant, canteen, bar kitchens
Maintenance and cleaning	Clean the exterior with a damp cloth; beaker washable with soapy water; do not immerse the motor; do not put in dishwasher
Safety	Do not use by children or persons with reduced abilities; do not immerse; disconnect before cleaning; automatic shut-off by thermal limiter
Spare parts and repairability	Complete list of spare parts in the manual; repairs only by a qualified professional
Warranty	12 months against any manufacturing defect
Available colors	Black, white, caramel, yellow, red, blue
Certifications	Compliant with EU harmonized standards

Frequently Asked Questions - 221624 Hendi

How to use the Hendi 221624 mixer?

Pour the milk into the beaker (without overfilling), screw on the stirrer of your choice (single or double layer), insert the beaker into the beaker holder, plug in the appliance and turn the switch to position I (low speed) or II (high speed). Do not operate for more than 3 minutes per cycle.

Which stirrers to use for a creamier foam?

Use the double-layer stirrers to incorporate more air and obtain a smoother, frothier drink. Single-layer stirrers are suitable for a lighter mix.

How to clean the mixer?

Always unplug the appliance and let it cool. Clean the exterior with a damp cloth and mild soap. Wash the beaker with warm soapy water. Never immerse the motor block and do not put any parts in the dishwasher.

What to do if the appliance stops while in use?

The internal thermal limiter has activated to prevent overheating. Turn the switch to '0', unplug the appliance and let it cool completely for 20 to 30 minutes before using it again.

Why won't the mixer turn on?

Check that the plug is properly inserted and that the switch is on position I or II. Also ensure that the beaker is correctly inserted into the beaker holder (a safety micro-switch may be the cause).

What is the maximum capacity of the beaker?

The capacity is 0.75 to 0.95 liters. Do not overfill to avoid spillage during mixing.

Can I use the mixer with hot milk?

The appliance is designed for cold or room temperature milk. Hot milk could damage the motor or cause overflow. It is recommended to use cold milk for a better foam.

What is the required supply voltage?

The appliance operates on a voltage of 220-240 V ~ 50 Hz. Check that your socket matches and is properly grounded.

How to benefit from the warranty?

The warranty is 12 months from the date of purchase. Keep the invoice or receipt. In case of a defect, contact your retailer. The warranty does not cover improper use.

How to dispose of the appliance at the end of its life?

Do not throw the appliance with household waste. Deposit it at a collection point for electrical and electronic equipment (WEEE) to allow recycling and protect the environment.

USER MANUAL 221624 Hendi

You should read this user manual carefully before using the appliance.

Keep these instructions with the appliance.

For indoor use only.

Thank you for purchasing this Hendi appliance. Read this manual carefully, paying particular attention to the safety regulations outlined below, before installing and using this appliance for the first time.

Safety regulations

• This appliance is intended for commercial use.
• Only use the appliance for the intended purpose it was designed for as described in this manual.
• The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Keep the appliance and electrical plug away from water and other liquids. In the event the appliance falls into water, immediately remove the power plug from the socket. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.
• Never attempt to open the housing of the appliance by yourself.
• Do not insert objects into the housing of the appliance.
• Do not touch the plug with wet or damp hands.
  DANGER OF ELECTRIC SHOCK! Do not attempt to repair the appliance by yourself, repairs are only to be conducted by qualified personnel.
• Never use a damaged appliance! When it's damaged, disconnect the appliance from the socket and contact the retailer.
• WARNING! Do not immerse the electrical parts of the appliance in water or other liquids.
• Never hold the appliance under running water.
• Regularly check the power plug and cord for any damage. When damaged it must be replaced by a service agent or similarly qualified person in order to avoid danger or injury.
• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.
• Make sure that the power cord and/or extension cord do not cause a trip hazard.
• Never leave the appliance unattended during use.
• WARNING!As long as the plug is in the socket the appliance is connected to the power source.
• Turn off the appliance before unplugging it from the socket.
• Connect the power plug to an easily accessible electrical socket so that in case of emergency the appliance can be unplugged immediately.
• Never carry the appliance by the cord.
• Do not use any extra devices that are not supplied together with the appliance.
• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

• Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.

• This appliance should not be operated by persons with reduced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.

• This appliance should, under any circumstances, not be used by children.
• Keep the appliance and its power cord out of reach of children.
• WARNING: ALWAYS switch off the appliance and unplug from power socket before cleaning, maintenance or storage.

Special Safety Regulations

• Always disconnect the appliance from the mains if it is left unattended or is not in use, and before assembly, disassembly or cleaning.
• This appliance should be operated by trained personnel in kitchen of the restaurant, canteens or bar staff, etc.
• Do not place the appliance on a heating object (gasoline, electric, charcoal cooker, etc.) Keep the appliance away from any hot surfaces and open flames. Always operate the appliance on a level, stable, clean, heat-resistant and dry surface.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Do not wear loose fitting clothing and long hair should be tied up during operation.
• Allow at least 10cm spacing around the appliance for ventilation purpose during use.
• Do not use hard utensils to hit the outer surface.
• CAUTION! Securely route the power cord if necessary in order to prevent unintentional pulling or contact with the heating surface.
• Do not clean, store or replacement of blade for the appliance unless it is completely cooled down and unplug from the electrical supply.
• Do not immerse the appliance into the water or other liquids for cleaning.
• Do not wash the machine with water or a waterjet. Washing with water can cause leakage and increase the risk of electric shock. No parts are dishwasher safe.
• WARNING! Do not put hands, fingers, spatula, or spoon into the cup during operation.
• Use the supplied cups only. Choose the appropriate speed (I or II) for milk mixing.
• Do not load too much milk in order to prevent overflow.
• Keep hands and utensils out of the cup during operation to prevent the possibility of severe personal injury and/or damage to the blender.
• Do not take off the cup before the motor fully stopped.
• Do not operate the appliance without load inside the cup anytime.

Intended use

• This appliance is intended for professional use.

• This appliance is designed for mixing milk or coffee with ice and aireate the mix with the supplied agitators. Any other use may lead to damage of the appliance or personal injury.

• Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the device.

Grounding installation

This appliance is classified as protection class I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is fitted with a power cord that has a grounding wire and grounded plug. The plug must be plugged into an outlet that is properly installed and grounded.

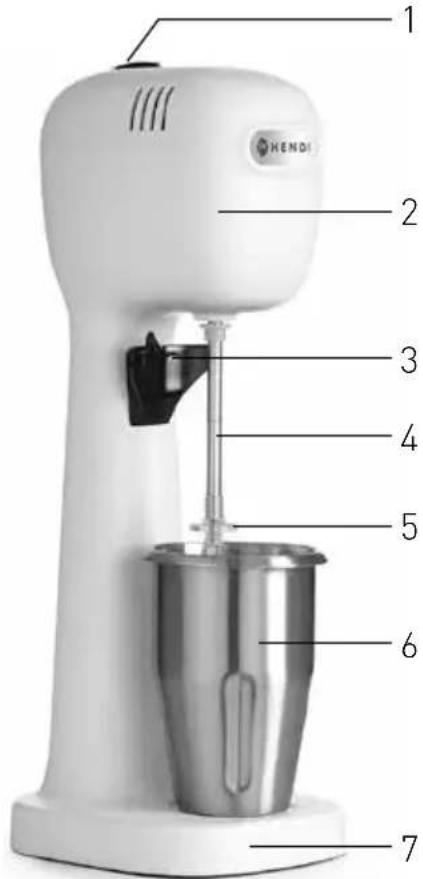

Overview of the main parts of the appliance

1: Power switch (with "I" for low speed and "II" for high speed)
2: Motor unit
3: Cup holder
4: Rotating shaft
5: Agitators [2 single and 2 double layer included]
6:1 stainless steel cup and 1 polycarbonate cup
7:Base

Preparations before using for the first time

• Remove all protective packaging and wrapping.
• Check to make sure the appliance is undamaged and with all accessories (See = = > different parts of accessories). In case of incomplete delivery and damages. Please contact supplier immediately. Do not use the appliance. (See = = > Warranty).
• Clean the appliance before use (See = = > Cleaning and Maintenance).

Make sure the appliance is completely dry.
- Place the appliance on a horizontal, stable and heat resistant surface that is safe against water splashes.
- Keep the packaging if you intend to store your appliance in the future.

Operation

Warning: Make sure the appliance is unplugged from the electrical power supply & make sure the power switch is at the "0" position.

• Pour the milk inside the cup. (Note: Do not put too much to avoid overflow).
• Screw in the agitator.

NOTE: There are 2 single and 2 double layer for selection. Use double layer agitator to allow more air into the mix and create a smoother or bigger froth of drink.

• Insert the cup with the ingredients on the cup holder.
• Connect the power plug to a suitable electrical power supply.

• The power switch has 2 speeds for selection. Switch ON the appliance by turning the power switch to the I (low speed) or II (high speed) position.

• Switch OFF the appliance by turning the power switch to the "0" position (Level position) if the operation is finished.

• Unplug the appliance from the electrical power supply.
• Put out the cup for drinking.

NOTE:

• Do not operate the appliance for more than 3 minutes at one time or without milk ingredient inside the cup to prevent overheated.
• Different milk may have different froth outcome.
• Make sure the cup is safely placed in the machine before starting operation.

EN

Cleaning and Maintenance

Attention: Always unplug the appliance from the electrical power outlet and let it cool down completely before cleaning & storage.

Cleaning

• Never immerse the appliance in water or other liquids.
• Clean the cooled exterior surface with a slightly damp cloth or sponge with some mild soap solution.
• Never use abrasive sponges or detergents, steel wool or metallic utensils to clean the interior or exterior parts of the appliance.
• Wash the cup in warm soapy water after each use.

NOTE: No parts are dishwasher safe.

Storage

• Before storage, always make sure the appliance has already been disconnected from the electrical outlet and cooled down completely.
• Store the appliance in a cool, clean and dry place.

Troubleshooting

If the appliance does not function properly, please check the below table for the solution. If you are

still unable to solve the problem, please contact the supplier/service provider.

Problems Possible cause	Use Possible solution
The appliance does not switch on.	- Power plug is not connected properly with the electrical outlet. - Power switch not set to position I or II	- Check the power plug to make sure it is connected properly. - Set the power switch to either position I or II.
The appliance stops operation.	- Internal thermal limiter activates to avoid motor overheated	Turn the power switch to “0” position and unplug the appliance. Let it cool down completely for about 20 ~ 30 minutes before start up again.

Technical specification

Item no. 221600 221	617 221624 221631	221648 221655
Operating voltage and frequency	220-240V~50Hz
Rated input power 400W
Cup capacity 0,75 ~ 0,95L
Protection class Class I
Noise level < 75 dB (A)
Speed (rpm)	Setting I : 15,000 / Setting II : 19,000
Color	Black	White	Caramel	Yellow	Red	Blue
Dimension	170x196x(H)490mm
Net weight	4,9kg

REMARK: Technical specification is subjected to change without prior notification.

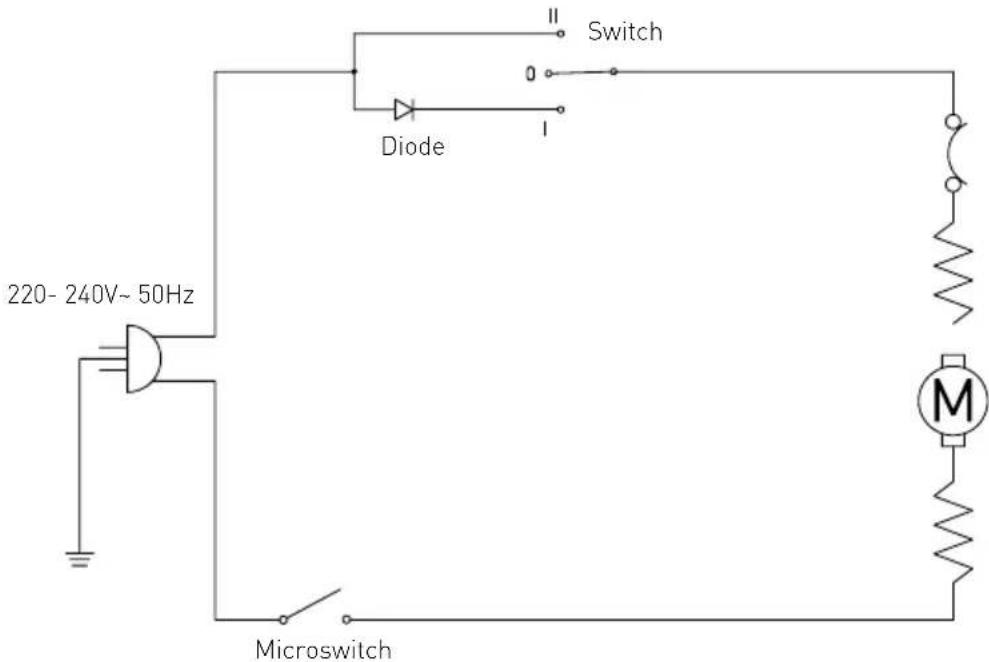

Electric diagram

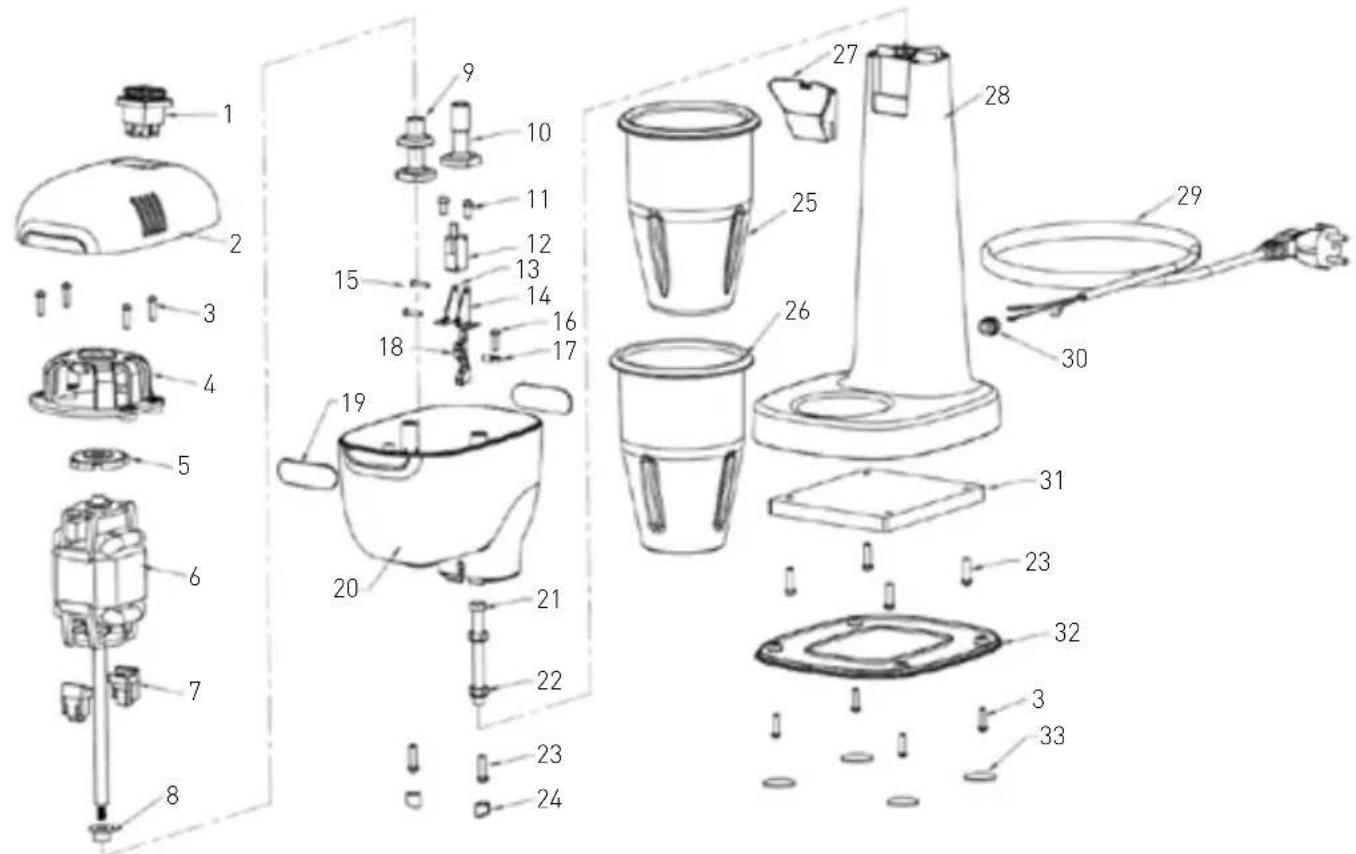

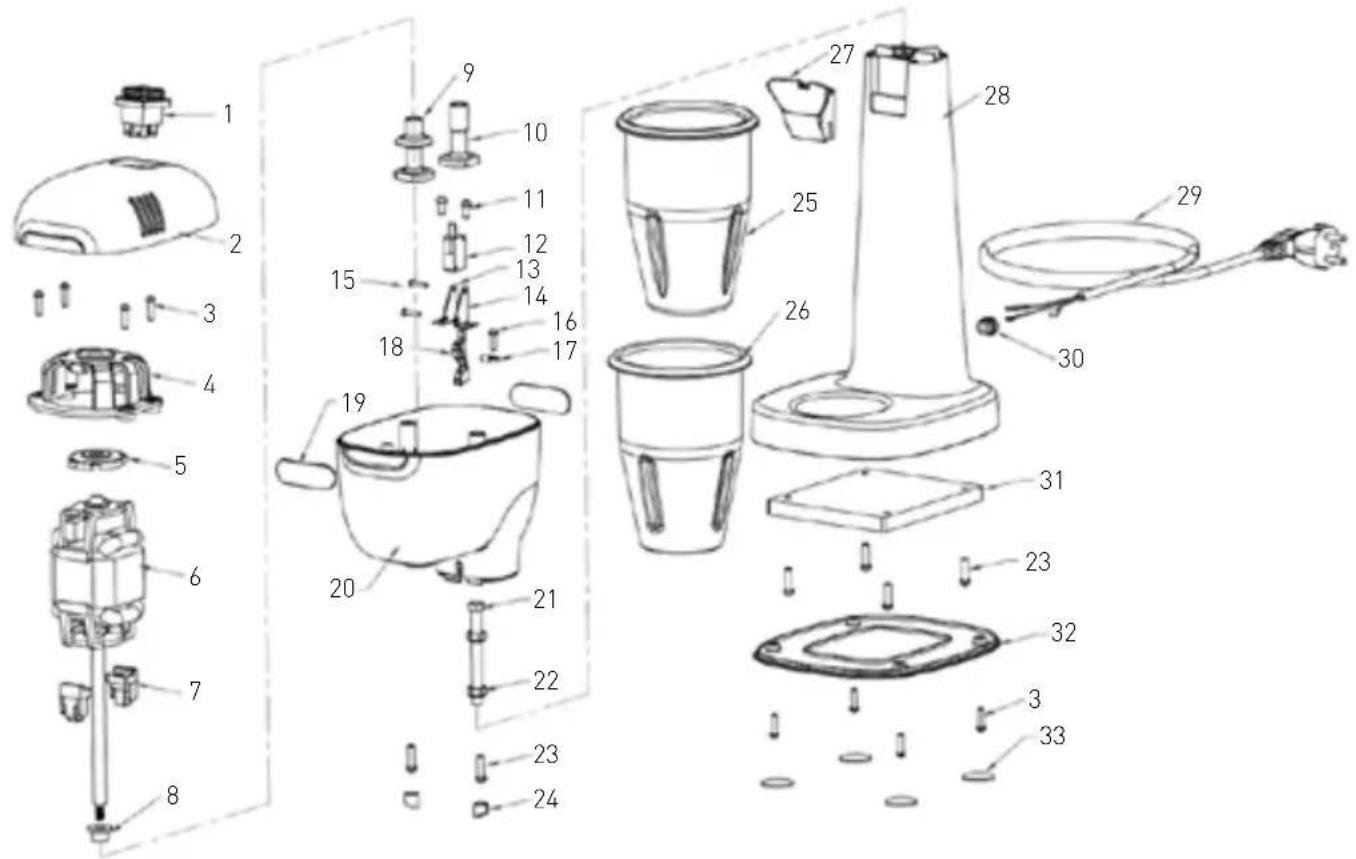

Exploded drawing and part list

EN

Part no.	Part name Quantity Parts no.	Part name Quantity
1 Switch 1 18 Driver unit 1
2 Top cover 1 19 Hendi logo sticker 2
3 Screw 4x16 8 20 Motor housing bottom 1
4 Motor mounting top 1 21 Bolt M8x30 1
5 Anti-vibration pad	1 22 Nut M8		2
6 Motor	1 23 Screw 5x18		6
7 Motor support foot	2 24 Core hole		2
8	Rubber protection	1	25	Stainless steel Cup	1
9 Double layer agitator	2 26 Polycarbonate cup		1
10	Single layer agitator	2	27	Cup Holder	1
11	Screw 5x10 2 28 Body			1
12	Microswitch	1	29	Power cord	1
13	Microswitch holder left	1	30	Strain relief	1
14	Microswitch holder right	1	31	Counter weight metal	1
15	Screw M3x14	2 32 Bottom cover		1
16	Screw 4x14 1 33 Foot pad			1
17	Driver unit shaft	1

Warranty

Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be repaired by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and

when it was purchased and include proof of purchase (e.g. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural re

sources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.

EN

Exploded drawing and part list

Ecnn ycTpoiCTBO He pa6oTaET HAdnEkaunm 06pa30m, nCnoB3yInTe CneDyuOuTu TabnUy Ira noncka peWeHn. Ecnn BbI He MoKeTe peWntb npo5nemy,

CBJXNTecb C NoCTaBUNKOM / cepBnCHbIM CneuaJIUCTOM.

Pa3BepHyTbI ueptexK nCnncok DeTaJe

6pa30m, KOToPbI He BpeDeH IJIa 3OpOBBy n OkpyKaUoUeN cpeBly.

IiIroTobKa nepeed nepuM BnKOpncTaHHaM

3HIMITb 3axnCHy ynaKOBky Ta ynaKOBky.
- IpekeohaiTeC, 10 npnlaH He noWkoJxHeH i MaE Bce npnaIaIg (INB. => pi3Hi qactHH aK-ceCyapIB). Y pa3i HENOBHOIOCTABKN Ta NOwKO-dXeHHa. HeraHNo 3BepHITbcra Do nocTaaybHnka. He BnKOpncToByte npnaIaN. (INB. => Fapantia).
-пени викорисаим очирь пилад (ДИВ. = =

YnueHHTaDorJai].

• PepekoHaITeC, 10 npnlaNOBHicTIO cyxN.
• Nomictb npnlaHa rOpN3oHTaIbHy, cIiKy TaXapocTiKy NOBepxHIO, 6e3neuHy dIg 6pN3OK BOHN.
  36epiraTe ynaKOBky, kUO BN nlaHyTe 36epiraTn Baw npnad y MaibyTHbomy.

Eknpnyataia

IonepeJxehn: IpekoHaTeC, 0 npuaB iD'edHaHO BID dXepeena eJeKtpoxNBHeHH, i nepekoHaTeC, 0 npemkauch XuBneHH 3haxoHbTbcB noloxHHi 0

• Hanoi Te Monoko B yawky. [Ppimitka. He daBaIte 3aHaTo 6arato, uo6 yHnKHyTu nepenOBHeHHa].
• PπρκργτιΤb MιλαΚy.

EN: Meets the essential requirements as described in:/

EN: Has been engineered and manufactured in conformity to harmonized standards: /

EN: Meets the requirements as described in regulations: /

EN: Meets the requirements as described in resolutions:/

GR: nnpoi tic anatnoeic onw neptypapetai otic npodaypae: /

EN: Technical documentation available at the company's headquarters: /

Hendi Food Service Equipment GmbH

Ehring 15

Hendi Food Service Equipment Romania S.R.L.

Str. 13 decembris 94A, Hala 14

Braşov, 500164, Romania

Tel: [phone]

Email: [e-mail]

PKS Hendi South East Europe SA

5 Melsovou Str.

18346 Moschato, Athens, Greece

Tel: [phone]

Email: [e-mail]

Hendi Italia S.R.L.

Via Leonardo da Vinci 4

39100 Bolzano (BZ), Italy

Tel: [phone]

Email: [e-mail]

Hendi HK Ltd.

1208, 12/F Exchange Tower

33 Wang Chiu Road, Kowloon Bay, Hong Kong

Tel: [phone]

Email: [e-mail]

FindHendi on internet:

www.hendi.eu

www.facebook.com/HendiToolsforChefs

www.linkedin.com/company/hendi-food-service-equipment-b.v.

www.youtube.com/HendiEquipment

Changes, printing and typesetting errors reserved.
- Änderungen, Druck- und Satzfehler vorbehalten.
Wijzigingen, druk- en zetfouten voorbehouden.
- Zastrzega sie mözliwość zmián, będów w druku i składzie.
- Sous réserve d'erreurs de modification, d'impression et de composition.
- Con riserva di modifiche, errori di stampa e composizione.
- Rezervate modificarile, tiparirea si erorile de tiparire.
- Mby octabJnem 3a co6oI npabo BHOCTb N3MeHeHn, Oun6kn neuATn H6opa.
-Enpuλoovrtaaayec,ekunwan kai otoxioBeaia.
- Pridrzane su promjene, pogreske u ispisu i slanju slova.
-Zmemy,chyby tisku a szby vyhrazeny.

• A valtozlatasok, a nyomtalasi es a betuzesi hibak fenntartva.
• Bci npaba 3axuenei 0do 3mH, moKInBi nOMnIKn npky Ta Bepctkn.
• Neid juhiseid voidakse muuta ja need voivad sisaldada trukivigu.
• Ši instrukcija var tikt mainita, taja tapat var but drukas kjūdas.
• Sios instrukcijos gali buti keiCiamos, jose taip pat gali pasitakytpausdinimo klaidy.
• Alterações, impressão ecretos de composicao reservados.
• Reservado el derecho a realizar modificaciones, errores de im-presión y tipografia.
  -Zmeny,chybyvtlaciasaedzbevyhradené.
• Spremembe, liskanje in tipnastavitev napake shranjenih.
