Product type	Rooftop tent for vehicle
Brand	Dometic
Model	TRT120E Ocean
Interior dimensions (L x H x D)	120 x 100 x 200 cm
Exterior dimensions (L x H x D)	132 x 115 x 218 cm
Storage dimensions (L x W x H)	144 x 32 x 229 cm
Total weight (with ladder)	53 kg
Power supply	12 V DC
Power consumption	20 W
Minimum socket power	10 A
Remote control frequency	433 MHz
Mattress	High density foam, thickness 5 cm
Capacity	2 adults
Assembly	Electric (remote control) or manual
Ladder	Telescopic aluminum
Transport cover	Included
Ventilation	Ventilation openings
Safety	Do not use in bad weather, do not cook inside, avoid children without supervision
Maintenance	Cleaning with lukewarm water, regular waterproofing, complete drying before storage
Warranty	Legal warranty (excluding normal wear and weather damage)

Frequently Asked Questions - TRT120E Ocean DOMETIC

How to set up the TRT120E Ocean rooftop tent?

The assembly can be done electrically via remote control or manually using the spare poles. Follow the steps illustrated in the manual: deployment from the vehicle roof, ladder attachment, and stability check.

Can I use the tent in bad weather?

No. Avoid using the tent in case of strong winds, storms, or tempests. If caught in a storm, immediately leave the tent and take shelter in your vehicle.

How to clean the tent?

Clean the tent with lukewarm water and a soft brush. Do not use chemical or abrasive products. Apply a waterproofing agent before each trip. Let it dry completely before storing.

What to do in case of water leak?

Check the seams, tapes, and wet areas. If you find a leak, apply a seam sealant. Heavy condensation can also be mistaken for a leak; increase ventilation.

The remote control does not work, what to do?

You can unfold the tent manually using the spare poles provided. Also check the remote control batteries. If the problem persists, contact an authorized specialist for the electric motor.

What is the maximum weight supported by the tent?

The manual does not specify an exact maximum weight, but the tent is designed to accommodate 2 adults with a 5 cm thick high-density foam mattress. Ensure your vehicle's roof rack supports the total weight (53 kg + occupants).

Can I cook inside the tent?

No. It is forbidden to use combustion appliances (barbecue, gas heater) inside due to the risk of carbon monoxide poisoning and fire.

How to store the tent for a long period?

Remove the tent from the vehicle, clean it and make sure it is completely dry. Store it in a dry and well-ventilated place. Do not store it on the vehicle roof if not in use.

Is the tent suitable for all vehicles?

It requires approved roof bars (e.g., GS label) and sufficient load capacity of the vehicle and roof rack. Check your vehicle's maximum authorized load before installation.

What is the procedure in case of a storm?

Immediately leave the tent and take shelter in your vehicle. Stay inside the vehicle until the storm passes to avoid being struck by lightning. Never stay in the tent during a storm.

USER MANUAL TRT120E Ocean DOMETIC

Illustration of a two-decker camping tent structure with no text or symbols

TRT120E

EN

Rooftop tent

Installation and Operating Manual ..... 8

DE

Dachzelt

© 2021 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

1 2 3 UP DOWN STOP

2 1. 2. 4x 2x 4x 2x

3 2. 1.

4 1. 2.

5 1. 2.

6 2. 3. 1.

7 1. 2.

8 1. 12 V 2.

9 UP DOWN STOP

10 12 V 1. 2.

11 180°

12

13 1. 2. 3. 4.

14

15 2. 1.

16 1. 2.

Illustration of a person installing or adjusting a roof structure with a directional arrow (no text or symbols)

18 1. 2. 3.

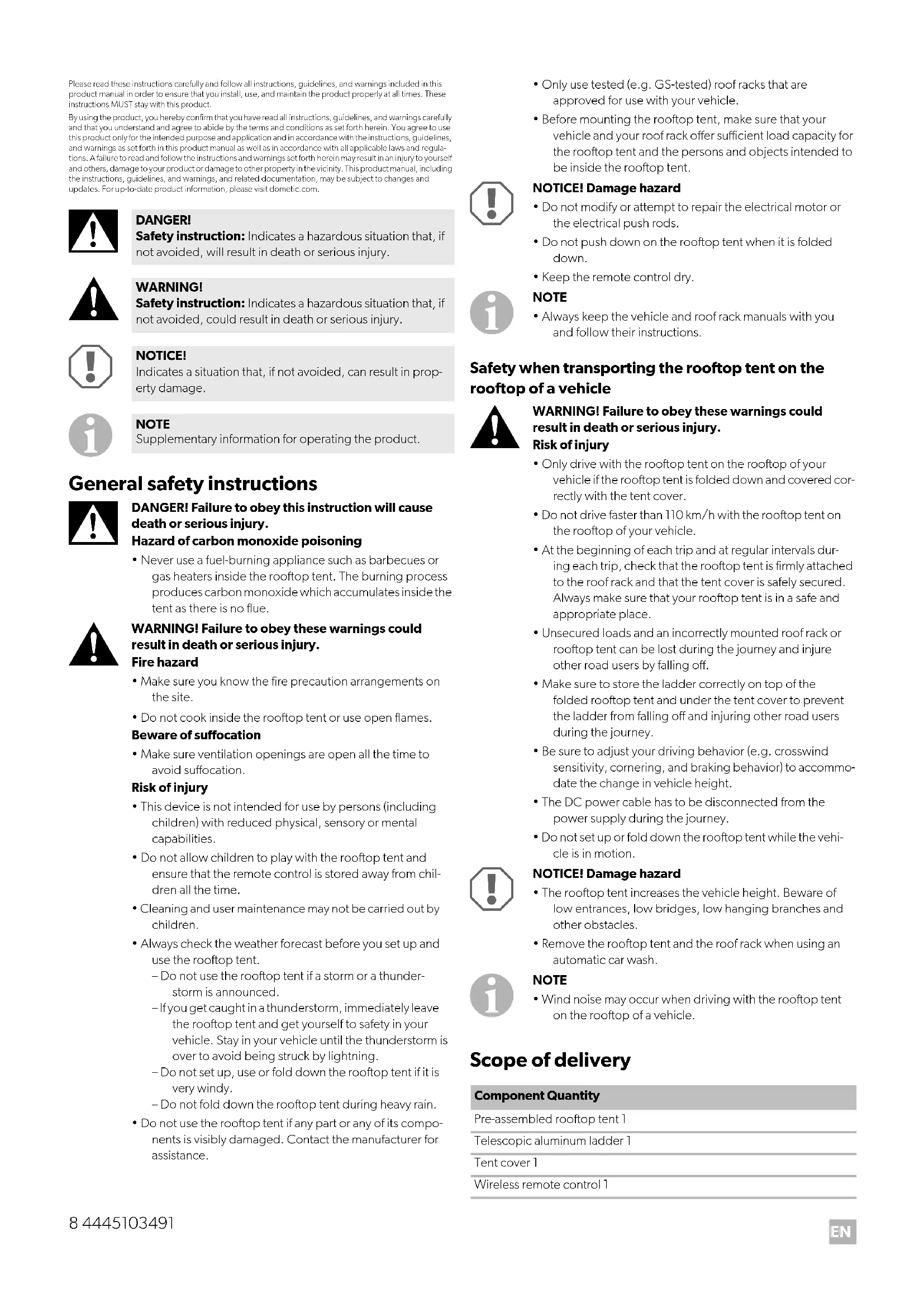

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.

By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and to follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit domestic.com.

DANGER!

Safety instruction: Indicates a hazardous situation that, if not avoided, will result in death or serious injury.

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

NOTE

Supplementary information for operating the product.

General safety instructions

DANGER! Failure to obey this instruction will cause death or serious injury.

Hazard of carbon monoxide poisoning

- Never use a fuel-burning appliance such as barbecues or gas heaters inside the rooftop tent. The burning process produces carbon monoxide which accumulates inside the tent as there is no flue.

WARNING! Failure to obey these warnings could result in death or serious injury.

Fire hazard

• Make sure you know the fire precaution arrangements on the site.
• Do not cook inside the rooftop tent or use open flames.

Beware of suffocation

- Make sure ventilation openings are open all the time to avoid suffocation.

Risk of injury

• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities.
• Do not allow children to play with the rooftop tent and ensure that the remote control is stored away from children all the time.
• Cleaning and user maintenance may not be carried out by children.
  • Always check the weather forecast before you set up and use the rooftop tent.

- Do not use the rooftop tent if a storm or a thunderstorm is announced.

– If you get caught in a thunderstorm, immediately leave the rooftop tent and get yourself to safety in your vehicle. Stay in your vehicle until the thunderstorm is over to avoid being struck by lightning.

- Do not set up, use or fold down the rooftop tent if it is very windy.

- Do not fold down the rooftop tent during heavy rain.

- Do not use the rooftop tent if any part or any of its components is visibly damaged. Contact the manufacturer for assistance.

• Only use tested (e.g. GS-tested) roof racks that are approved for use with your vehicle.
• Before mounting the rooftop tent, make sure that your vehicle and your roof rack offer sufficient load capacity for the rooftop tent and the persons and objects intended to be inside the rooftop tent.

NOTICE! Damage hazard

• Do not modify or attempt to repair the electrical motor or the electrical push rods.
• Do not push down on the rooftop tent when it is folded down.
• Keep the remote control dry.

NOTE

• Always keep the vehicle and roof rack manuals with you and follow their instructions.

Safety when transporting the rooftop tent on the rooftop of a vehicle

WARNING! Failure to obey these warnings could result in death or serious injury.

Risk of injury

• Only drive with the rooftop tent on the rooftop of your vehicle if the rooftop tent is folded down and covered correctly with the tent cover.
• Do not drive faster than 110km / h with the rooftop tent on the rooftop of your vehicle.
• At the beginning of each trip and at regular intervals during each trip, check that the rooftop tent is firmly attached to the roof rack and that the tent cover is safely secured. Always make sure that your rooftop tent is in a safe and appropriate place.
• Unsecured loads and an incorrectly mounted roof rack or rooftop tent can be lost during the journey and injure other road users by falling off.
• Make sure to store the ladder correctly on top of the folded rooftop tent and under the tent cover to prevent the ladder from falling off and injuring other road users during the journey.
• Be sure to adjust your driving behavior (e.g. crosswind sensitivity, cornering, and braking behavior) to accommodate the change in vehicle height.
• The DC power cable has to be disconnected from the power supply during the journey.
• Do not set up or fold down the rooftop tent while the vehicle is in motion.

NOTICE! Damage hazard

• The rooftop tent increases the vehicle height. Beware of low entrances, low bridges, low hanging branches and other obstacles.
• Remove the rooftop tent and the roof rack when using an automatic car wash.

NOTE

- Wind noise may occur when driving with the rooftop tent on the rooftop of a vehicle.

Scope of delivery

Component Quantity

Pre-assembled rooftop tent 1

Telescopic aluminum ladder 1

Tent cover 1

Wireless remote control 1

Component	Quantity
DC power cable 1
Tool bag 1
Plastic nuts 8
M8 x 50 hexagon bolt 8
M8 flat washer 8
M8 split washer 8
Rail cap 4
U-shaped bracket 4
Spare pole for manual setup 2
L-shaped hexagonal wrench	2
Screw driver	1

Intended use

This rooftop tent is suitable for:

• mounting on a suitable roof rack on the rooftop of a suitable vehicle
  • light to moderate weather
• touring

This rooftop tent is not suitable for:

• use by persons with reduced physical, sensory or mental capabilities
  • very strong winds or snowfall
  • seasonal pitch or commercial use

This product is only suitable for the intended purpose and application in accordance with these instructions.

This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper operating or maintenance will result in unsatisfactory performance and a possible failure.

The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
  • Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual

Dometic reserves the right to change product appearance and product specifications.

The radio equipment of the device complies with the requirements of the directive 2014/53/EU. You can find the Declaration of Conformity of the device on documents.dometic.com.

Technical description

This rooftop tent is equipped with an electrical motor and a wireless remote control for setting up and folding down. The electrical motor is equipped with an overheat protection.

The rooftop tent can also be set up manually, using the supplied spare poles.

The rooftop tent includes a high-density foam mattress.

For transport on the rooftop of a vehicle, the rooftop tent can be folded down and covered with the supplied tent cover.

Control elements

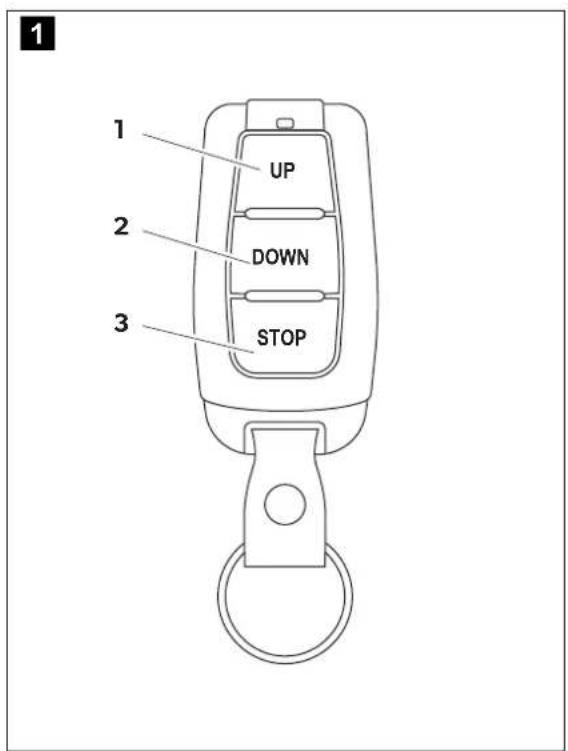

No. in fig. 1, page 3	Description	Explanation
1	UP button	Sets up the rooftop tent.
2	DOWN button	Folds the rooftop tent down.
3	STOP button	Stops the setup and folding process.

Using the rooftop tent

WARNING! Risk of injury

• Make sure the rooftop tent is firmly attached to the roof rack before climbing the ladder.
• Make sure the ladder is hooked into the rooftop tent's base frame firmly before you enter or leave the rooftop tent.
  • Always climb the ladder with caution.
• Close the rooftop tent's entrance door before you go to sleep to prevent falling out of the rooftop tent while sleeping.
• Only use the remote control to control the rooftop tent from the ground.

NOTICE! Damage hazard

Keep the side windows open while setting up or folding down the rooftop tent.

Before first use

Familiarize yourself with the product by carrying out a test set up before the product is used for the first time. Check if the scope of delivery is complete.

Mounting the rooftop tent

WARNING! Risk of injury

• Make sure no other persons, especially children, are near the vehicle when you and your helper lift the rooftop tent onto the rooftop of the vehicle.
• Lift the rooftop tent onto the rooftop of your vehicle together with another capable person to prevent the rooftop tent from falling down.
• Mount the rooftop tent parallel to the road line and not at an angle to avoid creating excessive lifting force.
  • Fix all bolts so they are sufficiently secured.

Mounting for electrical setup

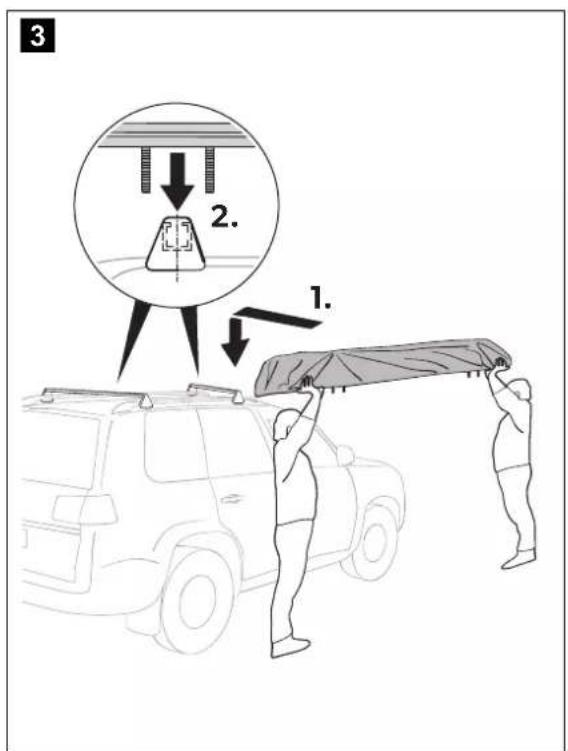

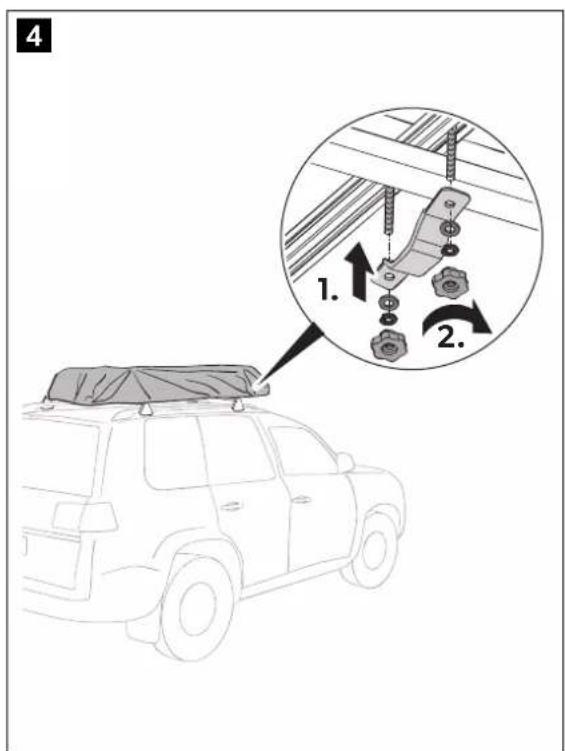

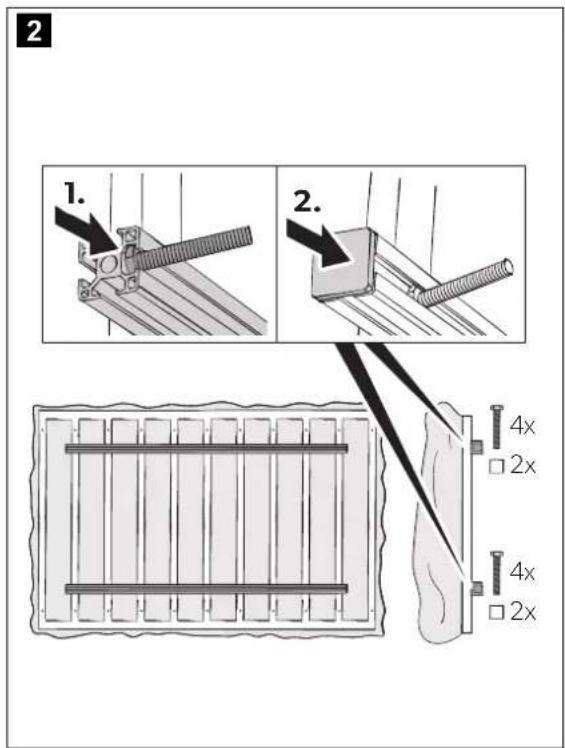

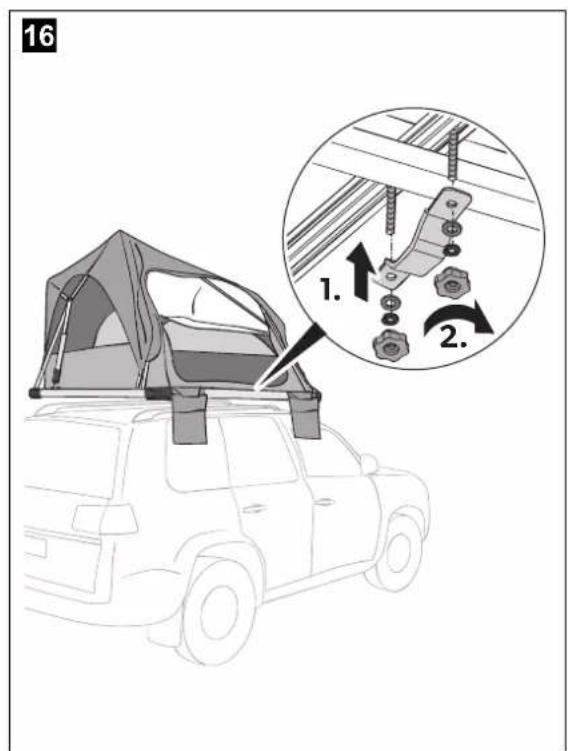

▶ Proceed as shown (fig. 2, page 3 – fig. 4, page 3).

Mounting for manual setup

▶ See chapter "Setting up the rooftop tent manually" on page 10.

Setting up the rooftop tent

Setting up the rooftop tent electrically

WARNING! Risk of injury

Disconnect the DC power cable from the power supply after setting up the rooftop tent.

NOTE

If the electrical setup does not work, set up the rooftop tent manually (see chapter "Setting up the rooftop tent manually" on page 10).

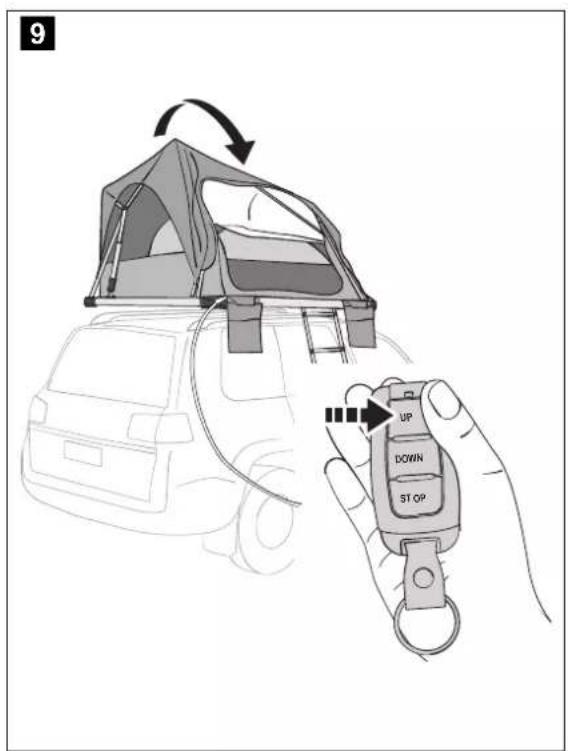

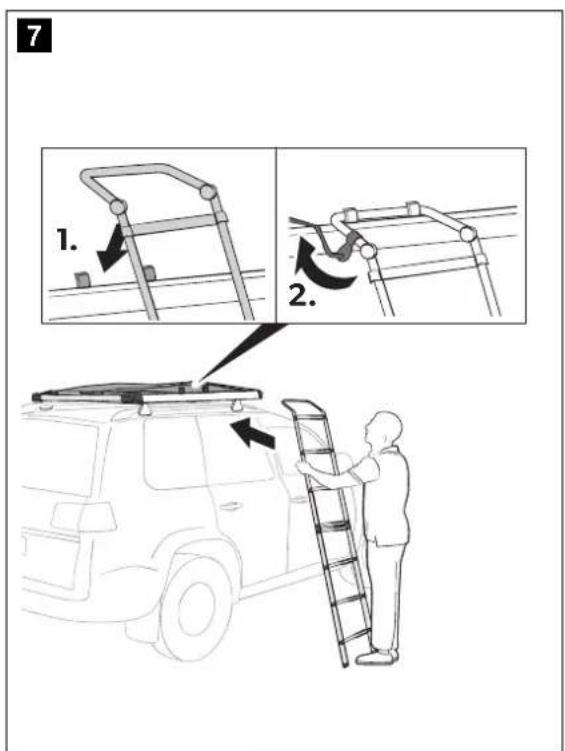

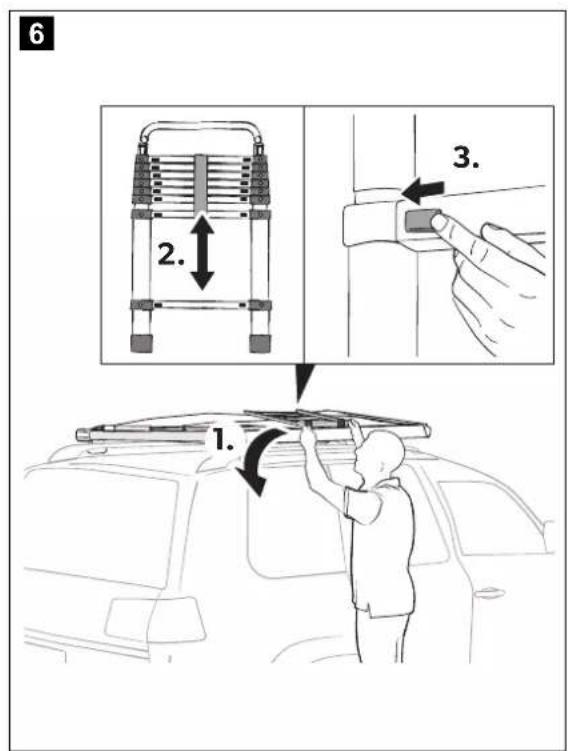

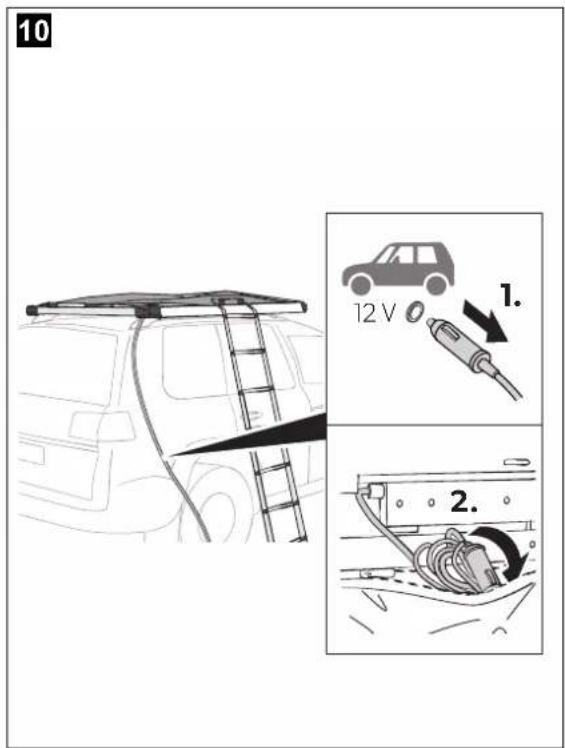

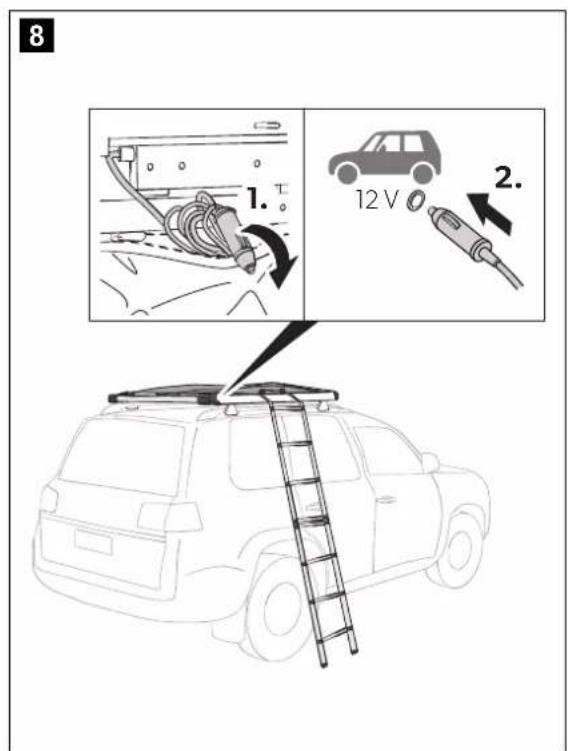

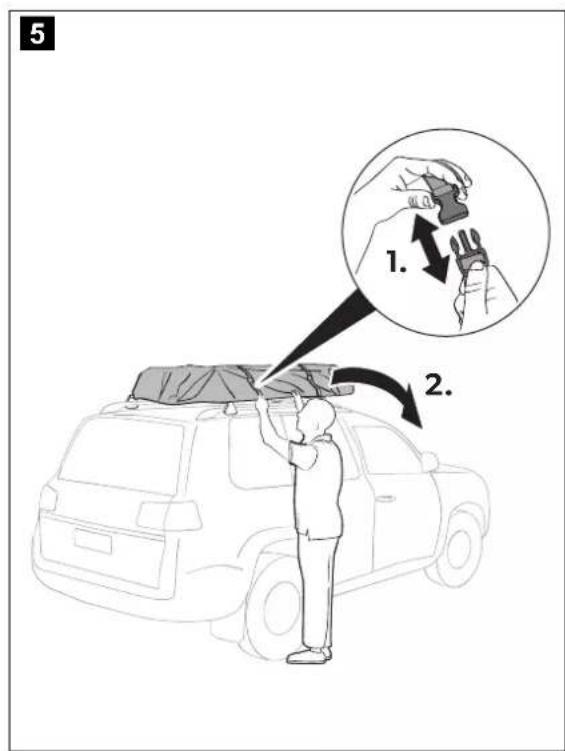

▶ Proceed as shown (fig. 5, page 4 – fig. 10, page 5 and fig. 17, page 7).

Setting up the rooftop tent manually

WARNING! Risk of injury

Do not attempt to exchange the poles while the rooftop tent is mounted on the rooftop of the vehicle.

NOTICE! Material damage

Do not attempt to remove the spare poles from underneath the roof top tent while the rooftop tent is mounted on the rooftop of the vehicle. This could damage the car paint of the vehicle.

1. If the rooftop tent is already mounted on the roof rack, dismount the rooftop tent first by reversing the mounting procedure.

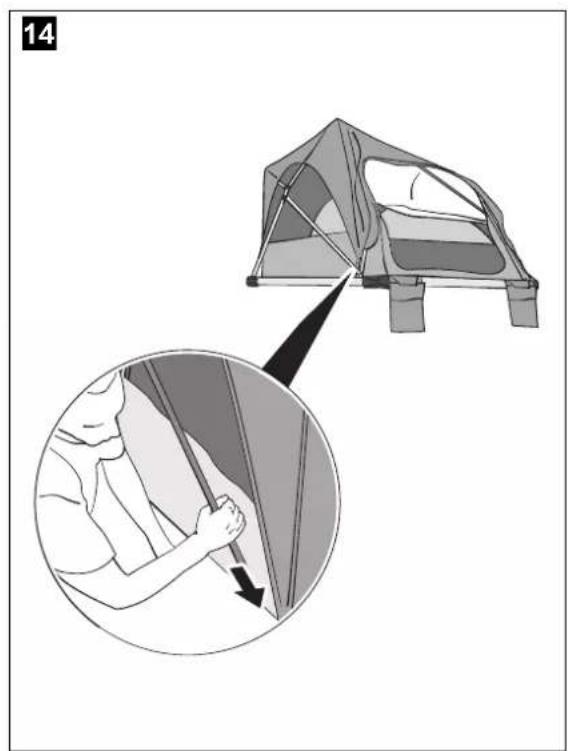

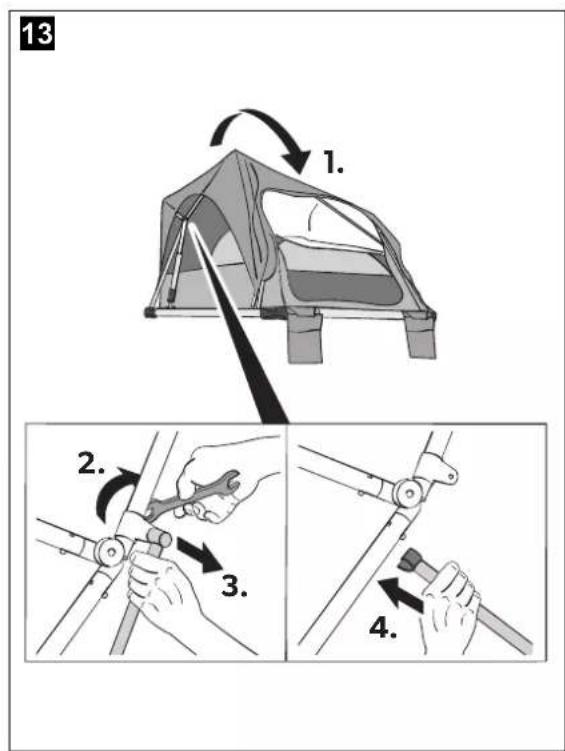

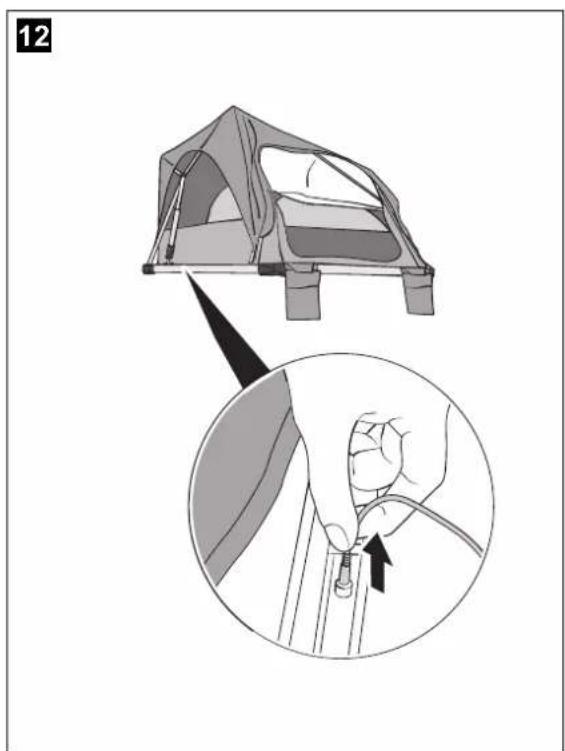

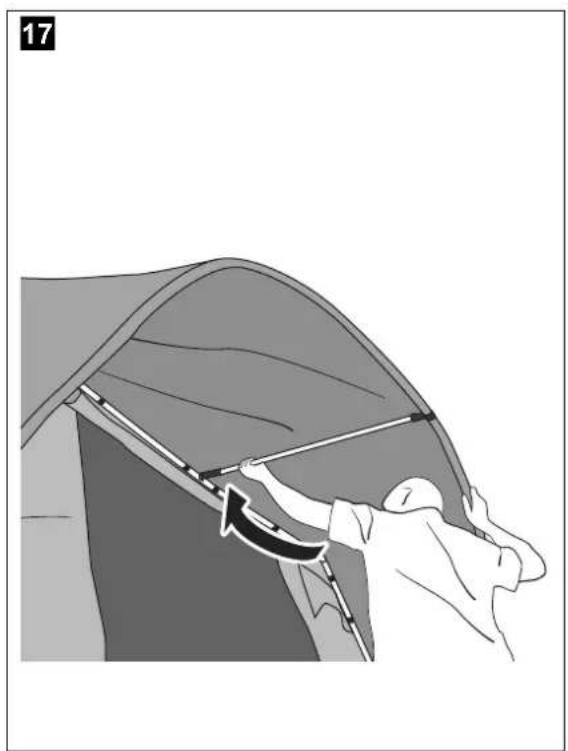

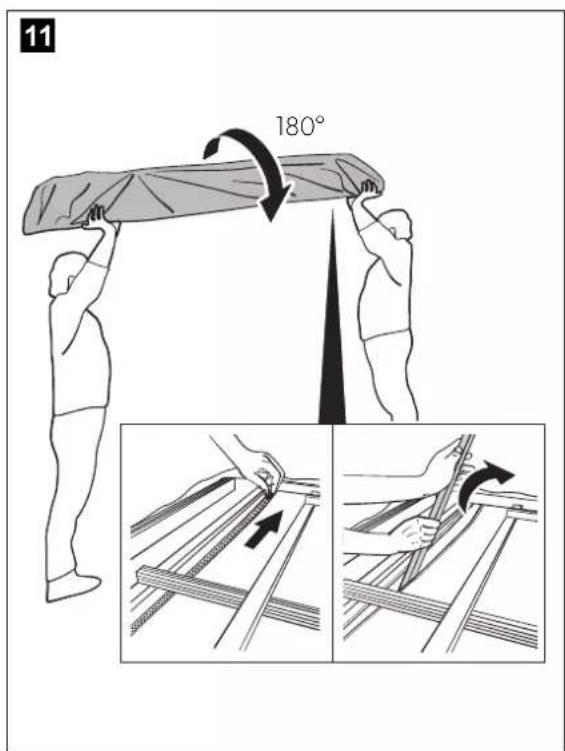

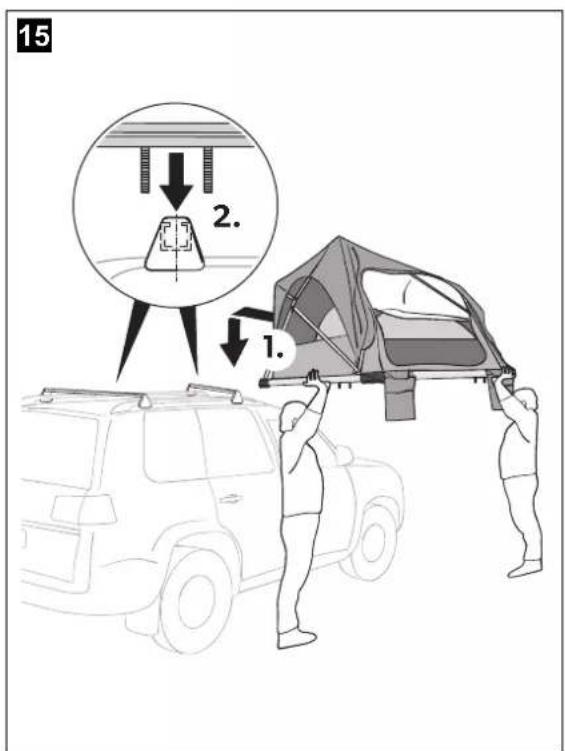

2. Proceed as shown (fig. 11, page 5 – fig. 17, page 7).

Folding down the rooftop tent

WARNING! Risk of injury

Make sure no persons or objects are in the rooftop tent before you fold down the rooftop tent.

NOTICE! Material damage

• When folding down and covering the rooftop tent, make sure the rooftop tent is dry.
• If the frame contains water, set it up to pour out the water.

▶ Reverse the set up procedure.

Storing the rooftop tent

Storing on the rooftop of a vehicle

WARNING! Risk of injury

• For the safety of other road users and reasons of fuel economy, only store the rooftop tent on the rooftop of a vehicle during a journey.
• Remove the rooftop tent when not in use for a longer period of time and store it according to chapter "Storing for a longer period of time" on page 10.

• Observe the safety instructions for transporting the rooftop tent on the rooftop of a vehicle (see chapter "Safety when transporting the rooftop tent on the rooftop of a vehicle" on page 8).

• Fold down the rooftop tent (see chapter "Folding down the rooftop tent" on page 10).

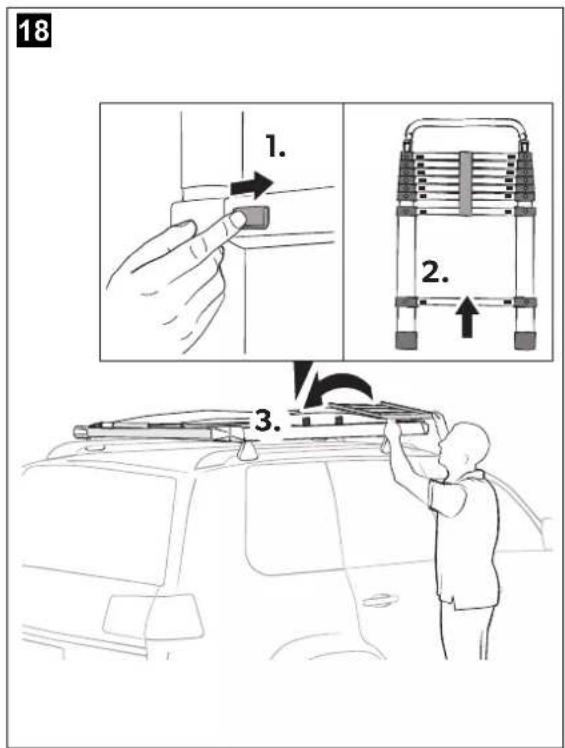

• Store the ladder on the folded rooftop tent (fig. 18, page 7).
• Put the tent cover on the folded rooftop tent and close the soft straps of the tent cover firmly.

Storing for a longer period of time

1. Dismount the rooftop tent from the roof rack.
2. If necessary, clean the rooftop tent (see chapter "Cleaning and maintenance" on page 10.)
3. Make sure the rooftop tent is completely dry before packing away.
4. Store in a well ventilated dry place.

Cleaning and maintenance

WARNING! Risk of injury

Only clean and maintain the rooftop tent on the ground. Never climb onto the vehicle for cleaning the rooftop tent while it is mounted on the rooftop.

NOTICE! Material damage

• Do not use sharp or hard objects or cleaning agents for cleaning.
• Do not use alcohol based materials, chemicals, soap and detergents for cleaning.
• Remove bird droppings and tree resin as soon as possible to avoid permanent damage to the material.

NOTE

• Fully set up the rooftop tent for cleaning.
• Choose a sunny day for cleaning to ensure the material will dry thoroughly.

If necessary, clean the product with clean, lukewarm water and a soft brush.
▶ Apply water proofer against water stains and UV radiation before each trip.
▶ Care for seams and zippers with suitable care products.
▶ Keep the motorized push rods clean by wiping them with a clean dry cloth.

Troubleshooting

NOTE

• During first exposure to water there may be some moisture at the seams. Through this moisture the threads will swell and fill the holes that are created in the sewing process.
• A fully equipped spare parts kit should include:
• waterproofer
  – repair tape and repair solution
  – silicone spray for the zippers
• spare pegs

Problem Solution

Water leak	▶ Check for leaky seams, damaged tapings and moist areas. ▶ If you cannot find any leaks, see chapter "Condensation" on page 10. ▶ If you find any leaks, apply seam sealant.
Rip in the fabric	▶ Use repair tape to seal the fabric. ▶ Have repairs carried out by an authorized specialist.
Motor or remote control is not working	▶ Use the spare poles for manual setup (see chapter "Setting up the rooftop tent manually" on page 10). ▶ Have repairs on the electrical motor or the motorized push rods carried out by an authorized specialist. ▶ Replace the battery of the remote control.
Ladder hooks are worn or broken	▶ Contact the manufacturer for replacement.
Noise while setting up or folding down the rooftop tent	▶ Inspect the poles and joints. ▶ Have repairs carried out by an authorized specialist.

Condensation

All tents suffer from internal condensation if one or more of the following conditions apply:

• high air humidity
• a drop in temperature

Severe condensation can run down the inside of the roof and drip off ties, tapes and other internal fittings and can be mistaken for leaking.

▶ Increase ventilation by opening doors and/or windows.

Disposal

Place the packaging material in the appropriate recycling waste bins, wherever possible.

If you wish to finally dispose of the product, ask your local recycling center or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

Warranty

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer).

For repair and warranty processing, please include the following documents when you send in the product:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault

The warranty covers manufacturing defects, materials and parts. The warranty does not cover fading of the cover and wear and tear due to UV radiation, misuse, accidental damage, storm damage, or permanent, semi-permanent or commercial use. It does not cover any resulting damage. Please contact your dealer for claims. This does not affect your statutory rights.

Technical data

	TRT120E
Connection voltage: 12 V DC
Power consumption: 20 W
Minimum socket rating: 10 A
Remote control frequency: 433 MHz
Foam mattress depth: 5 cm
Dimensions inner tent(W x H x D):	120 x 100 x 200 cm
Dimensions outer tent(W x H x D):	132 x 115 x 218 cm
Packing dimensions (W x H x D):	144 x 32 x 229 cm
Weight (including ladder): 53 kg
Conformity:	CE UK CA

Description technique

Reservestang for manuell oppsetting 2

L-formet unbrakonøkkel 2

Skrutrekker 1

Montering for manuell oppsetting

Se kapittel «Sette opp takteltet manuelt» på side 45.

Sette opp takteltet

Sette opp takteltet elektrisk

ADVARSEL! Fare for personskader

dometic.com/sales-offices
