Product type	Wet and dry vacuum cleaner
Brand	Yato
Model	YT85715
Rated voltage	220-240 V
Frequency	50/60 Hz
Rated power	1600 W
Maximum load socket	2000 W
Working vacuum	18 kPa
Tank capacity	30 L
Insulation class	I
Protection degree	IPX4
Weight	8 kg
Main functions	Wet and dry suction, blower, integrated socket for power tools
Filters	Dry paper filter, wet sponge filter (removable)
Dust bag	Reusable bag for upper tank (dry)
Included accessories	Flexible hose, extension tube, wide brush, narrow nozzle
Safety	Automatic float shut-off in case of overflow, IPX4 water splash protection
Maintenance and cleaning	Clean filters with compressed air or soapy water (sponge), regular tank emptying
Spare parts	Filters, bags, hoses, nozzles available
Repairability	Filters and bags replaceable by user; other repairs at specialized workshop
General information	Use on hard floors and carpets, do not vacuum flammable or hot substances (>40°C)

Frequently Asked Questions - YT85715 Yato

What is the tank capacity of the YT85715 vacuum cleaner?

The tank capacity is 30 liters.

Can I vacuum liquids with this vacuum cleaner?

Yes, the vacuum is designed for wet and dry suction. Use the wet sponge filter for water suction.

How to clean the filter?

For the dry filter (paper), clean it with a compressed air jet at 0.3 MPa max. For the wet filter (sponge), wash it with soapy water, rinse and let dry completely before reuse.

What to do if the vacuum loses power?

Check if the tank is full, the filter is dirty, or the hose or nozzle is clogged. Clean or replace the filter, empty the tank and ensure the conduits are clear.

How to use the integrated power socket for power tools?

Plug the vacuum into a wall outlet, then plug your tool into the vacuum's socket. Set the switch to automatic (II) position so the vacuum starts and stops with the tool.

Can I vacuum hot ashes?

No, it is strictly forbidden to vacuum hot or incandescent substances. The temperature of waste must not exceed 40°C.

How to empty the tank after wet suction?

Unplug the vacuum, open the lid, tilt the tank to drain the water. Rinse with clean water and dry thoroughly before reuse.

What type of bag to use for dry suction?

Use the provided reusable bag, which attaches to the upper tank cover. Make sure it is securely closed before installation.

Is the vacuum suitable for carpets?

Yes, use the brush with bristles raised for carpets. For hard floors, lower the bristles using the ejection lever.

What does the indicator light or louder motor noise mean?

A louder noise and drop in suction usually indicate that the tank is full or the filter is clogged. Empty the tank and clean the filter. If the problem persists, check the conduits.

USER MANUAL YT85715 Yato

Black and white photo of a Yatolo vacuum cleaner with attached hose and wheels (no visible text or symbols)

CE

Close-up of a hand holding a mechanical component, showing a close-up view (no text or symbols visible)

Four-panel technical image showing internal components with labeled parts (8 and 9), no readable text or symbols present.

Two identical mechanical components with internal cavities, shown from different angles (no text or symbols visible)

Close-up of a hand inserting a small electronic component into a transparent device (no visible text or symbols)

Close-up of hands installing or adjusting a mechanical component, showing a glass and fabric assembly (no visible text or symbols)

Close-up of hands holding a white fabric sample with a grid pattern, no visible text or symbols

Close-up of a hand adjusting a black plastic clip on a white panel (no text or symbols visible)

Close-up of a black mechanical bolt head and screw, showing threaded shaft and flange (no text or symbols visible)

Close-up of a hand holding a black cylindrical object, possibly a tool or component, against a plain background (no text or symbols visible)

Close-up of a black curved pipe or tube with segmented ends, no visible text or symbols

Close-up of a black vacuum cleaner with a handle and clip, no visible text or symbols

Close-up of a car air conditioner control panel with rotary dial and indicator lights (no readable text or symbols)

Close-up of a hand adjusting a rotary dial on a mechanical component (no visible text or symbols)

Close-up of a hand inserting a component into a device housing (no visible text or symbols)

PL

1. vacuum cleaner cover
2. container
3. caster
4. caster's base
5. inlet orifi ce
6. outlet orifi ce
7. switch
8. fi Iter for dry vacuum cleaning
9. fi Iter for wet vacuum cleaning
10. bag
11. pipe
12. elastic hose
13. brush
14. narrow sucker
15. electric socket
16. adjustment of suction force

D

Mains voltage and frequency

Read the operating instruction

Wear protective goggles

Schutzbrille tragen

Correct disposal of this product: This marking shown on the product and its literature indicates this kind of product mustn't be disposed with household wastes at the end of its working life in order to prevent possible harm to the environment or human health. Therefore the customers is invited to supply to the correct disposal, differentiating this product from other types of refusals and recycle it in responsible way, in order to re - use this components. The customer therefore is invited to contact the local supplier office for the relative information to the differentiated collection and the recycling of this type of product.

UMWELTSCHUTZ

WYPOSAŻENIE PRODUKTU

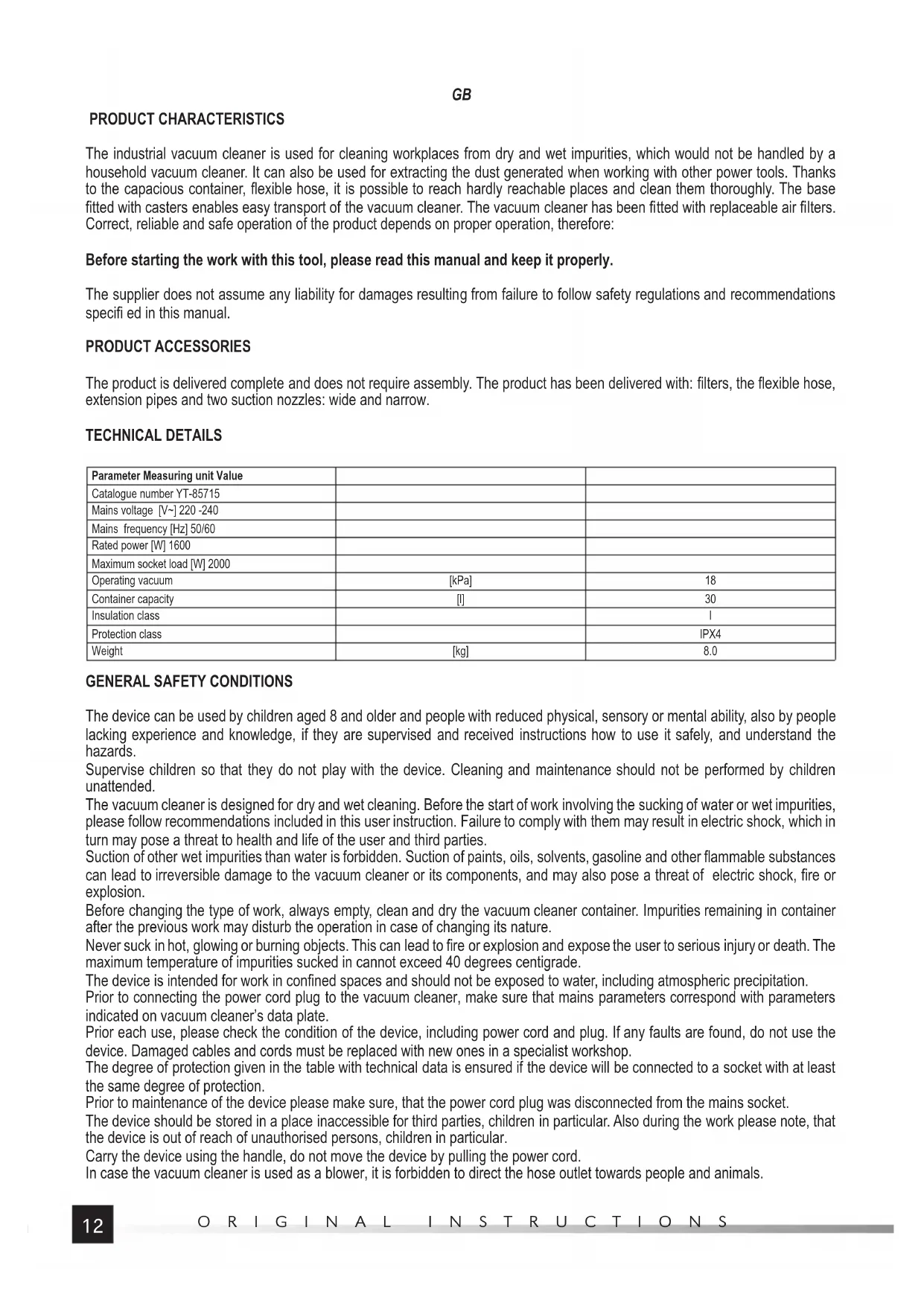

PRODUCT CHARACTERISTICS

The industrial vacuum cleaner is used for cleaning workplaces from dry and wet impurities, which would not be handled by a household vacuum cleaner. It can also be used for extracting the dust generated when working with other power tools. Thanks to the capacious container, flexible hose, it is possible to reach hardly reachable places and clean them thoroughly. The base fitted with casters enables easy transport of the vacuum cleaner. The vacuum cleaner has been fitted with replaceable air filters. Correct, reliable and safe operation of the product depends on proper operation, therefore:

Before starting the work with this tool, please read this manual and keep it properly.

The supplier does not assume any liability for damages resulting from failure to follow safety regulations and recommendations specified in this manual.

PRODUCT ACCESSORIES

The product is delivered complete and does not require assembly. The product has been delivered with: filters, the flexible hose, extension pipes and two suction nozzles: wide and narrow.

TECHNICAL DETAILS

Parameter Measuring unit Value
Catalogue number YT-85715
Mains voltage [V~] 220 -240
Mains frequency [Hz] 50/60
Rated power [W] 1600
Maximum socket load [W] 2000
Operating vacuum	[kPa]	18
Container capacity	[l]	30
Insulation class		l
Protection class		IPX4
Weight	[kg]	8.0

GENERAL SAFETY CONDITIONS

The device can be used by children aged 8 and older and people with reduced physical, sensory or mental ability, also by people lacking experience and knowledge, if they are supervised and received instructions how to use it safely, and understand the hazards.

Supervise children so that they do not play with the device. Cleaning and maintenance should not be performed by children unattended.

The vacuum cleaner is designed for dry and wet cleaning. Before the start of work involving the sucking of water or wet impurities, please follow recommendations included in this user instruction. Failure to comply with them may result in electric shock, which in turn may pose a threat to health and life of the user and third parties.

Suction of other wet impurities than water is forbidden. Suction of paints, oils, solvents, gasoline and other flammable substances can lead to irreversible damage to the vacuum cleaner or its components, and may also pose a threat of electric shock, fire or explosion.

Before changing the type of work, always empty, clean and dry the vacuum cleaner container. Impurities remaining in container after the previous work may disturb the operation in case of changing its nature.

Never suck in hot, glowing or burning objects. This can lead to fire or explosion and expose the user to serious injury or death. The maximum temperature of impurities sucked in cannot exceed 40 degrees centigrade.

The device is intended for work in confined spaces and should not be exposed to water, including atmospheric precipitation.

Prior to connecting the power cord plug to the vacuum cleaner, make sure that mains parameters correspond with parameters indicated on vacuum cleaner's data plate.

Prior each use, please check the condition of the device, including power cord and plug. If any faults are found, do not use the device. Damaged cables and cords must be replaced with new ones in a specialist workshop.

The degree of protection given in the table with technical data is ensured if the device will be connected to a socket with at least the same degree of protection.

Prior to maintenance of the device please make sure, that the power cord plug was disconnected from the mains socket.

The device should be stored in a place inaccessible for third parties, children in particular. Also during the work please note, that the device is out of reach of unauthorised persons, children in particular.

Carry the device using the handle, do not move the device by pulling the power cord.

In case the vacuum cleaner is used as a blower, it is forbidden to direct the hose outlet towards people and animals.

GB

Check the condition of connector on a regular basis. It is forbidden to use the vacuum cleaner with the hose damaged.

DEVICE OPERATION

Preparation to work

Check the vacuum cleaner container, empty it from waste if necessary.

Check the condition of filters. If the filters intended for dry cleaning (paper) and a nonwoven filter are dirty, they should be cleaned only with a stream of compressed air of a pressure not higher than 0.3 MPa. If impurities cannot be removed from filters, they must be replaced with new ones. Filters designed for wet cleaning (sponge) can be cleaned by immersing them in lukewarm water with addition of soap. After cleaning, rinse them in clean water and squeeze out the excess of water. Do not twist. Allow them to dry before use.

Check the condition of gaskets, if any damage is found, gaskets should be replaced with new ones.

NOTE! It is forbidden to work with a vacuum cleaner without properly installed air filter. This may lead to damaging the vacuum cleaner and also cause an electric shock.

The base of vacuum cleaner features possibility of mounting the casters. Attach the front swivel casters by inserting the caster plugs into holes in the base of container (II). Rear casters have been fitted in factory.

Raise the rear handle, it will facilitate moving the vacuum cleaner during the work. Folded handle makes it easier to store the vacuum cleaner.

The vacuum cleaner has been fitted with two separate containers. Top container is used only for dry cleaning, fitted with a reusable bag. Lower container is used for both wet and dry cleaning. Lower container does not have the possibility to install the bag, but a filter must be replaced depending on the type of selected operation.

The filter is placed in the front part of the container's cover. Insert the filter frame into the guides (III).

The filter made of paper is intended for dry cleaning. The filter made of a sponge is designed for wet cleaning.

Do not use the wrong type of filter. Using a filter designed for dry cleaning for filtering during wet cleaning will lead to damaging the filter, which may lead to damaging the vacuum cleaner. Using a filter designed for wet cleaning for filtering during dry cleaning will not provide the correct level of filtering, which may lead to damaging the vacuum cleaner.

The vacuum cleaner cover has been fitted with a float (IV), which cuts off the supply of air every time the tank overflows. Before the start of work, make sure that the float and guides in which it is moving have not been damaged, are clean and ensure free float movement. Each float activation is signalled by louder motor operation and a drop in suction power.

Note! It is forbidden to use a vacuum cleaner without a properly functioning float.

The upper tank is fitted with a separate cover, to which the bag should be attached. The cover can be opened by pressing the release button of the cover latch (V). The bag's inlet should be slid over the inner part of hose fastening (VI) so that the gasket around the bag's orifice is fully attached to the hose fastening. The bottom edge of the bag is fitted with a closure that allows for bag emptying. Before attaching the bag to the container, make sure that the bag has been closed (VII).

Attach the lid onto the upper edge of vacuum cleaner container so that it adheres with its entire circumference. Using latches, hold the lid tight against tank. Please note that there are marked points on the lid that allow obtaining proper tightness of fastening (VIII).

Connect the flexible hose to the inlet orifice. Hose connection should be slid into the orifice so that the cuts on it hit the protrusions of the inlet orifice and then turn in direction pointed by arrow marked "CLOSE" (VI). Make sure the hose would not slip off during operation.

The inlet orifice that is not used for work should be sealed with the cover delivered with product. Attach the cover in the same way as the hose: insert and turn (IX). Leaving the second orifice unplugged will cause the vacuum cleaner performance to drop and may cause unintentional suction of objects into the vacuum cleaner container.

Connect the two parts of pipe together by inserting the narrower end of pipe into the wider one (X). Then connect the pipe to free end of the elastic hose, also inserting the narrower end of hose into the wider end of pipe (XI).

In the same way, attach the accessory in form of a brush or a narrow sucker (XII) to free end of the pipe.

Select proper accessory for the selected type of work. The brush is intended for cleaning large and flat surfaces, and a narrow sucker for places that cannot be reached using a wide nozzle.

In order to dismantle the hose, turn its connector in direction pointed by arrow marked „OPEN”, and then slide off the connection out of inlet orifice. Dismantling of extension pipes and nozzles should be carried out the other way round than assembly.

The vacuum cleaner allows connecting the hose also to the outlet orifice, so it can used as a blower. The hose is connected in a

GB

similar way to the inlet orifi ce: slide it in and turn to block. In such case, one of inlet orifi ces should be plugged.

The cover of vacuum cleaner has been fitted with handles allowing temporary fixing of accessories for the time of work or storage of the vacuum cleaner. It is possible to attach extension pipes and suction nozzle in handles.

Working with vacuum cleaner

NOTE! It is forbidden to work with a vacuum cleaner with hot ashes. The temperature of trash sucked by vacuum cleaner cannot exceed 40 degrees centigrade.

Make sure that all preparatory operations have been carried out in a correct way.

Make sure that the vacuum cleaner switch remains in the off position - „O”.

Plug the power cord into the mains socket, and then turn the switch to the on position - "I" (XIII).

The vacuum cleaner has been fitted with a knob to adjust the suction force of the vacuum cleaner (XIV). It is recommended to set the lowest required suction force for a given work. Turning the knob towards the „MAX” symbol increases the vacuum cleaner suction force, turning the knob towards the „MIN” symbol reduces the vacuum cleaner suction force.

To stop the vacuum cleaner, turn the switch to the off position - "O"

The brush is fitted with a lever that slides off the bristles. The bristles should be slid off when cleaning smooth, hard surfaces. It is recommended to clean carpet floorings and carpets with hidden bristles.

After the work is finished, switch off the vacuum cleaner with a switch, and then disconnect the power plug from the mains socket. Proceed to operations that [reserve the vacuum cleaner.

If a drop in performance is observed during dry cleaning with the upper container, this may indicate a clogged filter. It is possible to try cleaning the filter by using the function reversing the direction of suction. Press and hold the reverse suction button (XV) for a few seconds. Repeat this procedure several times. If a drop in performance is persistent, stop the work, disconnect the power cord plug from the mains socket and clean the filter manually or replace it with a new one.

Built-in electrical socket

The vacuum cleaner features a built-in electrical socket, which is used to supply the power tools belonging to I and II class of electrical insulation.

This allows for easier use of the vacuum cleaner in the form of system of extraction of dust generated during the work. Voltage appears in the socket when the plug of power cord supplying the vacuum cleaner is connected to the mains socket. Therefore, before connecting the vacuum cleaner to power supply and the power tool to the vacuum cleaner socket, make sure that switches of both devices remain in the off position.

After connecting the vacuum cleaner to the outlet of power tool's dust extraction (a suitable adapter may be needed for this, that is not delivered with the vacuum cleaner) and the power tool plug to the vacuum cleaner socket, the vacuum cleaner may be started by turning the switch to the "I" position, the vacuum cleaner will start working regardless of the operation of power tool and it will continue to work until the switch is turned to the "O" position.

An automatic mode is the recommended operating mode. To this end, after connecting the vacuum cleaner to the outlet of power tool's dust extraction, and the power tool plug to the vacuum cleaner socket, turn the switch to the "II" position. The vacuum cleaner will switch on automatically after a short time from the start-up of power tool and will also switch off automatically after a short time from switching off the power tool.

Regardless of the selected mode of operation, after the work is finished, switch off the vacuum cleaner by turning the switch to the "O" position, and then disconnect the vacuum cleaner plug from the mains socket, unplug the power tool from the vacuum cleaner socket and proceed with maintenance operations.

Emptying the container of vacuum cleaner

After the dry vacuum cleaning is finished, dismantle the cover and check the container's filling level. Due to container capacity, it is recommended to empty it after each use. It will be easier than emptying a full container.

After the wet vacuum cleaning is finished, dismantle the cover of vacuum cleaner. Impurities remaining in container can be removed by tilting the container. After having it emptied, clean the container with a water jet and then allow it to dry thoroughly.

Vacuum cleaner maintenance

Note! Before proceeding with any maintenance operations, make sure that the power cord plug has been disconnected from the mains socket.

Each time, when using the vacuum cleaner, please check the container, cover gasket and air filters as described in point: "Preparation to work".

Clean the vacuum cleaner from the outside using a jet of compressed air at a pressure not more than 0.3 MPa. In particular, pay attention to patency of vents, both inlet and outlet. If it is necessary, clean it using a jet of compressed air at a pressure not more

GB

than 0.3 MPa. Do not use sharp, metal objects to clean the vents. Do not immerse the vacuum cleaner in water to clean it. Check the vacuum cleaner hose before and after each use for damages. It is forbidden to use damaged hose. In case of sucking in water or wet impurities, clean the inside of vacuum cleaner, the flexible hose, extension pipes and the endings immediately after the work is fi nished. Dried impurities can lead to irreversible damage to the vacuum cleaner or its components.

The inside of the hose and extension pipes should be cleaned with a stream of water, after disconnecting from the vacuum cleaner, and then allow them to dry before next use. Remove larger soiling from the cover with a soft cloth.
