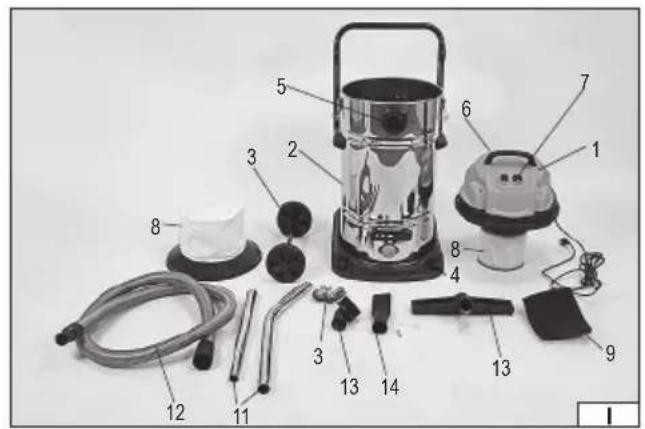

1. vacuum cleaner cover
2. container
3. caster
4. caster's base
5. inlet orifi ce
6. outlet orifi ce
7. switch
8. fi Iter for dry vacuum cleaning
9. fi lter for wet vacuum cleaning
10. pipe
11. elastic hose
12. brush
13. narrow sucker

DE

Mains voltage and frequency

Second class of insulation

Read the operating instruction

Wear protective goggles

Schutzbrille tragen

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

WYPOSAŻENIE PRODUKTU

PRODUCT CHARACTERISTICS

The industrial vacuum cleaner is used for cleaning workplaces from dry and wet impurities, which would not be handled by a household vacuum cleaner. It can also be used for extracting the dust generated when working with other power tools. Thanks to the capacious container, flexible hose, it is possible to reach hardly reachable places and clean them thoroughly. The base fitted with casters enables easy transport of the vacuum cleaner. The vacuum cleaner has been fitted with replaceable air filters. Correct, reliable and safe operation of the product depends on proper operation, therefore:

Before starting the work with this tool, please read this manual and keep it properly.

The supplier does not assume any liability for damages resulting from failure to follow safety regulations and recommendations specified in this manual.

PRODUCT ACCESSORIES

The product is delivered complete and does not require assembly. The product has been delivered with: filters, the flexible hose, extension pipes and two suction nozzles: wide and narrow.

TECHNICAL DETAILS

Parameter Measuring unit Value
Catalogue number YT-85710
Mains voltage [V~] 220-240
Mains frequency [Hz] 50/60
Rated power [W] 2400
Operating vacuum [kPa] 18
Container capacity	[1]	70
Insulation class		II
Protection class		IPX4
Weight	[kg]	6.7

GENERAL SAFETY CONDITIONS

The device can be used by children aged 8 and older and people with reduced physical, sensory or mental ability, also by people lacking experience and knowledge, if they are supervised and received instructions how to use it safely, and understand the hazards. Supervise children so that they do not play with the device. Cleaning and maintenance should not be performed by children unattended. The vacuum cleaner is designed for dry and wet cleaning. Before the start of work involving the sucking of water or wet impurities, please follow recommendations included in this user instruction. Failure to comply with them may result in electric shock, which in turn may pose a threat to health and life of the user and third parties. Suction of other wet impurities than water is forbidden. Suction of paints, oils, solvents, gasoline and other flammable substances can lead to irreversible damage to the vacuum cleaner or its components, and may also pose a threat of electric shock, fire or explosion. Before changing the type of work, always empty, clean and dry the vacuum cleaner container. Impurities remaining in container after the previous work may disturb the operation in case of changing its nature. Never suck in hot, glowing or burning objects. This can lead to fire or explosion and expose the user to serious injury or death. The maximum temperature of impurities sucked in cannot exceed 40 degrees centigrade. The device is intended for work in confined spaces and should not be exposed to water, including atmospheric precipitation. Prior to connecting the power cord plug to the vacuum cleaner, make sure that mains parameters correspond with parameters indicated on vacuum cleaner's data plate. Prior each use, please check the condition of the device,

EN

including power cord and plug. If any faults are found, do not use the device. Damaged cables and cords must be replaced with new ones in a specialist workshop. The degree of protection given in the table with technical data is ensured if the device will be connected to a socket with at least the same degree of protection. Prior to maintenance of the device please make sure, that the power cord plug was disconnected from the mains socket. The device should be stored in a place inaccessible for third parties, children in particular. Also during the work please note, that the device is out of reach of unauthorised persons, children in particular. Carry the device using the handle, do not move the device by pulling the power cord. In case the vacuum cleaner is used as a blower, it is forbidden to direct the hose outlet towards people and animals. Check the condition of connector on a regular basis. It is forbidden to use the vacuum cleaner with the hose damaged.

DEVICE OPERATION

Preparation to work

Check the vacuum cleaner container, empty it from waste if necessary.

Check the condition of filters. If the filters intended for dry cleaning (paper) and a nonwoven filter are dirty, they should be cleaned only with a stream of compressed air of a pressure not higher than 0.3 MPa. If impurities cannot be removed from filters, they must be replaced with new ones. Filters designed for wet cleaning (sponge) can be cleaned by immersing them in lukewarm water with addition of soap. After cleaning, rinse them in clean water and squeeze out the excess of water. Do not twist. Allow them to dry before use.

Check the condition of gaskets, if any damage is found, gaskets should be replaced with new ones.

NOTE! It is forbidden to work with a vacuum cleaner without properly installed air filter. This may lead to damaging the vacuum cleaner and also cause an electric shock.

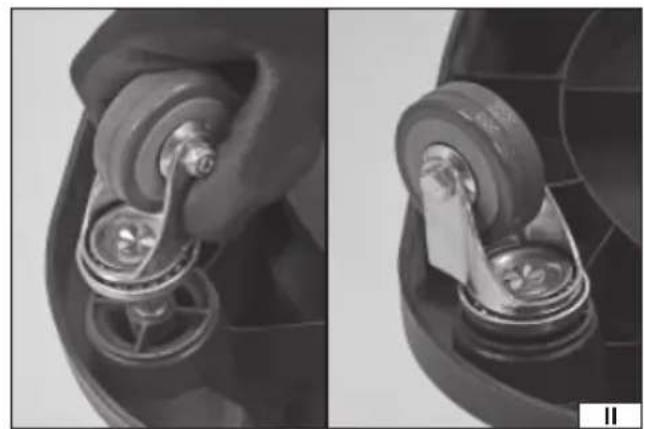

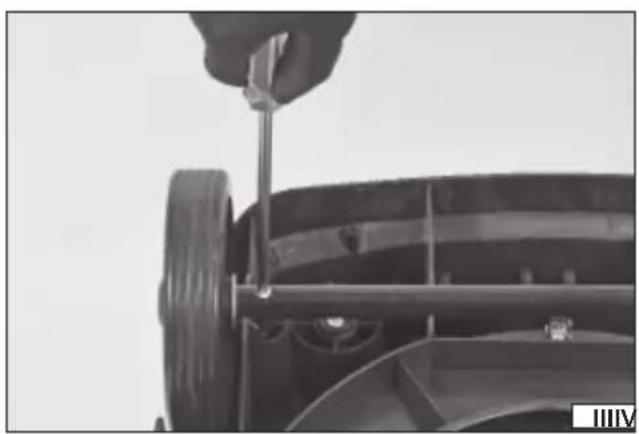

The base of vacuum cleaner features possibility of mounting the casters. Attach the front swivel casters by inserting the caster plugs into holes in the base of container (II). Attach the axle with rear casters to the base using screws (III).

A metal chain was attached to the bottom side of the container. Make sure that it will be in contact with the ground during the work, this will allow discharging electrostatic charges that accumulate during operation.

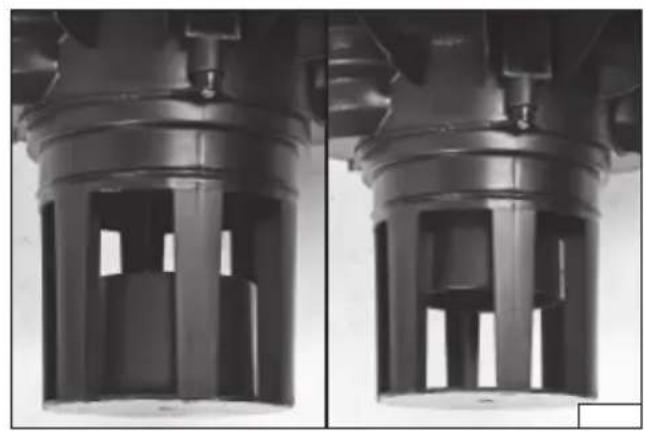

The vacuum cleaner has been fitted with a float (IV), which cuts off the supply of air every time the tank overflows. Before the start of work, make sure that the float and guides in which it is moving have not been damaged, are clean and ensure free float movement. Each float activation is signalled by louder motor operation and a drop in suction power.

Note! It is forbidden to use a vacuum cleaner without a properly functioning float.

The vacuum cleaner has been fitted with two types of filters designed for various types of work.

A filter made of sponge is designed for wet cleaning. Paper and nonwoven filter is designed for dry cleaning.

Regardless of the type, the filter should be slid over the float guides to cover them along the entire length.

Make sure that the filter will not slide off the float guide spontaneously.

Do not use the wrong type of filter. Using a filter designed for dry cleaning for filtering during wet cleaning will lead to damaging the filter, which may lead to damaging the vacuum cleaner. Using a filter designed for wet cleaning for filtering during dry cleaning will not provide the correct level of filtering, which may lead to damaging the vacuum cleaner.

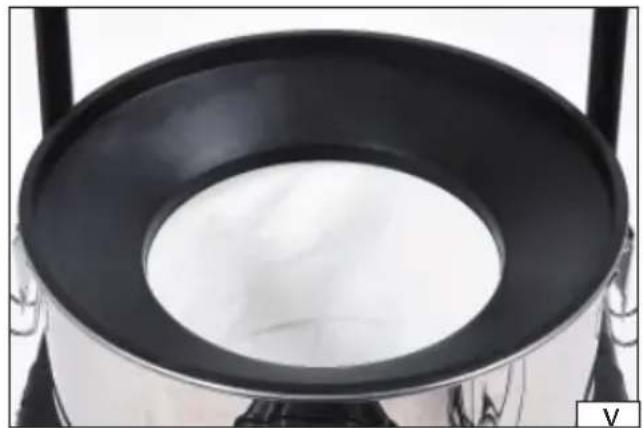

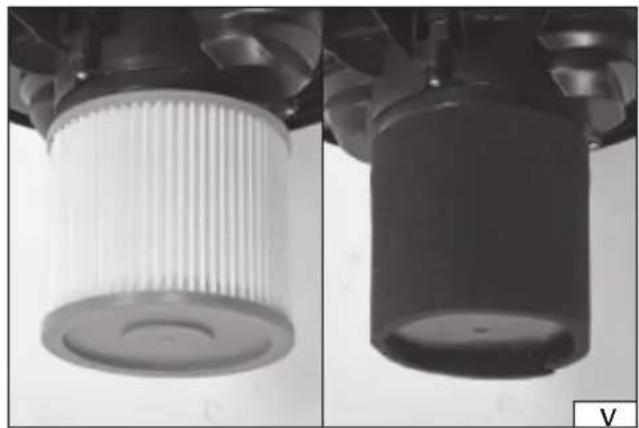

In case of dry cleaning, a filter made of non-woven fabric (V) should be attached between the edge of container and the cover. Make sure that the rubber filter flange, the edge of container and the edge of cover are free of impurities. This will ensure accurate sealing of the container after the cover has been attached, thus increasing the work efficiency.

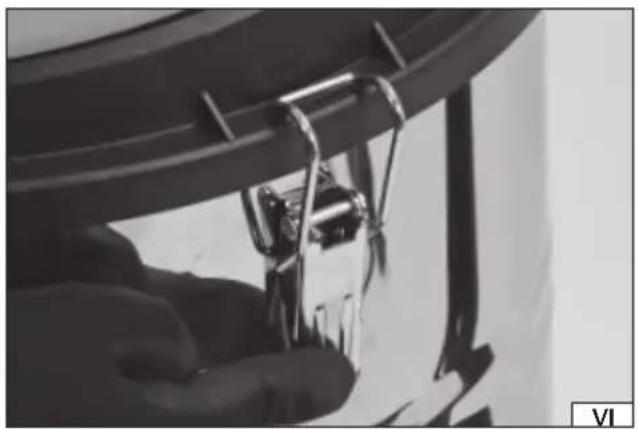

Attach the lid onto the upper edge of vacuum cleaner container so that it adheres with its entire circumference. Using latches, hold the lid tight against tank. Please note that there are two marked points on the lid that allow obtaining proper tightness of fastening (VI).

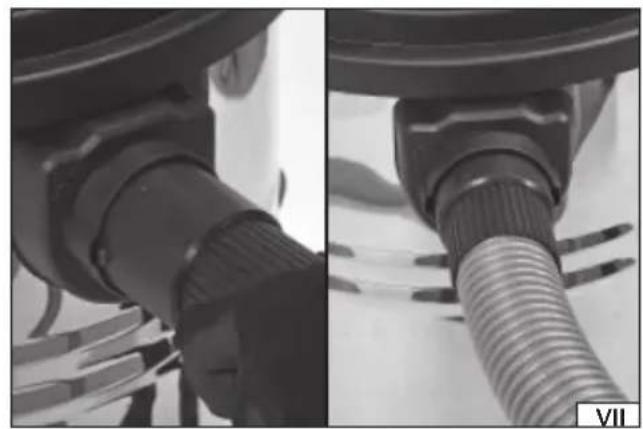

Connect the flexible hose to the inlet orifice. Hose connection should be slid into the orifice so that the cuts on it hit the protrusions of the inlet orifice and then turn in direction pointed by arrow marked „CLOSE” (VII). Make sure the hose would not slip off during operation.

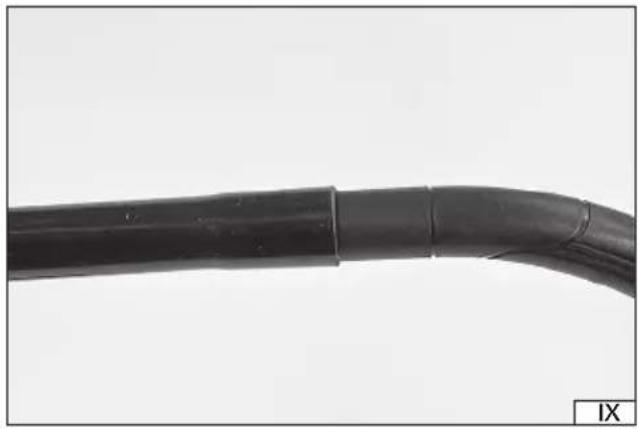

Connect the two parts of pipe together by inserting the narrower end of pipe into the wider one (VIII). Then connect the pipe to free end of the elastic hose, also inserting the narrower end of hose into the wider end of pipe (IX).

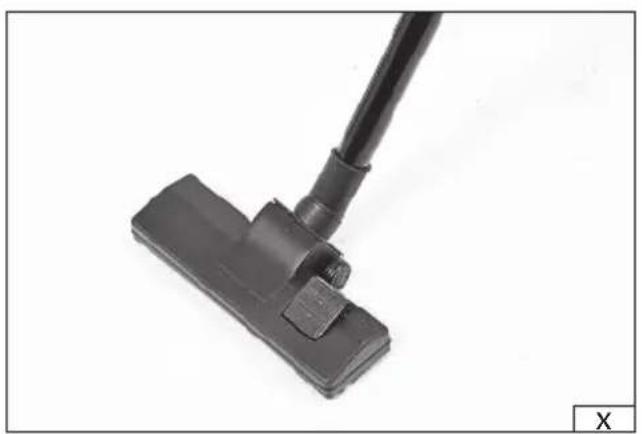

In the same way, attach the accessory in form of a brush or a narrow sucker (X) to free end of the pipe.

EN

Select proper accessory for the selected type of work. The brush is intended for cleaning large and flat surfaces, and a narrow sucker for places that cannot be reached using a wide nozzle.

In order to dismantle the hose, turn its connector in direction pointed by arrow marked „OPEN”, and then slide off the connection out of inlet orifice. Dismantling of extension pipes and nozzles should be carried out the other way round than assembly.

The vacuum cleaner allows connecting the hose also to the outlet orifice, so it can used as a blower. The hose is connected in a similar way to the inlet orifice: slide it in and turn to block.

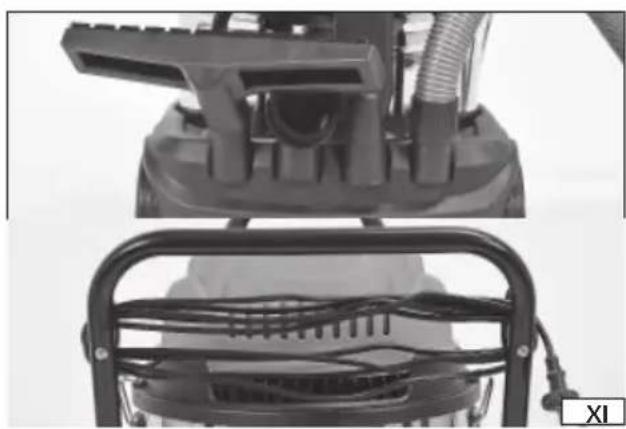

The container base and the cover of vacuum cleaner are fitted with handles allowing temporary fixing of accessories for the time of work or storage of the vacuum cleaner. It is possible to attach extension pipes and suction nozzles in base brackets (XI).

Working with vacuum cleaner

NOTE! It is forbidden to work with a vacuum cleaner with hot ashes. The temperature of trash sucked in by the vacuum cleaner cannot exceed 40 degrees centigrade.

Make sure that all preparatory operations have been carried out in a correct way.

Make sure that the vacuum cleaner switch remains in the off position - „O”.

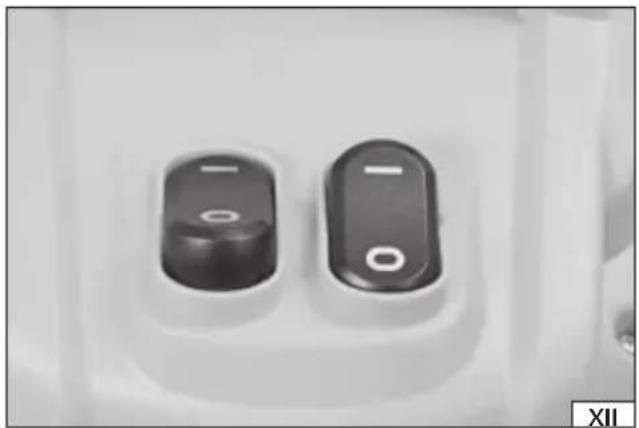

Plug the power cord into the mains socket, and then turn the switch to the on position - "I" (XII).

The vacuum cleaner has been fitted with two switches. Switching any of them to the on position - „I” will start the vacuum cleaner and normal mode operation. Additional switching of the second switch to the on position - „I” will start the operation with increased efficiency. Suction force of the vacuum cleaner and electricity consumption increase.

To stop the vacuum cleaner, both switches should be switched to the off position - "O"

The brush is fitted with a lever that slides off the bristles. The bristles should be slid off when cleaning smooth, hard surfaces. It is recommended to clean carpet floorings and carpets with hidden bristles.

After the work is finished, switch off the vacuum cleaner with a switch, and then disconnect the power plug from the mains socket. Proceed to operations that [reserve the vacuum cleaner.

Emptying the container of vacuum cleaner

After the dry vacuum cleaning is finished, dismantle the cover and check the container's filling level. Due to container capacity, it is recommended to empty it after each use. It will be easier than emptying a full container.

After the wet vacuum cleaning is finished, dismantle the cover of vacuum cleaner. The container has been fitted with a cover placed near its base. Opening the cover will cause the emptying of the container.

Impurities remaining in container can be removed by tilting the container. After having it emptied, clean the container with a water jet. Close the cover and then dry thoroughly.

Note! If during operation suspicious vibrations, drop in suction force or louder operation of the engine are observed, this may indicate that the container is full or the hose, extension tubes or suction nozzle are clogged. In this case, immediately switch off the vacuum cleaner with the switch and unplug the power cord from the mains socket. Then empty the container and check patency of hose and endings. If necessary, unclog it. If it is not possible to unclog the hose, extension pipes or suction nozzle replace them with new ones before continuation of work.

Note! When using the vacuum cleaner as a blower, make sure that the container has been emptied of all waste, the bag has been removed and the filter cleaned or replaced with a new one. There is a risk of impurities collected in the container or in the bag being sucked in through the outlet orifice.

Vacuum cleaner maintenance

Note! Before proceeding with any maintenance operations, make sure that the power cord plug has been disconnected from the mains socket.

Each time, when using the vacuum cleaner, please check the container, cover gasket and air filters as described in point: "Preparation to work".

Clean the vacuum cleaner from the outside using a jet of compressed air at a pressure not more than 0.3 MPa. In particular, pay attention to patency of vents, both inlet and outlet. If it is necessary, clean it using a jet of compressed air at a pressure not more than 0.3 MPa. Do not use sharp, metal objects to clean the vents. Do not immerse the vacuum cleaner in water to clean it. Check the vacuum cleaner hose before and after each use for damages. It is forbidden to use damaged hose. In case of sucking in water or wet impurities, clean the inside of vacuum cleaner, the flexible hose, extension pipes and the endings immediately after the work is finished. Dried impurities can lead to irreversible damage to the vacuum cleaner or its components.

The inside of the hose and extension pipes should be cleaned with a stream of water, after disconnecting from the vacuum cleaner, and then allow them to dry before next use. Remove larger soiling from the cover with a soft cloth.
