USER MANUAL 67201 Lund

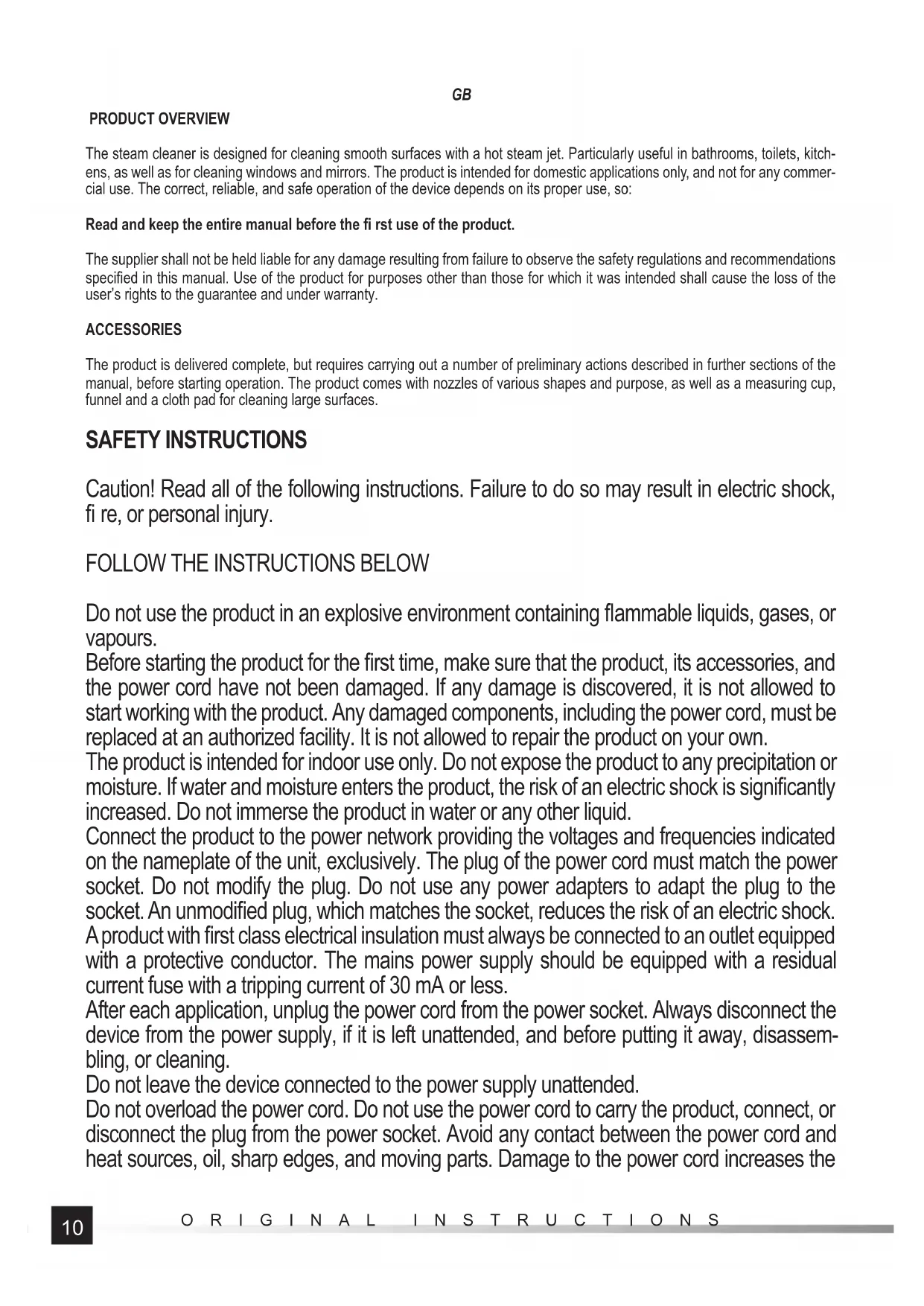

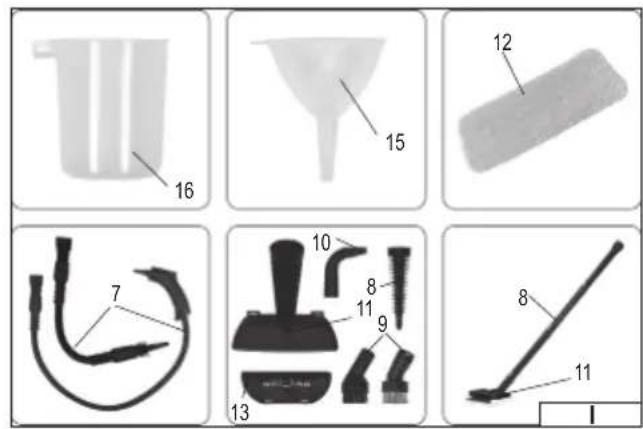

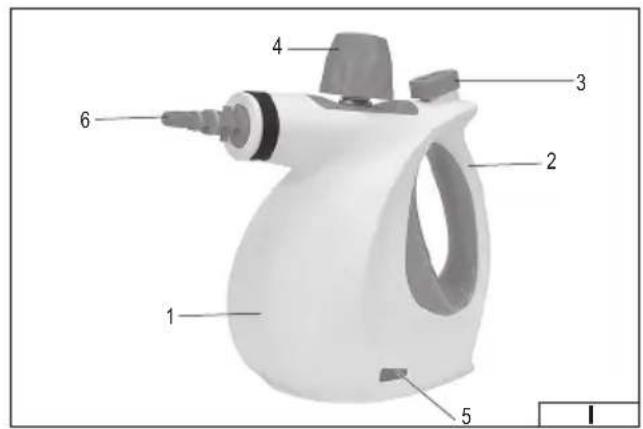

ORIGINAL INSTRUCTIONS PRODUCT OVERVIEW The steam cleaner is designed for cleaning smooth surfaces with a hot steam jet. Particularly useful in bathrooms, toilets, kitch- ens, as well as for cleaning windows and mirrors. The product is intended for domestic applications only, and not for any commer- cial use. The correct, reliable, and safe operation of the device depends on its proper use, so: Read and keep the entire manual before the fi rst use of the product. The supplier shall not be held liable for any damage resulting from failure to observe the safety regulations and recommendations specifi ed in this manual. Use of the product for purposes other than those for which it was intended shall cause the loss of the user’s rights to the guarantee and under warranty. ACCESSORIES The product is delivered complete, but requires carrying out a number of preliminary actions described in further sections of the manual, before starting operation. The product comes with nozzles of various shapes and purpose, as well as a measuring cup, funnel and a cloth pad for cleaning large surfaces. SAFETY INSTRUCTIONS Caution! Read all of the following instructions. Failure to do so may result in electric shock, fi re, or personal injury.

FOLLOW THE INSTRUCTIONS BELOW

Do not use the product in an explosive environment containing fl ammable liquids, gases, or vapours. Before starting the product for the fi rst time, make sure that the product, its accessories, and the power cord have not been damaged. If any damage is discovered, it is not allowed to start working with the product. Any damaged components, including the power cord, must be replaced at an authorized facility. It is not allowed to repair the product on your own. The product is intended for indoor use only. Do not expose the product to any precipitation or moisture. If water and moisture enters the product, the risk of an electric shock is signifi cantly increased. Do not immerse the product in water or any other liquid. Connect the product to the power network providing the voltages and frequencies indicated on the nameplate of the unit, exclusively. The plug of the power cord must match the power socket. Do not modify the plug. Do not use any power adapters to adapt the plug to the socket. An unmodifi ed plug, which matches the socket, reduces the risk of an electric shock. A product with fi rst class electrical insulation must always be connected to an outlet equipped with a protective conductor. The mains power supply should be equipped with a residual current fuse with a tripping current of 30 mA or less. After each application, unplug the power cord from the power socket. Always disconnect the device from the power supply, if it is left unattended, and before putting it away, disassem- bling, or cleaning. Do not leave the device connected to the power supply unattended. Do not overload the power cord. Do not use the power cord to carry the product, connect, or disconnect the plug from the power socket. Avoid any contact between the power cord and heat sources, oil, sharp edges, and moving parts. Damage to the power cord increases the11

ORIGINAL INSTRUCTIONS risk of an electric shock. If the power cord is damaged (e.g. it is cut, its insulation is melted), immediately unplug it from the wall socket, and return it to an authorised service facility. It is not allowed to use the product with a damaged power cord. It is not allowed to have the pow- er cord repaired. It must be changed for a new one at an authorized service centre. Disconnect the power cord from the power socket, before installing, removing, or adjusting any of the product accessories. Make sure that the selected accessory has been installed correctly, before starting the product. Do not overload the product. The temperature of the housing must not exceed 60

C. Over- loading the product will accelerate its wear and tear, lead to its damaging, and increase the risk of an electric shock. The product must be kept under supervision at all times during operation. The product is not to be used by children. Keep the product and its power cord out of the reach of children. It is important to ensure that children do not see the product as a toy. Children should not be allowed to clean or maintain the product without the supervision of an adult. If the device is still connected to the mains power supply or is cooling down, keep it out of the reach of children. This product cannot be used by people with impaired physical and/or mental abilities, and by people without any experience in or understanding of the operation of the product, unless they are supervised or instructed in the safe use of the product, so that they understand the relevant operating risks. The water tank cannot remain opened when using the device. Do not use the device if it has been dropped, if there are visible signs of damage or if it is leaking. Never point the steam jet at yourself, other people or animals. Contact with hot steam can cause severe burns. Never fi ll the product with a substance other than clean, cold water. In particular, do not use fl ammable substances such as alcohols or solvents. Do not add any other substances to water, e.g. detergents. PRODUCT OPERATION Preparing the appliance for operation Caution! All actions described in this section must be carried out with the product unplugged. Make sure that the power cord has been unplugged from the socket. The product must be unpacked and all parts of the packaging completely removed. It is recommended to keep the packaging, as it can be helpful in further transporting and storing of the product. Check the product for damage. In the event of any damage being found, do not use the product, before the damage has been remedied or the damaged components changed for new components, free of defects. Attach the nozzle used for a particular type of operation to the steam outlet. Mount the nozzle using the bayonet connector, ap- plying it to the outlet so that the outlet pins hit the notches in the nozzle mounting socket (II). Then, turn the nozzle in the direction where the arrow is pointing to lock it (III). Check if the nozzle is correctly installed and cannot be taken off by pulling it towards the steam outlet. Disassembly of the nozzle should be done in the reverse order to the assembly. The nozzle can be attached directly to the steam outlet of the device or by means of an extension, rigid or fl exible. The extensions can be attached in the same way as the nozzles or by means of a snap-on connector (IV). The angular nozzle and the brush nozzle are mounted by sliding them onto the steam outlet of the device (V) until resistance is felt. A cloth pad can be put over the fl at nozzle by placing it so that it completely covers the bottom of the nozzle (VI). Alternatively, you12

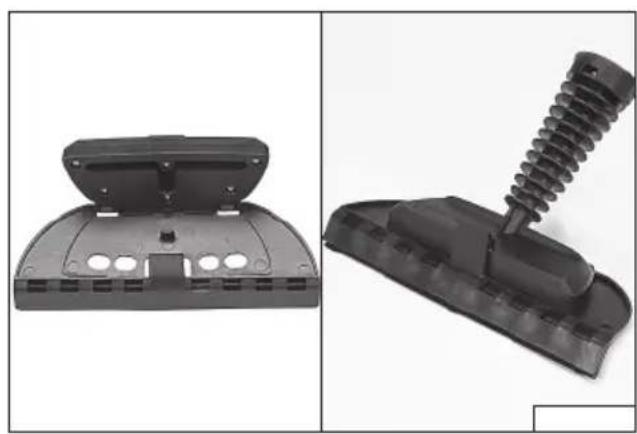

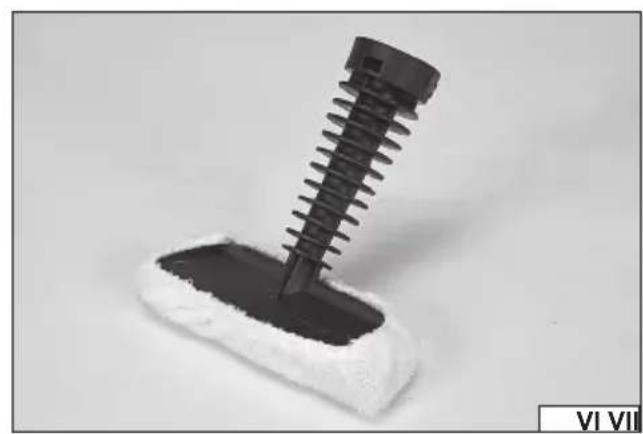

ORIGINAL INSTRUCTIONS can attach the puller pad. The pad hooks should fi t into the holes at the back of the nozzle so that they form a hinge, and then the front of the pad should be fi xed with the latch (VII). Water fi lling and emptying Caution! Make sure that the product is disconnected from the power supply before fi lling it with water or emptying. The plug of the power cord is pulled out of the socket. The product and the water stored in it must also be cooled. Unscrew the water tank cap, fi ll the tank with water up to its nominal capacity specifi ed in the technical data table. It is recom- mended not to pour more than 0.28 l of water into the tank. This will allow you to achieve the best performance of the device. A measuring cup and funnel are included with the product and it is recommended to use both, as this will minimise the risk of splashing water when fi lling the tank. Splashed water should be thoroughly cleaned before connecting the device to the mains power supply. After fi lling the tank, screw the tank cap on. It is forbidden to use the device with an open tank. After use, disconnect the product from the power supply by unplugging the power cord from the socket. Wait until the product and the water remaining in the tank have cooled down completely. Unscrew the tank cap, turn the device upside down and empty the tank completely. Screw the tank cap on (IV). Caution! The cap has a safety device which prevents it from unscrewing if the pressure of the steam inside the tank is too high. Unscrewing the cap too fast can result in the release of hot steam or even water which can lead to severe burns. Switching the device on and off After installing the nozzle and fi lling the tank with water, place the device on a level, fi rm and stable surface, and then put the product’s plug into the mains socket. The lamp on the base of the product will light up. This means that the process of heating up water stored in the tank has begun. After the lamp goes out, the product is ready for use. The switch has a lock to prevent accidental switching on. The lock should be moved with the thumb towards the steam outlet. Then press and hold the switch. Steam will begin to escape from the outlet. The deeper the switch is pressed, the more intense the steam jet. Warning! Make sure that body parts are not near the steam outlet. Hot steam can cause severe burns. The device is equipped with a thermostat which automatically starts heating water if the water temperature drops below the level necessary to achieve the rated capacity. Each time the water heating begins, the lamp lights up. Releasing the pressure on the switch stops the steam fl ow. Then place the device on a level, fi rm and stable surface and unplug the power cord from the socket. Allow the unit to cool completely and then empty the water tank. Water quality The tank can only be fi lled with clean, cold water. If the running water is hard, in case of lack of knowledge contact your local water supplier, use tap water and demineralised water mixture or only demineralised water. Heating hard water causes scale build-up, which can lead to a decrease in capacity or even a complete clogging of the device. Due to the use of brass parts, no descaling agents can be used in the tank and nozzles. Device operation Keep the nozzle outlet close to the surface to be cleaned. Steam deposited on the surface to be cleaned should be rubbed off before it evaporates on its own. This can be done with the puller pad, cloth pad or with a cloth or paper towel. Repeat cleaning in the case of dirt which is harder to remove. Caution! Do not use the device to clean windows at low temperatures. Cold glass can break when it comes in contact with hot steam. Do not steam clean surfaces which cannot be wet cleaned. During operation, the amount of water in the tank must be constantly monitored. If the capacity of the device decreases, it can mean that the water in the tank has to be replenished. Do not allow an empty water tank to be heated. This can lead damage to the device, or result in an electric shock or fi re.

MAINTENANCE AND STORAGE

After use, disconnect the product from the power supply by pulling out the power cord plug and wait until the water in the tank has cooled down completely. Then unscrew the tank cap and empty the tank completely by turning the device upside down. Then leave the device with the tank open until the remaining water from the tank has been completely dried. After drying the tank, screw the cap back on. The cloth pads will be damp after use, remove them and leave to dry. Pads can be washed in mechanical washing machines at temperatures up to 60 degrees C. Do not dry mechanically and do not iron. Clean the housing of the unit with a slightly damp cloth, then dry or leave to dry. Never immerse the device housing in water or13

ORIGINAL INSTRUCTIONS other liquids. Do not use alcohol, solvents, corrosive or abrasive agents for cleaning. Do not use sharp objects for unclog the nozzles. Clogged nozzles must be replaced with new nozzles before further use. Store the product in dry, shaded and well ventilated places. The place of storage should protect the device from access by unau- thorised persons, especially children. It is recommended to store the product in the packaging it was delivered in. TECHNICAL DATA Parameter Units Value Cat. No. 67201 Rated voltage [V~] 220 - 240 Rated frequency [Hz] 50/60 Rated power [W] 900 - 1050 Water tank capacity [l] 0,4 Steam pressure [MPa] 0.3 Maximum steam temperature [
