USER MANUAL 67150 Lund
PL EN DE RU UA LT LV CZ SK HU RO ES FR IT NL GR BG PT HR AR


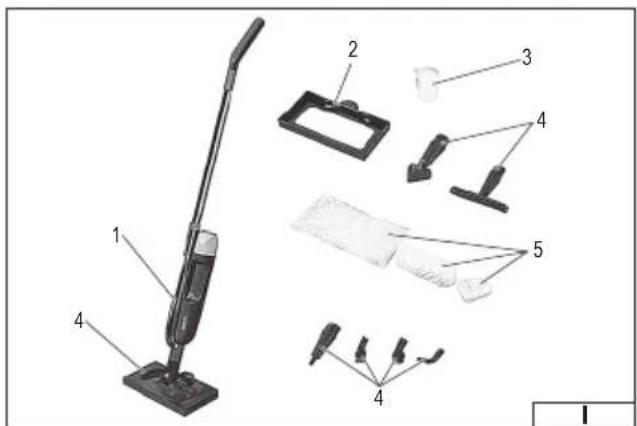

Labeled diagram of a vacuum cleaner with numbered parts for identification


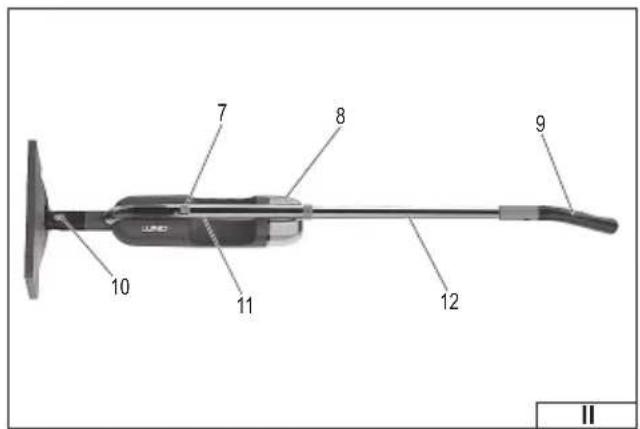

7 8 9 10 11 12 II


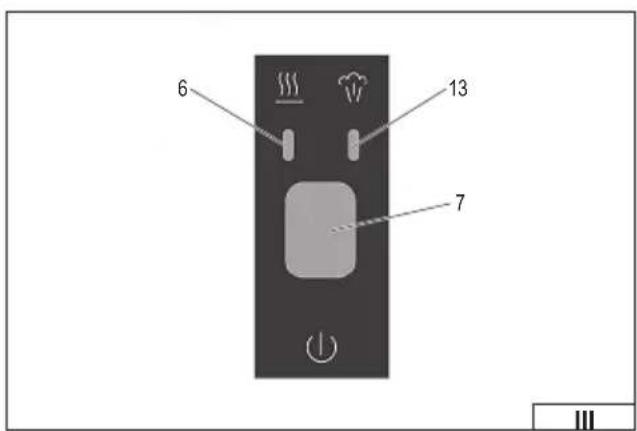

6 13 7- mop
- carpet attachment
- measuring cup
- nozzle
- microfi ber attachment
- heating indicator light
- switch
- water tank
- handle
- nozzle attachment
- steam flow adjustment
- tube
- steam indicator light
DE
Read the operating instruction
Note! Hot surface. Do not touch.
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
WYPOSAŻENIE PRODUKTU
PRODUCT CHARACTERISTICS
mop is used to clean large, smooth surfaces using a stream of hot steam. Particularly useful in bathrooms, toilets or kitchens. Thanks to the possibility of detaching the handle, the mop can also be used as a handy steam cleaner, useful for cleaning windows or mirrors, as well as places inaccessible to the mop. The product is intended for home use only and is not intended for commercial use. The correct, reliable and safe operation of the device depends on proper use, therefore:
Before using this product, please read the entire manual and keep it for future reference.
The supplier is not liable for damages resulting from failure to comply with the safety regulations and recommendations of this manual. Using the product in a manner other than for its intended purpose also results in the loss of the user's rights to the guarantee and warranty.
PRODUCT EQUIPMENT
The product is supplied complete, but requires preparatory activities before starting work, described later in the instructions. The product is supplied with nozzles of various shapes and purposes, a carpet attachment, microfiber attachments and a measuring cup.
SAFETY INSTRUCTIONS
Warning! Read all instructions below. Failure to follow them may result in electric shock, fire or personal injury.
FOLLOW THE INSTRUCTIONS BELOW
Do not use the product in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Before starting, check whether the product, its accessories and the connection cable have not been damaged. If any damage is noticed, it is forbidden to start using the product. Any replacement of damaged elements, including the power cable, should be performed in authorized facilities. It is forbidden to repair the product yourself. The product is intended for indoor use only. Do not expose the product to contact with precipitation or moisture. Water and moisture that gets inside the product increases the risk of electric shock. Do not immerse the product in water or other liquids. The product should only be connected to a power supply with the voltage and frequency indicated on the device's rating plate. The power cable plug must fit the mains socket. Do not modify the plug. Do not use any adapters to adapt the plug to the socket. An unmodified plug that fits the socket reduces the risk of electric shock. The product is made in class I electrical insulation and must always be connected to a socket equipped with a protective conductor. The power supply network should be equipped with a differential circuit breaker with a tripping current of no more than 30 mA. After each use, disconnect the power cable plug from the mains socket. Always disconnect the device from the power supply if it is left unattended and before assembling, disassembling or cleaning. Do not leave the device connected to the power supply unattended. Do not overload the power cable. Do not use the power cable to carry the product, connect or disconnect the plug from the mains socket. Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage to the power cable increases the risk of electric shock. In the event of damage to the power cable (e.g. cutting, melting insulation), immediately disconnect the cable plug from the socket and then transfer
EN
the product to an authorized repair shop. It is forbidden to use the product with a damaged power cable. The power cord must not be repaired, it must be replaced by an authorized service center. Before assembling, disassembling or adjusting the product accessories, disconnect the power cord plug from the mains socket. Before starting the product, make sure that the selected accessory has been properly installed. Do not overload the product. The housing temperature must not exceed 60 °C. Overloading the product will cause its faster wear and may also cause damage and increase the risk of electric shock. The product must be supervised at all times during operation. The product is not intended for use by children. Keep the product and its cable out of the reach of children. Ensure that children do not play with the product. Children should not clean or maintain the product without supervision. Keep the device out of the reach of children when it is powered or cooling down. The product is not intended for use by persons with reduced physical, mental capabilities or persons lacking experience and knowledge of the device, unless supervision or instruction is provided regarding the use of the product in a safe manner so that the associated risks are understood. The water tank must not be opened while the device is in use. Do not use the appliance if it has been dropped, if there are visible signs of damage or if it is leaking. Never direct the steam jet at yourself, other people or animals. Contact with hot steam can cause serious burns. Never fill the product with any substance other than clean, cold water. In particular, do not use flammable substances such as alcohol or solvents. Do not add or stir any other substances into the water, e.g. detergents.
PRODUCT SERVICE
Preparing for work
Note! All actions described in this section must be performed with the product disconnected from the power supply. Make sure that the power cable plug has been removed from the power outlet.
The product should be unpacked, completely removing all packaging elements. It is recommended to keep the packaging, it can be helpful in later transport and storage of the product.
Inspect the product for damage. If any damage is found, do not use the product until the damage is repaired or the damaged parts are replaced with new ones.
If the device is to be used as a mop, attach the handle by inserting the tube into the housing opening, and then the handle into the tube opening until the latches engage. Check the correct assembly; a correctly attached handle cannot be pulled out of the housing without pressing the latches.
Put the microfiber cover on the large surface cleaning nozzle so that it completely covers the bottom of the nozzle. If necessary, attach the carpet cover.
The prepared tip should be placed in the mop mount at the steam outlet. Insert the tip pin into the mount until the latch button locks into the mounting hole. To dismantle the tip, press the button and pull the tip pin out of the mount at the steam outlet.
If the device will be used as a washer, remove the tube and handle. Press and hold the latch button located near the housing opening and slide out the handle elements.
In the attachment at the steam outlet, the tip intended for the selected type of work should be installed. Check the correctness of the installation, a correctly installed tip cannot be dismantled by pulling it towards the steam outlet. The product comes with 7 different tips (nozzles): wide for floors, triangular for corners, narrow for windows and mirrors, straight with replaceable nozzles: with a brush, with a metal brush, angular.
Filling and emptying the water tank
Note! Before filling or emptying the water tank, make sure the product is disconnected from the power supply. Unplug the power cord from the electrical outlet. It is recommended to use filtered water. The product and the water in it must also be cooled down. Remove the water tank cover by turning it counterclockwise. Fill the tank with water to a volume not exceeding the nominal tank capacity given in the technical data table.
EN
The product comes with a measuring cup, it is recommended to use it, which will minimize the risk of water splashing when filling the tank. Splashed water should be wiped off thoroughly before connecting the device to the power supply.
After filling the tank, the tank cover must be installed and tightened tightly. It is forbidden to use the device with an open tank.
After use, disconnect the product from the power supply by removing the power cable from the socket.
Wait until the product and any water remaining in the tank have cooled down completely. Remove the tank cover, tilt the appliance so that the filler neck is pointing downwards and empty the tank completely. Replace the tank cover.
Turning the device on and off
After preparing the device and filling the tank with water, place the device on a flat, hard and stable surface, make sure that the switch is in the off position "0", and then connect the product plug to the mains socket. Set the switch to the on position "I", this will be confirmed by the red heating indicator (III) lighting up. Wait about 30 seconds until steam starts to escape from the nozzle and the green steam indicator light also lights up, signalling that you can start mopping.
Warning! Be careful not to place any body parts near the steam outlet. Hot steam can cause serious burns.
The device has a switch for regulating the amount of steam coming out of the nozzle. The switch allows you to choose between two levels of steam intensity.
After finishing work, turn the switch to the off position „0“, wait until steam stops coming out of the nozzle. Place the device on an even, hard and stable surface, disconnect the power cable plug from the socket and leave the product to cool down completely.
MAINTENANCE AND STORAGE
After use, disconnect the product from the power supply by pulling out the power cable plug and wait until the water in the tank has cooled down completely. Then unscrew the water tank cover and tilt the device to completely empty the tank of water. Then leave the device with the tank open until the remaining water in the tank has completely drained. After drying, screw the tank cover on. Microfiber attachments placed on the tips will be damp after use, they should be removed and left to dry. Microfiber attachments can be washed in mechanical washing machines at temperatures up to 60 °C, do not tumble dry or iron.
Clean the device housing with a slightly damp cloth and then dry or leave to air dry. Never immerse the device housing in water or any other liquid. Do not use alcohol, solvents, corrosive or abrasive agents for cleaning.
Do not use sharp objects to unclog the nozzles. Clogged nozzles must be replaced with new ones before further use.
Store the product in dry, shaded and well-ventilated places. The storage location should protect against access by unauthorized persons, especially children. It is recommended to store the product in the packaging supplied with the product.
TECHNICAL DATA
| Parameter Unit of measurement Value | ||
| Part number 67150 | ||
| Nominal voltage [V~] 220 - 240 | ||
| Nominal frequency [Hz] 50 / 60 | ||
| Rated power [W] 1350 | ||
| Water tank capacity [l] 0,28 | ||
| Maximum steam temperature | [°C] | 110 |
| Efficiency | [g/min] | 22 / 35 |
| Degree of protection | IPX4 | |
| Insulation class | I | |
| Mass | [kg] | 2,4 |
