Product type	Child car seat, universal category
Weight groups	Group I (9-18 kg), Groups II/III (15-36 kg)
Approval	UN ECE Regulation No. 44, series 04
Installation	Only on forward-facing seats, with 3-point safety belt
Restraint system	5-point harness (group I); vehicle seat belt (groups II/III)
Headrest adjustment	6 positions, adjustable via lever
Harness adjustment	3 height levels, tension adjustment by button and strap
Reducer cushion	Included, removable for small children
Side protections	Padded armrests, lap belt guides
Cover material	Fabric washable by hand in hot water, mild soap
Harness removal	Possible for groups II/III (follow instructions)
Maintenance	Hand cleaning, do not expose to sun, replace after severe accident
Safety	Do not use with 2-point belt, deactivate airbag if installed in front
Dimensions (overall)	Not provided
Weight	Not provided
Brand	Lionelo
Model	Levi Simple

Frequently Asked Questions - Levi Simple Lionelo

What type of car seat belt is required?

The Levi Simple car seat requires a 3-point safety belt with retractor approved according to UN ECE Regulation No. 16. It is forbidden to use it with a 2-point belt.

How to install the car seat for a child of 9 to 18 kg (Group I)?

Place the seat on the car seat, pass the belt through the red guides (lap and shoulder straps), fasten it and tighten it. Then secure the child with the built-in 5-point harness.

How to install the car seat for a child of 15 to 36 kg (Groups II and III)?

Remove the 5-point harness (see chapter 2.5). Place the child in the seat, adjust the headrest, then pass the car belt through the headrest guide (shoulder strap) and under the armrest (lap belt). Fasten and tighten the belt.

How to adjust the harness height?

The harness has 3 adjustment levels. The straps must pass at the height of the child's shoulders or slightly above. To adjust, remove the end fittings, pass the straps through the appropriate slots at the back of the seat, then reattach the connectors.

How to adjust the headrest height?

Pull the adjustment lever (N) at the back of the headrest and raise or lower the headrest to the correct height. There are 6 positions. The child's head must not exceed the top of the headrest.

Can I wash the car seat cover?

Yes, the cover can be washed by hand in hot water with mild soap. Do not use harsh products, do not dry it in the sun. The straps and base can be cleaned with a sponge using soap and hot water.

What to do after an accident?

If the car seat has been subjected to violent forces during an accident, it must be replaced immediately, as its integrity may be compromised.

Can I use the car seat on a front seat with airbag?

It is necessary to deactivate the passenger airbag if the car seat is installed in the front. The safest location is at the rear of the vehicle.

How to remove and reinstall the 5-point harness?

To remove it, press the tension button, remove the end fittings, pass the straps through the slots of the seat back, then the metal buckle through the seat base. For installation, follow the reverse process respecting the steps in the manual (fig. 25-31).

Is the reducer cushion removable?

Yes, the reducer cushion (K) can be removed when the child grows and needs more space in the car seat.

USER MANUAL Levi Simple Lionelo

Black and gray car seat with lionelo branding, no visible text or symbols on the seats or background

Illustration of a car seat assembly with yellow belt and seatbelt (no text or symbols)

Illustration of a child seated in a car seat with an upward arrow, no text or symbols present

Illustration of a child in a car seat with blue headrests and red directional arrows indicating movement (no text or symbols)

Illustration of a child in a baby car seatbelt with yellow straps and red directional arrows indicating movement (no text or symbols)

Illustration of a child in a car seat being lifted by a hand using a yellow belt, with no text or symbols present.

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing red and orange arrows indicating movement (no text or symbols)

Illustration of a car seatbelt with red and yellow forceps, no text or symbols present

Illustration of a car seat with attached medical or safety equipment, no text or symbols present

Illustration of hands cleaning a car interior with a blue jacket and yellow belt (no text or symbols)

Line drawing of a car seat assembly with a microphone and numbered label (32), no text or symbols present.

36

Illustration of a person applying pressure to a seated figure with red arrows indicating pressure points (no text or symbols)

Diagram of a car seatbelt buckle with red arrows indicating compression zones (no text or symbols)

Illustration of hands installing or adjusting a mechanical component with red arrows indicating direction (no text or symbols present)

Simple line drawing of a frog head with no text or symbols

37

Illustration of a car seat with hands performing a massage or grip maneuver, showing blue arrows indicating motion (no text or symbols)

Diagram of a car interior showing seatbelt and dashboard structure with red directional arrows indicating movement (no text or symbols)

Dear customer!

Should you have any remarks or questions concerning the product, please do not hesitate to contact us: [e-mail]

Producer:

BrandLine Group Sp. z o. o.

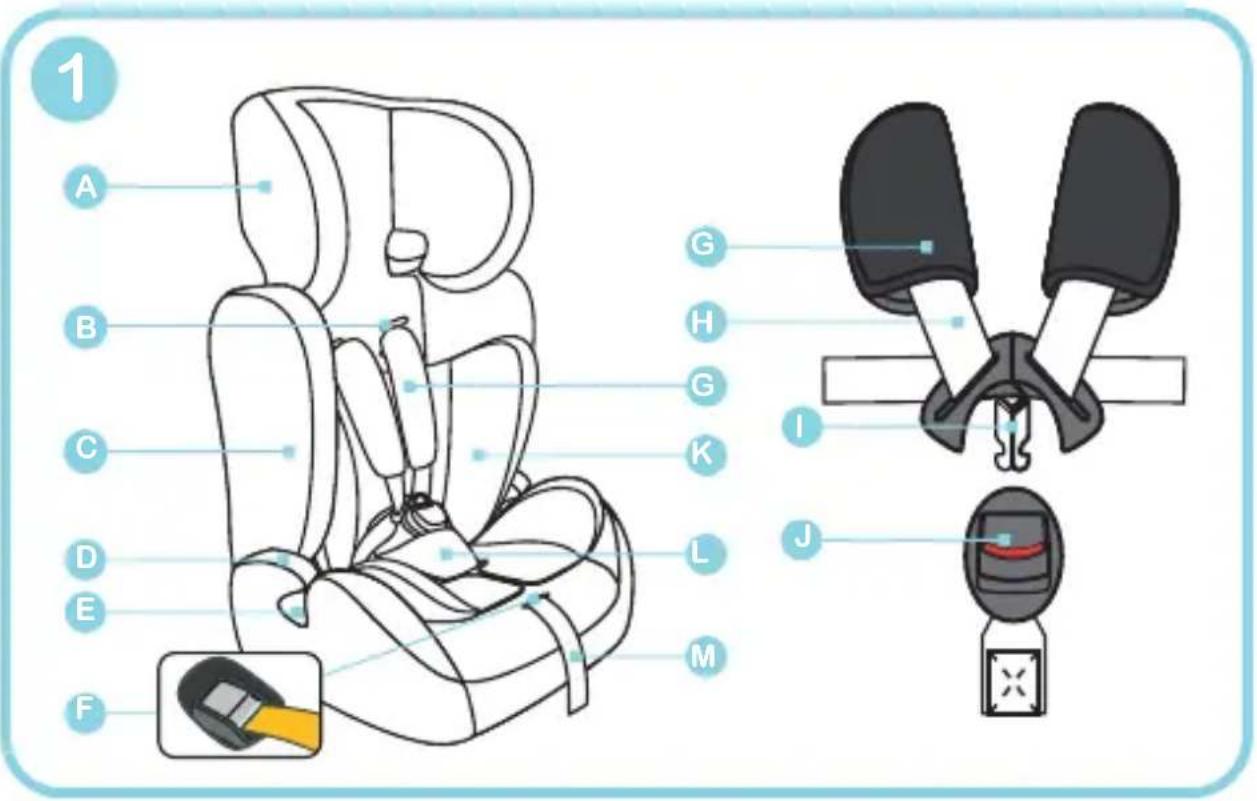

A. Headrest
B. Belt height adjustment hole
C. Body
D. Elbow rest
E. Hip belt guide
F. Belt tension adjustment button
G. Belt protective cushions
H. Shoulder belt of child safety seat
I. Buckle
J. Belt unfastening button

K. Seat liner
L. Buckle protective cover
M. Belt tension adjustment
N. Headrest height adjustment lever
O. Headrest guide
P. Guide in child safety seat backrest
Q. Safety belts connector
R. Body-and-base connection
S. Car seat belt fastener
T. Car seat belt buckle

1. Information

The child restraint system is categorized as „universal”. It has been granted a certificate of approval in accordance with the regulations no. 44, amendments series 04, for general use in vehicles and is fit for installation on most car seats.

The proper installation is possible if the vehicle manufacturer has declared its the vehicle manual that this vehicle is fit for installation of the child restraint system categorized as „universal” for this age group.

This child restraint system has been classified as „universal” in more demanding conditions when compared to previous designs devoid of this information.

In case of any doubts, please consult the product manufacturer or retailer.

It is fit for installation only when approved vehicles are equipped with three-point safety belts with a retractor which have been granted a certificate of approval in accordance with the regulations UN/ECG no. 16 or other equivalent norms.

2. How to use the child safety seat

Important

• Please read this manual before you use the product and keep it for future reference. The manual can help you properly assemble the child safety seat. A wrong assembly may pose a threat to your child's health. The manufacturer is not held responsible for potential hazards arising from wrong assembly of the product.
• Hard elements and plastic parts of the child restraint system must be placed and installed in a way that they do not get trapped by sliding seat or vehicle door under regular conditions of use.
• Any belts which attach the child restraint system to the vehicle must be tight, the child securing belts must be adapted to its body, the belts must not be twisted.
  ● Make sure the hip belts go low so that the pelvis is properly secured.
• If the product is subject to sudden loads during an accident, please replace it.
• Do not modify the child safety seat or install any additional elements, unless relevant authorities have agreed on it. A failure to follow the manual supplied by the manufacturer may pose a threat to the user.
• Protect the child safety seat against sunlight. Otherwise the product may be too hot for your child’s skin.
• Never leave the child in the child restraint system unattended.

• Luggage and other items which may pose a bodily injuries in case of collision must be properly secured.

• It is not advisable to use the child restraint system without its upholstery. It is forbidden to use other upholstery than recommended by the manufacturer because it is an integral part of the product and affects its functions.

• Keep the child safety seat manual when you use the product.
• It is forbidden to use other points of contact than described in the manual and marked on the child restraint system.
• In case of any doubts about the position of the safety belt buckle for adults in relation to main points of contact, please consult the child restraint system manufacturer.

Note!

Do not install on seats equipped with 2-point safety belts.

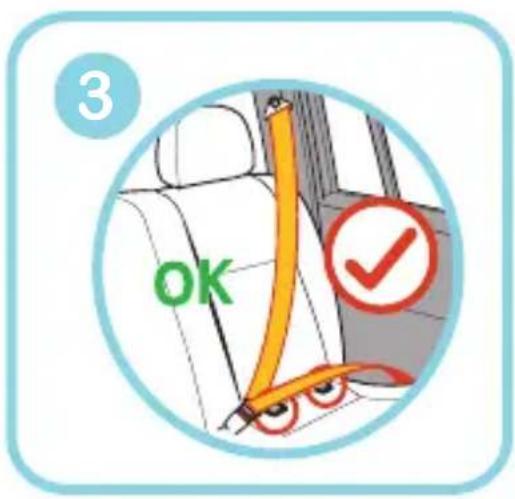

Install on seats equipped with 3-point safety belts.

See: fig. 3

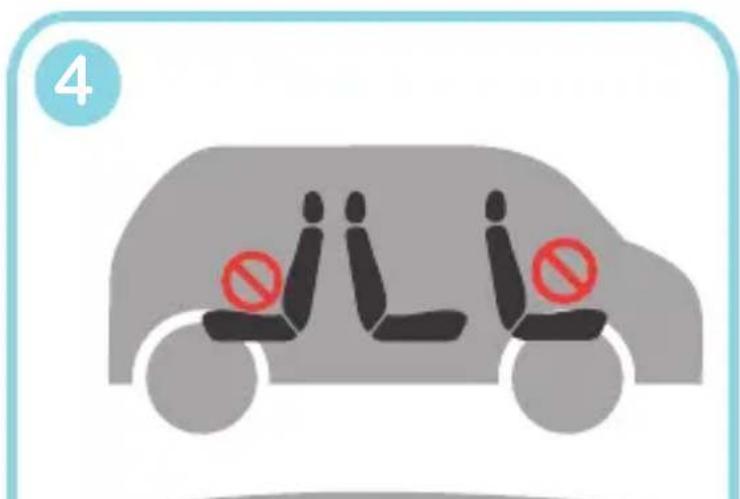

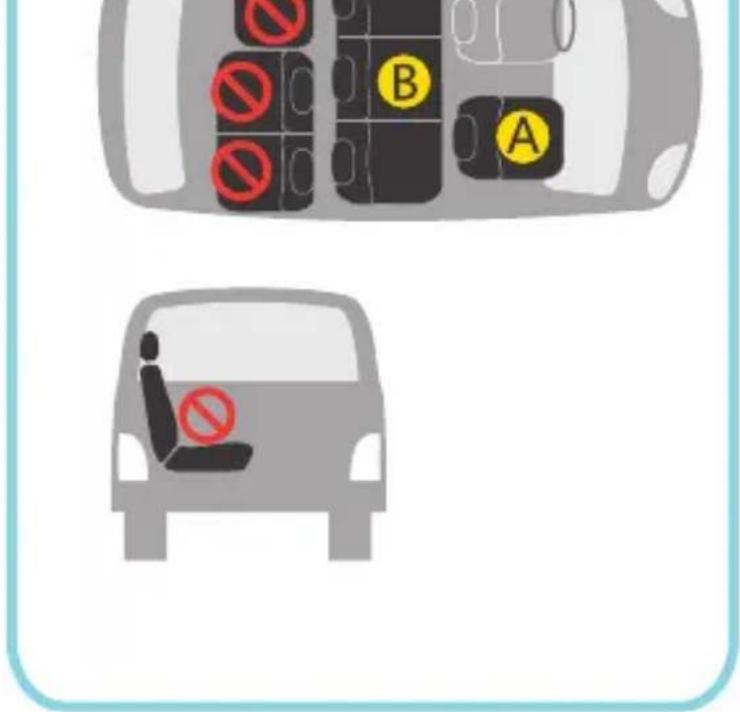

Use the child safety seat in the following way (See: fig. 4):

• Rear car seats are the most dangerous seats for the child safety seat.
• The child safety seat is intended for car seats in a forward-facing position only. The child safety seat must not be assembled on car seats in a rear or side-facing position.
• Some vehicles do not have suitable seats for this kind or other kind of child safety seat.
• In case of doubts, please ask the child safety seat manufacturer or seller.

Wrong place for child safety seat

The place in which you assemble the child safety seat must be equipped with a 3-point safety belt (group I, II, III). Airbags must be deactivated.

The place in which you assemble the child safety seat must be equipped with a 3-point safety belt (group I, II, III).

2.1 Seat liner

For protection of your child

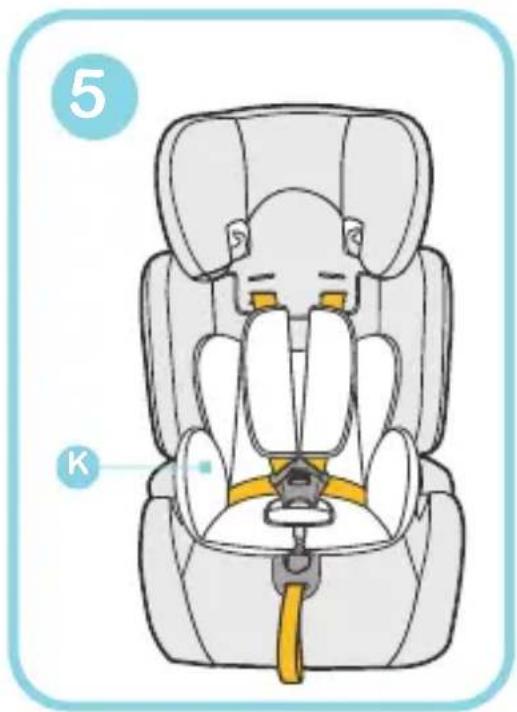

- The seat liner (K) in your car is intended for babies, improves their comfort and provides additional support. If the child needs more space in the child safety seat, remove the seat liner. See: fig. 5

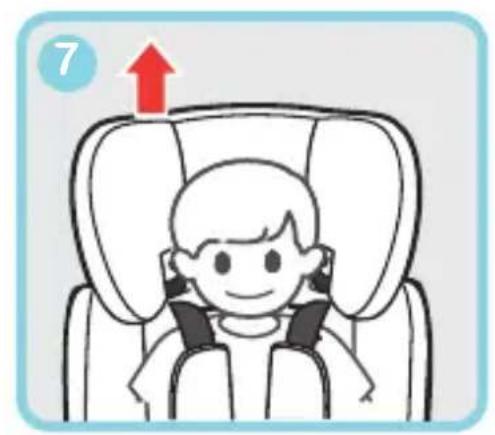

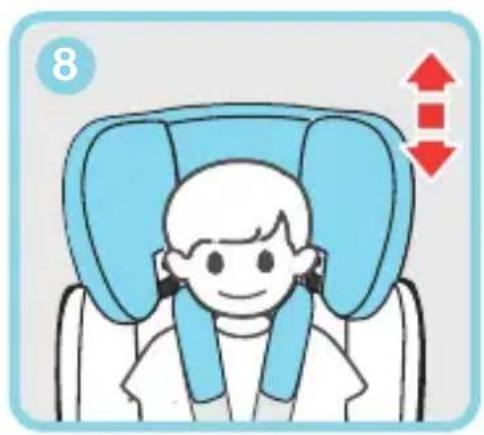

2.2 How to adjust the headrest height

• The headrest of the child safety seat can be set at 6 levels.
• Pull the headrest height adjustment lever (N) to adjust the headrest height. See: fig. 7

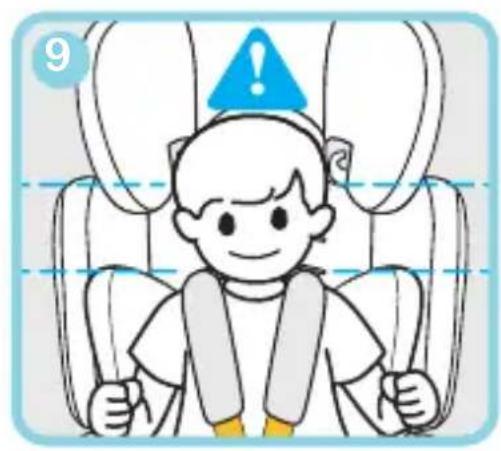

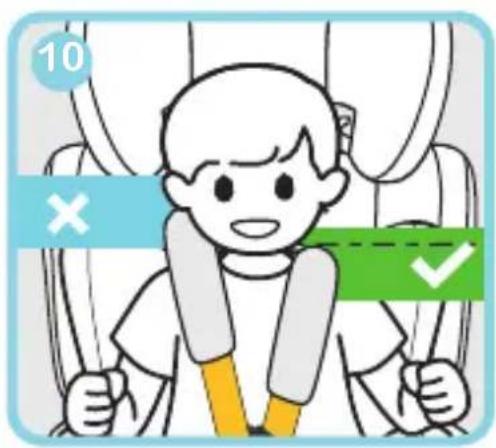

• Choose a suitable height of the headrest for your child; make sure the headrest does not press against the child's arms and child's head is not higher than the upper part of the headrest. See: fig. 9

Very important! Make sure the height of the headrest is suitable.

2.3 How to secure the child with child safety seat belts properly.

• Loosen shoulder belts in accordance with the manual (see chapter 2.4.)

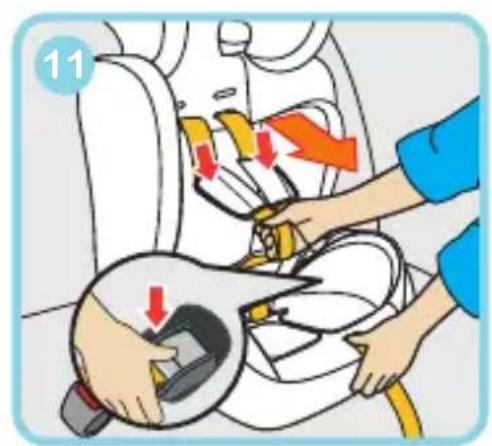

• Do not pull protective cushions located on the belts.See: fig. 11

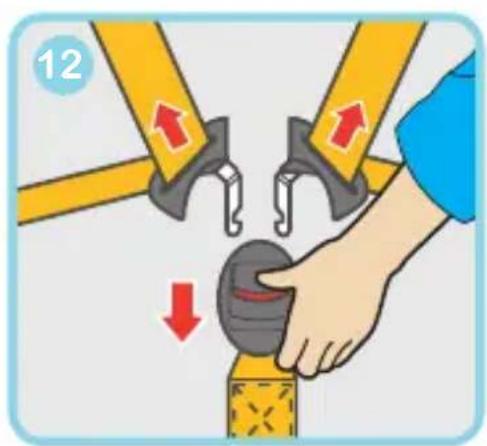

• Press the red button on the buckle (J) to unfasten 5-point safety belts and open the buckle with belts (I). See: fig. 12

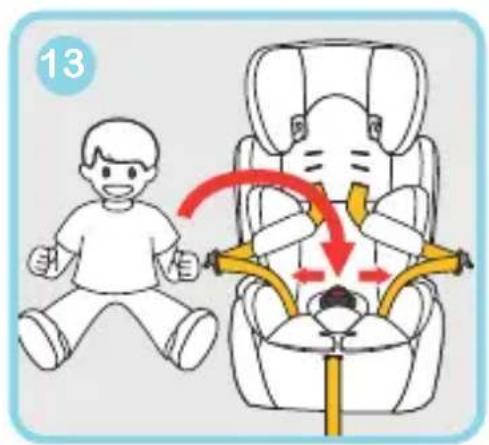

  • Next place child safety seat belts on sides, put the child in. See: fig.13
• Adjust the headrest height (see chapter 2.2).
• Adjust the height of the shoulder belts (see chapter 2.4). Pull the belts tension adjustment (M) so that belts fit tight the child's arms. Make sure the cushion touches the child's arm and is not twisted with belts. See: fig. 17

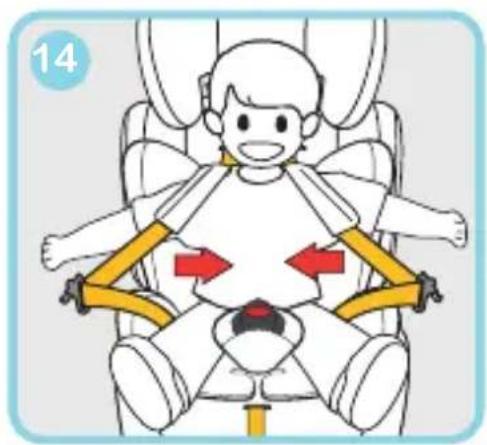

• Join the right and left part of the child safety seat belts. See: fig. 14

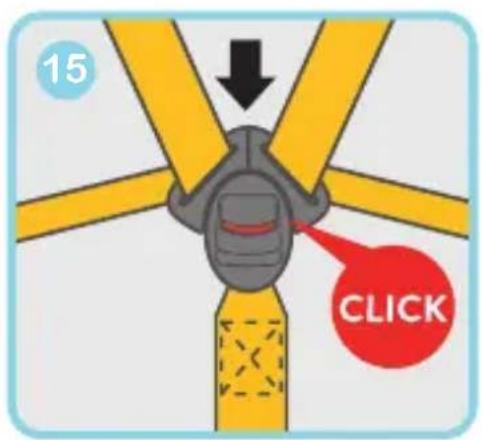

- Put two parts of the belts into the buckle until you can hear a distinctive „click”. See: fig. 15

2.4 How to adjust child safety seat belts.

The child safety seat belts can be set at 3 levels.

- Check if the height of 5-point safety belts is suitable for your child. The belts must go through slits located at arms level or slightly above. Remove tips of shoulder belts attached to the safety belt connector (Q). Pull both belts through slits in the child safety seat backrest. Again pull the belts (from the front to the back of the product), this time through slits whose height corresponds to the size of your child. Put the belts into the relevant hole and attach the belts to the belt connector (Q). See: fig. 10

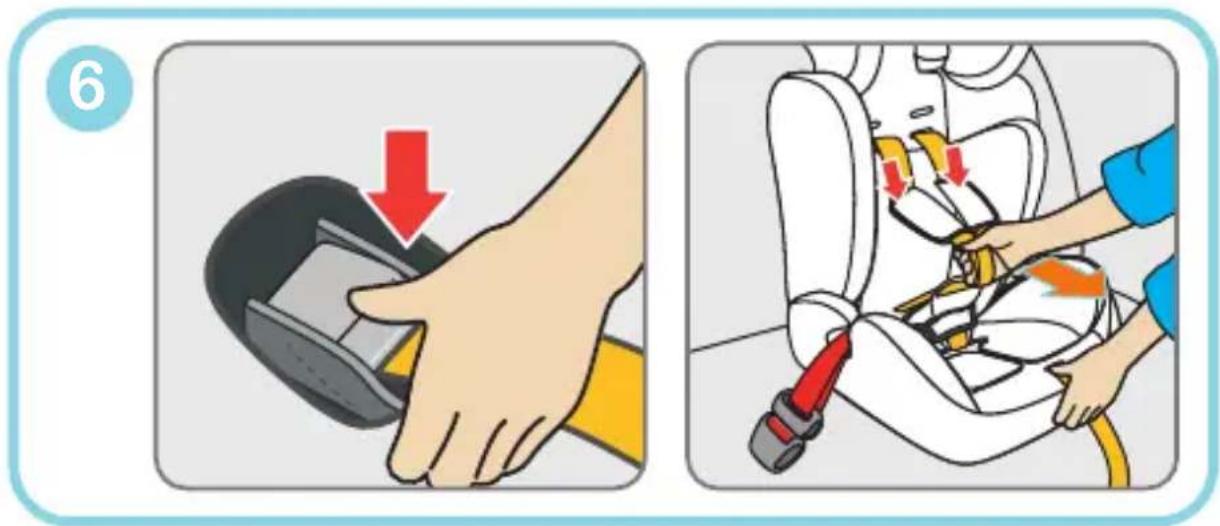

To loosen belts:

- Press the belt tension adjustment button (F).

- Gently pull both safety belts of the child safety seat with another hand, this is how you can loosen the belts. See: fig. 6

To tighten belts:

- Pull the belt tension adjustment (M) (fig. 1).

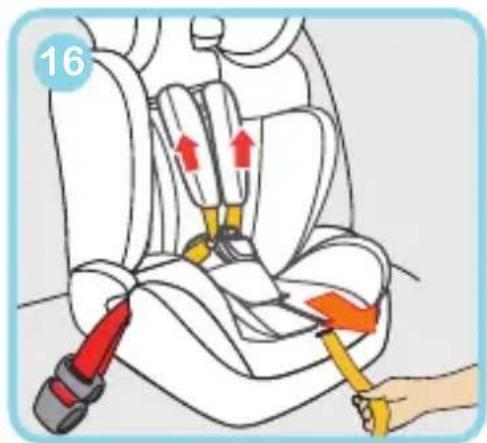

- Make sure the belts are not too tight for your child. See: fig. 16

Note! Do not transport your child in its jacket.

2.5 How to disassemble and install 5-point child safety seat belts.

Before you assemble the child safety seat for group II and III, please disassemble the child safety seat belts.

A. How to remove 5-point safety belts.

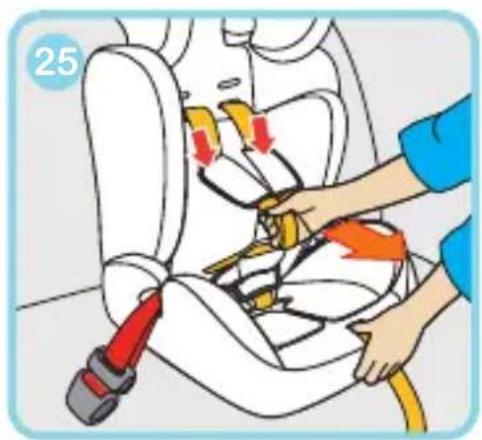

• Press the belt tension adjustment button (F), loosen 5-point safety belts and unfasten belts. See: fig. 25

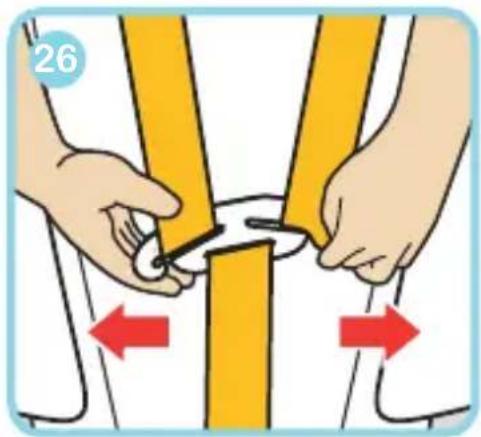

• Remove tips of shoulder belts attached to the safety belt connector

(Q). See: fig. 26

• Pull both belts through slits in the child safety seat backrest.

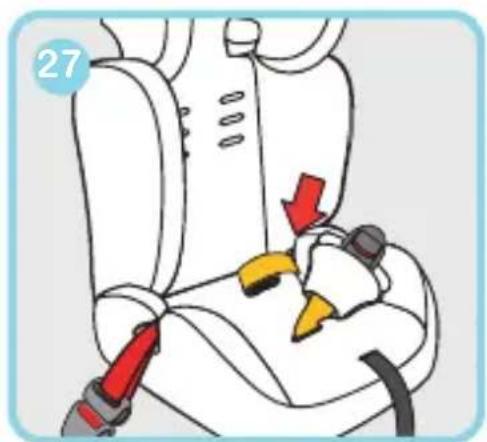

• Pull the buckle of the child safety seat belts through the hole in the fabric covering. See: fig. 27
• Pull the metal buckle through both holes in the child safety seat. See: fig. 28

B. How to install 5-point safety belts.

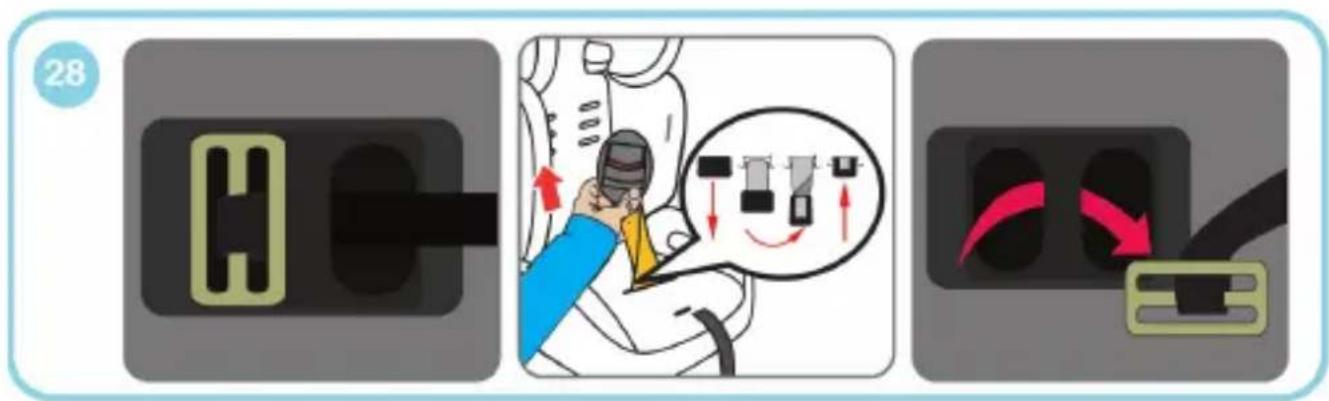

• Pull the metal buckle through the hole in the fabric covering. Next pull the buckle through both holes in the child safety seat. See: fig. 29

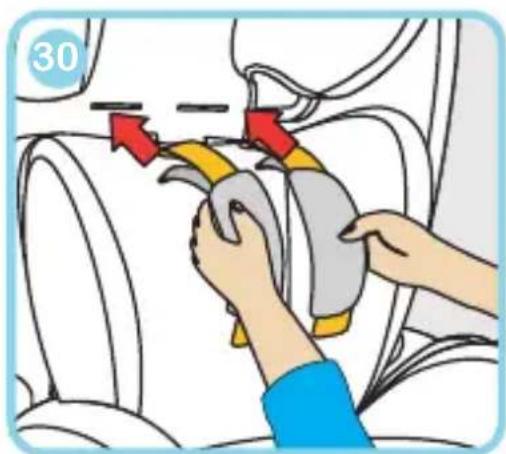

• Put the shoulder belts (H) of the child safety seat in two slits (8) located in the child safety seat backrest. See: fig. 30

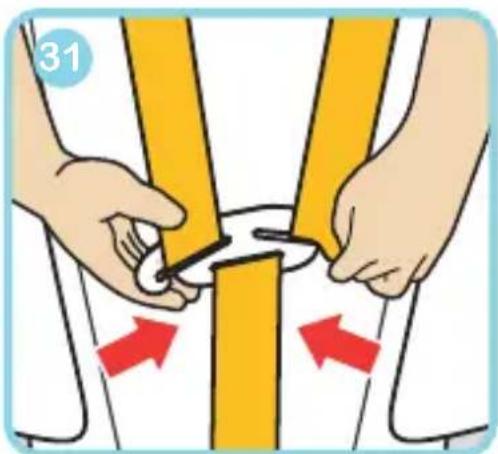

• Attach belt tips to the belt connector (Q). See: fig. 31.

Note! After you have installed 5-point belts, make sure the child safety seat shoulder belts are not twisted.

3.How to assemble the child safety seat in the car

3.1 Group I (9-18 kg), the child secured with child safety seat belts.

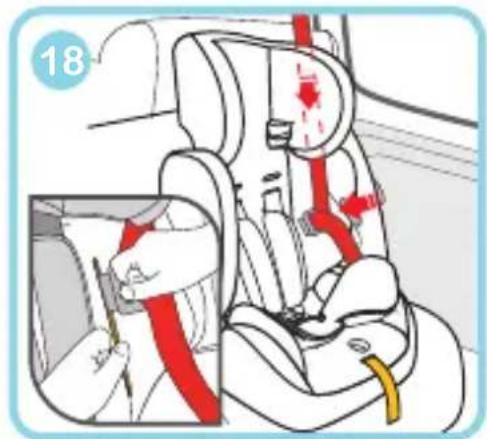

• Place the child safety seat on the car seat, make sure the product adheres to the backrest.
• Take the car seat belts out. Pull the shoulder part of the belt through the guide between the headrest and child safety seat backrest. Carry the hip belt through the red guide, below the elbow rest (E).

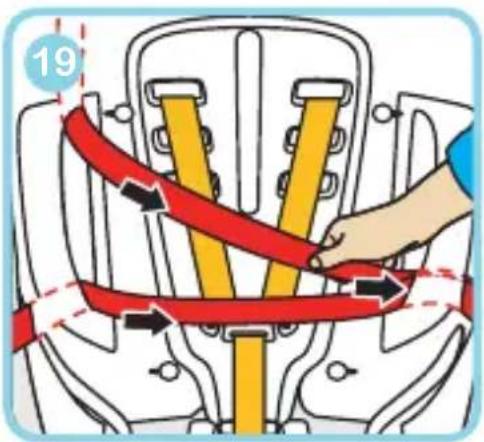

• Pull the shoulder belt with hip belt through the belt guide in the backrest (P) (from the front to the back of the product). Pull further at the back, behind the child safety seat casing.
• Next pull the belt through the second guide in the backrest, marked in red (P) (from the back to front of the product). See: fig. 18 and 19
• Pull both belts under the second elbow rest of the child safety seat (E).

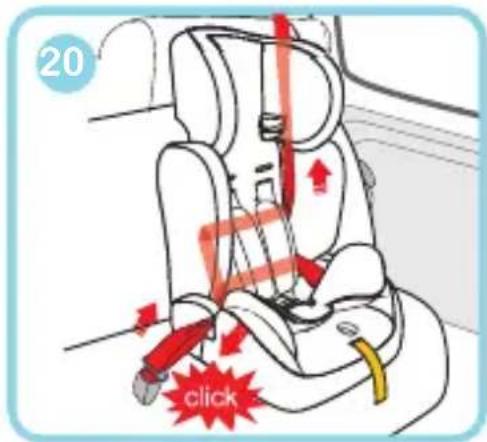

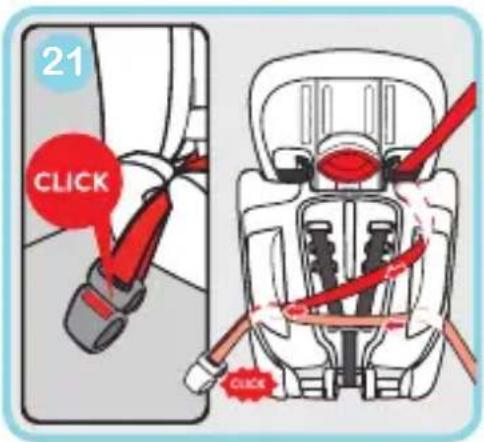

• Fasten the belts until you can hear a distinctive „click”. See: fig. 20

• Make sure the belt is not loose. Keep the child safety seat with your knee, close to the car seat. Tighten the safety belt towards the retractor as much as you can. See: fig. 21

• Unfasten child safety seat belts and then put the child in. Fasten 5-point safety belt, put two parts of the belts into the buckle (I) until you can hear a distinctive „click”. See: fig. 22

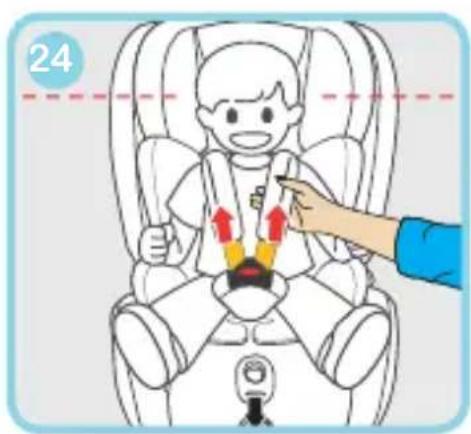

• Choose a suitable headrest height (2.2), pull safety belts so that they fit tight the child's arms. Make sure the belt protective cushion touches the child's arms and is not twisted with belts. See: fig. 24

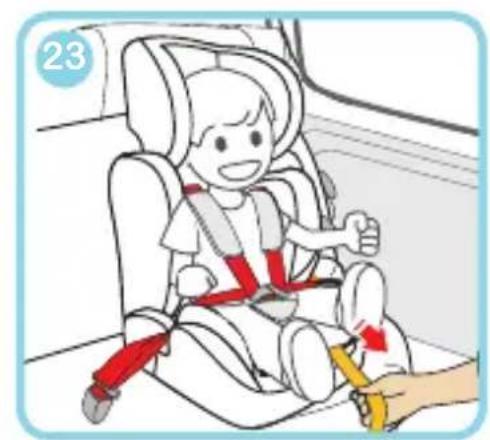

• Set the suitable length of belts. To do so, pull the tension adjustment strap (M). See: fig. 23

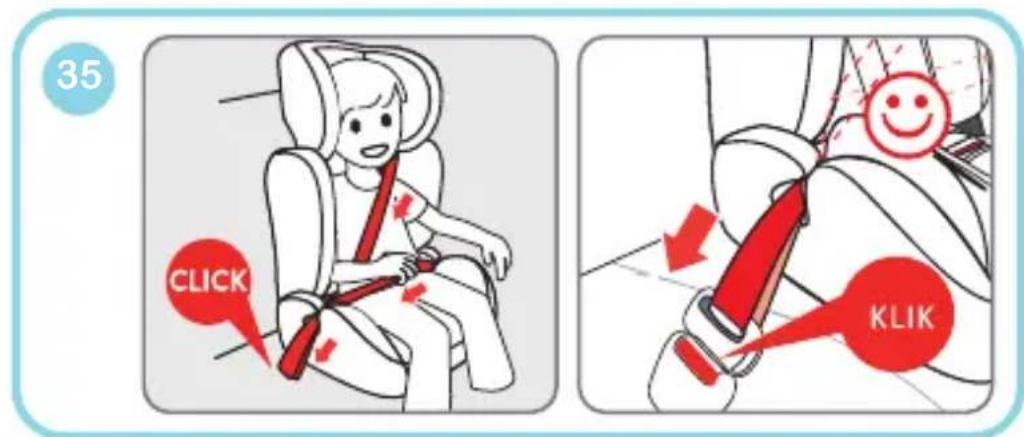

3.2 Group II, III (15-36 kg), the child secured with 3-point car seat belts.

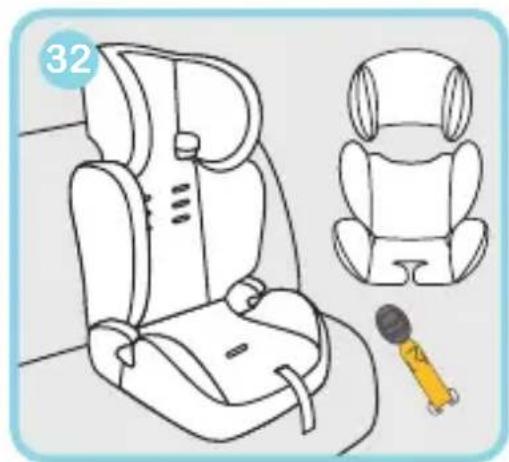

- Before you initiate installation, remove 5-point safety belts. See: fig. 32 – step-by-step instructions above (sub-chapter 2.5, sub-point A).

- Place the child safety seat on the car seat. Press it against the seat with your knee to make sure it fits tight the backrest.

- Put the child in the child safety seat, adjust the headrest height to the child. To do so, pull the headrest height adjustment lever (N). See: fig. 8

• Take car seat belts out.

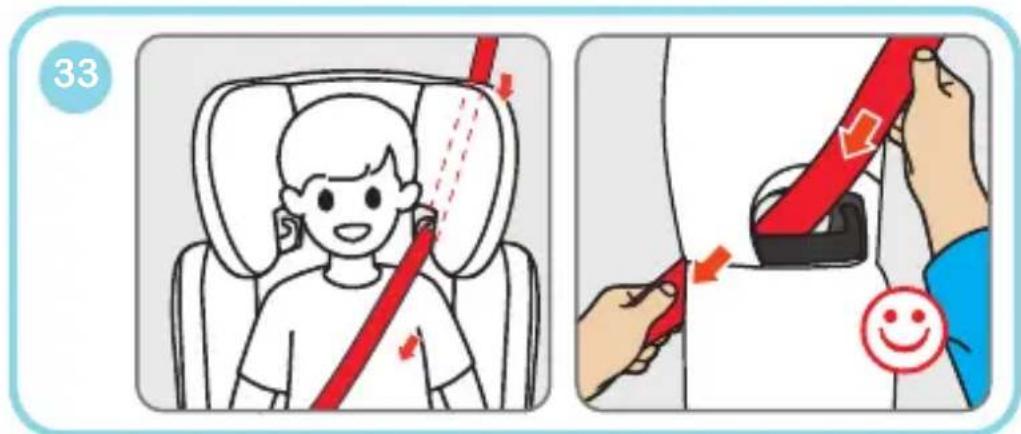

- Pull the shoulder belt through the headrest guide (O). See: fig. 33

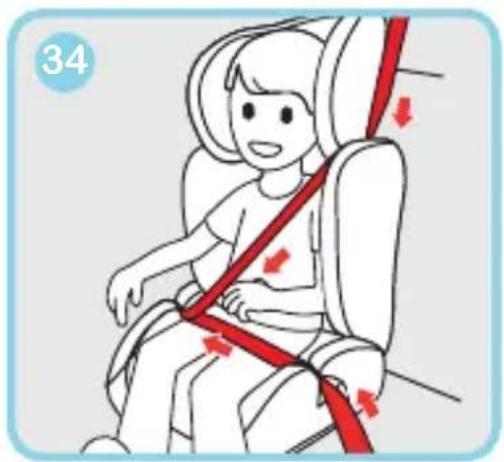

- Pull the hip belt through under the elbow rest, through the red guide (E). See: fig. 34

- Pull both belts through under the second elbow rest (E) of the child safety seat and fasten the belt until you can hear a distinctive „click”. See: fig. 35

- Make sure the belt is not too loose. Tighten the safety belt towards the retractor. The belt must be sufficiently tight but must not constrict child's movements or press against it. See: fig. 21

Note! Check safety belts. The safety belts must go through the shoulder guide in the upper part of the backrest and hip guide in the lower part of the product.

Important! Do not use the child safety seat for other purposes than defined in the manual, for example do not transport heavy items in the child safety seat.

Remember! The safety belt must be carried in accordance with the manual.

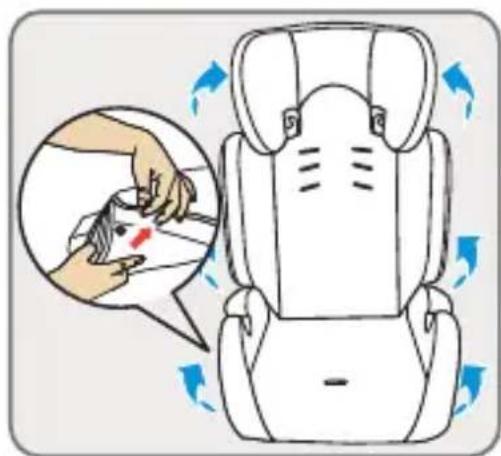

4. How to remove the covering

• Lift the headrest as high as you can. See: fig. 8
• Remove the covering from the headrest, 5-point safety belts, seat liner and the entire child restraint system. See: fig. 25 - 28
• Next, to separate the backrest and seat: keep the seat of the child safety seat with one leg and push the backrest backwards with your hand. Hinges will unlock, now you can separate the top and bottom. See: fig. 36
• Remove elastics of the child safety seat covering from fasteners. See: fig. 37

5. Cleaning

• Check the seat for damage and wear periodically.
• If you can find any damaged parts, stop using the child safety seat.
• Keep the child safety seat clean to prolong its life.
• Do not expose the seat to sunlight for a long time.
• Wash the seat fabric manually, with warm water, use soap or soft cleaning agents.
• After washing, do not let the child safety seat go dry in the sun.

How to clean belt and base:

- Use sponge, soap and warm water – do not use other cleaning agents.

The pictures are for reference only. The real design of the products may differ from the pictures presented.
