USER MANUAL Harper Lionelo

Diagram showing car seatbelting with checkmarks and a vehicle icon, labeled B

Line drawing of a car seatbelt device with a close-up view showing the interior and side views (no text or symbols)

click ②

1 2 3 4 5

A

4

A

Line drawing of a car comfort seat with yellow cable and seatbelt, no text or symbols present

A B C

6

A B click 7

Line drawing of a car seatbelt with blue arrows indicating movement or force (no text or symbols)

Diagram of a mechanical device with a blue arrow indicating direction, no text or symbols present

A B C click 10

Line drawing of a seated car seat with a hand pressing down on the seat (no text or symbols)

Illustration showing three identical scenarios of a person's head with different body positions and a checkmark, each marked with a red X and a green checkmark.

Line drawing of a car seatbelt with a blue upward arrow indicating the direction (no text or symbols)

Diagram illustrating car seatbelt buckle adjustment, showing step-by-step assembly with blue arrows indicating movement.

A B C 15

lionelo 16

Dear Customer!

If you have any comments or questions about the product you have purchased, please contact us: [e-mail]

Manufacturer:

BrandLine Group Sp. z o.o.

The product complies with the requirements of the standard: R129/03.

Information for the 76–125 cm height range

NOTE

This is an i-Size Enhanced Child Restraint System. It has been approved according to the UN/ECE Regulation No. 129 for use in vehicle seating positions that are suitable for i-Size restraint systems, as specified by the vehicle manufacturer in the vehicle user manual.

If in doubt, consult the manufacturer of the enhanced child restraint system or the retailer.

Information for the 100–150 cm height range

NOTE

This is an i-Size Enhanced Child Restraint System booster seat. It has been approved according to the UN/ECE Regulation No. 129 for primary use in vehicle seating positions that are suitable for i-Size restraint systems, as specified by the vehicle manufacturer in the vehicle user manual.

If in doubt, consult the manufacturer of the enhanced child restraint system or the retailer.

The product is suitable for installation only in the seating positions marked with √ in Fig. A, designated as i-Size.

The product is suitable for installation in the seat marked with ^2 in Fig. A only in the forward-facing position and with the airbag deactivated. It is recommended that the seat should only be used in the rear seats of the car.

The product is suitable for installation in the seating position marked with in Fig. A only if it is equipped with 3-point seat belts.

WARNINGS:

1. The product is designed for children in the height range from 76 to 150 cm.
2. Important! Do not use the seat if your child is younger than 15 months.
3. The hard and plastic components of the child restraint system must be positioned and installed in a manner that prevents them from being caught by a sliding seat or vehicle door during normal vehicle operation.
4. Any safety belts restraining the child must be appropriately sized for the child. The straps must not be twisted.
5. The belts securing the child restraint system to the vehicle must be tight.
6. Make sure that the hip straps are positioned low to properly protect the child's pelvis.
7. If the product has been subjected to significant forces, such as impact, it should be replaced.
8. Do not modify the seat or add any new components without authorisation of the relevant approval authority. For maximum safety of your child, make sure to attach and use the system in accordance with the instructions in the manual.
9. The plastic components of the seat may heat up in the sun and cause burns on the child's skin.
10. Never leave a child unattended in the seat inside a vehicle.
11. Luggage and similar items must be properly secured to prevent injuries in case of a collision.
12. Do not use the seat without the fabric cover.
13. Do not substitute the cover with an item from another set. It is an integral component of the set and affects the operation of the restraint system.
14. Always keep this user manual with you for future use.
15. Please consult the user manual provided by the vehicle

manufacturer.

PARTS LIST (FIG. A)

1. Headrest
2. Headrest adjustment lever
3. Shoulder strap guide
4. Harness protector
5. Reduction insert
6. Child seat harness
7. Harness buckle
8. Buckle protector
9. Tension adjustment button

10. Tension adjustment strap

11. Hip strap guide

12. Side impact protection (SIP)
13. SIP guide
14. • 1. ISOFIX button
15. ISOFIX connector
    17 Top Tether hook
16. Top Tether belt
17. Backrest adjustment lever
18. ISOFIX guide
19. Wedge

INSTALLATION IN THE CAR

Seat installation Seat orientation Seat position Child size

• Installation by means of ISOFIX and Top Tether belt
• Child restrained by harness straps

Forward-facing mounting

Between 76 and 125 cm

The seat must be positioned in one of the 5 available recline positions (see: Seat tilt adjustment).

Child weight: maximum 22 kg.

• Installation by means of ISOFIX and car safety belts
• Child restrained by the car's safety belts alone

Forward-facing mounting

Between 100 and 150 cm

The seat must be positioned in one of the 5 available recline positions (see: Seat tilt adjustment).

FORWARD-FACING MOUNTING (76-125 CM)

1. Place the child seat on the car seat in the designated installation area.

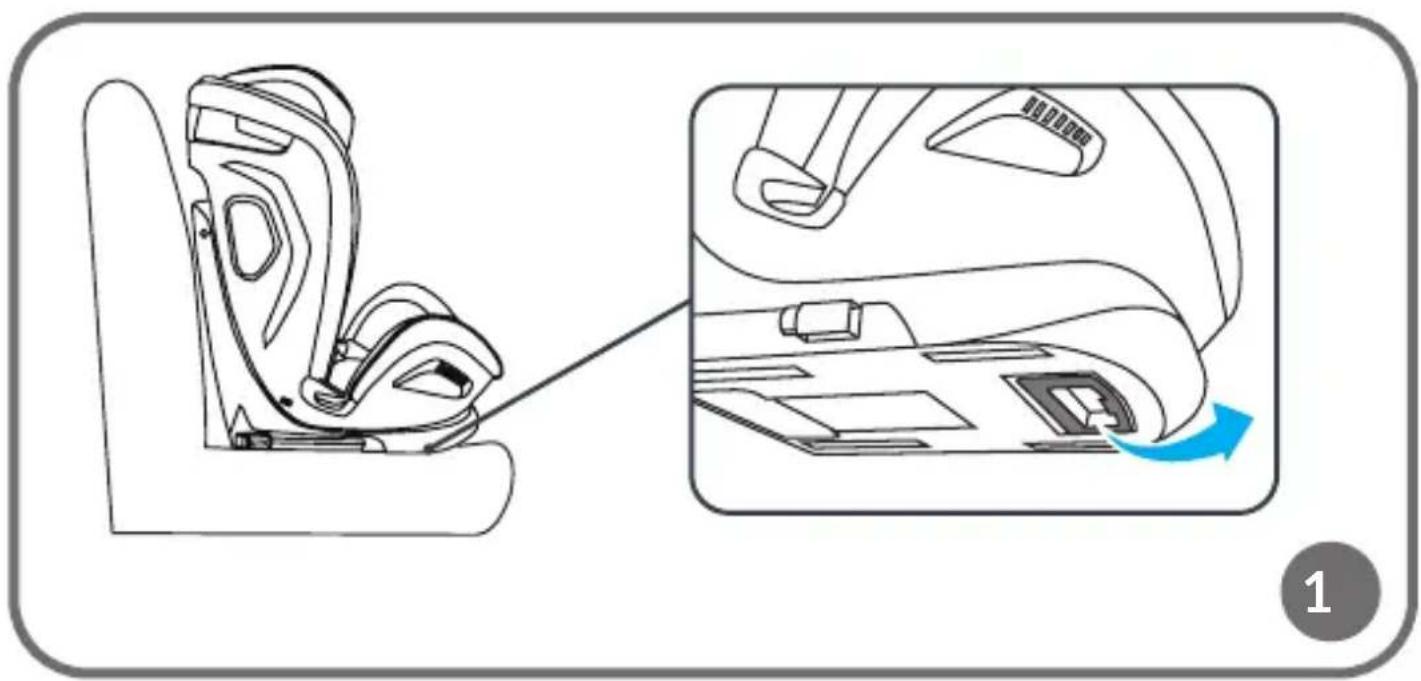

2. If the child seat does not fit securely onto the car seat, pull out the wedge located in the seat base and adjust it to the correct position (Fig. 1).

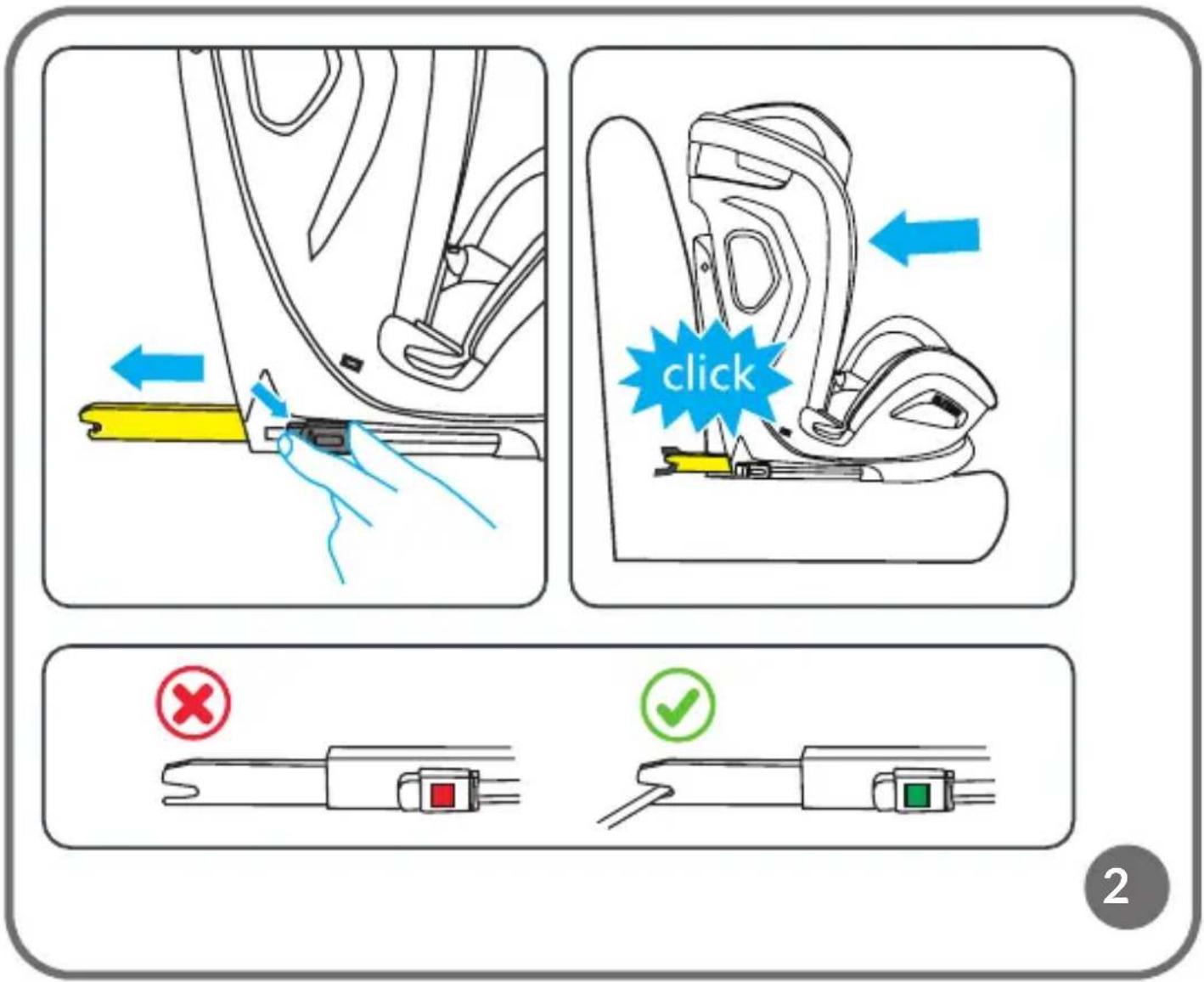

3. Press the Isofix shift lever and extend the Isofix arms. Anchor the ISOFIX arms into the attachments located in the car seat. The arms will interlock

and you will hear a characteristic click (Fig. 2).

1. The green indicator on the ISOFIX button must be visible on both sides.
2. If needed, use the plastic guides (20, Fig. A) included in the kit to assist with mounting.
3. Press the child seat firmly against the backrest of the car seat. Apply a left-right movement to push the seat base towards the backrest to ensure it is tightly secured against the car seat.

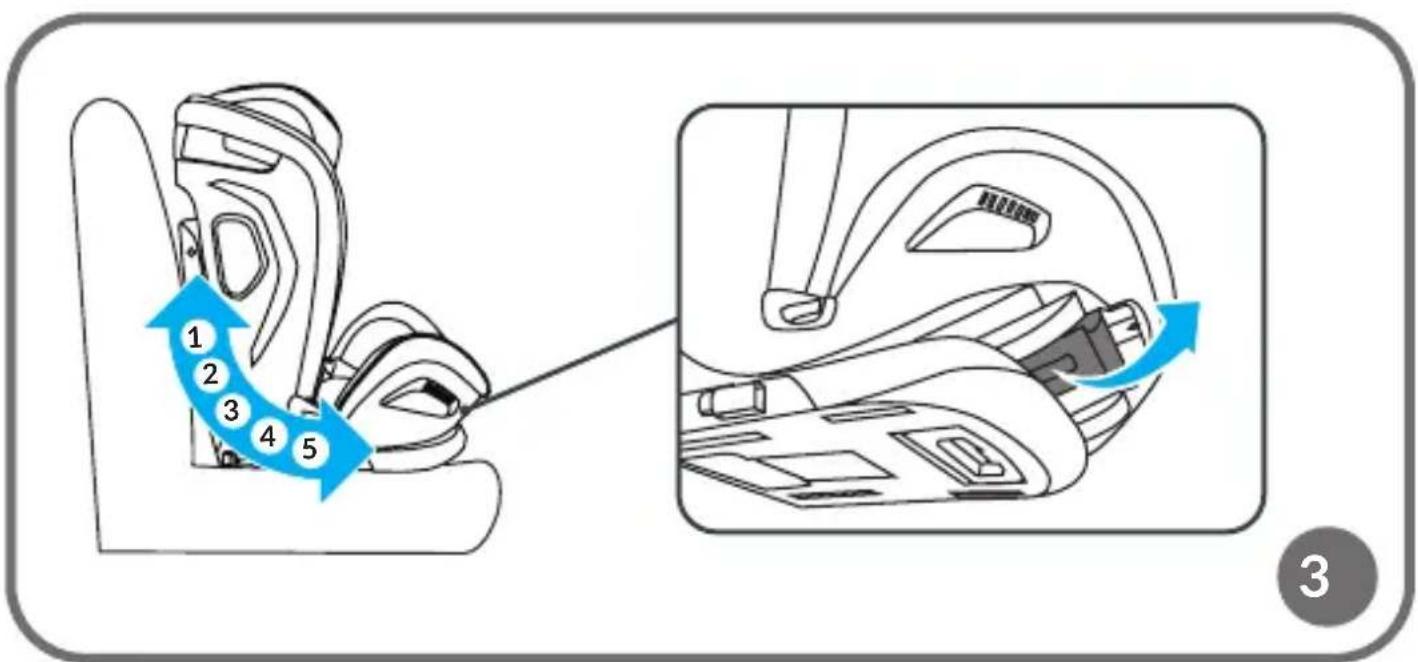

4. Position the seat in one of the 5 available recline positions (see: Seat tilt adjustment) and make sure that the base fits tightly to the backrest of the car seat (Fig. 3).

NOTE! Any change in the recline of the backrest during seat use requires length readjustment of the Top Tether belt.

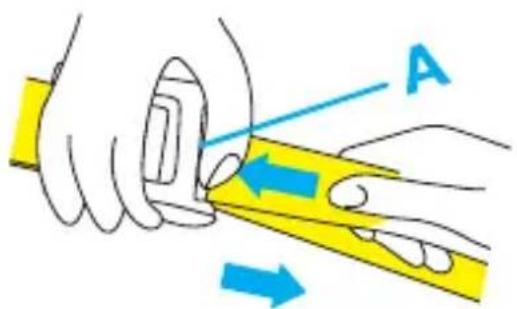

1. Extend the Top Tether belt and press the length adjuster (A, Fig. 4) to adjust the length of the belt. Next, move the buckle and hook to the end of the belt.

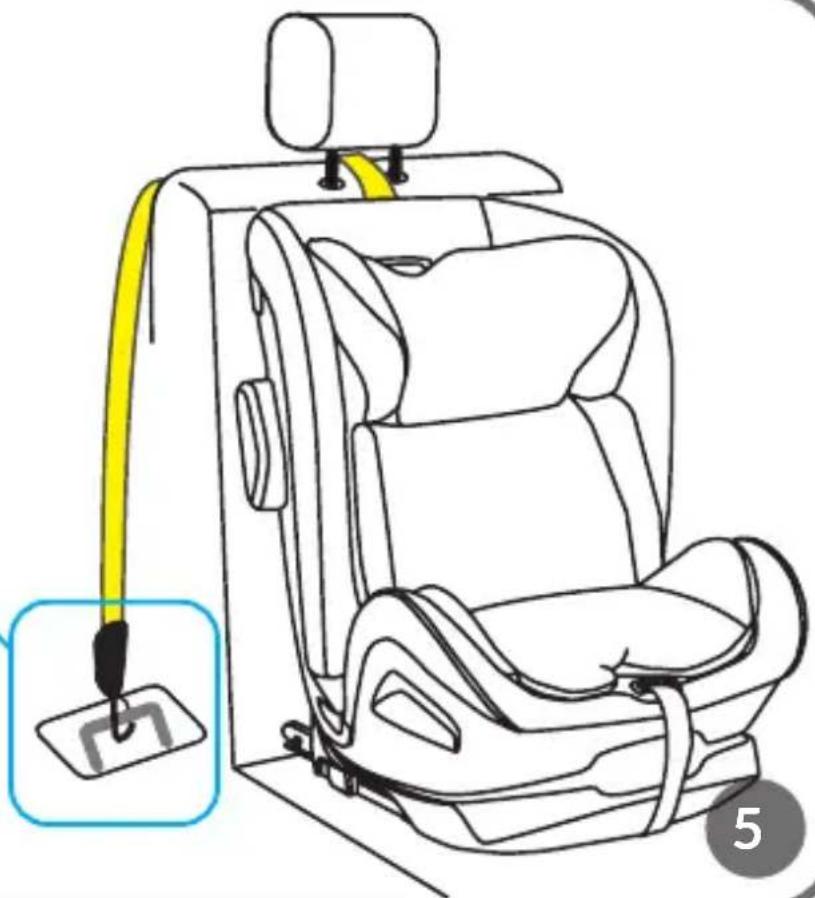

2. Pass the Top Tether belt under the car headrest (Fig. 5).

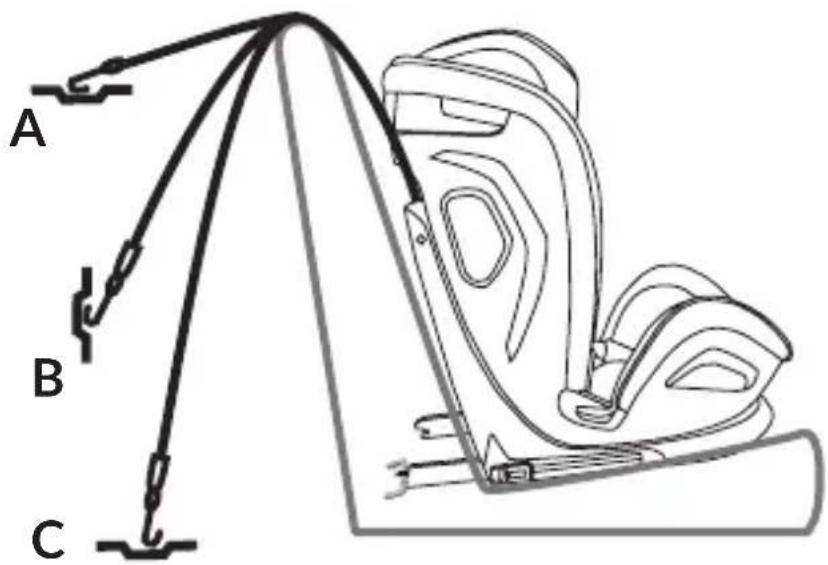

3. Attach the Top Tether belt to the anchor point in the car. Anchor points may be located in different places, depending on the vehicle (Fig. 6).

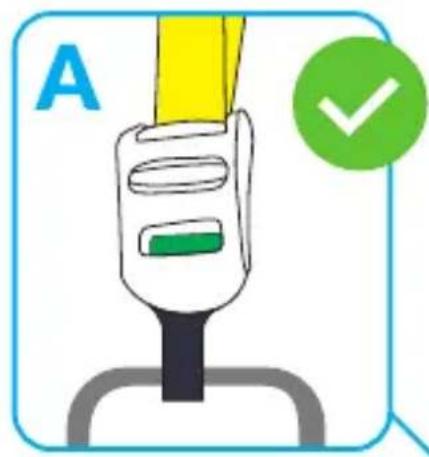

4. Tighten the Top Tether belt as much as possible and check to make sure that the indicator is green (A, Fig. 5). The child seat is now correctly installed in the car.

5. Put the child in the seat and secure the harness straps (see: Buckling and unbuckling the child in the seat).

6. Adjust the headrest (see: Headrest adjustment).

7. Tighten the straps (see: Buckling and unbuckling the child in the seat).

FORWARD-FACING MOUNTING (100–150 CM)

1. Retract the harness (see: 5-point harness retraction).
2. If the child seat does not fit securely onto the car seat, pull out the wedge located in the seat base and adjust it to the correct position (Fig. 1).
   Note! For installation without ISOFIX, skip steps 4 to 6.
3. Press the Isofix shift lever and extend the Isofix arms. Anchor the ISOFIX arms into the attachments located in the car seat. The arms will interlock and you will hear a characteristic click (Fig. 2).
4. The green indicator on the ISOFIX button must be visible on both sides.
5. If needed, use the plastic ISOFIX guides (20, Fig. A) included in the kit to

assist with mounting.

1. Press the child seat firmly against the backrest of the car seat. Apply a left-right movement to push the seat base towards the backrest to ensure it is tightly secured against the car seat.
2. Position the seat in one of the 5 available recline positions (see: Seat tilt adjustment) and make sure that the base fits tightly to the backrest of the car seat (Fig. 3).
3. Place the child in the seat and adjust the headrest (see: Headrest adjustment).

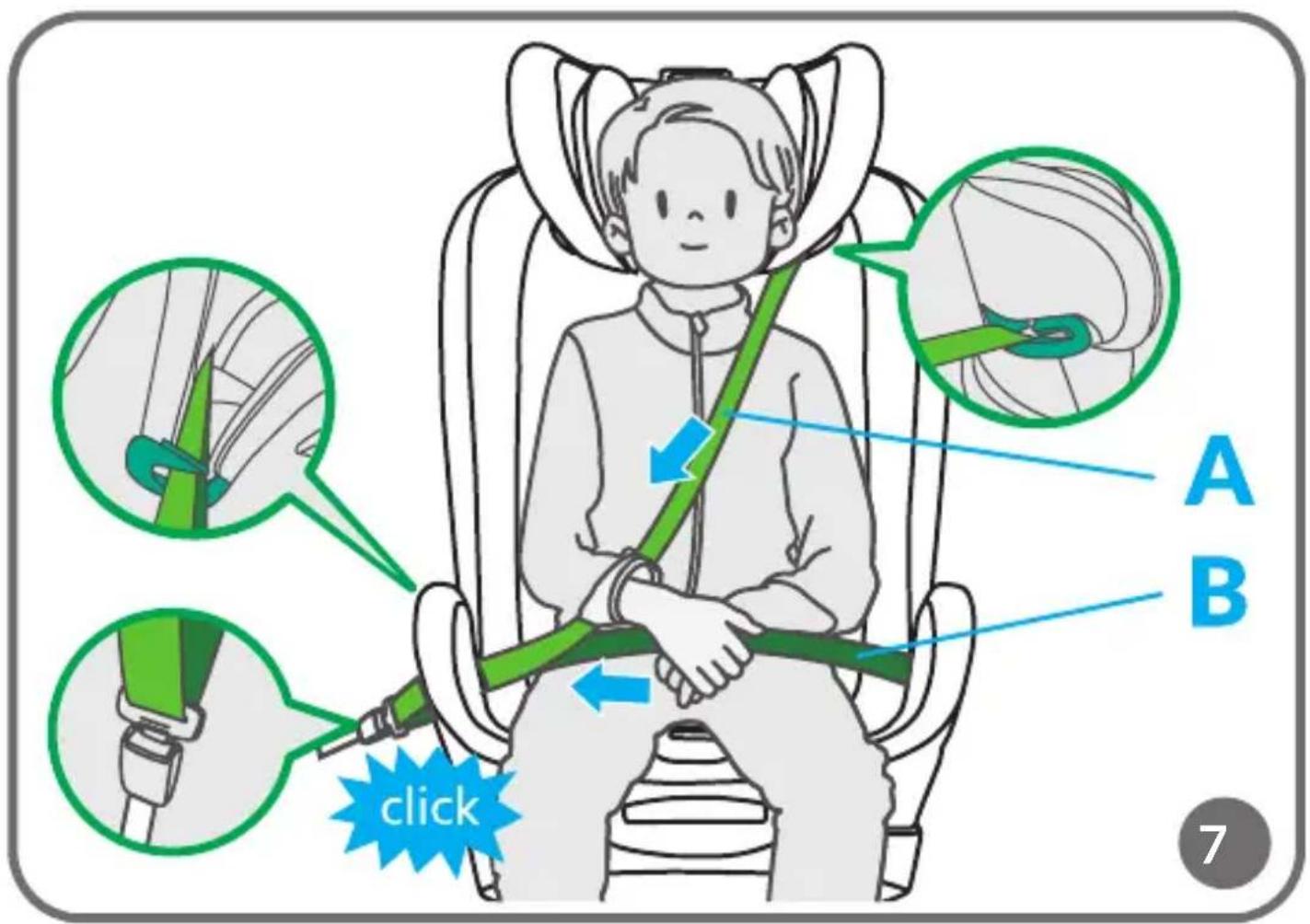

4. Pull out the car safety belt.
5. Thread the shoulder belt through the green shoulder belt guide positioned at the bottom of the seat's headrest (A, Fig. 7). Thread the hip belt through the green hip belt guide (B, Fig. 7).
6. Fasten the safety belt. You will hear a characteristic click.
7. Make sure the straps are not twisted.
8. Check that the straps are correctly positioned in the guides and tight, and that the buckle is not too close to the hip belt guide.

BUCKLING AND UNBUCKLING THE CHILD IN THE SEAT

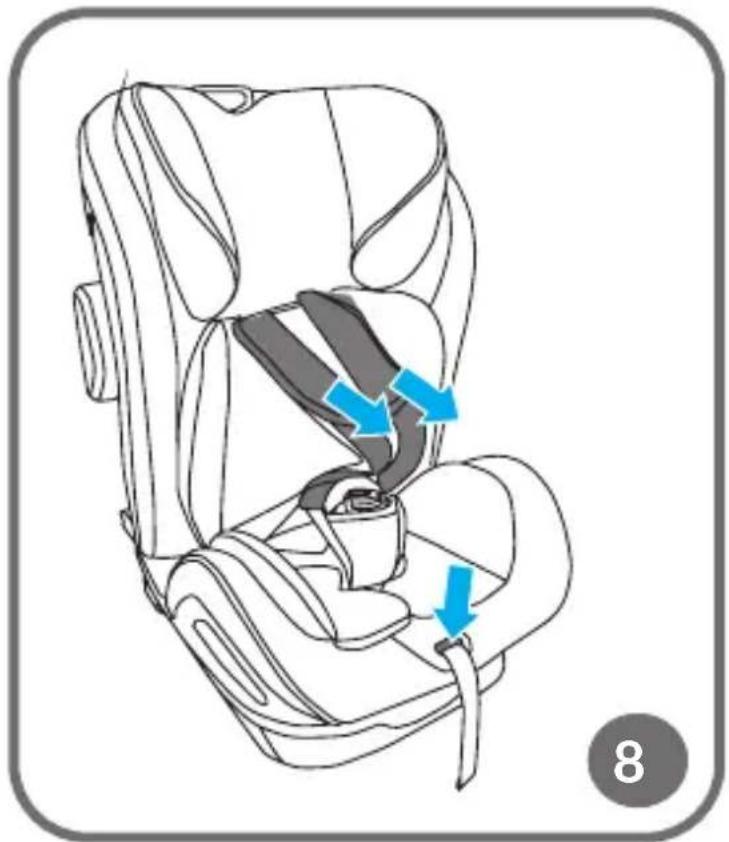

1. Loosen the harness by pressing the tension adjustment button and pulling on the straps (Fig. 8).

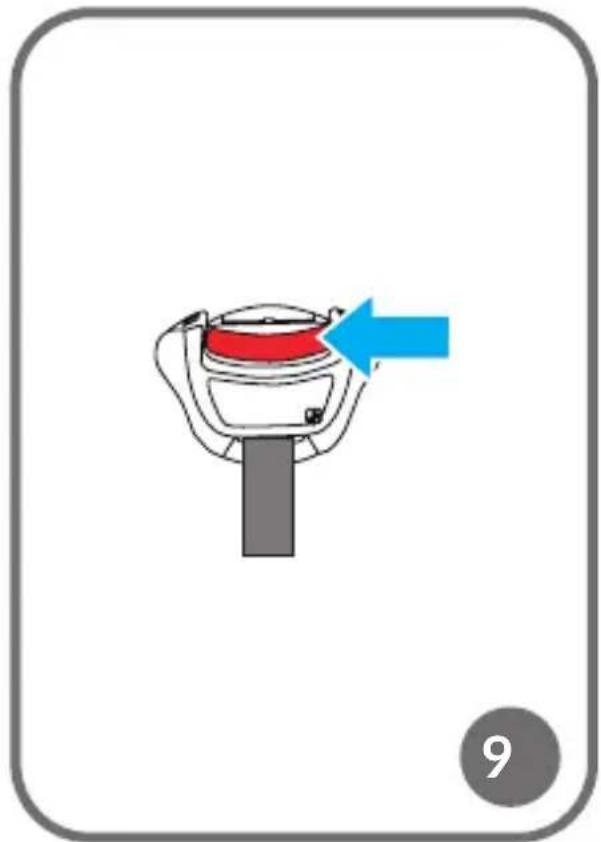

2. Unbuckle the straps by pressing the red button on the buckle (Fig. 9).
3. Place the child in the seat.

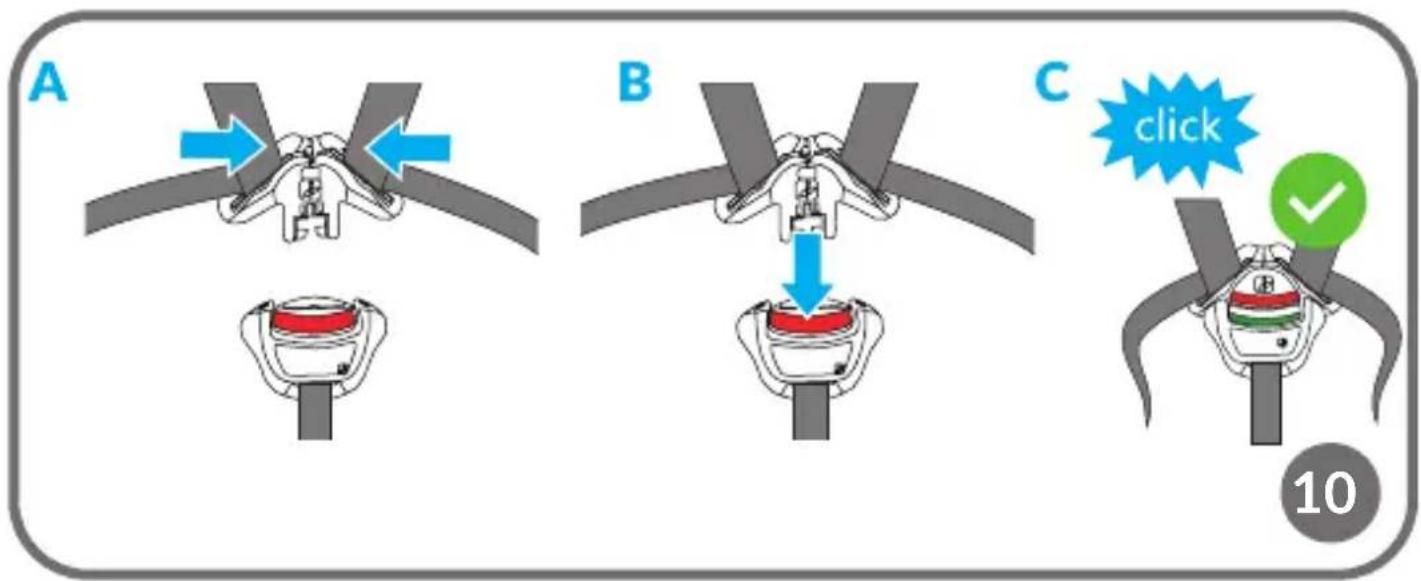

4. Bring the strap connectors together (A, Fig. 10) and then insert them into the buckle (B, Fig. 10). You will hear a characteristic click and a green indicator will appear next to the buckle button. The harness is now fastened (C, Fig. 10).
5. Adjust the headrest (see: Headrest adjustment) and tighten the straps.
6. To do this, pull the tension adjustment strap (10, Fig. A). To loosen the harness, press the adjustment button and pull on the shoulder straps (Fig. 8).

Note! Make sure that the harness is tightened properly, fits the child's body snugly, and the straps are not twisted. Check that the hip straps are positioned low to protect the child's pelvis. The straps should be tight against the child's body, but not too tight and causing discomfort.

Note! Children under 87 cm in height may use the seat exclusively with a reduction insert.

HEADREST ADJUSTMENT

To adjust the height of the headrest:

1. Loosen the harness by pressing the tension adjustment button (Fig. 8). This will make it easier to adjust the height of the headrest.

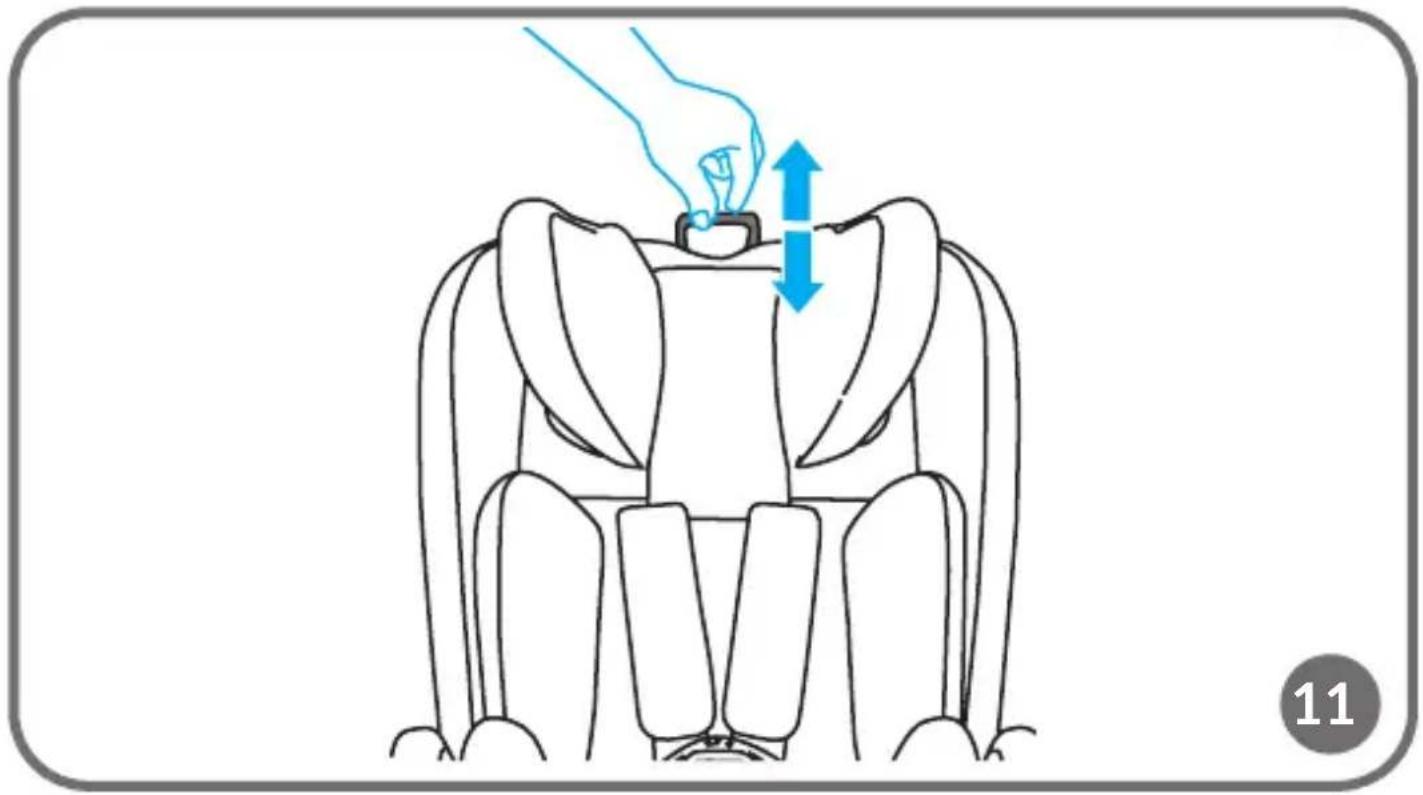

2. Pull the headrest adjustment lever (Fig. 11).

The height of the shoulder straps is synchronized with headrest height. Adjusting the height of the headrest will automatically adjust the height of the shoulder straps.

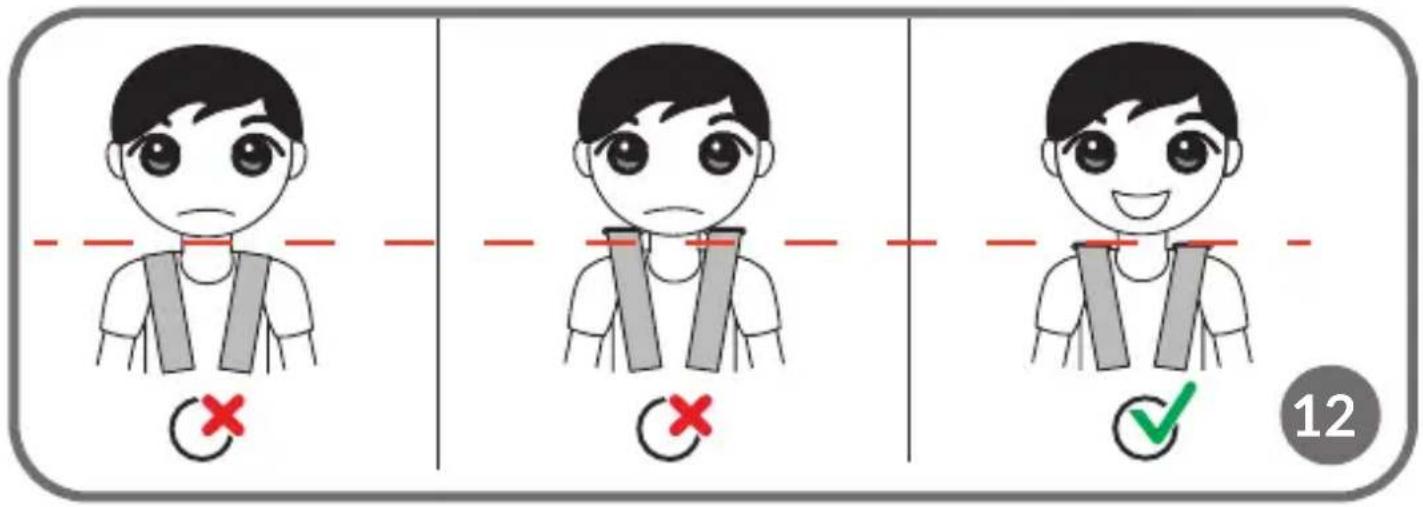

Note! Adjust the headrest so that the shoulder straps are not positioned too high (at or above the ear line) or too low (behind the child's back). The shoulder straps should be positioned at the height of the child's shoulders (Fig. 12).

5-POINT HARNESS RETRACTION

NOTE! The information below applies to children in the 100–150 cm height range.

1. Unfasten the harness by pressing the central red button on the buckle (Fig. 9).

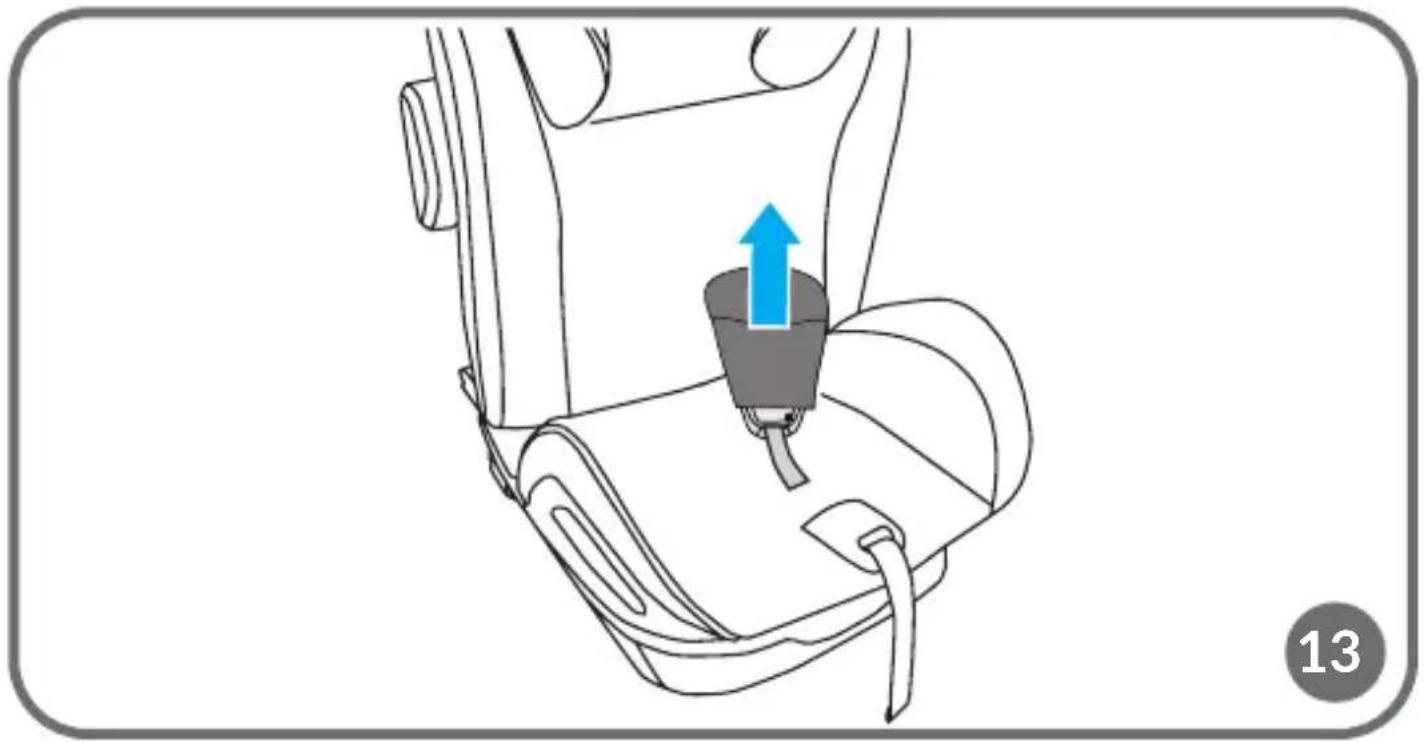

2. Remove the reduction insert and take off the buckle protector (Fig. 13).

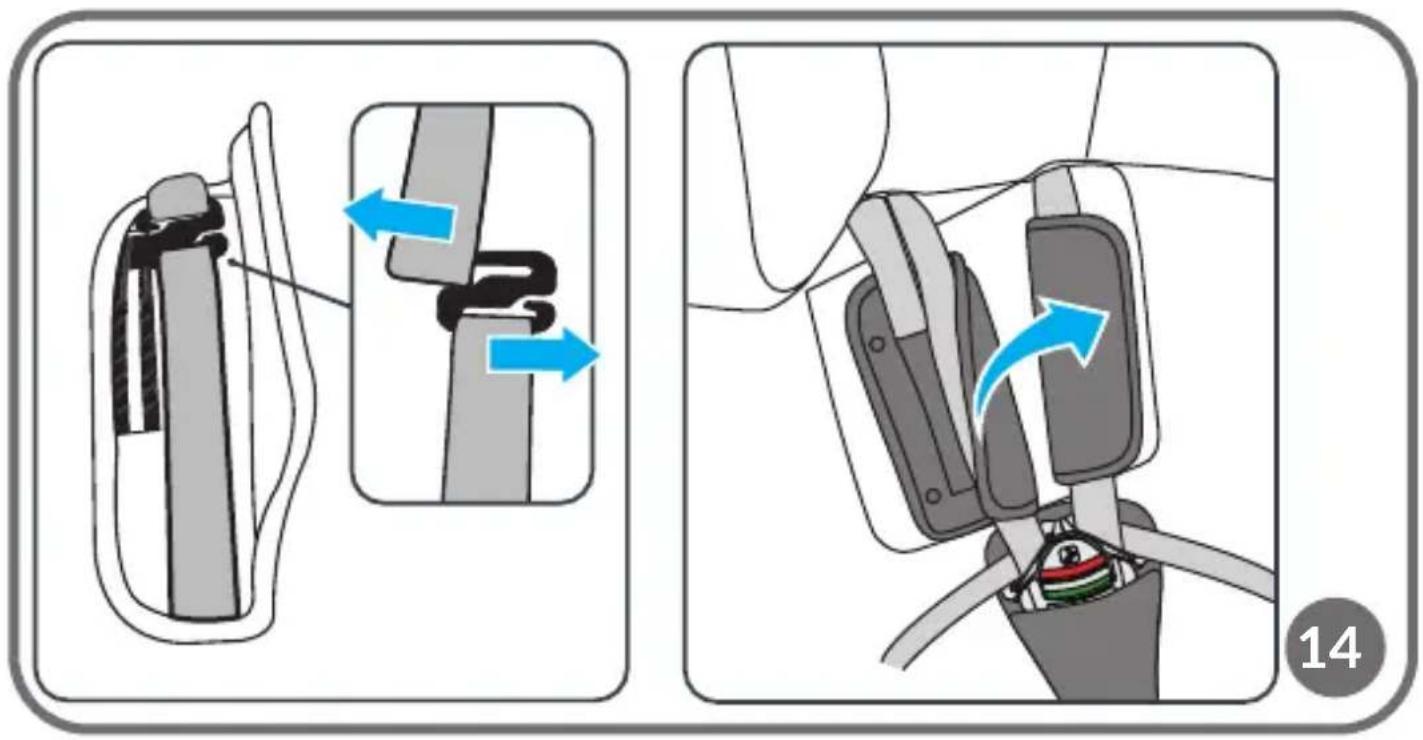

3. Unfasten the metal clasps on the harness protectors and then remove the protectors from the metal buckles (Fig. 14).
4. Place the straps under the backrest cover.

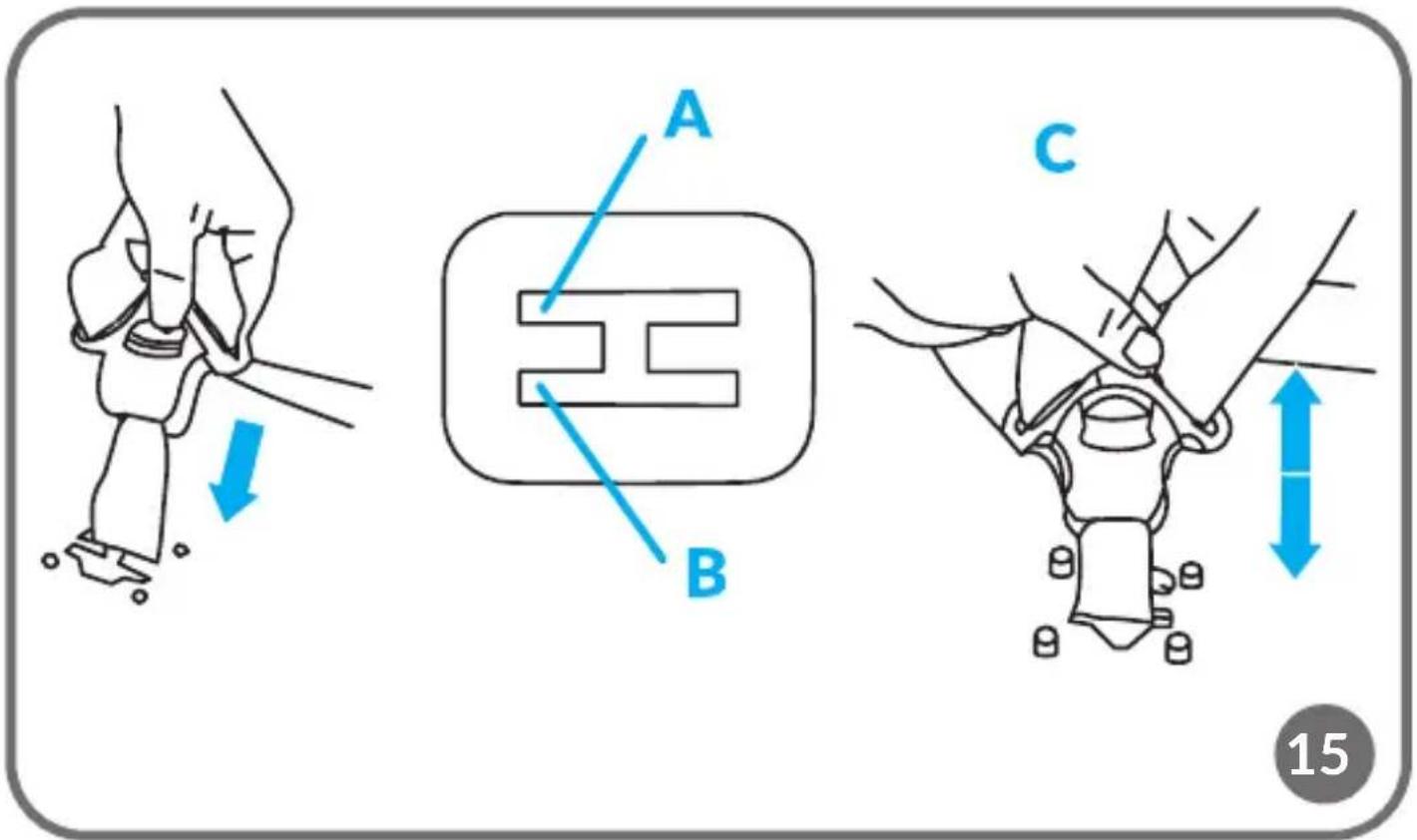

5. Pass the harness buckle through the appropriate slot in the seat cover and place the buckle in the storage compartment in the seat.

CROTCH STRAP ADJUSTMENT

The crotch strap can be adjusted forward to provide more space for the child. To do this, move the metal buckle from the slot marked A (Fig. 15) to the slot marked B (Fig. 15). Next, gently pull on the strap to make sure that it is securely in place (C, Fig. 15).

SEAT REMOVAL - ISOFIX

To release the ISOFIX arms, press the ISOFIX buttons on both sides and slide the seat out. The indicator on the ISOFIX button turns red.

SEAT REMOVAL - TOP TETHER

Loosen the belt. Detach the Top Tether belt from the anchor points in the car. The indicator turns red.

SEAT TILT ADJUSTMENT

To adjust the recline of the seat, push the tilt adjustment lever (19, Fig. A) and slide the seat to the desired position (Fig. 2).

The seat has 5 levels of backrest tilt adjustment.

REMOVING AND INSTALLING CAR SEAT COVER

To remove the cover, unzip it and slide it off the seat body. To do this:

1. Raise the headrest to the highest setting (see: Headrest adjustment).
2. Unfasten the harness.
3. First, remove the rubber protectors from the seat, then proceed to remove the seat cover, starting with the headrest.

To put the cover back on the seat, follow the above steps in reverse order.

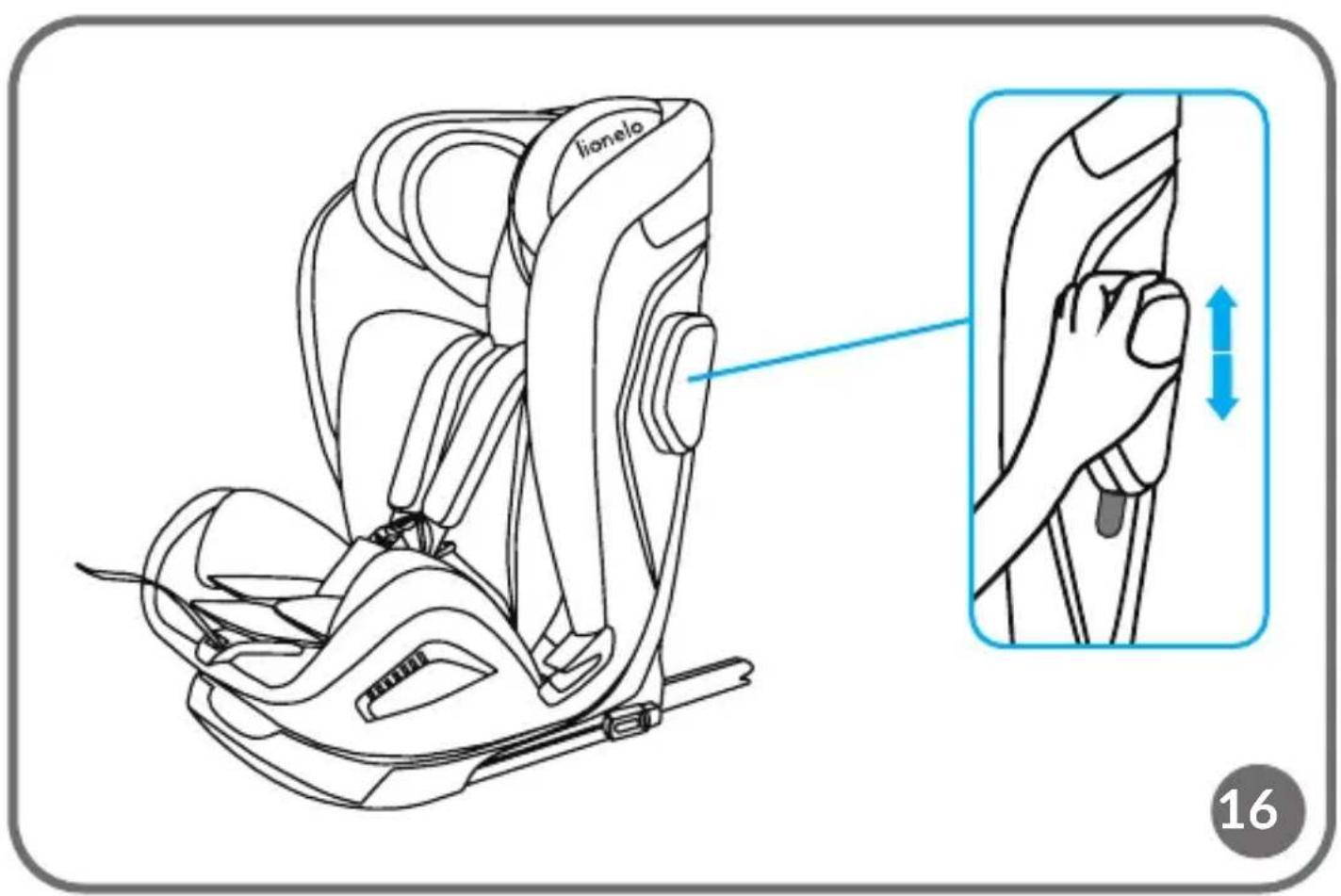

SIDE IMPACT PROTECTION (SIP)

Slide the SIP module into the guides. To remove it, slide it off the guides (Fig. 16).

Note! The SIP module should always be placed on the car door side. SIP module installation on the opposite side of the seat is optional.

CLEANING AND MAINTENANCE

Wash the car seat cover by hand at a maximum temperature of 30^ C. Avoid using dryers. Do not expose the cover to sunlight for drying. To clean the plastic parts, use a damp cloth and a mild detergent.

Note! Avoid using harsh detergents or bleaching agents.

The photos are for reference only, the actual appearance of the products may differ from the photos.
