| Product Type | Hedge trimmer attachment for cordless multi-tool |
| Brand | Metabo |
| Model | MAHS 50 |
| Category | Multi-tools (accessory) |
| Compatibility | Metabo MA 36-18 LTX BL Q cordless multi-tool |
| Intended Use | Trimming hedges and bushes |
| Safety | Two-hand operation, quick stop, blade guard mandatory |
| Adjustable Cutting Angle | Yes, between the blade and the bar (see manual) |
| Required User Protection | Gloves, goggles, helmet, hearing protection, non-slip shoes |
| Cleaning | After each use, remove dirt, treat with Metabo maintenance oil |
| Lubrication | Every 40 operating hours, lithium composite grease (12g upper, 15g lower) |
| Sharpening | Recommended at a specialized workshop |
| Operating Temperature | -20°C to 50°C (reduced performance below 0°C) |
| Storage Temperature | 0°C to 30°C |
| Power Supply | Battery (via multi-tool) |
| Battery Type | Li-ion, CAS compatible (Cordless Alliance System) |
| Included Accessories | Storage case, impact protection with branch deflection |
| Standards | CE, EN 62841, 2000/14/EC |
| Repairs | Only by qualified electrician, contact Metabo representative |
| Spare Parts | Available at www.metabo.com |
| Disposal | Do not dispose with household waste, recycle according to WEEE |
Frequently Asked Questions - MAHS 50 METABO
User questions about MAHS 50 METABO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Multitools in PDF format for free! Find your manual MAHS 50 - METABO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MAHS 50 by METABO.
USER MANUAL MAHS 50 METABO
ON/OFF Do not switch on machine in this transport position!Original instructions

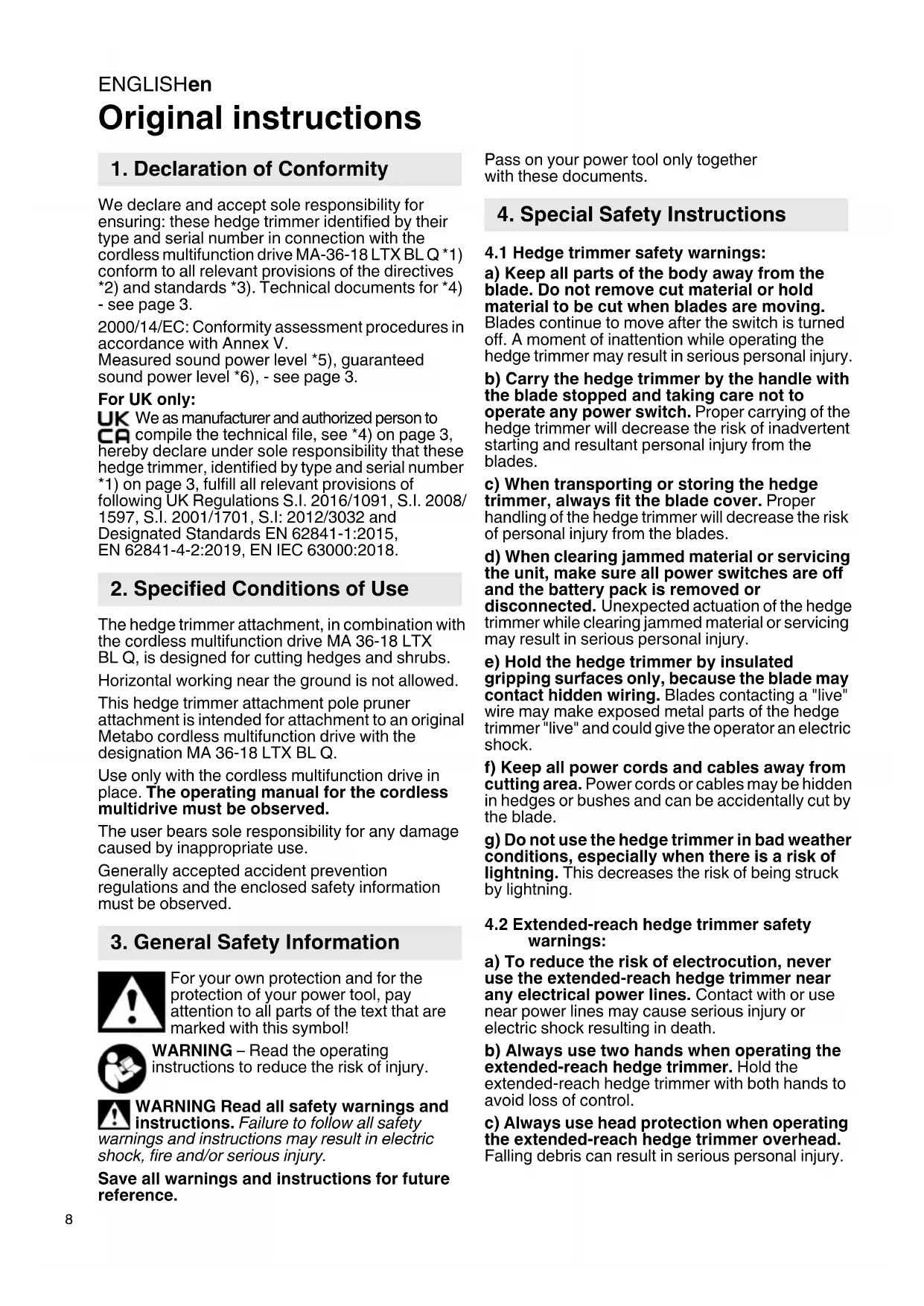

1. Declaration of Conformity
We declare and accept sole responsibility for ensuring: these hedge trimmer identified by their type and serial number in connection with the cordless multifunction drive MA-36-18 LTX BL Q *1) conform to all relevant provisions of the directives *2) and standards *3). Technical documents for *4) - see page 3.
2000/14/EC: Conformity assessment procedures in accordance with Annex V. Measured sound power level 5 ), guaranteed sound power level 6 ), - see page 3.
For UK only:
UK We as manufacturer and authorized person to CA compile the technical file, see *4) on page 3, hereby declare under sole responsibility that these hedge trimmer, identified by type and serial number *1) on page 3, fulfill all relevant provisions of following UK Regulations S.I. 2016/1091, S.I. 2008/1597, S.I. 2001/1701, S.I: 2012/3032 and Designated Standards EN 62841-1:2015, EN 62841-4-2:2019, EN IEC 63000:2018.
2. Specified Conditions of Use
The hedge trimmer attachment, in combination with the cordless multifunction drive MA 36-18 LTX BL Q, is designed for cutting hedges and shrubs.
Horizontal working near the ground is not allowed.
This hedge trimmer attachment pole pruner attachment is intended for attachment to an original Metabo cordless multifunction drive with the designation MA 36-18 LTX BL Q.
Use only with the cordless multifunction drive in place. The operating manual for the cordless multidrive must be observed.
The user bears sole responsibility for any damage caused by inappropriate use.
Generally accepted accident prevention regulations and the enclosed safety information must be observed.
3. General Safety Information
For your own protection and for the protection of your power tool, pay attention to all parts of the text that are marked with this symbol!
WARNING – Read the operating instructions to reduce the risk of injury.
WARNING Read all safety warnings and instructions. Failure to follow all safety warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
Pass on your power tool only together with these documents.
4. Special Safety Instructions
4.1 Hedge trimmer safety warnings:
a) Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
b) Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades.
c) When transporting or storing the hedge trimmer, always fit the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades.
d) When clearing jammed material or servicing the unit, make sure all power switches are off and the battery pack is removed or disconnected. Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury.
e) Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring. Blades contacting a "live" wire may make exposed metal parts of the hedge trimmer "live" and could give the operator an electric shock.
f) Keep all power cords and cables away from cutting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade.
g) Do not use the hedge trimmer in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
4.2 Extended-reach hedge trimmer safety warnings:
a) To reduce the risk of electrocution, never use the extended-reach hedge trimmer near any electrical power lines. Contact with or use near power lines may cause serious injury or electric shock resulting in death.
b) Always use two hands when operating the extended-reach hedge trimmer. Hold the extended-reach hedge trimmer with both hands to avoid loss of control.
c) Always use head protection when operating the extended-reach hedge trimmer overhead. Falling debris can result in serious personal injury.
4.3 Further Safety instructions
Inspect hedges and bushes for wire fences and concealed lines.
Persons under the age of 16 must not used the hedge trimmer.
Never use an incomplete tool, or one on which an unauthorised modification has been made.
Do not switch on the tool if parts or guard devices are missing or defective.
The machine features safety two-hand operation. Have the machine repaired if it can be activated with only one switch.
The machine is provided with a "Quick stop" function. Have the machine repaired if braking time is clearly lengthened.
Always hold the machine with both hands and stand firmly on the ground. The hedge trimmer is intended for work where the operator stands on the ground and not on a ladder or any other unstable floor space. Pay attention to obstacles in the working area - danger of tripping. Keep the cutting blade well away from the body.
Examine the area to be cut and remove wire or other foreign bodies.
If the cutting blades come to a standstill due to a particularly hard branch or foreign body (wire in a hedge) and the stoppage cannot be corrected by pulling the machine back, the motor must first be switched off and the battery pack removed from the machine before the cause of the blockage can be removed manually from the cutting blade.
For other activities (e.g. removing twigs or cuttings), deposit the machine outside the working area.
Lay the machine down such that persons are not at risk.
Remove the battery pack from the machine when not in use.
Remove battery packs from the machine. Wait until all moving parts have come to a standstill before making any adjustments, retrofitting, maintenance, cleaning or before storing the machine.
For storage and transportation, always slide the enclosure onto the cutting blades. (It has been slid on correctly if the Metabo lettering faces upwards).
Wear ear protectors. Exposure to noise can cause hearing loss.
Danger of injury from the sharp edges of the blades. Never touch the blades. Wear protective gloves.
Always wear protective goggles, gloves, and suitable shoes when working with the hedge trimmer.
Always use only 1 shoulder strap.
Keep at least 15 m distance to uninvolved persons.
Additional safety instructions in the operating manual for the cordless multifunction drive must be observed.
4.4 Icons
Wear safety goggles.
Wear ear protectors. High noise levels over a prolonged period of time may affect your hearing.
Wear head protection. Falling pieces can cause serious injury.
Wear gloves.
Wear non-slip foot protection.
Read the operating instructions.
DANGER- Keep hands away from the blade.
WARNING – General hazards!
DANGER – Always keep sufficient distance to power lines.
WARNING! Unintentional start-up can cause serious injuries. Before setting, cleaning or maintenance: Switch off the
machine, remove the battery packs.
Protect the device from water and moisture. Do not expose to rain. Never use in rain or on wet hedges.
5. Overview
See page 2.
1 Impact protection with twig feed
2 Bl a d e s
3 Protective sheath for blade
4 Adjustment lever
5 Locking lever
6 Rod
6. Initial Operation
6.1 Attach to the cordless multifunction drive
WARNING! Risk of injury. The protective sheath for the blade (3) must be attached.
Before attaching it on the cordless multifunction drive, set the angle between blade (2) and rod (6) to approx. 180^ . See chapter 7.1.
WARNING! No extension rod may be installed between the cordless multifunction drive and attachment.
Attach as shown in the operating instructions for the cordless multifunction drive.
6.2 Battery pack
Read the operating instructions supplied with the cordless multifunction drive.
7. Use
7.1 Adjust blade angle according to the cutting application
WARNING! Remove battery pack. Attach the protective sheath (3). Wear protective gloves.
See Fig. A, Page 2.
- Push the locking lever (5) and keep pressed.
- Change the angle between blade (2) and rod (6) at the adjustment lever (4). Once the desired blade angle has been set, release the locking lever (5).
- Move the adjustment lever (4) a bit to ensure that the locking lever (5) has engaged and that the blade (2) is locked securely in place.
7.2 Holding machine correctly, Switching on and off
Before use, check that the adjustment lever (5) has engaged and that the device is correctly attached to the cordless multifunction drive (see operating instructions of the cordless multifunction drive).
The operator must keep good footing and hold the machine firmly with both hands on the handles. The blade (2) must not touch any objects when the tool is switched on.
Do not switch on the motor, if the blade (2) is in the folded transport position (see fig. below). Before switching on, unfold the blade (see chapter 7.1). :
Have the machine repaired if braking time is clearly lengthened.
7.3 Transporting
- Slide the protective sheath (3) onto the blades (2).
- Bring blades (2) into the transport position, see figure:
- Secure in a safe position for transport.
8. Cleaning
WARNING! Remove the battery packs. Unintentional start-up can cause serious injuries. The machine must be stationary. Wear protective gloves.
Clean after each use: Remove dirt and other deposits. Remove contamination, leaf debris etc. (e.g. with a brush or cloth)
After cleaning: Treat cutting blade with Metabo hedge trimmer care oil 6.30474 or Pump Spray 6.30475 (biologically degradable).
9. Maintenance
WARNING! Remove the battery packs. Unintentional start-up can cause serious injuries. The machine must be stationary. Wear protective gloves.
9.1 Sharpen cutting blades
It is advisable to have blunt cutting blades sharpened in a specialist workshop. Check cutting blades regularly for damage and have them repaired in a specialist workshop immediately if necessary.
9.2 Lubrication
Every 40 operating hours, top-up grease through the grease nipple on the gearbox housing using a grease gun:
High temperature compound lithium grease
Upper grease nipple: 12 g
Lower grease nipple: 15 g
10. Troubleshooting Guide
When attaching to the cordless multidrive, the rod ends cannot be pushed into each other.
- Read the operating instructions supplied with the cordless multifunction drive.
11. Accessories
Use only original Metabo or CAS (Cordless Alliance System) battery packs and accessories.
Use only accessories that fulfil the requirements and specifications listed in these operating instructions.
A Cordless multifunction drive MA 36-18 LTX BL Q, order no.: 601725850
B Hedge trimmer care oil (biologically degradable), can (1 litre)
Order no.: 630475000
C Hedge trimmer care oil (biologically degradable), pump spray can (0.3 litre) Order no.: 630474000
For a complete range of accessories, see www.metabo.com or the catalogue.
12. Repairs
Repairs to electrical tools must ONLY be carried out by qualified electricians!
Contact your local Metabo representative if you have Metabo power tools requiring repairs. For addresses see www.metabo.com.
You can download a list of spare parts from www.metabo.com.
13. Environmental Protection
Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.
Battery packs must not be disposed of with regular waste! Please return faulty or used battery packs to your Metabo dealer!
Do not throw battery packs into water.
Only for EU countries: never dispose of power tools in your household waste!
According to European Directive 2012/19/EU
on Waste from Electric and Electronic Equipment and implementation in national law, used power tools must be collected separately and recycled in an environmentally-friendly manner.
Discharge the battery pack in the power tool before disposal. Prevent the contacts from short-circuiting (e.g. by protecting them with adhesive tape).
14. Technical specifications
Explanatory notes on the specifications on page 3.
Subject to change in accordance with technical progress.
Measured values determined with cordless multifunction drive MA 36-18 LTX BL.
max. = maximum cutting thickness L = Useful blade length
n_0 = number of cuts at idling speed m = weight (without cordless multifunction drive, battery pack, carry strap)
Measured values determined in conformity with EN 62841.
Permitted ambient temperature during operation: -20 °C (-4°F) to 50 °C (120°F) (limited performance with temperatures below 0 °C (32°F)). Permitted ambient temperature for storage: 0 °C (32°F) to 30 °C (86°F).
Recommended ambient temperature when charging: 0 °C to 40 °C
--- direct current
The technical specifications quoted are subject to tolerances (in compliance with relevant valid standards).
Emission values
These values make it possible to assess the emissions from the power tool and to compare different power tools. The actual load may be higher or lower depending on operating conditions, the condition of the power tool or the accessories used.
Please allow for breaks and periods when the load is lower for assessment purposes. Arrange protective measures for the user, such as organisational measures based on the adjusted estimates.
Vibration total value (vector sum of three directions) determined in accordance with EN 62841:
$$ \begin{array}{l l} a _ {h} & = \text { vibration emission value (idle speed) } \ K _ {h} & = \text { uncertainty (vibration) } \end{array} $$
Typical A-effective perceived sound levels:
L_pA =sound pressure level (EN 62841)
L_WA^p,n =sound power level (EN 62841)
K_pA , K_WA=uncertainty
L_WA(M) =measured sound power level as per 2000/14/EC
L_WA(G)= guaranteed sound power level as per 2000/14/EC
During operation the noise level can exceed 80 dB(A).
Wear ear protectors!
FRANÇAISfr
Notice originale
ON/OFF Do not switch on machine in this transport position!text_image
Technical diagram showing two mechanical components with directional arrows and angular measurements, marked with X and ✓ symbols.text_image
ON/OFF Do not switch on machine in this transport position!text_image
UO25000000000 180°text_image
Do not switch on machine in this transport position!text_image
Diagram showing two types of medical or surgical instruments with directional arrows and a 180° angle indicator, marked with X and ✓ symbols.text_image
ON/OFF Do not switch on machine in this transport position!text_image
ON/OFF Do not switch on machine in this transport position!--- Corrente contínua
Technical diagram showing two types of medical or surgical instruments with directional arrows and angle标注 (180°)
Technical diagram showing two types of medical or surgical instruments with directional arrows and angular measurements, including circled and check symbols.text_image
ON/OFF Do not switch on machine in this transport position!text_image
Technical diagram showing two types of medical or surgical instruments with directional arrows and angular measurement of 180°
K_n = Usikkerhed (vibration)
Do not switch on machine in this transport position!text_image
U2500000000000 180°text_image
ON/OFF Do not switch on machine in this transport position!text_image
Diagram showing two types of medical or surgical instruments with directional arrows and a 180° rotation indicator, accompanied by check and cross symbols.text_image
ON/OFF Do not switch on machine in this transport position!text_image
U3500000000000 180°
Technical diagram showing two mechanical or electrical component designs with directional arrows and a 180° angle标注
Icon showing an open book and a recycling bin with a circular arrow (no text or symbols)Metabowerke GmbH
Metabo-Allee 1
72622 Nuertingen
Germany
www.metabo.com
metabo®
PROFESSIONAL POWER TOOL SOLUTIONS
