USER MANUAL CV 350V METABO

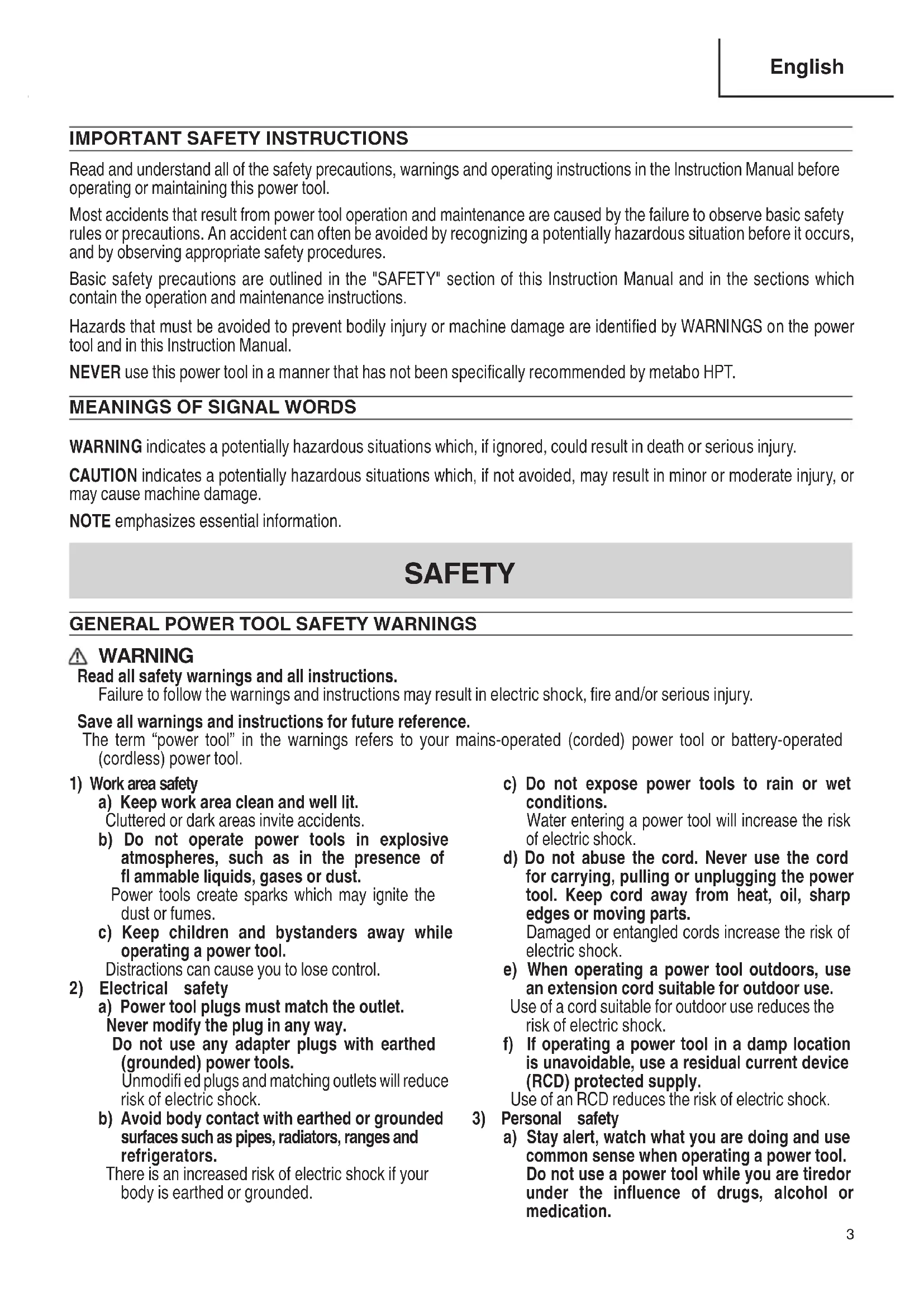

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool. Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures. Basic safety precautions are outlined in the "SAFETY" section of this Instruction Manual and in the sections which contain the operation and maintenance instructions. Hazards that must be avoided to prevent bodily injury or machine damage are identifi ed by WARNINGS on the power tool and in this Instruction Manual. NEVER use this power tool in a manner that has not been specifi cally recommended by metabo HPT.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury. CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information. SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tiredor under the infl uence of drugs, alcohol or medication. 000BookCV350VNAmetabo.indb3000BookCV350VNAmetabo.indb3 2018/03/2010:06:032018/03/2010:06:034 English A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non- skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off . Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aff ect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations diff erent from those intended could result in a hazardous situation.

a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. –WARNING– To reduce the risk of injury, user must read instruction manual.

ADDITIONAL SAFETY WARNINGS

1. Always hold the tool fi rmly with one hand on housing

(Fig. 1). Do not touch the metal part. Fig. 1

2. Make sure that the area to be cut is absolutely free

of any hidden obstructions including electrical wiring, water, or gas pipes. Cutting into the aforementioned may result in electric shock or short circuit, gas leak or other hazards that can cause serious accidents or injuries.

3. Make sure to securely hold the tool during operation.

Failure to do so can result in accidents or injuries.

4. Secure the workpiece. A workpiece clamped with

clamping devices or in a vice is held more secure than by hand. 000BookCV350VNAmetabo.indb4000BookCV350VNAmetabo.indb4 2018/03/2010:06:042018/03/2010:06:045 English

5. Setting up and checking the work environment.

Check if the work environment is suitable by following the precaution.

6. Dust particles such as silica or asbestos are

hazardous to your health. When working with materials containing these components, take appropriate dust-proofi ng measures.

7. Working with metal can cause sparks. Make sure

there are no fl ammable and combustible materials in the vicinity and that they are stored in a safe location.

8. The motor may stop in the event the tool is overloaded.

In this should occur, release the tool’s switch and eliminate the cause of the overload.

9. Do not touch the application tool, its attachment area

or other metal surfaces immediately after use as they will be hot. Doing so may result in burns or injury. The metal is hot and can easily burn your skin.

10. Make sure that there is no one below when operating

the tool in high locations. Dropping the tool or materials may result in accident or injury.

11. Never apply any unreasonable force to the application

tool when working. Doing so may break the application tool or damage the motor.

12. Do not leave the tool running unattended on the fl oor,

table or other locations. Doing so may result in injury.

13. When attaching application tools, be careful not to get

your fi ngers or other extremities caught in the lever.

14. If the application tool seems to be loose or uneven

after attaching it to the unit, re-attach the tool. Operating the unit with a loose or uneven application tool may result in injury.

15. When switching on the tool, make sure the application

tool is not in contact with any processing materials. Failure to do so may result in injury.

16. For cutting effi ciency, switch the mode of the

application tool according to task conditions and materials to be cut.

17. After use, be sure not to place the tool near chips or

sawdust before it comes to a full stop as the tool may suck in those particles.

18. Do not polish wood with sanding paper used for metal

19. Do not use worn or clogged sanding paper.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Hold power tool by insulated gripping surfaces,

when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

2. Use clamps or another practical way to secure

and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

3. ALWAYS wear ear protectors when using the tool

for extended periods. Prolonged exposure to high intensity noise can cause hearing loss.

4. NEVER touch the application tool with bare hands

5. When working at elevated locations, clear the area

of all other people and be aware of conditions below you.

6. NEVER touch moving parts.

NEVER place your hands, fi ngers or other body parts near the tool’s moving parts.

7. NEVER operate without all guards in place.

NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

Don’t force small tool or attachment to do the job of a heavy-duty tool. Don’t use tool for purpose not intended —for example— don’t use oscillating multi tool for cutting tree limbs or logs.

9. NEVER use a power tool for applications other

than those specifi ed. NEVER use a power tool for applications other than those specifi ed in the Instruction Manual.

10. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

11. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

12. Do not use power tools if the plastic housing or

handle is cracked. Cracks in the tool’s housing or handle can lead to electric shock. Such tools should not be used until repaired.

13. Application tools and accessories must be

securely mounted to the tool. Prevent potential injuries to yourself or others. Application tools, cutting implements and accessories which have been mounted to the tool should be secure and tight. 000BookCV350VNAmetabo.indb5000BookCV350VNAmetabo.indb5 2018/03/2010:06:042018/03/2010:06:046 English

SAVE THESE INSTRUCTIONS

AND OWNERS OF THIS TOOL!

14. Keep motor air vent clean.

The tool’s motor air vent must be kept clean so that air can freely fl ow at all times. Check for dust build-up frequently.

15. NEVER use a tool which is defective or operating

abnormally. If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a metabo HPT authorized service center.

16. NEVER leave tool running unattended. Turn

power off . Don’t leave tool until it comes to a complete stop.

17. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

18. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents. Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

19. ALWAYS wear eye protection that meets the

requirement of the latest revision of ANSI Standard Z87.1.

20. ALWAYS wear a mask or respirator to protect yourself

from dust or potentially harmful particles generated during operation.

21. ALWAYS fi rmly grip the handle while operating.

22. ALWAYS be careful with buried object such as an

underground wiring. Touching these active wiring or electric cable with this tool, you may receive an electric shock. Confi rm if there are any buried object such as electric cable within the wall, fl oor or ceiling where you are going to operate here after.

23. Defi nitions for symbols used on this tool

OPERATION To ensure safer operation of this power tool, metabo HPT has adopted a double insulation design. “Double insulation” means that two physically separated insulation systems have been used to insulate the electrically conductive materials connected to the power supply from the outer frame handled by the operator. Therefore, either the symbol “ ” or the words “Double insulation” appear on the power tool or on the nameplate. Although this system has no external grounding, you must still follow the normal electrical safety precautions given in this Instruction Manual, including not using the power tool in wet environments. To keep the double insulation system eff ective, follow these precautions:

Only metabo HPT AUTHORIZED SERVICE CENTER should disassemble or assemble this power tool, and only genuine metabo HPT replacement parts should be installed.

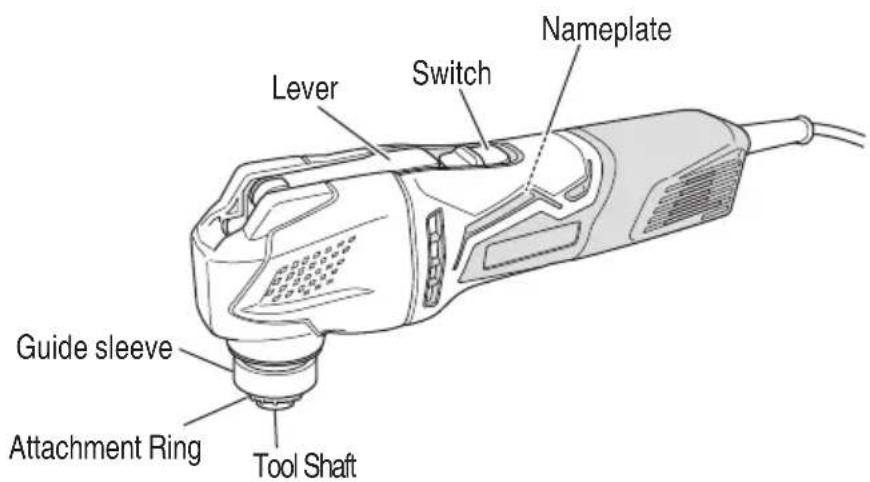

Clean the exterior of the power tool only with a soft cloth moistened with soapy water, and dry thoroughly. Never use solvents, gasoline or thinners on plastic components; otherwise the plastic may dissolve. 000BookCV350VNAmetabo.indb6000BookCV350VNAmetabo.indb6 2018/03/2010:06:042018/03/2010:06:047 English FUNCTIONAL DESCRIPTION NOTE The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool. NEVER operate, or attempt any maintenance on the tool unless you have fi rst read and understood all safety instructions contained in this manual. Some illustrations in this Instruction Manual may show details or attachments that diff er from those on your own power tool.

The lever is attached to a strong spring. Be very careful not to get your fi ngers caught when pushing the lever down. NOTE

Make sure the facing of the application tool is correct.

Make sure the application tool is properly set on the protrusion of the attachment ring. (1) Pull the lever up. There will be some resistance, but make sure the lever is pulled until it is parallel with the main unit. (2) Pull and turn the guide sleeve until “ ” is aligned with the “ ” mark. (3) Pull out the tool shaft. (4) Attach the application tool to the attachment ring, making sure the tool’s hole is fi tted to the ring’s protrusion. The angle of attachment for the application tool can be set in 30° increments. (5) Insert the tool shaft. (6) Align the guide sleeve’s “ ” mark to the “ ” position. (7) Push down the lever. (8) Align the holes when sticking the sanding paper to the sanding pad. APPLICATIONS

Flush cutting and pocket cutting of various materials

Peeling of tiles, caulking, etc.

Polishing wood materials, etc.

Ensure that the power source to be utilized conforms to the power source requirements specifi ed on the product nameplate.

Ensure that the switch is in the OFF position. If the plug is connected to a receptacle while the switch is in the ON position, the power tool will start operating immediately and can cause serious injury.

When the work area is far away from the power source, use an extension cord of suffi cient thickness and rated capacity. The extension cord should be kept as short as practicable. WARNING Damaged cord must be replaced or repaired.

4. Check the receptacle

If the receptacle only loosely accepts the plug, the receptacle must be repaired. Contact a licensed electrician to make appropriate repairs. If such a faulty receptacle is used, it may cause overheating, resulting in a serious hazard.

5. Preparing and checking the work environment

Make sure that the work site meets all the conditions laid forth in the precautions.

6. Checking the Accessory

Check to see if the application tool is a genuine component recommended by the manufacturer and that there are no cracks or other damage.

Check to see if the application tool is properly installed as instructed.

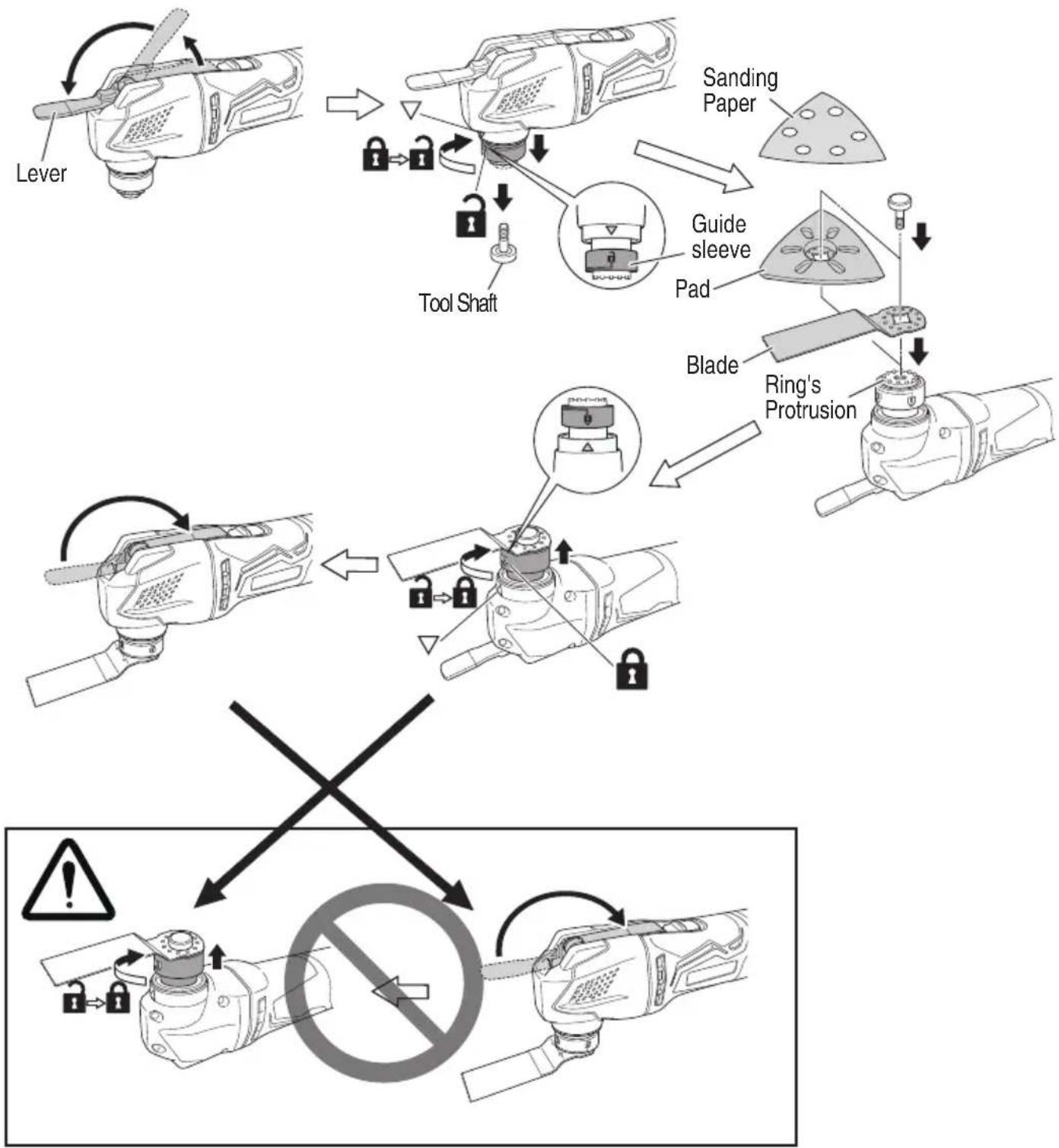

7. Changing application tools (Fig. 3)

Be sure to switch power OFF and the electrical cord has been disconnected from the receptacle when changing application tools.

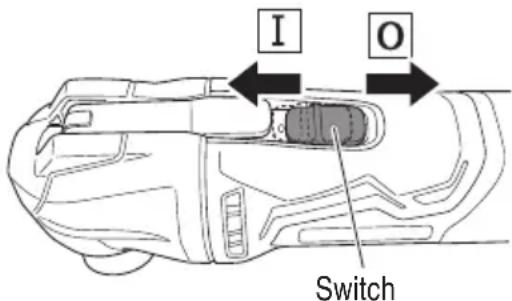

8. Sliding the switch towards

will switch on. (Fig. 4) To turn the main unit off , slide the switch towards

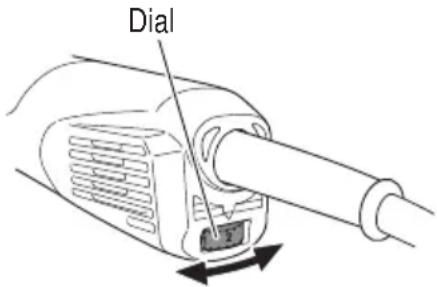

9. Adjusting operating speed (Fig. 5)

The tool is equipped with two modes: “Standard Mode” and “AUTO Mode”. (1) Standard Mode You can change the vibration frequency between 6,000 to 20,000 /min by adjusting the dial from “1” to “5”. (2) AUTO Mode Depending on the workload, AUTO Mode “A” will automatically change the vibration frequency to 15,000 /min or 20,000 /min. This has the eff ect of lowering vibration and noise prior to and during operation. Adjust the dial for the mode and speed that best suits your task conditions and materials. Dial Fig. 5 Table 1 Operating speed Mode Dial Vibration frequency Standard Mode 1 – 5 6,000 – 20,000 /min AUTO Mode A No load: 15,000 /min With load: 20,000 /min With AUTO Mode, the vibration frequency may not reach 20,000 /min or return to 15,000 /min depending on variables such as the type of work or the attachment in use. CAUTION

When switching on the tool, make sure the application tool is not in contact with the material to be processed. Failure to do so may result in injury.

For cutting effi ciency, switch the speed of the application tool according to task conditions and materials to be cut.

Do not apply any unnecessary pressure when operating the tool. Doing so may damage the application tool.

After use, be sure not to place the tool near chips or sawdust before it comes to a full stop as the tool may suck in those particles.

CUTTING, SAWING AND SCRAPING

Sawing and scraping tasks require specifi c application tools (sold separately). WARNING

Be absolutely sure to keep the switch turned off and the electrical cord has been disconnected from the receptacle to prevent any accident.

During operation, do not place your face or hands near the application tool of the unit.

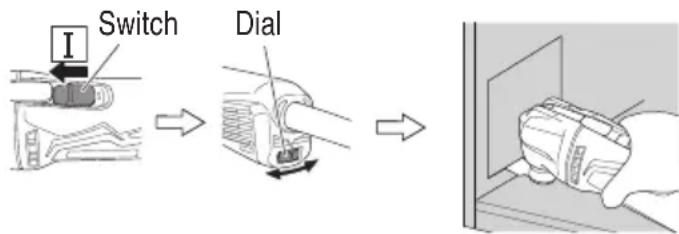

1. Switch the unit on and use the dial to set the speed of

the application tool. (Fig. 6)

2. Lightly place the application tool on the material and

move the application tool forward at a pace where the movement isn’t slowed. (Fig. 6)

Dial Switch Fig. 6 SANDING Sanding tasks require specifi c application tools (sold separately). WARNING

Be absolutely sure to keep the switch turned off and the electrical cord has been disconnected from the receptacle to prevent any accident.

During operation, do not place your face or hands near the application tool of the unit.

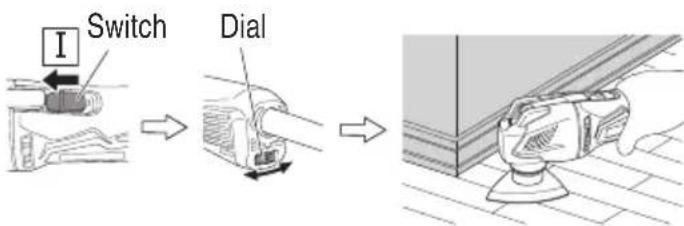

1. Switch the unit on and use the dial to set the speed of

the application tool. (Fig. 7)

2. Lightly place the application tool on the material and

move the application tool back and forth at a pace where the movement isn’t slowed. (Fig. 7) CAUTION

Do not polish wood with sanding paper used for metal polishing.

How to place the sandpaper Lightly press the tool to the surface to be processed; making sure that the sandpaper is evenly applied to the surface. Applying unnecessary pressure will place stress on the motor and shorten the sandpaper’s life, reducing polishing effi ciency.

How to move the tool Using your hand, repeatedly push out and pull back in a back and forth motion.

New coarse sandpaper with rougher grit New coarse sandpaper with rougher grit may cause the unit to jerk. During the start of the task, slightly tilt the unit towards the front or back for a while, maintaining the tilted position. The jerking will stop as the sandpaper adapts to the task.

Until the surface being processed is polished Use the same grade of sandpaper until the surface being processed is evenly polished. Switching to a diff erent grade of sandpaper when the task is not completed may result in an uneven fi nish.

Testing Before starting a task, it is recommended that you check the vibration frequency using excess material. 000BookCV350VNAmetabo.indb11000BookCV350VNAmetabo.indb11 2018/03/2010:06:062018/03/2010:06:0612 English

Be sure to switch power OFF and disconnect the plug from the receptacle during maintenance and inspection.

1. Inspecting the application tool

Continued use of a dull or damaged application tool will result in reduced cutting effi ciency and may cause overloading of the motor. Replace the application tool with new one as soon as excessive abrasion is noted.

Loose screws are dangerous. Regularly inspect them and make sure they are tight. WARNING Using this power tool with loosened, screws is extremely dangerous.

3. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

Dust may be removed with a soft cloth or a cloth dampened with soapy water. Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

5. Inspecting the carbon brushes

For your continued safety and electrical shock protection, carbon brush inspection and replacement on this tool should ONLY be performed by a metabo HPT AUTHORIZED SERVICE CENTER.

6. Replacing supply cord

If the supply cord of Tool is damaged, the Tool must be returned to metabo HPT Authorized Service Center for the cord to be replaced.

Storing in a place below 104°F (40°C) and out of the reach of children.

8. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY.

9. Service parts list

CAUTION Repair, modification and inspection of metabo HPT Power Tools must be carried out by a metabo HPT Authorized Service Center. This Parts List will be helpful if presented with the tool to the metabo HPT Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. MODIFICATIONS metabo HPT Power Tools are constantly being improved and modifi ed to incorporate the latest technological advancements. Accordingly, some parts may be changed without prior notice. 000BookCV350VNAmetabo.indb12000BookCV350VNAmetabo.indb12 2018/03/2010:06:062018/03/2010:06:0613 English ACCESSORIES WARNING ALWAYS use Only authorized metabo HPT replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this tool. Contact metabo HPT if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. NOTE Accessories are subject to change without any obligation on the part of the metabo HPT. STANDARD ACCESSORIES

For details contact metabo HPT Authorized Service Center. NOTE Specifi cations are subject to change without any obligation on the part of the metabo HPT. 000BookCV350VNAmetabo.indb13000BookCV350VNAmetabo.indb13 2018/03/2010:06:062018/03/2010:06:0614 Français

HEAD COVER (A).(B) SET 1

Item No. PART NAME Q’TY

TAIL COVER (A).(B) SET 1
