MODEL CODE: RF6H*, RS68A*, RS6GA*, RS67A*, RS66A*, RS68N*, RS67M*, RS66M*, RS6GN*, RS6JN*, RS6KN*

1. You can check where to buy replacement parts at http://samsung.com/support
2. Visit the part purchase site and enter the model code of your product to check the parts available for purchase. The model code is labelled on the outer side of your product.
3. You can check the model code and version on the barcode label at the bottom left of the product.
4. For replacement parts, make sure the part name matches that of the illustration in this manual.
5. User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you choose the right part name.
• Replacing hinges requires extreme caution because it involves detaching the door.
• Be sure to wear safety gloves while making repairs.

English

The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

Technical diagram of an open refrigerator with labeled compartments and door indicators

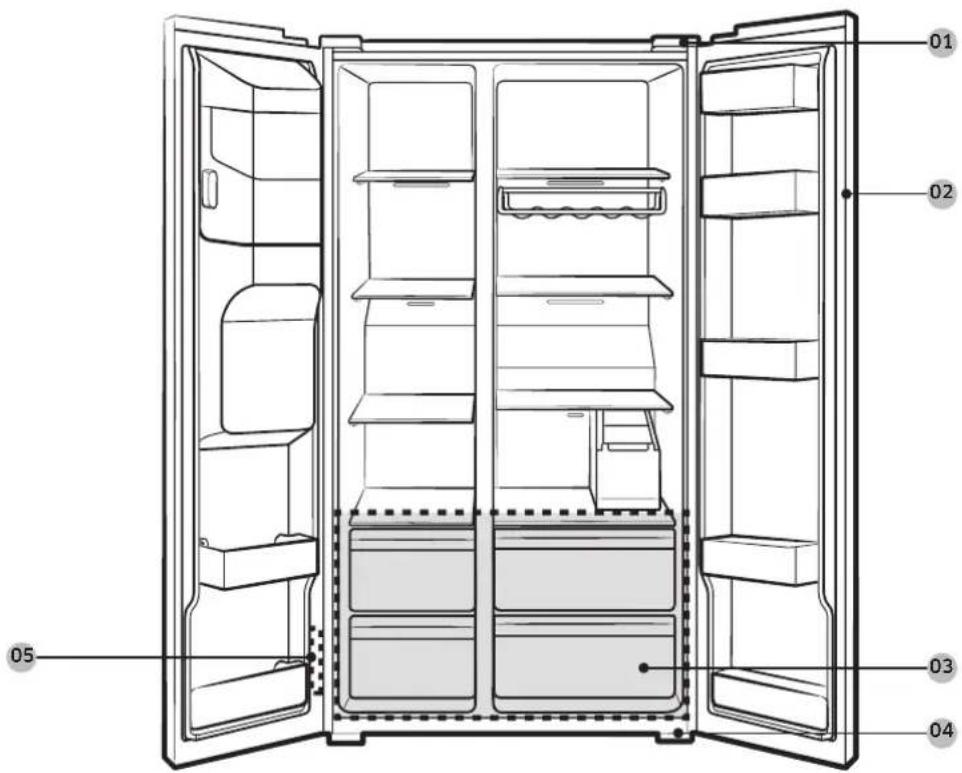

01 Top hinge 02 Gasket
03 Drawer 04 Bottom hinge
05 Barcode label

English

Gasket replacement

CAUTION

Make sure you firmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

To remove the gasket

Close-up of a hand holding a white plastic sheet with a red arrow pointing to it, against a plain background (no text or symbols)

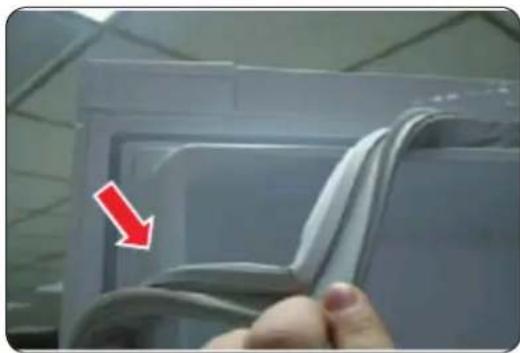

Open the door and remove the gasket from the door.

To replace the gasket

Attach a new gasket to the refrigerator door. Make sure there is no gap between the new gasket and the door.

English

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

Drawers

Diagram of a plastic container with an arrow pointing downward (no text or symbols)

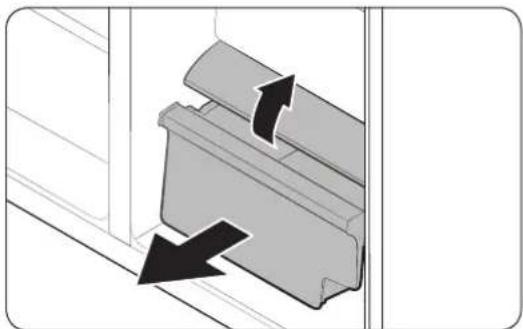

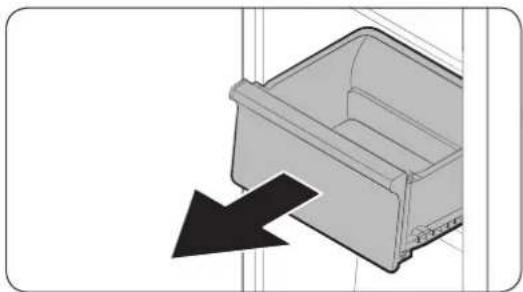

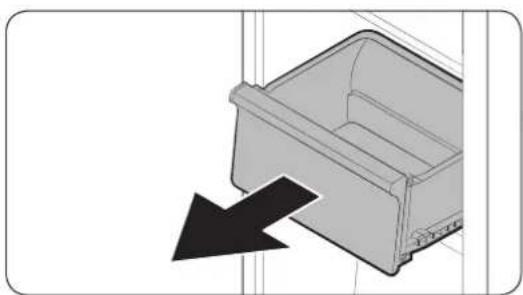

Gently lift up the front of the drawer and slide out.

Vegetable / Dried food and meat storage drawer

Diagram showing two arrows pointing to a mechanical component or bracket, with no visible text or symbols.

To remove the vegetable drawer from the fridge or the dry drawer from the freezer:

1. First, remove surrounding multipurpose drawers if necessary.

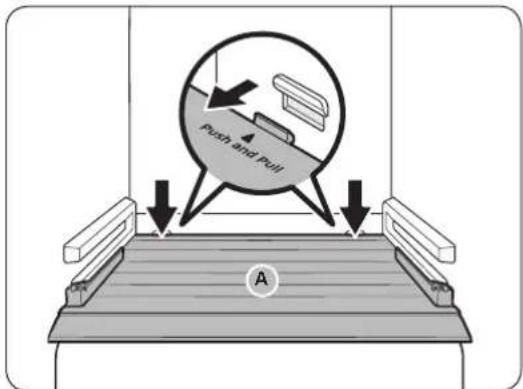

Push and Pull A

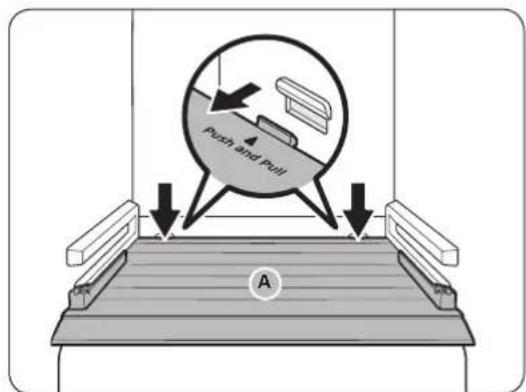

1. If your refrigerator has a cover (A) for the vegetable/dry drawer, remove it in the following method.

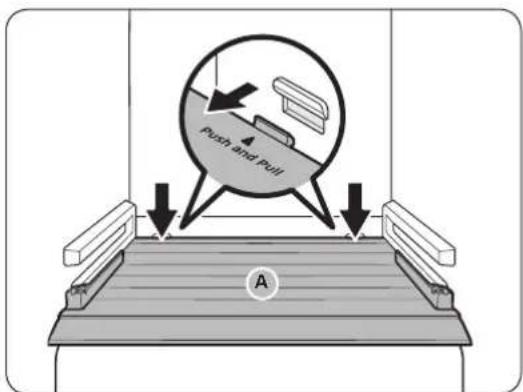

a. Pull the drawer halfway out.

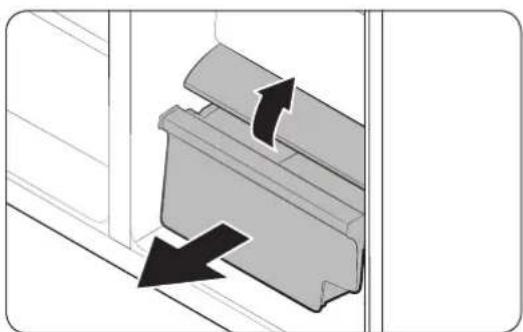

b. Pull the cover while pressing the rear sides (as marked in the figure).

1. Gently pull out the vegetable/dry drawer.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps

English

Hinge replacement

To replace the hinges, you must remove the doors first.

CAUTION

• When removing the doors, take extreme caution because the doors are heavy.
• Before replacing the hinges, put a soft pad such as cardboard on the floor to prevent scratches on the door when you place the doors down.
• As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.
• If you remove the hinge without holding the door, the door may fall and cause injury.
• Ensure that the shaft is firmly tightened on the hinge.
• Check that the hinge is firmly attached to the cabinet.
• Make sure the wire connectors are connected properly.
• Be careful not to damage the wires when fastening the top cover.

WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.
• Disconnect the power cord before reversing the doors.

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver

Socket spanner (10 mm)

Allen spanner (5 mm)

English

To replace the hinges

Disconnect the water line

CAUTION

• Make sure the water hoses are connected with matching colours. (only for Dispenser model)
• To prevent water leaks, each water hose must be inserted fully to the centre of the transparent coupler. (only for Dispenser model)
• Ensure that the water hose surface is not damaged. (only for Dispenser model)

Diagram showing a device being inserted into a rack, with a black arrow indicating the direction of insertion.

Diagram showing mechanical assembly with labeled parts A and B, including directional arrows indicating movement or flow.

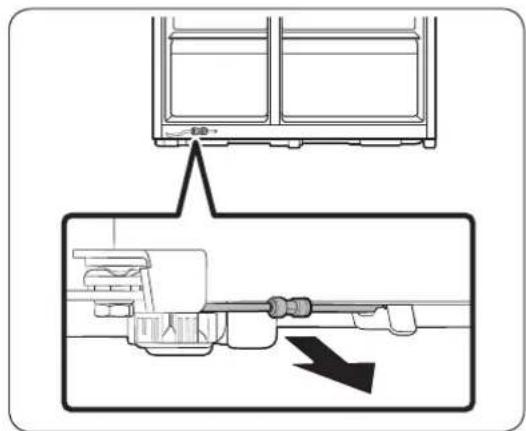

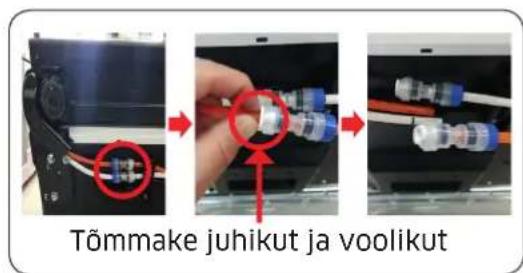

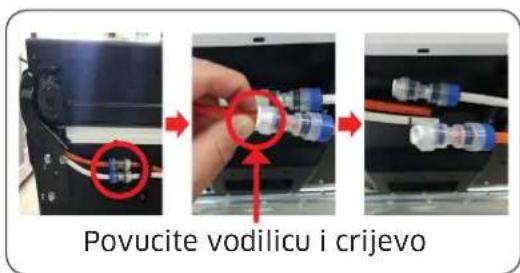

1. From the bottom rear side of the refrigerator, pull out the water line to the front.

NOTE

The refrigerator's water line is a water circulation line that connects between the water pipe from the water source and the hoses from the water filtering system of the refrigerator.

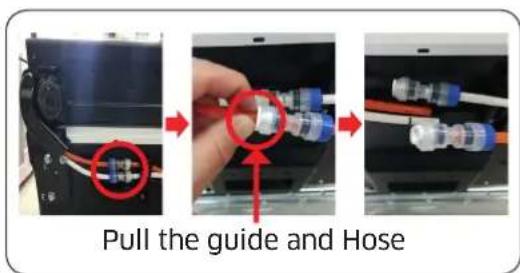

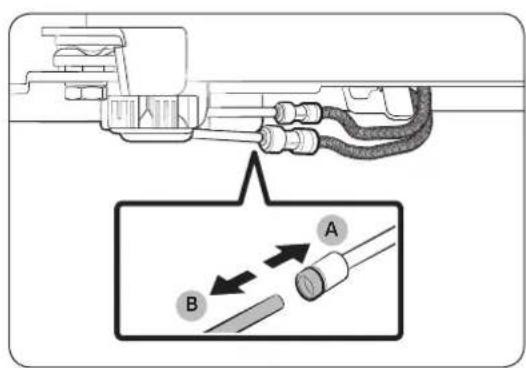

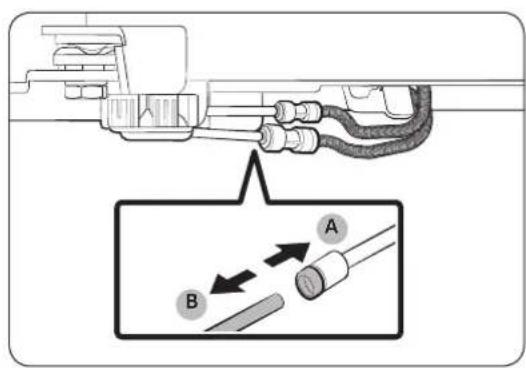

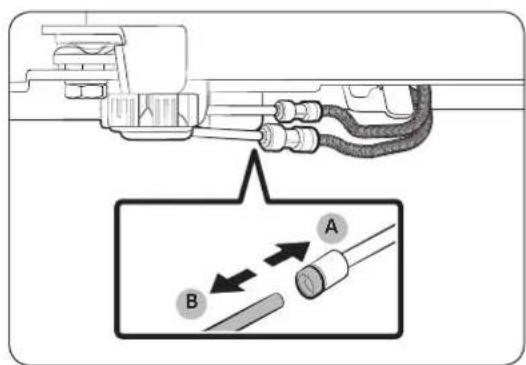

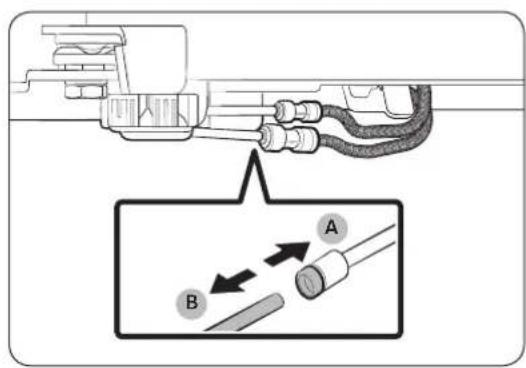

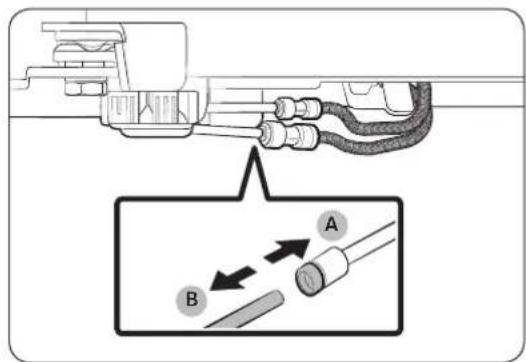

1. To disconnect the hoses, press and hold the transparent coupler (A) and detach the water hose (B).

CAUTION

Do not apply excessive force to the coupler. It may break.

English

Detach the doors

CAUTION

The door may fall off or over and damage itself during any of these steps. To prevent an accident, use extreme caution when performing these steps.

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

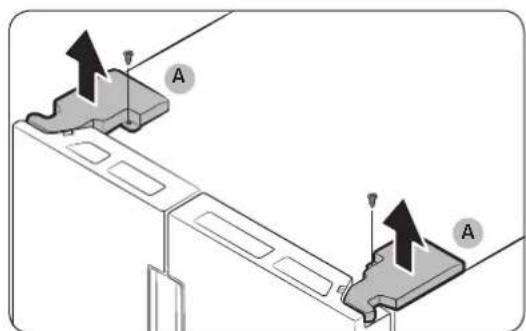

1. Use a Phillips screwdriver to unscrew the hinge covers (A) on the top of each door.
2. Open the doors to loosen the hinges and remove the hinge covers. Once the covers are removed, close the doors.

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

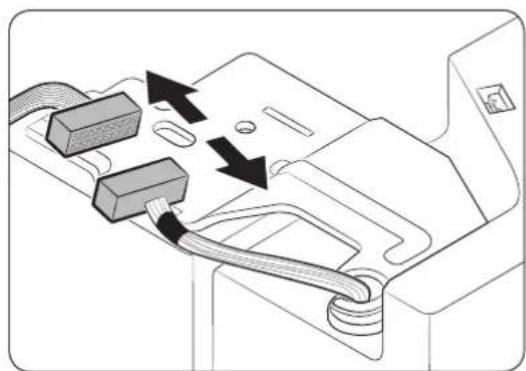

1. Disconnect the electrical harness.

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

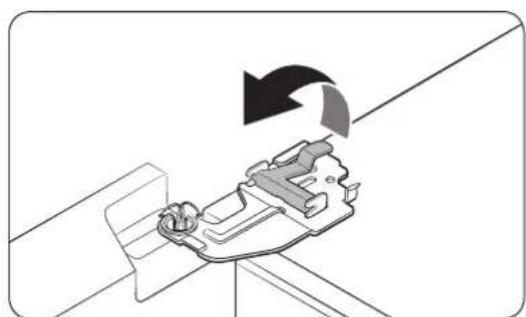

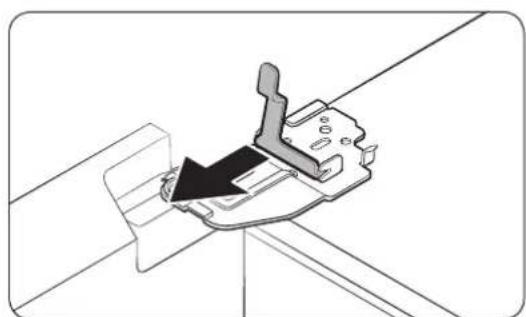

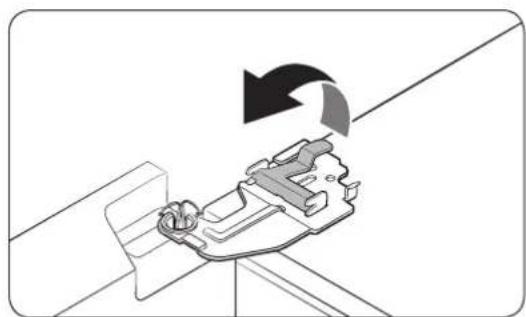

1. Gently lift the clamp.

NOTE

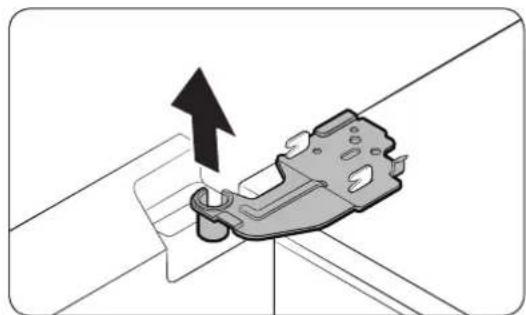

To prevent damage to the clamp or injuries, do not lift the clamp forcefully.

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

1. Pull the clamp to remove.

English

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

1. Open the door by 90 degrees. While holding the door, remove the hinge.

CAUTION

If you remove the hinge without holding the door, the door may fall and cause injury.

English

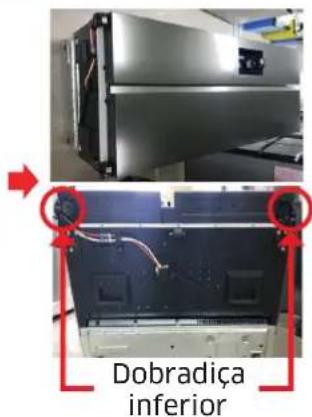

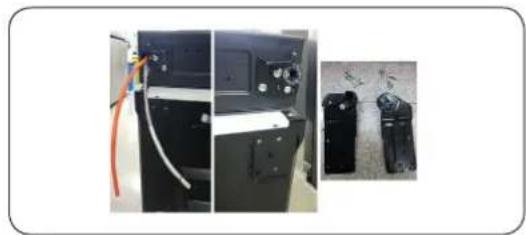

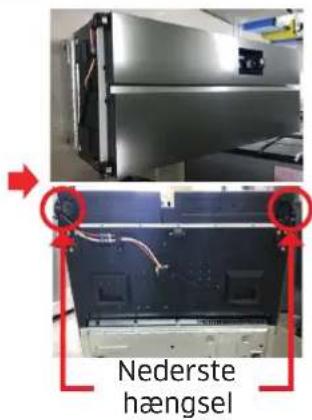

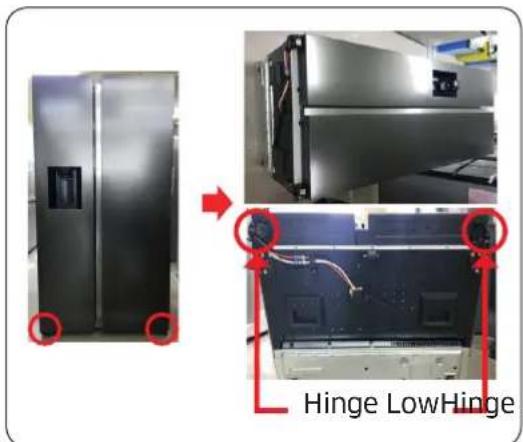

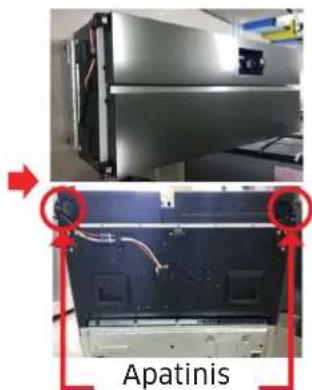

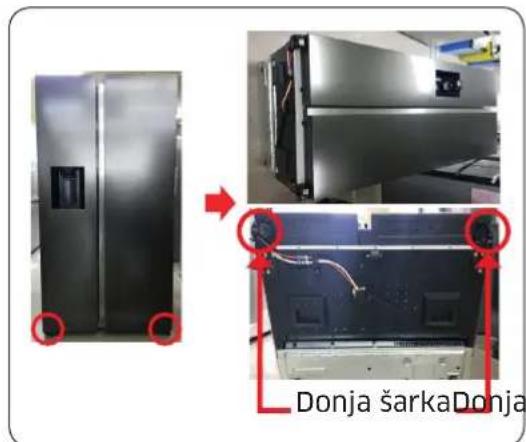

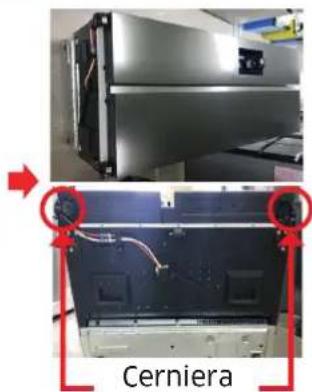

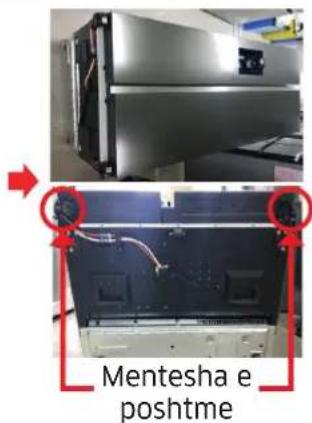

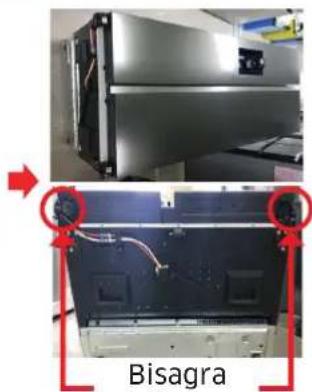

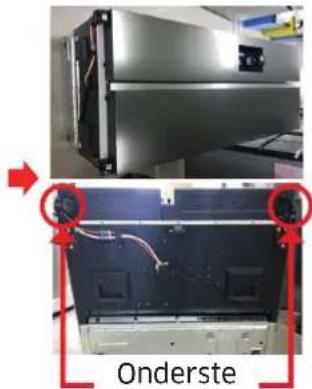

Hinge Low

Hinge LowHinge

Pull the guide and Hose

Close-up of a mechanical device with visible components and no text or symbols

Interior view of a laboratory or lab equipment room with tubing and control panels, alongside two close-up photos of mechanical components (no visible text or symbols)

1. Lay down the set.

CAUTION

• Must working more than 2 people.

• Be sure to unplug the Power Cord before performing the operation above.

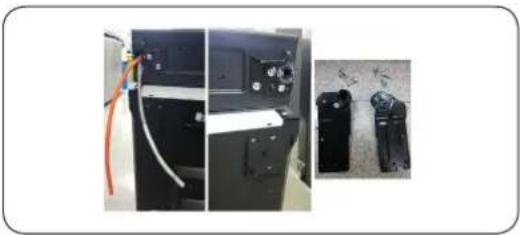

• Disconnect Hose. (Only Hinge Low Left)

• Exhaust Water in Hose. (Only Hinge Low Left)

• Remove Bolt(3ea). (Using spanner or 10mm Box wrench)

• Remove Hinge Low L/R.

• Reassemble in the opposite order of disassemble after replacing the top, middle, and/or bottom hinge.

CAUTION

• Make sure the wire connectors are connected properly.
- Be careful not to damage the wires when fastening the top cover.

English

Reconnect the water hoses

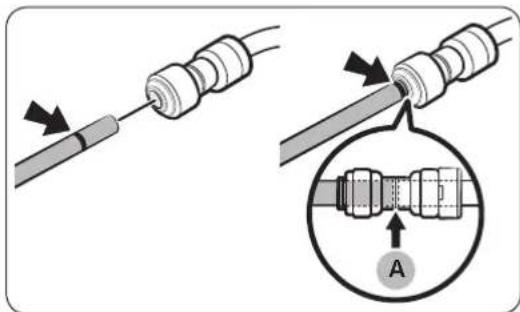

Once the refrigerator has passed through the entrance, reconnect the water hoses.

Diagram illustrating the step-by-step assembly of a resistor with labeled components and directional arrows

A. Centre of transparent coupler

CAUTION

• Make sure the water hoses are connected with matching colours.
- To prevent water leaks, each water hose must be inserted fully to the centre of the transparent coupler.
• After reconnecting the water hoses, push them under the cabinet and arrange them on the hook.

CAUTION

• Make sure the wire connectors are connected properly.
• Be careful not to damage the wires when fastening the top cover.

English

Guide de réparation

CODE DU MODÈLE : RF6H*, RS68A*, RS6GA*, RS67A*, RS66A*, RS68N*, RS67M*, RS66M*, RS6GN*, RS6JN*, RS6KN*

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic sheet with a red arrow pointing to it, against a plain background (no text or symbols)

Diagram of a plastic drawer with a black arrow pointing to it, no text or symbols present

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

Push and Pull A

Diagram showing a device with a switch and a mechanical component, annotated with a downward arrow indicating motion or force.

Technical diagram showing mechanical assembly with labeled components A and B, including directional arrows indicating movement or flow.

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Front view of a stainless steel double refrigerator with two red circles highlighting the front door (no visible text or symbols)

Close-up of a black robotic device with visible mechanical components and no text or symbols

Interior view of a device with cables and components, alongside two small black electronic devices on a floor (no visible text or symbols)

1. Déposez l'ensemble.

ATTENTION

Diagram illustrating a cable or wire assembly process with labeled component A, showing directional arrows and a magnified inset.

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a plastic drawer with a black arrow pointing to it, no text or symbols present

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

Push and Pull A

Diagram showing a device with a switch and a directional arrow indicating motion or force, likely illustrating a mechanical or electrical system.

Diagram showing mechanical assembly with labeled parts A and B, including directional arrows indicating movement or flow.

Technical diagram showing two mechanical components labeled A with upward arrows indicating motion or force direction.

Diagram of a mechanical or electrical component with two blocks connected by wires and arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a bracket with a black arrow indicating direction (no text or symbols)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Front view of a stainless steel refrigerator with two red circles highlighting the doors (no visible text or symbols)

Cerniera inferiore

Two views of a Cerniera industrial device showing internal components and wiring (no text or symbols visible)

Cerniera inferiore

Close-up of a mechanical device with visible components and mounting holes (no text or symbols)

Interior view of a laboratory equipment setup with tubing and control panels (no visible text or labels)

Diagram illustrating the step-by-step assembly of a resistor with labeled components and directional arrows

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a plastic drawer with an arrow pointing to it, no text or symbols present

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

push and pull A

Inbusschlüssel (5 mm)

Deutsch

Diagram showing a device with a switch and a mechanical component, annotated with a downward arrow indicating motion or force.

Technical diagram showing mechanical assembly with labeled components A and B, including directional arrows indicating movement or flow.

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Front view of a stainless steel double refrigerator with two red circles highlighting the front door (no visible text or symbols)

Unteres Scharnier

Unteres

Unteres Scharnier

Close-up of a mechanical device with visible gears and springs (no text or symbols)

Interior view of a laboratory equipment room with tubing and control panels, alongside two close-up photos of black objects (no visible text or symbols)

1. Legen Sie es hin.

⚠ VORSICHT

Diagram illustrating cable connection and disassembly process with labeled component A

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a plastic drawer with a black arrow pointing to it, no text or symbols present

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

Push and Pull A

Diagram showing a device with a switch and a directional arrow indicating motion or force, likely illustrating a mechanical or electrical system.

Diagram showing mechanical assembly with labeled parts A and B, including directional arrows indicating movement or flow.

Technical diagram showing two mechanical components labeled A with directional arrows indicating movement or force

Diagram of a mechanical or electrical component with two blocks connected by wires and arrows indicating direction (no text or symbols)

1. Ontkoppel de kabelboom.

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a bracket with a black arrow indicating direction (no text or symbols)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Front view of a stainless steel double refrigerator with two red circles highlighting the front door (no visible text or symbols)

Onderste scharnier

Close-up of a metallic electronic device with labeled components, showing front and side views (no readable text or symbols)

Onderste scharnier

Close-up of a mechanical device with visible components and no readable text or symbols

Interior view of a laboratory equipment room with tubing and control panels, alongside two separate black-and-white photos showing close-ups of mechanical components (no visible text or symbols)

1. Leg de set neer.

LET OP

Diagram illustrating the step-by-step assembly of a resistor with labeled components and directional arrows

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a plastic drawer with a black arrow pointing to it, no text or symbols present

Diagram showing a mechanical component with two arrows indicating motion, no text or symbols present

Push and Pull A

Diagram showing a device with a switch and a directional arrow indicating motion or force, likely illustrating a mechanical or electrical system.

Technical diagram showing mechanical assembly with labeled components A and B, including directional arrows indicating movement or flow.

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a bracket with a black arrow indicating direction (no text or symbols)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Front view of a stainless steel refrigerator with two doors and a side panel (no visible text or symbols)

Bisagra inferior

Two views of a computer monitor showing front and side views with connectors and a labeled 'Bisagra' (no readable text or symbols beyond labels)

Bisagra inferior

Close-up of a black robotic device with visible mechanical components and no text or symbols

Interior view of a laboratory equipment room with wiring and control panels, alongside two close-up photos of black electronic components (no visible text or symbols)

1. Deje el conjunto.

PRECAUCIÓN

Diagram illustrating a mechanical assembly process with labeled component A, showing tool path and detail view.

Technical diagram of an open refrigerator with labeled compartments and door indicators

01 Dobradiça superior 02 Vedante
03 Gaveta 04 Dobradiça inferior
05 Etiqueta de código de barras

Português

Close-up of a hand holding a white plastic sheet with a red arrow pointing to it, against a plain background (no text or symbols)

Diagram of a plastic drawer with a black arrow pointing to it, no text or symbols present

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

Push and Pull A

Diagram showing a device with a switch and a directional arrow indicating motion or force, likely illustrating a mechanical or electrical system.

Technical diagram showing mechanical assembly with labeled components A and B, including directional arrows indicating movement or flow.

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Front view of a stainless steel refrigerator with two doors and a side panel, marked by red circles (no visible text or symbols)

Dobradiça inferior

Dobradica inferior

Close-up of a mechanical device with visible components and mounting feet (no text or symbols)

Interior view of a device with cables and components, alongside two close-up views of black electronic devices (no visible text or symbols)

1. Pouse à parte.

ATENÇÃO

Diagram illustrating a cable or resistor assembly process with labeled component A and directional arrows indicating movement.

A. Centro do acoplador transparente

ATENÇÃO

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic sheet with a red arrow pointing downward (no text or symbols visible)

Diagram of a plastic drawer with a black arrow pointing downward (no text or symbols)

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

Push and Pull A

Diagram showing a device with a lock and a mechanical component being inserted, with a downward arrow indicating motion or force.

Diagram showing mechanical assembly with labeled parts A and B, including directional arrows indicating movement or flow.

Technical diagram showing two mechanical components labeled A with directional arrows indicating movement or force vectors.

Diagram of a car battery pack with two connectors and connecting wires (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a bracket with a black arrow indicating direction (no text or symbols)

Mechanical component diagram showing a bracket with an arrow indicating force or direction (no text or symbols)

Close-up of a mechanical device with visible components and wiring (no text or symbols)

Interior view of a control room with connected equipment and a close-up of two black electronic devices on the floor (no visible text or symbols)

Diagram illustrating the step-by-step assembly of a resistor with labeled component A

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a plastic drawer with a black arrow pointing to it, no text or symbols present

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

Push and Pull A

Diagram showing a device being inserted into a rack, with a black arrow indicating the direction of insertion.

Diagram showing mechanical assembly with labeled parts A and B, including directional arrows indicating movement or flow.

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two blocks connected by wires, showing directional arrows (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a bracket with a black arrow indicating direction (no text or symbols)

Mechanical component diagram showing a bracket with an arrow indicating force or direction (no text or symbols)

Close-up of a mechanical device with visible components and mounting brackets (no text or symbols)

Interior view of a laboratory or lab equipment room with tubing and control panels, alongside two close-up photos of mechanical parts (no visible text or symbols)

1. Lägg ned enheten.

⚠️ VAR FÖRSIKTIG

Diagram illustrating a cable assembly process with labeled components and directional arrows

A. Mitten av den transparenta kopplingen

⚠️ VAR FÖRSIKTIG

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic sheet with a red arrow pointing to it, against a plain background (no text or symbols)

Diagram of a plastic drawer with a black arrow pointing to it, no text or symbols present

Diagram showing a mechanical component with two arrows indicating motion, no text or symbols present

Push and Pull A

Diagram showing a device being inserted into a rack, with a black arrow indicating the direction of insertion.

Diagram showing mechanical assembly with labeled parts A and B, likely illustrating a component or assembly process.

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two blocks connected by wires, showing directional arrows (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a bracket with a black arrow indicating direction (no text or symbols)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Front view of a stainless steel double refrigerator with two red circles highlighting the front door (no visible text or symbols)

Nederste hængsel

Close-up of a black robotic device with visible mechanical components and no text or symbols

Interior view of a device with cables and components, alongside two small black electronic devices on a floor (no visible text or symbols)

1. Læg sættet ned.

⚠️ FORSIGTIG

Diagram illustrating a cable or resistor assembly process with labeled component A and directional arrows indicating movement.

Technical diagram of an open refrigerator with labeled compartments and door indicators

01 Topphengsel 02 Pakning
03 Skuff 04 Bunnhengsel
05 Strekkodeetikett

Norsk

Close-up of a hand holding a white plastic sheet with a red arrow pointing to it, against a plain background (no text or symbols)

Diagram of a plastic container with an arrow pointing downward (no text or symbols)

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

push and pull A

Diagram showing a device with a switch and a directional arrow indicating motion or force, likely illustrating a mechanical or electrical system.

Diagram showing mechanical assembly with labeled components A and B, including directional arrows indicating movement or flow.

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a bracket with a black arrow indicating direction (no text or symbols)

Mechanical component diagram showing a bracket with an arrow indicating force or direction (no text or symbols)

1. Åpne døren 90 grader. Mens du holder døren tar du av hengselet.

⚠ FORSIKTIG

Close-up of a mechanical device with visible components and wiring (no text or symbols)

Interior view of a device with visible wiring and control panel, alongside two black plastic components on a tiled floor (no text or symbols)

1. Legg settet ned.

⚠️ FORSIKTIG

Diagram illustrating the step-by-step assembly of a resistor with labeled components and directional arrows

Technical diagram of an open refrigerator with labeled compartments and door indicators

01 Yläsarana 02 Tiiviste
03 Lokero 04 Alasarana
05 Viivakooditarra

Suomi

Tiivisteen vaihto

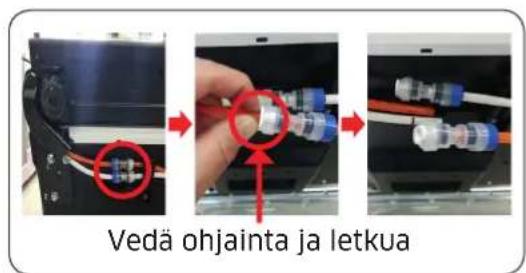

HUOMIO

Close-up of a hand holding a white plastic sheet with a red arrow pointing to it, against a plain background (no text or symbols)

Diagram of a plastic drawer with an arrow pointing to it, no text or symbols present

Diagram showing a mechanical component with two arrows indicating motion, no text or symbols present

Push and Pull A

Diagram showing a device being inserted into a rack, with a black arrow indicating the direction of insertion.

Diagram showing mechanical assembly with labeled parts A and B, likely illustrating a component or assembly process.

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Mechanical component diagram showing a bracket with an arrow indicating force or direction (no text or symbols)

1. Avaa ovea 90 astetta. Kannattele ovea ja irrota sarana.

HUOMIO

AlasaranaAlasar

Close-up of a mechanical device with visible components and no text or symbols

Interior view of a laboratory or lab equipment room with connected tubing and control panels (no visible text or symbols)

Diagram illustrating the step-by-step assembly of a resistor with labeled components and directional arrows

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a plastic container with an arrow pointing downward (no text or symbols)

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

push and pull A

Diagram showing a device with a switch and a directional arrow indicating movement or force, likely illustrating a mechanical or electrical process.

Diagram showing mechanical assembly with labeled parts A and B, including directional arrows indicating movement or flow.

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

1. Lekko unieś zacisk.

UWAGA

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Close-up of a mechanical device with visible components and wiring (no text or symbols)

Interior view of a laboratory or lab equipment room with tubing and control panels, alongside two separate close-up photos of mechanical components (no visible text or symbols)

Diagram illustrating the step-by-step assembly of a resistor with labeled components and directional arrows

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic sheet with a red arrow pointing to it, against a plain background (no text or symbols)

Diagram of a plastic drawer with a black arrow pointing to it, no text or symbols present

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

Push and Pull A

Diagram showing a device being inserted into a rack, with a black arrow indicating the direction of insertion.

Diagram showing mechanical assembly with labeled parts A and B, likely illustrating a component or assembly process.

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Close-up of a mechanical device with visible components and wiring (no text or symbols)

Interior view of a laboratory or lab equipment room with two black equipment cases, one showing a coiled tube and the other with a pair of black components (no visible text or symbols)

Diagram illustrating the step-by-step assembly of a resistor with labeled components and directional arrows

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Otvorte dvierka a zložte z nich tesnenie.

Osadenie tesnenia

Diagram of a plastic drawer with a black arrow pointing to it, no text or symbols present

Opatrne uchopte prednú stranu zásuvky a vytiahnite ju.

Zásuvka na zeleninu/sušené potraviny a mäso

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

Push and Pull A

1. Ak má vaša chladnička kryt (A) na zásuvku na zeleninu/suché potraviny, odstráňte ju pomocou nasledovnej metódy.

Diagram showing a device being inserted into a rack, with a black arrow indicating the direction of insertion.

Diagram showing mechanical assembly with labeled parts A and B, including directional arrows indicating movement or flow.

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

1. Odpojte zväzok káblov.

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

1. Jemne nadvihnite svorku.

POZNÁMKA

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

1. Otvorte dvierka o 90 stupňov. Pridržte dvierka a demontujte pánt.

POZOR

Close-up of a mechanical device with visible components and no text or symbols

Interior view of a laboratory or lab equipment room with connected tubing and control panels (no visible text or symbols)

Diagram illustrating the step-by-step assembly of a resistor with labeled components and directional arrows

A. Stred priehladnej spojky

POZOR

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic sheet with a red arrow pointing to it, against a plain background (no text or symbols)

Diagram of a plastic container with an arrow pointing downward (no text or symbols)

Diagram showing two arrows pointing to a mechanical component or bracket, with no visible text or symbols.

Push and Pull A

Diagram showing a device with a switch and a directional arrow indicating motion or force, likely illustrating a mechanical or electrical system.

Diagram showing mechanical assembly with labeled parts A and B, including directional arrows indicating movement or flow.

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Front view of a stainless steel refrigerator with two doors and a side panel, marked by red circles (no visible text or symbols)

Balamaua inferioară

Two views of a server rack with attached cables, one showing internal components and the other labeled 'Balamaua' (no readable text beyond label)

Balamaua inferioară

Close-up of a mechanical device with visible components and mounting feet (no text or symbols)

Interior view of a laboratory or lab equipment room with wiring and control panels, alongside two close-up photos of black electronic components on a wooden floor (no visible text or symbols)

Diagram illustrating the step-by-step assembly of a resistor with labeled component A

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic sheet with a red arrow pointing downward (no text or symbols visible)

Diagram of a plastic drawer with a black arrow pointing to it, no text or symbols present

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

Push and Pull A

Diagram showing a mechanical assembly with a downward arrow indicating direction, likely illustrating a process or assembly step.

Diagram showing mechanical assembly with labeled parts A and B, likely illustrating a component or assembly process.

Diagram of a mechanical assembly with two labeled components A, showing directional arrows (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a bracket with a black arrow indicating force or motion direction (no text or symbols)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Close-up of a mechanical device with visible components and a red highlight (no text or symbols)

Interior view of a kitchen appliance with visible tubing and control panel (no text or symbols)

1. Поставете комплекта.

⚠️ ВНИМАНИЕ

Diagram illustrating a cable assembly process with labeled component A, showing pin alignment and assembly steps.

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a plastic drawer with a black arrow pointing to it, no text or symbols present

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

Push and Pull A

Diagram showing a device with a switch and a mechanical component, annotated with a downward arrow indicating motion or force.

Diagram showing mechanical assembly with labeled parts A and B, including directional arrows indicating movement or flow.

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Mechanical component diagram showing a bracket with an arrow indicating force or direction (no text or symbols)

Close-up of a mechanical device with visible components and wiring (no text or symbols)

Interior view of a kitchen appliance with visible tubing and control panel (no text or symbols)

Diagram illustrating the step-by-step assembly of a resistor with labeled components and directional arrows

Technical diagram of an open refrigerator with labeled compartments and door indicators

01 Gornja šarka 02 Zaptivna guma
03 Fioka 04 Donja šarka
05 Oznaka sa bar-kodom

Srpski

Zamena zaptivne gume

OPREZ

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Otvorite vrata i sa njih skinite zaptivnu gumu.

Da biste zamenili zaptivnu gumu

Postavite novu zaptivnu gumu na vrata frižidera. Uverite se da između nove zaptivne gume i vrata nema razmaka.

Srpski

Zamena fioke

OPREZ

Tokom postavljanja, proverite da li je fioka pravilno umetnuta u vodice.

Fioke

Diagram of a plastic drawer with a black arrow pointing to it, no text or symbols present

Lagano podignite prednju stranu fioke i izvucite je.

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

Da biste izvukli fioku za povrće iz frižidera ili fioku za suvu hranu iz zamrzivača:

1. Najpre, izvadite okolne višenamenske fioke ako je potrebno.

Push and Pull A

Diagram showing a device being inserted into a rack, with a black arrow indicating the direction of insertion.

1. Povucite ka sebi crevo za vodu iz donjeg dela zadnje strane frižidera.

NAPOMENA

Crevo za vodu frižidera je vod za protok vode koji povezuje cev za vodu iz izvora vode i creva iz sistema za filtriranje vode frižidera.

Diagram showing mechanical assembly with labeled parts A and B, likely illustrating a component or assembly process.

1. Da biste otkačili creva, pritisnite i zadržite transparentnu spojnicu (A) i odvojite crevo za vodu (B).

OPREZ

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

1. Pomoću krstastog odvijača skinite zavrtnje na poklopcima za šarke (A) na vrhu oboje vrata.

2. Otvorite vrata da biste olabavili šarke i uklonili poklopce za šarke. Pošto su poklopci uklonjeni, zatvorite vrata.

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

1. Pažljivo podignite sponu.

NAPOMENA

Mechanical assembly diagram showing a bracket with a black arrow indicating direction (no text or symbols)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

1. Otvorite vrata za 90 stepeni. Skinite šarke pridržavajući vrata.

OPREZ

Ako šarku skinete bez pridržavanja vrata, vrata mogu pasti i naneti povrede osobama u blizini.

Srpski

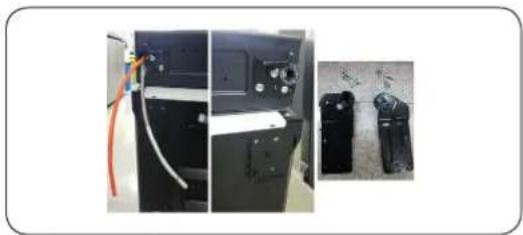

Donja šarka

Donja šarka Donja

Povucite vodicu i crevo

Close-up of a mechanical device with visible components and wiring (no text or symbols)

Interior view of a laboratory or lab equipment room with connected tubing and control panels (no visible text or symbols)

1. Položite uredaj.

OPREZ

• Za ovo su potrebne najmanje tri osobe.

• Obavezno isključite kabl za napajanje pre nego što započnete ovaj postupak.

• Otkačite crevo. (Samo donja leva šarka)

• Ispustite vodu iz creva. (Samo donja leva šarka)

• Skinite vijak (3 komada) (Upotrebite odvijač ili ključ od 10 mm iz kompleta)

• Skinite donju desnu i levu šarku.

• Postavljanje izvršite suprotnim redosledom od redosleda skidanja, nakon zamene gornje, srednje i/ili donje šarke.

OPREZ

• Proverite da li su konektori kablova pravilno priključeni.
- Pazite da ne oštetite kablove dok pričvršćujete gornji poklopac.

Srpski

Diagram illustrating the step-by-step assembly of a resistor with labeled components and directional arrows

A. Središte providne spojnice

OPREZ

• Proverite da li su creva za vodu povezana sa odgovarajućim bojama.

- Da biste sprečili curenje vode, svako crevo za vodu mora do kraja biti gurnuto u središte providne spojnice.

- Nakon ponovnog povezivanja creva za vodu gurnite ih ispod kućišta i postavite ih na kuku.

OPREZ

• Proverite da li su konektori kablova pravilno priključeni.
- Pazite da ne oštetite kablove dok pričvršćujete gornji poklopac.

Srpski

Technical diagram of an open refrigerator with labeled compartments and door indicators

01 Gornja šarka 02 Brtva
03 Ladica 04 Donja šarka
05 Naljepnica s crtičnim kodom

Hrvatski

Zamjena brtve

OPREZ

Pobrinite se da čvrsto pričvrstite brtvu. U suprotnome bi hladan zrak iz hladnjaka mogao izlaziti van.

Za uklanjanje brtve

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Otvorite vrata i uklonite brtvu s vrata.

Za zamjenu brtve

Diagram of a plastic drawer with an arrow pointing to it, no text or symbols present

Pažljivo podignite prednji dio ladice i izvucite je.

Diagram showing a mechanical component with two arrows indicating motion, no text or symbols present

Za uklanjanje ladice za povrće iz hladnjaka ili ladice za sušenu hranu iz zamrzivača:

1. Po potrebi najprije izvadite višenamjenske ladice koje je okružuju.

Push and Pull A

1. Ako je vaš hladnjak opremljen poklopcem (A) za ladicu za povrće / suhu hranu, uklonite ga na sljedeći način.

a. Napola izvucite ladicu. b. Povlačite poklopac dok pritišćete stražnje strane (kao što je prikazano na slici).

Diagram showing a device being inserted into a rack, with a black arrow indicating the direction of insertion.

Diagram showing mechanical assembly with labeled components A and B, likely illustrating a valve or connector assembly.

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

1. Iskopčajte električni sklop.

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

1. Nježno podignite stegu.

NAPOMENA

Kako biste spriječili oštećenje stege ili povrede, nemojte podizati stegu na silu.

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Donja šarka Donja

Povucite vodilicu i crijevo

Close-up of a mechanical device with visible components and wiring (no text or symbols)

Interior view of a laboratory or lab equipment room with two black equipment cases, one showing a coiled tube and the other with a pair of black components (no visible text or symbols)

1. Odložite komplet.

OPREZ

• Ovo moraju obavljati dvije ili više osoba.
• Pobrinite se da iskopčate kabel za napajanje prije nego što provedete prethodnu radnju.
• Odvojite crijevo. (Samo donja lijeva šarka)
• Ispraznite vodu iz crijeva (Samo donja lijeva šarka)
• Uklonite vijak (3 ea). (Upotreba zatezača ili ključa od 10 mm)
• Uklonite lijevu/desnu donju šarku.
• Ponovno sastavite suprotnim redoslijedom od odvajanja nakon što zamijenite gornju, srednju i/ili donju šarku.

OPREZ

Diagram illustrating a cable assembly process with labeled components and directional arrows

A. Sredina prozirne spojnice

OPREZ

- Pazite da su crijeva za vodu priključena u skladu s bojama.

Technical diagram of an open refrigerator with labeled compartments and door indicators

01 Mentesha e sipërme 02 Guarnicioni
03 Sirtari 04 Mentesha e poshtme
05 Etiketa e barkodit

Shqip

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a plastic drawer with an arrow pointing to it, no text or symbols present

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

push and pull A

Diagram showing a device with a switch and a directional arrow indicating motion or force, likely illustrating a mechanical or electrical system.

Diagram showing mechanical assembly with labeled parts A and B, including directional arrows indicating movement or flow.

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Front view of a stainless steel double refrigerator with two red circles highlighting the front door (no visible text or symbols)

Mentesha e poshtme

Mentesha e poshtme

Close-up of a black robotic device with visible mechanical components and no text or symbols

Interior view of a device with cables and components, alongside two small black electronic devices on a floor (no visible text or symbols)

Diagram illustrating the step-by-step assembly of a resistor with labeled components and directional arrows

A. Qendra e xhuntos transparente

KUJDES

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic sheet with a red arrow pointing to it, no visible text or symbols.

Diagram of a plastic drawer with a black arrow pointing downward (no text or symbols)

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

Push and Pull A

Diagram showing a mechanical assembly with a downward arrow indicating direction, likely illustrating a process or motion in a device.

Diagram showing mechanical assembly with labeled parts A and B, including directional arrows indicating movement or flow.

Technical diagram showing two mechanical components labeled A with upward arrows indicating motion or force direction.

Diagram of a mechanical or electronic component with two connectors and connecting wires, no visible text or symbols

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a bracket with a black arrow indicating direction (no text or symbols)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Close-up of a mechanical device with visible components and wiring (no text or symbols)

Interior view of a computer room with connected cables and a close-up of two black electronic devices on the floor (no visible text or symbols)

1. Легнете го сетот.

⚠️ ВНИМАНИЕ

Diagram illustrating the step-by-step assembly of a resistor with labeled component A

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a plastic drawer with a black arrow pointing to it, no text or symbols present

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

push and pull A

Diagram showing a device with a switch and a directional arrow indicating motion or force, likely illustrating a mechanical or electrical system.

Diagram showing mechanical assembly with labeled parts A and B, including directional arrows indicating movement or flow.

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

1. Lahutage elektrijuhtmed.

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Alumine hingAlumi

Close-up of a mechanical device with visible components and no text or symbols

Interior view of a laboratory or lab equipment room with connected tubing and control panels (no visible text or symbols)

1. Laotage komplekt maha.

ETTEVAATUST!

Diagram illustrating the step-by-step assembly of a resistor with labeled components and directional arrows

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a plastic drawer with a black arrow pointing to it, no text or symbols present

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

Push and Pull A

Diagram showing a device being inserted into a rack, with a black arrow indicating the direction of insertion.

Diagram showing mechanical assembly with labeled parts A and B, likely illustrating a component or assembly process.

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Front view of a stainless steel refrigerator with two doors and a side panel, marked by red circles (no visible text or symbols)

Apatinis lankstas

Close-up of a metallic electronic device with attached wires, labeled 'Apatinis' (no other text or symbols visible)

Apatinis lankstas

Close-up of a mechanical device with visible components and mounting holes (no text or symbols)

Interior view of a device with cables and components, alongside two close-up views of black electronic devices (no visible text or symbols)

1. Sudèkite rinkinj.

⚠️ DÊMESIO

Diagram illustrating the step-by-step assembly of a resistor with labeled component A

A. Skaidrios jungiamosios movos vidurys

⚠️ DÊMESIO

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Atveriet durvis un iznemiet blivi no durvim.

Lai nomainītu blīvi

Diagram of a plastic drawer with an arrow pointing to it, no text or symbols present

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

push and pull A

Diagram showing a device being inserted into a rack, with a black arrow indicating the direction of insertion.

Diagram showing mechanical assembly with labeled parts A and B, including directional arrows indicating movement or flow.

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

1. Lai atvienotu skavu, pavelciet to.

Latviešu

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

1. Atveriet durvis 90 grādu leŋkī. Satveriet durvis un atvienojiet enği.

⚠ UZMANĪBU!

Close-up of a robotic device with visible mechanical components and no text or symbols

Interior view of a device with visible wiring and control panel, alongside two black electronic components on a tiled floor (no text or symbols)

1. Nolieciet komplektu.

⚠ UZMANĪBU!

Diagram illustrating a cable or resistor component being inserted into a wire, with an inset showing the internal structure labeled A.

Technical diagram of an open refrigerator with labeled compartments and door indicators

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Odprite vrata in z vrat odstranite tesnilo.

Zamenjava tesnila

Na vrata hladilnika pritrdite novo tesnilo. Prepričajte se, da med novim tesnilom in vrati ni vrzeli.

Slovenščina

Zamenjava predala

PREVIDNO

Diagram of a plastic drawer with a black arrow pointing to it, no text or symbols present

Previdno dvignite sprednji del predala in ga izvlecite.

Predal za zelenjavo/suho hrano in meso

Diagram showing a mechanical component with two arrows indicating direction, no text or symbols present

Push and Pull A

Diagram showing a device with a switch and a directional arrow indicating motion or force, likely illustrating a mechanical or electrical system.

1. S spodnje zadnje strani hladilnika povlecite cev za vodo na sprednjo stran.

OPOMBA

Diagram showing mechanical assembly with labeled parts A and B, including directional arrows indicating movement or flow.

1. Če želite cevi ločiti, pritisnite in pridržite prozorno spojko (A) ter snemite cev za vodo (B).

PREVIDNO

Diagram of two mechanical components labeled A, showing alignment and force vectors (no text or symbols beyond labels)

Diagram of a mechanical or electrical component with two connectors and connecting wires, no visible text or symbols

1. Odklopite kabelski snop.

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

1. Zaponko povlecite, da jo odstranite.

Slovenščina

Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols)

Close-up of a mechanical device with visible components and no text or symbols

Interior view of a laboratory or lab equipment room with connected tubing and control panels (no visible text or symbols)

1. Komplet položite na tla.

PREVIDNO

Diagram illustrating a cable or resistor assembly process with labeled component A and directional arrows indicating movement.
