USER MANUAL Lounge Heater 272411 Hendi

Exterior view of a modern outdoor heating lamp with dual-mounted fans and a central canopy (no visible text or symbols)

You should read this user manual carefully before using the appliance.

READ MANUAL

Keep these instructions with the appliance.

Thank you for purchasing this Hendi appliance. Please read this manual carefully before connecting the appliance in order to prevent damage due to incorrect use. Read the safety regulations in particular very carefully.

Safety regulations

• This appliance must be used outdoors or in a well ventilated area, and should not be installed or used indoors.
• Change the gas cylinder in a well ventilated area, away from any inflammation sources.
• The cylinder must be stored outdoors or in a well ventilated area.
• Storage this appliance indoors is permissible only if gas cylinder is disconnected and removed from the appliance.
• Do not move this appliance when in operation, or after it has been turned off before the temperature has cooled down.
• Do not attempt to alter the appliance in any manner. Do not paint the radiant screen, control panel or reflector.
• Do not obstruct the ventilation holes of the cylinder housing.
• The appliance must be installed and gas cylinder stored in accordance with local gas fitting regulations.
• Shut off the valve at the gas cylinder or the regulator before moving the appliance.
• Use only the type of gas specified by the manufacturer.
  • Repairs should be done by a qualified person.
• In case of violent wind, particular attention must be taken against tilting of the appliance.
• Check that the regulator seal is correctly fitted and able to fulfil its function.
• Close the gas supply at the valve of the gas cylinder or the regulator after use.
• Do not use this appliance until all connections have been leak tested.
• In the event of gas leakage, the appliance shall not be used or if alight, the gas supply shall be shut off and the appliance shall be investigated and rectified before it is used again.
• Checking the tubing or the flexible hose per month and each time the cylinder is changed.
• The tubing or the flexible hose must be changed within the prescribed intervals or with in one year. The flexible hose should not extended than 1.5m according to standard EN16436:2014.
• The hose assembly must be replaced prior to the appliance being put into operation if there is evidence of excessive abrasion or wear, or if the hose is damaged, and that the replacement hose assembly shall be that specified by the manufacturer.
• The heater should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required as necessary. It is imperative that control compartment, burners and circulating air passageways of the appliance be kept clean.
• Shut off and check heater immediately if any of the following conditions exist:
  ☐ The smell of gas in conjunction with extreme yellow tipping of the burner flames.

☐ Heater does not reach a proper temperature. A temperature less than 5^ C will cause restricted heat flow and the appliance will not work properly.
☐ The appliance starts making popping noises during use (a slight popping noise is normal when the appliance is extinguished).

• The regulator & hose assembly must be located out of pathways where people may trip over it or in area where the hose will not be subject to accidental damage.
• Any guard or other protective device removed for servicing the heater must be replaced before operating the heater.
• Children and adults should be warned of the hazards of high surface temperatures and should stay away to avoid burns or clothing ignition.
• Young children and pets should be carefully supervised when they are in the area of the heater.
• Clothing or other flammable materials should not be hung from the appliance, or placed on or near the appliance.
• Do not place articles on or against this appliance. Certain material or items when stored under or near this appliance will be subjected to radiant heat and could be seriously damaged.
• Do not use or store flammable materials near this appliance.
• Do not spray aerosols in the vicinity of this appliance while it is in operation.

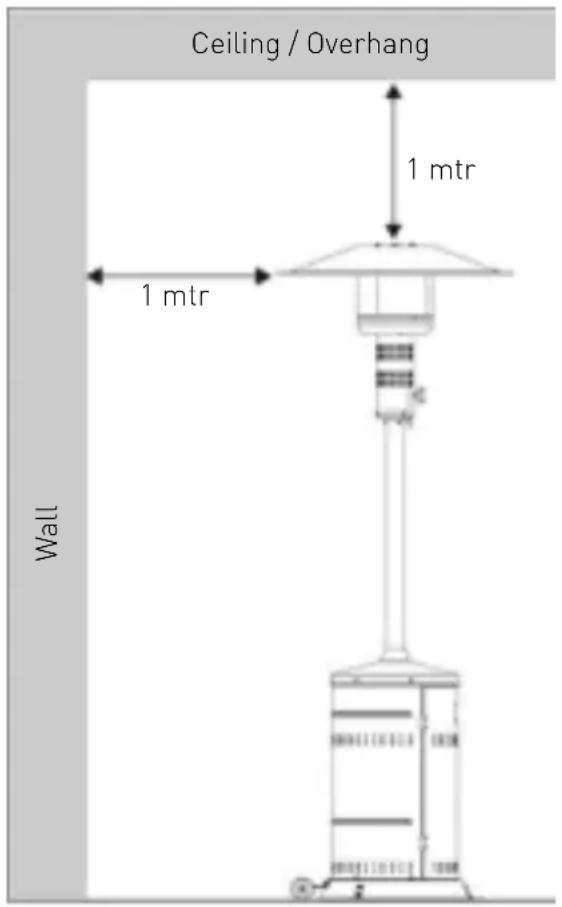

  • Always maintain at least 0.9m clearance from combustible materials.
• Always position the appliance on a firm level surface. An amply ventilated area must have a minimum of 25% of the surface area open. The surface area is the sum of the walls surface.
• The injector in this appliance is not removable and the injector is only assembled by manufacture. This appliance is forbidden to convert from one gas pressure to another pressure.
• Do not connect the gas cylinder directly to the appliance without regulator.
• The gas cylinder must be fixed by cylinder belt, which is inside the housing, while installation.

Intended use

• The device is intended for professional use and can be operated only by qualified personnel.
• The appliance is designed only for heating outdoors or well ventilated areas. Any other use may

lead to damage to the appliance or personal injury.

- Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the device.

Part List

Assembly parts supplied:

• 5pcs bolts M5 x 12 and 5pcs washers M5 for rear panel of housing and base.
• 5pcs bolts M5 x 12 and 5pcs washers M5 for rear panel of housing and housing lid.
• 3pcs bolts M5 x 12 and 3pcs washers M5 for connection of post assembly.
• 4pcs bolts M6 x 12 and 4pcs washers M6 for the post and housing lid.
• 9pcs bolts M6 x 8, 12pcs wing nuts M6 and 12pcs washers M6 for reflector.
• 3pcs bolts M5 x 10 and 3pcs washers M5 for main burner and the post.
• 6pcs bolts M5 x 12 and 6pcs washers M5 for base stands and base.
• 2pcs bolts M8 x 12, 4pcs washers M8 and 2pcs M8 nuts for wheels assembly.

Patio heater part:

Item No	Description
1	Reflector assembly
2	Burner screen
3	Lower tray of burner
4	Lower screen cone as-sembly
5	Post assembly
6	Housing lid
7	Rear panel of housing
8	Wheel
9	Base
10	Door
11	Hinge
12	Assembly Bolts M5x10
13	Washers M5
14	Bolts M6x8
15	Wing Nut M6
16	Lock
17	Plastic cover
18	Inner pipe
19	Igniter
20	Assembly bolts M5x12
21	Washer M6
22	Bolts M8x12
23	Washer M8
24	Nut M8
25	Bolts M6x12

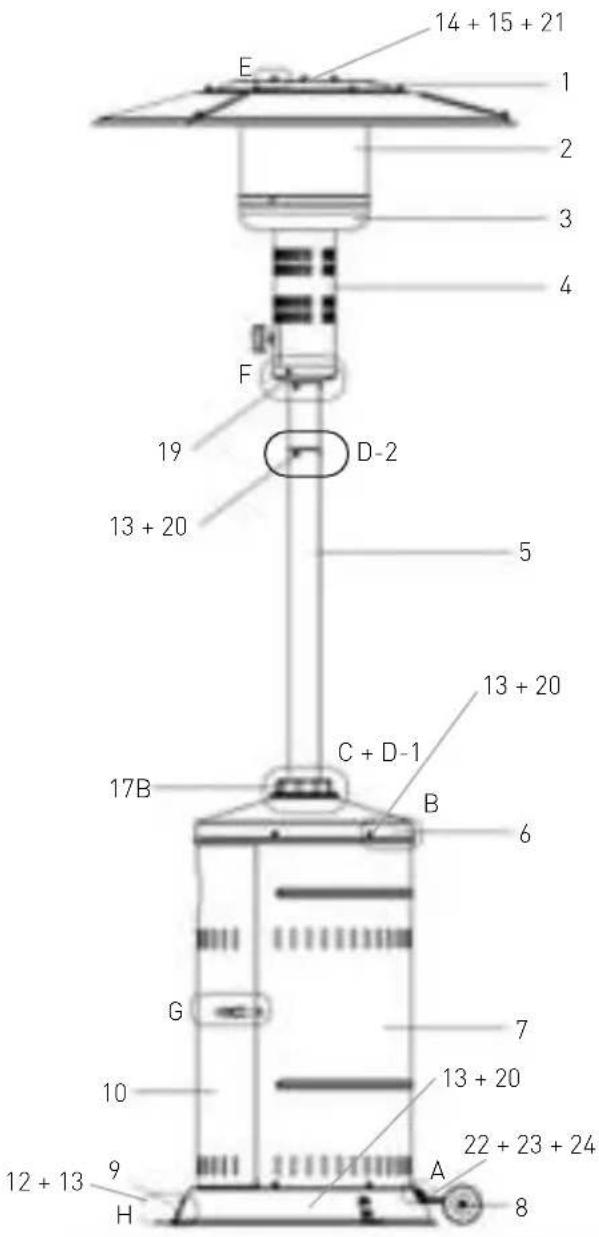

14 + 15 + 21 E 1 2 3 4 F 19 D-2 13 + 20 5 17B C + D-1 B 6 G 7 10 13 + 20 12 + 13 9 A 22 + 23 + 24 8

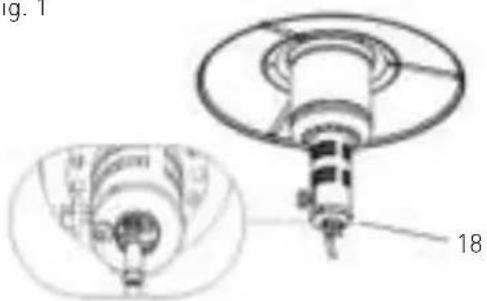

Fig. 1

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Fig. 2

Technical diagram of a vertical cylindrical device with internal components and two cross-sectional views labeled 11 and 20.

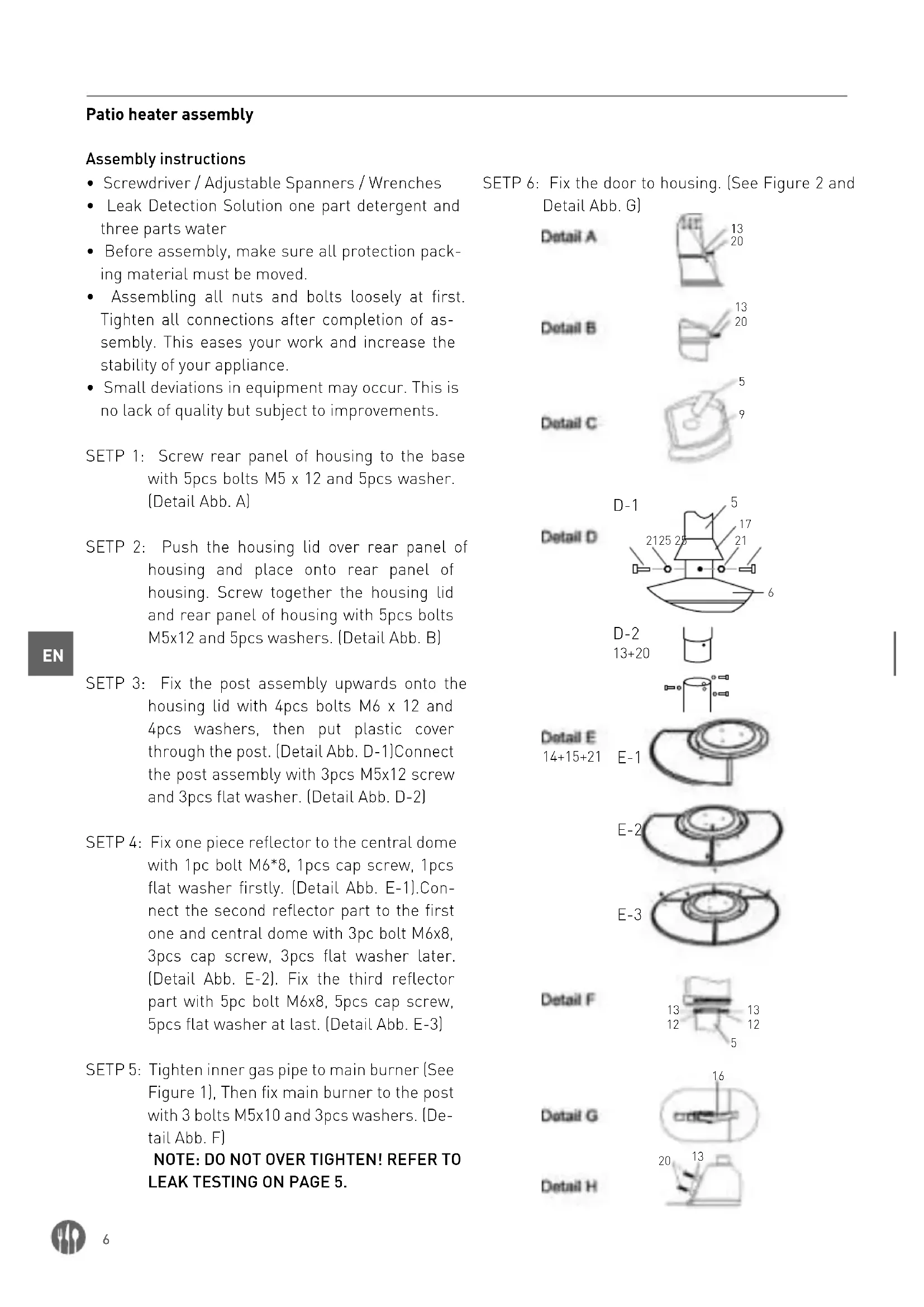

Patio heater assembly

Assembly instructions

• Screwdriver / Adjustable Spanners / Wrenches
• Leak Detection Solution one part detergent and three parts water
• Before assembly, make sure all protection packing material must be moved.
• Assembling all nuts and bolts loosely at first. Tighten all connections after completion of assembly. This eases your work and increase the stability of your appliance.
• Small deviations in equipment may occur. This is no lack of quality but subject to improvements.

SETP 1: Screw rear panel of housing to the base with 5pcs bolts M5 x 12 and 5pcs washer. (Detail Abb. A)

SETP 2: Push the housing lid over rear panel of housing and place onto rear panel of housing. Screw together the housing lid and rear panel of housing with 5pcs bolts M5x12 and 5pcs washers. (Detail Abb. B)

SETP 3: Fix the post assembly upwards onto the housing lid with 4pcs bolts M6 x 12 and 4pcs washers, then put plastic cover through the post. (Detail Abb. D-1)Connect the post assembly with 3pcs M5x12 screw and 3pcs flat washer. (Detail Abb. D-2)

SETP 4: Fix one piece reflector to the central dome with 1pc bolt M6*8, 1pcs cap screw, 1pcs flat washer firstly. (Detail Abb. E-1). Connect the second reflector part to the first one and central dome with 3pc bolt M6x8, 3pcs cap screw, 3pcs flat washer later. (Detail Abb. E-2). Fix the third reflector part with 5pc bolt M6x8, 5pcs cap screw, 5pcs flat washer at last. (Detail Abb. E-3)

SETP 5: Tighten inner gas pipe to main burner (See Figure 1), Then fix main burner to the post with 3 bolts M5x10 and 3pcs washers. [Detail Abb. F]

NOTE: DO NOT OVER TIGHTEN! REFER TO LEAK TESTING ON PAGE 5.

SETP 6: Fix the door to housing. (See Figure 2 and Detail Abb. G)

Detail A 13 20 Detail B 13 20 Detail C 5 9

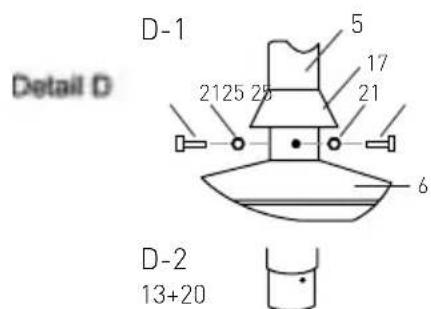

Detail D D-1 5 17 21 2125 20 6 D-2 13+20

Detail E 14+15+21 E-1

E-2 E-3

Detail F 13 12 13 12 5

Detail G Detail H 16 20 13

Optional base stand

Base stand assembly parts: 6pcs bolts M5 x 12 and 6pcs washers for base stands and base.

Attach 3pcs stands to the base.

Buy suitable hook bolts or rawlbolts from your lo-

cal market to insert them into the ground or floor through base stand holes for this appliance stability. (See Figure 3)

20 13

Diagram of a pipe or tube inserted into a container with a submerged object, no text or symbols present

Diagram of a mechanical device embedded in a semicircular container with internal flow lines (no text or symbols)

Fig. 3

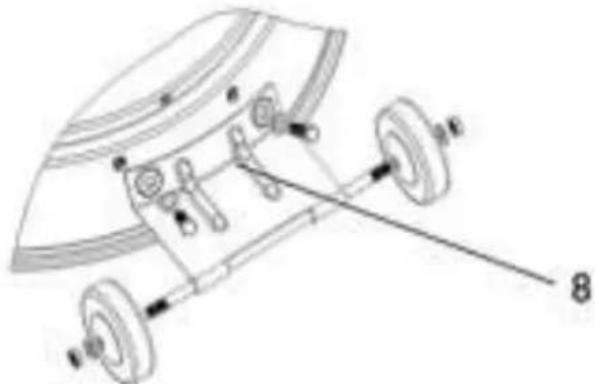

Optional wheels

Wheels assembly parts: 2pcs bolts, 4pcs washers and 2pcs nuts for wheels assembly.

Collect wheels parts together and fix wheels to the base. (See Figure 4)

Technical line drawing of a mechanical device with labeled parts (no readable text or symbols)

Fig. 4

Operating instructions

Before first use and after every gas cylinder change, gas delivery system must be purged of air before igniting! To do this, turn the control knob counter-clockwise to the pilot setting. Press knob in and hold for 3 minutes before attempting ignition.

To light the pilot

- Check all connections prior to each use.

- Turn on main gas supply.

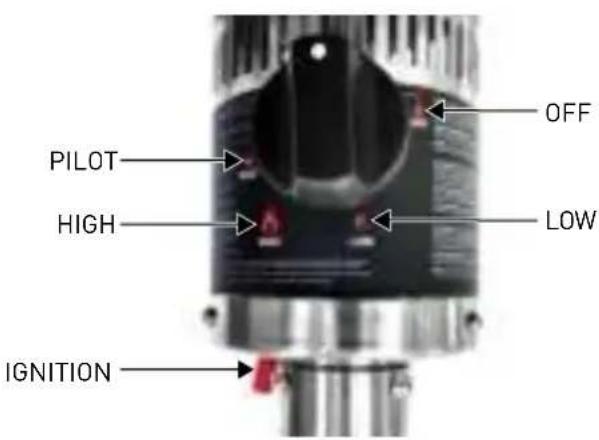

- Press to turn control knob counter-clockwise to PILOT, see right photo.

- Hold knob depressed, press IGNITION button repeatedly until pilot flame is lit, then continue to hold the knob depressed for 10 seconds until the pilot remains it after releasing knob.

- If pilot fails to ignite or alight, press to turn knob clockwise to OFF and repeat.

PILOT HIGH IGNITION OFF LOW

To light the patio heater

• The pilot should be lit and the knob set to PILOT.
• Press the knob 3mm and turn anti-clockwise to HIGH.
• When mesh glows lit, turn knob clockwise from HIGH to LOW as needed.

Note: The burner may be noisy when initially turned on. To eliminate excessive noise from the burner, turn the control knob to the pilot position. Then, turn the knob to the level of heat desired.

Re-lighting

Note: For your safety, Control Knob cannot be turned OFF without first depressing Control Knob in PILOT position and then rotating it to OFF.

• Turn Control Knob to OFF.
• Wait at least 5 minutes, to let gas dissipate, before attempting to re-light pilot.

- Repeat the "Lighting" steps

To extinguish

• Hold knob depressed & turn the knob clockwise to 'OFF'
• Close the valve of the gas cylinder or the regulator after use.

- Allow this appliance to cool before moving. Note: After use, some discoloration of the emitter screen is normal.

Leak testing

The gas connections on this appliance are leak tested at the factory prior to shipment.

This appliance needs to be periodically checked for leaks and an immediate check is required if the smell of gas is detected.

• Make a soap solution using 1 part of liquid dish-washing soap to 3 parts water. The soap solution can be applied with a soap bottle, brush, or rag to the leak tested points shown in the figure above.

• The valve of the gas cylinder should be in the OFF position at this point of the leak test. Once the soapy solution is applied to the gas connections, the valve of the gas cylinder needs to be turned to the ON position.

• Soap bubbles will begin to form in the soapy solution if a leak is present.

• In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply on and recheck.

Line drawing of a cylindrical container with internal components and a curved tube (no text or symbols)

Leak Test Point ①②

Gas requirements

• The pressure regulator and hose assembly to be used must conform to local standard codes.
• Never use a gas cylinder with a damaged body, valve, collar, or foot ring.
• A dented or rusty gas tank may be hazardous and should be checked out by a gas supplier.

• Never connect this appliance to an unregulated gas source.

• When the appliance is not in use, turn the gas cylinder OFF.

• Always perform a leak test on gas connections whenever a cylinder is connected. If bubbles form in the leak test solution, do not use. Never use a flame to test for leaks.

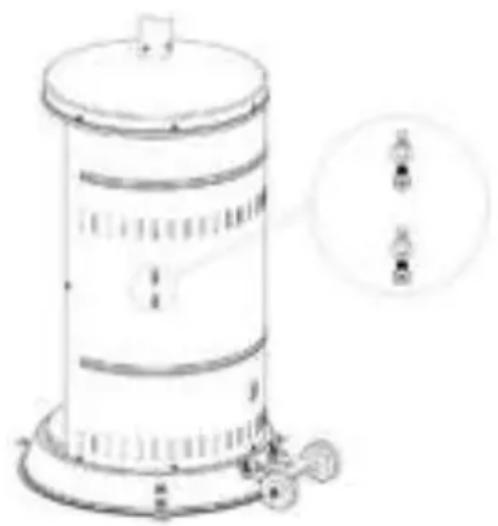

Connecting to a gas cylinder

• Recommend to use 9kg gas cylinder or refer to your gas supplier for suitable gas cylinder.
• Approved gas regulator is used according to appliances categories and countries listed in data plate. Approved flexible hose would be changed when the national conditions require it & consult the local regulations, these may differ.
• Warning: assembly of the tubing must be conducted by some qualified tuber of destination countries.
• Refer to your gas supplier for instructions on the use of your gas cylinder.

• Only change gas cylinders outdoors or in a well ventilated area away from naked flames and any other source of ignition.

• The gas cylinder must always be used in an upright position.

• Close the heater control knob by turning fully clockwise.
• Close the gas cylinder tap and then attach the regulator onto the gas cylinder.
• Tighten all connections firmly and with a spanner where appropriate. The cylinder should be located on the cylinder base.
• The gas cylinder must be fixed by cylinder belt, which is inside the housing, while installation.
• Check for leaks at all joints using soapy water. If a leak is found, tighten the joint and then re-test.

Securing the gas cylinder

Line drawing of a cylindrical device with a lid and wheels, showing internal components (no text or symbols)

• Fix both brackets of Velcro tapes onto the base using 4pcs M6*12 bolts, M6 washer and M6nuts.
• Position a gas cylinder inside the tank housing.
• Connect the gas cylinder with a regulator. Please refer to the instructions attached with the regulator on how to connect a regulator with the gas cylinder.

Line drawing of a vintage rotary bell jar with a central grille (no text or symbols)

- Stick Velcro tapes together as above photo illustrated. The tapes must be in a proper tightness for the gas cylinder.

Caution: Please take care that the Velcro tapes. DO NOT strain the regulator assembly.

Important safety rules

For use outdoors or in amply ventilated areas.

An amply ventilated area must have a minimum of 25% of the surface area open.

The surface area is the sum of the walls surface.

The use of this appliance in enclosed areas can be dangerous and is PROHIBITED.

Children and adults should be aware of the high operating temperatures of areas above the post when operating this heater. Children should be carefully supervised when in the vicinity of the heater.

NEVER hang anything, including clothes or any other flammable items, on this heater.

DO NOT operate this heater unless it is fully assembled with its reflector in place.

Respect the minimum clearances from combustible materials.

The length of the gas hose may not exceed 1.5 meters.

Ceiling / Overhang 1 mtr 1 mtr Wall

Maintenance

To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance activities on a regular basis:

• Keep exterior surfaces clean.
• Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
• While washing your unit, be sure to keep the area around the burner and pilot assembly dry at all times. If the gas control is exposed to water in any way, DO NOT try to use it. It must be replaced.
• Airflow must be unobstructed. Keep controls, burner and circulation air passageways clean. Signs of possible blockage include:
  • Gas odor with extreme yellow tipping of flame.

• Heater does NOT reach the desired temperature.

• Heater glow is excessively uneven.

• Heater makes popping noises.
• Spiders and insects can nest in burner or orifices. This dangerous condition can damage the heater and render it unsafe for use. Clean burner holes by using a heavy duty pipe cleaner. Compressed air may help clear away smaller particles.
• Carbon deposits may create a fire hazard. If any carbon deposits develop, clean dome and engine with warm soapy water.

Note: in a salt-air environment (such as near the sea), corrosion occurs more quickly than normal. Frequently check the corroded areas and repair them promptly.

Servicing

- Please consult your local dealer for servicing this appliance and replacement of its parts. The servicing of the appliance shall be carried out only by authorised personnel.

- Caution: do not use unauthorized parts or components for this appliance, only use original equipment replacement parts and components. The use of unauthorized parts or components will void the warranty and can create an unsafe condition.

Storage

Between uses:

Turn control knob OFF

Turn gas cylinder OFF

Store Heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust and debris).

If desired, cover to protect exterior surfaces and to prevent build up in air passages.

Note: Wait until heater is cool before covering.

During periods of extended inactivity or when transporting:

Turn control knob OFF.

Disconnect gas cylinder and move to a secure, well ventilated location outdoors. DO NOT store in a location that will exceed 50°C.

Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust and debris).

If desired, cover heater to protect exterior surfaces and to prevent build up in air passages.

Note: Wait until heater is cool before covering

CAUTION: DO NOT USE UNAUTHORIZED PARTS OR COMPONENT FOR THIS APPLIANCE. ONLY USE ORIGINAL EQUIPMENT REPLACEMENT PARTS AND COMPONENTS.

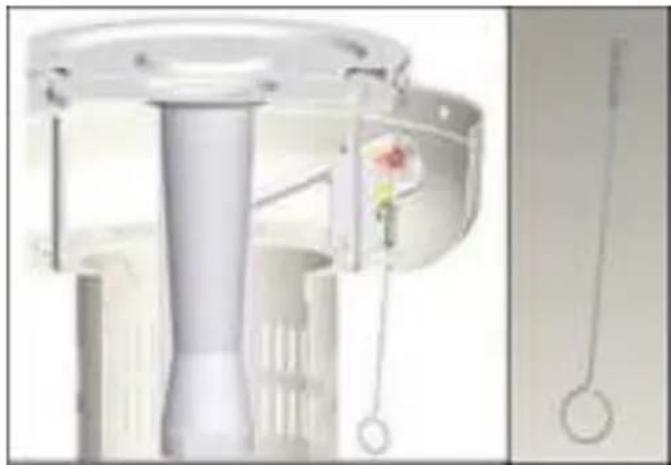

To retract the heater (272701 only)

Retracting the heater makes storage much easier. Loose the plastic screw (17) properly. Pull up the main post vertically until it encounters housing lid. Turn the main post clockwise and lower it until it has reached the desired level. To lock the main post on the desired level pull up the main post just a little and turn it counter clockwise. Then lower it until the main post stands on its screws. Tighten the plastic screw to keep the heater stable.

Note: Mind your head. Wait until heater is cool before retracting.

Troubleshooting

PROBLEM AND THIS CONDITION EXISTS THEN DO THIS
Pilot won't light	Cylinder valve is closed Open valve
	Blockage in orifice or pilot tube Clean or replace orifice or pilot tube.
	Air in the gas line	Open gas line and bleed it (pressing control knob in) for not more than 1-2 minutes or until you smell gas.
	Low gas pressure	Replace propane gas (disposable) cylinder with a new cylinder
	Igniter fails	Use match to light pilot (with match holder, see picture**); obtain new igniter and replace
Pilot won't stay lit	Dirt build up around pilot Clean dir t from around pilot
	Connection between gas valve and pilot assembly is loose	Tighten connection and perform leak test
	Thermocouple is not operating correctly	Replace thermocouple
Burner won't light	Gas pressure is low	Replace propane gas (disposable) cylinder with a new cylinder
	Blockage in orifice Clear blockage
	Control knob is not in "ON" position	Turn control knob to "ON" position
Burner flame is lowNote: Do not operate heater below 5°C (40°F)	Gas pressure is low	Replace propane gas (disposable) cylinder with a new cylinder
	Outdoor temperature is greater than 40°F and tank is less than 25% full	Replace propane gas (disposable) cylinder with a new cylinder
	Supply hose is bent or kinked	Straighten hose and per for m leak test on hose
	Control knob is fully "ON"	Turn control knob to "OFF", let cool to room temperature and check burner and orifices for blockage
Emitter glows unevenNote: Bottom 1 inch of emitter normally does not glow	Gas pressure is low	Replace propane gas (disposable) cylinder with a new cylinder
	Base is not on a level surface Place heater on a level surface
	Heater is level Clean burner
Carbon build-up	Dirt or film on reflector and emitter	Clean reflector and emitter
Thick black smoke Blockage	in burner	Turn control knob to "OFF", let cool to room temperature and remove blockage and clean burner inside and outside.

Cross-sectional diagram of a mechanical device with internal components and hanging wires (no text or symbols)

If for some reasons your ignition fails to deliver a spark, the heater can be started by inserting a lit match using supplied match holder through the burner hole (see left photo) while pushing the control knob in the "PILOT" position.

IN THE EVENT OF ANY PROBLEM, PLEASE ALWAYS CONSULT YOUR LOCAL DEALER.

Warranty

Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be repaired by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was purchased and include proof of purchase (e.g. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Abb. 2

Technical diagram of a vertical cylindrical device with labeled components and cross-sectional views

Montage des Terrassenstrahlers

Montageanleitung

Diagram of a pipe or tube inserted into a container with a handle, showing internal structure (no text or labels)

Diagram of a mechanical device embedded in a semicircular container with diagonal hatching (no text or symbols)

Abb. 3

Technical line drawing of a mechanical assembly with rollers and a curved housing (no text or symbols)

Abb. 4

Bedienungsanleitung

Line drawing of a cylindrical container with internal components and a curved tube (no text or symbols)

Technical line drawing of a cylindrical industrial device with wheels and a separate inset showing two circular components (no text or symbols)

Line drawing of a cylindrical container with internal layered structure and a small inset image (no text or symbols)

Cross-sectional diagram of a portable air conditioner unit with attached tubing and a central fan (no text or symbols visible)

Garantie

Technical line drawing of a mechanical component with an inset close-up view (no text or symbols)

Figuur. 2

Jr. Z 11

Montage-instructies

Diagram of a mechanical or structural component embedded in a curved container, with no visible text or symbols.

Diagram of a mechanical device inserted into a curved surface with internal hatching (no text or symbols)

Figuur. 3

Optionele wielen

Technical line drawing of a vehicle chassis with wheels and suspension components (no text or symbols)

Figuur. 4

Line drawing of a cylindrical container with internal components and a curved tube (no text or symbols)

Lekkagetestpunten ①②

Technical line drawing of a cylindrical mechanical device with attached components and a magnified inset showing two circular features (no text or symbols)

Line drawing of a cylindrical mechanical device with internal components (no text or symbols)

3D rendering of a mechanical device with internal components and hanging weights (no visible text or symbols)

Simple line drawing of a tool interacting with a curved object in a bowl (no text or symbols)

Diagram of a mechanical device embedded in a semicircular container with internal components (no text or symbols)

Rys. 3

Technical line drawing of a mechanical assembly with wheels and components (no text or symbols)

Rys. 4

Instrukcja obstugi

Line drawing of a cylindrical container with internal components and a curved tube (no text or symbols)

Technical line drawing of a cylindrical device with internal components and a separate inset showing two circular components (no text or symbols)

Line drawing of a vintage rotary dial with a bell and handle (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and hanging weights (no text or symbols)

Technical diagram of a mechanical assembly with an inset close-up showing internal components (no text or labels)

Fig. 2

Technical diagram of a vertical cylindrical device with labeled components and cross-sectional views

Detail G 16

Detail H 20 13

Simple line drawing of a tool inserted into a container with a curved handle (no text or symbols)

Diagram of a mechanical device embedded in a semicircular container with hatched fill (no text or symbols)

Fig. 3

Roulettes (en option)

Technical line drawing of a mechanical device with wheels and components (no text or symbols)

Fig. 4

Mode d'emploi

Line drawing of a cylindrical container with internal components and a curved tube (no text or symbols)

Points de controle de fuite ① ②

Technical line drawing of a cylindrical device with internal components and a separate inset showing two labeled parts (no text or symbols present)

Line drawing of a cylindrical object with a lid and internal horizontal bands (no text or symbols)

Cross-sectional diagram of a portable air purifier with internal components and wiring (no text or symbols)

Technical diagram of a mechanical assembly with an inset close-up showing internal components (no text or labels)

Fig. 2

Technical diagram of a vertical cylindrical device with internal components and two annotated cross-sectional views labeled 11.

Detail G 16

Simple line drawing of a pipe inserted into a container with a handle, no text or symbols present

Diagram of a mechanical device submerged in a semicircular container with diagonal hatching (no text or symbols)

Fig. 3

Rotelle (opzionale)

Technical line drawing of a mechanical assembly with labeled parts (no text or symbols)

Fig. 4

Line drawing of a cylindrical container with internal tubing and labeled parts (no text or symbols)

Technical line drawing of a cylindrical mechanical device with attached wheels and a separate circular inset showing two chromosomes (no text or symbols)

Line drawing of a cylindrical object with internal layered structure and a small inset image (no text or symbols)

Cross-sectional diagram of a portable air conditioner unit with attached tubing and a central fan (no text or symbols visible)

Diagram of a tool interacting with a curved object in a bowl-like container (no text or symbols)

Diagram of a mechanical device inserted into a semicircular container with hatched fill (no text or symbols)

Figura. 3

Roțile opționale

Technical line drawing of a mechanical assembly with labeled parts (no text or symbols)

Figura. 4

Line drawing of a cylindrical container with internal tubing and labeled parts (no text or symbols)

Technical line drawing of a cylindrical device with internal components and a separate inset showing two circular features (no text or symbols)

Line drawing of a vintage rotary bell jar with a keypad and base (no text or symbols)

Cross-sectional diagram of a portable air conditioner unit with internal components and hanging wires (no text or symbols)

Technical diagram of a vertical cylindrical device with labeled components and cross-sectional views

Инструкция сборки

Инструкция сборки

Diagram of a pipe or tube inserted into a container with a handle, showing internal structure (no text or labels)

Diagram of a mechanical device submerged in a liquid with a curved surface and directional arrows (no text or labels)

Рис.3

Technical line drawing of a mechanical assembly with labeled parts (no text or symbols)

Рис.4

Line drawing of a cylindrical container with internal components and a curved tube (no text or symbols)

Technical line drawing of a cylindrical device with internal components and a separate inset showing two vertical alignment indicators (no text or symbols present)

Line drawing of a cylindrical object with a lid and internal layered structure (no text or symbols)

Cross-sectional diagram of a water purifier with internal components and a hanging hook (no text or labels)

Simple line drawing of a pipe inserted into a container with a handle, no text or symbols present

Diagram of a mechanical device embedded in a semicircular container with internal hatching (no text or symbols)

Eikóva. 3

Προαιρετικοί τροχοί

Technical line drawing of a mechanical assembly with rollers and a curved housing (no text or symbols)

Eikóva. 4

Οδηγίες λειτουργίας

Line drawing of a cylindrical container with internal tubing and labeled points (no text or symbols)

Technical line drawing of a cylindrical device with internal components and a separate inset showing two labeled parts (no text or symbols present)

Line drawing of a vintage-style cylindrical device with a lid and internal shelves (no text or symbols)

3D rendering of a white cylindrical device with attached tubing and a small flower-like object, shown from an angle (no text or symbols visible)

Simple line drawing of a tool interacting with a curved object in a bowl (no text or symbols)

Diagram of a mechanical device embedded in a semicircular container with diagonal hatching (no text or symbols)

Obrázek. 3

Volitelná kolečka

Technical line drawing of a mechanical assembly with wheels and components (no text or symbols)

Obrázek. 4

Návod k obsluze

Line drawing of a cylindrical container with internal tubing and labeled points (no text or symbols)

Technical line drawing of a cylindrical device with wheels and a separate inset showing two vertical lines (no text or symbols)

Line drawing of a cylindrical object with internal layered structure and a small inset image (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and a hanging hook (no text or symbols)

Simple circular diagram with intersecting lines and a central circle, labeled E-3 (no text or symbols within the diagram itself)

Detail F 13 12 13 12 5

Detail G Detail H 16 20 13

Simple line drawing of a pipe with a hook, partially submerged in a circular container (no text or symbols)

Diagram showing a mechanical or electrical component submerged in a liquid with labeled points and directional arrows

Obrázok. 3

Volitelné kolieska:

Technical line drawing of a mechanical assembly with rollers and a curved housing (no text or symbols)

Obrázok. 4

Pokyny na obsluhu

Line drawing of a cylindrical container with internal components and a curved tube (no text or symbols)

Skúška tesnosti ① ②

Požiadavky na plyn

Technical line drawing of a cylindrical device with mounting base and wheels, showing internal components (no text or symbols)

Line drawing of a cylindrical object with internal layered structure and a lid (no text or symbols)

3D rendering of a mechanical device with internal components and hanging weights (no visible text or symbols)

Simple line drawing of a pipe or tube inserted into a container with a handle, no text or symbols present.

Diagram of a mechanical or electrical component embedded in a semicircular container, showing internal structure and no visible text or symbols.

1. ábrát

Technical line drawing of a mechanical assembly with rollers and a curved housing (no text or symbols)

1. ábrát

Használati utasítás

Line drawing of a cylindrical device with internal components and a curved pipe (no text or symbols)

Technical line drawing of a cylindrical device with a lid and wheels, showing internal components and a magnified inset (no text or symbols)

Line drawing of a vintage-style cylindrical device with a lid and internal shelves (no text or symbols)

3D rendering of a mechanical device with internal components and hanging weights (no visible text or symbols)

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Fig. 2

Technical diagram of a vertical cylindrical device with internal components and two cross-sectional views labeled 11 and 20.

Montaža podne grijalice

Upute za montažu

• Odvijač / matični ključevi / ključevi
• Otopina za detekciju curenja od jednog dijela deterdženta i tri dijela vode
• Prije montaže obavezno uklonite sav materijal zaštitne ambalaže.
• Prvo lagano zavijte sve matice i vijke. Pritegnite sve spojeve nakon završetka montaže. To vam olakšava rad i povećava stabilnost vašeg uređaja.
• Mogu postojati mala odstupanja u opremi. Ovo nije nedostatak kvalitete nego je podložno poboljšanjima.

KORAK 1: Vijcima pričvrstite stražnje ploče kućišta na podnožje pomoću 5 vijaka M5x12 i 5 podloški. (Detalj Abb. A)

KORAK 2: Gurnite poklopac kućišta preko stražnje ploče kućišta i postavite ga na stražnju ploču kućišta. Vijcima zajedno pričvrstite poklopac kućišta i stražnju ploču kućišta pomoću 5 vijaka M5x12 i 5 podloški. (Detalj Abb. B)

KORAK 3: Učvrstite sklop stupova prema gore na poklopac kućišta pomoću 4 vijka M6 x 12 i 4 podloške, a zatim stavite plastični poklopac kroz stup. (Detalj Abb. D-1) Spoji-te sklop stupova pomoću 3 vijka M5x12 i 3 ravne podloške. (Detalj Abb. D-2)

KORAK 4: Prvo pričvrstite jedan dio reflektora na središnju kupolu 1 vijkom M6*8, 1 vijkom s kapicom i 1 ravnom podloškom. (Detalj Abb. E-1). Spojite drugi dio reflektora na prvi dio i na središnju kupolu pomoću 3 vijka M6x8, 3 vijka s kapicom i 3 ravne podloške. (Detalj Abb. E-2). Na kraju pričvrstite treći dio reflektora pomoću 5 vijaka M6x8, 5 vijaka s kapicom i 5 ravnih podloški. (Detalj Abb. E-3)

KORAK 5: Pritegnite unutarnju plinsku cijev na glavni plamenik (pogledajte sliku 1), za-tim pričvrstite glavni plamenik na stup pomoću 3 vijka M5x10 i 3 podloške. (Detalj Abb. F)

NAPOMENA: NEMOJTEPREVIŠEPRITEZATI! POGLEDAJTE ISPITIVANJE CURENJA NA 5. STRANICI.

KORAK 6: Pričvrstite vrata kućišta. (Pogledajte sliku 2 i detalj Abb. G)

Detail A 13 20 Detail B 13 20 Detail C 5 9

Detail D D-1 5 17 21 2125 25 6 D-2 13+20

Detail E 14+15+21 E-1

E-2

Simple circular diagram with concentric rings and crosshairs, no text or symbols present

Detail F 13 12 13 12 5

Detail G 16

Detail H 20 13

Diagram of a pipe or tube inserted into a container with a submerged object, no text or symbols present

Diagram of a mechanical device embedded in a semicircular container with internal components (no text or symbols)

sliku 3

Opcijski kotači

Montažni dijelovi kotača: 2 kom. vijaka, 4 kom. podloški i 2 kom. matica za montiranje kotača.

Technical line drawing of a mechanical device with labeled parts (no readable text or symbols)

sliku 4

Upute za rukovanje

Line drawing of a cylindrical container with internal components and a curved tube (no text or symbols)

Točka ispitivanja propuštanja ① ②

Uvjeti za plin

• Sustav regulatora tlaka i crijeva koji se upotrebljavaju moraju biti u skladu s važećim lokalnim propisima.
• Nikada ne upotrebljavajte plinski cilindar s oštećenim tijelom, ventilom, spojnicom ili upornim prstenom.
• Nazubljeni ili zahrdali spremnici plina mogu biti opasni i treba ih provjeriti dobavljač plina.

• Nikada uređaj nemojte priključivati na neregulirani izvor plina.

• Kada se uređaj ne upotrebljava, ISKLJUČITE plinski cilindar.

• Uvijek obavite ispitivanje curenja na priključcima plina kad god je priključen cilindar. Ako se mje-hurići pojavljuju u otopini za ispitivanje curenja, nemojte ga upotrebljavati. Nikada prisutnost cu-renja nemojte provjeravati plamenom.

Spajanje na plinski cilindar

• Preporučujemo upotrebu plinskog cilindra od 9 kg ili se obratite dobavljaču plina za prikladan plinski cilindar.
• Atestirani regulator plina treba se upotrebljavati prema kategorijama uređaja i zemljama navedenima na nazivnoj pločici. Atestirano fleksibilno crijevo treba promijeniti kada to zahtijevaju državni propisi. Pogledajte i lokalne propise jer se mogu razlikovati.
• Upozorenje: montažu cijevi mora izvesti osoba kvalificirana za postavljanje cijevi u zemlji odredišta.
• Obratite se dobavljaču plina da biste dobili upute za upotrebu plinskog cilindra.

• Plinske cilindra mijenjate isključivo na otvorenom ili u dobro prozračenom prostoru zaštićenom od otvorenog plamena i bilo kojeg drugog izvora paljenja.

• Plinski cilindar mora se uvijek upotrebljavati u uspravnom položaju.

• Zatvorite upravljački gumb grijalice tako da ga okrenete u smjeru kazaljke na satu.
• Zatvorite slavinu plinskog cilindra i zatim na njega pričvrstite regulator.
• Sve spojeve čvrsto pritegnite odgovarajućim ključem gdje je to potrebno. Cilindar bi trebao biti na postolju cilindra.
• Plinska boca tijekom ugradnje mora biti pričvršćena remenom za bocu koji se nalazi unutar kućišta.
• Sapunice na svim spojevima provjerite ima li cu-renja. Ako se pronađe curenje, spoj pritegnite i zatim ponovno ispitajte.

Technical diagram of a cylindrical device with labeled parts and an inset showing two vertical lines with circular markers.

• Oba držača čičak trake učvrstite na podlogu pomoću 4 vijka M6*12, podložaka M6 i matica M6.
• Postavite plinsku bocu unutar kućišta spremnika.
• Spojite plinsku bocu s regulatorom. Pogledajte upute priložene uz regulator o povezivanju regulatora s plinskom bocom.

Line drawing of a cylindrical mechanical device with internal components and a lid (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and hanging weights (no text or symbols)

Hendi Food Service Equipment GmbH

Ehring 15

Hendi Food Service Equipment Romania S.R.L.

PKS Hendi South East Europe SA

5 Metsovou Str.

18346 Moschato, Athens, Greece

Tel: [phone]

Email: [e-mail]

Hendi Italia S.R.L.

Via Leonardo da Vinci 4

39100 Bolzano (BZ), Italy

Tel: [phone]

Email: [e-mail]

Hendi HK Ltd.

1208, 12/F Exchange Tower

33 Wang Chiu Road, Kowloon Bay, Hong Kong

Tel: [phone]

Email: [e-mail]

Find Hendi on internet:

www.hendi.eu

www.facebook.com/HendiToolsforChefs

www.linkedin.com/company/hendi-food-service-equipment-b.v.

www.youtube.com/HendiEquipment

- Changes, printing and typesetting errors reserved.
