ThermoSpot Laser - Thermometer Laserliner - Free user manual and instructions

Product type	Non-contact infrared thermometer
Brand	Laserliner
Model	ThermoSpot Laser
Measuring range	-38°C to 365°C
Accuracy	±2.5°C or ±2.5% (whichever is greater)
Resolution	0.2°C
Optics	12:1 (distance/spot)
Emissivity	Fixed at 0.95
Targeting laser	8-point laser circle, class 2, <1 mW, 650 nm
Functions	MAX, HOLD, °C/°F switching, display illumination
Power supply	2 AAA 1.5V LR03 batteries
Battery life	Approximately 35 hours
Auto-off	After 15 seconds
Dimensions (L x H x D)	113 x 155.5 x 40 mm
Weight	173 g (including batteries)
Operating conditions	0°C to 50°C, RH max 80%
Storage conditions	-10°C to 60°C, RH max 80%
Maintenance	Clean with a damp cloth, no solvents. Calibrate annually.
Safety	Class 2 laser: do not look into the beam, do not direct towards eyes.

Frequently Asked Questions - ThermoSpot Laser Laserliner

How to turn the ThermoSpot Laser on and off?

The device turns on by pressing the trigger. It turns off automatically after 15 seconds of inactivity.

How to change the unit of measurement between °C and °F?

Press the °C/°F button until the desired symbol appears on the screen.

What does the 8-point laser circle mean?

The laser circle is used to precisely target the measurement area. The temperature is measured inside the circle.

How to perform a continuous measurement?

Activate the laser by pressing and holding the trigger. Release to store the value (HOLD function).

What to do if the measurement seems inaccurate?

Check that the surface is clean and that the emissivity is suitable (set to 0.95 for most materials). Avoid interference such as steam or glass. Annual calibration is recommended.

How to clean the device?

Use a slightly damp cloth. Do not use solvents or abrasive products. Remove batteries before prolonged storage.

What batteries to use and what is the battery life?

Use two AAA 1.5V LR03 batteries. Battery life is approximately 35 hours of continuous use.

Can temperature be measured through glass?

No, glass blocks infrared radiation. The measurement must be taken directly on the target surface.

What is emissivity and why is it fixed?

Emissivity is the ability of a material to emit infrared radiation. The device is set to 0.95, suitable for organic materials such as wood, plastic, or ceramic.

What to do if the laser does not turn on?

Check the battery charge level. If the low battery symbol appears, replace the batteries. Make sure the trigger is pressed correctly.

USER MANUAL ThermoSpot Laser Laserliner

32.5 MFRX 35.8 Laserliner ThermoSpot Laser

Laser 650 nm Laser-Focus

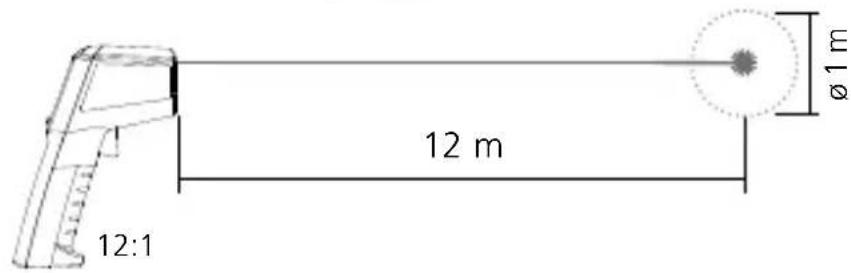

12:1 12 m φ 1 m

Laserliner

Warning sign with sunburst symbol inside triangle, indicating caution or hazard

The image is too blurry to recognize any text content.

Illustration of a LaserTimer handheld device with a cylindrical battery inserted (no text or symbols visible)

The image is too blurry to recognize any text content.

Laserfiner 1. 2.

a b c d 888.8 MAX 888.8 HOLD °C °F f g e

Light Mask Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Protection Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Promotion Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & Prevention Safety & prevention

Diagram showing a handheld device emitting a circular target with a checkmark below (no text or symbols)

Diagram showing a gun and a target with a cross symbol (no text or labels)

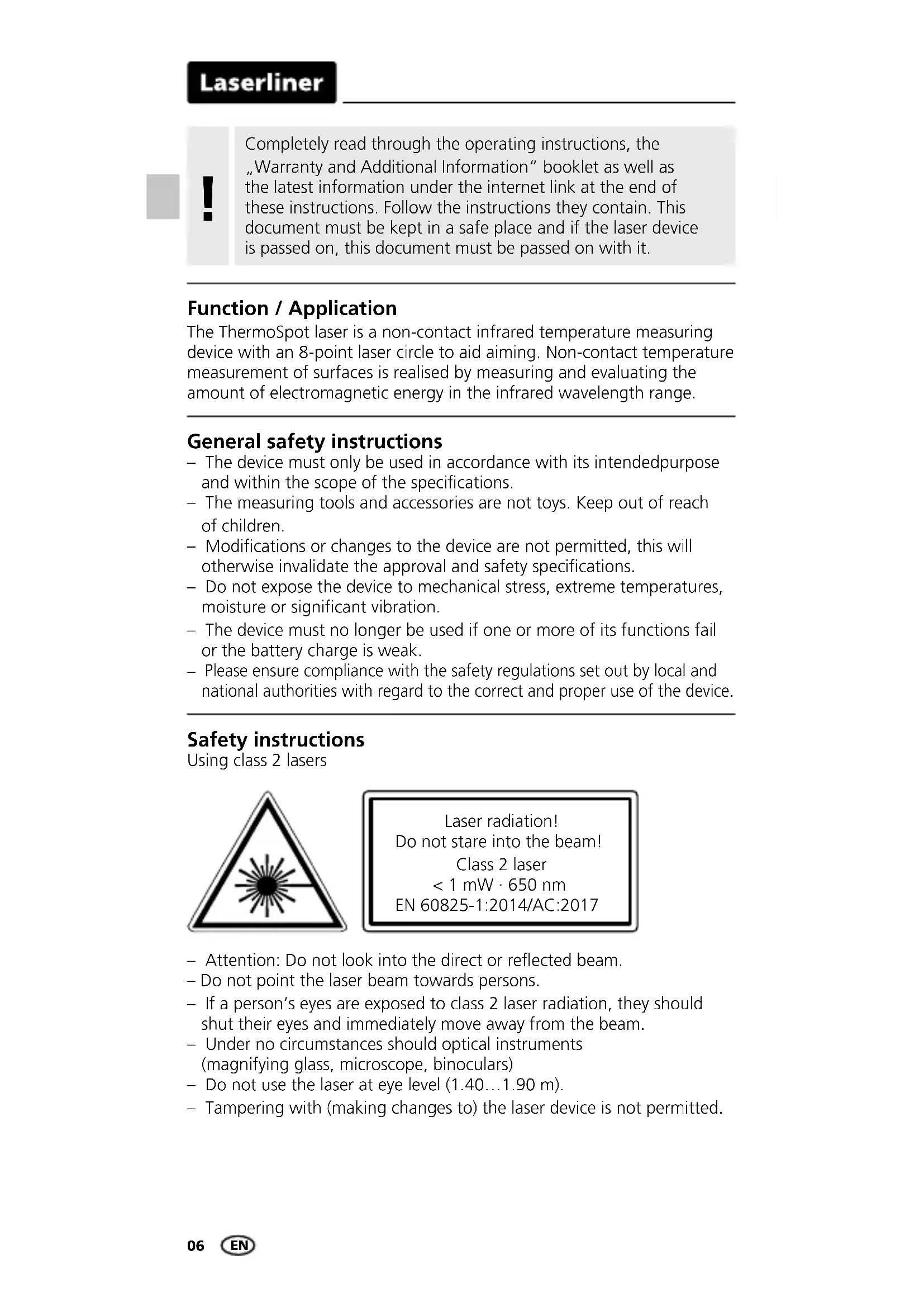

Completely read through the operating instructions, the „Warranty and Additional Information” booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

Function / Application

The ThermoSpot laser is a non-contact infrared temperature measuring device with an 8-point laser circle to aid aiming. Non-contact temperature measurement of surfaces is realised by measuring and evaluating the amount of electromagnetic energy in the infrared wavelength range.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.
• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.

Safety instructions

Using class 2 lasers

Warning sign with sunburst symbol inside triangle, indicating caution or hazard

Laser radiation! Do not stare into the beam!

Class 2 laser < 1 mW · 650 nm EN 60825-1:2014/AC:2017

• Attention: Do not look into the direct or reflected beam.
• Do not point the laser beam towards persons.
• If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.
• Under no circumstances should optical instruments (magnifying glass, microscope, binoculars)
• Do not use the laser at eye level (1.40...1.90 m).
• Tampering with (making changes to) the laser device is not permitted.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.
• The measuring accuracy may be affected when working close to high voltages or high electromagnetic alternating fields.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Calibration

The meter needs to be calibrated and tested on a regular basis to ensure it produces accurate measurement results. We recommend carrying out calibration once a year.

1

Laserfiner 1. 2.

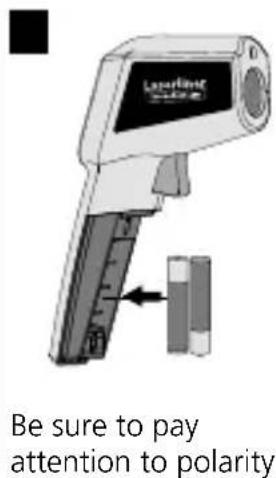

Be sure to pay attention to polarity

Laserfly 1. 2.

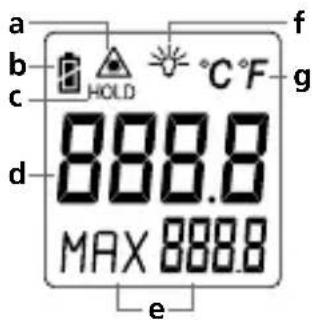

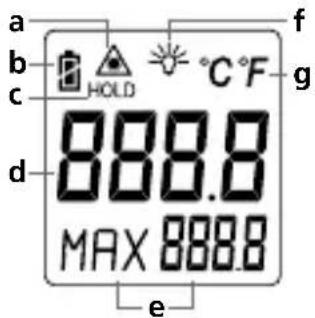

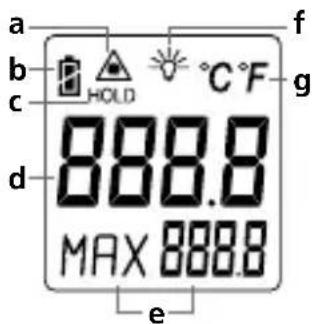

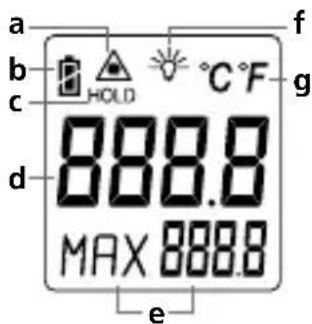

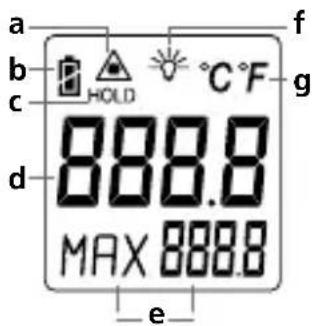

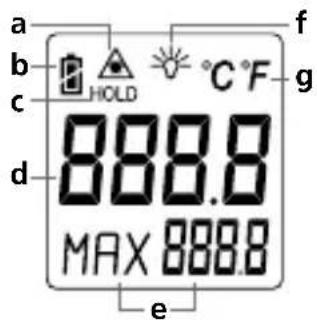

a b c d 888.8 MAX 888.8 HOLD °C F g f e

a Laser beam switched on
b Battery charge
c Hold function
d Measured value display
e Max. value during the measurement
f Display lighting
g Unit of measurement °C / °F

Laserliner

4 °C / °F

To set the required temperature unit, press and hold the „°C/°F” button until the corresponding symbol appears on the display.

Laserliner Dewertler Test

5 Continuous measurement / Hold

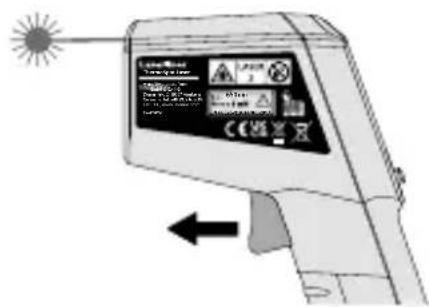

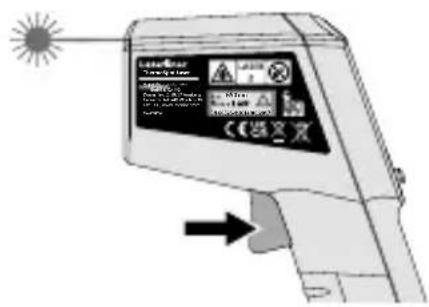

For continuous measurement activate the laser (see figure) and keep the button pressed.

Laser/Noise Control Power Signal Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control C15.2.2X

Release the button as soon as the target laser pinpoints the measurement location. The measured value is held.

Diagram showing a device with warning labels and a light source icon, indicating safety or hazard detection.

Measurement procedure notice

This infrared temperature instrument detects the temperature of various surfaces and materials. A built-in sensor head detects the material-specific infrared rays emitted by every object. The amount of these emissions is determined by the material's emission coefficient (0 ... 1). This instrument is permanently set to an emission coefficient of 0.95, which is applicable to most organic materials as well as plastics, ceramics, wood, rubber and stone. Please ensure that the space between the instrument and surface to be measured is free of disturbances (steam, gas, contamination, glass).

Laser circle

The laser circle is a targeting aid to sight the location for the infrared measurement. Temperature measurement is only performed on the surface within the laser circle.

Laser output

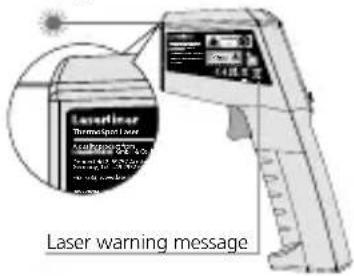

Laser warning message

Diagram showing a handheld device emitting a circular target with a checkmark below (no text or symbols)

Diagram showing a gun firing into a target with a cross symbol below (no text or labels)

Technical data	Technical revisions reserved. Rev22W26
Measured variable Infrared temperature
Features MAX, HOLD
Measuring range infrared temperature	-38°C ... 365°C
Accuracy infrared temperature	± 2.5°C + 0.05°C/degree (-38°C ... 0°C) ± 2.5°C or ± 2.5% (0°C ... 365°C), greater value applies
Infrared temperature resolution	0.2°C
Laser wavelength 650 nm
Laser class 2 / < 1 mW (EN 60825-1:2014/AC:2017)
Automatic switch-off after 15 seconds
Power source 2 x 1.5V LR03 (AAA)
Operating time approx. 35 hours
Operating conditions 0°C ...	50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
Storage conditions -10°C ...	60°C, max. humidity 80% rH
Unit of measurement °C (Celsius), °F (Fahrenheit)
Emission coefficient fixed, 0.95
Optics 12:1	(12 m distance : 1 m measured spot)
Laser 8-point laser circle
Dimensions (W x H x D) 113	x 155,5 x 40 mm
Weight	173 g (incl. batteries)

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com
