SECIPCAM105B - Surveillance Camera KONIG - Free user manual and instructions

Brand	Konig
Model	SECIPCAM105B
Product type	IP surveillance camera
Power supply	DC 5V adapter (included)
Connectivity	Wi-Fi (IEEE 802.11 b/g/n), WPS
Mobile app	uCare Cam (iOS and Android)
Main functions	Night vision (IR LED), two-way audio, motion detection, push and email notifications, photo/video recording on microSD card
Light sensor	Yes (switches to night mode automatically)
Microphone and speaker	Built-in
Local storage	microSD card slot (not included)
LED indicator	Green (power on), red (charging), orange (connected), red/green flashing (WPS mode)
Reset/WPS button	Yes (long press to reset, short press for WPS)
Viewing angle	Not specified (estimated: about 70-90°)
Resolution	Not specified (estimated: HD 720p or 1080p)
Mobile compatibility	Android 4.0+, iOS 5.0+
Installation	Plug & Play via uCare Cam app (router mode or WPS)
Security	Default password (0000) to change; do not open the device; unplug if problem occurs
Maintenance	Clean with a dry cloth; do not use solvents
Warranty	Void if modified or used incorrectly
General information	Brand: Konig; Model: SECIPCAM105B; Manual available in multiple languages; Manufactured in accordance with EU directives

Frequently Asked Questions - SECIPCAM105B KONIG

How to install the camera for the first time?

Download the uCare Cam app from Google Play or the App Store. Plug in the camera, wait for the LED to flash red/green, then follow the instructions in the app (router mode or WPS).

What to do if the LED indicator stays red?

This means the camera cannot connect to the router. Check that Wi-Fi is on and the camera is in range. If the problem persists, reset the camera by pressing the WPS/Reset button for 10 seconds.

How to use WPS mode to connect the camera?

Briefly press the WPS/Reset button on the camera (2 seconds) when the LED is flashing red/green. Then press the WPS button on your router. The camera LED will turn orange on success.

How to reset the camera to factory settings?

Press and hold the WPS/Reset button for more than 10 seconds. The green LED lights up, then flashes red twice, then returns to green. Release the button at that moment.

How to add an already installed camera to the app?

Open the uCare Cam app, click on + or Import, then scan the QR code on the back of the camera. Enter a name and the password (default: 0000).

How to change the default password?

In the uCare Cam app, go to camera settings and change the password. The default password is 0000. It is strongly recommended to change it for security reasons.

Does the camera work without Wi-Fi?

No, the camera requires a Wi-Fi connection via a router to operate. It does not have an Ethernet port.

How to view recordings stored on the microSD card?

From the uCare Cam app, you can access the gallery and replay recorded photos/videos. Make sure you have inserted a microSD card into the slot.

What are the prerequisites for using the uCare Cam app?

The app requires an Android 4.0+ or iOS 5.0+ device, as well as a Wi-Fi router with Internet connection for remote notifications.

What to do if I lose the camera's QR code?

The QR code is printed on the back of the camera. If you have lost it, you can contact technical support to get the UID (Unique ID) of your device, or use the manual connection mode via UID if available in the app.

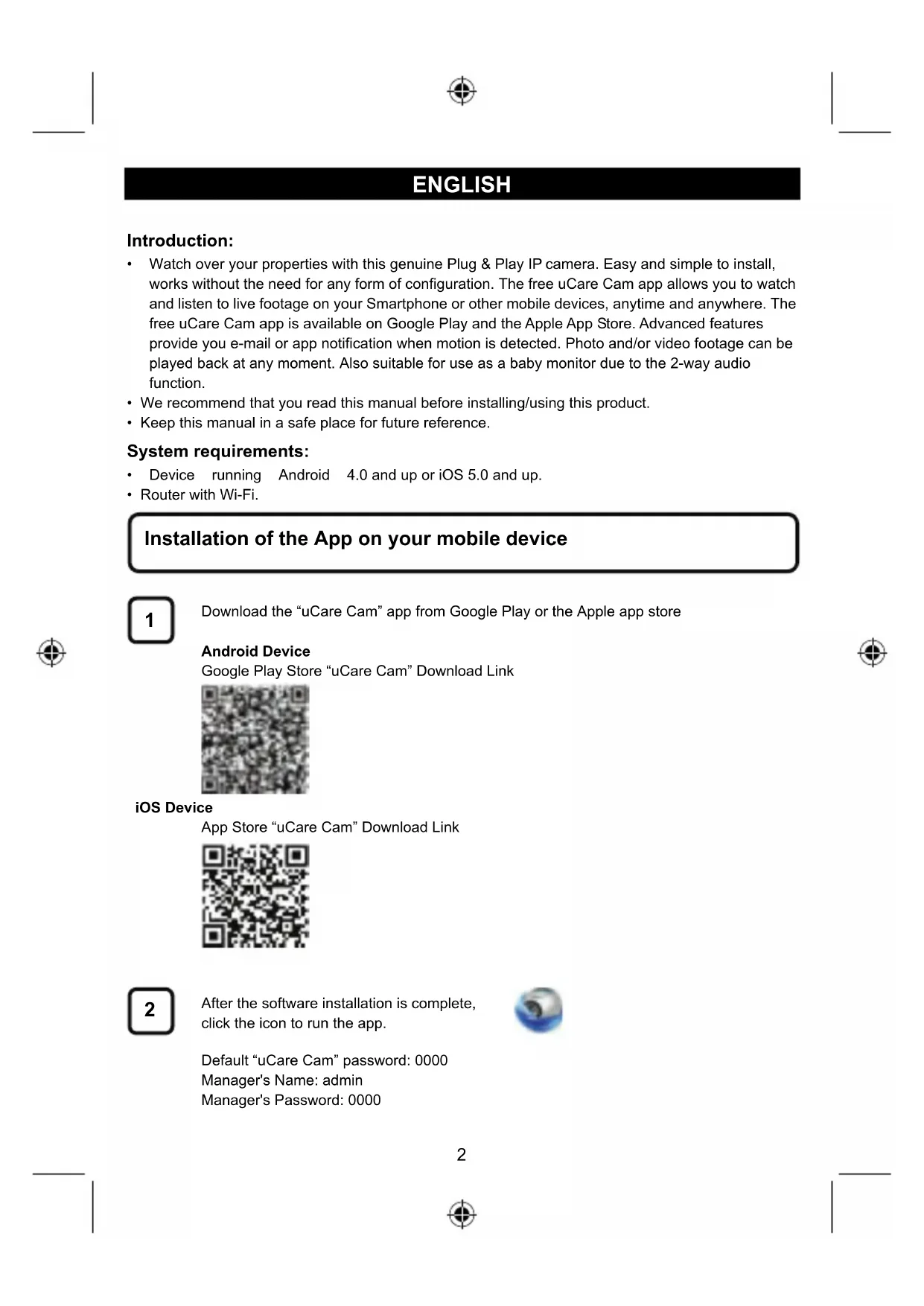

USER MANUAL SECIPCAM105B KONIG

MANUAL (p. 2)
IP camera

MODE D'EMPLOI (p. 24)
Camera IP

MANUALE (p. 46) Telecamera IP

HASZNÁLATI UTMUTATO (o. 68.)
IP kamera

MANUAL DE USO (p. 57)
Cármara IP

• Watch over your properties with this genuine Plug & Play IP camera. Easy and simple to install, works without the need for any form of configuration. The free uCare Cam app allows you to watch and listen to live footage on your Smartphone or other mobile devices, anytime and anywhere. The free uCare Cam app is available on Google Play and the Apple App Store. Advanced features provide you e-mail or app notification when motion is detected. Photo and/or video footage can be played back at any moment. Also suitable for use as a baby monitor due to the 2-way audio function.
  We recommend that you read this manual before installing/using this product.
• Keep this manual in a safe place for future reference.

System requirements:

Device running Android 4.0 and up or iOS 5.0 and up.

• Router with Wi-Fi.

Installation of the App on your mobile device

1

Download the "uCare Cam" app from Google Play or the Apple app store

Android Device

Google Play Store "uCare Cam" Download Link

iOS Device

App Store "uCare Cam" Download Link

2

After the software installation is complete, click the icon to run the app.

Default "uCare Cam" password: 0000

Manager's Name: admin

Manager's Password: 0000

Figure 1

"Camera List Window"

There are two options to continue the easy set up of your IP camera.

Install your IP camera by ROUTER MODE

1

Power On

Plug the power adapter DC connector into the DC input port of the IP camera and then plug the power adapter into a wall outlet. The status LED on the IP camera will turn green for about 15 seconds.

2

Programme Loading

The status LED will flash red for about 15 seconds.

3

Router Link Mode

Wait until the status LED colour alternates between red and green.

Note:

If the LED does not turn red and green, then press the WPS/Reset button for more than 10 seconds to restart the IP camera.

When the green status LED lights up and holds, and then the red status LED flashes twice, after which it changes into green, the IP camera has entered the RESET state. At this moment you can release the button and then wait until the status LED alternates between red and green.

ANDROID (for Apple go to: Step 8)

Set the IP camera to connect to the Wi-Fi Router

4

Open the "uCare Cam" App and select:

Click here to install the new Wi-Fi Camera

In the screen of the Camera List Window (see figure 1).

In the following screen select the tab:

then select the tab: to enter the next step (see Figure 2).

Follow the instructions in the Camera List window step by step (see Figure 3 and Figure 4). Please enter a personal camera name and password (default 0000). You are encouraged to change the default password after setup for security purposes.

Click the tab

(see Figure 5). The uCare Cam will automatically enter the viewing window (see Figure 6) and the IP camera status LED will turn orange.

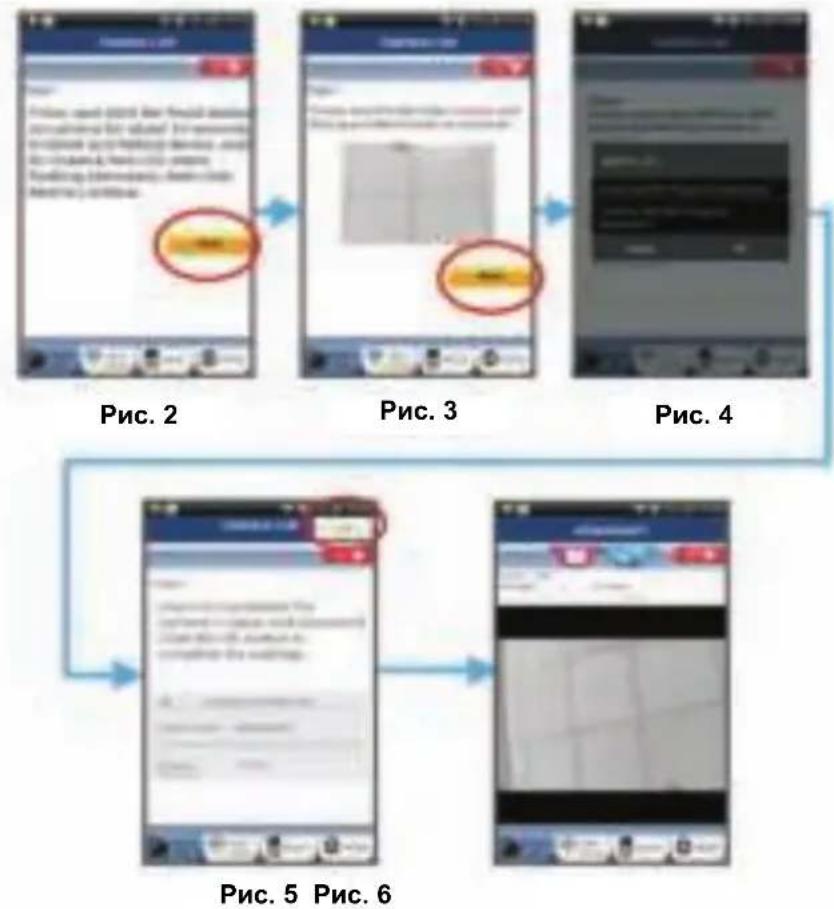

Figure2

Figure3

Figure4

Figure5 Figure6

APPLE

Set the IP camera to connect to the Wi-Fi router

8

Open up "Settings" on your iOS device and select "Wi-Fi" and let it search for a network. The network will be "Wi-Fi-cam-p2p". Select "Wi-Fi-cam-p2p" to connect.

9

Now, open the "uCare Cam" app and select the tab at the bottom of the screen that says "Wi-Fi Connect".

10

Select "Router mode", then "Next". Enter the Wi-Fi router SSID and password for your home router.

11

After the IP camera receives this information, it will restart. Please wait for it to start up and connect to your Wi-Fi router. When it successfully connects, the status LED colour will turn orange. It may take up to 5 minutes.

12

Then select the camera name in the "uCare Cam" app to connect. Note: If the status LED colour does not turn orange, please check your Wi-Fi router and make sure the IP camera is within the signal area of your Wi-Fi router. Then try this setup again.

Install your IP camera by WPS connection mode

If your Wi-Fi router has a WPS (Wi-Fi Protected Setup) button, you can use it to set up the IP camera. (Must enable WPA/WPA2 encryption in Router). On the Wi-Fi router, you will see a button labelled "WPS". It may also be called "QSS" or "AOSS"

1

Setup Wi-Fi - WPS mode

Open the "uCare Cam" app

and select "Wi-Fi Setting" or "Wi-Fi Connect" at the bottom of the screen.

Select the tab:

then select the tab:

to enter Step 2 (see Figure 8).

2

Enter WPS mode

Power on your IP camera. The status LED on the IP camera will be green for about 15 seconds.

3

Programme Loading

The status LED will flash red for about 15 seconds.

Press the WPS button on your IP camera

Wait until the status LED flashes between red and green, then press and hold the WPS/RESET button on your IP camera for about 2 seconds to enter WPS mode. The status LED will be flashing green.

Enter WPS mode on the Wi-Fi router

Press the WPS button on the Wi-Fi router

Selecting the Wi-Fi router

Select the Wi-Fi router of your choice in the screen (see Figure 9).

Then select the tab: to enter next step (see Figure 10).

Figure9
Figure10 Figure8

IP camera connects with Wi-Fi router

Wait about 1-2 minutes. If the IP camera is successfully connected to the Wi-Fi router, the status LED will become orange.

Otherwise the status LED will become a flashing red light. If the setup is not successful, please go back to Step 1 and try again.

If successful, select the tab:

(see Figure 11), and follow the instructions.

Please enter a camera name and password for security and

select the Tab: (see Figure 13).

The IP camera will automatically enter the viewing screen (see Figure 14).

Figure11

Figure12

Figure13 Figure14

Start up the IP camera after the Wi-Fi connection has been completed

1

Power On

Plug the power adapter DC connector into the DC input port of the IP camera and then plug the power adapter into a wall outlet. The status LED on the IP camera will turn green for about 15 seconds.

2

Programme Loading

The status LED will flash red for about 15 seconds.

3

Searching Wi-Fi Router

The status LED will flash green until the Wi-Fi router is found (up to 5 minutes). Once the router is found, the status LED will become orange.

If the IP camera cannot connect to the Wi-Fi router, please check the Wi-Fi router status or re-install.

In the app, select the camera name that is shown in the Camera List, and the viewing window will open(see Figure 15).

Add already installed IP camera to the app

ANDROID (for Apple go to: Step 5)

1

Open the "uCare Cam" app and select:

Click here to import installed Wi-Fi Camera

In the Camera List Window screen (see figure 16) for adding an IP camera.

2

Select the tab:

Your device will now enter the QR code mode.

Note: you need to have a QR code scanner installed on your device.

3

Locate the QR code on the backside of the IP camera and scan the QR code.

After scanning the QR code, the UID (Unique ID code) appears in the screen of your device (see Figure 17).

Enter a personal camera name and password and select the tab:

(see Figure 17).

The new camera will be added to the list

(see Figure 18).

Figure16 Figure 17 Figure 18

APPLE

Open the App "uCare Cam".

Select, in the camera list window, the "+" sign on the right top of the screen.

Select option "Scan camera QR code".

Note: you need to have a QR code scanner installed on your device.

Locate the QR code on the backside of the IP camera and scan the QR code.

The UID (Unique ID code) will show up after scanning the QR code.

Enter a personal camera name and select "DONE" on the top right side of the screen.

For further explanation of the app, the IP camera and the FAQ, please check the FULL manual (English only) on the CD supplied with this product.

Product description:

SEC-IPCAM100B (W)

1. Wi-Fi antenna
2. Light intensity sensor
3. IR LED
4. No function
5. Microphone
6. LED indicator
7. WPS/Reset button
8. Micro SD card slot
9. Loudspeaker
10. Connection for camera mount
11. 5V DC input

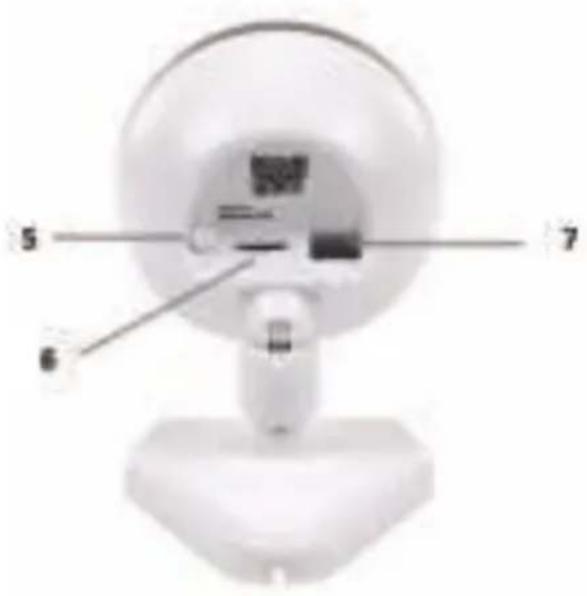

SEC-IPCAM105B (W)

1. LED indicator
2. Light intensity sensor
3. IR LED
4. Microphone
5. WPS/Reset button
6. Micro SD card slot
7. 5V DC input

Safety precautions:

To reduce risk of electric shock, this product should ONLY be opened by an authorised technician when service is required. Disconnect the product from mains and other equipment if a problem should occur. Do not expose the product to water or moisture.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

Any changes and/or modifications to the product will void the warranty. We cannot accept any liability for damage caused by incorrect use of this product.

Disclaimer:

Designs and specifications are subject to change without notice. All logos, brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Disposal:

• This product is designated for separate collection at an appropriate collection point. Do not dispose of this product with household waste.
• For more information, contact the retailer or the local authority responsible for waste management.

This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member states of the European Union. It also complies with all applicable specifications and regulations in the country of sales.

Formal documentation is available upon request. This includes, but is not limited to: Declaration of Conformity (and product identity), Material Safety Data Sheet and product test report.

Please contact our customer service desk for support:

via website: http://www.nedis.com/en-us/contact/contact-form.htm#news

via e-mail: [e-mail]

via telephone: [phone] (during office hours)

NEDIS B.V., De Tweeling 28, 5215 MC 's-Hertogenbosch, THE NETHERLANDS
