| Product type | Impact drill |
| Brand | Vonroc |
| Model | ID503AC |
| Power supply | 220-240 V~, 50/60 Hz |
| Power consumption | 1100 W |
| No-load speed (speed 1) | 0 - 1200/min |
| No-load speed (speed 2) | 0 - 3100/min |
| Impact rate (speed 1) | 0 - 19 200/min |
| Impact rate (speed 2) | 0 - 49 600/min |
| Chuck size | 13 mm |
| Max. drilling diameter (wood) | 30 mm |
| Max. drilling diameter (concrete) | 20 mm |
| Max. drilling diameter (steel) | 13 mm |
| Weight | 3.3 kg |
| Sound pressure level | 94 + 3 dB(A) |
| Sound power level | 105 + 3 dB(A) |
| Vibration (metal drilling) | 4.156 + 1.5 m/s² |
| Vibration (percussion drilling concrete) | 11.897 + 1.5 m/s² |
| Protection class | II (double insulation) |
| Rotation direction | Left / Right reversible |
| Speed control | Electronic (trigger + wheel) |
| Auxiliary handle | Yes, adjustable |
| Depth stop | Yes, adjustable |
| Functions | Drilling, hammer drilling |
| Maintenance | Clean with a soft slightly damp cloth; do not use solvents |
| Safety | Safety glasses, hearing protection, dust mask recommended |
Frequently Asked Questions - ID503AC Vonroc
User questions about ID503AC Vonroc
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Drill in PDF format for free! Find your manual ID503AC - Vonroc and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ID503AC by Vonroc.
USER MANUAL ID503AC Vonroc
B

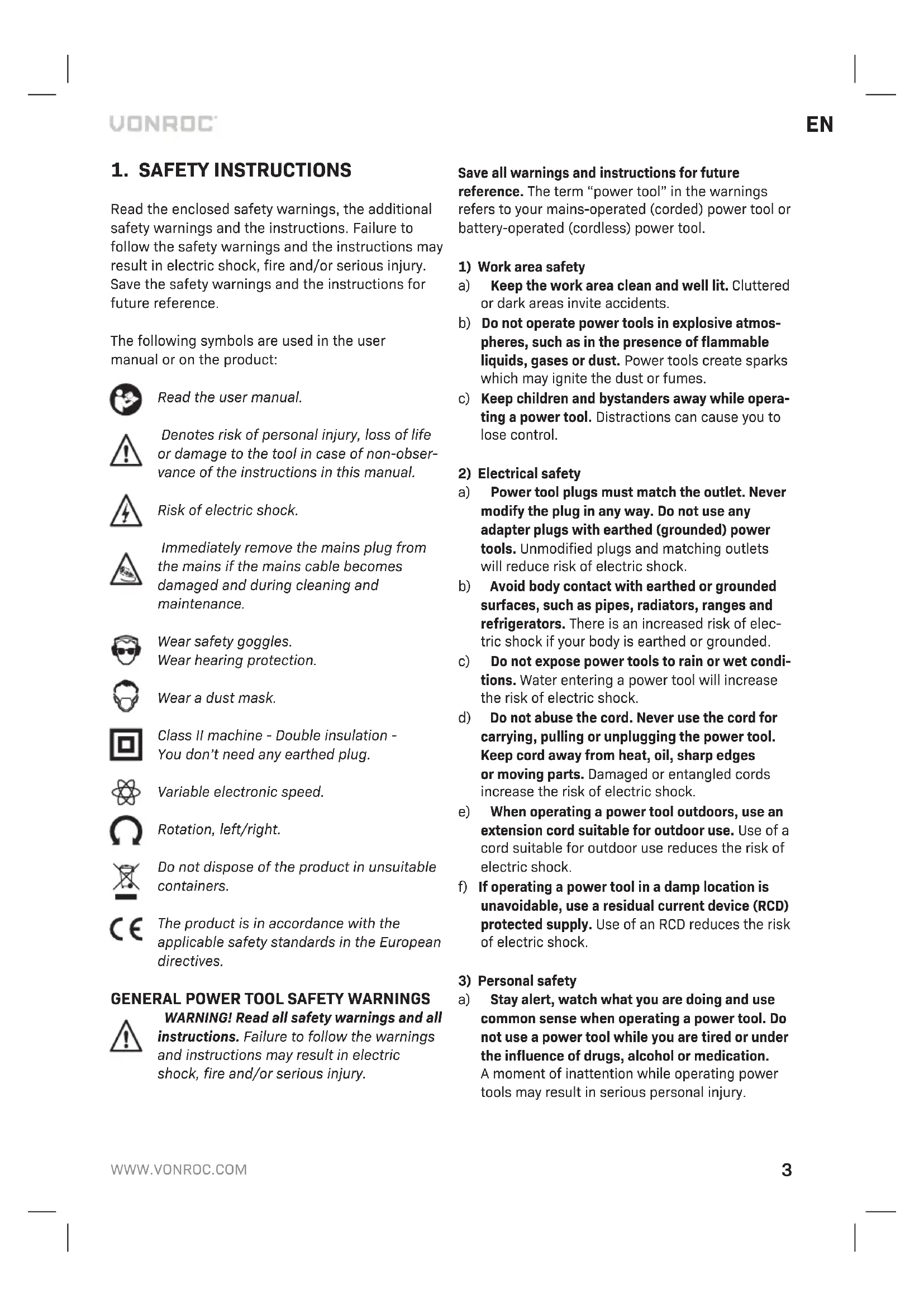

1. SAFETY INSTRUCTIONS
Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.
The following symbols are used in the user manual or on the product:
Read the user manual.
Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.
Risk of electric shock.
Immediately remove the mains plug from the mains if the mains cable becomes damaged and during cleaning and maintenance.
Wear safety goggles. Wear hearing protection.
Wear a dust mask.
Class II machine - Double insulation - You don't need any earthed plug.
Variable electronic speed.
Rotation, left/right.
Do not dispose of the product in unsuitable containers.
The product is in accordance with the applicable safety standards in the European directives.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
ADDITIONAL SAFETY WARNINGS FOR IMPACT DRILLS
This machine is suitable for light work. Do not overload the machine.
a) Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
b) Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
c) Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
Electrical safety
When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.
Always check that the power supply corre sponds to the voltage on the rating plate.
Class II machine - Double insulation - You don't need any earthed plug
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
2. MACHINE INFORMATION
Intended use
Your impact drill has been designed for drilling holes in wood, metal and plastics and for hammer drilling in brick and concrete.
TECHNICAL SPECIFICATIONS
| Model No. ID503AC | |
| Mains voltage 220-240 V~ | |
| Mains frequency 50/60 Hz | |
| Power input 1100W | |
| No-load speed (1) 0-1.200/min | |
| No-load speed (2) 0-3.100/min | |
| Impact rate (1) 0-19.200/min | |
| Impact rate (2) 0-49.600/min | |
| Chuck size 13 mm | |
| Max. drill diameter Wood Concrete Steel | 30 mm20 mm13 mm |
| Weight 3.3 kg | |
| Sound pressure level L_PA | 94 + 3 dB(A) |
| Sound power level L_WA | 105 + 3 dB(A) |
| Drilling into metal, a_h,D | 4.156 + 1.5 m/ s^2 |
| Impact drilling into concrete, a_h,ID | 11.897 + 1.5 m/ s^2 |
Vibration level
The vibration emission level stated in this instruction manual has been measured in accordance with a standardized test given in EN62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.
- Using the tool for different applications, or with
different or poorly maintained accessories, may significantly increase the exposure level.
- The times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.
Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.
DESCRIPTION
The numbers in the text refer to the diagrams on page 2.
Fig. A
- Chuck
- Function selection switch
- Depth stop
- Lock-on button
- On/Off switch
- Speed adjustment wheel
- Left/right rotation switch
- Gear selection switch
- Side handle

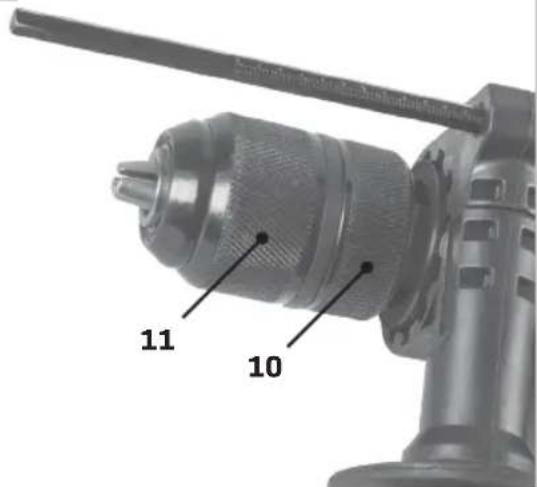

Fig. B
-
Rear sleeve
-
Front sleeve
3. ASSEMBLY
Mounting and removing the auxiliary grip (Fig. A) Mounting
- Loosen the auxiliary grip (9).
- Slide the auxiliary grip (9) over the chuck (1).
- Turn the auxiliary grip (9) to the required position.
- Tighten the auxiliary grip (9).
Removing
- Loosen the auxiliary grip (9).
- Remove the auxiliary grip (9) from the chuck (1).
Exchanging and removing drill bits (Fig. A - B)
The machine is suitable for use of the following drill bits:
- Wood (HSS)
- Metal (HSS)
- Concrete / masonry (hard metal)
Before exchanging bits, first remove the power plug from the wall socket.
Inspect bits regularly during use. Blunt bits should be re-sharpened or replaced.
- Open the chuck (1) by turning the front sleeve (11) clockwise while simultaneously holding the rear sleeve (10) or turning it counterclockwise and insert the bit into the chuck opening.
- Tighten the bit by turning the front sleeve (11) counterclockwise while simultaneously holding the rear sleeve (10) or turning it clockwise.
Setting depth stop (Fig. A)
- Insert the depth stop (3) in the hole in the side handle ring.
- Slide the ruler to the desired depth.
4. OPERATIONS
Impact drills require very little operator pressure. Excessive pressure on the tool can lead to unnecessary overheating of the motor, and burning of the driven tool.
The On/Off switch (Fig. A)
- Switch the machine on by pressing the On/Off switch (5). When you release the On/Off switch (5) the machine will turn off.
- The rotation-speed can be adjusted by pressing the On/Off switch (5) harder for raising the rotation-speed or release pressure for lowering the rotation-speed.
Lock-on Button (Fig. A)
- You can lock the On/Off switch (5) by pressing the On/Off switch (5) and then pressing the lock-on button (4).
- To release the switch-lock; shortly press the On/Off switch (5) again.
Adjusting of the maximum rotation speed (Fig. A)
- Adjust the speed by turning the speed adjustment wheel (6) to the desired maximum rotation speed.
Switching the direction of rotation (Fig. A)
Do not change the direction of rotation during use.
- Direction of rotation counter-clockwise: shift left/right rotation switch (7) to "L".
- Direction of rotation clockwise: shift left/right rotation switch (7) to "R".
Function selection switch (Fig. A)
In order to avoid damage to the machine, adjusting the function selection switch (2) shall only be done when machine is not running.
- Set the function selection switch (2) to “” for drilling.
- Set the function selection switch (2) to “ ⚡…” for hammer drilling.
Gear selection switch (Fig. A)
In order to avoid damage to the machine, adjusting the gear selection switch (8) shall only be done when machine is not running.
- If you set the gear selection switch (8) to position "1", the drilling speed can be adjusted between 0 and 1,200/min.
- If you set the gear selection switch (8) to position "2", the drilling speed can be adjusted between 0 and 3,100/min.
- When the gear selection switch (8) cannot switch easily between “1” and “2”, give the chuck (1) a little spin by using your hands. This will help the gears fall into the correct position and makes switching the gears easier.
User tips
Always use the machine with the side handle firmly anchored in place - you will not only work with more comfort, you will also work with more precision.
Caution: drilling bits and hammer drilling bits can get very hot.
Drilling and hammer drilling
- For large holes, for instance in very hard concrete, start using a smaller bit for pilot drilling first, then drill to nominal size.
- Hold the machine firmly with 2 hands. Be aware the drill can jam and because of that machine might suddenly turn (Especially when drilling deep holes).
- Do not apply a lot of pressure on the machine, let the machine do the work.
5. MAINTENANCE
Make sure that the machine is not live when carrying out maintenance work on the motor.
Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.
warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.
The product and the user manual are subject to change. Specifications can be changed without further notice.
ENVIRONMENT
Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.
Only for EC countries
Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.
WARRANTY
VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.
The following circumstances are excluded from this guarantee:
- Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
- Normal wear and tear;
- The tool has been abused, misused or improperly maintained;
- Non-original spare parts have been used.
This constitutes the sole warranty made by company either expressed or implied. There are no other
DECLARATION OF CONFORMITY ID503AC - IMPACT DRILL
(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 8 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht. den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstemming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi försäkrar under vårt eget ansvar att denna produkt överensstämmer med Europaparlamentets och rådets direktiv 2011/65/EU av den 8 juni om begränsning av användningen av vissa farliga ämnen i elektrisk och elektronisk utrustning och är i överensstämmelse och enlighet med följande standarder och föreskrifter:
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med Europa-Parlamentets og Rådets direktiv 2011/65/EU af 8. juni om begrænsning af brugen af visse farlige stoffer i elektrisk og elektronisk udstyr og overholder og er i overensstemmelse med følgende standarder og regler:
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach: jest zgodny z Dyrektywą 2011/65/UE Parlamentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(RO) Declarăm sub responsabilitatea exclusivă că acest produs este în conformitate cu Directiva 2011/65/EU a Parlamentului și a Consiliului European din 8 iunie privind restricționarea utilizării anumitor substanțe periculoase în echipamentele electrice și electronice și în conformitate cu următoarele standarde și reglementări:
(PT) Declaramos, sob nossa exclusiva responsabilidade, que este produto está em conformidade com a directiva 2011/65/UE do Parlamento Europeu e com a do conselho de 8 de Junho sobre a restrição da utilização de determinadas substâncias perigosas em equipamento eléctrico e electrónico está em conformidade e de acordo com as seguintes normas e regulamentações:
(HU) Kizárólagos felelősségünk tudatában kijelentjük, hogy ez a termék megfelel az Európai Parlamentnek és a Tanácsnak az egyes veszélyes anyagok elektromos és elektronikus berendezésekben való alkalmazásának korlátozásáról szóló 2011/65/EU irányelvének (2011. június 8.), valamint a következő szabványoknak és jogszabályoknak:
(CS) Prohlašujeme na svou výhradní odpovědnost, že tento výrobek splňuje požadavky směrnice 2011/65/EU Evropské rady a parlamentu ze dne 8. června, která se týká omezení používání určitých nebezpečných látek v elektrických a elektronických zařízeních, a splňuje také všechny požadavky následujících norem a předpisů:
(TR) Tek sorumlusu biz olmak üzere bu ürünün Avrupa Parlamentosunun 2011/65/EU ve 8 Haziran 2011 tarihli konseyin elektrikli ve elektronik ekipmanlarda belirlenmiş tehlikeli malzeme kullanımının kısıtlanması hakkındaki talimatları ile birlikte aşağıda belirtilen standart ve yönergelere uygun ve uyumlu olduğunu beyan ederiz:
EN55014-1, EN55014-2, EN 62841-1, EN 62841-2-1, EN61000-3-2, EN61000-3-3 2006/42/EC, 2014/30/EU, 2011/65/EU, 2012/19/EU
Zwolle, 01-06-2022
VONROC • Lingenstraat 6 • 8028 PM Zwolle • The Netherlands
VONROC®
BUILD YOUR FUTURE
©2022 VONROC
WWW.VONROC.COM
2206-30
- SAFETY INSTRUCTIONS
- GENERAL POWER TOOL SAFETY WARNINGS
- 1) Work area safety
- 2) Electrical safety
- 3) Personal safety
- ADDITIONAL SAFETY WARNINGS FOR IMPACT DRILLS
- Electrical safety
- MACHINE INFORMATION
- Intended use
- Vibration level
- DESCRIPTION
- Fig. A
- Fig. B
- ASSEMBLY
- Mounting and removing the auxiliary grip (Fig. A) Mounting
- Removing
- Exchanging and removing drill bits (Fig. A - B)
- Setting depth stop (Fig. A)
- OPERATIONS
- The On/Off switch (Fig. A)
- Lock-on Button (Fig. A)
- Adjusting of the maximum rotation speed (Fig. A)
- Switching the direction of rotation (Fig. A)
- Function selection switch (Fig. A)
- Gear selection switch (Fig. A)
- User tips
- Drilling and hammer drilling
- MAINTENANCE
- ENVIRONMENT
- Only for EC countries
- WARRANTY
- DECLARATION OF CONFORMITY ID503AC - IMPACT DRILL
Brand : Vonroc
Model : ID503AC
Category : Drill
