Product Type	Lock mortiser (router)
Brand	Mafell
Model	SKS 130
Service voltage	230 V AC (50 Hz) or 110 V AC (50 Hz)
Power consumption	1600 W
Current consumption	7.4 A (230 V) / 15.4 A (110 V)
No-load speed	5770 min⁻¹
Max mortising depth	145 mm
Weight (without cable)	10.6 kg
Sound pressure level (L_PA)	100 dB(A) (uncertainty 3 dB(A))
Sound power level (L_WA)	108 dB(A)
Hand-arm vibration	4.0 m/s²
Intended use	Mortising of solid wood doors or common wood
Safety devices	Chain guard, cover, base with cam, large stop, handles, pneumatic spring, switch with lock, extraction hose
Standard equipment	2 guide rails, 2 mortising chains, 2 chain sprockets, service tool, transport case, instruction manual, safety instructions booklet
Chain maintenance	Clean and lubricate after 2 hours of use in an oil bath
Extraction connection	Inner diameter of sleeve: 35 mm, air velocity ≥ 20 m/s
Available accessories	Chain guide, sprockets, chains (14/16/18x38x150 mm), replacement links
Protection class	II

Frequently Asked Questions - SKS 130 Mafell

What is the supply voltage of the Mafell SKS 130?

The machine is available in 230 V AC (50 Hz) and 110 V AC (50 Hz) versions. Check the rating plate for your device's voltage.

What is the maximum mortising depth?

The mortising depth can be adjusted from 0 to 145 mm.

How to change the mortising chain?

Unplug the machine, remove the protective cover, loosen the tension screws, remove the old chain and sprocket, mount the new chain respecting the running direction, then tension it (6 mm lift at the center of the rail) and reassemble the cover.

What standard accessories are included?

The machine is supplied with 2 guide rails, 2 mortising chains, 2 chain sprockets, a service tool, a transport case, the instruction manual and the safety instructions booklet.

What type of maintenance does the SKS 130 require?

The chains must be cleaned and lubricated in an oil bath after 2 hours of use. The bearings are lubricated for life. For a complete overhaul, contact a Mafell after-sales service.

What are the essential safety measures?

Always wear hearing protection, a dust mask, safety glasses and gloves. Use the machine only with the chain guard in place. Make sure the workpiece is secured and the machine is properly fixed before mortising.

Can the SKS 130 be used on metal doors?

No, the intended use is limited to mortising doors made of solid wood or common wood. Mortising metal doors is strictly prohibited.

How to adjust the mortising depth?

Pull the machine to the initial position, loosen the wing screw, move the adjustment ring to read the depth on the scale (0 to 145 mm), then tighten the screw.

What to do if the machine stops during use?

Check the power supply and fuses. Reduce the feed rate if the machine is overloaded. Clean the chip outlet if blocked and make sure the wood is not too damp.

Where to find spare parts?

Spare parts and the exploded view are available on the website www.mafell.com. Use only genuine Mafell parts.

USER MANUAL SKS 130 Mafell

Industrial power tool with handle and clamping mechanism (no visible text or symbols)

MAF00853/a

WARNUNG

Please read all safety instructions and directions. Failure to comply with the safety instructions and directions can cause electric shock, fire and/or serious injuries. Please retain all safety instructions and directions for future reference.

AVERTISSEMENT

Cross-sectional mechanical assembly diagram showing internal components and a numbered label (23), no readable text or symbols beyond the number.

MAF00857/a

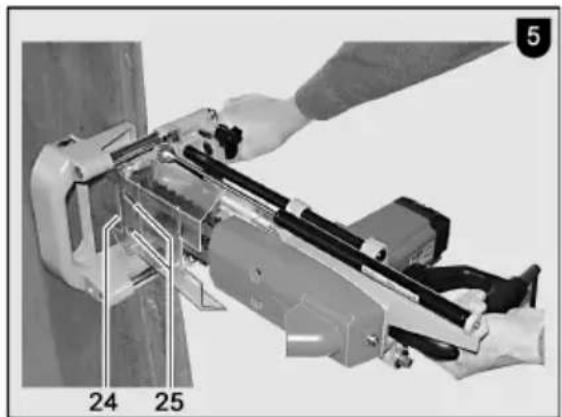

Close-up of hands operating a mechanical device with numbered parts (24 and 25), no visible text or symbols on the device itself.

MAF00858/a

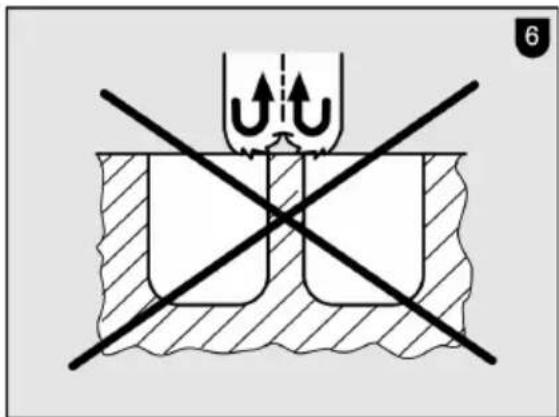

6

MAF00867/a

GB - EC Declaration of Conformity

We herewith confirm that the machine SKS 130 complies with the EU directives quoted. The standards listed were used for design and construction. Empowered person for the configuration of the technical documents: Mafell AG

1	Signs and symbols	15
2	Product information	15
2.1	Manufacturer's data	15
2.2	Machine identification	15
2.3	Technical data	16
2.4	Emissions	16
2.5	Scope of supply	16
2.6	Safety devices	17
2.7	Use according to intended purpose	17
2.8	Residual risks	17
3	Safety instructions	17
4	Setting / Adjustment	18
4.1	Mains connection	18
4.2	Chip extraction	18
4.3	Mortising chain change and chain wheel change	19
5	Operation	19
5.1	Initial operation	19
5.2	Switching on and off	19
5.3	Positioning on doors with rebate	19
5.4	Positioning on doors without rebate	20
5.5	Positioning on built-in doors	20
5.6	Mortising depth adjustment	20
5.7	Mortising the lock casing	20
6	Service and maintenance	21
6.1	Mortising chains	21
6.2	Storage	21
7	Troubleshooting	21
8	Optional accessories	22
9	Exploded drawing and spare parts list	22

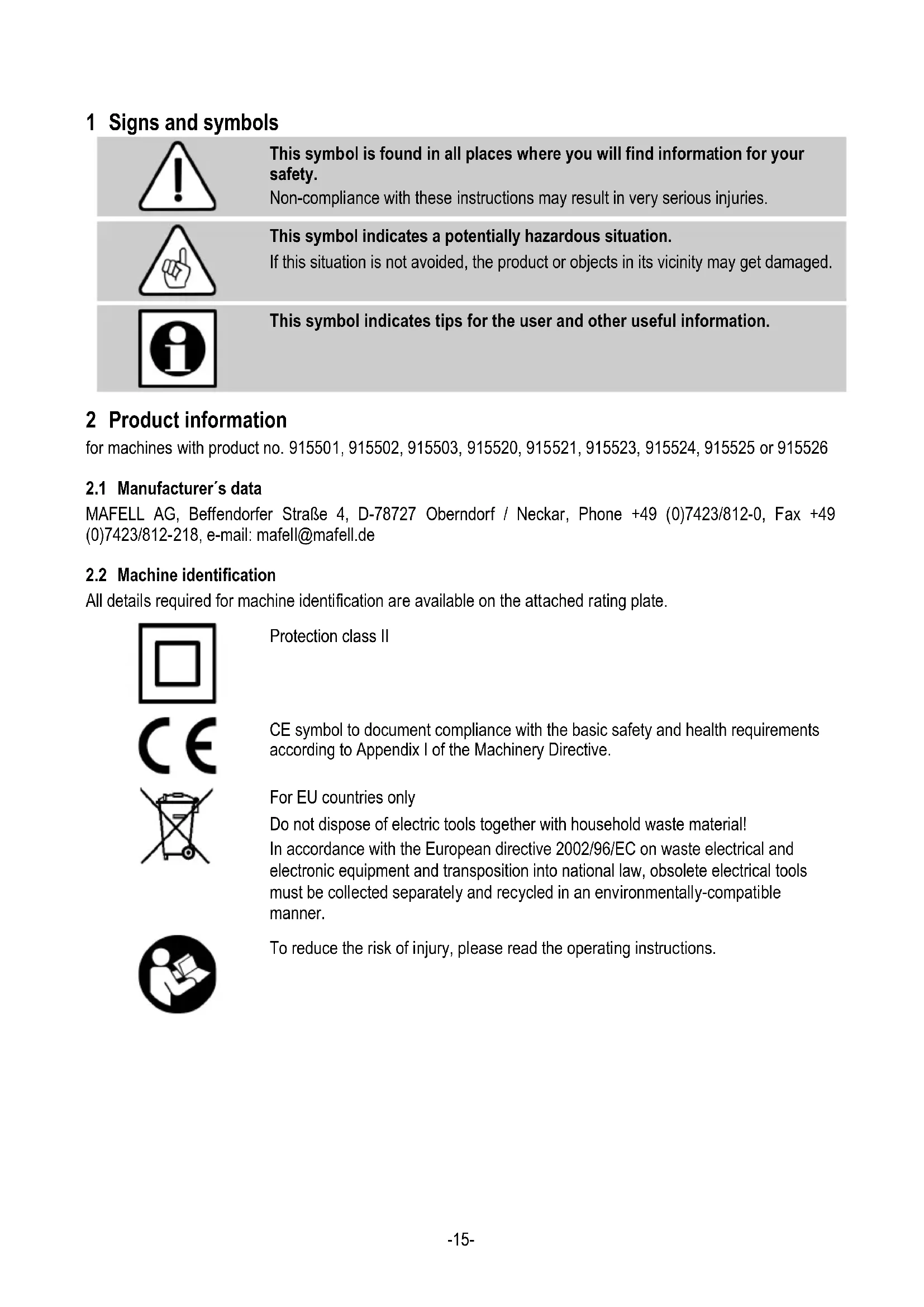

1 Signs and symbols

This symbol is found in all places where you will find information for your safety.

Non-compliance with these instructions may result in very serious injuries.

This symbol indicates a potentially hazardous situation.

If this situation is not avoided, the product or objects in its vicinity may get damaged.

This symbol indicates tips for the user and other useful information.

2 Product information

for machines with product no. 915501, 915502, 915503, 915520, 915521, 915523, 915524, 915525 or 915526

2.1 Manufacturer's data

MAFELL AG, Beffendorfer Straße 4, D-78727 Oberndorf / Neckar, Phone [phone], Fax [phone], e-mail: [e-mail]

2.2 Machine identification

All details required for machine identification are available on the attached rating plate.

Protection class II

CE symbol to document compliance with the basic safety and health requirements according to Appendix I of the Machinery Directive.

For EU countries only

Do not dispose of electric tools together with household waste material!

In accordance with the European directive 2002/96/EC on waste electrical and electronic equipment and transposition into national law, obsolete electrical tools must be collected separately and recycled in an environmentally-compatible manner.

To reduce the risk of injury, please read the operating instructions.

2.3 Technical data

Operating voltage	230 V AC	110 V AC
Mains frequency	50 Hz	50 Hz
Input power continuous operation	1600 W	1600 W
Power consumption continuous operation	7.4 A	15.4 A
Speed during idling	5770 rpm
Mortising depth	145 mm (0.08 in.)
Weight without mains cable	10.6 kg (16.09 lbs)

2.4 Emissions

The declared noise emission values have been measured in accordance with DIN EN 62841-1 and may be used for comparing the tool with another and also in a preliminary assessment of exposure.

Danger

The noise emissions during actual use of the power tool can differ from the declared values depending on the ways in which the tool is used especially what kind of workpiece is processed.

Always wear hearing protection, even when the power tool is running idle in addition to the trigger time!

2.4.1 Noise emission specifications

Noise emission values determined according to EN 62841:

Sound pressure level L	_PA = 100 dB (A)
Uncertainty K	_PA = 3.0 dB (A)
Sound power level	L_WA = 108 dB (A)
Uncertainty K	_WA = 3.0 dB (A)

The noise measurement was recorded using the mortising chain included in the standard equipment.

2.4.2 Vibration specifications

The typical hand-arm vibration is 4.0 m/s ^2 .

2.5 Scope of supply

Door lock mortiser SKS 130 complete with:

2 guide rails complete
2 mortising chains
2 chain wheels
1 service tool in bracket on the machine
1 carrying case
1 operating manual
1 folder "Safety Instructions"

2.6 Safety devices

Danger

These devices are required for the machine's safe operation and may not be removed or rendered inoperative.

Before operating the machine, check the safety devices for function and possible damage. Do not use the machine with missing or ineffective safety devices.

The machine is equipped with the following safety devices:

• Chain guard and protective cover
• Base plate with protective cam
• Large limit stop
• Handles
• Gas spring to prevent abrupt retraction
• Index mechanism with lock
• Hose connector

2.7 Use according to intended purpose

The MAFELL door lock mortiser SKS 130 is exclusively intended for mortising doors made of solid wood or common derived timber products, using the mortising chains approved by us.

The machine may only be used for mortising work after it has been mounted on a door in accordance with the instructions in chapter 5.3 and 5.4.

The door lock mortiser may not be used to mortise metal doors!

The dimensions of the mortising chain sets used (guide rail, mortising chain and chain wheel) must correspond to the mortising chain sets listed in the operating instructions.

Any other use than described above is not permissible. The manufacturer cannot be held liable for any damage arising from such other use.

So as to use the machine as intended, comply with the operating, maintenance and repair instructions specified by Mafell.

2.8 Residual risks

Danger

Even if used in accordance with its intended purpose and despite conforming with the safety instructions, residual risks caused by the intended use that can lead to health consequences will always remain.

• Touching the mortising chain in the exposed area.
• Touching the part of the mortising chain that protrudes below the workpiece when mortising.
• Touching the mortising chain from the side.
• Breakage of the mortising chains and risk of the mortising chains or parts of them being hurled away.
• Touching live parts with the housing open and the mains plug not removed.
• Hearing can be impaired when working for long periods without ear protectors.
• Emission of harmful wood dusts during longer operation without extraction.

3 Safety instructions

Danger

Always observe the following safety instructions and the safety regulations applicable in the respective country of use!

Also read the safety instructions in the enclosed booklet "Safety instructions".

General instructions:

• Children and adolescents must not operate this machine. This rule does not apply to young persons receiving training and being supervised by an expert.
• Never work without the protection devices prescribed for the respective operating sequence and do not make any changes to the machine that could impair safety.
• When operating the machine outdoors, use of an earth-leakage circuit-breaker is recommended.
• Damaged cables or plugs must be immediately replaced. Replacement may only be carried out by

Mafell or an authorised MAFELL service workshop in order to avoid safety hazards.

- Avoid sharp bends in the cable. Especially when transporting and storing the machine, do not wind the cable around the machine.

Instructions on the use of personal protective equipment

- Always wear your personal protective equipment whenever you are working with the machine. Hearing protection, dust mask, protective goggles and protective gloves.

Instructions on operation:

- Provide for an unobstructed and slip-proof location with sufficient lighting.

- Do not work on workpieces which are too small or too large for the capability of the machine.

- Clamp mortising chains and guide rails appropriately and keep in order. Repair defective mortising chains professionally before reuse. Only use sharp mortising chains!

- Only remove chain guard for tool change purposes, immediately screw back on again afterwards. Never work without chain guard!

- Never transport the chain mortiser with running mortising chains! Avoid touching the ground with the running mortising chain.

- The switch may not be wedged.

- Before switching on, check whether the mortising chains are properly tensioned.

- Whenever possible secure the workpiece from pivoting or sliding away, overturning and luffing up, e.g by means of clamps.

- Only begin mortising the workpiece when the mortising chains have reached their full speed.

- Examine the workpiece for foreign objects. Never attempt to mortise into metal objects, such as nails.

- Hold on tightly to the machine, already before turning it on. The mortising chains must stand unrestricted. Apply the machine for the mortising operation with running mortising chains. Pay attention to a secure footing.

- Never reach below or laterally onto the workpiece during mortising (Risk of injury!).

- Always lead the connecting cable away from the machine to the rear while mortising.

• Match the feed speed during mortising to the material thickness. Mortising too quickly leads to motor overload, to unclean mortises and to the mortising chains blunting quickly.
• Only remove the machine from the workpiece if the mortising chains have come to a standstill.
• Do not reach into the chip ejector and the unprotected area of the mortising chain while the machine is running.
• The wood dust arising during mortising impairs the necessary view and is partly injurious to health. If the machine is used for longer periods, it must therefore be connected to a chip extractor, e.g. a portable small extractor, if the work is not carried out outdoors or in a sufficiently ventilated room. The air velocity must be at least 20 m/s (65.6 ft/sec.).
• Only start mortising the workpiece after the machine has been mounted on the workpiece in accordance with chapter 5.3 and 5.4.
• Support the clamping on the workpiece by keeping a firm hold on the machine.

Instructions on service and maintenance:

• Regularly cleaning the machine, especially the adjusting devices and guides, constitutes an important safety factor.
• Only original MAFELL spare parts and accessories may be used. Otherwise the manufacturer will not accept any warranty claims and cannot be held liable.

4 Setting / Adjustment

4.1 Mains connection

Prior to commissioning make sure that the mains voltage complies with the operating voltage stated on the machine's rating plate.

4.2 Chip extraction

Connect the machine to a suitable external dust extractor during all work generating a considerable amount of dust. The air velocity must be at least 20 m/s (65.6 ft / sec.).

The inside diameter of hose connector 7 (Fig. 2) is 35 mm (1 3/8 in.).

4.3 Mortising chain change and chain wheel change

Danger

Pull the power plug during all service work.

Pay attention that the mortising chains to be clamped have been well sharpened as this is a basic requirement for correct mortising.

Proceed as follows for exchanging the mortising chain:

• Clamp the machine vertically onto a piece of wood so that the machine cannot overturn.
• Unfasten the screw 9 (Fig. 2) and remove the chain guard 8.
• Slacken the mortising chains 4 (Fig. 1) by unfastening the two screws 3.
• Unfasten the screws 6.
• Push the guide rails 1 in direction of the chain wheels 2.
• Remove the chain wheels, mortising chains and guide rails.
• Place the new mortising chains onto the guide rails. Pay attention to the direction of travel (see direction of travel arrows on the chain guard).
• If necessary, place new chain wheels into the mortising chains.
• Refit the chain wheels, mortising chains and guide rails. In doing so, push the chain wheels onto the gear shaft in such a manner that the chain wheel groove gears into the straight pin and the circlip engages in the gear shaft groove.
• Slightly unfasten the screws 5.
• Slightly tighten the screws 6 and tension the mortising chain with the screws 3. The correct chain tension has been achieved if the mortising chain can be lifted by approx. 6 mm (1/4 in.) in the centre of the guide rails.
• Tighten the screws 5 and 6.
• Refit the chain guard 8 (Fig. 2) and secure it with screw 9.

5 Operation

Always wear your personal protective equipment whenever you are working with the machine.

5.1 Initial operation

Personnel entrusted to work with the machine must be made aware of the operating instructions, calling particular attention to the chapter "Safety instructions".

5.2 Switching on and off

Danger

Pay attention that the mortising chain can be moved freely.

Lead the connecting cable away to the rear.

Hold onto the machine with both hands.

Only switch on the machine if the mortising chain has no contact with the workpiece.

• Switching on: First unlock the switch-on lock by pressing the lock-off button 10 (Fig. 2). Then, keeping the lock-off button depressed, activate the switch trigger 11. The mortising chains are running and the feed is unlocked.
• Switching off: To switch off, release the switch trigger. Pull the machine completely back into latching position.

5.3 Positioning on doors with rebate

For positioning and aligning the door lock mortiser on doors with rebate, heed the red symbols on the left hand side!

Danger

Secure door against sliding away, overturning and luffing up!

- Apply the machine to the door as shown in Fig. 3. The stop edges (red arrow) now abut on the rebate from the inside.

• Align the machine in longitudinal direction. To do so, align the red edge 24 (Fig. 5) with the protective cover 16 (Abb. 2) on the left or right marking for the lock casing.
• Clamp the sliding bevel segment 21 (Fig. 3) against the door leaf by turning the handle 20. Select clamping force in accordance with door stability! If necessary, an interim layer, e.g. a wooden board, can be screwed onto the sliding bevel segment.
  • Unfasten the wing screw 18.
• Set the spacing between centre lock casing and rebate by shifting the base plate 19. The spacing can be read off with scale 22 on the red indicator edge.
  • Retighten the wing nut 18.

5.4 Positioning on doors without rebate

For positioning and aligning the door lock mortiser on doors without rebate, heed the black symbols on the right hand side!

Danger

Secure door against sliding away, overturning and luffing up!

• Apply the machine to the door as shown in Fig. 4. The stop edge (black arrow) that is provided with a sliding coating abuts on the door leaf.
• Align the machine in longitudinal direction. To do so, align the red edge 24 (Fig. 5) with the protective cover 16 (Abb. 2) on the left or right marking for the lock casing.
• Clamp the sliding bevel segment 21 (Fig. 3) against the door leaf by turning the handle 20. Select clamping force in accordance with door stability! If necessary, an interim layer, e.g. a wooden board, can be screwed onto the sliding bevel segment.
  • Unfasten the wing screw 18.
• Set the spacing between centre lock casing and stop edge by shifting the base plate 19. The distance can be read off with scale 23 (Fig. 4) on the black indicator edge.
  • Retighten the wing screw 18 (Fig. 3).

5.5 Positioning on built-in doors

Danger

Secure door against pivoting! Even after it is clamped tight, the operator must keep hold of the door lock mortiser with both hands! Never leave the door lock mortiser clamped onto the door! Remove the door lock mortiser from the door immediately after mortising. If possible, dismount the door and mortise the door in horizontal position.

• Apply the machine to the door as shown in Fig. 5.
• Position and align the machine (see chapter 5.3 or 5.4). To facilitate the alignment in longitudinal direction in this position, the protective cover 16 (Fig. 2) is equipped with two recesses 25 (Fig. 5). This improves the visibility of the red edges 24.

5.6 Mortising depth adjustment

The mortising depth is continuously variable between 0 and 145 mm (0 to 5 3/4 in.).

Proceed as follows to adjust it:

• Pull the machine by its handle 12 (Fig. 2) back into home position so that the machine is engaged.
  • Unfasten the wing screw 13.
• Adjust the mortising depth by shifting the adjusting ring 14. The mortising depth can be read off with scale 15 on the depth indicator 17.
• Retighten the wing nut.

5.7 Mortising the lock casing

Danger

Avoid mortising residues as shown in Fig. 6! This spares the machine and the workpiece.

Hold the machine by both handles 12 (Fig. 2) and 20 (Fig. 3) during mortising.

• Position the machine on the door (see chapter 5.3, 5.4 or 5.5).
• Set the mortising depth (see chapter 5.6).
• Hold onto the machine with both hands. Switch it on (see chapter 5.2) and mortise with even feed up to the limit stop.
• Pull the machine back into its home position.
• Release the switch trigger 11 (Fig. 2). The machine is locked.

During a mortising operation, a lock pocket length of 78 mm is achieved. For longer lock pockets, the machine must be reapplied.

- To do so, slightly unfasten the handle 20 (Fig. 3). Slightly tilt the machine and shift it.

6 Service and maintenance

Danger

Pull the power plug during all service work.

MAFELL machines are designed to be low in maintenance.

The ball bearings used are greased for life. When the machine has been in operation for a longer period of time, we recommend to hand the machine in at an authorised MAFELL customer service shop for inspection.

Only use our special grease, order No. 049040 (1 kg tin) for all greasing points.

6.1 Mortising chains

The mortising chain used on the machine should be cleaned and lubricated in a low viscosity oil bath after two hours of operation. To do so, dismantle the mortising chain (see chapter 4.3).

Replace the blunt mortising chains or have them reground at a MAFELL customer service station or by a suitable sharpening service.

6.2 Storage

Clean the machine thoroughly if the machine is not used for a longer period of time. Spray blank metal parts with a rust-proofing agent.

7 Troubleshooting

Danger

Determining the causes for existing defects and eliminating these always requires increased attention and caution. Pull the mains plug beforehand!

Some of the most frequent defects and their causes are listed in the following chart. In case of other defects, contact your dealer or the MAFELL customer service.

Defect	Cause	Elimination
Machine cannot be switched on	No mains voltage	Check power supply
	Mains fuse defective	Replace fuse
	Carbon brushes worn	Take the machine to a MAFELL customer service shop
Machine stops while mortising is in process	Mains failure	Check mains back-up fuses
	Machine overloaded	Reduce feed speed
	Unfavourable residue mortising (see Fig. 6)	Relocate the machine and mortise the residue with a chain
Chip ejection blocked	Wood is too damp	Clean chip ejection
	Extended mortising without exhaustion	Connect to an external extraction, e.g. portable dust extractor

8 Optional accessories

• Chain guide rail Order No. 091000
• Chain wheel Order No. 091002
• Mortising chain 14x38x150 mm Order No. 091003
• Mortising chain 16x38x150 mm Order No. 091001
• Mortising chain 18x38x150 mm Order No. 091004
• Replacement chain links and rivets:
  14 mm (0.08 in.) Order No. 091005
  16 mm (0.08 in.) Order No. 091006
  18 mm (0.08 in.) Order No. 091007

9 Exploded drawing and spare parts list

The corresponding information in respect of spare parts can be found on our homepage: www.mafell.com

Français

Sommaire

Incertitude K _WA = 3,0 dB (A)

mafell creating excellence

MAFELL AG

Beffendorfer Straße 4, D-78727 Oberndorf / Neckar

Telefon [phone]

Internet:

E-Mail:

Fax [phone]

www.mafell.de

[e-mail]
