USER MANUAL VR One Vileda

Illustration of a robotic vacuum cleaner with tassels and control buttons (no text or symbols on the device itself)

User & care guide • Manuale d'uso e manutenzione • Lieferumfang & Schnellstart Anleitung • Guía de usuario y cuidados • Manual de utilização & cuidados • Guide d'utilisation et d'entretien • Onderhouds- en gebruikshandleiding • Bruksanvisning och skötselguide • Bruger- og vedligeholdelsesvejledning/Bruker- og vedlikeholdsveiledning • Käyttö- ja hoito-opas • Instrukcja użytkowania i czyszczenia • Navodila za uporabo in nego • Uživatelská príručka • Uživatel'ská príručka • Vodič za korisnika i za njegu • Ošnýiες Χρήσης • Ghid de utilizare și întreținere

PACKAGING CONTENTS & QUICK START GUIDE

① Contenuto della confezione e Guida rapida ② Lieferumfang & Schnellstart Anleitung ③ Contenido y Guía de inicio rápido ④ Conteúdo da embalagem & manual de iniciação rápida ⑤ Contenu de la boîte et démarrage rapide ⑥ Inhoud van de doos en snelle start ⑦ Förpackningsinnehåll och snabbstartsguide ⑧ Emballagens indhold & Hurtigstartsguide ⑨ Pakkauksen sisältö ja pikakäyttöopas ⑩ Zawartość opakowania i skrócona instrukcja obsługi ⑪ Vsebina pakiranja & Hiter začetek ⑫ Obsah balení a stručný průvodce ⑬ Obsah balenia a stručný sprievodca ⑭ Συσκευασία & Οδηγίες Εύκολης Εκκίνησης ⑮ Sadržaj pakiranja i vodič za brzi start ⑯ Conținutul ambalajului și ghid de pornire rapidă

Illustration of various cleaning and cleaning products including a robotic vacuum cleaner, power cord, fan blade, brush holder, and notebook (no text or symbols visible)

1 2 3 click! click! 1 2 3 5h ✓

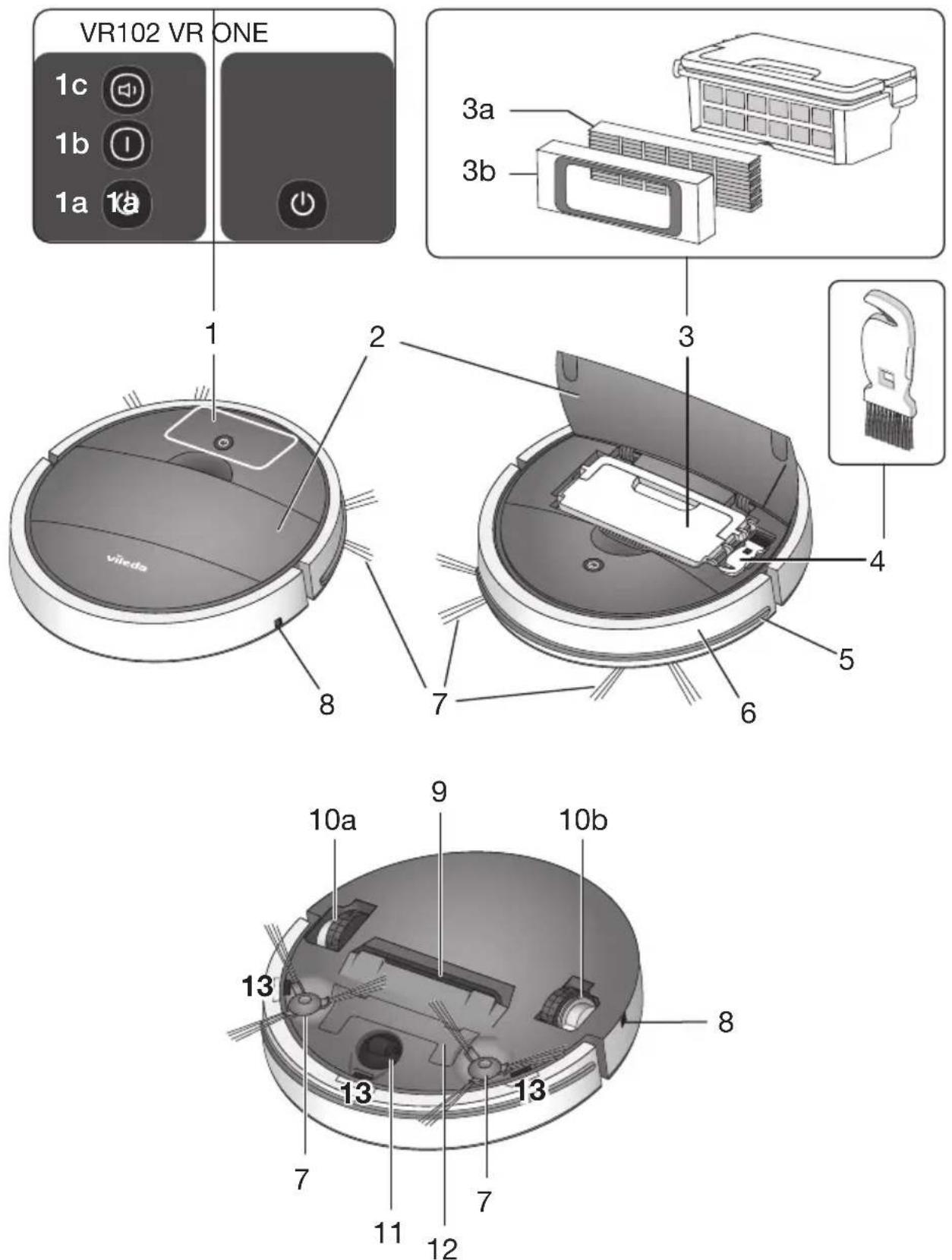

PRODUCT OVERVIEW

① Descrizione del prodotto Ⓓ Produktübersicht Ⓔ Descripción del producto Ⓕ Visão geral do produto Ⓜ Présentation du produit Ⓝ️ Productvoorstelling Ⓣ Produktöversikt Ⓤ️ Produktoversigt Ⓣ️ Tuotekuvaus Ⓣ️ Przegład produktu Ⓣ️ Pregled izdelka Ⓘ️ Přehled produktu Ⓦ️ Prehľad produktu Ⓦ️ Επισκότηση Προϊόντος Ⓦ️ Pregled proizvoda Ⓦ️ Prezentare generală produs

VR102 VR ONE 1c 1b 1a ONE 3a 3b 1 2 3 4 5 6 7 8 vileda 10a 9 10b 13 13 13 7 11 7 12 8

MAINTENANCE

① Manutenzione Ⓓ Wartung Ⓔ Mantenimiento Ⓟ Manutenção Ⓕ Entretien Ⓕ Onderhoud Ⓖ Underhåll Ⓗ Vedligeholdelse/vedlikehold Ⓙ Huolto ⓚ Konserwacja Ⓘ Vzdrževanje Ⓙ️ Údržba Ⓕ Údržba Ⓖ Συντήρηση Ⓕ Održavanje Ⓗ Întreținere

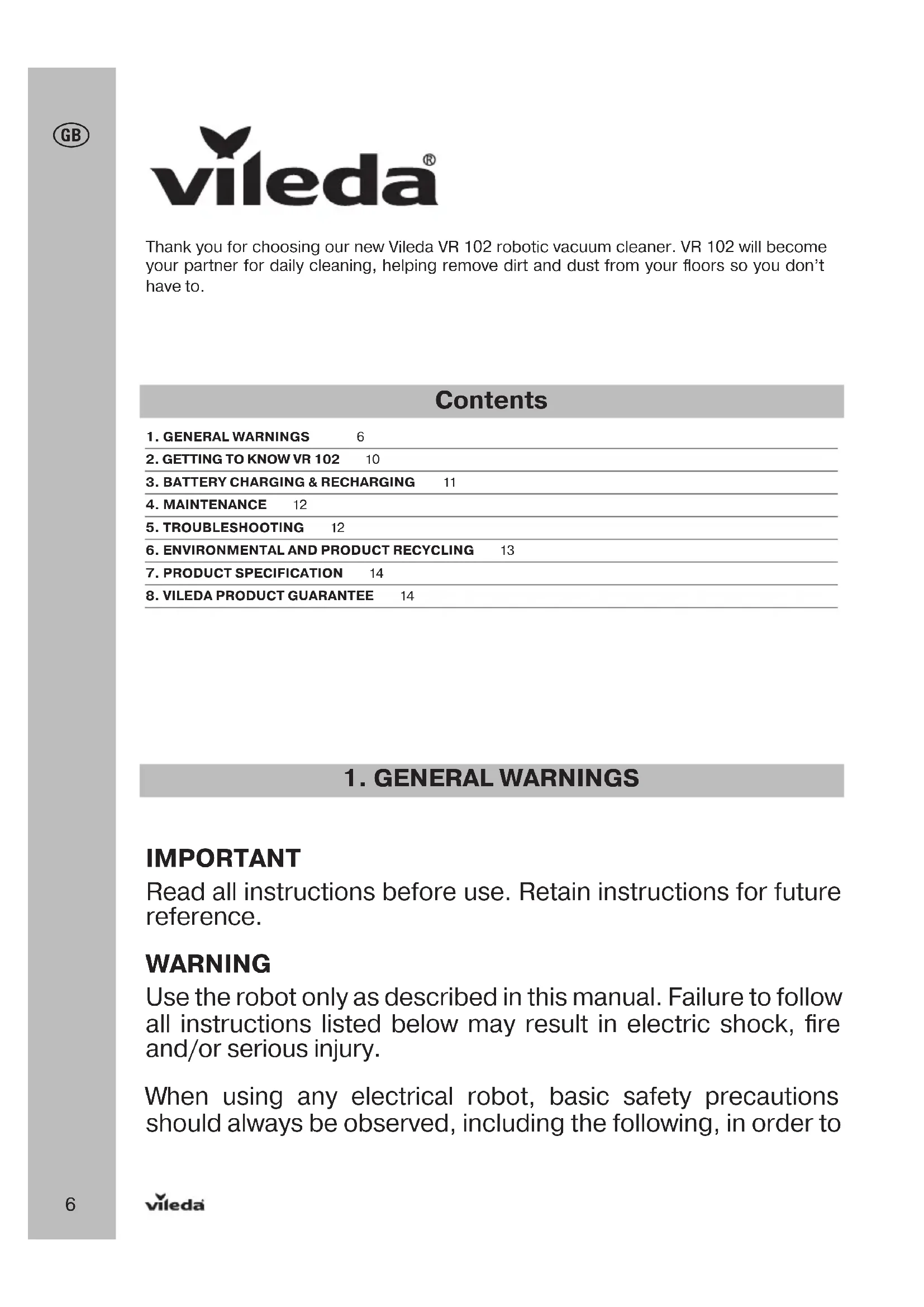

vileda®

Thank you for choosing our new Vileda VR 102 robotic vacuum cleaner. VR 102 will become your partner for daily cleaning, helping remove dirt and dust from your floors so you don't have to.

Contents

1. GENERAL WARNINGS 6

2. GETTING TO KNOW VR 102 10

3. BATTERY CHARGING & RECHARGING 11

4. MAINTENANCE 12

5. TROUBLESHOOTING 12

6. ENVIRONMENTAL AND PRODUCT RECYCLING 13

7. PRODUCT SPECIFICATION 14

8. VILEDA PRODUCT GUARANTEE 14

1. GENERAL WARNINGS

IMPORTANT

Read all instructions before use. Retain instructions for future reference.

WARNING

Use the robot only as described in this manual. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

When using any electrical robot, basic safety precautions should always be observed, including the following, in order to

reduce the risk of fire, electrical shock, leaking batteries or personal injury.

USE RESTRICTIONS

• When starting the robot, always place it in the middle of a room or surface, at least half a metre away from an edge with a drop.
• Only for indoor use. Do not use outdoors or on balconies.
• Intended for domestic use only.
• The robot is not a toy. Do not sit or stand on it. Small children and pets should be kept away from the robot and supervised when the robot is cleaning.
• Do not put heavy or sharp objects on top of the product.
• Do not let the robot pick up anything that is flammable, burning or smoking.
• Do not use this robot to pick up anything wet.
• Do not use on long-pile carpet or rugs or on wet floors, for example in the bathroom or laundry room.
• Only use this product in temperatures from 15 °C to 35 °C. Do not use this product in a high-temperature environment or direct sunlight for a long period of time.
• Before using, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords, and any fragile objects off the floor as they may entangle with the cleaning brushes.
• Ensure the dust box is empty before use.
• WARNING: Black or dark coloured types of floors and stairs could reduce the reliability of drop sensors. Test with your specific floor and stairs before use.

PERSONAL SAFETY

• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this robot other than those recommended in this instruction manual may present a risk of personal injury.

• Children must be supervised to ensure they do not play with the robot.

• This robot is only intended for use by adults over the age of 18. This robot may only be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given proper supervision or proper instruction concerning use of the robot in a safe way and understand the hazards involved.

• This appliance contains batteries that are only replaceable by skilled persons.
• Cleaning and user maintenance shall not be made by children without supervision.
• Store in a dry place.
• Store out of reach of children.
• Use only with the attachments recommended by the manufacturer.
• Do not use without the filter in place.
• Keep the product and all accessories away from fire, hot surfaces and any flammables.
• Do not immerse the robot in water or other liquid.
• Do not use this product in areas above your body, as this may increase the risk of personal injury.

ELECTRICAL SAFETY INSTRUCTIONS

• Never modify the charger in any way.
• The charger has been designed for a specific voltage. Always check that the mains voltage is the same as that stated on the rating plate.
• Before use, check the charger cord for signs of damage or ageing.
• Do not abuse the charger cord; never carry the charger by the cord.
• Do not over-bend the power cord or apply pressure to the power cord with heavy or sharp objects.
• Never pull the charger cord to disconnect from a socket; grasp the charger and pull to disconnect.

• Keep the charger cord away from hot surfaces and sharp edges.

• Do not handle the charger, plug, adapter and wires or the robot with wet hands.

• Do not store or charge the robot outdoors.
• Unplug the charger before cleaning or maintaining. Product contains electronic parts. Do not submerge it or spray it with water. Clean with a dry cloth only.

BATTERY USE AND CARE

- Only use the battery supplied with the product.

- WARNING: For the purposes of recharging the battery, only use the detachable supply unit (model no. GQ12-190060-AG/GQ12-190060-AB/NLB060190W1E4S58/NLB060190W1U4S58) provided with this appliance.

- Do not attempt to use the charger with any other product nor attempt to charge this product with another charger, as this may damage the product and the battery, and will invalidate your guarantee.

- Only use the battery supplied with the product or provided by the manufacturer.

- Leaks from battery cells can occur under extreme conditions. If the liquid gets on the skin, wash it immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek urgent medical attention.

- This product contains Lithium-Ion batteries. Do not incinerate batteries or expose to high temperatures, as they may explode.

- When the battery pack is not in use, keep away from other metal objects such as: paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another.

- Shorting the battery terminals may cause fire.

- The battery must be removed from the robot before it is discarded.

- The battery is to be disposed of safely and in accordance with the Environmental and Product Recycling section

instructions, on page 13 of this manual. The battery must not be disposed of with household waste.

• The robot must be disconnected from the mains supply when removing the battery.
• WARNING: If the battery is damaged in any way, do not attempt to recharge it. Contact Vileda customer service address (see last page).
• Charge the battery for 5 hours before first use. After the first use, charging time is about 4-5 hours.
• If the robot is not to be used more than 3 months, charge it directly by power adapter for 5 hours.
• WARNING: Only use a battery as supplied by Vileda.

SERVICE

• Before using the robot and after any impact, check for signs of wear or damage.
• Do not use the robot if any part is damaged or defective.
• Repairs should only be carried out by an approved service agent or a suitably qualified person.
• Never modify the robot in any way as this may increase the risk of personal injury.
• Only use replacement parts or accessories provided or recommended by Vileda.

2. GETTING TO KNOW VR 102

Please use page 3 in the manual for reference.

1. Display 3b. Filter frame 8. Charging socket
1a. Power button 4. Maintenance brush 9. Suction opening
1b.* Auto-cleaning button (not for VR ONE)	5. Soft bumper 10a/10b. Wheels
1c*. Quiet Button (not for VR ONE)	6. Front bumper 11. Front wheel
2. Dust box cover 7. Side brushes 12. Battery cover
3. Dust box incl. fine dust filter 13. Drop sensors
3a. Fine dust filter

BUTTONS AND CLEANING MODES

1a POWER BUTTON

Press the "POWER" button to switch the robot on and off.

STANDBY

Standby means, the robot's main power is turned on, and the robot is ready to use. The power button is pulsating slowly. When the robot is cleaning, press the "POWER" button on the main body of the robot to pause the robot and enter standby mode.

SLEEP MODE

In sleep mode the robot will save energy, but is not powered off. In order to save power, you can turn the robot into sleep mode from standby mode via either of the following methods:

Press the "POWER" button on main body.

Robot will automatically enter sleep mode if the power is low or after 5min in standby mode.

In working or standby mode, press the "POWER" button to switch off the robot.

The power button also displays the charging status and error codes, explained in chapters "battery charging & recharging" and "troubleshooting".

Note: VR ONE:

Press the "POWER" button to switch on the robot. During cleaning press the "POWER" button again to switch it off.

1b\*. AUTO-CLEANING BUTTON

In standby mode, press the "AUTO" button to enter the auto cleaning mode.

The robot will automatically choose the optimal cleaning pattern, consisting of an iteration of auto, zig-zag and spiral movement pattern.

In auto cleaning mode, press the "AUTO" button again to enter standby mode.

1c\*. QUIET BUTTON

In standby mode, press the "QUIET" button to enter the quiet cleaning mode for more comfort while cleaning. The robot will automatically choose the optimal cleaning pattern and reduce its noise level, by reducing speed and suction power for a more quiet product performance.

In quiet cleaning mode, press the "QUIET" button again to enter the standby mode.

3. BATTERY CHARGING & RECHARGING

Battery indication displayed in the power button:

When charging: plug the adapter into the robot and on the other side to the power socket, as indicated in the quick start guide on page 2.

LED indication Power button is 4x flashing red	Power button flashing red, while charging	Power button flashing white, while charging
Description Connection of battery is not good.Contact the Vileda service (address see last page)	Robot is charging Robot is	fully charged

During operation and standby mode

LED indication Power button is flashing slowly red

Description Battery power is low. Please charge the device

Tips to extend the battery life:

• Before first use, charge the robot for 5 hours.
- Charge the robot as soon as battery power is low.
- If the robot is not to be used for a long time, fully charge the battery, turn the power switch off, remove and store it in a cool, dry place.
- If the robot is not to be used for 3 months or longer, charge it directly by the power adapter for 4-5 hours.

4. MAINTENANCE

Please use page 4-5 in the manual for reference.

Tips for keeping the performance stable

To keep your Vileda robot at the best level of performance, it is recommended to maintain the robot regularly.

Robot Part Care Frequency	Replacement Frequency
Dust box After every use —
Side brushes Once per week (twice per week in homes with pets)		Every 6-12 months
High efficiency filter	Once per month (twice per month in homes with pets)	Every 3 months
Front wheel, driving wheel and drop sensors	Once per month —

BATTERY REMOVAL AND REPLACEMENT

Only use a replacement battery as supplied by Vileda.

1. Make sure the device is switched off at the main switch.
2. Remove the screws on the battery cover with a screw driver.
3. Remove the battery cover.
4. Lift the battery and remove it from the housing.
5. Unplug the wire connector that links the battery and robot.

5. TROUBLESHOOTING

Problem Possible Reason Possible Solution
Robot is not running	Battery is too low.	Recharge the battery for 5 hours.
Low or no suction	Dust box is full.Filter is blocked with dirt.Filter is missing.	Empty dust box.Clean the filter with brush.Put filter back in place.
Abnormal movement	Wheels are dirty.Drop sensors are dirty.	Clean wheels.Clean drop sensors.
Side brushes are deformed	Hair and dirt is stuck to the side brushes.The side brushes are blocked by an object.	Remove the side brushes and clean them carefully.Put the side brushes in warm water for about 5 seconds if they are curled or deformed.
Low battery after charging or no charging possible	Connection of battery is not good.Charger or battery is defective.	Contact the Vileda service (address see last page).
Robot stops working, and power button is flashing slowly red	Low battery power.	Charge the robot.

Problem Possible Reason Possible Solution
Power button flashing quickly red • Overloaded or jammed motor• Device is off the ground or sensors jammed or dirty.• Dust box not placed in position or robot without dust box• Suction passage blocked	• Check if fan opening is free and clean dust box. Check if wheels or brush unit is stuck or obstructed with debris• Put robot on solid ground. Check sensitivity of the front bumper and clean sensors• Put back dustbin and place it in position• Clean suction passage with the maintenance brush
Power button is 4x flashing red • Connection of battery is notgood	• Contact the Vileda service (address see last page)

If above described solutions do not work, please try switching off and on and check again. For further help, technical advice, or to order spare or replacement parts contact Vileda (address see last page).

6. ENVIRONMENTAL AND PRODUCT RECYCLING

The Vileda vacuum cleaning robot VR 102 fulfils the EU directive 2012/19/EC, covering electrical and electronic appliances and the management of its disposal.

The packaging material is entirely recyclable, and marked with the recycling symbol. Follow local regulations for scrapping. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of children's reach, as they are potentially dangerous.

When the product has reached the end of its life please do not dispose of it with general household waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

The symbol identifies the Vileda VR 102 as a product submitted to the regime of selective electrical appliance recycling collection.

The product contains a Li-Ion battery which should not be disposed of with general household waste. Deposit the battery in an official collection point for its recycling.

Batteries can be detrimental for the environment and can explode if they are exposed to high temperatures. The violation of these precautions could cause fire and / or serious injuries.

For more detailed information about treatment, recovery and recycling of this robot, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

For example, disposal of the robot and any part of it may need to be taken to a designated collection facility.

7. PRODUCT SPECIFICATION

Model No. 0769-03
Mechanical Specifications Size 32 x 8 cm	Weight ~ 1.9 kg
Electrical Specifications Rated Voltage 10.8 V / 10.95 V	Battery Li-Ion 10,8 V, 2200 mAh / 10,95 V, 2150 mAhCharging time 4-5 h
Charger Specifications Rated Input Voltage 100-240 V	ACRated Output Voltage 19 V DCRated Output Current 600 mA

8. VILEDA PRODUCT GUARANTEE

A. SCOPE

1. Freudenberg Household Products LP ("FHP") guarantees the product to be free from defects in materials and workmanship for a period of two years from the date of purchase.

2. If the product becomes faulty for any reason for which FHP is responsible within two years from the date of purchase (“the Guarantee Period”), FHP or an authorised service network member in the Guarantee Area (meaning anywhere within the United Kingdom, including the Channel Islands and the Isle of Man and the Republic of Ireland) will repair or replace it subject to the terms and limitations below. FHP may replace defective products or parts with new or refurbished products or parts. All products and parts replaced become the property of FHP.

3. This guarantee does not cover:

a) periodic maintenance or repair or parts replacement due to wear and tear;
b) consumables (namely components that are expected to require necessary periodic replacement during the lifetime of a product such as pads);
c) damage or defects caused by use, operation or treatment of the product inconsistent with normal personal or domestic use;
d) damage or deterioration in the condition or performance of the product arising as a result of:

I. misuse, including:

• treatment resulting in physical, cosmetic or surface damage to or deterioration in product;
• failure to install or use the product for its normal purpose or in accordance with FHP's instructions on installation or use;
• failure to maintain the product in accordance with FHP's instructions on maintenance;
• installation or use of the product in a manner inconsistent with the technical or safety laws or standards in the country where it is installed or used;

II. use of the product with accessories, peripheral equipment and other products of a type, condition and standard other than prescribed by FHP;

III. repair or attempted repair by persons who are not FHP or authorised service network members;

IV. accidents, fire, liquids, chemicals, other substances, flooding, vibrations, excessive heat, improper ventilation, power surges, excess or incorrect supply or input voltage, radiation, electrostatic discharges including lighting, other external forces and impacts; or

V. any event or circumstances beyond the reasonable control of FHP.

B. TERMS

1. Guarantee services will be provided only if the original invoice or sales receipt (indicating the date of purchase, model name and dealer's name) is presented with the defective product within the Guarantee Period. FHP may refuse free-of-charge guarantee service if these documents are not presented or if they are incomplete or illegible. This Guarantee will not apply if the model name or serial number on the product has been altered, deleted, removed or made illegible.
2. Except where FHP has a legal duty to reimburse them, this Guarantee does not cover transport costs or any risks associated with the transportation of the product to and from FHP.
3. If FHP or one of its authorised service network members carries out a diagnostic test on the product and that test demonstrates that the product is working properly and no hardware fault is present, you will not be entitled to a repair under this Guarantee. In that event, you will be liable to pay for any repairs to rectify the defect and the cost of the diagnostic test.

C. EXCLUSIONS AND LIMITATIONS

1. Except as stated above, FHP makes no guarantee (express, implied, statutory or otherwise) regarding product quality, performance, accuracy, reliability, fitness for a particular purpose, or otherwise.
2. FHP does not take responsibility for any damage caused by the incorrect use of the product. Save as set out elsewhere in this Guarantee, the responsibility of FHP will not exceed the purchase price of the product. If you have any doubts referring to the correct use of the product or in relation to this Guarantee, please call Vileda Customer Service.
3. Nothing in this Guarantee is intended to restrict or limit FHP's liability in any way in which it would be unlawful to do so, including for death or personal injury caused by FHP's negligence, or damage to private property caused by the goods proving to be defective while in the consumer's use as a result of FHP's negligence or for defective products under the Consumer Protection Act 1987.

D. YOUR LEGAL RIGHTS RESERVED

This Guarantee is in addition to, and does not affect, your legal rights in relation to goods that are faulty or not as described. All products will be provided in accordance with the contract. Further advice relating to your legal rights can be obtained from your local Citizens Advice Bureau or Trading Standards Office. You may assert any rights you have at your sole discretion.

E. YOUR GUARANTOR

The Guarantee for this product is provided and will be honoured by Freudenberg Household Products LP, 2 Chichester Street, Rochdale, Lancashire, OL16 2AX. www.vileda.com/uk Tel: [phone].

vileda®

8. VILEDA PRODUKTGARANTIE

A. UMFANG

8. GARANTIA DO PRODUTO VILEDA

A. ÂMBITO

Freudenberg Home and Cleaning

Solutions Ibérica, S.L.

Apartado 12170

1061-001 Lisboa Códex, PT

www.vileda.com/pt

8. GARANTIE DU PRODUIT VILEDA

A. PORTÉE

1. ALGEMENE WAARSCHUWINGEN

BELANGRIJK

6. AFVALVERWERKING, PRODUCTRECYCLING

8. VILEDA PRODUCTGARANTIE

A. OMVANG

8. VILEDAS PRODUKTGARANTI

A. OMFATTNING

4. VEDLIGEHOLDELSE/VEDLIKEHOLD

8. VILEDA PRODUKTGARANTI

A. OMFANG

Freudenberg Household Products AB, Box 4013, 203 11 Malmö

vileda®

To keep your Vileda robot at the best level of performance, it is recommended to maintain the robot regularly.

8. GWARANCJA NA PRODUKT VILEDA

A. ZAKRES

D. VAŠA PRIDRŽANA ZAKONSKA PRAVA

8. GARANTIA PRODUSELOR VILEDA

A. OBJECT

Freudenberg Home and Cleaning Solutions GmbH
