Product Type	Professional passive loudspeaker
Brand	Bose
Model	AMM112
Dimensions (H × W × D)	47,7 cm × 47,7 cm × 38,3 cm
Net weight	22,04 kg
Coverage	110° horizontal × 60° vertical
Rear tilt angle	35°
IP rating	IP43 (front-of-stage position only)
Connectors	2 × Neutrik NL4 (passive or bi-amp mode)
Power handling (passive)	300 W (2800 W peak)
Power handling (bi-amp LF)	300 W (2800 W peak)
Power handling (bi-amp HF)	45 W (720 W peak)
Nominal impedance	8 Ω (passive or bi-amp mode)
Processor presets	Available for Bose PowerMatch amplifiers
Installation	On tripod, pole, subwoofer, wall/ceiling mount, or suspension using Bose accessories
Use cases	Main speaker, stage monitor, with subwoofer
Maintenance and cleaning	Regularly inspect fittings, avoid harsh chemicals, do not immerse
Safety	Installation by professional only, do not repair yourself, respect load capacities
Spare parts and repairability	Contact Bose Professional or authorized dealer
General information	Limited warranty, declaration of conformity available online

Frequently Asked Questions - AMM112 BOSE

What type of amplifier should I use with the AMM112 speaker?

The speaker is designed to be used with Bose Professional PowerMatch amplifiers, which provide the appropriate processor presets. However, other power amplifiers can be used as long as they respect the power handling (300 W continuous) and impedance (8 ohms).

Can I install the AMM112 speaker myself?

No, installation should be carried out by a professional technician. The speaker is heavy (22.04 kg) and its mounting requires specific skills to ensure safety, especially in case of suspension or structure mounting.

What mounting accessories are recommended by Bose?

Bose offers several accessories: the AMM112 U-bracket kit (843364-0010) for wall or frame mounting, and the AMM suspension bracket (843344-0010) for ceiling suspension. Always use Bose or approved accessories.

How do I connect the speaker in bi-amp mode?

In bi-amp mode, use the NL4 connector: pin 1+ for LF+, 1- for LF-; pin 2+ for HF+, 2- for HF-. Ensure the amplifier delivers the separated frequencies via an external processor or PowerMatch presets.

What is the sound coverage of the AMM112 speaker?

The speaker offers coverage of 110° horizontal and 60° vertical, with a rear tilt angle of 35° allowing use as a stage monitor or in a tilted position.

Is the speaker water resistant?

The IP rating is IP43, meaning it is protected against solid objects larger than 1 mm and water splashes. However, it is not designed for outdoor use or in humid environments like pools or saunas.

What processor presets are available for the AMM112?

Presets include: main speaker (AMM112(FR), AMM112(LF), etc.), main speaker + subwoofer (AMM112(FR) with sub, etc.), and stage monitor (AMM112(MON), AMM112(90-MON), etc.). See pro.bose.com for the full list.

Can I suspend the speaker by its handles?

No, the handles are not designed to support weight in suspension. Only use the M10 threaded inserts with eye bolts or Bose suspension brackets.

How do I clean the speaker?

Use a dry or slightly damp cloth. Do not use lubricants, solvents, contact sprays, or harsh chemicals, as they can degrade the plastic and compromise safety.

Where can I find the CE declaration of conformity?

The full declaration of conformity is available at www.bose.com/compliance. The AMM112 model complies with Directive 2014/35/EU and other applicable directives.

USER MANUAL AMM112 BOSE

Line drawing of a cabinet with a door and top fixture (no text or symbols)

AMM112

Multipurpose Loudspeaker

Product Guide 2

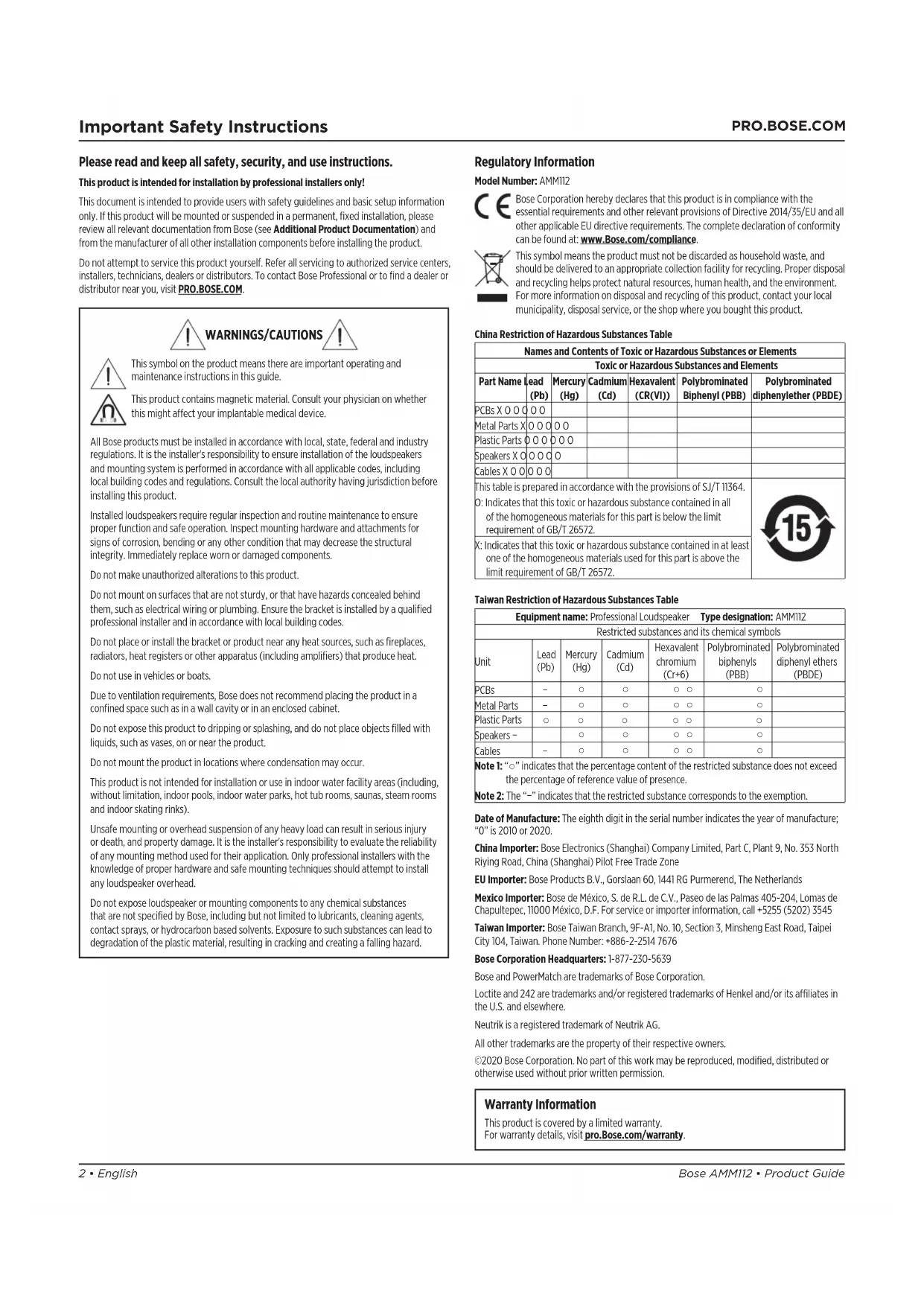

Please read and keep all safety, security, and use instructions.

This product is intended for installation by professional installers only!

This document is intended to provide users with safety guidelines and basic setup information only. If this product will be mounted or suspended in a permanent, fixed installation, please review all relevant documentation from Bose (see Additional Product Documentation) and from the manufacturer of all other installation components before installing the product.

Do not attempt to service this product yourself. Refer all servicing to authorized service centers, installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or distributor near you, visit PRO.BOSE.COM.

This symbol on the product means there are important operating and maintenance instructions in this guide.

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

All Bose products must be installed in accordance with local, state, federal and industry regulations. It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.

Installed loudspeakers require regular inspection and routine maintenance to ensure proper function and safe operation. Inspect mounting hardware and attachments for signs of corrosion, bending or any other condition that may decrease the structural integrity. Immediately replace worn or damaged components.

Do not make unauthorized alterations to this product.

Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. Ensure the bracket is installed by a qualified professional installer and in accordance with local building codes.

Do not place or install the bracket or product near any heat sources, such as fireplaces, radiators, heat registers or other apparatus (including amplifiers) that produce heat.

Do not use in vehicles or boats.

Due to ventilation requirements, Bose does not recommend placing the product in a confined space such as in a wall cavity or in an enclosed cabinet.

Do not expose this product to dripping or splashing, and do not place objects filled with liquids, such as vases, on or near the product.

Do not mount the product in locations where condensation may occur.

This product is not intended for installation or use in indoor water facility areas (including, without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms and indoor skating rinks).

Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death, and property damage. It is the installer's responsibility to evaluate the reliability of any mounting method used for their application. Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead.

Do not expose loudspeaker or mounting components to any chemical substances that are not specified by Bose, including but not limited to lubricants, cleaning agents, contact sprays, or hydrocarbon based solvents. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.

Regulatory Information

Model Number: AMM112

Bose Corporation hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/35/EU and all other applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health, and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

China Restriction of Hazardous Substances Table

Names and Contents of Toxic or Hazardous Substances or Elements
Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (PBB)	Polybrominated diphenylether (PBDE)
PCBs X O O O	O O
Metal Parts X	O O O	O O
Plastic Parts	O O O	O O O
Speakers X O	O O O	O
Cables X O O	O O O
This table is prepared in accordance with the provisions of SJ/T 11364.O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Taiwan Restriction of Hazardous Substances Table

Equipment name: Professional Loudspeaker Type designation: AMM112
Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr+6)	Polybrominated biphenyls (PBB)	Polybrominated diphenyl ethers (PBDE)
PCBs	-	○	○	○ ○	○
Metal Parts	-	○	○	○ ○	○
Plastic Parts	○	○	○	○ ○	○
Speakers -		○	○	○ ○	○
Cables	-	○	○	○ ○	○
Note 1: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. Note 2: The “-” indicates that the restricted substance corresponds to the exemption.

Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; "0" is 2010 or 2020.

China Importer: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Mexico Importer: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. For service or importer information, call [phone]

Taiwan Importer: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Phone Number: [phone]

Bose Corporation Headquarters: 1-877-230-5639

Bose and PowerMatch are trademarks of Bose Corporation.

Loctite and 242 are trademarks and/or registered trademarks of Henkel and/or its affiliates in the U.S. and elsewhere.

Neutrik is a registered trademark of Neutrik AG.

All other trademarks are the property of their respective owners.

©2020 Bose Corporation. No part of this work may be reproduced, modified, distributed or otherwise used without prior written permission.

Warranty Information

This product is covered by a limited warranty. For warranty details, visit pro.Bose.com/warranty.

Additional Product Documentation

This guide includes basic setup information only. If this product will be mounted or suspended in a permanent, fixed installation, please review all relevant documentation from Bose on the web page shown here.

To ensure safe product installation, it is the installer's responsibility to refer to all relevant documentation for this product and all other installation components before installing the product.

Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker or subwoofer overhead.

To access additional Bose documentation for this product, scan the QR code or visit the web page shown here.

pro.Bose.com/amm112

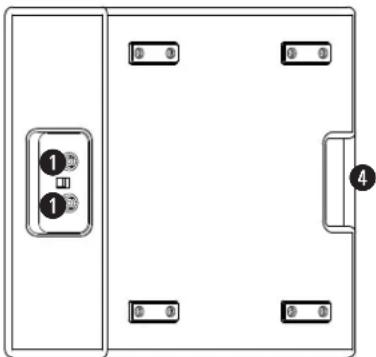

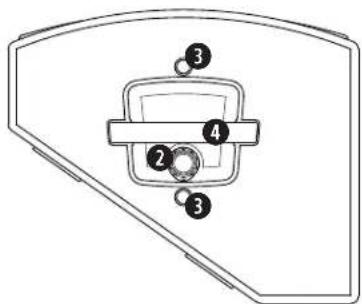

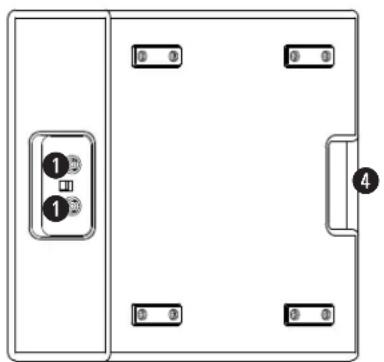

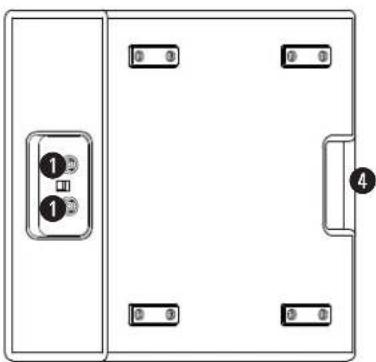

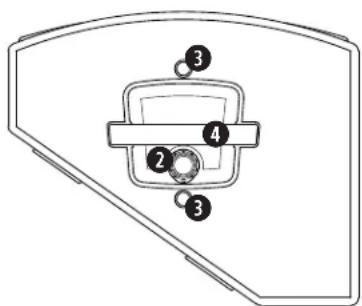

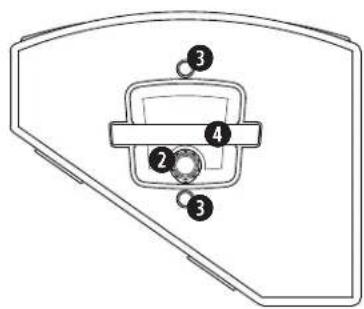

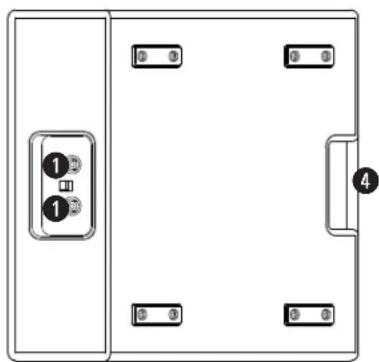

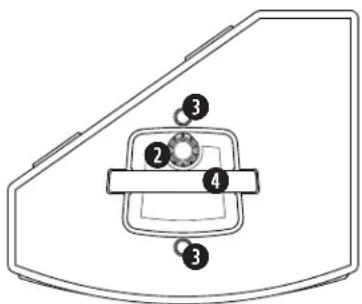

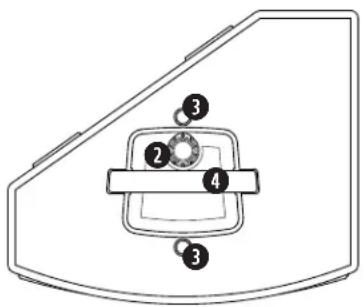

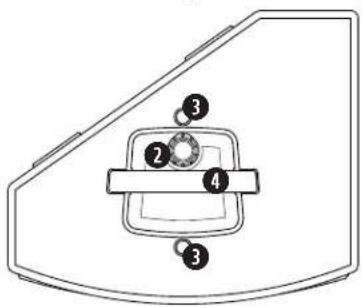

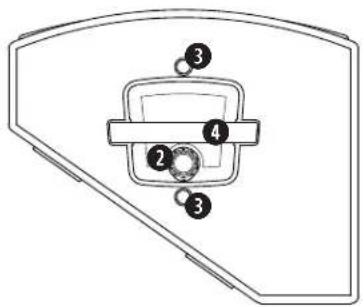

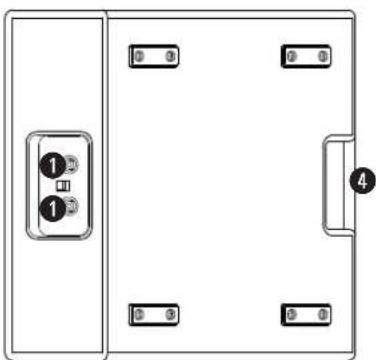

Product Details

① Input connection
② 35 mm (1 ^3/8 in) pole cup (for pole-mounting)
③ M10 threaded insert (for accessory attachment/mounting)
4 Handle

Net weight: 22.04 kg (48.60 lb)

Front ViewSide View (Left) Side View (Right)

3
45.7 cm (18.0 in)

Empty rectangular frame with black border, no text or symbols present

45.7 cm (18.0 in) 38.3 cm (15.0 in)

Simple line drawing of a rectangular frame with two small circles on the sides (no text or symbols)

Top View Rear View Bottom View

Front view of a door panel with four buttons and a labeled corner (no text or symbols beyond basic labels)

Stage Fill

WARNING: Make sure the stage or floor is stable and level.

WARNING: Do not allow the loudspeaker to protrude over the edge of a stage. Make sure the entire loudspeaker is resting on the stage.

Simple line drawing of a blank rectangular frame with two small icons below (no text or symbols)

Simple line drawing of a door with a handle and mounting feet (no text or symbols)

Simple line drawing of a door with handle and mounting feet, no text or symbols present

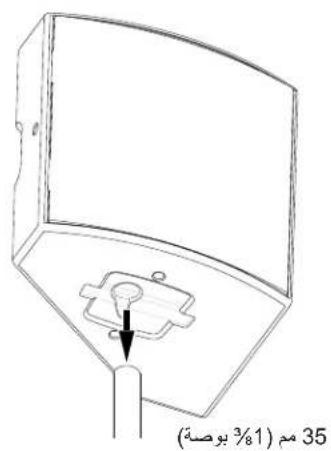

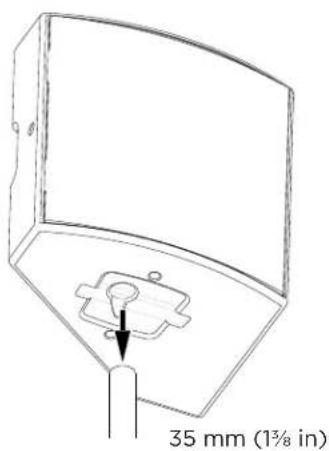

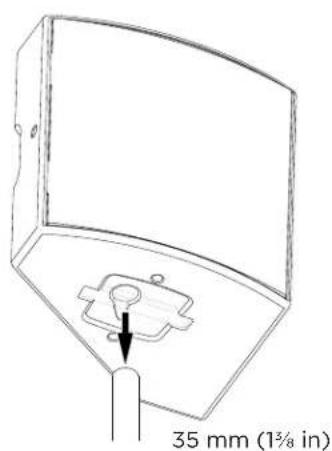

Loudspeaker Stand

WARNING: Make sure the stand is placed on a stable, level surface.

WARNING: Refer to all relevant documentation for the pole or stand before attaching the loudspeaker. Make sure the pole or stand can support the weight of the loudspeaker. Once the pole or stand is assembled and the loudspeaker is attached, make sure the whole assembly is stable and does not present a tipping or falling hazard.

WARNING: Do not attempt to move the whole assembly. Remove the loudspeaker from the pole before moving the stand.

Simple line drawing of a stand with a vertical pole and three supports, no text or symbols present.

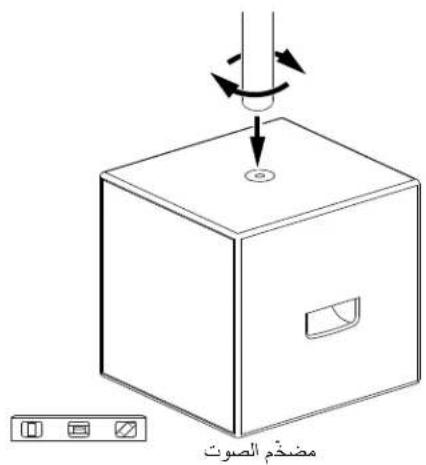

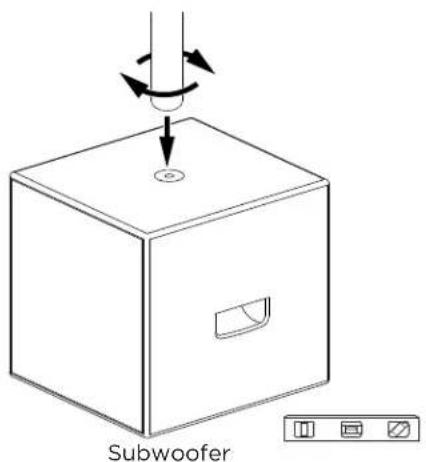

With a Subwoofer

WARNING: Make sure the subwoofer is placed on a stable, level surface.

WARNING: Refer to all relevant documentation for the subwoofer and pole before attaching the loudspeaker. Make sure the subwoofer and pole can support the weight of the loudspeaker. Once the subwoofer and pole are assembled and the loudspeaker is attached, make sure the whole assembly is stable and does not present a tipping or falling hazard.

WARNING: Do not attempt to move the whole assembly. Remove the loudspeaker from the pole before moving the subwoofer.

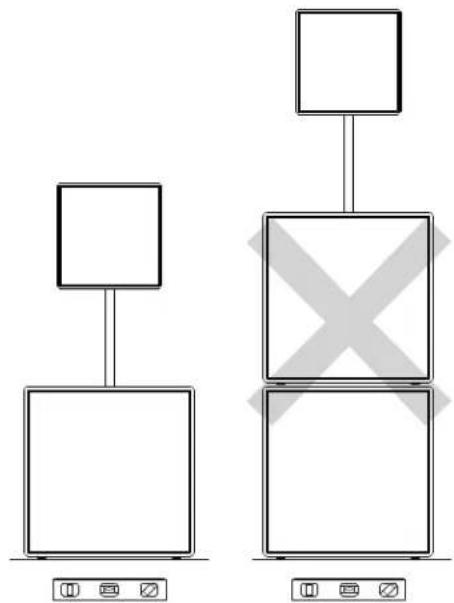

WARNING: Do not use a pole mount with a stack of subwoofers.

Simple line drawing of a rectangular box with a vertical line above it, no text or symbols present.

Installation (Mounting or Suspension)

Installation Guidelines

Bose AMM loudspeakers include threaded inserts to accommodate mounting or suspension methods as described in this document.

Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death and property damage. It is the installer's responsibility to evaluate the reliability of any mounting method used for their application. Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker or subwoofer overhead.

Bose AMM loudspeakers are designed for use with Bose accessories for mounting and suspension. If you are using a custom-designed mounting or suspension system, have a licensed professional engineer review the design and planned method of attachment to the building structure for structural integrity and safety in the intended application.

Choose fasteners that are consistent with all local building codes and requirements to support the weight of the loudspeaker.

• Use only fasteners/hardware of Class 8.8 or greater.
• Do not use unmarked machine fasteners for mounting system assemblies as there is no way to determine their physical properties.
• Use only M10 fasteners for the threaded inserts on the loudspeaker. Although SAE 38 "-16 fasteners are similar, they are not interchangeable with M10 fasteners.
• Do not over-tighten fasteners. Doing so may irreparably damage the cabinet and create an unsafe assembly.
• Make sure fasteners are long enough to engage at least 8 threads of the attachment point. Using a fastener that is engaged with fewer than 8 threads will result in inadequate support of the loudspeaker, which may strip the threads and create an unsafe assembly.
• Do not alter or re-thread the threaded attachment points to accommodate any other thread size or type. Doing so will compromise the safety of the installation and permanently damage the loudspeaker.
• For a vibration-resistant assembly, use a locking compound intended for hand disassembly (such as Loctite® 242®).

Do not use the loudspeaker handles to suspend the loudspeaker.

Do not suspend additional loudspeakers or other items from the Bose AMM loudspeaker.

Wall-, Ceiling-, or Truss-mounting

WARNING: To ensure safe product installation and usage, it is the installer's responsibility to refer to the previous Installation Guidelines section and the user documentation of all mounting components before installing the product.

To mount the loudspeaker on a wall, ceiling, or truss, we recommend using the Bose accessories listed below when possible. To access documentation for each product, scan the QR code or visit the web page.

AMM112 U-Bracket Kit
843364-0010

pro.Bose.com/amm112ubracket

AMM Suspension Bracket
843344-0010

pro.Bose.com/ammsbracket

If you are using a custom-designed mounting or suspension system or hardware, a licensed professional engineer must review the design and fabrication. Obtain all mounting or suspension system components from reputable manufacturers.

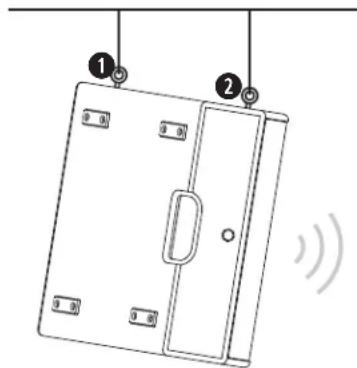

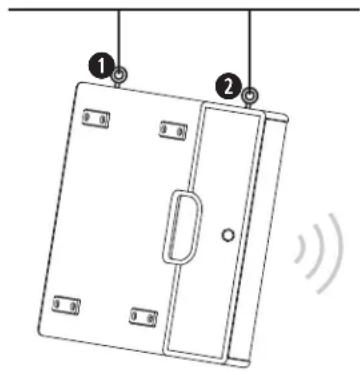

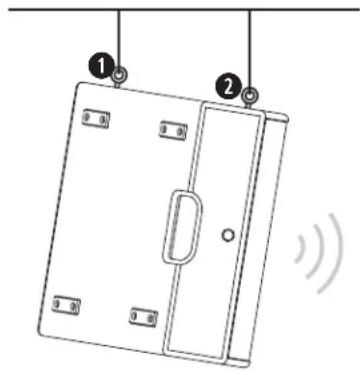

Suspension

WARNING: To ensure safe product installation and usage, it is the installer's responsibility to refer to the previous Installation Guidelines section and the user documentation of all mounting components before installing the product.

To suspend the loudspeaker from the ceiling, attach M10 threaded eye bolts to the two M10 threaded attachment points on the top or bottom panel of the loudspeaker. Use only load-rated eye bolts intended for lifting (per ASME B30.26).

For easier adjustment of the angle, use the AMM Suspension Bracket (843344-0010). To access documentation for the AMM Suspension Bracket, scan the QR code or visit pro.Bose.com/ammsbracket.

If you are using a custom-designed mounting or suspension system or hardware, a licensed professional engineer must review the design and fabrication. Obtain all mounting or suspension system components from reputable manufacturers.

Top View

Processor Presets

Use only approved Bose Professional loudspeaker presets. The presets listed here are available when using Bose Professional PowerMatch amplifiers.

For a complete list of products that support Bose Professional AMM loudspeaker presets visit PRO.BOSE.COM.

Application Preset Name

Main Loudspeaker	AMM112(FR)
	AMM112(LF)
	AMM112(LF90)
	AMM112(HF)
Main Loudspeaker + Subwoofer	AMM112(FR)
	AMM112(90)
	AMM112(LF)
	AMM112(LF90)
	AMM112(HF)
Stage Monitor	AMM112(MON)
	AMM112(90-MON)
	AMM112(LF-MON)
	AMM112(LF90-MON)
	AMM112(HF-MON)

Technical Specifications

Coverage 110° horizontal × 60° vertical
Tilt-back Angle 35°
IP Rating IP43 (front-of-house position only)
Connectors 2 × Neutrik® NL4 inputs Passive:		Bi-amp:
	Pin 1+: FR+	Pin 1+: LF+
	Pin 1-: FR-	Pin 1-: LF-
	Pin 2+: Not connected	Pin 2+: HF+
	Pin 2-: Not connected	Pin 2-: HF-
Power Handling Passive: 300 W (RMS), 2800 W (peak)
Bi-amp, LF: 300 W (RMS), 2800 W (peak)
Bi-amp, HF: 45 W (RMS), 720 W (peak)
Nominal Impedance Passive or bi-amp, LF/HF: 8 Ω
Dimensions (height × width × depth)	47.7 cm × 47.7 cm × 38.3 cm (18.0 in × 18.0 in × 15.0 in)
Net Weight 22.04 kg (48.60 lb)

Importador para China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importador de la UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Países Bajos

Simple line drawing of a door with four buttons and a central handle, no text or symbols present

3
45.7 cm (18.0")

Vista frontal

Empty white square with a thin black border (no text or symbols)

45.7 cm (18.0") 38.3 cm (15.0")

Simple line drawing of a rectangular frame with two small circles on the side (no text or symbols)

Vista superior Vista trasera Vista inferior

Simple line drawing of a door with four buttons and a labeled corner (no text or symbols)

Simple line drawing of a blank rectangular frame with three small icons below (no text or symbols)

Simple line drawing of a door with a handle and mounting base (no text or symbols)

Pure technical diagram of a door or cabinet with mounting holes and diagonal lines (no text or symbols)

Soporte de altavoz

Simple line drawing of a stand with a vertical pole and three supports, no text or symbols present.

Simple line drawing of a door with four buttons and a central handle, no text or symbols present

3
45,7 cm (18,0 po)

Vue avant

Empty white square with a thin black border (no text or symbols)

45,7 cm (18,0 po) 38,3 cm (15,0 po)

Simple line drawing of a rectangular frame with two small circles on the side (no text or symbols)

Front view of a door panel with four buttons and a labeled corner (no text or symbols beyond basic labels)

Simple line drawing of a blank rectangular frame with two small icons below (no text or symbols)

Simple line drawing of a door with a handle and mounting base (no text or symbols)

Simple line drawing of a door with handle and mounting feet, no text or symbols present

Socle pour enceinte

Simple line drawing of a stand with a vertical pole and three supports, no text or symbols present.

Simple line drawing of a monitor with a square top and screen, no text or symbols present

Installation (montage ou suspension)

Support de suspension AMM
843344-0010

pro.Bose.com/ammsbracket

Importeur aus China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Front view of a door panel with four buttons and a labeled corner (no text or symbols beyond basic labels)

Bühnenbeschallung

Simple line drawing of a blank rectangular frame with three small icons below (no text or symbols)

Simple line drawing of a door with a handle and mounting base (no text or symbols)

Pure technical diagram of a door or cabinet with mounting holes and diagonal lines (no text or symbols)

Lautsprecherstativ

Technical line drawing of a mechanical component with a 35 mm dimension label (no other text or symbols)

Simple line drawing of a stand with a vertical pole and three supports, no text or symbols present.

Mit einem Subwoofer

Technical line drawing of a mechanical component with a 35 mm dimension label (no text or symbols on the diagram itself)

Simple line drawing of a monitor with a square top and screen, no text or symbols present

AMM112 U-Bracket Kit 843364-0010

pro.Bose.com/amm112ubracket

AMM Suspension Bracket 843344-0010

pro.Bose.com/ammsbracket

Prozessor-Presets

Importatore per la Cina: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importatore per l'UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Paesi Bassi

Simple diagram of a door with numbered components and no text or symbols

45,7 cm

Vista anteriore

Empty white square with a thin black border (no text or symbols)

45,7 cm 38,3 cm

Simple line drawing of a rectangular frame with two small circles on the sides (no text or symbols)

Vista superiore Vista posteriore Vista inferiore

Top-down schematic of a door panel with labeled buttons and numbered slots (no text or symbols beyond basic layout)

Stage fill

Simple line drawing of a blank rectangular frame with three small icons below (no text or symbols)

Simple line drawing of a door with a handle and mounting base (no text or symbols)

Pure technical diagram of a door with mounting holes and diagonal braces (no text or symbols)

Technical line drawing of a mechanical component with a 35 mm dimension label (no other text or symbols)

Simple line drawing of a stand with a vertical pole and three supports, no text or symbols present.

Con un subwoofer

AMM112 U-Bracket Kit 843364-0010

pro.Bose.com/amm112ubracket

AMM Suspension Bracket 843344-0010

pro.Bose.com/ammsbracket

Importeur in China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Front view of a door panel with four buttons and a labeled corner (no text or symbols beyond basic labels)

Op het podium

Simple line drawing of a blank rectangular frame with two small icons below (no text or symbols)

Simple line drawing of a door with a handle and mounting base (no text or symbols)

Pure technical diagram of a door with mounting holes and diagonal lines, no text or symbols present

Luidsprekerstatief

Technical line drawing of a mechanical component with a 35 mm dimension label (no other text or symbols)

Simple line drawing of a stand with a vertical pole and three supports, no text or symbols present.

Met een subwoofer

Technical line drawing of a mechanical component with a 35 mm dimension label (no other text or symbols)

Installatie (monteren of ophangen)

Processorpresets

Importer for Kina: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, Kina (Shanghai) Pilot Free Trade Zone

Importør i EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Nederland

Importar i Mexico: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. For service- eller importorinformasjon kan du ringe [phone]

Importer for Taiwan: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Telefonnummer: [phone]

Hovedkontoret til Bose Corporation: 1-877-230-5639

Simple line drawing of a door with four buttons and a central handle (no text or symbols)

45,7 cm

Sett forfra

Empty rectangular frame with black border, no text or symbols present

45,7 cm 38,3 cm

Simple line drawing of a rectangular frame with two circular holes on the side (no text or symbols)

Sett ovenfra Sett bakfra Sett nedenfra

Front view of a door panel with four buttons and a labeled corner (no text or symbols beyond basic markings)

Scenevinkling

Simple line drawing of a blank rectangular frame with two small icons below (no text or symbols)

Simple line drawing of a door with a handle and mounting feet (no text or symbols)

Simple line drawing of a door with handle and mounting feet, no text or symbols present

Høyttalerstativ

Technical line drawing of a mechanical component with a 35 mm dimension label (no other text or symbols)

Simple line drawing of a stand with a vertical pole and three supports, no text or symbols present.

Med en subwoofer

ADVARSEL: Kontroller at subwooferen er plassert på en stabil, plan overflate.

Montering (montering eller opphenging)

AMM112 U-brakettsett 843364-0010

pro.Bose.com/amm112ubracket

AMM-opphengsbrakett 843344-0010

pro.Bose.com/ammsbracket

Forhåndsinnstillinger for prosessor

Importer — Chiny: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importer — UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Holandia

Front view of a door panel with four buttons and a handle, no text or symbols present

Konfiguracja sceny

Simple line drawing of a blank rectangular frame with two small icons below (no text or symbols)

Simple line drawing of a door with a handle and mounting feet (no text or symbols)

Simple line drawing of a door with handle and mounting feet, no text or symbols present

Stojak głośnika

Simple line drawing of a stand with a vertical pole and three supports, no text or symbols present.

Z subwooferem

AMM112 U-Bracket Kit 843364-0010

pro.Bose.com/amm112ubracket

AMM Suspension Bracket 843344-0010

pro.Bose.com/ammsbracket

Front view of a door panel with four buttons and a labeled corner (no text or symbols beyond basic labels)

舞台补声

警告：确保舞台或地板平坦稳定。

Simple line drawing of a blank rectangular frame with two small icons below (no text or symbols)

Simple line drawing of a door with a handle and mounting feet (no text or symbols)

Pure technical diagram of a door with mounting holes and diagonal braces (no text or symbols)

扬声器支架

警告：确保支架放置在平稳表面。

Simple line drawing of a stand with a vertical pole and tripod base, no text or symbols present.

使用低音箱

警告：确保低音箱放置在平稳表面。

AMM112 U-Bracket Kit 843364-0010

pro.Bose.com/amm112ubracket

AMM Suspension Bracket 843344-0010

pro.Bose.com/ammsbracket

处理器预设

Empty rectangular frame with a thin border and vertical dimension line on the left (no text or symbols)

45.7 公分 (18.0 时)

側視視圖（右）

Simple line drawing of a rectangular frame with two small circles on the sides (no text or symbols)

38.3 公分 (15.0 时)

頂部視圖
背面視圖
底部視圖

Front view of a door panel with four buttons and a labeled corner (no text or symbols beyond basic labels)

舞台補音

Simple line drawing of a blank rectangular frame with three small icons below (no text or symbols)

Simple line drawing of a door with a handle and mounting base (no text or symbols)

Pure technical diagram of a door or cabinet structure without any text, numbers, or symbols

揚聲器支架

Simple line drawing of a stand with a vertical pole and three supports, no text or symbols present.

搭配超低音箱使用

處理器預設

Bose Corporation hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/35/EU and all other applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health, and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

中国で制限されている有害／危険物質一覧

中国における輸入元: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EUにおける輸入元: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

メキシコにおける輸入元: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. For service or importer information, call [phone]

台湾における輸入元: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Phone Number: [phone]

Bose Corporation Headquarters: 1-877-230-5639

Simple line drawing of a door with four buttons and a labeled corner (no text or symbols)

ステージフィル

Simple line drawing of a blank rectangular frame with three small icons below (no text or symbols)

Simple line drawing of a door with a handle and mounting base (no text or symbols)

Pure technical diagram of a door or cabinet structure without any text, numbers, or symbols

スピーカースタンド

Technical line drawing of a mechanical component with a 35 mm dimension label (no text or symbols on the diagram itself)

Simple line drawing of a stand with a vertical pole and tripod base, no text or symbols present.

サブウーファーとともに設置する

AMM112 U-Bracket Kit 843364-0010

pro.Bose.com/amm112ubracket

AMM Suspension Bracket 843344-0010

pro.Bose.com/ammsbracket

プロセッサーのプリセット

. proteins.com/warranty

.www.Bose.com/compliance

Simple line drawing of a door with two circular marks labeled '3' on the front and top (no text or symbols beyond these)

(بوصة 15,0) سم 38,3

45,7 (بوصات 18,0)

Empty white square with a thin black border (no text or symbols)

45,7 (بوصات 18,0)

Simple line drawing of a door with labeled parts (no text or symbols)

المنظمة من الأسفل

Front view of a door with four buttons and a labeled corner (no text or symbols beyond basic markings)

Simple line drawing of a door with handle and mounting bracket (no text or symbols)

Simple line drawing of a door with handle and mounting feet (no text or symbols)

Simple line drawing of a blank rectangular frame with two small icons below (no text or symbols)

التوزيع على المسرح

Simple line drawing of a stand with a vertical pole and support structure, no text or symbols present.

Simple line drawing of a monitor with a square top and screen, no text or symbols present

AMM Suspension Bracket 843344-0010

pro.Bose.com/ammsbracket

AMM112 U-Bracket Kit 843364-0010

pro.Bose.com/amm112ubracket

المنظمة من الأعلى

التعليم
