USER MANUAL Prima 5 Plus GLORIA

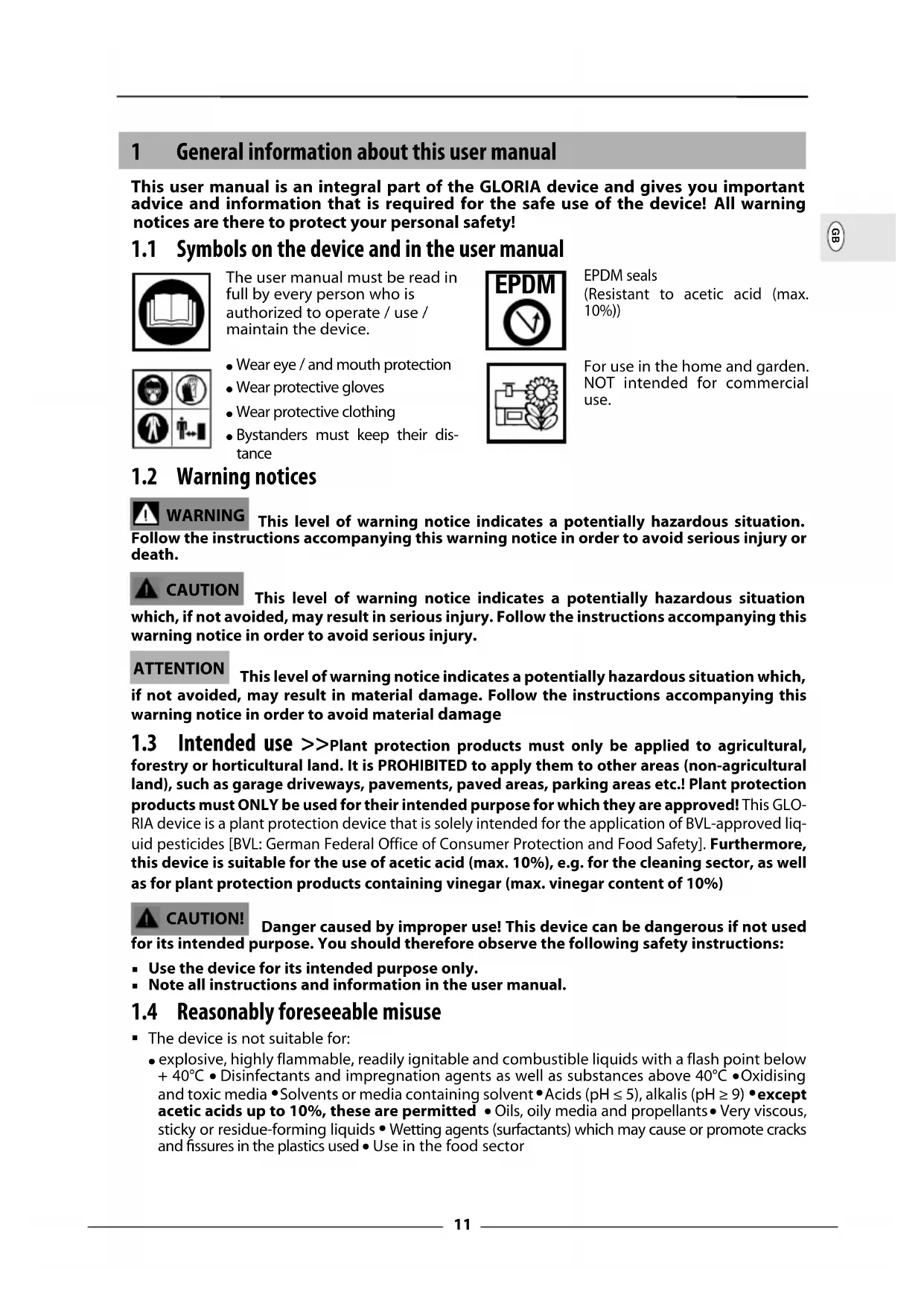

General information about this user manual

This user manual is an integral part of the GLORIA device and gives you important advice and information that is required for the safe use of the device! All warning notices are there to protect your personal safety!

1.1 Symbols on the device and in the user manual

The user manual must be read in full by every person who is authorized to operate / use / maintain the device. l Wear eye / and mouth protection l Wear protective gloves l Wear protective clothing l Bystanders must keep their dis- tance EPDM seals (Resistant to acetic acid (max. 10%))

For use in the home and garden. NOT intended for commercial use. EPDM

Warning notices This level of warning notice indicates a potentially hazardous situation. Follow the instructions accompanying this warning notice in order to avoid serious injury or death. This level of warning notice indicates a potentially hazardous situation which, if not avoided, may result in serious injury. Follow the instructions accompanying this warning notice in order to avoid serious injury. This level of warning notice indicates a potentially hazardous situation which, if not avoided, may result in material damage. Follow the instructions accompanying this warning notice in order to avoid material damage

1.3 Intended use >>Plant protection products must only be applied to agricultural,

forestry or horticultural land. It is PROHIBITED to apply them to other areas (non-agricultural land), such as garage driveways, pavements, paved areas, parking areas etc.! Plant protection products must ONLY be used for their intended purpose for which they are approved! This GLO- RIA device is a plant protection device that is solely intended for the application of BVL-approved liq- uid pesticides [BVL: German Federal Office of Consumer Protection and Food Safety]. Furthermore, this device is suitable for the use of acetic acid (max. 10%), e.g. for the cleaning sector, as well as for plant protection products containing vinegar (max. vinegar content of 10%) Danger caused by improper use! This device can be dangerous if not used for its intended purpose. You should therefore observe the following safety instructions:

Use the device for its intended purpose only.

Note all instructions and information in the user manual.

1.4 Reasonably foreseeable misuse

The device is not suitable for: l explosive, highly flammable, readily ignitable and combustible liquids with a flash point below + 40°C

Disinfectants and impregnation agents as well as substances above 40°C

Oxidising and toxic media

Solvents or media containing solvent

except acetic acids up to 10%, these are permitted

Oils, oily media and propellants

Wetting agents (surfactants) which may cause or promote cracks and ssures in the plastics used

Use in the food sector

1.5 Limitation of liability >>

We expressly point out that according to product liability law we do not accept li ability for damage caused by our device, insofar as this has been caused by non- compliance with the operating instructions, improper use, improper repair or replacement of parts with non-genuine parts, or if repairs have not been carried out by the customer service team or an authorised expert. This also applies to accessories. 2 For your safety

Repairs to these devices must be performed exclusively by the service centres.

This device may be used by child ren from 16 years and above and by persons with dimin- ished phys ical, sensorial or mental capacities or lack of experience and know ledge if supervised or if they have been instructed with respect to safe use of the device and understand the risks that result from using it. Children must not play with the device. Cleaning and user maintenance must not be performed by children without supervision.

This device must not be used if the operator is tired, ill or under the influence of alcohol or other drugs or medicines. Use the device as intended!

If the device is passed on to other persons, they must also be given the user manual!

Secure the device during transport to prevent the spray liquid escaping.

Each time before the sprayer is put into operation, regularly check to ensure the fault-free condi- tion and function of the pressurised/liquid-conducting operating elements and the safety valves. Pay particular attention to the tightness of the screw connection and screw joints. Check the mate- rial for the formation of cracks, brittleness and corrosion. If damage is suspected, take the unit out of operation immediately.

Do not leave the device unattended while it is in operation.

Protect the device against long exposure to the sun and frost.

The device is not intended for the storage of liquids; empty and rinse daily after each use.

Do not spray liquids onto hot surfaces.

Clogged nozzles must not be unblocked by blowing them clear with your mouth.

When unscrewing spray tubes, do not point the end towards you.

Never point the spray jet at people or animals.

As a precautionary measure, we recommend that a particularly extensive inspection be per- formed – ideally by the manufacturer – after the sprayers have been in use for 2 years.

Only use GLORIA original spares and accessories for the device.

Never use worn, modified or defective replacement parts / accessories!

The device has a maximum service life of 10 years.

Danger to health through contact with the spraying pesticides! Spraying pesticides can cause damage to health if inhaled, swallowed or absorbed by the skin. Consult a doctor if you develop symptoms or are unsure. You should therefore observe the following safety instructions:

Observe the safety instructions on the labels of the spraying agent. Observe the maximum spe- cified concentration. Wear protective clothing and safety goggles.

Always request a safety data sheet from the spraying agent manufacturer and pay attention to this.

Danger due to damage to equipment The device must not be pressurised for extended periods. Do not store the device in livestock buildings due to the ammonia vapours (danger of brass cracking), do not ll with solutions containing nitrogen or phosphates.

3 Before using the device

The device is shipped as standard as follows (see figure on page 2):

4 Technical data Pressure Sprayer: prima 5 Plus; Article number: 000106.0000 Permissible positive operating pressure 3 bar / max. filling quantity: 5 litres / total filling quantity: 8 l / permissible operating temperature: 0°C – 40°C / empty weight: 1.4 kg / total weight: 6.4 kg / reaction force on the nozzle: < 5 N / spray tube holder / piston-type pressure gauge with built-in safety valve / container material/pump material: polyethylene Notes regarding the nozzle

5 Assembly >> Figures

6.1 Filling container with water, applying pressure & checking safety valve

6.2 Venting container, emptying water & filling with plant protection

Information from the spraying agent manufacturer and dosage instructions must be observed.

6.3 Applying pressure and spraying >>

Lock the pump handle “A” after the pumping process by press the pump all the way down and turning the pump handle in a clockwise direction beyond the resistance until it stops.

Press down the control lever on the quick closing valve; this triggers the spraying process.

Pump when the spray pressure decreases or the yellow marking on the piston gauge is no longer visible. Do not exceed the permissible operating pressure of max. 3 bar.

A Pump handle B Pump body C Hose connection D Spray tube holder 1 E Spray tube holder 2 F Fill level control G 4 x Stands H All-plastic quick closure valve I Plastic spray tube with nozzle J 40 cm extension tube K Carrying straps L Piston -type pressure gauge with built-in safety/pressure relief valve M Filling funnel N 1 x user manual and product information Any accessory parts are packaged separately as part of the delivery. Spray patternBore hole min. clearance Sprayangle Flow rate in l/min at pressure/barMaterial Optim. pressure Filterhollowcone 1 mm 0-60° 0,33/0,43/0,49/0,54 brass 1,5 - 3 bar Serie1,5 / 2,0 / 2,5 / 3,0 ATTENTION Yellow marking: You are working with the optimum spray pressure. Red marking: If you exceed the optimum spraying pressure, do not continue to SPRAY, vent the device. RZ_prima5+_978904-01.qxp_Text_EN_prima 5 PLUS 27.08.21 11:58 Seite 1314

Danger to health due to escaping spraying agents! Pay attention to the safety instructions in this manual. Observe applicable laws and the specifications of the agent manufacturers when disposing of residual quantities.

Initially vent the standing container fully by pulling on the piston-type pressure gauge with the built-in safety valve “l” and completely releasing the air.

Now unscrew the pump carefully, at first only a few turns of the thread in a counter-clockwise direction so that any residual compressed air in the container can escape. Only now unscrew and remove the pump completely.

Do NOT pour the residual quantity into the sink, but pour it through the filling hole into a suit- able canister.

Observe the national regulations concerning occupational safety which apply to the place of operation as well as the applicable national regulations for operations.

Only use original GLORIA spare parts for repairs. (see GLORIA spare parts shop https://shop.glo- riagarten.de).

Repairs must only be carried out by a GLORIA service point.

Regularly coat the seals with GLORIA silicone grease.

Further accessories can be found at www.gloriagarten.de

You must therefore store the device and the spraying agents out of the reach of children.

Empty and clean the device as in Chapter 7.1. 8 Problems with the device 9 Disposal The emptied and unusable device must be recycled at a collection point, separated according to the materials. Dispose of packaging materials that are no longer required according to the locally applicable regulations.

EU Declaration of Conformity

EU Declaration of Conformity for a module as defined by Article 4, section 3 of the Directive on pres- sure equipment 2014/68/EU // GLORIA Haus- und Gartengeräte GmbH; Därmannsbusch 7; D-58456 Witten conrms that the pressurised components of the pressure sprayer prima 5 Plus comply with Directive 2014/68/EU, article 4, paragraph 3. Witten, 01.12.2018 Ludger Strunk (Head of Development and Design)

WARNING Fault Cause Remedy Device is leaking at the screw connection Hose loose Tighten coupling nut and carry out pressure test with water Spray pattern of nozzle not OK Nozzle partially blocked Filter in quick closure valve contaminated Clean filter or nozzle Pump does not build up any pressure O-ring on piston is worn Replace O-ring CAUTION RZ_prima5+_978904-01.qxp_Text_EN_prima 5 PLUS 27.08.21 11:58 Seite 1415
