Product type	Compact passive loudspeaker for fixed installation
Brand	Bose
Model	DesignMax DM2S
Dimensions (H x W x D)	182 mm x 113 mm x 116 mm
Net weight (one speaker with grille)	1.32 kg
Gross weight (pair)	3.94 kg
Power	70 V / 100 V line with transformer
Power (transformer taps)	70 V: 1.2 W / 2.3 W / 4.5 W / 9 W; 100 V: 2.3 W / 4.5 W / 9 W
Impedance (low impedance mode)	16 Ω
Connector	Screw terminal (18 to 14 AWG wire)
Mounting bracket	Wall mount included (adjustable orientation)
Optional accessory	DMSBRKT bi-pivot bracket
Grille	Magnetic attachment, removable, with safety cord
Logo	Rotatable (aligns with orientation)
Installation	Professional only
Maintenance and cleaning	Dry cloth only; no solvents, oils, or detergents
Safety	Do not use near water or heat sources; fixings compliant with local regulations
Spare parts / repairability	Bracket optional; fixing screws not supplied; any repair to be carried out by an approved professional
General information	Limited warranty; compliant with UL 1480A and IEC 60268-5; made in China

Frequently Asked Questions - DesignMax DM2S BOSE

How to install the DesignMax DM2S speaker?

Installation must be carried out by a qualified professional. Use the included wall mount and secure it firmly to a load-bearing structure with suitable screws (not supplied). Refer to the installation manual for wiring and power setting.

What cables to use for connection?

Use cables with section 18 AWG (0.8 mm²) to 14 AWG (2.1 mm²). Strip 6 mm of wire to connect to the terminal block. The speaker is not suitable for rigid conduits.

How to adjust the transformer power?

Turn the transformer selector with a flat-head screwdriver to choose the appropriate power: 1.2 W / 2.3 W / 4.5 W / 9 W in 70 V, or 2.3 W / 4.5 W / 9 W in 100 V.

Can I install the speaker outdoors?

No, this model is designed for indoor use only. Avoid humid areas such as indoor pools, saunas, or professional kitchens.

How to clean the speaker?

Use a dry, soft cloth. Never use detergents, alcohol, oils, or solvents as they may degrade the plastic.

Can the Bose logo be oriented?

Yes, the logo is rotatable. Press the button on the back of the grille and rotate the logo with your thumbs to align it with the speaker's orientation.

What accessories are available?

The mounting bracket is included. Optionally, you can purchase the DMSBRKT bi-pivot bracket. Wall mounting screws are not supplied.

Is the speaker compatible with a 70 V/100 V system?

Yes, it is designed for 70 V and 100 V systems with an integrated transformer. It can also be used in low impedance mode (16 Ω) if the transformer is set to the appropriate position.

What to do in case of a technical problem?

Do not attempt to repair the speaker yourself. Contact an authorized Bose service center or your dealer. The limited warranty covers manufacturing defects.

Where to find the complete technical data sheet?

The detailed technical data sheet is available on the PRO.BOSE.COM site. You will find acoustic specifications, directivity diagrams, and compatible accessories.

USER MANUAL DesignMax DM2S BOSE

Surface-mount Loudspeaker

Installation Guide

Installation Guide. 2

Guia de instalacion 8

Please read and keep all safety and use instructions.

This product is intended for installation by professional installers only! This document is intended to provide professional installers with basic installation and safety guidelines for this product in typical fixed-installation systems. Please read this document and all safety warnings before attempting installation.

Do not attempt to service this product yourself. Refer all servicing to authorized service centers, installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or distributor near you, visit PRO.BOSE.COM.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produces heat.
9. Only use attachments/accessories specified by the manufacturer.

WARNING/CAUTIONS

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

• All Bose products must be installed in accordance with local, state, federal and industry regulations. It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.
• Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death, and property damage. It is the installer's responsibility to evaluate the reliability of any mounting method used for their application. Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead.
• Do not mount the product in locations where condensation may occur.
• This product is not intended for installation or use in indoor water facility areas (including, without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms and indoor skating rinks).
• Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. If you are not sure about installing the bracket, contact a qualified professional installer. Ensure the bracket is installed according to local building codes.
• Use only the hardware and accessories included or specified by Bose for use with DesignMax DM2S loudspeakers. Hardware for securing the loudspeaker to the mounting surface is not supplied. For information on compatible accessories, see the product's technical data sheet at PRO.BOSE.COM.
• Keep the product away from fire and heat sources. Do not place naked flame sources, such as lighted candles, on or near the product.
• Do not make unauthorized alterations to this product.
• The DesignMax DM2S wall-mounting bracket is only for use with model DM2S.
• Do not use hydrocarbon based solvents, lubricants or cleaning agents of any type on or around this loudspeaker and associated mounting hardware during installation. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.
• Clean speakers using only a dry cloth. Do not expose loudspeaker to soap, detergent, mineral oil, alcohol or other cleaning agents or chemicals.
• The grille is equipped with a safety lanyard pin designed for a single use.

Regulatory Information

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

China Restriction of Hazardous Substances Table

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (PBB)	Polybrominated diphenylether (PBDE)
PCBs X 0 0 0 0 0	0
Metal Parts X 0 0 0 0	0 0 0 0
Plastic Parts X 0 0 0 0	0 0 0 0
Speakers X 0 0 0 0 0	0 0 0
Cables X 0 0 0 0 0	0
This table is prepared in accordance with the provisions of SJ/T 11364. O: indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.						15
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Taiwan Restriction of Hazardous Substances Table

Equipment name: DesignMax DM2S, Type designation: 799967
	Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr+6)	Polybrominated biphenyls (PBB)	Polybrominated diphenyls others (PBDE)
PCBs	-	○	○	○	○	○
Metal Parts	-	○	○	○	○	○
Plastic Parts	○	○	○	○	○	○
Speakers	-	○	○	○	○	○
Cables	-	○	○	○	○	○
Note 1: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. Note 2: The “-” indicates that the restricted substance corresponds to the exemption.

Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; "7" is 2007 or 2017.

China Importer: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Mexico Importer: Bose de Mexico, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 Mexico, D.F. For importer & service information: [phone]

Taiwan Importer: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Phone Number: [phone]

Bose and DesignMax are trademarks of Bose Corporation.

Bose Corporation Headquarters: 1-877-230-5639

©2019 Bose Corporation. No part of this work may be reproduced, modified, distributed or otherwise used without prior written permission.

Warranty Information

This product is covered by a limited warranty. For warranty details, visit PRO.BOSE.COM.

Product Ratings:

Input Voltage: 70V/100V

Impedance: 16 Ω, 16 W

Current or Power: (70V): 1.2W, 2.3W, 4.5W, 9W; (100V): 2.3W, 4.5W, 9W

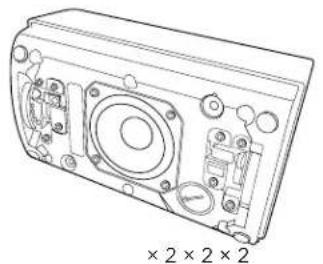

Package Contents

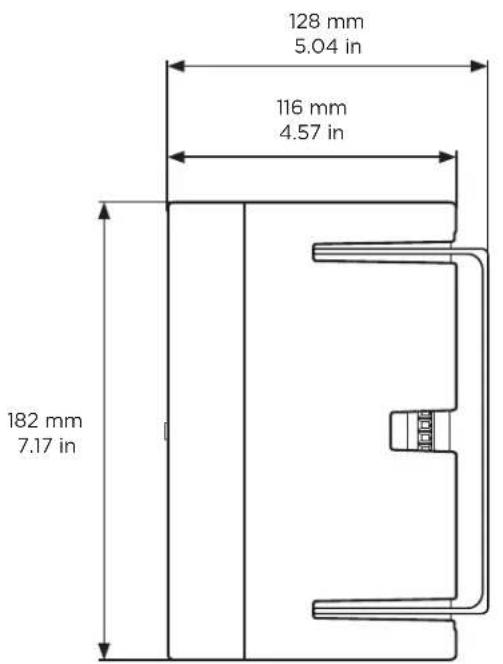

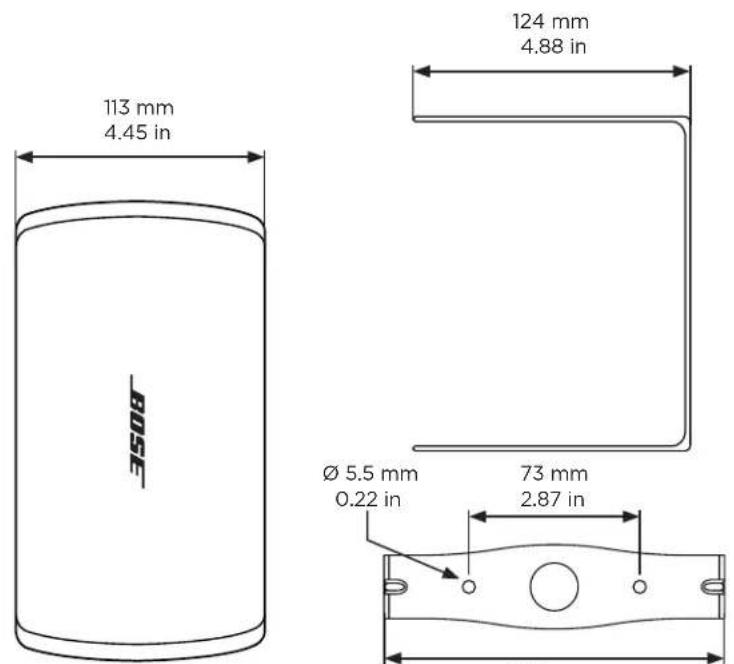

Product Dimensions

146 mm
5.75 in

Technical Specifications

For additional specifications, see the DesignMax DM2S technical data sheet at PRO.BOSE.COM.

Physical

Product Dimensions Height: 182 mm (7.17 in)

Width: 113 mm (4.45 in)

Depth: 116 mm (4.57 in)

Net Weight, Loudspeaker with grille (single) 1.32 kg (2.9 lb)

Shipping Weight (pair) 3.94 kg (8.7 lb)

Important Installation Information

It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.

It is the responsibility of the installer to ensure the safety of the loudspeaker installation. Failure to properly install the loudspeaker could result in damage, injury, or death.

Do not mount the product in locations where condensation may occur.

The hardware for securing the loudspeaker to the mounting surface is not supplied. Consult a building professional for the proper mounting hardware before installing the loudspeaker.

Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. If you are not sure about installing the bracket, contact a qualified professional installer. Ensure the bracket is installed according to local building codes.

Do not use hydrocarbon based solvents, lubricants or cleaning agents of any type on or around this loudspeaker and associated mounting hardware during installation. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.

Installation Options

Installation Options and Accessories

Mounting bracket (included)
DMSBRKT Pan-and-tilt bracket (optional)

Wiring the Loudspeaker

Wire Gauge

The DesignMax DM2S loudspeaker is designed to work with 18 AWG (0.8 mm²) to 14 AWG (2.1 mm²) size wire only.

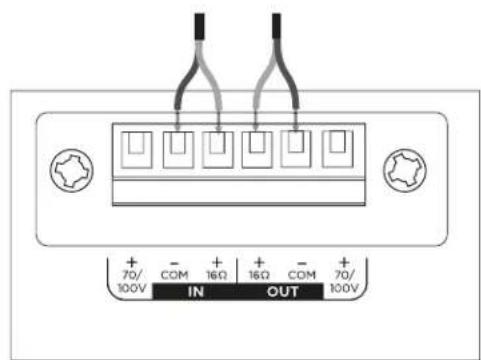

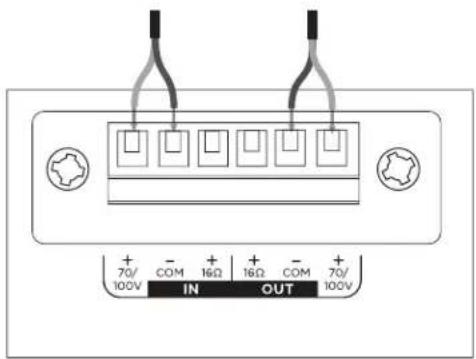

Connection Diagrams

Expose six millimeters (1/4 inch) of bare wire to attach to the terminals.

Note: The loudspeaker is not rated for use with a rigid conduit. The loudspeaker is suitable for a flexible conduit or wiring connection only.

70V/100V 16Ω

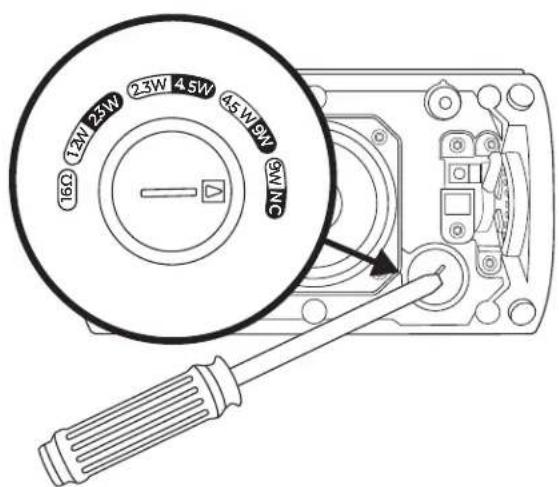

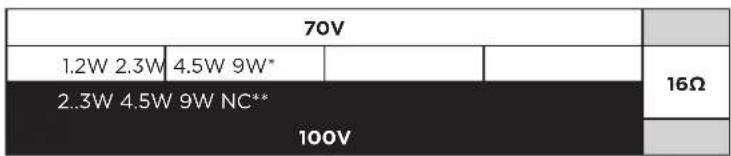

Loudspeaker Settings

* NC: No Connection (do not use) Factory default

Transformer Tap Setting

Set tap by turning. Use a flat head screwdriver.

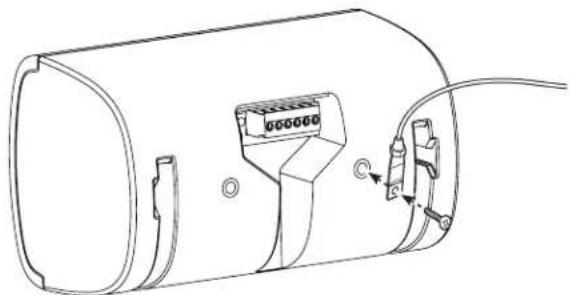

Using a Safety Cable

Some regional construction codes require the use of a secondary method of securing loudspeakers to support structures to provide additional safety. Choose a mounting position, method, and hardware consistent with local building codes and regulations.

A safety cable can be attached to the loudspeaker using the threaded insert on the back of the enclosure.

The insert is sized for an M6 screw (not included).

Loudspeaker Orientation

Choose the loudspeaker orientation best suited for your installation.

Horizontal
Vertical

0

2

Note: Installation in close proximity to cooking surfaces where the loudspeaker may be directly exposed to cooking oils, such as in commercial cooking environments, may decrease the performance or functionality of the loudspeaker.

Installing the Bracket

Note: When choosing an installation location, at least one of the mounting bracket's attachment points must be secured to a support structure. Attachment points not secured to a support structure must be secured using appropriate hardware for the installation.

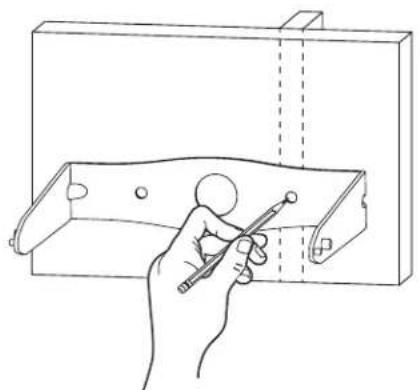

1. Mark the drill holes.

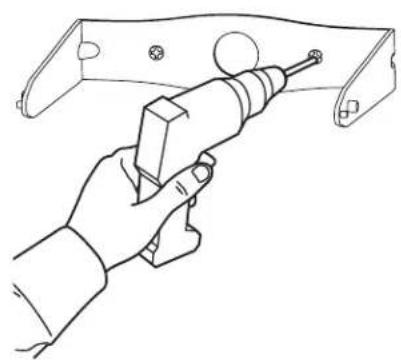

2. Drill two holes (sized for appropriate fasteners) into the wall.
3. Secure the bracket to the wall with two screws (not included). Note: Use M5 or #10 sized screws.

1 2 3

Wiring the Connector

1. Feed the wires through the center hole of the bracket.
2. Remove the connector from the loudspeaker.
3. Wire the connector. For wiring information, see Wiring the Loudspeaker on page 4.

0

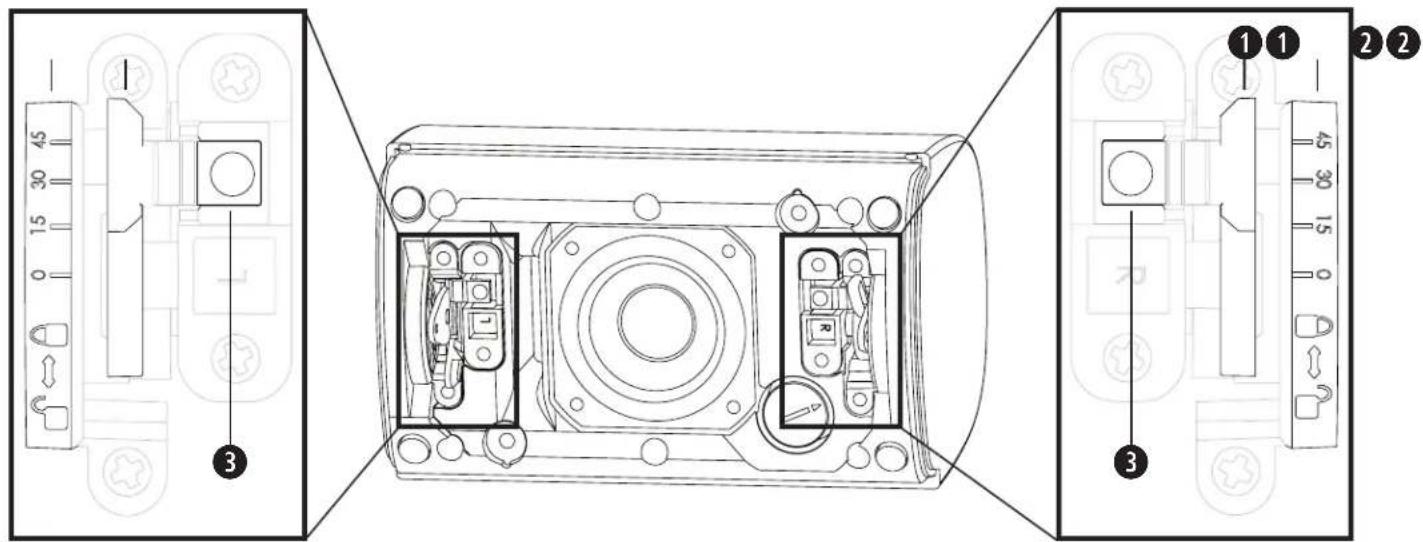

Important Mounting Information

Lock levers: Used to secure the loudspeaker to the mounting bracket. Push the levers toward the lock pins to lock; push the levers away from the lock pins to unlock.
Angle labels: Identify your desired angle position and the locking direction.
Lock pins: Press the pins down to unlock the levers.

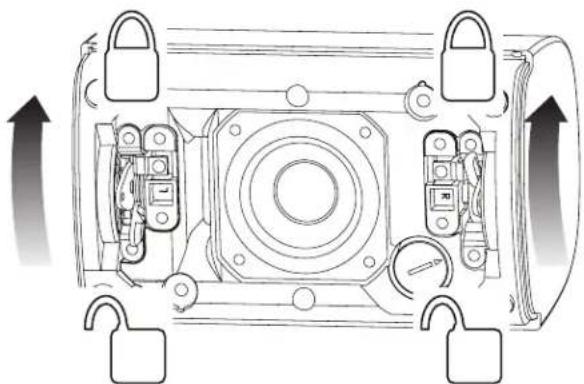

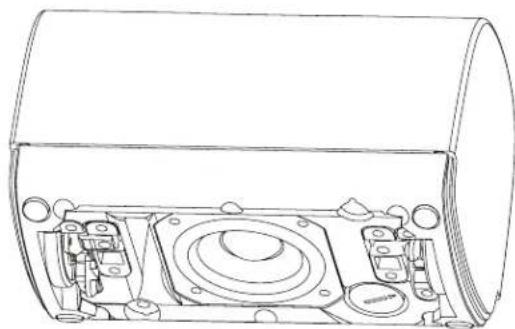

Installing the Loudspeaker

Note: The loudspeaker is shipped with the lock levers taped down. Remove the tape before installation.
1. Attach the loudspeaker to the bracket, adjust the loudspeaker to 45^ , and lock the levers into place.
2. Attach the wired connector to the loudspeaker.
3. Unlock the levers and adjust the loudspeaker to your desired angle. Note: The angle of the loudspeaker can be adjusted to 0^ , 15^ , 30^ , or 45^ .
4. Lock the levers into place.

WARNING: Failing to push the levers into the lock position as instructed can create a falling hazard, which can result in property damage, serious injury, or death. It is the installer's responsibility to ensure the mounting system is installed according to the instruction.

1

3

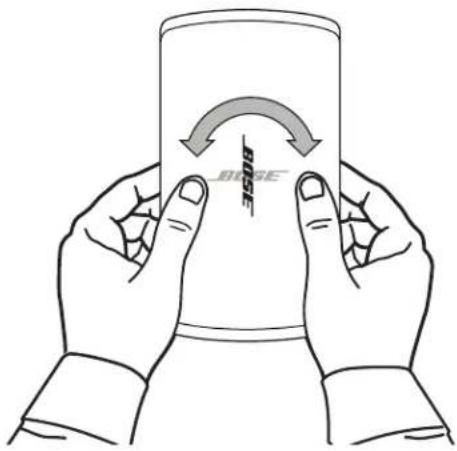

Adjusting the Logo

You can rotate the Bose logo to align with your loudspeaker orientation. With both hands, press the button on the back of the grille and rotate the logo with your thumbs. The logo can be rotated clockwise or counterclockwise. To remove the logo, pinch the button inward with one hand and pull the logo with the other.

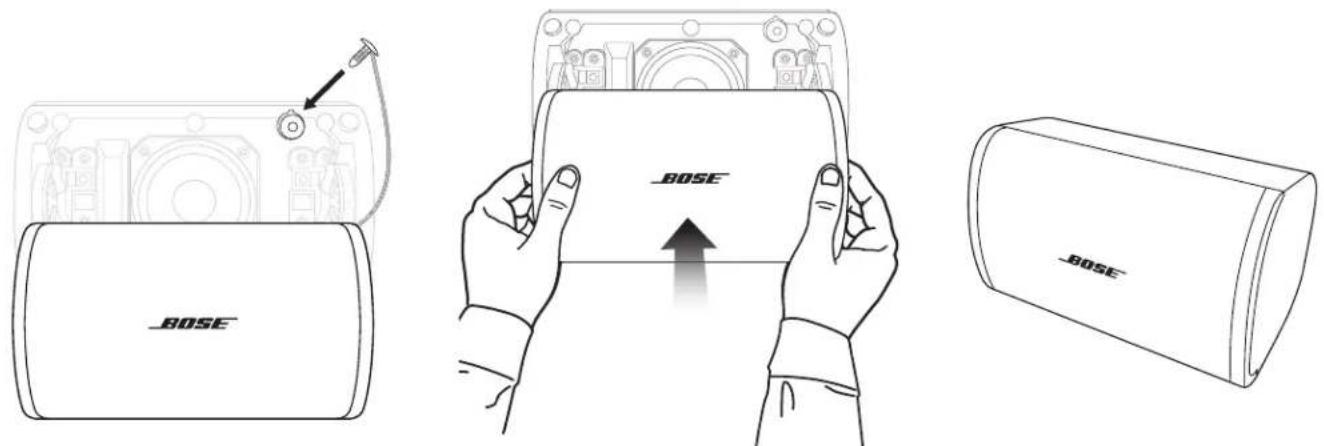

Attaching the Grille

Insert the safety lanyard pin into one of the two lanyard pin holes in the loudspeaker. Using both hands, position the grille against the loudspeaker, ensuring the grille is flush against the loudspeaker with no gaps. The grille secures to the loudspeaker magnetically.

Safety and Regulatory Compliance

The Bose DesignMax DM2S loudspeaker has passed testing and complies with the following specifications and uses:

Listed to ANSI/UL 1480A-2016, Speakers for Commercial & Safety Professional Use

General-Purpose Use - UL Category UEAY, File Number S 5591 Control Number 3N89

Suitable for installation using Class 1, Class 2, Class 3 wiring methods in accordance with NFPA 70, National Electrical Code, 2017, Article 640

The DesignMax DM2S loudspeaker has been designed to the requirements defined in the following European regulatory specification for combination systems:

Tested to IEC60268-5, 2007

Importador para Taiwan: Bose Taiwan Branch, 9F-A1, N° 10, Section 3, Minsheng East Road,

Taipei City 104, Taiwan. Nstreamo Telefonico: [phone]

Bose y DesignMax son marcas comerciales de Bose Corporation.

Oficinas centrales de Bose Corporation. 1-877-230-5639

1 Horizontale
2 Verticals

Code, 2017, Article 640

Importeur aus China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importatore per la Cina: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importatore per l'UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Paesi Bassi

Importeur in China: Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No.353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importeur in de EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Nederland

Importeur in Mexico: Bose de Mexico, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 Mexico, D.F. Gegevens importeur en service-informatique: [phone]

Importeur in Taiwan: Bose Taiwan Branch, 9F-A1, No.10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Telefonnummer: [phone]

ANSI/UL 1480A-2016, Speakers for Commercial & Safety Professional Use

General-Purpose Use - UL Category UEAY, File Number S 5591 Control Number 3N89

Strømller effect: (70 V): 1,2W, 2,3W, 4,5W, 9W, (100 V): 2,3W, 4,5W, 9W

Importer na terenie Chin: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importer na terenie UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Holandia

Importer - Meksyku: Bose de Mexico, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 Mexico, D.F. W celu uzyskania informaci o importerze i uslugach: [phone]

Importer naterenle Taiwanu: Bose Taiwan Branch, 9F-A1, No.10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Numer telephone: [phone]

Bose and DesignMax sa znakami towardwymi firmy Bose Corporation.

Siedziba glowna firmy Bose Corporation: 1-877-230-5639

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at www.Bose.com/compliance.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

中国におはし输入元：Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No.353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EUにおる输入元：BoseProductsB.V.,Gorslaan60,1441RG Purmerend,The Netherlands

MEXICO 405-204, Lomas de Chapultepec, 11000 Mexico, D.F.输入元おはこト情報：[phone]

台湾[0]输入元：Bose Taiwan Branch, 9F-A1, No.10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Phone Number: [phone]

Bose Corporation: 1-877-230-5639

ANSI/UL 1480A-2016Speakers for Commercial & Safety Professional Use

一般用途向は使用-UL Category UEAY、File Number S 5591 Control Number 3N89

Jnally gaii jiaai jai

2007 7"

Bose Electronics (Shanghai) Company Limited, Part C, LLD Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade

Zone

Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng

[phone]:East Road, Taipei City 104, Taiwan

. Bose Corporation DesignMax, Bose

1-877-230-5639:Bose 4

Bose Corporation 2019 plll

jiaiah jia ci jia

jie jiee e gai all

PRO.BOSE.COM

1.4 Biliunlgl plaiuui 2g aouui ciui jS 601j

y 1

y j 1

gaaia 1 aaii jaiyai jaiyai jaiyai

Bose 1

PRO.BOSE.COM

7

a j 8

5jlaie gill (cull chiaa dai la) jy jnae j

jai jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia

Aa aal aal aal aal aal aal aal aal aal

（）M6

2

0

gai jaoolj

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

2007 1EC60268-5
