1. About this document

• Under copyright. Reproduction either in whole or in part only with our consent.
  – Subject to change in the interest of technical progress.

Hazard warning!

Warning of hazards from electricity!

Warning of hazards from water!

2. General safety precautions

Failure to observe these operating instructions presents hazards!

These instructions contain important information on the safe use of this product. Particular attention is drawn to potential hazards. Failure to observe this information may lead to death or serious injuries.

• Read instructions carefully.
• Follow safety advice.

• Keep instructions within easy reach.

• Working with electrical current may produce hazardous situations. Touching live parts can result in electrical shock, burns or death.

• Work on mains voltage must only be performed by qualified, skilled personnel.
• National wiring regulations and electrical operating conditions must be observed (e.g. D: VDE 0100, A: ÖVE-ÖNORM E8001-1, CH: SEV 1000).
• Only use genuine replacement parts.
• Repairs must only be carried out by companies qualified to do so.

3. System description

Proper use

– LED floodlight with infrared motion sensor.
- For indoor and outdoor wall mounting

Non-intended use

- The LED floodlight cannot be dimmed.

Not dimmable

Operating principle

• The integrated infrared sensor detects the heat radiated from moving objects (e.g. people, animals). The heat detected in this way is converted electronically into a signal that switches the LED floodlight ON automatically.
• The most reliable way of detecting motion is to install the unit with the sensor aimed across the direction in which a person would walk.
• Motion detection reach is restricted when the unit is approached head on.
• Obstacles (such as trees, walls or panes of glass) may restrict or prevent the detection of movement.
• Sudden fluctuations in temperature as a result of changes in weather are not distinguished from sources of heat.

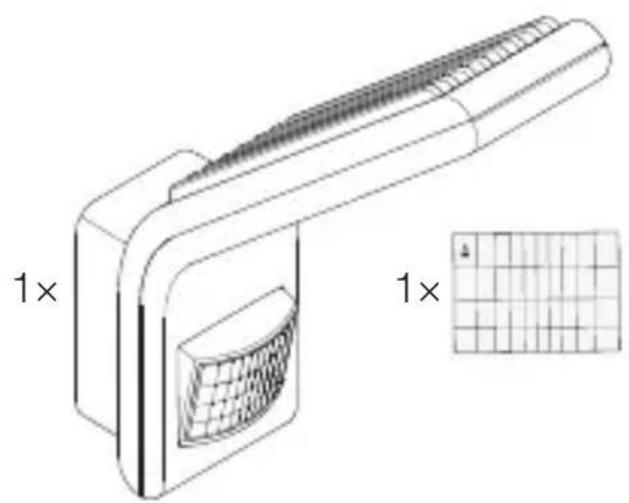

Package contents

3.1

Technical line drawing of a mechanical component with a grid pattern inset (no text or symbols)

4×4×4×

• 1 LED floodlight
• 1 film shroud
• 4 wall plugs
• 4 screws
• 4 spacers
• 1 safety data sheet (A)
• 1 Quick start guide (B)

Product dimensions

3.2

66 mm 201 mm 241 mm

Product components

3.3

A B C D

A LED floodlight head
B Heat sink
C Wall mount with plug-in terminal
D Sensor unit

3.4

E F 0,5 15 min. mn max

E Twilight setting
F Time setting

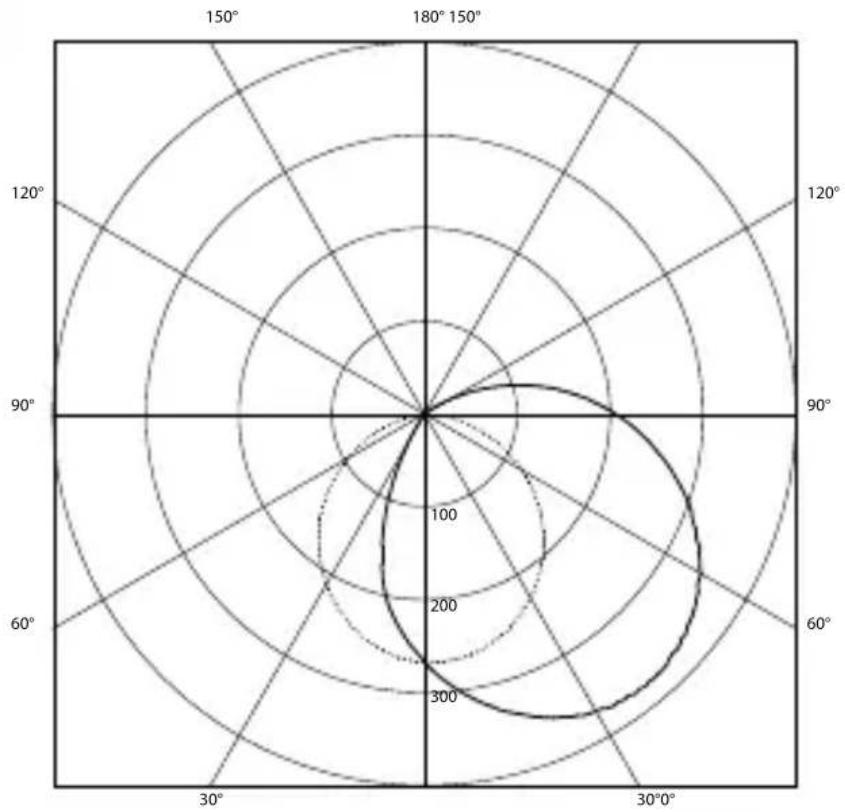

Light distribution curve
3.5

4. Electrical connection

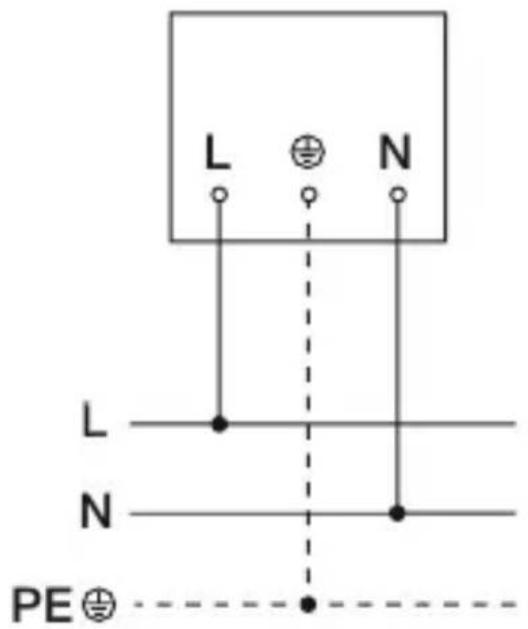

Circuit diagram

4.1

I O

L ⊕ N L N PE ⊕

The mains power supply lead is a 3-core cable:

L = phase conductor (usually black, brown or grey)

N = neutral conductor (usually blue)

PE = protective-earth conductor (green/yellow)

The floodlight can also be connected to the power supply downstream of a mains switch if it is ensured that the mains switch is left ON all the time.

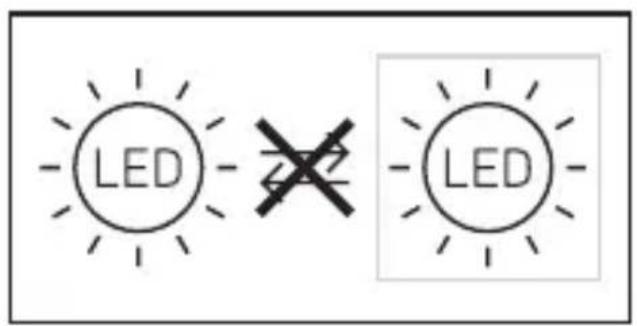

The light source of this light cannot be replaced. If the light source needs to be replaced (e.g. at the end of its service life), the complete light must be replaced.

LED 22 LED

5. Installation

Hazard from electrical power.

Touching live parts can result in electrical shock, burns or death.

• Switch OFF power and interrupt power supply.
• Using a voltage tester, check to make sure that the power supply is disconnected.
  • Make sure power supply remains interrupted.

Risk of damage to property!

Mixing up connection leads may produce a short circuit.

• Identify connection leads.
• Connect the leads correctly.

Preparing for installation

• Check all components for damage. Do not use the product if it is damaged.
• Select an appropriate site to install the product.

-Take reach into consideration.
—Take reach and motion detection into consideration.
-Vibration-free.
-No obstacles in detection zone.
-Not in explosive atmospheres.
-Not on normally flammable surfaces.
-Do not look into the light source from a short distance (< 30 cm).
-Spaced at a distance of at least 50 cm from other LED floodlights.

Reach

5.1

≤ 8 m 2.2 m

Detecting motion across the direction in which a person walks.

5.2

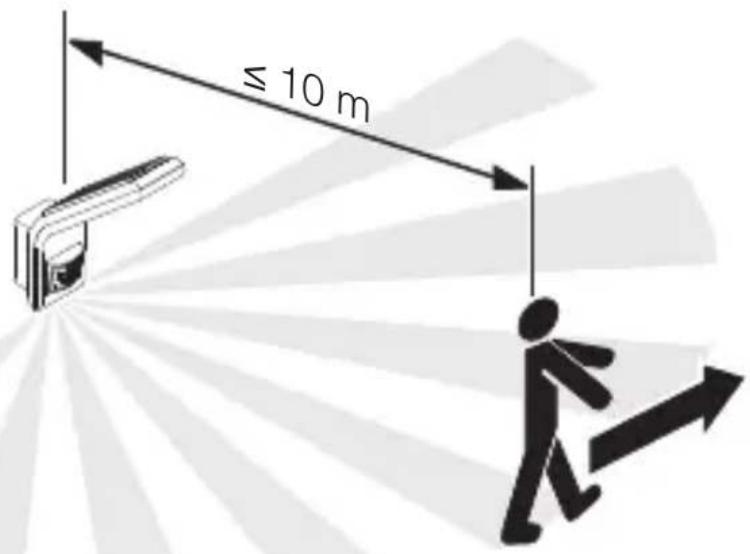

≤ 10 m

Detecting motion in the direction in which a person walks.

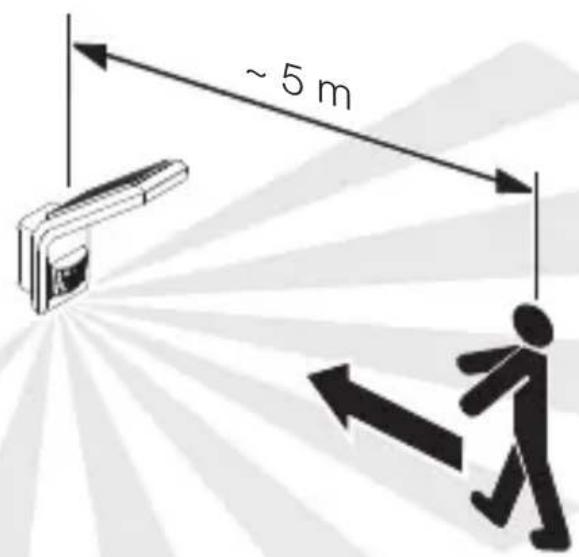

5.3

~ 5 m

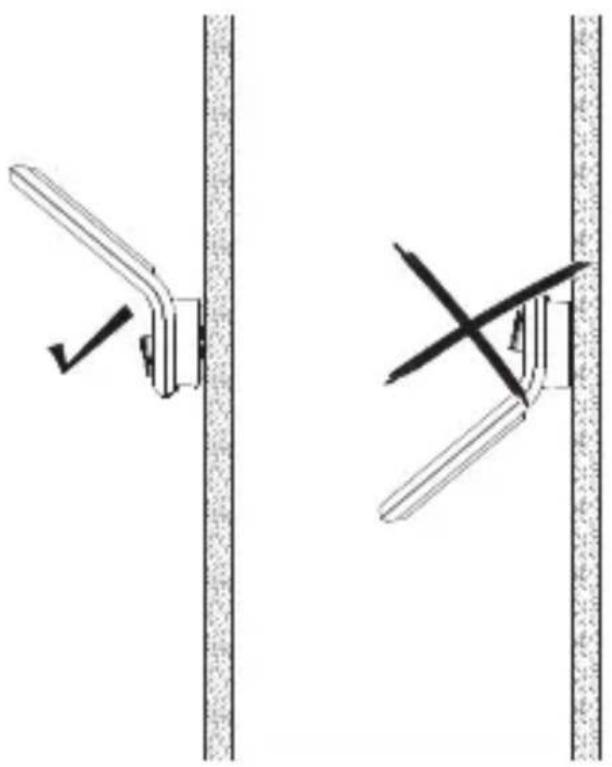

Aiming the floodlight

5.4

Diagram showing two mechanical clamping or bracketing setups with no text or symbols

- Correctly aim floodlight.

Mounting procedure

5.5

I O

Technical line drawing of a mechanical component with internal parts and a fastener (no text or symbols)

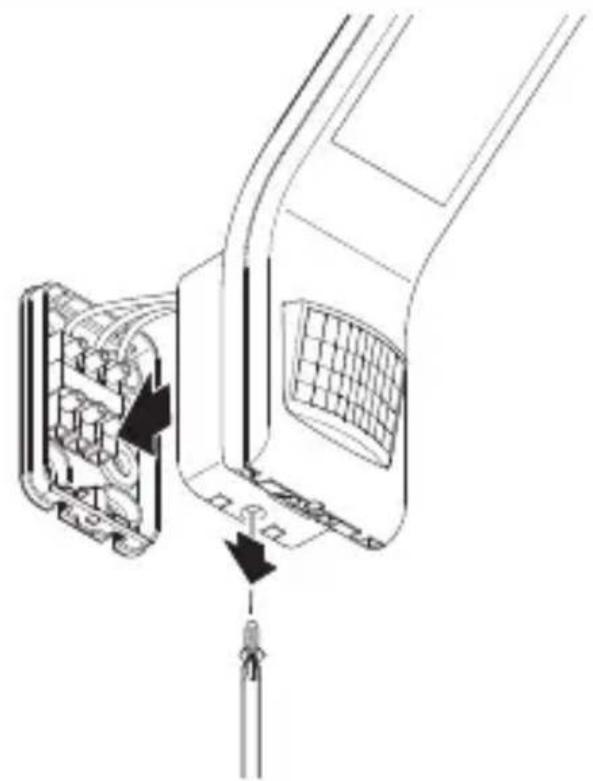

• Check to make sure the power supply is switched OFF.
• Unscrew retaining screw.

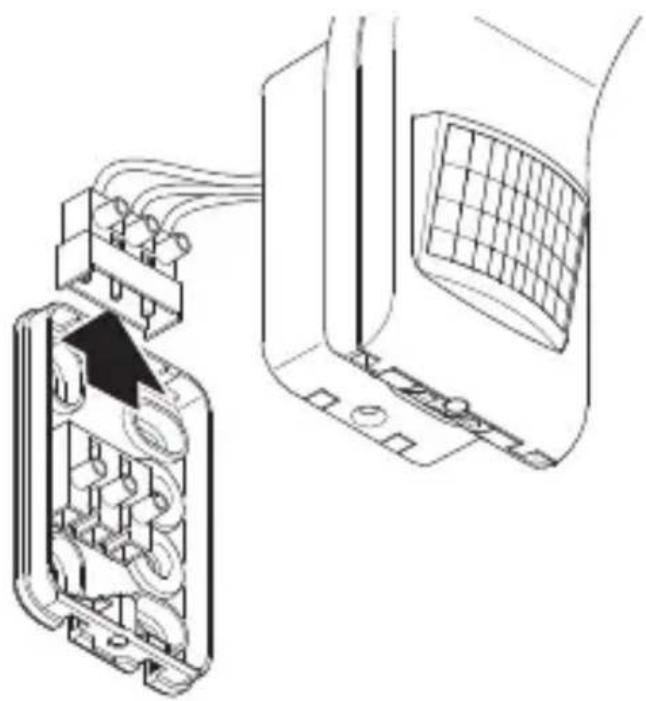

• Disconnect LED floodlight head from wall mount.

5.6

Technical diagram showing internal components of a device with no visible text or symbols

- Detach plug-in terminal from wall mount.

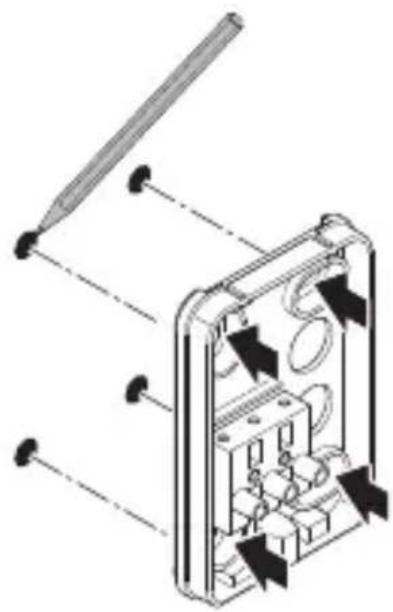

5.7

Technical diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

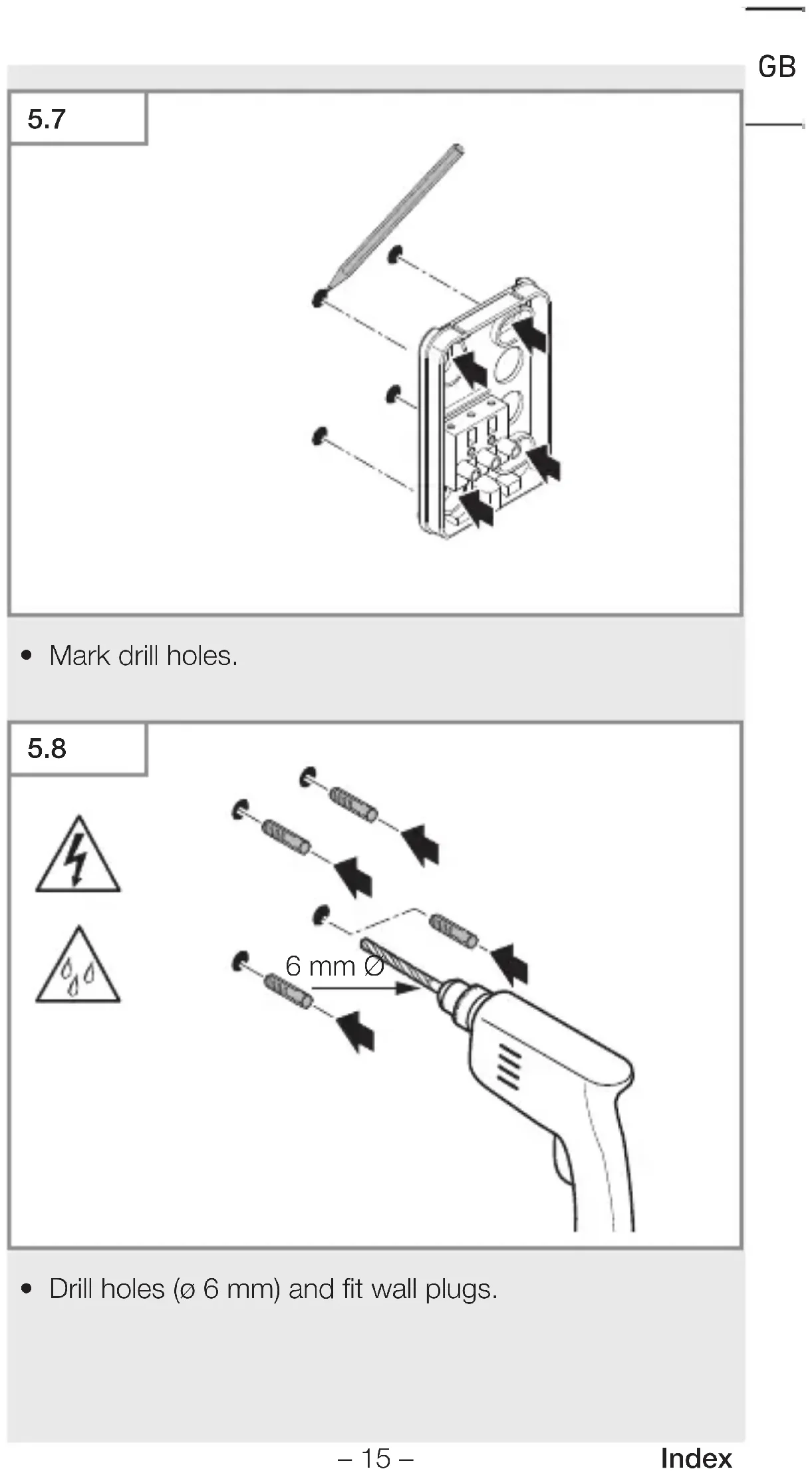

- Mark drill holes.

5.8

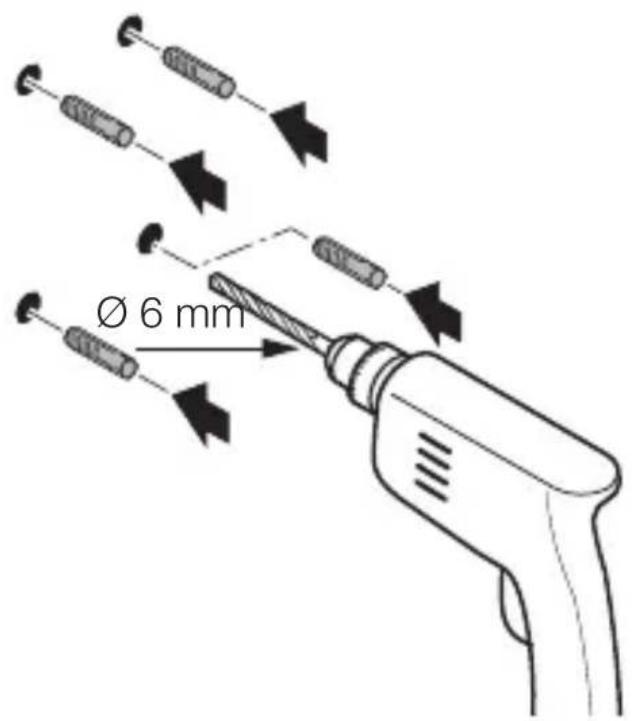

6 mm Ø

- Drill holes (ø 6 mm) and fit wall plugs.

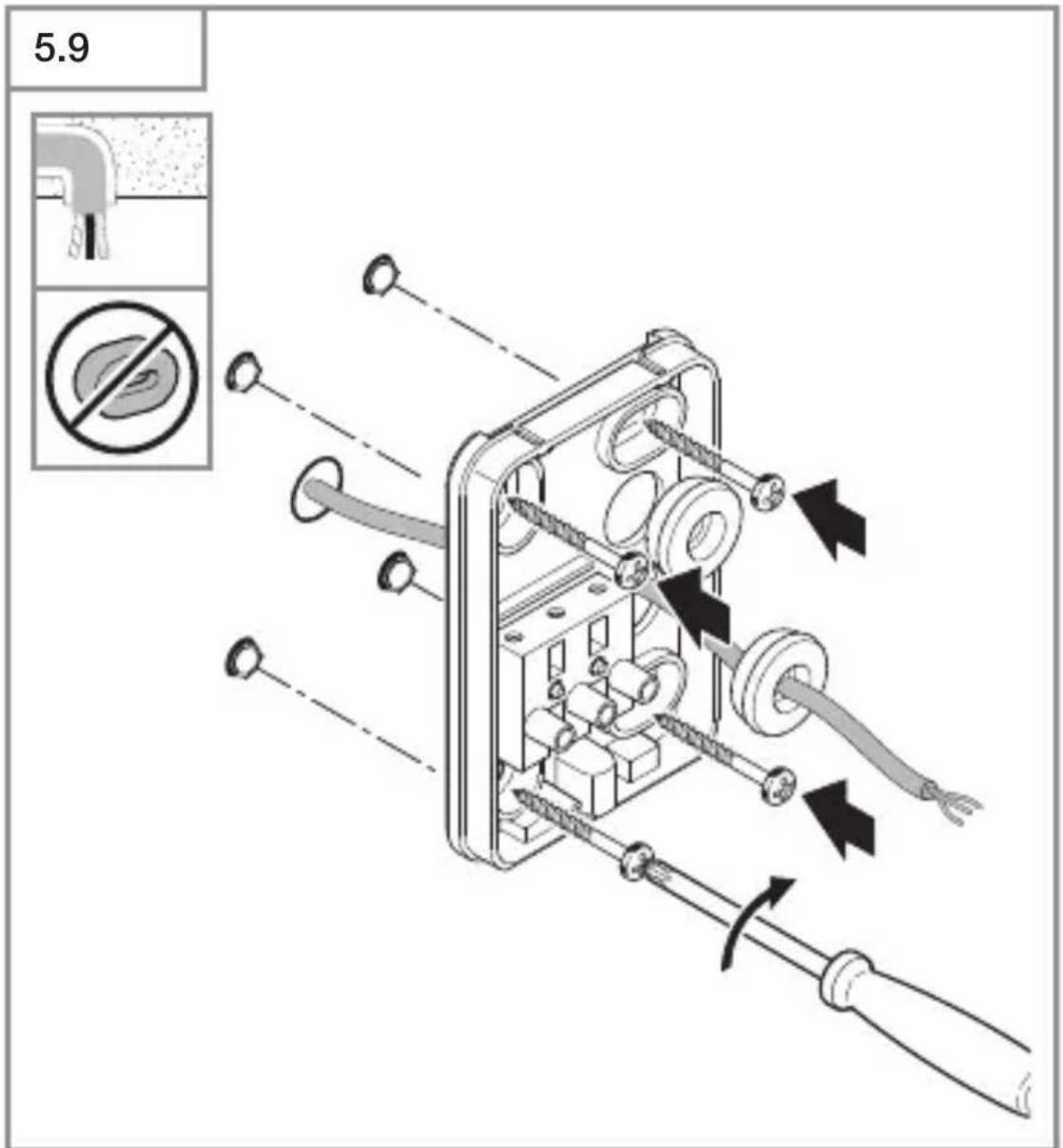

5.9

• Pierce sealing plug for power supply lead
• Firmly screw wall mount into place for concealed power supply lead without spacers.

5.10

GB

• Pierce sealing plug for power supply lead
• Use spacers to screw down wall mounts for surface-mounted wiring.

5.11

Technical line drawing of a mechanical assembly with internal components and a curved arrow indicating direction (no text or symbols)

Pure electrical circuit lines without any symbols

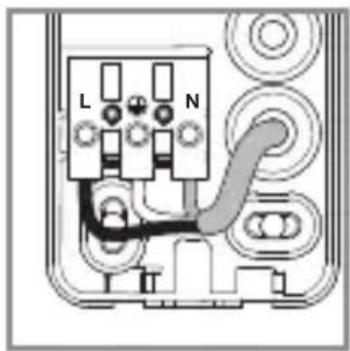

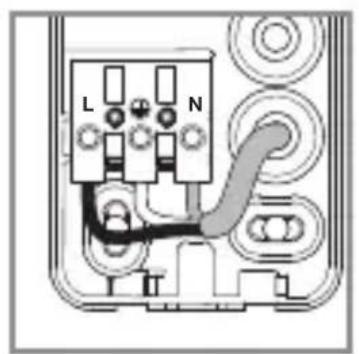

- Connect mains power supply lead as shown in the wiring diagram.

→ „4. Electrical connection“

5.12

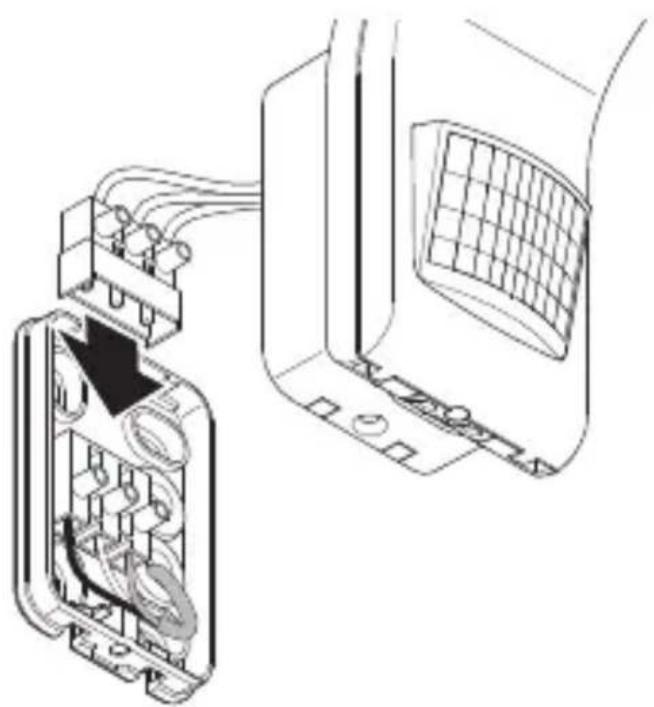

Technical diagram of a device showing internal components connected to a panel (no text or symbols present)

- Connect plug-in terminal.

5.13

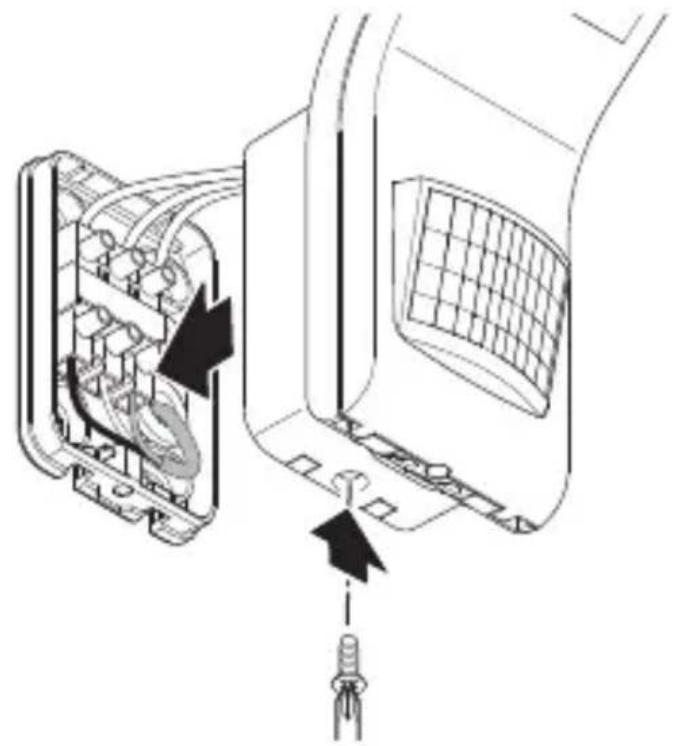

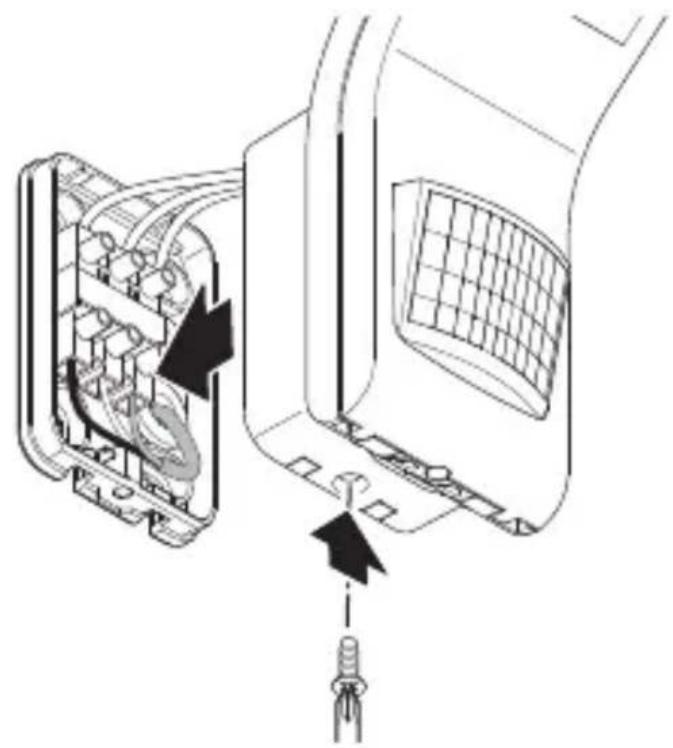

Technical diagram of a car air vent assembly showing internal components and wiring (no text or labels)

• Fit LED floodlight head on wall mount.
• Screw in locking screw.

5.14

I O

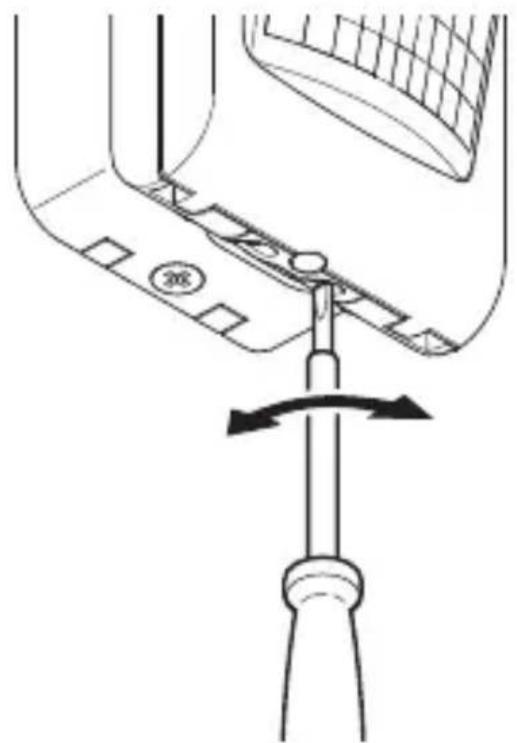

- Switch ON power supply.

5.15

Technical diagram of a mechanical component with a lever and directional arrow (no text or symbols)

- Make settings.

→ „6. Function“

6. Function

Factory settings

– Twilight setting: daylight mode 1,000 lux
- Time setting: 2 seconds
- Reach setting: 8 metres

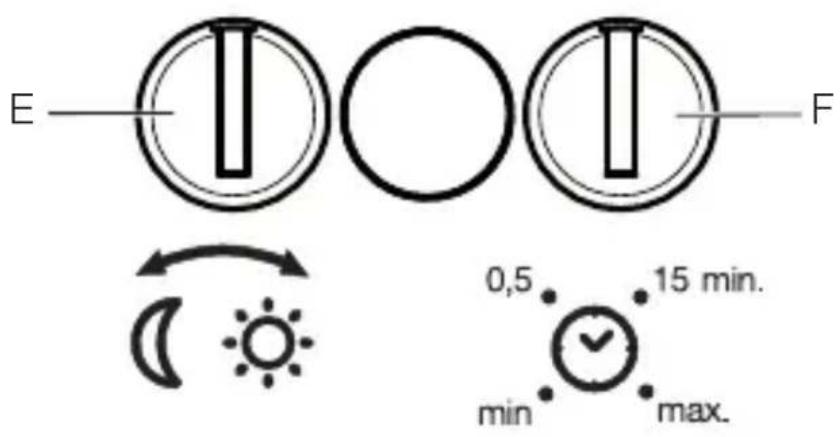

Control dial

6.1

E F 0,5 15 min. min max.

Twilight setting (E)

The response threshold (twilight) can be infinitely varied from approx. 2 to 1,000 lux.

• ✦ = daylight mode (depending on ambient light level)
• = night-time operation (approx. 2 lux)

The control dial must be turned to *when adjusting the detection zone and performing the functional test in daylight.

Time setting (F)

The stay-ON time) can be set to any period from approx. 2 seconds to a maximum of 70 minutes. Every movement detected re-activates the light.

Note: after the LED floodlight switches OFF, it takes approx. 1 second before it is able to start detecting movement again. The LED floodlight can then switch ON again in response to movement. The shortest time setting is recommended when adjusting the detection zone and performing the functional test.

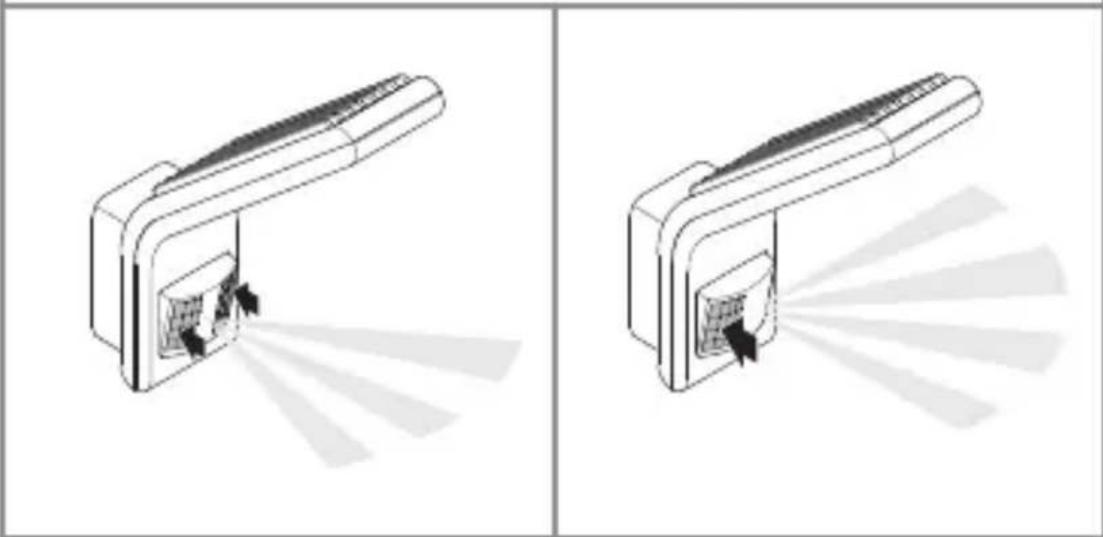

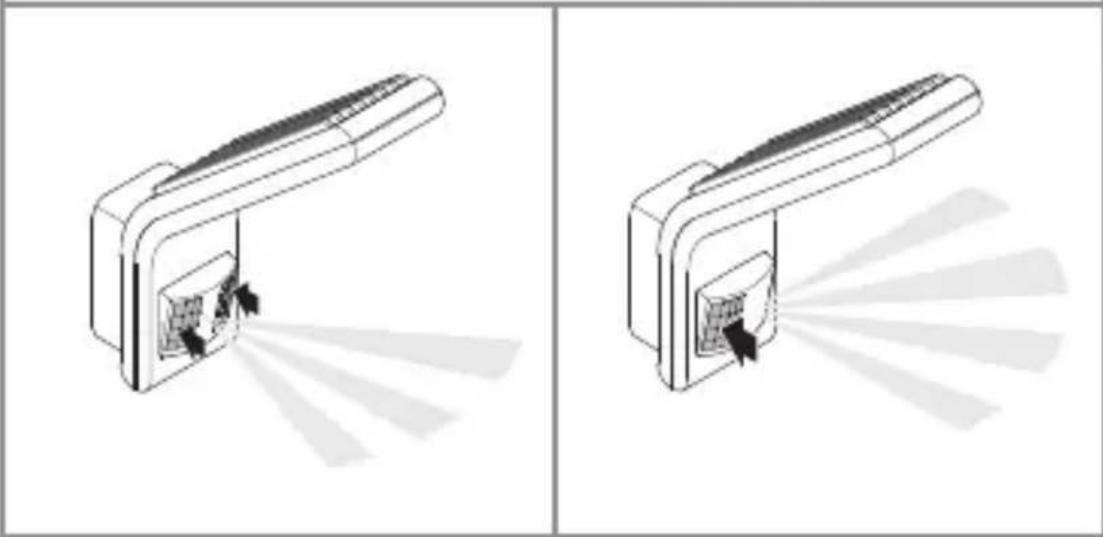

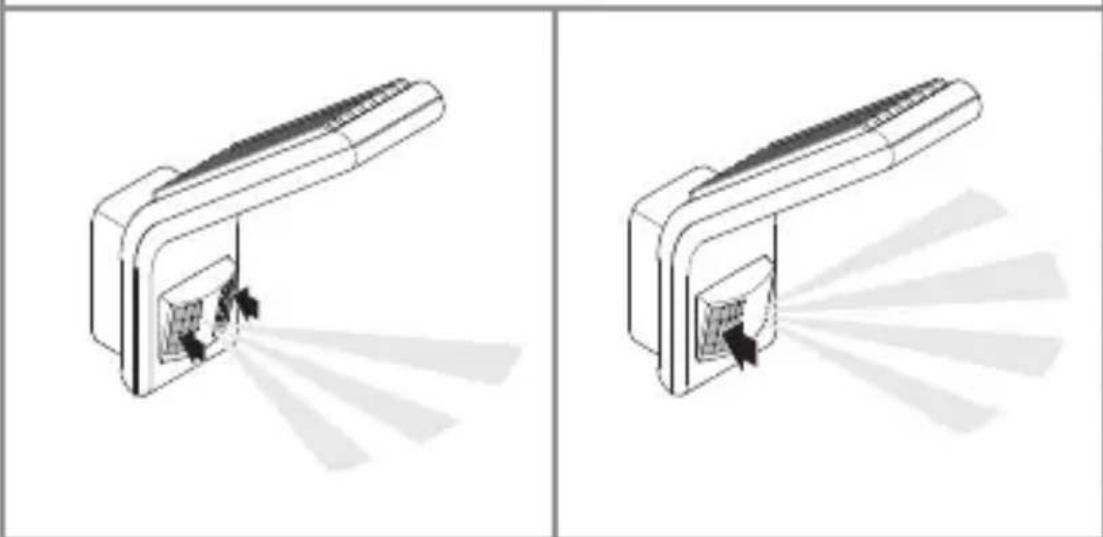

Adjusting the detection zone

To rule out inadvertent triggering or to target specific areas, the detection zone can be limited or adjusted with the film shroud. The film shroud is stuck onto the sensor unit.

6.2

Line drawing of a solar panel with a ruler and angle marker (no text or symbols)

Two technical diagrams showing a device with internal components and light rays, no text or symbols present.

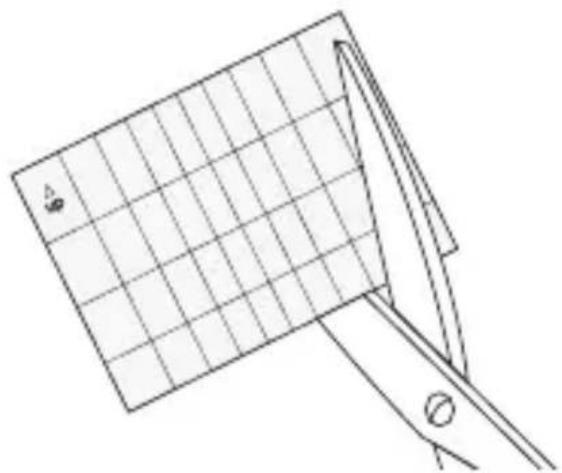

- Once cut to size, stick the film shroud onto the sensor unit.

7. Maintenance and care

The tool requires no maintenance.

Hazard from electrical power.

Contact between water and live parts can result in electric shock, burns or death.

- Only clean tool in a dry state.

Risk of damage to property!

Using the wrong cleaning product can damage the light.

- Clean tool with a moist cloth without detergent.

Important note: the control gear cannot be replaced.

230V LED

8. Disposal

Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.

Do not dispose of electrical and electronic equipment as domestic waste.

EU countries only:

Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.

9. Declaration of Conformity

STEINEL Vertrieb GmbH hereby declares that the XLED home slim S radio equipment type conforms to Directive 2014/53/EU. The full wording of the EU Declaration of Conformity is available for downloading from the following Internet address: www.steinel.de

10. Manufacturer's warranty

This Steinel product has been manufactured with utmost care, tested for proper operation and safety and then subjected to random sample inspection. Steinel guarantees that it is in perfect condition and proper working order. The warranty period is 36 months and starts on the date of sale to the consumer. We will remedy defects caused by material flaws or manufacturing faults. The warranty will be met by repair or replacement of defective parts at our own discretion. The warranty shall not cover damage to wear parts, damage or defects caused by improper treatment or maintenance. Further consequential damage to other objects shall be excluded.

Claims under the warranty will only be accepted if the unit is sent fully assembled and well-packed with a brief description of the fault, a receipt or invoice (date of purchase and dealer's stamp) to the appropriate Service Centre.

Repair service:

If defects occur outside the warranty period or are not covered by the warranty, ask your nearest service station for the possibility of repair.

11. Technical specifications

• Dimensions (H × W × D): 241 × 66 × 201 mm
• Power supply: 230-240 V, 50/60 Hz
• Power consumption (P): 7.20 W
• Luminous flux (360°): "white: 720 lm anthracite: 648 lm
• Efficiency: white: 100 lm/W anthracite: 90 lm/W
• Standby sensor (P _sb ): 0.30 W
• Weight: 0.560 kg
• Projected area: viewed from front: 159~cm^2
• Viewed from side: 101 cm ^2
• Mains current: 45 mA
• Power factor: 0.73
• Colour temperature: 3,000 K (warm white) SDCM 2
• Colour rendering index: R_a = 82
• Average rated life expectancy: L70B50 at 25^ : >60,000 hours
• Colour consistency SDCM: starting value: 3
• Luminous intensity distribution:

Circular diagram with concentric circles and radial lines, no text or symbols present

– Detection reach: 8 m
- Angle of coverage: 160^ with sneak-by guard
- Time setting: 2 s - 70 min
– Twilight setting: 2 - 1,000 lux
- IP rating: IP44
- Protection class:
- Ambient temperature: -20 to +40°C

12. Troubleshooting

Unit without power.

- Fuse not switched ON or faulty.

• Switch ON fuse.
• Change faulty fuse.

- Break in wiring.

- Check wiring with voltage tester.

– Short circuit in mains power supply lead.

- Check connections.

- Any mains switch OFF

- Switch ON mains switch.

Unit does not switch ON.

– Wrong twilight setting selected.

- Reset twilight setting.

- Mains switch OFF.

- Turn on mains switch.

- Fuse not switched ON or faulty.

- Switch ON fuse.

- Change faulty fuse.

- Rapid movements being suppressed to minimise malfunctioning, or detection zone too small or incorrectly defined.

- Check and adjust detection zone.

– Light source faulty.

- The light source cannot be changed. Completely replace unit.

Unit does not switch OFF.

- Continued movement within the detection zone.

• Check detection zone.
• If necessary, limit or change detection zone.

Unit switches ON when it should not.

– Floodlight not mounted for detecting movement reliably.

- Securely mount floodlight.

- Movement occurred but not identified by the observer (movement behind wall, small object moving in immediate proximity of lamp etc.).

- Check detection zone.

- If necessary, limit or change detection zone.

13. Legal Notes

Safety

The unit is not suitable for use with burglar alarm systems as it is not tamperproof in the manner prescribed. Weather conditions may affect the way the device works.

World map silhouette in grayscale, showing continents and oceans without any text or labels

Contact

www.steinel.de/contact

.steinel

Black adjustable LED light fixture with a clear screen and control panel (no text or symbols visible)

Sommaire

Technical line drawing of a mechanical component with a grid pattern inset (no text or symbols)

4× 4× 4×

L ⊕ N L N PE ⊕

Diagram showing two mechanical clamping or bracketing setups with no text or symbols

Technical line drawing of a mechanical component with internal parts and a fastener (no text or symbols)

Technical diagram showing internal components of a device with no visible text or symbols

• Retirer le domino du support mural.

5.7

Diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

Technical line drawing of a mechanical assembly with internal components and a curved arrow indicating direction (no text or symbols)

Electrical circuit diagram showing connections between components labeled L and N (no text or symbols beyond labels)

Technical line drawing of a device showing internal components connected to a panel (no text or symbols)

• Raccorder le domino.

5.13

Technical diagram of a device showing internal components and a connector (no text or symbols)

Technical diagram of a mechanical assembly with a lever and pin, showing motion direction (no text or symbols)

- Procéder aux réglages. → „6. Fonctions“

6. Fonctions

Line drawing of a grid panel being cut with a tool, no text or symbols present

Two technical illustrations of a device with internal components and light rays, no text or symbols present.

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

World map silhouette in grayscale, showing continents and oceans without any text or labels

.steinel

Black adjustable LED light fixture with a white screen and control panel (no text or symbols visible)

Inhoud

Technical line drawing of a mechanical component with a grid pattern inset (no text or symbols)

4× 4× 4×

L ⊕ N L N PE ⊕

Diagram showing two mechanical clamping or bracketing mechanisms mounted on vertical surfaces (no text or symbols present)

Safety warning symbol and electrical circuit diagram showing lightning bolt and switch mechanism

Technical diagram of a mechanical component with internal parts and a fastener inserted (no text or symbols)

Technical diagram showing internal components of a device with no visible text or symbols

Diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

- Boorgaten aftekenen.

5.8

Ø 6 mm

- Gaten boren ( 6 mm) en pluggen inbrengen.

5.9

Technical line drawing of a mechanical assembly with internal components and a curved arrow indicating direction (no text or symbols)

Electrical circuit diagram showing connections between components labeled L and N (no text or symbols beyond labels)

Technical line drawing of a device's internal structure showing two connected components with wires and connectors (no text or symbols)

- Steekklem verbinden.

5.13

Technical diagram of a device showing internal components and a connector (no text or symbols)

Technical diagram of a mechanical assembly with a rotating shaft and adjustment knob (no text or symbols)

- Instellingen uitvoeren. → „6. Werking“

6. Werking

Fabrieksinstellingen

Line drawing of a solar panel with a ruler and angle marker (no text or symbols)

Two technical diagrams showing a device with internal components and light rays, no text or symbols present.

Radar chart with concentric circles and radial lines, no visible text or labels

World map silhouette in grayscale, showing continents and oceans without any text or labels

.steinel

Black adjustable LED light fixture with a clear white panel, mounted on a wall (no text or symbols visible)

Sommario

Technical line drawing of a mechanical component with a grid pattern inset (no text or symbols)

4× 4× 4×

L ⊕ N L N PE ⊕

LED 22 LED

5. Montaggio

Diagram showing two mechanical clamping or bracketing setups with no text or symbols

Safety warning symbol and electrical circuit diagram showing lightning bolt and switch mechanism

Technical diagram of a mechanical component with internal parts and a screwdriver inserted (no text or symbols)

Technical line drawing of a device with internal components and wiring, showing no text or symbols

Technical diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

- Segnare i fori.

IT

5.8

Two triangular warning symbols: a lightning bolt symbol and a water droplet symbol, commonly used in safety or hazard prevention.

Ø 6 mm

Technical line drawing of a mechanical assembly with internal components and a black arrow indicating direction (no text or symbols)

Pure electrical circuit lines without any symbols

Technical diagram showing internal components of a device with no visible text or symbols

Technical diagram of a device showing internal components and a connector (no text or symbols present)

Technical diagram of a mechanical assembly with a rotating shaft and adjustment knob (no text or symbols)

Line drawing of a solar panel with a ruler and angle marker (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a door with a button and light rays, no text or symbols present

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

World map silhouette in grayscale, showing continents and oceans without any text or labels

Contact

www.steinel.de/contact

.steinel

Black adjustable LED light fixture with a white screen and control panel (no text or symbols visible)

Índice

Technical line drawing of a mechanical component with a grid pattern inset (no text or symbols)

4× 4× 4×

L ⊕ N L N PE ⊕

Diagram showing two mechanical clamping or bracketing setups with no text or symbols

Safety warning symbol and electrical circuit diagram showing lightning bolt and switch mechanism

Technical diagram of a mechanical component with internal parts and a screwdriver inserted (no text or symbols)

Technical line drawing of a device with internal components and wiring, showing no text or symbols

Technical diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

Two triangular warning symbols: a lightning bolt symbol and a water drop symbol with raindrops.

Ø 6 mm

Technical line drawing of a mechanical assembly with internal components and a black arrow indicating direction (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a device showing internal components connected to a panel (no text or symbols)

Technical diagram of a device showing internal components and a connector (no text or symbols)

Technical diagram of a mechanical assembly with a lever and pin, showing motion direction (no text or symbols)

Line drawing of a solar panel with a ruler and angle marker (no text or symbols)

Two technical diagrams showing a device with internal components and light rays, no text or symbols present.

World map silhouette in grayscale, showing continents and oceans without any text or labels

Black adjustable LED light fixture with a white panel, mounted on a wall (no text or symbols visible)

Índice

Technical line drawing of a mechanical component with a grid pattern inset (no text or symbols)

4× 4× 4×

L ⊕ N L N PE ⊕

LED 22 LED

5. Montagem

Diagram showing two mechanical clamping or bracketing setups with no text or symbols

Safety warning symbol and electrical circuit diagram showing lightning bolt and switch mechanism

Technical diagram of a mechanical component with internal parts and a screwdriver inserted (no text or symbols)

Technical line drawing of a device with internal components and wiring, showing no text or symbols

Technical diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

- Marque os furos.

5.8

Two triangular warning symbols: a lightning bolt symbol and a water droplet symbol, indicating electrical hazard or hazard.

Ø 6 mm

Technical line drawing of a mechanical assembly with internal components and a black arrow indicating direction (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a device showing internal components and wiring (no text or symbols)

- Ligue o terminal.

5.13

Technical diagram of a mechanical component with internal parts and a connector, showing no text or symbols.

Technical diagram of a mechanical assembly with a lever and pin, showing motion direction (no text or symbols)

Line drawing of a solar panel with a ruler and angle marker (no text or symbols)

Two technical diagrams showing a device with internal components and light rays, no text or symbols present.

Diagram showing a circular path with directional arrows and coordinate axes, likely from a physics or engineering context.

World map silhouette in grayscale, showing continents and oceans without any text or labels

Contact

www.steinel.de/contact

.steinel

Black adjustable LED light fixture with a clear white panel, mounted on a wall (no text or symbols visible)

Innehåll

Technical line drawing of a mechanical component with a grid pattern inset (no text or symbols)

4×4×4×

L ⊕ N L N PE ⊕

LED 22 LED

5. Montage

Fara p.g.a. elektrisk ström!

Diagram showing two mechanical clamping or bracketing mechanisms mounted on vertical surfaces (no text or symbols)

- Injustera armaturen korrekt.

Montageordning

5.5

I O

Technical line drawing of a mechanical component with internal parts and a fastener (no text or symbols)

Technical diagram showing internal components of a device with no visible text or symbols

Diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

- Markera borrhålen.

5.8

Ø 6 mm

Technical line drawing of a mechanical assembly with internal components and a curved arrow indicating direction (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a device's internal structure showing two connected components with wires and a grid-patterned panel (no text or symbols)

- Anslut kopplingsplinten.

5.13

Technical diagram of a device showing internal components and a connector (no text or symbols)

Technical diagram of a mechanical component with a lever and adjustment arrow (no text or symbols)

Line drawing of a solar panel with a handle and angle marker (no text or symbols)

Two technical illustrations of a device with internal components and light rays, no text or symbols present.

Circular diagram with concentric circles and radial lines, no text or symbols present

World map silhouette in grayscale, showing continents and oceans without any text or labels

.steinel

Black adjustable LED light fixture with a clear white panel, mounted on a wall (no text or symbols visible)

Indhold

Technical line drawing of a mechanical component with a grid pattern inset (no text or symbols)

4× 4× 4×

L ⊕ N L N PE ⊕

LED 20 LED

5. Montering

Diagram showing two mechanical clamping or bracketing setups with no text or symbols

- Juster enheden korrekt.

Monteringstrin

5.5

I O

Technical line drawing of a mechanical component with internal parts and a fastener (no text or symbols)

Technical diagram showing internal components of a device with no visible text or symbols

Diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

Technical line drawing of a mechanical assembly with internal components and a curved arrow indicating motion (no text or symbols)

Pure electrical circuit lines without any symbols

Technical diagram showing internal components of a device with wiring and a grid-patterned panel (no text or symbols)

Technical diagram of a device showing internal components and a connector (no text or symbols)

Technical diagram of a mechanical assembly with a lever and adjustment arrow (no text or symbols)

Line drawing of a solar panel with grid lines and an angle symbol (no text or labels)

Two technical diagrams showing a device with internal components and light rays, no text or symbols present.

Circular diagram with concentric circles and radial lines, no text or symbols present

World map silhouette in grayscale, showing continents and oceans without any text or labels

Contact

www.steinel.de/contact

Black adjustable LED light fixture with a clear white panel, mounted on a wall (no text or symbols visible)

Sisällysluettelo

Technical line drawing of a mechanical component with a grid pattern inset (no text or symbols)

4× 4× 4×

Electrical hazard symbol and electrical switch diagram with current direction arrows

L ⊕ N L N PE ⊕

LED 22 LED

5. Asennus

Diagram showing two mechanical clamping or bracketing setups with no text or symbols

Technical line drawing of a mechanical component with internal parts and a fastener (no text or symbols)

Technical diagram showing internal components of a device with no visible text or symbols

Diagram of a device with internal components and directional arrows, no visible text or symbols

- Merkitse reiät.

5.8

Two triangular warning symbols: a lightning bolt symbol and a water drop symbol, commonly used in safety or hazard prevention.

Ø 6 mm

Technical line drawing of a mechanical assembly with internal components and a directional arrow (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a device's internal structure showing two connected components with wires and connectors (no text or symbols)

Technical diagram of a car air vent assembly showing internal components and wiring (no text or labels)

Technical diagram of a mechanical assembly with a lever and pin, showing motion direction (no text or symbols)

- Tee asetukset.

→ „6. Toiminta“

6. Toiminta

Tehdasasetukset

Line drawing of a solar panel with a ruler and angle symbol (no text or labels)

Two technical diagrams showing a device with internal components and light rays, no text or symbols present.

Circular diagram with concentric circles and radial lines, no text or symbols present

World map silhouette in grayscale, showing continents and oceans without any text or labels

Contact

www.steinel.de/contact

.steinel

Black adjustable LED light fixture with a white screen and control panel (no text or symbols visible)

Innhold

Technical line drawing of a mechanical component with a grid pattern inset (no text or symbols)

4× 4× 4×

• 1 LED-lyskaster
• 1 dekkfolie
• 4 murplugger
• 4 skruer
• 4 avstandsstykker
• 1 sikkerhetsdatablad (A)
• 1 hurtigstart-guide (B)

Produktmål

3.2

66 mm 201 mm 241 mm

L ⊕ N L N PE ⊕

LED 22 LED

5. Montering

Diagram showing two mechanical clamping or bracketing setups with no text or symbols

- Juster enheten korrekt.

Safety warning symbol and electrical circuit diagram showing lightning bolt and switch mechanism

Technical diagram of a mechanical component with internal structure and fastener connection (no text or symbols)

Technical diagram showing internal components of a device with no visible text or symbols

Diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

• Tegn borehull

5.8

Two triangular warning symbols: a lightning bolt symbol and a water drop symbol, commonly used in safety or hazard prevention.

Ø 6 mm

Technical line drawing of a mechanical assembly with internal components and a curved arrow indicating motion (no text or symbols)

Pure electrical circuit lines without any symbols

Technical diagram showing internal components of a device with wiring and a grid-patterned panel (no text or symbols)

Technical diagram of a device showing internal components and a connector (no text or symbols)

• Sett LED-lyskasterhodet på veggbraketten.
• Skru inn sikringsskruen

5.14

I O

Technical diagram of a mechanical assembly with a lever and adjustment arrow (no text or symbols)

- Still inn

→ „6. Funksjon“

6. Funksjon

Fabrikkinnstillinger

• Skumringsinnstilling: dagslysmodus 1 000 lux
  – Tidsinnstilling: 2 sekunder
  – Rekkeviddeinnstilling:8 meter

Stillskrue

6.1

E F 0,5 15 min. min max.

Skumringsinnstilling (E)

Line drawing of a solar panel with grid lines and an angle symbol (no text or labels)

Two technical diagrams showing a device with internal components and light rays, no text or symbols present.

Radar chart with concentric circles and radial lines, no visible text or labels

– Dekningsrekkevidde: 8 m
– Dekningsvinkel: 160° med krypesikring
– Tidsinnstilling: 2 s - 70 min
- Skumringsinnstilling: 2-1000 lux
– Kapslingsgrad: IP 44
- Kapslingsklasse: /
- Omgivelsestemperatur: -20 til +40 °C

World map silhouette in grayscale, showing continents and oceans without any text or labels

Contact

www.steinel.de/contact

.steinel

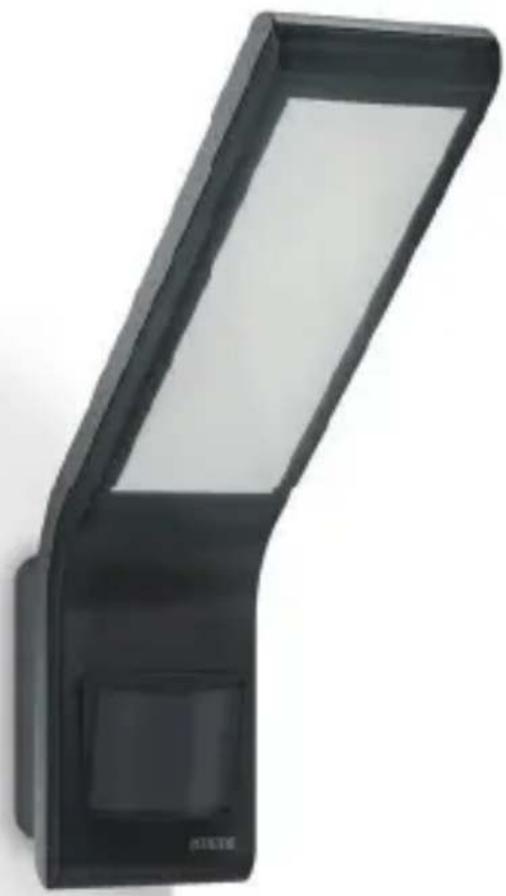

Black adjustable LED light fixture with a white screen and control panel (no text or symbols visible)

Περιεχόμενα

Technical line drawing of a mechanical component with a grid pattern inset (no text or symbols)

4× 4× 4×

L ⊕ N L N PE ⊕

Diagram showing two mechanical clamping or bracketing mechanisms with no text or symbols

Safety warning symbol and electrical circuit diagram showing lightning bolt and switch mechanism

Technical diagram of a mechanical component with internal parts and a screwdriver inserted (no text or symbols)

Technical line drawing of a device with internal components and wiring, showing no text or symbols

Technical diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

Two triangular warning symbols: a lightning bolt symbol and a water drop symbol with raindrops.

Ø 6 mm

Technical line drawing of a mechanical assembly with internal components and a black arrow indicating direction (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a device showing internal components connected to a panel (no text or symbols)

Technical diagram of a mechanical component with internal parts and a connector, showing no text or symbols.

Technical diagram of a mechanical assembly with a lever and pin, showing motion direction (no text or symbols)

Line drawing of a solar panel with a ruler and angle marker (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a door with a button and fan, emitting light rays (no text or symbols)

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

World map silhouette in grayscale, showing continents and oceans without any text or labels

Black adjustable LED light fixture with a clear screen and control panel (no text or symbols visible)

İçerik

Technical line drawing of a mechanical component with a grid pattern inset (no text or symbols)

4× 4× 4×

Safety warning symbol and electrical circuit diagram showing lightning bolt and switch mechanism

L ⊕ N L N PE ⊕

LED 22 LED

5. Montaj

Diagram showing two mechanical clamping or bracketing setups with no text or symbols

Safety warning symbol and electrical circuit diagram showing lightning bolt and switch mechanism

Technical line drawing of a mechanical component with internal parts and a fastener (no text or symbols)

Technical diagram showing internal components of a device with no visible text or symbols

Diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

Two triangular warning symbols: a lightning bolt symbol and water droplets inside a triangle.

Ø 6 mm

Technical line drawing of a mechanical assembly with internal components and a directional arrow (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a device showing internal components connected to a panel (no text or symbols)

Technical diagram of a device showing internal components and a connector (no text or symbols)

Technical diagram of a mechanical assembly with a rotating shaft and adjustment knob (no text or symbols)

- Ayarları yapın.

→ „6. Fonksiyon“

6. Fonksiyon

Fabrika ayarları

Line drawing of a solar panel with grid lines and an angle symbol (no text or labels)

Two technical diagrams showing a device with internal components and light rays, no text or symbols present.

Circular diagram with concentric rings and radial lines, no text or symbols present

World map silhouette in grayscale, showing continents and oceans without any text or labels

Contact

www.steinel.de/contact
