DIR500R - Electric heater HARVIA - Free user manual and instructions

Product type	Infrared heater
Brand	Harvia
Model	DIR500R
Power	500 W
Supply voltage	230 V ~ 1N 50 Hz
Protection rating	IPX2
Thermal fuse	130 °C
Connection cable length	3 m with connector
Radiation angle	122.5°
Heating element	Vitae 500 W (ref. 1-027-837)
Glass type	Schott Nextrema
Possible installation	Wall, front, ceiling
Safety distances (vertical mounting)	B = 15 mm, F = 25 mm
Safety distances (horizontal mounting)	B = 80 mm, F = 25 mm
Allowable ambient temperature	from +10 °C to +140 °C
Storage temperature	from -25 °C to +70 °C
Maintenance	No maintenance required; clean the glass with a damp cloth
Optional accessories	Front panel, protective grid, backrest

Frequently Asked Questions - DIR500R HARVIA

What is the power of the Harvia DIR500R heater?

The heater has a power of 500 W.

What type of glass is used on the DIR500R?

It uses Schott Nextrema glass.

What is the required supply voltage?

The voltage is 230 V ~ 1N 50 Hz.

Can the heater be installed on the ceiling?

Yes, it can be installed on the ceiling, but only the 750 W and 1300 W models are recommended for this use. The DIR500R is intended for wall or front installation.

What safety distances must be observed?

For vertical mounting: B = 15 mm (side) and F = 25 mm (front). For horizontal mounting: B = 80 mm and F = 25 mm.

Is the heater protected against water splashes?

Yes, it has a protection rating of IPX2, which protects it against water droplets.

How to clean the heater?

Turn off the device, let it cool down, then clean the glass with a damp cloth. Never use excess water.

What accessories are available for the DIR500R?

Optional accessories such as a stainless steel front panel, a protective grid or a backrest can be added.

Does the heater require special maintenance?

No, the heater is maintenance-free. Only occasional cleaning of the glass is necessary.

What is the length of the power cable?

The cable is 3 meters long and comes with a connector.

USER MANUAL DIR500R HARVIA

Full spectrum radiator

VITAE 350 / 500 / 750 / 1300

ECO 350 / 500 / 750

INSTRUCTIONS FOR INSTALLATION AND USE English

1-027-780 / DIR-350-R 1-027-845 / WIR-350-R

1-027-781 / DIR-500-R 1-027-846 / WIR-500-R

1-027-782 / DIR-750-R 1-027-847 / WIR-750-R

1-027-779 / DIR-1300-R 1-027-844 / WIR-1300-R

1-027-785/ECO-350-R 1-027-784/ECO-300-G

1-027-788/ECO-500-R 1-027-787/ECO-500-G

1-027-790/ECO-750-R

Table of Contents

1. About this instruction manual 3

2. Important information for your safety 4

2.1. Intended use 4
2.2. Safety information 4

3.Product description 7

3.1. Scope of delivery 7
3.2.Product features 7
3.3. Optional accessories 7

1. Correct placement 8
2. Installation and connection 9

5.1. Safety distances 10
5.2. Installation cut-out 11
5.3. Recessed 12

1. Cleaning and maintenance 13

6.1. Cleaning 13
6.2.Maintenance 13

1. Disposal 13
2. Technical data 14

1. About this instruction manual

Read these assembly instructions carefully and keep them within reach when using the infrared radiator. This ensures that you can refer to information on safety and use at any time.

These installation and operating instructions can also be found in the downloads section of our website: www.sentiotec.com/downloads.

Symbols used for warning notices

These assembly instructions feature warning notices next to activities that present a hazard to the user. Always observe the warning notices. This prevents damage to property and injuries, which in the worst case may be fatal.

The warning notices contain keywords, which have the following meanings:

DANGER!

Serious or fatal injury will occur if this warning notice is not observed.

WARNING!

Serious or fatal injury can occur if this warning notice is not observed.

CAUTION!

Minor injuries can occur if this warning notice is not observed.

ATTENTION!

This keyword is a warning that damage to property can occur.

Other symbols

This symbol indicates tips and useful information.

Do not cover Read the operating instructions

2. Important information for your safety

The infrared radiator has been produced in accordance with the applicable safety rules and regulations. However, hazards may arise during use. Therefore adhere to the following safety information and the specific warning notices in the individual chapters.

2.1. Intended use

The infrared radiator is used to heat people's bodies and/or to heat an infrared cabin.

The infrared radiator may only be operated in combination with a control unit that features an automatic heating time limiter.

Any use exceeding this scope is considered improper use. Improper use can result in damage to the product, severe injuries or death.

2.2. Safety information

• The clamping connections may only be installed by a qualified electrician or similarly qualified person.

• The plugs connectors may be installed by the user.

• Installation and connection work on the infrared radiator may only be performed when the power supply is disconnected.

• Also comply with the regulations applicable at the installation location. The specifications in EN 60335-2-53 (VDE 0700 Part 53) must be complied with.

• Ensure that the infrared radiator is not exposed to any mechanical stress, as this will result in breakage. A radiator with a glass front or radiator element that is broken may no longer be used. The glass or the radiator element must be replaced (for the item number, see 8. Technical data on page 14)

• When positioning and installing the infrared radiator, the minimum safety distances must be complied with (see 5.1. Safety distances on page 10)

• The radiator satisfies the requirements in accordance with IPX2. For splashproof installation in accordance with IPX4, the edge of the infrared radiator must be fitted with a veneer (e.g: stainless steel panel, see 3.3. Optional accessories on page 7)

• Radiators must not be installed in a steam bath.

• For your own safety, consult your supplier in the event of problems that are not described in sufficient detail in the user instructions.

• Make sure that no flammable objects have been placed on or suspended in front of the infrared radiator before the control unit is switched on.
• Never touch the glass on the infrared radiator when it is operating. The glass on the infrared radiator becomes very hot. Depending on the user function, contact protection may need to be installed (e.g: wooden backrest, protective grille, see 3.3. Optional accessories on page 7).

• The device must not be used by children under 8 years of age.

• The device may only be used by children over 8 years of age, by persons with limited psychological, sensory or mental capabilities or by persons with lack of experience/knowledge under the following conditions:

• They are supervised.

• They have been shown how to use the device safely and are aware of the hazards that could occur.

Children must not play with the device.

• Children under 14 years of age may only clean the device if they are supervised.
• If you are affected by a limited sensitivity to heat or are under the influence of alcohol, medication or drugs, refrain from using the infrared radiator for health reasons.
• If persistent erythema (reddening of the skin for more than one day) or mottled skin discolouration occurs after regular exposure to infrared radiation, do not repeat the exposure and consult a doctor to prevent it developing into the more serious condition erythema abigne.
• It is not advisable to use the infrared radiator within 24 hours of exposing your skin to ultraviolet radiation from an artificial source or from sunbathing.
• If in doubt, people at risk of hyperthermia, such as those who suffer from cardiovascular conditions, should consult a doctor before using a thermal cabin.
• For your own safety, consult your supplier in the event of problems that are not described in sufficient detail in the user instructions.

3. Product description

3.1. Scope of delivery

• IR radiator incl. 3m connection cable with plug
  Assembly instructions

3.2. Product features

The infrared radiator features the following functions:

• Installation as a back, front or ceiling radiator
• Intrinsically safe due to safety temperature limiter
• Infinitely dimmable
• Models with a glass cover feature protection class IPX4 (suitable for saunas) when installed in combination with front panel or wooden backrest
  VITAE full spectrum radiator Nextrema dark Radiation intensity: A 24% , B 55% , C 21%
• Nextrema full spectrum radiator white Radiation intensity: A 9%, B 57%, C 34%
• ECO full spectrum radiator with glass Radiation intensity: A 24%, B 55%, C 21%
• ECO full spectrum radiator with grille Radiation intensity: A 14% , B 40% , C 46%

3.3. Optional accessories

Brushed stainless steel front panel (350W/1-027-948, 500/750/1300W/1-027-779)
- Stainless steel front panel painted black (350W/1-027-905, 500/750/1300W/1-027-157)
- Protective grille (350/1-027-791, 500W/1-027-792)
- Ergonomic backrest (350/500W/514-L/A/D)
- Ergonomic VitaMy backrest (350W/1-039-182)

• Lime wood backrest (350W/1-028-578, 500/750W/1-032-185)
• Prestige wooden backrest (350W/1-032-186, 500/750W/1-032-213)
• Infrared distributor (IR-1P2, IR-1P3, IR-1P5)
• Cable for distributor (IR-1P2, IR-1P3, IR-1P5)
• Connection cable for distributor (IR-IS-A03, IR-IS-A10, IR-IS-A25)

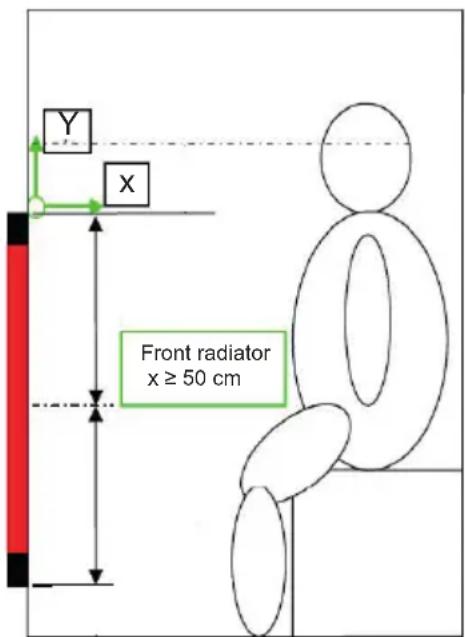

4. Correct placement

Application as:

• Back radiator: 350 W, 500 W
• Front radiator: 350 W, 500 W or 750 W
• Ceiling radiator: 750 W, 1300 W

According to EN 60335-2-53, an infrared thermal cabin with a 20cm× 20cm grid of averaged irradiation must not exceed 1000~W / m^2 on a person's chest and back (note that this limit relates to the prevention of heat stress).

To ensure that this limit is not exceeded, only a 350 W or 500 W radiator may be used as a back radiator. Furthermore, when positioning the back radiator, ensure that the distance from the person's back to the radiator does not exceed 4 cm.

Only 350 W, 500 W or 750 W radiators may be used as front radiators. Ensure that the minimum distance between the upper body and front radiator is not less than 50 cm (in picture _w^ )

To ensure that the ICNIRP limit values for the long-term limit value of 100W / m^2 for "infrared eye" are not exceeded, the radiators must be moved down (in picture, Y^ ).

Detailed information can be found in the appraisals LE-G18/3 and LE-G31/18 conducted by Seibersdorf Laboratories.

5. Installation and connection

WARNING! Danger of electric shock

• Only perform installation and connection work on the infrared radiator when the power supply has been disconnected.

• The radiator is delivered with a plug already installed. The plug-in connector may also be installed by the user.

• If the radiator connection is integrated into a control unit, remove the plug. The clamp connection may only be installed by a qualified electrician or similarly qualified person.
• The rear of the radiator must NOT be covered to ensure that the heat generated can escape through the openings.

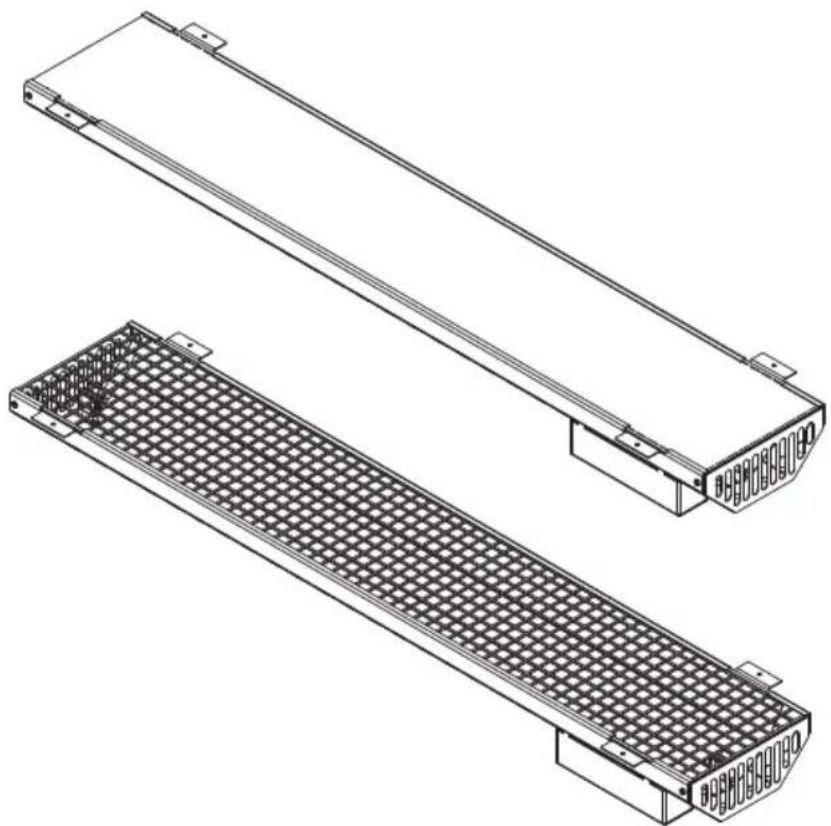

  The ventilation slots at the top and bottom must NOT be covered (see Fig. 1)
• To ensure that the thermal fuse functions correctly, the terminal box for the radiator must be at the top when the radiator is installed vertically (e.g. back radiator) (see Fig. 14).
• Maintain the minimum safety distances to easily flammable materials (see 5.1. Safety distances on page 10).

Fig. 1: Fig. 2: Terminal box positionDo not cover ventilation slots

5.1. Safety distances

Observe the specified minimum safety distances and Fig. 3.

Infrared radiator 350 W, 500 W

(DIR-350-R / DIR-500-R / WE-350-R / WE-500-R /

ECO-350-R / ECO-500-R / ECO-350-G / ECO-500-G)

When installed vertically: When installed horizontally:

B = 15 mm

B=80mm

F = 25 mm

F = 25 mm

Infrared radiator 750 W (DIR-750-R / WIR-750-R / ECO-750-R)

When installed horizontally:

B=100mm

F=150mm

Infrared radiator 1300 W (DIR-1300-R / WIR-1300-R)

When installed horizontally:

B=150mm

F = 200 mm

Fig. 3: Infrared radiator safety distances

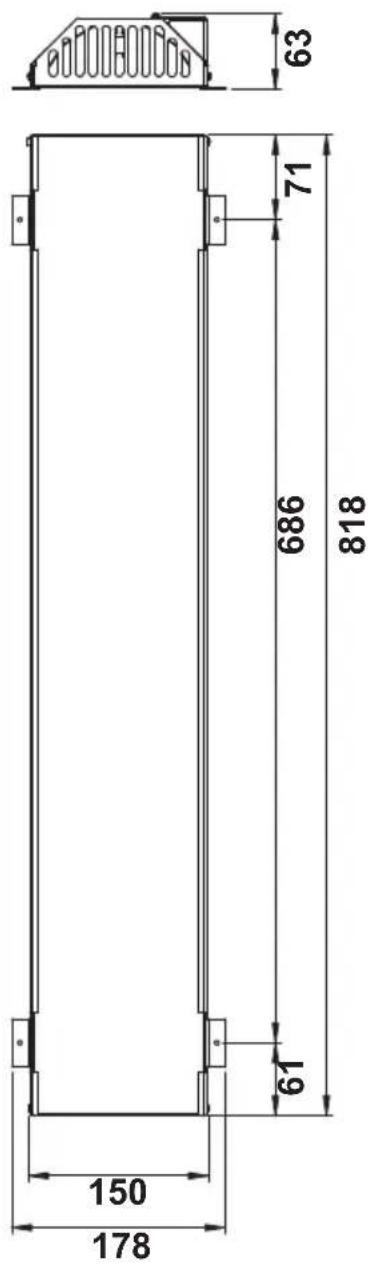

5.2. Installation cut-out

Please note Fig. 1 and Fig. 4.

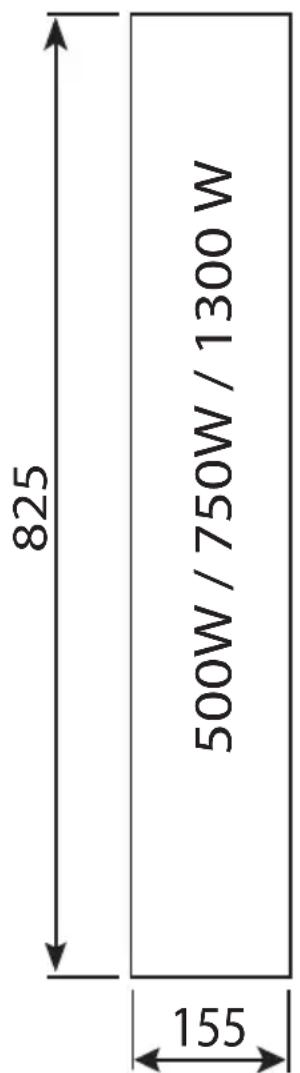

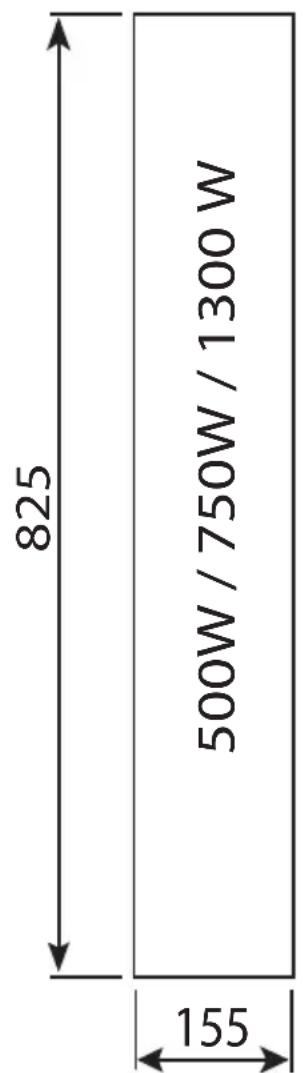

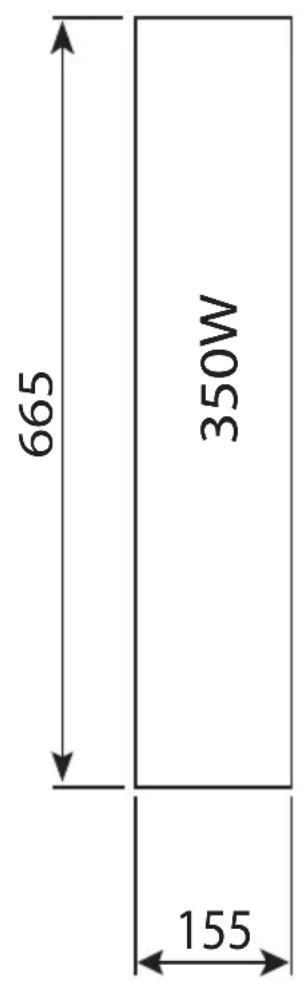

Fig. 4: Infrared radiator installation cut-outs
Dimensions in mm

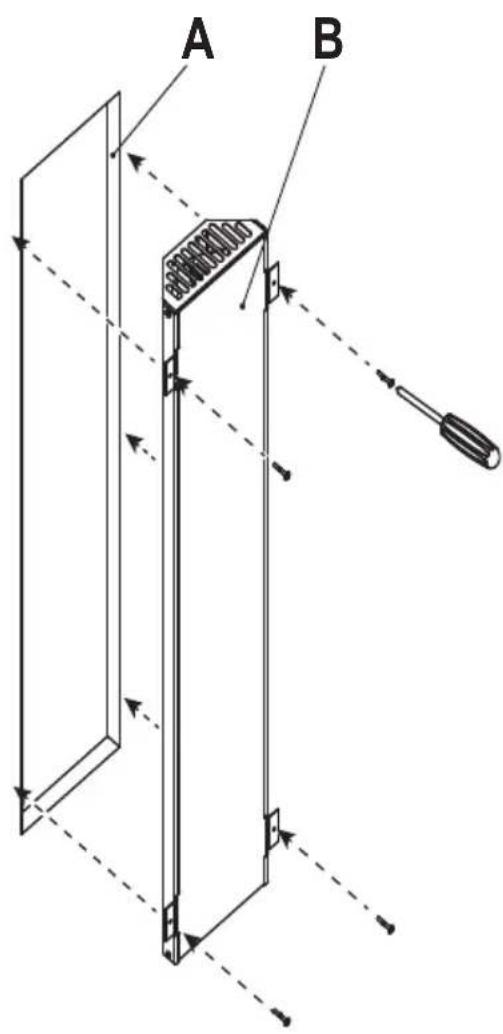

5.3. Recessed

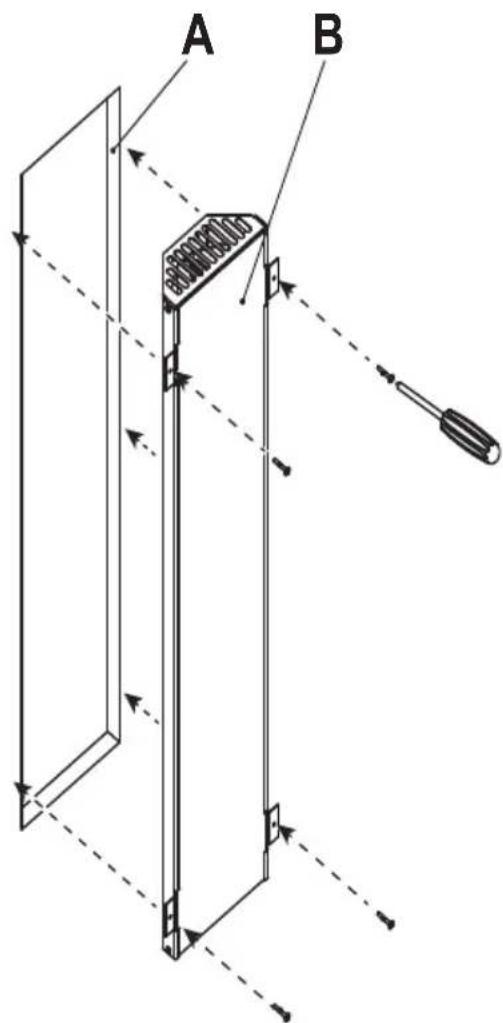

Please note Fig. 2 and Fig. 5.

CAUTION!

Make sure that the terminal box for the radiator is on top!

An intumescent strip is included with the 1300 W infrared radiator. Stick this to the outer edge of the cut-out before installing the radiator (see A in Fig. 5)

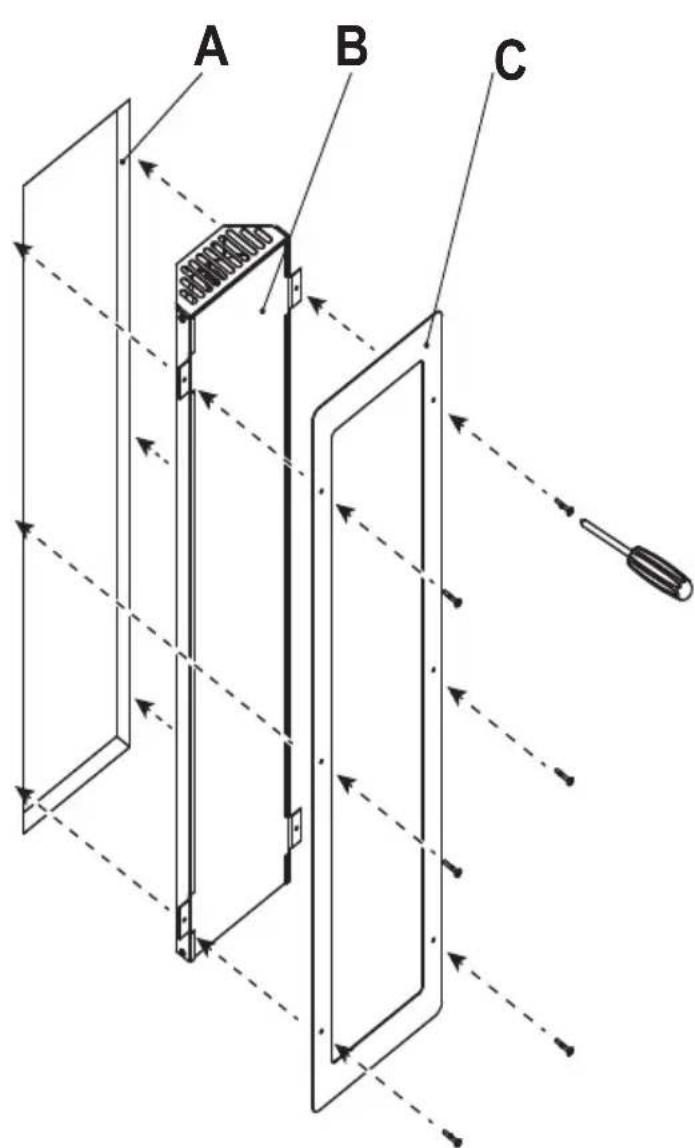

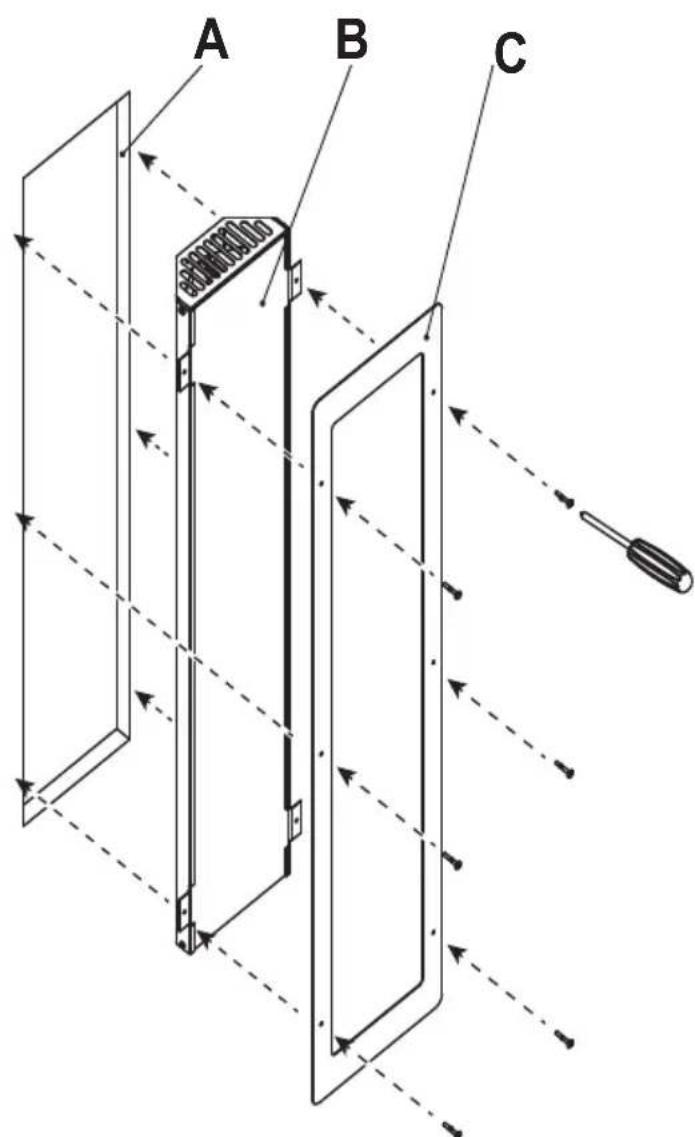

Fig. 5: Installation of infrared radiators without and with optional stainless steel panel

A Cabin wall cut-out
B Infrared radiator
C Stainless steel panel (optional)

6. Cleaning and maintenance

6.1. Cleaning

ATTENTION!

Damage to the unit

The infrared radiator is protected against splashing water, however direct contact with water could still damage it.

• NEVER immerse the device in water.
• Do not pour water over the device.

• Do not get the device too wet when cleaning it.

• Switch off the radiator

• Allow the radiator to cool down
• Carefully wipe down the glass with a damp cloth.

6.2. Maintenance

The infrared radiator is maintenance-free.

7. Disposal

• Dispose of packaging materials in accordance with the applicable waste disposal regulations.
• Used devices contain reusable materials as well as hazardous substances. Therefore, do not dispose of your used device with household waste, but do so in accordance with the locally applicable regulations.

8. Technical data

General, for all radiators

Storage conditions: -25°C to +70°C

Ambient temperature: +10^ C to +140^ C

Mains voltage: 230V 1N50Hz

Thermal fuse: 130^ C

IP code: IPX2

Connection cable: 3m - 3× 1.5mm^2 insulated with plug

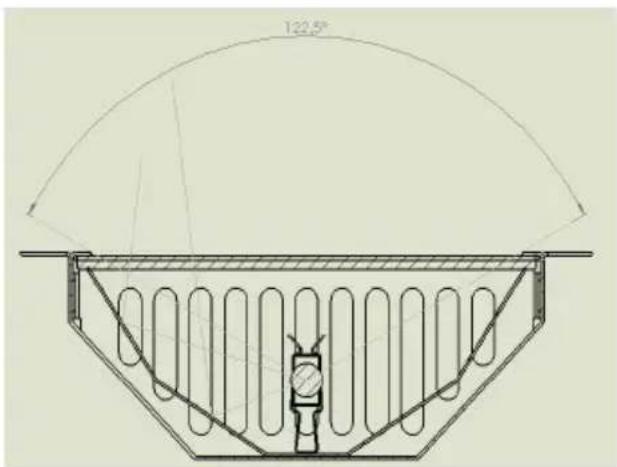

Radiation angle: 122.5^

DIR-350-R

Dimensions: L1 = 523mm L2 = 658mm

Front glass: Schott Nextrema, dark (1-027-840)

Radiator element: 350 W - Vitae (1-027-836)

DIR-500-R

Dimensions: L1 = 686 mm, L2 = 818 mm

Front glass: Schott Nextrema, dark (1-027-839)

Radiator element: 500 W - Vitae (1-027-837)

DIR-750-R

Dimensions: L1 = 686 mm, L2 = 818 mm

Front glass: Schott Nextrema, dark (1-027-839)

Radiator element: 750 W - Vitae (1-027-838)

DIR-1300-R

Dimensions: L1 = 686mm L2 = 818mm

Front glass: Schott Nextrema, dark (1-027-839)

Radiator element: 1300 W - Vitae (1-027-835)

WIR-350-R

Dimensions: L1 = 523mm L2 = 658mm

Front glass: Schott Nextrema, white (1-027-842)

Radiator element: 350 W - ECO full spectrum (1-027-783)

WIR-500-R

Dimensions: L1 = 686mm, L2 = 818mm

Front glass: Schott Nextrema, white (1-027-841)

Radiator element: 500 W - ECO full spectrum (1-027-786)

WIR-750-R

Dimensions: L1 = 686mm L2 = 818mm

Front glass: Schott Nextrema, white (1-027-841)

Radiator element: 750 W - ECO full spectrum (1-027-789)

WIR-1300-R

Dimensions: L1 = 686mm L2 = 818mm

Front glass: Schott Nextrema, white (1-027-841)

Radiator element: 1300 W - Vitae (1-027-835)

ECO-350-R

Dimensions: L1 = 523mm, L2 = 658mm

Front glass: Glass ceramic, dark (1-030-968)

Radiator element: 350 W - ECO full spectrum (1-027-783)

ECO-500-R

Dimensions: L1 = 686mm L2 = 818mm

Front glass: Glass ceramic, dark (1-030-969)

Radiator element: 500 W - ECO full spectrum (1-027-786)

ECO-750-R

Dimensions: L1 = 686 mm, L2 = 818 mm

Front glass: Glass ceramic, dark (1-030-969)

Radiator element: 750 W - ECO full spectrum (1-027-789)

ECO-350-G

Dimensions: L1 = 523 mm, L2 = 658 mm

Front: Metal grille, black fibre coated (1-027-791)

Radiator element: 350 W - ECO full spectrum (1-027-783)

ECO-500-G

Dimensions: L1 = 686mm L2 = 818mm

Front: Metal grille, black fibre coated (1-027-792)

Radiator element: 500 W - ECO full spectrum (1-027-786)

1. Placement correct 8
2. Montage et raccordement 9

4. Placement correct

Dimensions: L1 = 523 mm, L2 = 658 mm

Façade vitrée: Schott Nextrema(Some (1-027-840)

Dimensions: L1 = 686 mm, L2 = 818 mm

Façade vitrée: Schott Nextrema(Some (1-027-839)

Dimensions: L1 = 686 mm, L2 = 818 mm

Dimensions: L1 = 686 mm, L2 = 818 mm

Dimensions: L1 = 523 mm, L2 = 658 mm

Dimensions: L1 = 686 mm, L2 = 818 mm

Dimensions: L1 = 686 mm, L2 = 818 mm

Dimensions: L1 = 686 mm, L2 = 818 mm

Dimensions: L1 = 523 mm, L2 = 658 mm

Dimensions: L1 = 686 mm, L2 = 818 mm

Dimensions: L1 = 686 mm, L2 = 818 mm

Dimensions: L1 = 523 mm, L2 = 658 mm

Dimensions: L1 = 686 mm, L2 = 818 mm

YuHTbIbAaTe Pnc.1 n Pnc.4.

Pnc.4.MoHTaXHbIe OTBepCTnI INHpaKpachoro n3nyaTeJI Pa3Mepbl B MM

5.3. BcTpaBaNHe

yUHTbIBAIte Pnc.2 n Pnc.5.

OCTOPOXHO!

Y6eIntecb, yTo paCnppeIeIteIbHaJ KOpO6ka n3nyaTeIaHxOdntcB cBepxy!

B KOMPJIeKT NocTaBKn INHΦpaKpaChbIX n3JyUaTeIeN MoUHOCtBu 1300 BTr BXO-DIT npOTnBOOnoXapHaI NOloCa. IpeE yCTaHOBko N3JyUaTeIe NpIKNeIte ee K BHeShHemy KpaIO Bblpe3a (cM.A B Pnc.5)

Pnc.5.MOnTaX INHpaKpaChbIX n3nyaTeJe 6e3 DOnoHnTeJbHOrO 3KpaHa I3 BbICOKOKaueCTBeHHoI CTaJI N C HIM

A Bbipe3 B cTeHke Ka6nHbI
B INHpaKpaChbI n3nyaTeJIb
C 3KpaH n3 BbICOKOKaueCTBeHHoN CTaJI (DOnONHHTeJIbHO)

6. Ounstka n Texhnueckoe obcnykBaHne

6.1. Ounstka

BHUMAHNE!

NoepexdeHua ycmpoucmea

I3nyaTeIb 3aunueH OT 6pbI3r BOdbI, Ondako npraMOJ KOHTaKT C BODoM MoKet Bbl3BaTb NOBpeXdEHNe yCTpOiCTBa.

3APELUAETCn porykaTb yctpoNCTBO B BOy.
He haIINBaTb Ha ycTpOInCTBO BODy.
He ouHuaTb yCTpoIcTBO cINuKOM MOKPOI caIpeTKoI.

1. BbiknIOuHTb n3JyataTeJIb
   2.ДaТБИЗЛУЧАТЕЛЮ OCTыТБ
2. AkkypaTHO npoTpnte CTeKIO BnaXHOI TkaHbIO.

6.2. Texhnueckoe obcnyxnbHne

HpaKpaHbI n3nyaTeIb He Tpe6yeT TexHnueckoro 06cnykBaHna.

7.Ут annihilateurs

• YTNIN3NPOBaTb yNaKOBOHbIe MaTePnaJIbI B COOTBeTCTBnC DeiCTByIOUIMN CTaHdApTaMn NO YTNIN3aUIN.
• YcTpoIcTBa coIepKaat MaTePnaIbI, KOToPbIe MOryt 6bITb NcNoJIb3OBAHbI NOBTOpHO, a TAKKe BpeINhIe BeIeCTBa. IOnrTomy 3anpeUaETcra YtJIn3nPoBaTb YcTpoIcTBo BMeCTe C 6bITOBbIM MyCOPOM. YtJIn3nPoBaTb NCKJIIOHTeJIbHO B COOTBETCTBUN C DeIeCTBYUOuMMN npabNJamM yTJIn3aUHN.

8. TexHnueckne xapaKTepeNCTnKN

O6ua unΦopMauaJra 8ceX u3nyaemeJe

YcnoBna xpaHnra: ot-25°Cdo+70°C

Temnepatypa BHeuHne cpebl: ot +10°C do 140°C

Hapjxhe cetn: 230B\~1N50T
