Brand	Harvia
Model	Cilindro Pro PC8 HPC8
Product Type	Wood-burning stove
Diameter	450 mm
Height	610 mm
Weight	Approximately 120 kg
Material	Steel body with cast iron door
Heating Capacity	Up to 200 m³ (Cilindro 165E/200E)
Flue Outlet Diameter	150 mm
Energy Source	Wood logs
Nominal Power	12 kW
Efficiency	78%
CO2 Emissions	0.15%
Dust Emissions	40 mg/m³
Primary Air Control	Manual sliding damper
Secondary Air Control	Built-in deflector for preheated air
Ash Pan	Removable, easy to empty
Door Type	Self-cleaning glass door with handle
Certification	EAC (Eurasian Conformity)
Installation Requirements	Non-combustible floor, minimum clearance to walls
Cleaning	Regular ash removal, flue cleaning twice a year
Repairability	Spare parts available: door glass, handles, baffle plates
Warranty	5 years on body, 1 year on parts

Frequently Asked Questions - Cilindro Pro PC8 HPC8 HARVIA

What type of fuel does the Harvia Cilindro Pro PC8 HPC8 use?

It is a wood-burning stove designed for logs. Use only dry, seasoned wood with a moisture content below 20%.

What are the dimensions of the stove?

The stove has a diameter of 450 mm and a height of 610 mm. It weighs approximately 120 kg.

How do I control the air supply?

The stove features a manual sliding damper for primary air control and a built-in deflector for secondary air. Adjust them to regulate burn rate.

Is the door glass self-cleaning?

Yes, the door is equipped with self-cleaning glass. The secondary air flow helps keep the glass clean during burning.

What is the recommended chimney height?

A minimum chimney height of 4 meters is recommended for proper draft. Ensure the flue diameter matches the stove outlet (150 mm).

How often should I clean the stove?

Remove ashes regularly from the ash pan. Clean the flue and chimney at least twice a year or more if used frequently.

What safety clearances are required?

Maintain a minimum distance of 500 mm from combustible walls and furniture. The floor must be non-combustible.

Can I install the stove myself?

Installation should be performed by a qualified professional to ensure compliance with local building regulations and safety standards.

What spare parts are available?

Common spare parts include door glass, handles, baffle plates, and air controls. Contact Harvia or authorized dealers.

What is the warranty period?

Harvia offers a 5-year warranty on the stove body and a 1-year warranty on components. Terms may vary by region.

USER MANUAL Cilindro Pro PC8 HPC8 HARVIA

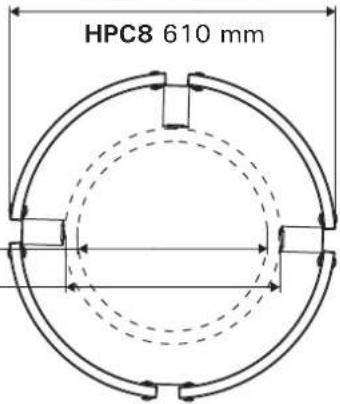

Technical line drawing of a circular mechanical component with mounting holes and internal brackets (no text or symbols)

HPC6

∅ 355 mm Cilindro 100E/135E

HPC8

∅ 450 mm Cilindro 165E/200E

HPC6 515 mm

HPC8 610 mm

Close-up of a metallic mechanical component with internal structure and mounting holes (no visible text or symbols)

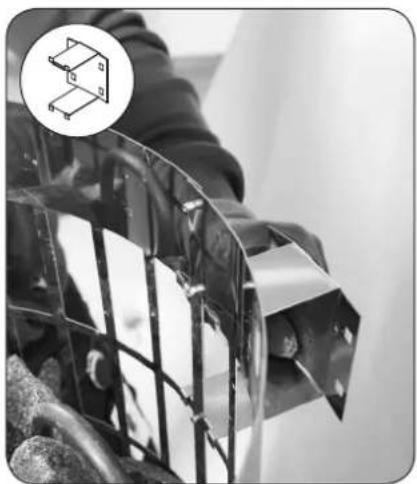

Close-up of hands holding a metallic clip with a magnified inset showing a 3D object (no text or symbols visible)

Close-up of a person using a tool to adjust or install a mechanical component, with no visible text or symbols.

Close-up of a metal cage with coal piles and a transparent cover (no text or symbols visible)

EAC

Адрес:

ООО «Харвия РУС».
