USER MANUAL PHSL 900 B4 PARKSIDE

LANGSTIEL- HECKENSCHERE /

Translation of the original instructions

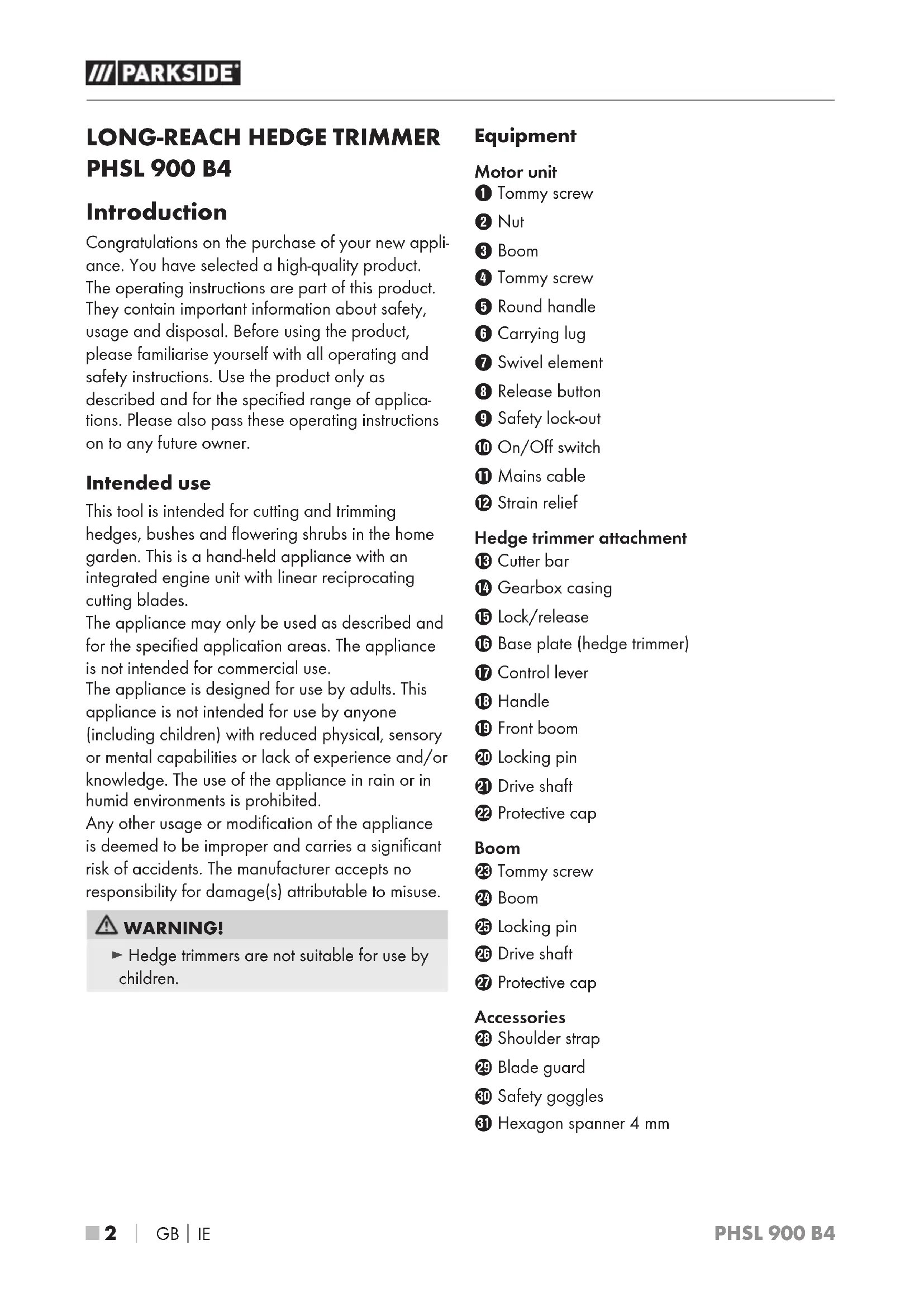

PHSL 900 B4 Introduction Congratulations on the purchase of your new appli- ance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified range of applica- tions. Please also pass these operating instructions on to any future owner. Intended use This tool is intended for cutting and trimming hedges, bushes and flowering shrubs in the home garden. This is a hand-held appliance with an integrated engine unit with linear reciprocating cutting blades. The appliance may only be used as described and for the specified application areas. The appliance is not intended for commercial use. The appliance is designed for use by adults. This appliance is not intended for use by anyone (including children) with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge. The use of the appliance in rain or in humid environments is prohibited. Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse. WARNING! ► Hedge trimmers are not suitable for use by children. Equipment Motor unit 1 Tommy screw 2 Nut 3 Boom 4 Tommy screw 5 Round handle 6 Carrying lug 7 Swivel element 8 Release button 9 Safety lock-out 0 On/Off switch q Mains cable w Strain relief Hedge trimmer attachment e Cutter bar r Gearbox casing t Lock/release z Base plate (hedge trimmer) u Control lever i Handle o Front boom p Locking pin a Drive shaft s Protective cap Boom d Tommy screw f Boom g Locking pin h Drive shaft j Protective cap Accessories k Shoulder strap l Blade guard y Safety goggles x Hexagon spanner 4 mmGB

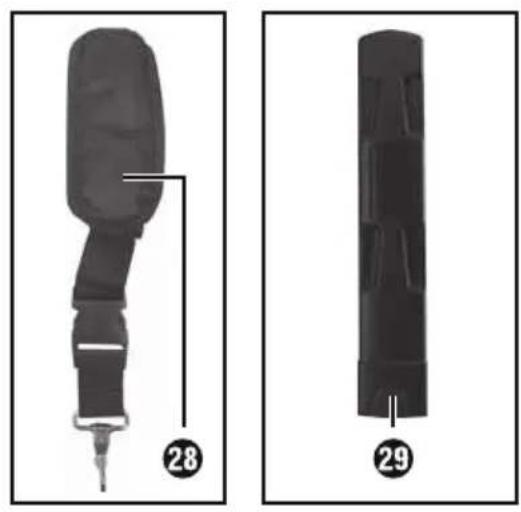

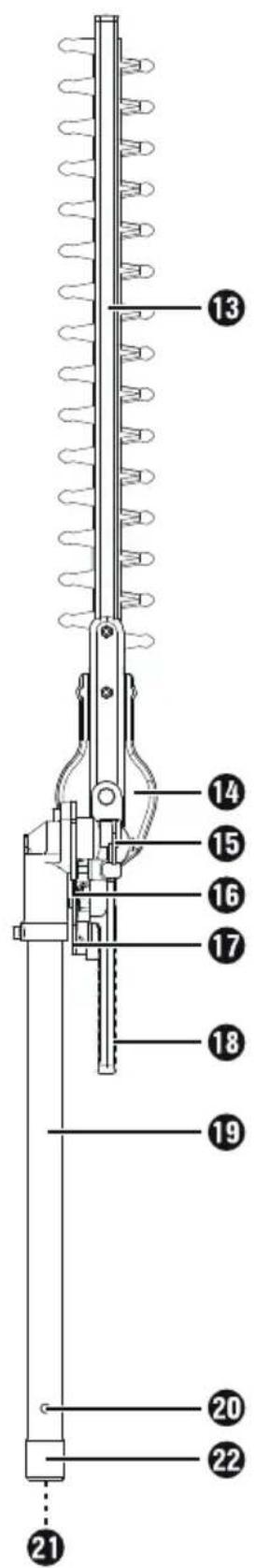

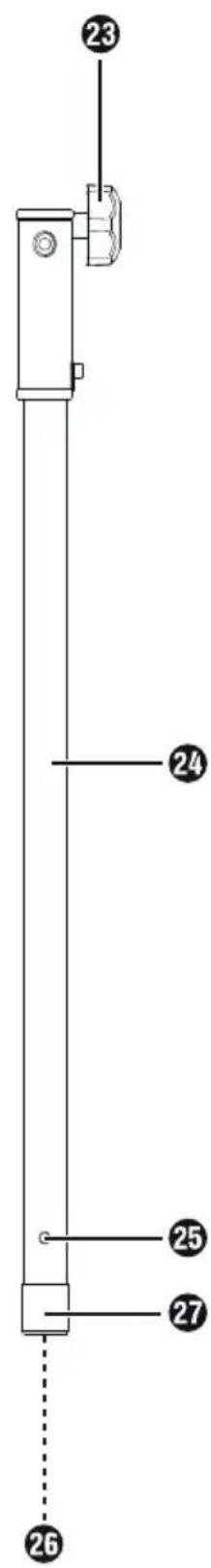

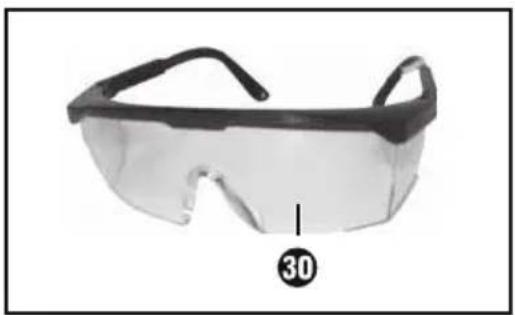

 3 ■ PHSL 900 B4 Package contents 1 motor unit PHSL 900 B4 1 hedge trimmer attachment (hereinafter referred to as hedge trimmer) 1 boom 1 shoulder strap 1 blade guard 1 pair of safety goggles 1 hexagon spanner 4 mm 1 set of operating instructions Technical specifications Rated voltage 230 V ∼, 50 Hz (AC) Rated output 900 W Protection class II / (double insulation) Weight, without handle and shoulder strap approx. 4.9 kg Idle speed 1000 rpm Working angle –90° to +90° Cut length 410 mm Tooth spacing 20 mm Weight (ready for use) approx. 5.2 kg Noise and vibration data Noise measurement value determined in accord- ance with EN62841. The A-rated noise level of the power tool is typically: Sound pressure level: L

= 81 dB (A) Uncertainty K = 3 dB Sound power level L

= 102 dB (A) Guaranteed sound power level L

= 105 dB (A) Uncertainty K = 3 dB Vibration values (vector total of three directions) determined in accordance with EN 62841: Vibration on the front handle Vibration emission value a h,D = 6,362m/s

Vibration on the rear handle Vibration emission value a h,D = 6.138 m/s

Wear hearing protection! NOTE ► The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool. ► The specified total vibration values and the noise emission values can also be used to make a provisional load estimate. WARNING! ► Depending on the manner in which the power tool is being used, and in particular the kind of workpiece that is being worked, the vibration and noise emission values can deviate from the values given in these instruc- tions during actual use of the power tool. ► Try to keep the load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).■ 4 

PHSL 900 B4 Explanation of the symbols on the appliance Read the operating instructions and safety advice before initial operation! Wear hearing protection! Wear a hard hat! Wear safety goggles! Keep bystanders away from the appliance! Protect the tool from rain and moisture! Risk of fatal electrical shock! Keep at least 10m away from overhead power lines. Important! Beware of falling objects, especially when cutting above head height. Important! Risk of injury due to running blades. Unplug the appliance immediately if the cable is damaged or has been cut. Sound power level LWA in dB. ATTENTION! Hot surface. There is a risk of burns. General power tool safety warnings WARNING! ► Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of elec- tric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.GB

 5 ■ PHSL 900 B4 d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-slip safety shoes, hard hat or hearing protection used for appropriate condi- tions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detach- able, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool acci- dentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.■ 6 

PHSL 900 B4 g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unex- pected situations.

a) Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. Safety instructions for hedge trimmers a) Keep your hands away from the blade. Do not attempt to clear clippings or hold onto the material being cut while the blades are still in motion. The blades keep moving after the switch has been moved to the off position. A moment of inattention while operating the hedge trimmer may result in serious personal injury. b) Carry the hedge trimmer by the handle with the blade at a standstill and be careful not to operate the switch. Carrying the hedge trimmer correctly will reduce the risk of accidental activation and any resulting injury from the blade. c) When transporting or storing the hedge trimmer, always pull the protective cover over the blades. Proper handling of the hedge trimmer will reduce the risk of injury from the blades. d) Make sure that all switches are turned off and the tool is unplugged when removing trapped clippings or servicing the machine. Unexpected activation of the hedge trimmer when removing trapped material can cause serious injury. e) Hold the hedge trimmer only by the insulated grips as the blade could come into contact with hidden power lines or its own power cable. Contact between the blade and a live wire may make exposed metal parts of the power tool live and could give the operator an electric shock. f) Keep all mains cables away from the cutting area. Cables can be hidden in hedges and bushes and could be cut accidentally by the blade. g) Do not use the hedge trimmer in bad weather, especially if there is a risk of a thunderstorm. This reduces the risk of being struck by lightning. Safety instructions for extended hedge trimmers a) Reduce the risk of a fatal electric shock by never using the extended hedge trimmer near electrical wires. Contact with or use near power lines can cause serious injuries and/or a fatal electric shock. b) Always operate the extended hedge trimmer with both hands. Hold the extended hedge trimmer with both hands to prevent any loss of control. c) Wear a hard hat when working overhead with the extended hedge trimmer. Falling cuttings can result in serious injury. ■ Inspect the surface to be cut carefully and remove any wires or other obstructions. ■ We recommend using a residual current circuit breaker with a tripping current of 30 mA or less. ■ While operating the hedge trimmer, always ensure that you have firm footing, especially when using steps or a ladder. NOTE ► Graphical representations illustrating the usage of the hedge trimmer and its control elements can be found on the fold-out page. ► Notes and diagrams of the settings, mainte- nance and lubrication by the user can be found in these instructions.GB

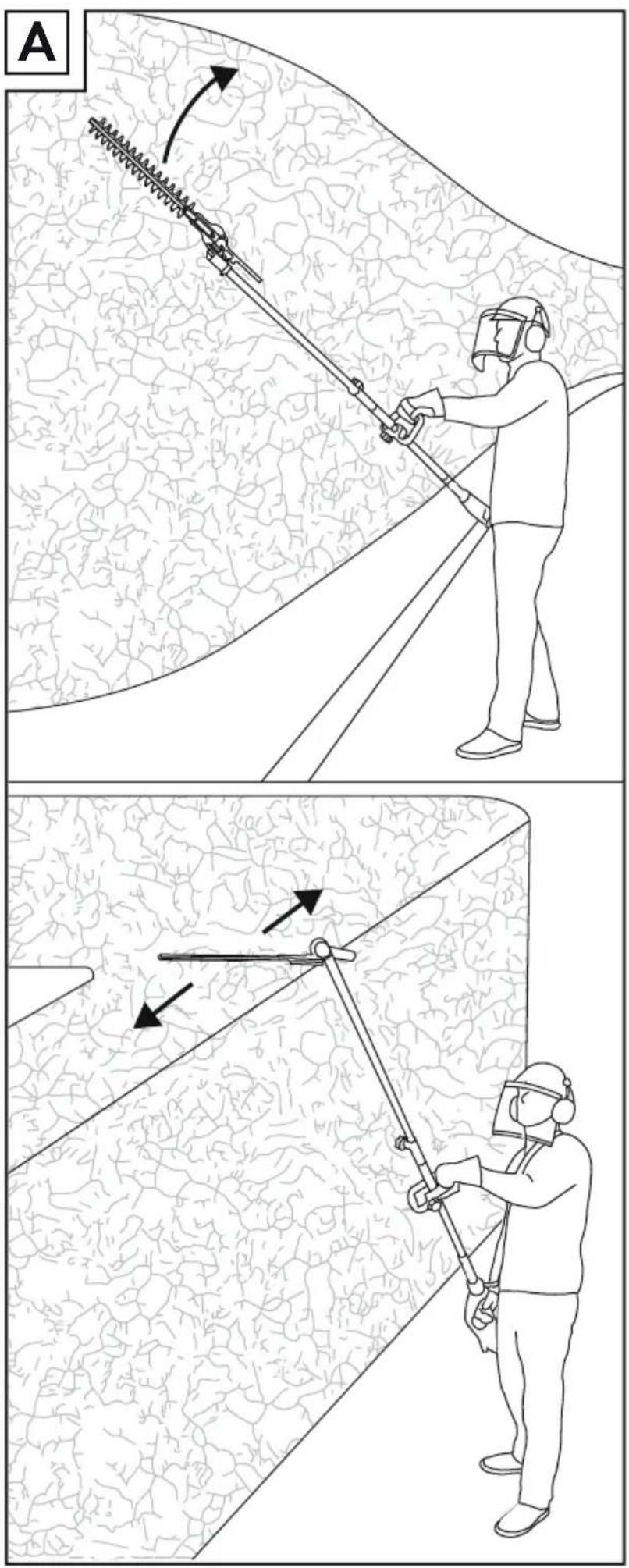

 7 ■ PHSL 900 B4 NOTE ► Notes on the working position (see fold-out page). ► Notes on the control elements (see fold-out page). ► Notes on exchange and repair (see section Maintenance and cleaning/service). ► Explanation of all graphical symbols used on the hedge trimmer and technical data can be found in these instructions. ► The features of the hedge trimmer can be found in the technical data. ► Blocked tool: remove the jammed material from the cutter bare. CAUTION! ► In the event of imminent danger or an emer- gency switch off the motor immediately and unplug the appliance. Supplementary safety instructions for hedge trimmers Preparation a) THIS HEDGE TRIMMER CAN CAUSE SERIOUS INJURIES! Read the instructions on correct handling, preparation, maintenance, starting and stopping the hedge trimmer very carefully. Familiarise yourself with all control elements and the proper use of the hedge trimmer. b) Children must never use the hedge trimmer. c) Beware of overhead power lines. d) Do not use the hedge trimmer while other people, especially children, are in the vicinity. e) Wear suitable clothing! Do not wear loose clothing or jewellery that could get caught in moving parts. We recommend wearing heavy-duty gloves, non-slip footwear and goggles. f) If the cutting unit comes into contact with a foreign object, the operating noise increases or the hedge trimmer starts to vibrate abnormally, stop the motor and allow the hedge trimmer to come to a standstill. Take the following measures: – check for damage; – check for loose parts and secure all the loose parts; – replace damaged parts with equivalent parts or have them repaired.

Wear safety goggles!

i) To stop the hedge trimmer in an emergency,

pull the mains plug from the mains socket. Operation a) Remove the plug from the wall socket before: – cleaning or removing blockage; – inspection, maintenance or work on the hedge trimmer; – setting the working position of the cutting unit; – if the hedge trimmer is left unattended. b) Always make sure that the hedge trimmer is in the proper working position and the tool head is properly engaged before the engine is started. c) While operating the hedge trimmer, always ensure that you have firm footing, especially when using steps or a ladder. d) Do not use the hedge trimmer if it has a defective or badly worn cutting unit. e) Ensure that all supplied handles and safety guards are mounted when operating the hedge trimmer. Never attempt to operate an incom- pletely assembled hedge trimmer or a hedge trimmer with non-approved modifications. f) Hold the hedge trimmer firmly with both hands on the designated handles. g) Always familiarise yourself with your surround- ings and be aware of potential dangers that you may not be able to hear because of the noise of the hedge trimmer.■ 8 

PHSL 900 B4 Maintenance and storage a) If the hedge trimmer is shut down for mainte- nance, inspection or storage, switch off the motor and make sure that all rotating parts have come to a standstill. Allow the appliance to cool down before carrying out an inspection, adjust- ments, etc. b) Store the hedge trimmer where the petrol vapours cannot come into contact with flames or sparks. Always allow the hedge trimmer to cool down before storage. c) When transporting or storing the hedge trimmer, cover the cutting unit with the protective cover for the cutting unit. RESIDUAL RISKS Even if you operate this power tool properly, there will still be residual risks. Due to the design and construction of this power tool, the following hazards may occur: a) Cuts b) Hearing damage, if no suitable hearing protec- tion is worn. c) Damage to health resulting from hand-arm vibrations if the appliance is used for an extended period of time or is not properly used and maintained. NOTE ► Notes and diagrams of the settings, mainte- nance and lubrication by the user can be found in these instructions. ► Notes on exchange and repair (see section Maintenance and cleaning/service). ► Explanation of all graphical symbols used on the hedge trimmer and technical data can be found in these instructions. ► The features of the hedge trimmer can be found in the technical data. ► Blocked tool: remove the jammed material from the cutter bar. ■ Use only the additional equipment and accesso- ries specified in the operating instructions. Using attachments or accessory tools other than those recommended in the operating instructions can lead to a risk of injury. Additional safety instructions ■ Make sure that there are no bystanders or animals within a radius of 15 metres when using the tool. The operator is responsible for third parties within the working area. ■ Keep the appliance, the cutting mechanism and the blade guard in good condition to prevent injury. ■ Children must be supervised to make sure that they do not play with the appliance. ■ Do not use the tool until you have familiarised yourself with its use. ■ Do not work with a damaged or incomplete appliance or an appliance that has been modi- fied without the consent of the manufacturer. Never use the tool with defective protective equipment. Do not use the appliance if it has a defective On/Off switch. Before use, check the appliance's safety condition, especially the blade and the saw chain. If the tool has been dropped, check it for significant damage or defects. ■ Never start the tool before it is correctly assem- bled. ■ When starting and operating the tool, ensure that it does not come into contact with the ground, stones, wire or other foreign material. Switch off the appliance before you put it down. ■ The device is designed for two-handed opera- tion. Never work with one hand. ■ Make sure that the appliance is switched off when relocating the appliance and that you cannot accidentally touch the On/Off switch. Carry the appliance with the blade facing back- wards. Fit the blade guard during transporta- tion.GB

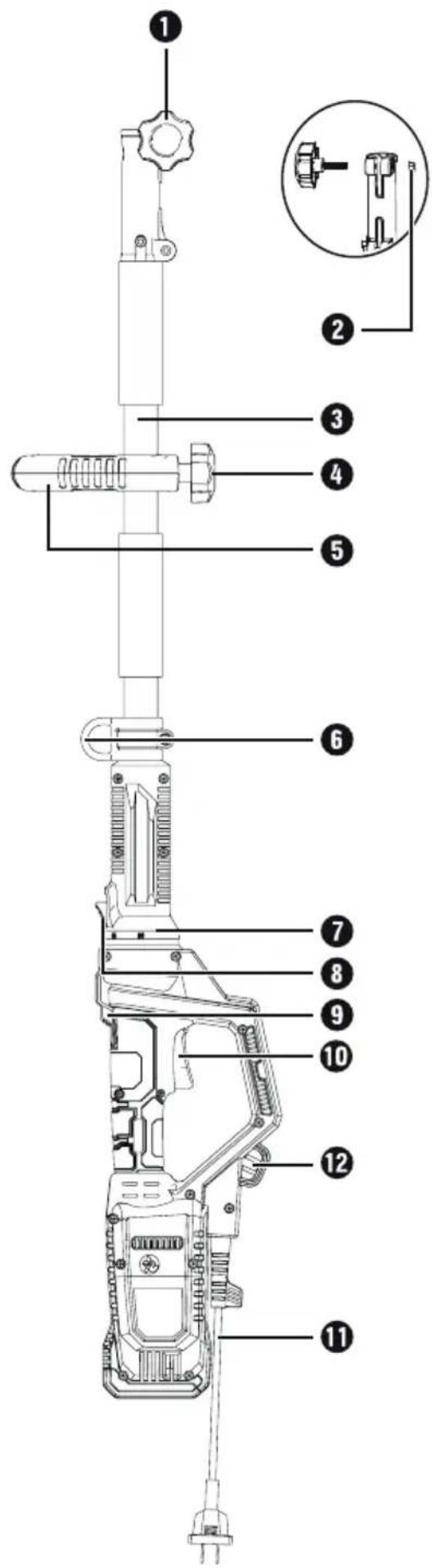

 9 ■ PHSL 900 B4 Before use WARNING! RISK OF INJURY! ► Pull out the mains plug before carrying out any work on the tool. Risk of electric shock! Motor unit Attaching the round handle ♦ Fit the round handle5 in the desired position on the boom3. ♦ Tighten the screw4. Fixing/attaching the shoulder strap ♦ Hook the shoulder strapk into the carrying lug 6. ♦ Adjust the length of the shoulder strap k to your size so that the carrying lug 6 is at hip height when the strap is hooked in place. Fitting the hedge trimmer ♦ Push the front boomo of the hedge trimmer onto the boom3 of the motor unit. ♦ The locking pinp must engage. ♦ Screw the two booms3 o together with the tommy screw1. Mounting the boom ♦ Push the boomf onto the boom3 of the motor unit. ♦ The locking ping must click into place. ♦ Screw the two booms3 f together with the tommy screw1. Swivelling the hedge trimmer ♦ Undo the lock/releaset. ♦ Press the control leveru and swivel the hedge trimmer into the desired position. ♦ Allow the control leveru and the lock/ releaset to click into the recess in the base plate (hedge trimmer)z. Setting up NOTE ► Comply with regulations regarding noise protection and local rules. Using the appli- ance on certain days (e.g. on Sundays and public holidays), during certain times (midday, night time) or in certain locations (e.g. health resorts, clinics, etc.) may be restricted or prohibited. Switching on/off Switching on ♦ Connect the mains cableq to the extension cable. ♦ Form a loop at the end of the extension cable and hang it in the strain reliefw. ♦ Press the safety lock-out9 and keep it pressed; then press the On/Off switch0. You can now release the switch-on lock 9 again. Switching off ♦ Release the On/Off switch0. ♦ Remove the extension cable from the strain reliefw. ♦ Disconnect the mains cableq from the exten- sion cable. Adjusting the handle ♦ Press the release button8. Turn the swivel element7 to the desired position. Let go of the release button8; it must click into place.■ 10 

PHSL 900 B4 Working with the hedge trimmer Use of the machine NOTE

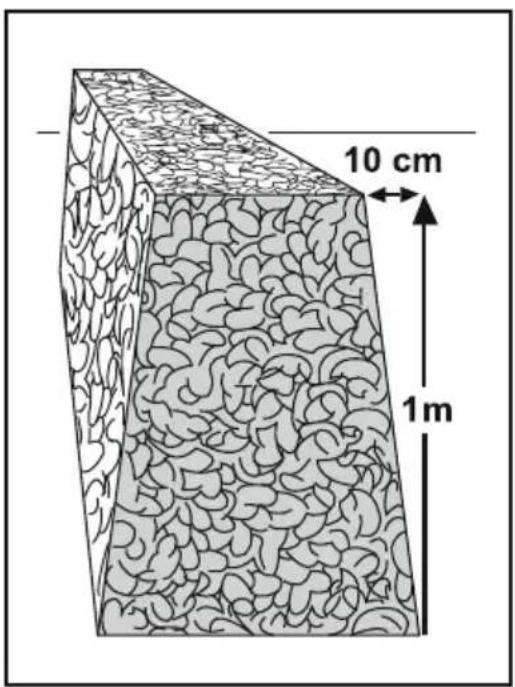

Please note that legal restrictions in your country may limit your use of the hedge trimmer. ► Inspect the hedge trimmer daily before every use. Also check the appliance after knocks and drops to identify any significant damage or defects. ► Wear sturdy shoes and snug-fitting clothing to reduce the risk of accidents. Stand firmly on the ground, pay attention to your balance and always use the supplied shoulder strap! ► For the sake of your health, take regular breaks while working. Physical fatigue increases the risk of injury! WARNING! ► Never use the appliance when you are tired or ill or under the influence of alcohol or other drugs or medications. Cutting techniques ■ See fold-out page (Figure A). NOTE ► Remove thicker branches with a branch cutter. Transport ■ Use the blade guardl when transporting the appliance. ■ Ensure that the appliance cannot switch on during transport. WARNING! RISK OF INJURY! ■ Risk of injury! This folded position is only for transport and storage; working in this position is prohibited! Maintenance and cleaning WARNING! If the mains cable needs to be replaced, it must be carried out by the manufacturer or an authorised representative in order to prevent safety hazards. ■ The motor unit must always be kept clean, dry and free from oil or grease. ■ The hedge trimmer must be cleaned of sawdust at regular intervals. ♦ Use a dry cloth to clean the housing. ♦ Check the hedge trimmer for loose screws on the cutter bare and tighten them, if necessary. ♦ Remove stuck cuttings. ♦ Maintain the cutter bare using an oil spray or an oil can. Storage ■ Always clean the appliance thoroughly before storage. ■ Store the appliance in the supplied blade guardl in a dry place and out of the reach of children. ■ Store the appliance horizontally or secured against falling.GB

 11 ■ PHSL 900 B4 Troubleshooting: hedgetrimmer Problem Possible cause Trouble- shooting Motor is running, blades do not move Hedge trimmer attachment or pole pruner attachment is not connected properly to the motor unit Check assembly Maintenance intervals: hedgetrimmer The figures given here are based on normal oper- ating conditions. In difficult conditions, e.g. heavy dust formation and longer daily working hours, the specified intervals must be shortened accordingly. Before starting work After completion of work As required Tool part Action Cutting blade Visual inspection X Cleaning X X Disposal The product and its packaging are recyclable. They are subject to an extended manufacturer responsi- bility and will be collected separately. Do not dispose of power tools in the normal domestic waste! The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies. The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly. Your local community or municipal authorities can provide information on how to dispose of the worn-out product. The packaging materials have been selected for their environmental friendli- ness and ease of disposal and are therefore recyclable. Dispose of pack- aging materials that are no longer needed in accordance with applicable local regulations. Dispose of the packaging in an environ- mentally friendly manner. Note the labelling on the packaging and sepa- rate the packaging material compo- nents for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites. Environmental protection ■ Dispose of contaminated maintenance material and consumables at a collection point provided for this purpose.■ 12 

PHSL 900 B4 Replacement parts Replacement parts can be ordered directly from the service centre. Please provide the machine type and part number when making an order. Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accord- ance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instruc- tions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres. The warranty period does not apply to ■ Normal reduction of the battery capacity overtime ■ Commercial use of the product ■ Damage to or alteration of the product by the customer ■ Non-compliance with safety and maintenance instructions, operating errors ■ Damage caused by natural hazardsGB

 13 ■ PHSL 900 B4 Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (IAN)373772_2204 available as proof of purchase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com. This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 373772_2204. NOTE

For Parkside tools, please send us only the defective item without the accessories (e.g. storage case, assembly tools, etc.). WARNING! ► Have your tools repaired by the Service Centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the tool is main- tained. ► Always ensure that the power plug and power cord are replaced only by the manu- facturer of the appliance or the company customer service. This will ensure that the safety of the tool is maintained. Service Service Great Britain Tel.: [phone] E-Mail: [e-mail] Service Ireland Tel.: [phone] E-Mail: [e-mail] IAN 373772_2204 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

PHSL 900 B4 Original declaration of conformity We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives: Machinery Directive (2006/42/EC) EMC (Electromagnetic Compatibility) (2014/30/EU) Directives on noise emission 2000/14/EC, 2005/88/EC Notified body no. 0036 TÜV SÜD Industrie Service GmbH, Westendstrasse 199, 80686 Munich, Germany Evaluation procedure for conformity as per appendix V. Sound power level LWA: measured 102 dB (A), guaranteed 105 dB (A) RoHS Directive (2011/65/EU)*

• The manufacturer bears the full responsibility for compliance with this conformity declaration. The subject of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances. Applied harmonised standards EN 62841-1:2015 EN 62841-4-2:2019 EN 55014-1:2017/A11:2020 EN 55014-2:1997/A2:2008 EN 55014-2:2015 EN 61000-3-2:2014

EN IEC 61000-3-2:2019

EN 61000-3-3:2013 EN 61000-3-3:2013/A1:2019 EN IEC 63000:2018 Type/appliance designation: Long-Reach Hedge Trimmer PHSL 900 B4 Year of manufacture: 09–2022 Serial number: IAN 373772_2204 Bochum, 13/07/2022 Semi Uguzlu - Quality Manager - We reserve the right to make technical changes in the context of further product development.PHSL 900 B4
