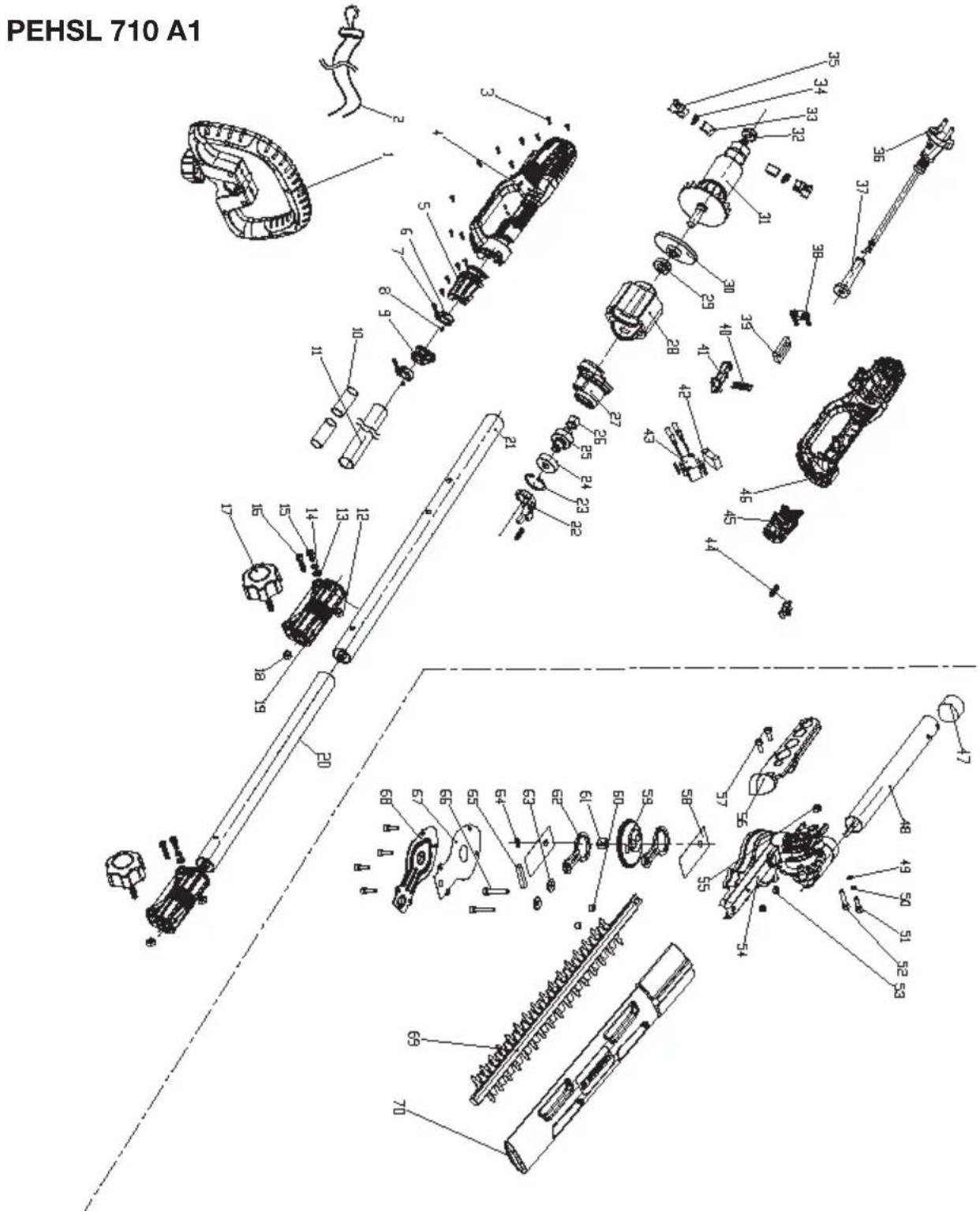

Exploded view.... 171

Introduction

Congratulations on purchasing your new long-reach hedge trimmer (hereafter referred to as device or power tool).

You have chosen a high-quality device. This device was quality-tested and subjected to a final inspection during production, therefore ensuring proper functioning of your device.

In some cases, residual amounts of lubricants may be present on or in the device. This is not a flaw or a defect and is no cause for concern.

The instruction manual forms part of this device. It contains important information on safety, use and disposal. Read the instruction manual carefully. Familiarise yourself with the controls and how to use the device correctly. Use the device only as described and for the stated fields of application. Store the instruction manual carefully and ensure that all documents are handed over in the event that the device is passed on to another user.

Proper use

This device is only intended for the following use:

- Cutting and trimming hedges, bushes and ornamental shrubs.

The device is intended for use by adults. Children under the age of 16 may not use the device, except under supervision.

Use of the device in the rain or a damp environment is prohibited.

Any other use that is not expressly permitted in this instruction manual may pose a serious hazard to the user and result in damage to the device. The operator or user of the machine is responsible for any accidents or personal injury and/or material damage to third parties or their property. The machine is intended to be used by do-it-yourselfers. It was not designed for heavy commercial use.

The warranty is void in the case of commercial use. The manufacturer is not liable for damage caused by improper use or incorrect operation.

Scope of delivery/accessories

Unpack the device and check that everything is present.

Dispose of the packaging material properly.

• Long-Reach Hedge Trimmer
• Blade guard
• Carrying strap
• Auxiliary handle
• Safety goggles
  • Translation of the original instructions

Overview

The illustrations for the device can be found on the front and back fold-out page.

1 Safety cutter bar
2 Gearbox housing
3 Lever
4 Locking lever
5 Handle for adjusting the cutter bar
6 Front tubular shaft
7 Safety lock, Front tubular shaft
8 Star wheel, Middle tubular shaft
9 Middle tubular shaft
10 Safety lock, Middle tubular shaft
11 Star wheel, Tubular shaft on handle
12 Tubular shaft on handle
13 Auxiliary handle

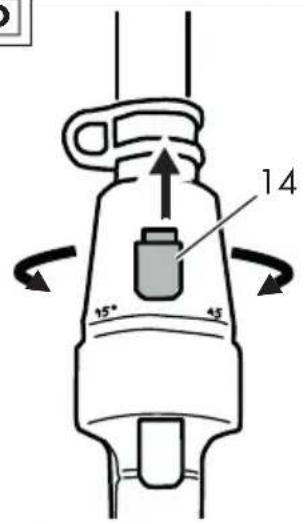

14 Release
15 Switch lock
16 On/Off switch
17 Handle
18 Power cord

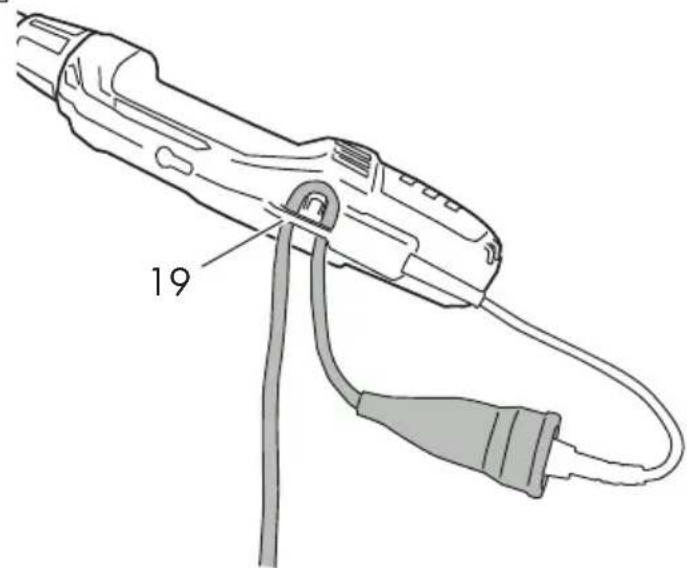

19 Strain relief
20 Carrying strap
21 Eyelet
22 Blade guard
23 Safety goggles

(Fig. A)

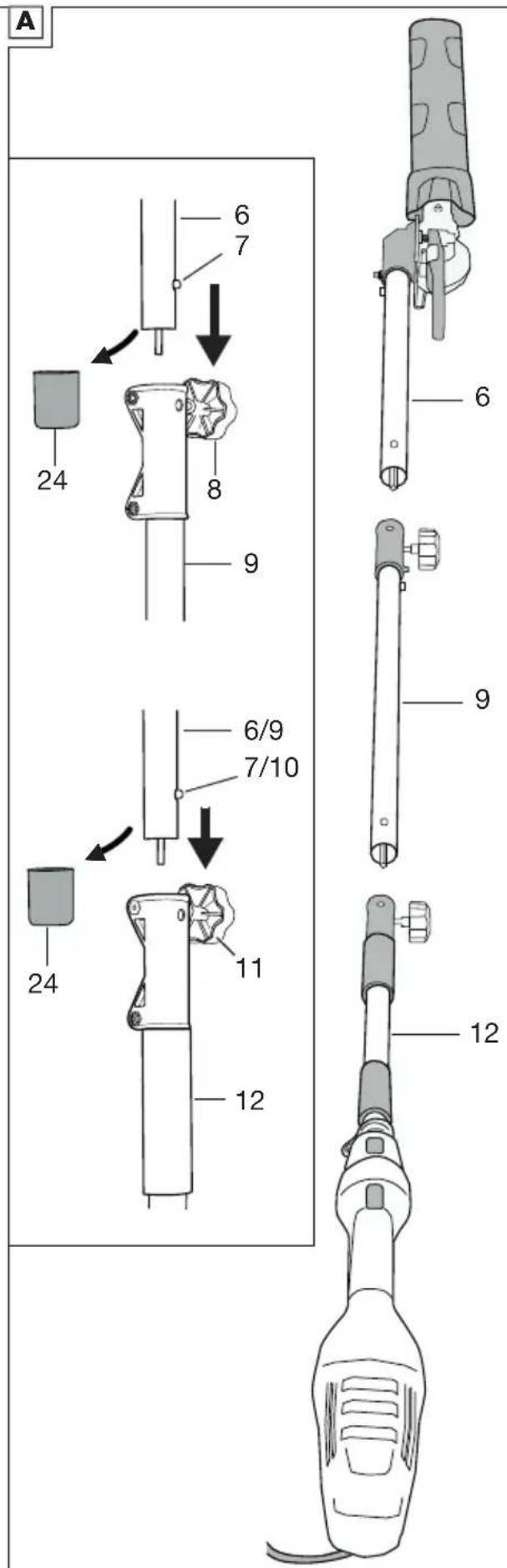

24 Cap

(Fig. B)

25 Lock
26 Washer
27 Star wheel, Auxiliary handle

(Fig. E)

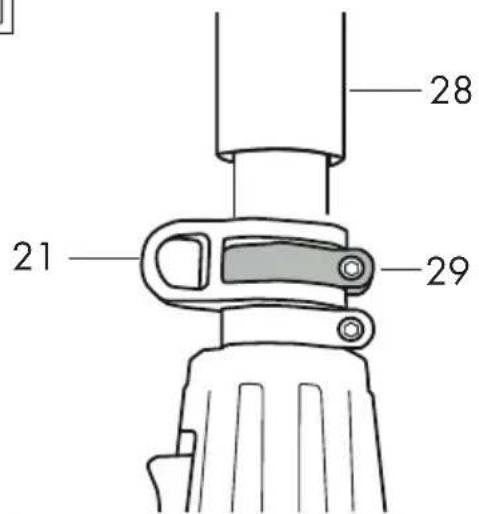

28 Insulated gripping surface
29 Screw

(Fig. F)

30 Keyhole

Description of functions

The device is powered by an electric motor. The cutting unit of the device is a double-sided safety cutter bar. During the cutting process, the cutting teeth move back and forth linearly. The stop guard at the tip of the safety cutter bar prevents unpleasant kickbacks when hitting walls, fences, etc. To protect the user, the device can only be operated with the safety switch pressed. Please refer to the descriptions below for information on how the operating elements work.

Technical data

Long-Reach Hedge Trimmer

PEHSL 710 A1

Rated voltage U .....230-240 V\~, 50 Hz

Rated input power P 710 W

Weight with accessories ....≈4.9 kg

No-load rotation speed n_0 .....1000 min ^-1

Protection class ...... □ II (double insulation)

Protection type ......IPX0

Cutting length 410 mm

Branch diameter .... <15 mm

Sound pressure level ( L_pA )

90.5 dB; K_pA=3 dB

Sound power level ( L_WA )

- Measured 99.1 dB; K_WA=2.10 dB

– Guaranteed ....101 dB

Vibration ( a_h )

- Handle ....3.33 m/s ^2 ; K=1.5 m/s ^2

– Insulated gripping surface

3.41 m/s ^2 ; K=1.5 m/s ^2

Levels of noise and vibration were determined according to the standards and regulations in the declaration of conformity.

The specified total vibration value and the stated noise emission value have been measured according to a standardised test method and can be used to compare one power tool with another. The specified total vibration value and the stated specified noise emission value can also be used for a provisional assessment of the load.

⚠ WARNING! The vibration and noise emissions may deviate from the specified values during actual use of the power tool, depending on how the power tool is being used.

Try to keep the exposure to vibrations as low as possible. An example of a measure to reduce vibration exposure is limiting the working hours. All parts of the operating cycle have to be considered while doing so (for example, times when the power tool is switched off and times when it is switched on but running without any load).

Safety information

This section deals with the basic safety instructions for using the device.

Meaning of the safety information

⚠️ DANGER! If you do not observe this safety instruction, an accident will occur. The result of which is severe bodily injury or death.

WARNING! If you do not observe this safety instruction, an accident may occur. The result of which is likely severe bodily injury or death.

⚠️ CAUTION! If you do not observe this safety instruction, an accident will occur. The result of which is likely minor or moderate bodily injury.

NOTICE! If you do not observe this safety instruction, an accident will occur. The result of which is possible damage to property.

Pictograms and symbols

Symbols on the device

Read the instruction manual

Waste electrical and electronic equipment (WEEE) must not be disposed of with domestic waste.

Attention!

Use hearing protection

Use eye protection

Use head protection

Use protective gloves

Use foot protection

Wear protective clothing

Do not wear long hair uncovered. Use a hair net.

Use of the device in the rain or a damp environment is prohibited.

Keep persons in the vicinity away from the device

Falling objects, especially when cutting above head height

Protection class II (double insulation)

Risk of injury from moving blades

Pull out mains plug immediately, if the mains cable is damaged, entangled or severed.

Danger to life from electrical shock! Stay at least 10 m away from over-head power lines.

Hot surface

Guaranteed sound power level L_WA in dB.

Cutting length

Adjusting the scale handle 45 °/90°

Symbols used in the instruction manual

Attention!

General Power Tool Safety Warnings

⚠ WARNING! Read all safety warnings, instructions, illustrations and specifica-

tions provided with this power tool. Fail- ure to follow all instructions listed below may result in electric shock, fire and/or serious in- jury. Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Hedge trimmer safety warnings

a. Do not use the hedge trimmer in bad weather conditions, especially when

there is a risk of lightning. This decreases the risk of being struck by lightning.

b. Keep all power cords and cables away from cutting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade.

c. Wear ear protection. Adequate protective equipment will reduce the risk of hearing loss.

d. Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring or its own cord. Blades contacting a "live" wire may make exposed metal parts of the hedge trimmer "live" and could give the operator an electric shock.

e. Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

f. When clearing jammed material or servicing the headge trimmer, make sure all power switches are off and the power cord is disconnected. Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury.

g. Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades.

h. When transporting or storing the hedge trimmer, always use the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades.

Extended-reach hedge trimmer safety warnings

a. Always use head protection when operating the extended-reach hedge trimmer overhead. Falling debris can result in serious personal injury.

b. Always use two hands when operating the extended-reach hedge trimmer.

Hold the extended-reach hedge trimmer with both hands to avoid loss of control.

c. To reduce the risk of electrocution, never use the extended-reach hedge trimmer near any electrical power lines. Contact with or use near power lines may cause serious injury or electric shock resulting in death.

Additional safety instructions for hedge trimmers

- Wear personal protective equipment for your own safety:

• Use eye protection
• Use hearing protection

• Use protective gloves

• Wear suitable work clothing, such as solid shoes with non-slip soles as well as long, robust trousers.

• Do not wear long clothing or jewellery, as it can become jammed in the moving parts.
• Never use the device barefooted or wearing open sandals.
• The device is intended for use by adults. Children under the age of 16 may not use the device, except under supervision.
• Connect the device only to a power outlet with a residual current device (RCD) of rated residual current no more than 30 mA.
• If the power cord of this device is damaged, it must be replaced by the manufacturer or their representative to avoid safety hazards. contact the service centre.
• The device is intended for trimming hedges. Do not cut branches, hard wood or anything else with the device. The device could become damaged.
• When working, always hold the device firmly with both hands and away from your body. This will help you to have better control of the device in unexpected situations.

• Always wear appropriate protective equipment and work gloves while working with the device. Never hold or pick up the device by the cutting blade. Contact with the cutting blade can lead to injuries.

• Do not use the device near flammable liquids or gases. In the event of a short circuit there is a risk of fire and explosion.

• Always make sure that the device is properly in one of the specified working positions before starting the device.
• The blades must be checked regularly for wear and reground. Blunt blades overload the device. Any damage that results is not covered by the warranty.

• Switch off the device and disconnect the plug from the power outlet. Make sure that all moving parts have come to a complete stop

• when leaving the device

• before removing obstructions or loosening blockages
• before checking the device, cleaning it or performing maintenance work on it
• before adjusting the working position of the cutting unit

- If the cutting unit touches a foreign object or the device starts to vibrate abnormally, an immediate inspection is required:

• examine for loose parts and tighten these
  • search for signs of damage

• replace damaged parts with equivalent ones or have the device repaired.

• Do not try to repair the device by yourself unless you have professional training. All work not mentioned in this instruction manual may only be performed by our service centre. Many accidents are caused by poorly maintained appliances.

• Only use accessories recommended by PARKSIDE. Unsuitable accessories may cause electric shock or fire.

Residual risks

There will always be residual risks even if you operate this device according to the instructions. The following hazards may occur in connection with the type and design of this device:

• Eye damage if no suitable eye protection is worn.
• Hearing damage if suitable ear protection is not worn.
• Health injuries resulting from the effect of hand/arm vibration in the event that the tool is used over a longer period of time or is not used and maintained properly.

- Cutting injuries

WARNING! Danger due to electromagnetic field generated while the tool is in operation. Under certain circumstances, this field may negatively affect active or passive medical implants. In order to reduce the danger of serious or fatal injuries, we recommend that individuals who wear medical implants should consult their doctor and the manufacturer of the implant before operating the tool.

Preparation

⚠ WARNING! Risk of injury due to unintentional start-up. Do not insert the plug into the outlet until the device is fully prepared for use.

Control elements

Familiarise yourself with the operating elements before using the device for the first time.

- Lever (3)

Locks/unlocks the angle adjustment of the safety cutter bar (1).

- Release (14)

Locks/unlocks the angle adjustment of the handle (17).

- Switch lock (15)

• Locks the on/off switch against unintentional operation.
• Unlocking: Press

- On/Off switch (16)

- Switching on: Press

- Switching off: Release

Wall bracket

You can hang the motor part on the wall with the keyhole (30) on the bottom of the device.

Tools and aids required (not included)

• Screw (screw head: ∅ 7 - 10 mm)
  • Corresponding screwdriver
• Dowels, if necessary

Attaching the wall bracket

WARNING! Personal injury or damage to property during drilling. Use suitable detectors to determine if there are hidden supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to explosion.

Breaking water pipes causes property damage.

• Using dowels, place one screw at the desired position on a wall.
• Let the screw head protrude with approx. 10 mm distance to the wall.
  • Make sure that the suspension system is designed for the weight of the device.
• (Fig. F) You can place the device with the keyhole (30) against the screw and pull the device down as far as it will go.

Fitting and removing the tubular shaft

⚠ WARNING! Disconnect the power cord from the power outlet before carrying out any work on the device.

NOTICE! Only screw the star wheel (8, 11) hand-tight! Applying maximum manual force will damage the tubular shaft.

Attaching the tubular shaft (Fig. A)

1. Remove the cap (24) from the front tubular shaft (6).
2. Loosen the star wheels (8, 11).
3. Optional: Slide the middle tubular shaft (9) onto the tubular shaft on the handle (12) in a slight turning movement.
4. Slide the front tubular shaft (6) onto the middle tubular shaft (9) or the tubular shaft on the handle (12) in a slight turning movement. The safety lock (10) will then lock into place.
5. Fix the tubular elements in place with the star wheels (8, 11).

Removing the tubular shaft (Fig. A)

Removal is done in reverse order.

Fitting/removing the auxiliary handle

Requirements

- Tubular shaft fitted

Procedure (Fig. B)

1. Place the auxiliary handle (13) on the tubular shaft (12).
2. Fold in the lock (25) of the auxiliary handle.

3. Screw the lock together with the washer (26) to the star wheel (27).

4. The assembly of the auxiliary handle (13) depends on whether the central tubular shaft (9) is used or not.

Structure without central tubular shaft (9):

The auxiliary handle (13) must be fitted between the two insulated gripping surfaces (28).

Structure with central tubular shaft (9): Depending on body size, the auxiliary handle (13) can be fitted

- between the two insulated gripping surfaces (28) or

- between the star wheel (11) and insulated gripping surface (28).

Putting on the carrying strap

Tools required

• Hex key (not included)

⚠ WARNING! Never wear the strap diagonally across your shoulder and chest, but only on one shoulder. This allows you to quickly remove the device from your body in case of danger.

Putting on the carrying strap

1. Place the carrying strap (20) on one shoulder.

2. Adjust the length of the strap so that the snap hook is approximately 10 cm below your hip.

3. Attach the snap hook on the eyelet (21).

Sliding the eyelet (Fig. E)

Slide the eyelet (21) to better spread the weight of the device.

1. Loosen the screw (29) on the eyelet (21).

2. Slide the eyelet to the appropriate position.

3. Tighten the screw again.

Swivelling out the safety cutter bar

Requirements

- Blade guard attached

- Tubular shaft fitted

Procedure (Fig. C)

1. Unlock and hold the lever (3).

2. Simultaneously press the locking lever (4) to release the fixation of the safety cutter bar (1).

3. Turn the safety cutter bar (1) to the desired position using the handle for adjusting the cutter bar (5). 9 positions are possible.

4. Release the lever (3). Make sure that the lever (3) snaps back into its original position.
5. Check that the safety cutter bar (1) is engaged in the selected position.

Adjusting the handle

Notes

• WARNING! Risk of burns! Do not touch the gearbox housing (2) and the connection point to the front tubular shaft (6).
• WARNING! The release (14) must engage again before you can use the device safely.

Procedure (Fig. D)

1. Slide the release (14) forwards and hold it in this position. The handle (17) is unlocked.
2. Turn the handle (17) to the desired angle. 5 angle settings are possible.
3. Release the release (14).

Removing the blade guard

Procedure

1. Press the blade guard (22) together at the point labelled "Parkside".
2. Pull the blade guard (22) off the safety cutter bar (1).

Operation

Working with the device

⚠ WARNING! Risk of injury! Pay attention to the following instructions.

• WARNING! Risk of injury from electric shock! Immediately pull out the mains plug if the power cord (18) is damaged, tangled or cut.
• NOTICE! Damage to the safety cutter bar (1). While cutting, make sure that you do not touch any objects, such as wire fences or plant supports.

• Check the device before each use for obvious defects such as loose, worn or damaged parts.

• Always wear sturdy shoes, long trousers, ear protection, work gloves and protective goggles when operating the device.

• The device is only intended for work where you are standing on the ground and not on a ladder or other unstable surface.
• The on/off switch and the safety switch must not be locked. The engine must be switched off when the switch has been released.
• Do not use the device if a switch is damaged.
• If the safety cutter bar (1) is obstructed by solid objects, switch off the device immediately, disconnect the mains plug. Only then should you remove the object.
• Always work in a direction away from the power outlet. This means you need to determine the cutting direction before starting work. Ensure that the extension cable is not within the working range. Never place the power cord (18) over the hedge where it can easily be caught by the safety cutter bar (1).
• NOTICE! Do not attempt to turn the insulated grip surfaces (28) as this may damage the device. To turn the handle, see "Adjusting the handle, p. 26".

Cutting techniques

• Cut out thick branches in advance using lopping shears.
• The double-sided safety cutter bar (1) enables trimming in both directions, or via pendulum movements from one side to the other.
• When cutting vertically, move the hedge trimmer in a steady forward motion, or up and down in an arch-shaped motion.
• When cutting horizontally, move the hedge trimmer in a sickle-shaped motion to the edge of the hedge so that cut branches fall to the ground.
• We recommend tying cords to achieve long, straight lines.

Trimming shaped hedges

It is advisable to trim hedges in a trapezoidal shape to prevent the lower branches from becoming bare. This corresponds to the plant's natural growth and allows hedges to thrive optimally. Only the new annual shoots are reduced during cutting to allow dense branching and good protection of privacy.

1. First trim the sides of the hedge. To do so, move the hedge trimmer from bottom to top in the direction of growth. If you cut downwards, thinner branches will move outwards which may cause thin patches or gaps.
2. Then trim the top edge as desired: straight, pitch-shaped or round.
3. Trim plants while young to achieve the desired shape. The main shoot should be left intact until the hedge has achieved the intended height. All other shoots are to be cut in half.

Cutting free-growing hedges

Free-growing hedges are not be trimmed into shapes but still need to be regularly cut to ensure they do not become too tall.

NOTICE! Please also observe the illustrations on the fold-out page on how to use the device.

NOTICE! Damage to the safety cutter bar (1). While cutting, make sure that you do not touch any objects, such as wire fences or plant supports.

(Fig. H)

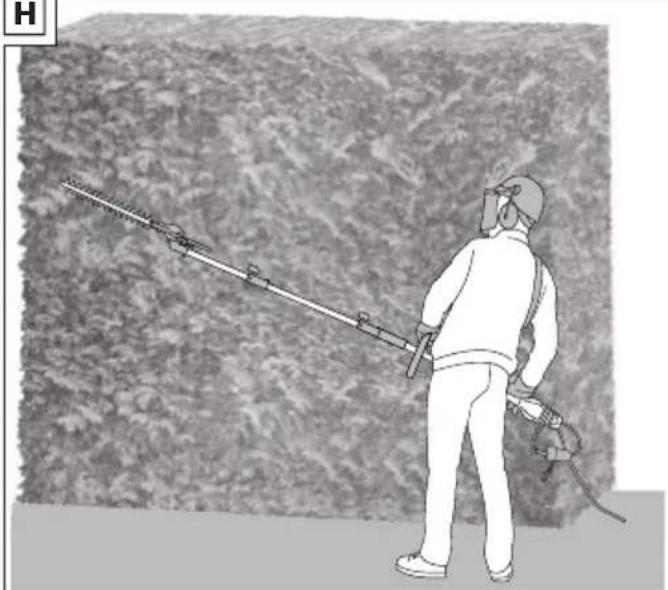

① vertical cutting

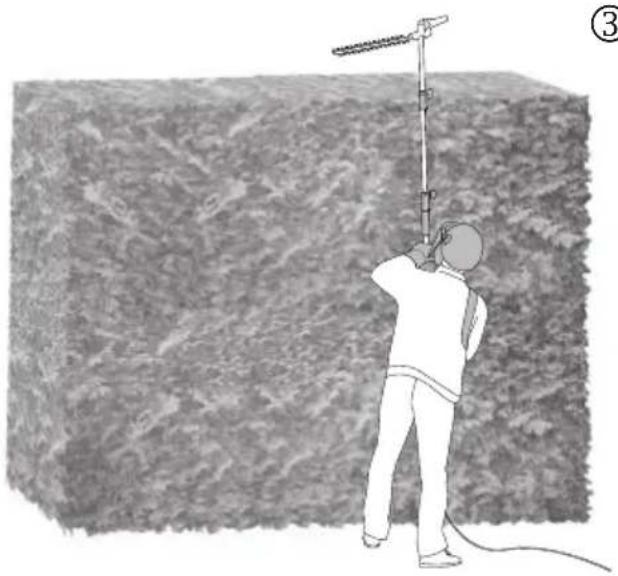

② vertical cutting with pivoted safety cutter bar

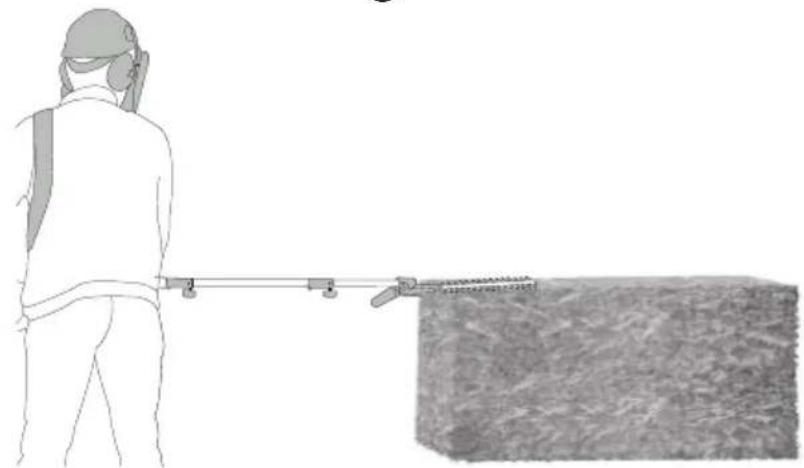

③ horizontal cutting overhead

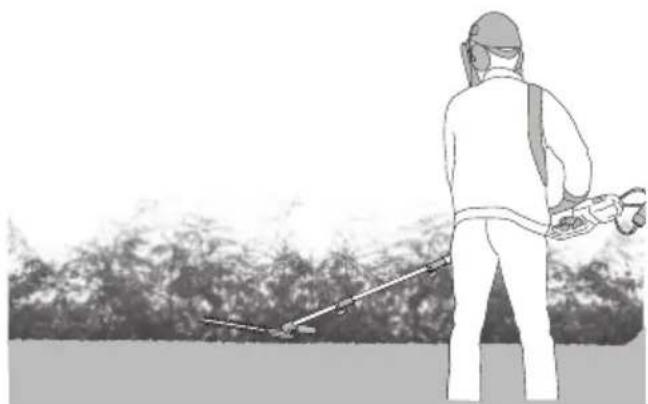

④ horizontal cutting at ground level

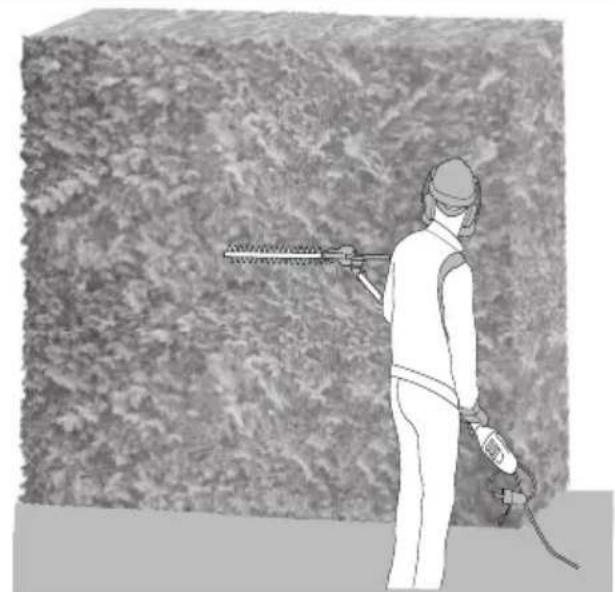

⑤ horizontal cutting at waist level

Before operation

Carry out the following steps before each operation. This will guarantee long and reliable use.

• Search the hedges and bushes for foreign objects, e.g. wire fences and hidden wires.
• Check the device before each use for obvious defects such as loose, worn or damaged parts. Ensure that the screws in the safety cutter bar (1) are firmly in place.
• Do not cut with a dull or worn safety cutter bar (1), otherwise you will overload the motor and gears of your device.

Switching on and off

Requirements

• Tubular shaft fitted
• Safety blade is set to the desired working angle.
• Carrying strap put on.

⚠️ CAUTION! Ensure your stance is stable and hold the device tightly with both hands and away from your body. Before switching the machine on, make sure that it is not touching any objects.

Switching on (Fig. G)

1. Make sure that the locking devices of the following moving parts are locked:

2. Lock (25) of the auxiliary handle (13).

3. Form a loop from the end of the extension cord, pass the loop through the opening on the handle (17) and hook the loop into the strain relief (19) on the handle.

4. Connect the device to the power supply.

5. Press and hold the switch lock (15).

6. Press the On/Off switch (16). The device starts up at maximum speed.

7. Release the switch lock (15).

Switching off

1. To turn it off, release the on/off switch (16).
2. Pull the device plug out of the wall outlet if you are leaving the device unattended or if you have finished working.

Putting down the device

• Place the device on the ground with the motor head first.
• Place cutting unit on the ground without subjecting it to any pressure.
• Do not apply any static pressure whatsoever to the cutting unit.

Transport

Information on transporting the device:

• Switch off the device and disconnect the plug from the power outlet. Make sure that all moving parts have come to a complete stop.
• Always use the blade guard (22) to transport the device.
• Always carry the device with the cutting unit pointing backwards using both

hands, one on the handle (17) and the other on the insulated grip surface (28).

Cleaning, maintenance and storage

⚠ WARNING! Electric shock! Risk of injury due to unintentional start-up. Protect yourself when performing maintenance or cleaning work. Switch off the device and disconnect the mains plug from the socket.

You should have any repair and maintenance work that is not described in these instructions carried out by our Service Centre. Only use original replacement parts.

Cleaning

⚠ WARNING! Electric shock! Never spray down the device with water.

NOTICE! Risk of damage. Chemical substances may attack the plastic parts of the machine. Do not use any cleaning agents or solvents.

- Keep the ventilation slits, motor housing and handles of the machine clean. Use a damp cloth or brush to do this.

Maintenance

Cleaning and maintaining the safety cutter bar

Tools and aids required (not included)

• Cloth
• Care oil spray
• Remove any green cuttings that are stuck.
• Clean the safety cutter bar (1) with an oily cloth.
• Maintain the safety cutter bar (1) with a care oil spray.

Care after each use

Storage

Always store the device and accessories:

• clean
• dry
• protected against dust
• with blade guard (22) over the safety cutter bar (1)
• in a horizontal position or secured against toppling over
  • out of the reach of children

Disposal/environmental protection

The device, accessories and packaging should be properly recycled.

Waste electrical and electronic equipment (WEEE) must not be disposed of with domestic waste.

The symbol of the crossed-out wheeled bin means that this product must not be disposed of as unsorted municipal waste at the end of its useful life.

Directive 2012/19/EU on waste electrical and electronic equipment:

Consumers are legally obliged to recycle electrical and electronic equipment in an environmentally sound manner at the end of its life. In this way, environmentally friendly and resource-saving recycling is ensured. Depending on the implementation in national law, you may have the following options:

• Return to a shop,
• Hand over to an official collection point,
• Return to the manufacturer/distributor.

This does not affect accessories enclosed with the old devices or tools without any electrical components.

Troubleshooting

The following table will assist you in fixing faults:

Problem Possible cause Error correction
Device does not start	No mains power supply Check	the socket, mains connection cable, plug and fuse and have them repaired by a qualified electrician if necessary.
	On/Off switch (16) is broken	Contact the service centre.
	Defective motor
tions	Internal loose contactDevice work with the service centre.
	On/Off switch (16) is broken
Safety cutter bar (1) becomes hot.	Safety cutter bar (1) blunt	Have the safety cutter bar sharpened or replaced (service centre)
	Nicks on safety cutter bar (1).
	Too much friction due to lack of lubrication	Lubricate the safety cutter bar (1)
Bad cutting results	Too much friction due to lack of lubrication	Lubricate the safety cutter bar (1)
	Safety cutter bar dirty Clean the safety cutter bar
	Safety cutter bar (1) blunt Have	the safety cutter bar sharpened or replaced (service centre)
	Bad cutting technique Working	with the device, p. 26

Spare parts and accessories

You can get spare parts and accessories from www.grizzlytools.shop. If you have any problems with your order, contact us via our online shop. If you have any other questions, contact: Service Centre, p. 31

Pos. nr. Name Order No.

1 Safety cutter bar 91110416

13+27 Auxiliary handle+Star wheel 91110410

20 Carrying strap 91110411

22 Blade guard 91110417

23 Safety goggles 91102887

Service

Guarantee

Dear Customer,

This product is provided with a 3 year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The guarantee period begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective product and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The product has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. Safety cutter bar) or to cover damage to breakable parts.

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and product number (IAN 478549_2410) ready as proof of purchase for all enquiries.
• Please refer for the product number to the type plate on the product, an engraving on the product, the title page of the operating instructions (bottom left) or the sticker on the back or underside of the product.
• Should functional errors or other defects occur, please initially contact the service centre specified below by telephone

or use the contact form available on parkside-diy.com in the category Service.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the appliance inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

PDF ONLINE parkside-diy.com

You can view and download these and many other manuals on parkside-diy.com. This QR code will take you directly to parkside-diy.com. Select your country and search for the operating instructions via the search mask. You can open your operating instructions by entering the article number (IAN) 478549_2410.

Repair service

For repairs that are not covered by warranty, contact the service centre. They will gladly create a cost estimate for you.

• We can only work on devices which are sent in properly packed and with postage paid.
  Note: Please send your device cleaned and with an indication of the defect to the address named for the service centre.
• The following are not accepted: devices sent in without prepaid postage, sent as bulky goods, sent as an Express shipment, or devices sent as any other form of special freight.
• We will dispose of defective devices you ship to us free of charge.

Service Centre

Service Great Britain

Tel.: [phone]

Contact form on parkside-diy.com

IAN 478549_2410

Service Malta

Tel.: [phone]

Contact form on parkside-diy.com

IAN 478549_2410

Importer

Please note that the address below is not a service address. Contact the service centre named above first.

Translation of the original EU declaration of conformity

Product: Long-Reach Hedge Trimmer

Model: PEHSL 710 A1

Serial number: 000001 - 118400

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

2006/42/EC • 2014/30/EU • 2000/14/EC & 2005/88/EC • 2011/65/EU & (EU) 2015/863

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

To ensure conformity, the following harmonised standards and national standards and regulations have been applied:

EN 62841-1:2015/A11:2022 • EN 62841-4-2:2019/A11:2022

EN IEC 61000-3-2:2019/A1:2021 • EN 61000-3-3:2013/A2:2021

EN IEC 55014-1:2021 • EN IEC 55014-2:2021 • EN IEC 63000:2018

In accordance with the Directive 2000/14/EC relating to noise emission, the following is confirmed: Sound power level ( L_WA )

- Measured: 99.1 dB;

- Guaranteed: 101 dB

Followed conformity assessment procedure according to 2000/14/EC, Annex V.

This declaration of conformity is issued under the sole responsibility of the manufacturer:

Authorised representative of documentation

Sommaire

Introduction.... 33

Support mural.... 40

Garantie (France)......46

Service-Center....49

Importateur.... 49

Fixer le support mural

Service-Center....63

Importeur.... 63

QR code image containing encoded data, with a central logo or watermark symbol

PDF ONLINE parkside-diy.com

Service-Center....79

Importador.... 79

Service-Center....93

Importatore.... 93

Service-Center....107

Dovozce....107

Service-Center....122

Importér.... 122

QR code image containing encoded data, with a central logo or watermark symbol

PDF ONLINE parkside-diy.com

Service-Center....152

Importer.... 152

QR code image with a central logo, likely linking to a digital resource or website.

PDF ONLINE
parkside-diy.com

Service-Center....165

Importør 165

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or rotation.

D

14 15° 45

2 6

E

21 28 29

F

30

G

19

H

Person spraying a long, brush against a textured wall (no text or symbols visible)

①

Person in protective gear spraying a large block of material (no text or symbols visible)

②

Person using a tool to clean or spray a large block of material (no text or symbols visible)

③
④

Person spraying a hose outdoors, no visible text or symbols

⑤

Illustration of a person using a long tool to lift a large block, no text or symbols present

Explosionszeichnung • Exploded view • Vue éclatée • Vista esplosa • Vista explosionada • Explosietekening • Eksploderet tegning • Robbantott ábra • Widok rozłożony • Rozložený pohled • Rozložený pohlad

PEHSL 710 A1 35 34 33 32 31 30 39 38 37 36 35 34 33 32 31 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 B51 B52 B53

informativ • informative • informatif • informatief • informativo • informatív • informacyjny • informační • informatívny

FR ©

FSC www.fsc.org MIX Paper | Supporting responsible forestry FSC® C164682
