Product type	Dashcam dual camera (front and rear)
Brand	Xblitz
Model	S10 Duo
Processor	NTK96675
Sensor	Sony IMX307
Recording resolution	Front: 2560x1440p/30fps; Front + rear: 2x 1920x1080p/30fps
Viewing angle	Front: 140°, Rear: 120°
Screen	3 inches
Storage	micro SD card up to 128 GB (Class 10 or higher, FAT32/exFAT format)
Power supply	5V/2.5A via 12/24V cigarette lighter plug
Connectivity	USB-C (alternate power), AV port for rear camera
Dimensions	95 x 55 x 32 mm
Weight	80 g
Main functions	Loop recording, G-sensor, motion detection, parking mode, WDR, time stamp, audio recording, rear view camera, quick view, anti-shake, timer, series, white balance, colors, ISO
Kit contents	Recorder, rear camera, charger, active mount, USB cable, card reader, instructions
Warranty	24 months
Operating temperature	0 to 35°C
Storage temperature	+5 to +45°C
Allowable humidity	5-90% without condensation
Maintenance and cleaning	Clean only when unplugged, without detergents or chemicals; avoid high temperatures
Safety	Do not disassemble, use original accessories, keep out of reach of children, do not expose to fire
Spare parts and repairability	Contact after-sales service; use only original charger

Frequently Asked Questions - S10 Duo Xblitz

How to properly install the Xblitz S10 Duo dashcam?

Mount the bracket on the windshield, place the camera and plug the USB cable into the bracket. Route the cable to the cigarette lighter. For the rear camera, connect the AV cable to the AV port of the main unit. Make sure the camera does not obstruct the driver's view.

What type of memory card to use?

Use a micro SD card of class 10 or higher (U1/V10 recommended), up to 128 GB. Format it first on the computer in FAT32 or exFAT, then in the device. Insert the card when the device is turned off.

Why does my dashcam turn off or on by itself?

Check the Parking mode and Motion detection functions. These modes are designed for parking and may cause unexpected starts/stops while driving. Disable them before driving.

How to adjust the G-sensor?

In the menu, set the G-sensor sensitivity to the lowest possible value to avoid road bumps protecting too many files. High sensitivity can fill the memory card quickly.

What to do if the device displays 'card full'?

Format the memory card on the computer in FAT32/exFAT, then in the device. Check that the card is class 10 and up to 128 GB. Reduce the G-sensor sensitivity and disable parking mode if necessary.

How to use the rear view camera function?

Connect the rear camera to the AV port of the main unit. Connect the red wire of the rear camera to the + of the reverse lights. When you shift into reverse, the rear camera image automatically displays on the screen.

Why is the audio recording distorted?

The built-in microphone is very sensitive and records all ambient sounds, which may cause distortion. Avoid placing the dashcam near air vents. You can disable audio recording in the menu.

How to protect a recording from being overwritten?

During recording, press the Note button to lock the current file. You can also protect files in the Playback menu by selecting 'Protection'.

What is the device reset procedure?

Briefly press the Reset button located on the device. You can also restore factory settings via the general menu: Default settings.

How to clean the dashcam lens?

Unplug the device. Gently clean the lens with a dry, non-abrasive cloth. Do not use detergents or chemicals. Avoid high temperatures during cleaning.

USER MANUAL S10 Duo Xblitz

Black S10 Bluetooth driver with dual-mounted camera and display screen (no text or symbols visible)

Table of contents

Spis treści

Interior view of a car dashboard and steering wheel (no text or symbols visible)

PL

INSTRUKCJA OBSŁUGI

WIDEOREJESTRATOR

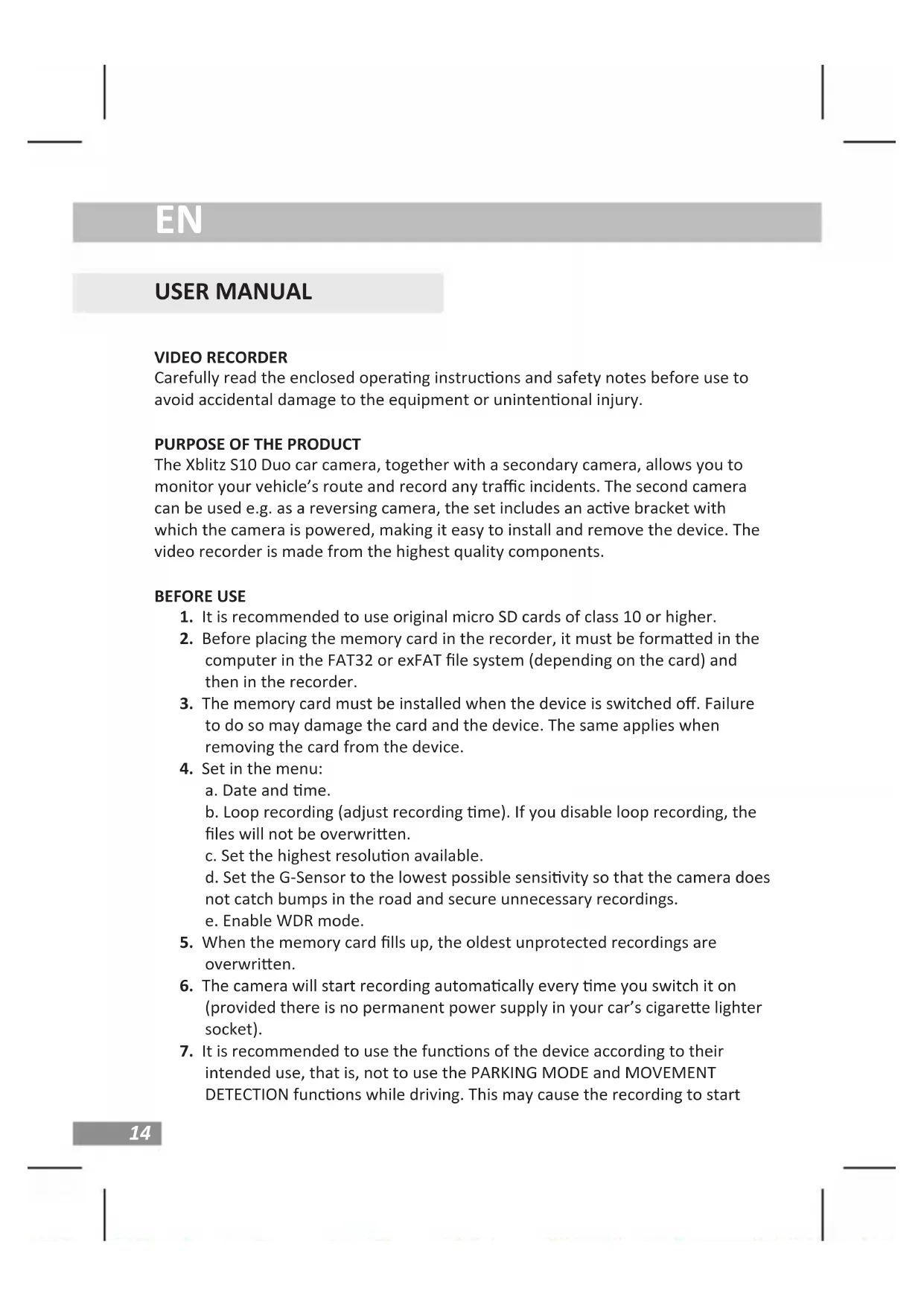

Carefully read the enclosed operating instructions and safety notes before use to avoid accidental damage to the equipment or unintentional injury.

PURPOSE OF THE PRODUCT

The Xblitz S10 Duo car camera, together with a secondary camera, allows you to monitor your vehicle's route and record any traffic incidents. The second camera can be used e.g. as a reversing camera, the set includes an active bracket with which the camera is powered, making it easy to install and remove the device. The video recorder is made from the highest quality components.

BEFORE USE

1. It is recommended to use original micro SD cards of class 10 or higher.
2. Before placing the memory card in the recorder, it must be formatted in the computer in the FAT32 or exFAT file system (depending on the card) and then in the recorder.
3. The memory card must be installed when the device is switched off. Failure to do so may damage the card and the device. The same applies when removing the card from the device.

4. Set in the menu:
   a. Date and time.
   b. Loop recording (adjust recording time). If you disable loop recording, the files will not be overwritten.
   c. Set the highest resolution available.
   d. Set the G-Sensor to the lowest possible sensitivity so that the camera does not catch bumps in the road and secure unnecessary recordings.
   e. Enable WDR mode.

5. When the memory card fills up, the oldest unprotected recordings are overwritten.

6. The camera will start recording automatically every time you switch it on (provided there is no permanent power supply in your car's cigarette lighter socket).

7. It is recommended to use the functions of the device according to their intended use, that is, not to use the PARKING MODE and MOVEMENT DETECTION functions while driving. This may cause the recording to start

and stop automatically and unnecessary loss of storage space.

1. Sound: the device has a condenser microphone that records all ambient sounds. Sounds may overlap causing distortion.

01. CONTENTS OF THE KIT

1. Video recorder
2. Rear-view camera
3. Memory card reader
4. Charger
5. Handle
6. USB cable
7. Instructions

02. DESCRIPTION OF THE RECORDER

SEE FIG. A

1. Handle
2. Port USB-C (camera power supply)
3. Lens
4. Rear camera
5. Speaker
6. Microphone
7. RESET button
8. Micro SD card slot
9. AV port (connection point for rear camera)
10. Mounting location of the active holder
11. Port USB-C (alternative power supply)
12. Display
13. MODE button
14. „Down" button
15. „OK.” button.
16. „UP" button
17. „Attention" button

03. DESCRIPTION OF THE KEYS

MODE - A short press (when the dashcam is not recording) takes us between video/photo/playback modes, holding down the button (when the dashcam is not recording) takes us to the menu. In the menu, holding down the button takes us from recording/photo/playback settings to general settings. During video playback, it acts as a stop.

UP - In menu and playback mode, is responsible for navigating through the various items. In video mode, a short press turns audio recording on and off. During video

playback, scrolls the video backwards.

DOWN - In menu and playback mode, is responsible for navigating through the individual items. During video playback, scrolls the video forward. In video mode, switches the view between the front and rear camera.

OK - In video mode, a short press turns recording on and off. In photo mode, a short press takes a photo. During video playback, a short press acts as PLAY/PAUSE. In Menu and playback mode, a short press validates the individual actions. Holding down the button for 3 seconds turns the camera on/off.

NOTE - During video recording, pressing protects the current recording from being overwritten later. Holding down the button for 3 seconds turns the camera display on/off.

RESET - Pressing resets the camera and restores the default settings on the camera.

04. CAMERA INSTALLATION

SEE FIG. B

1. Choose where to mount the camera. It is best to position the camera so that the display preview shows as much of the area in front of the car as possible. Make sure that the camera does not obstruct the driver's view while driving.
2. Mount the bracket on the windscreen and then install the camera in it.
3. Route the USB cable as shown in Figure B.
4. Connect the mini USB plug to the holder.
5. Place a second camera at the rear of the vehicle.
6. Route the AV cable to the recorder in such a way that it does not disturb the driver while driving.
7. Connect the AV plug to the AV in port on the car camera.
8. Plug the charger into a 12/24V cigarette lighter socket.

REAR CAMERA INSTALLATION:

The mounting location of the additional camera included in the kit depends on your preference. The camera complies with IP67 waterproof standards (weatherproof).

CONNECTION OF A REAR-VIEW CAMERA:

Connect the black cable supplied to the AV port on the main unit, drag it to where the secondary camera is mounted and plug it in. Make sure the main unit can see the secondary camera (if not, check that the cable is correctly inserted in both ports).

INSTALLATION OF A REAR-VIEW CAMERA:

The wires coming out of the rear camera should be connected to the power wires of the reversing lights (red = plus). Connecting in this way will result in a reversing camera.

The pipework leading to the outside should be well insulated and should not be mechanically stressed.

05. MAIN FEATURES OF THE CAMERA

1. Camera modes

The camera has 3 modes of operation. Recording mode: in this mode the camera records video. Photo mode: in this mode the camera takes photos. Playback mode: view footage recorded by the camera.

2. Loop recording

The camera divides the recordings according to the selected time. You can select the length of the files, when the memory card fills up the oldest recording will be overwritten.

3. Resolution

The camera can record in various resolutions. The higher the resolution the better quality of the recordings, but the recording files also take up more space on the memory card, it is recommended to use the highest resolution.

4. G-Sensor

Gravity sensor. When the sensor is activated on impact, the recording file is protected from being overwritten. It is recommended that the lowest available value is set, as at a higher value the camera may pick up bumps caused by unevenness of the road, which can cause the memory card to fill up.

5. Audio recording

Along with video recording, the camera can also record audio.

6. Motion detection

The camera has a motion detection mode that automatically starts a short audio/video recording when a moving object (e.g. a person approaching the car) is detected. The recording will be protected from being overwritten. To avoid unnecessary clogging of the memory card in the device, only activate the motion detection mode when you leave the car parked.

7. Rear view camera.

A rear camera is included to record video from the rear of the vehicle in Full HD resolution. The DVR can record images from both the front and rear cameras simultaneously without any loss in quality or resolution. In addition, when connected to the power cables of the reversing lights, the image from the rear camera will automatically appear on the display when you shift into reverse, making it easier to park the vehicle.

06. DESCRIPTION OF THE MENU OPTIONS

VIDEO MODE:

1. Resolution - allows you to change the resolution of the recorded video files.
2. Loop recording - allows you to change the length of the recorded videos.

3. WDR - allows you to enable or disable the WDR (Wide Dynamic Range) option, responsible for adapting the recording to the prevailing lighting conditions.

4. Exposure - allows us to set the exposure correction of the recorded image, so we can avoid overexposure or underexposure.

5. Motion detection - allows you to enable or disable the mode in which the camera starts recording video when motion is detected in front of it.
6. Audio recording - allows you to enable or disable audio recording by the camera.
7. Time stamp - allows you to enable or disable the display of the date and time on recorded videos.
8. Gravity sensor - allows you to set the sensitivity of the g-sensor.
9. Parking monitor - allows you to disable or set the sensitivity of the parking mode.

PHOTO MODE:

1. Photo mode - self-timer allows you to set how much time passes between pressing the OK button and taking a photo in PHOTO mode.
2. Resolution - allows you to set the resolution of the images you take.
3. Series - allows you to set how many images will be taken.
4. Quality - changes the quality of the images, the higher the higher the files.
5. Sharpness - sets the sharpness of the details in the images taken.
6. White balance - allows the camera parameters to be adjusted to the prevailing light.
7. Colour - applies a filter (black and white or sepia) to the images taken with the camera.
8. ISO - allows you to change the sensitivity of the camera sensor to light.
9. Exposure - allows us to set the exposure correction of the images taken, so we can avoid over- or underexposure.
10. Anti-shake - enables/disables image stabilisation when taking pictures.
11. Quick view - allows you to enable a brief display of the captured images on the camera screen.
12. Date stamp - allows you to enable or disable the display of the date and time on the images you take.

PLAYBACK MODE:

1. Delete - allows you to delete the currently selected file or all files of a given type.
2. Protection - allows you to enable/disable blocking of the currently selected file or all files of a given type.

GENERAL MENU:

1. Date/time - allows you to set the date, time and their format.
2. Auto Power Off - allows you to set the time after which the camera will

automatically power off.

1. Beep - allows you to turn the button sound on and off.
2. Language - language settings
3. Frequency - allows you to select the frame rate - 50Hz recommended.
4. Blanking - allows you to set the time after which the camera display will blank.
5. Set registration number - allows you to set the car registration number displayed.
6. Format - performs formatting of the memory card inserted into the device.
8. Default settings - restores the factory settings of the unit. 10.
9. Version - displays information on the software version of the device.

07. PRECAUTIONS

1. Do not disassemble or tamper with the camera yourself. If a malfunction occurs, please contact the service department.
2. Use only original accessories.
3. Use only the original power supply unit included in the kit.
4. The device may not be used in contravention of the laws of your country or region.
5. Permissible operating temperatures are 0 - 35°C. Storage: +5 to +45°C. Humidity: 5-90% non-condensing.
6. Do not subject the device to damage or physical impact.
7. Take care of the cleanliness of the product, especially the lens. Do not use detergents or chemicals when cleaning.
8. Clean only when the unit is unplugged.
9. Keep the device out of the reach of children.
10. Do not expose the device to very high temperatures or fire.
11. If you smell burnt plastic or electronics from the camera, unplug the unit as soon as possible and contact the service department.

08. FAQ

1. Device does not switch on, screen flashes

Charge the device battery and check the connection in the cigarette lighter socket before starting it up.

1. The device does not switch on/off automatically

The reason for this behaviour may be the constant power supply in the car lighter socket.

1. The camera stops recording / does not overwrite recordings

Check: G-SENSOR - a function by which recordings with recorded overloads (e.g. uneven pavement, braking, driving off a kerb or over a speed bump,

etc.) are protected from being overwritten. If you use this function, you must periodically format the memory card on your computer and then on the camera. Ultimately, each file on the data carrier will be protected from being overwritten and the device will not be able to record a further route - it will not record in a loop. We suggest setting the sensor according to your driving style and road conditions. You can also disable the option completely, in which case each oldest file will be overwritten and the card will not need to be formatted periodically. After adjusting the function, remember to format the memory card.

4. The camera turns on and off

Check: PARKING MODE/MONITOR and MOVEMENT DETECTION - function designed to operate while the vehicle is parked. You should deactivate the functions, before setting off, as they may cause the camera to switch on and off and make random fragments of route recordings.

If the functions are deactivated, check if the fault occurs without a memory card inserted.

5. The camera records fragments of the route / randomly lasting recordings

Check: MOVEMENT DETECTION - function designed to operate while the vehicle is parked.

You need to deactivate the function, before setting off, as it may cause the camera to switch on and off and make random fragments of route recordings. If the function is deactivated, check if the fault occurs without a memory card inserted.

6. The device shows the message „card full" or does not read the card

Check the „G-sensor” and „parking mode” functions and set them to minimum. The card must be formatted in the computer in the FAT32 or exFAT file system (depending on the card) and then in the recorder.

Check also: Is the selected card capacity and its specification (micro SD, class 10 - U1, V10 additionally recommended) suitable for your device (we recommend using cards from reputable manufacturers, we recommend: Kingston, Samsung, Sandisk).

If at any stage you encounter an error, replace the card with a new one from official distributors.

7. The device records noisy, distorted, unclear sound

The device has a very sensitive microphone that records all ambient noises. Recorded sounds may overlap. Windscreen air vents may also distort the sound.

8. The device does not respond

Briefly press the Reset button or reset the device to factory settings.

9. Transverse stripes appear on the recording

Incorrect setting of the frame rate value. Set the frequency value to „50Hz“

or „60Hz“ depending on local settings.

10. Bracket detaches from glass/does not stick to glass

Degrease the surfaces well before mounting the mount on the glass.

Remember to avoid high temperatures, which can cause deformation of the holder, and damage to the recorder itself.

NOTES:

- G-SENSOR - a function thanks to which recordings with recorded overloads (e.g. uneven road surface, braking, driving off a kerb or over a speed bump, etc.) are protected from being overwritten. If you use this function, you must periodically format the memory card on your computer and then on the camera. Ultimately, each file on the data carrier will be protected from being overwritten and the device will not be able to record a further route - it will not record in a loop. We suggest setting the sensor according to your driving style and road conditions. The option can also be completely disabled, in which case each oldest file will be overwritten and the card will not need to be formatted periodically.

- PARKING MODE/MONITOR - a function designed to operate while the vehicle is parked, uses battery power* if the DVR is fully charged - (*if it has a built-in battery). In this case, the camera starts recording a few seconds of video after detecting a shock - until the battery is discharged. When using this function, bear in mind the battery of the device, which needs to be charged after the function is activated (started). You should deactivate the function, before setting off on a journey, as it may cause the camera to switch on and off and make random fragments of recordings from the route.

*The constant power supply in the vehicle may cause this function to behave differently, e.g. leaving the camera on, which may drain the car battery.

- MOVEMENT DETECTION - a function designed to operate while the vehicle is parked - requires constant power and the camera must remain switched on. The DVR will start recording automatically when motion is detected, and will stop recording a few seconds after there is no movement in front of the camera lens. Please note that this function may drain the car battery.

You need to deactivate the function, before setting off, as it can cause the camera to switch on and off and make random fragments of route footage.

ATTENTION: The device has a built-in capacitor and only works with an external power supply.

NOTE: Use only the original charger with a charging current of 5V/2.5A. (Do not connect directly to a 220/230V socket). Failure to follow the instructions may damage the camera or lead to dangerous situations.

Due to continuous product improvement, the manufacturer reserves the right to change the device and its kit without prior notice, some functions described in this manual may change slightly different in reality.

09. SPECIFICATION

Processor: NTK96675 | Recording resolution: Front 2560x1440p/30fps, Front + Rear 2x 1920x1080p/30fps | Sensor: Sony IMX307 | Lens: 6G | Viewing angle: Front 140°, Rear 120° | Display: 3 inches | Memory: Micro SD cards b WDR mode: Yes | Motion detection: Yes | Loop recording: Yes | G-sensor: Yes | Recording format: MP4 | Power supply: 5V/2.5A | USB: Microphone/speaker: Built-in | Built-in capacitor: Yes | Dimensions: 95x55x32 mm | Weight: 80g

10. WARRANTY/COMPLAINT CARD

The product comes with a 24-month warranty. Warranty terms and conditions can be found at: https://xblitz.pl/gwarancja/ Complaints must be made using the complaint form found at:

Details, contact and address of the service can be found at: www.xblitz.pl Specifications and contents are subject to change without notice. We apologise for any inconvenience.

DE

BEDIENUNGSANLEITUNG

VIDEO-RECORDER

MANUEL D'INSTRUCTIONS

ENREGISTREUR VIDÉO

The crossed out trash can symbol indicates that unusable electrical or electronic devices, its accessories (such as power supplies, cords) or components (for example batteries, if included) cannot be disposed of alongside with household waste. In order to dispose of the devices or its components (for example, batteries) deliver the device to the collection point, where it will be accepted free of Disposal is subject to the recast version of the WEEE Directive 19/ EU) and the Directive on batteries and accumulators (2006/66 / oper disposal of the device prevents degradation of the natural ment. Information about the collection points of the facilities is by the competent local authorities. Incorrect disposal of waste is to penalties provided for by the law in force in the given area.

DE

KGK TREND Sp. z o.o.

(dawniej KGK Trade Sp. z o.o. Sp. K.)

ul. Ujastek 5b, 31-752 Kraków, Polska.

Wyprodukowano w PRC

Manufacturer:

KGK TREND Sp. z o. o.

(formerly KGK Trade Sp. z o.o. Sp. K.)

st. Ujastek 5b, 31-752 Cracow, Poland.

Made in PRC
