Brand	Osann
Model	One 360
Product Type	High chair / Child car seat
Usage	From 40 cm to 150 cm (birth to approx. 12 years)
Max weight with 5-point harness	18 kg (up to 105 cm)
Minimum age forward-facing	15 months old
Homologation standard	Regulation No. 129 (i-Size)
Rear-facing installation	40-105 cm, max 18 kg, Isofix + Top Tether
Forward-facing installation (harness)	76-105 cm, max 18 kg, min 15 months, Isofix + Top Tether
Forward-facing installation (seat belt)	100-150 cm, Isofix (recommended) or 3-point belt alone
Main features	360° rotation, adjustable recline, adjustable headrest, removable 5-point harness, belt guides
Recline positions	Rear-facing: R1 (40-75 cm), R2 (76-105 cm); Forward-facing: 4 positions (76-105 cm), 1 position (100-150 cm)
Care & cleaning	Cover washable at 30°C delicate cycle; low-temperature drying; no bleach, no dry cleaning, no ironing
Removable parts	Head cushion (40-75 cm), comfort insert, shoulder pads, buckle cushion
Safety	Green indicators on Isofix connectors and Top Tether; audible locking; rotation locked while driving
Storage	Bag for Top Tether and manual at the back of the seat
Repairability / Parts	Contact Osann customer service for spare parts; cover recommended only by manufacturer

Frequently Asked Questions - One 360 Osann

What is the minimum height to use the seat in rear-facing position?

The minimum height is 40 cm, with installation using the Isofix connectors and Top Tether strap, and the child is secured with the 5-point harness.

Can I install the seat forward-facing before my child is 15 months old?

No, it is extremely dangerous to install the seat forward-facing before the child has reached 15 months of age. You must follow this instruction.

How to adjust the recline of the One 360 seat?

Actuate the position lever located at the front of the seat shell while holding the shell with your other hand, then adjust the angle according to the indicated positions (R1, R2, 1-4).

What to do if the child is taller than 105 cm?

For children from 100 to 150 cm, remove the 5-point harness and the Top Tether strap, then use the seat as a booster with the vehicle's seat belt (guided by the belt guides).

How to clean the seat cover?

Wash the cover at 30°C on delicate cycle. Do not use bleach, do not dry clean, do not iron. Low-temperature tumble drying possible.

How to know if the Isofix connectors are properly engaged?

The Isofix connectors are correctly attached when the indicators turn green. Push the seat firmly against the car seat back and check each side.

Is it mandatory to use the Top Tether for 100-150 cm?

No, for the size category 100-150 cm, the Top Tether is not required. You can store it in the bag provided at the back of the seat.

Can I use the seat without Isofix for 100-150 cm?

Yes, it is possible to install the seat using only the vehicle's 3-point belt without the Isofix connectors, although using Isofix is recommended for better stability.

How to store the 5-point harness when switching to booster mode?

Unhook the shoulder straps from the hooks, remove the shoulder pads, pass the straps behind the cover, then store the buckle in the seat recess. Replace the cover and close.

What to do in case of an accident?

The car seat must be replaced after an accident that subjected the product to strong forces, even if it appears intact. Contact Osann customer service.

USER MANUAL One 360 Osann

1. & 2.:

mind. 15 Monate alt:

Illustration of a baby car seat with hands adjusting the seat (no text or symbols)

Illustration of a car seat with a belt buckle and orange arrows indicating rotation (no text or symbols)

Illustration of a child in a car seat being lifted, showing two different positions (no text or symbols present)

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Isofi x-Konnektoren

Simple line drawing of a symmetrical abstract shape resembling a stylized face or mask (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a close-up view of the component (no text or symbols)

Illustration of a person adjusting a car seatbelt device (no text or symbols visible)

Diagram of a mechanical assembly with symmetrical arms and central component (no text or symbols)

Illustration of a car seat with seatbelt and seat, showing no text or symbols

REINIGUNG

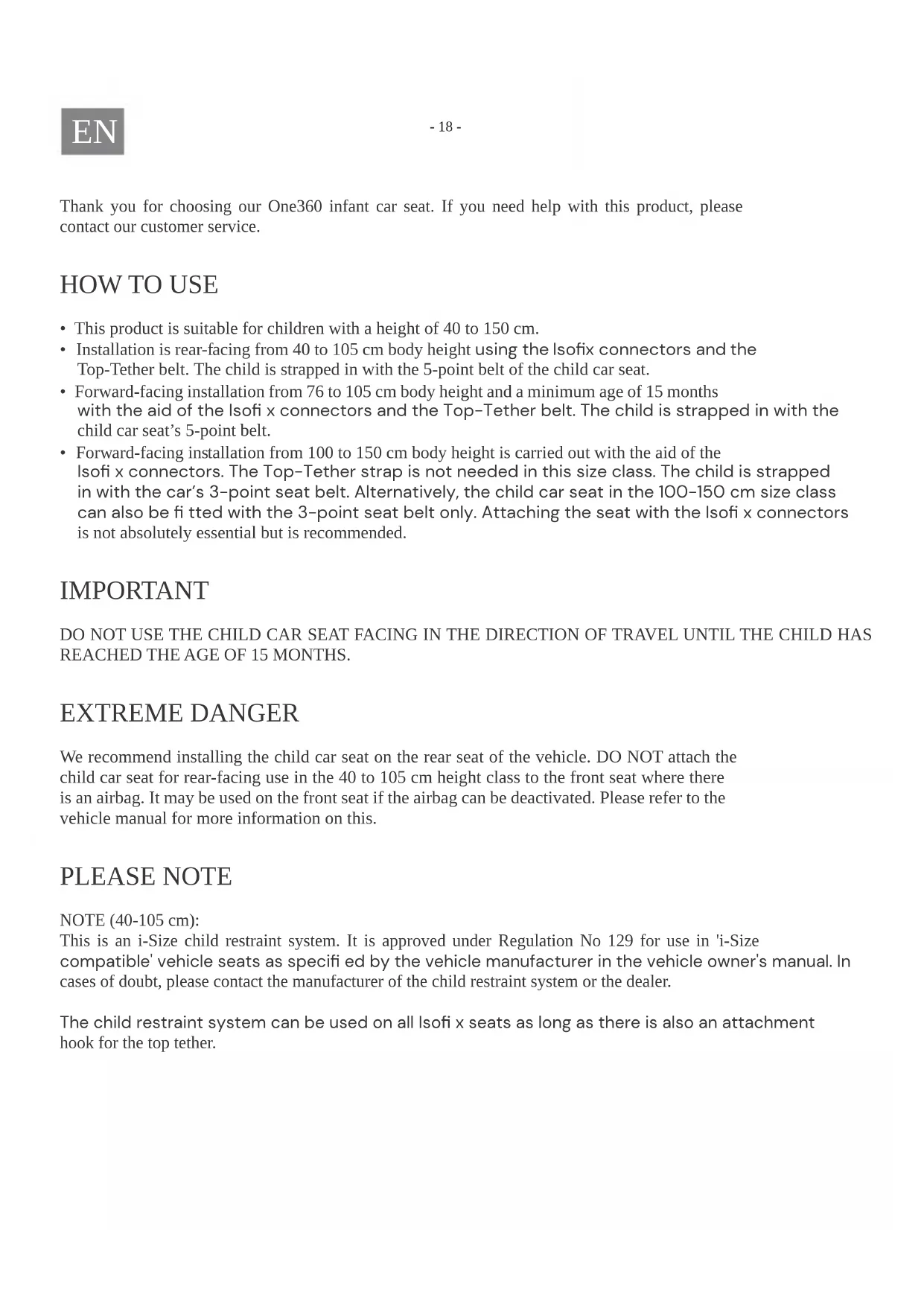

Thank you for choosing our One360 infant car seat. If you need help with this product, please contact our customer service.

HOW TO USE

• This product is suitable for children with a height of 40 to 150~cm .
• Installation is rear-facing from 40 to 105cm body height using the Isofix connectors and the Top-Tether belt. The child is strapped in with the 5-point belt of the child car seat.
• Forward-facing installation from 76 to 105cm body height and a minimum age of 15 months with the aid of the Isofi x connectors and the Top-Tether belt. The child is strapped in with the child car seat's 5-point belt.

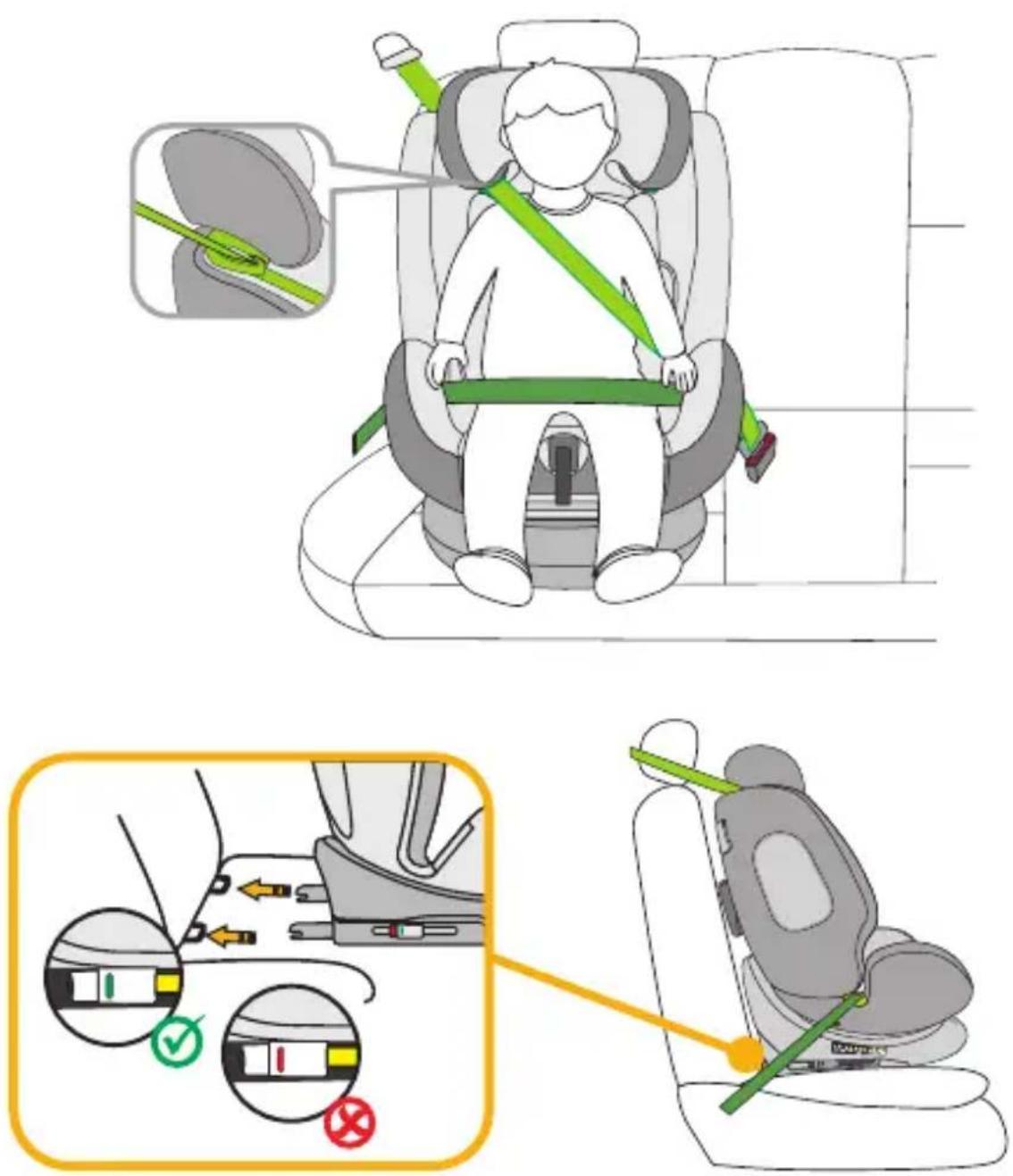

• Forward-facing installation from 100 to 150~cm body height is carried out with the aid of the Isofi x connectors. The Top-Tether strap is not needed in this size class. The child is strapped in with the car's 3-point seat belt. Alternatively, the child car seat in the 100-150 cm size class can also be fitted with the 3-point seat belt only. Attaching the seat with the Isofi x connectors is not absolutely essential but is recommended.

IMPORTANT

DO NOT USE THE CHILD CAR SEAT FACING IN THE DIRECTION OF TRAVEL UNTIL THE CHILD HAS REACHED THE AGE OF 15 MONTHS.

EXTREME DANGER

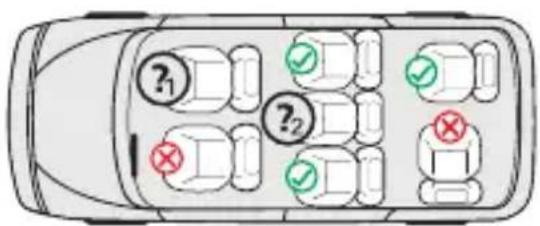

We recommend installing the child car seat on the rear seat of the vehicle. DO NOT attach the child car seat for rear-facing use in the 40 to 105 cm height class to the front seat where there is an airbag. It may be used on the front seat if the airbag can be deactivated. Please refer to the vehicle manual for more information on this.

PLEASE NOTE

NOTE (40-105 cm):

This is an i-Size child restraint system. It is approved under Regulation No 129 for use in 'i-Size compatible' vehicle seats as specified by the vehicle manufacturer in the vehicle owner's manual. In cases of doubt, please contact the manufacturer of the child restraint system or the dealer.

The child restraint system can be used on all Isofi x seats as long as there is also an attachment hook for the top tether.

NOTE (100-150 cm):

This is an optimised i-Size children's booster seat. It is approved under Regulation no. 129 for use primarily in "i-Size vehicle seats" as specified by vehicle manufacturers in the vehicle owner's manual. If in doubt, contact either the manufacturer of the extended child restraint system or the dealer.

The optimised i-Size booster seat can also be used on all seats in the "universal" category, as long as this does not conflict with the vehicle interior.

If you have any doubts, please contact the car seat manufacturer or the retailer.

1. & 2.:

40-105 cm: Only if Isofi x connectors and a fastening hook for the top tether are available. For rear-facing use additionally only if the airbag can be deactivated.

100-150 cm: Only if at least a 3-point belt that complies with ECE R16 is available. If Isofi x connectors are available, these can also be used. Securing the child only with a 2-point belt is not approved.

The following table provides information about the fastening devices and methods:

Size class	Installation direction	Installation Type Child safety device
40-105 cm	Rear-facing	Isofi x connectors & Top-Tether	i-Size	5-point seatbelt for the child seat
76-105 cm	Forward-facing	Isofi x connectors & Top-Tether	i-Size	5-point seatbelt for the child seat
100-150 cm	Forward-facing	Isofi x connectors & 3-point car seat belt	i-Size Booster seat	3-point car seat belt
100-150 cm	Forward-facing	3-point car seat belt	i-Size Booster seat	3-point car seat belt

WARNING

• Please read through these instructions carefully before use in order to guarantee the safety of your child. Retain the manual. Non-compliance with the instructions in this manual may result in serious injuries to your child.
• The child seat can only be used with its own 5-point belt system for children who weigh under 18 kg and are less than 105 cm in height.
• The child seat CANNOT be used with its own 5-point belt system for children who weigh over 18 kg and are taller than 105 cm.
• The child seat can be installed rear-facing or forward-facing with the Isofix connectors and the Top-Tether belt. Important: Do not install the child car seat in a forward-facing position until the child is at least 15 months old.
• For Isofi x installation: Be sure to read the car manufacturer's manual.
• Do not use load-bearing contact points other than those described in the instructions and indicated in the child restraint system.
• Do not use this child car seat at home. It has been designed exclusively for use in a car.
• Do not leave your child unsupervised in the seat at any time.
• Do not place the rear-facing child car seat on the front seat with an activated airbag. This could lead to serious injuries or death.
• The child seat must be replaced if it is exposed to heavy impact in an accident.
• For safety reasons, the child car seat must be secured in the vehicle even when there is no child sitting in the child car seat.
• Always make sure that all belts that attach the child car seat to the vehicle are secure and that all belts that restrain the child are adjusted to fit the child's body. Ensure that the belts are not twisted.
• Items of luggage or other objects that could cause injury in the event of a collision must be properly secured.
• The rigid items and plastic parts of a child restraint system must be positioned and installed so that they cannot get caught by a movable seat or a vehicle door.
• It is important that belts that sit low hold the child's pelvis firmly in place. To avoid the risk of falling, your child should always be strapped in.
• It is dangerous to make changes or additions to the product without approval from the responsible authority. Non-compliance with the installation instructions provided by the manufacturer of the child restraint system may also present risks to the safety of your child.
• This child seat is designed for children with a maximum height of 150 cm. Never overload the child seat by transporting more than one child or additional loads in it.
• The child restraint system must not be used without the seat cover.
• The seat cover must not be replaced by a cover other than that recommended by the manufacturer, as this seat cover is an important component of the restraint performance.

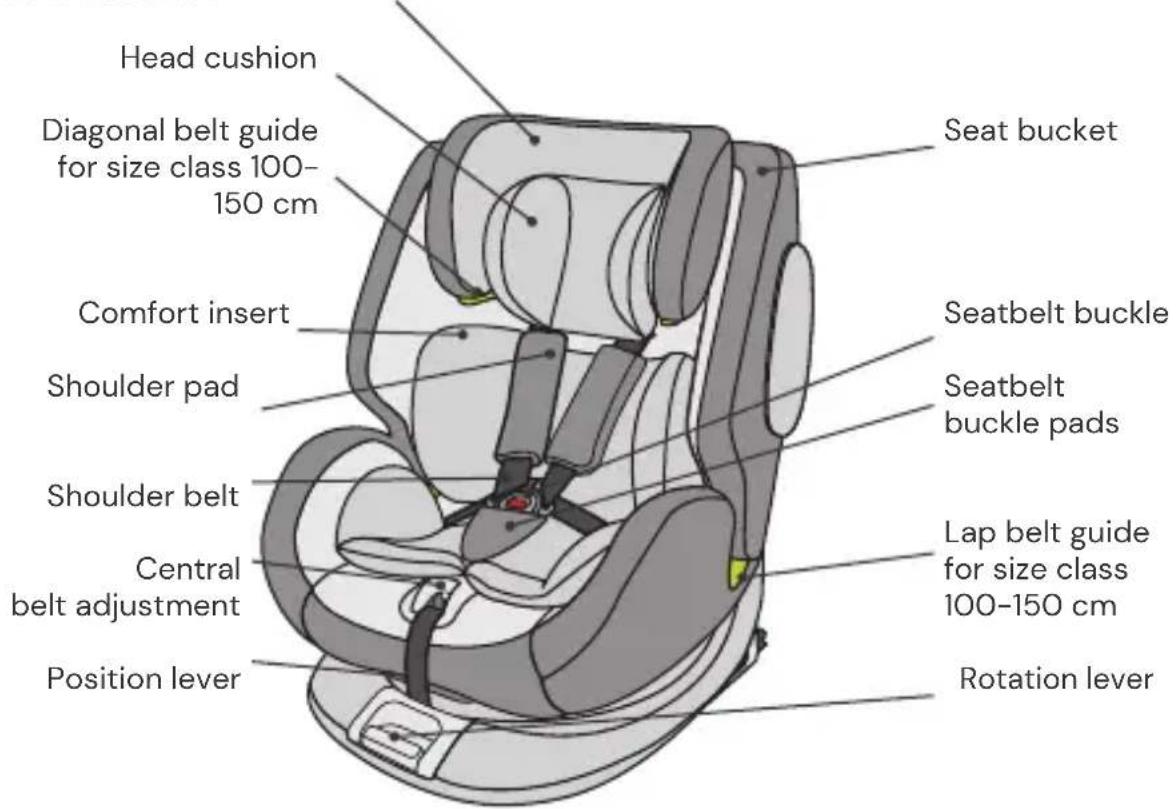

SEAT PARTS

Front view Headrest

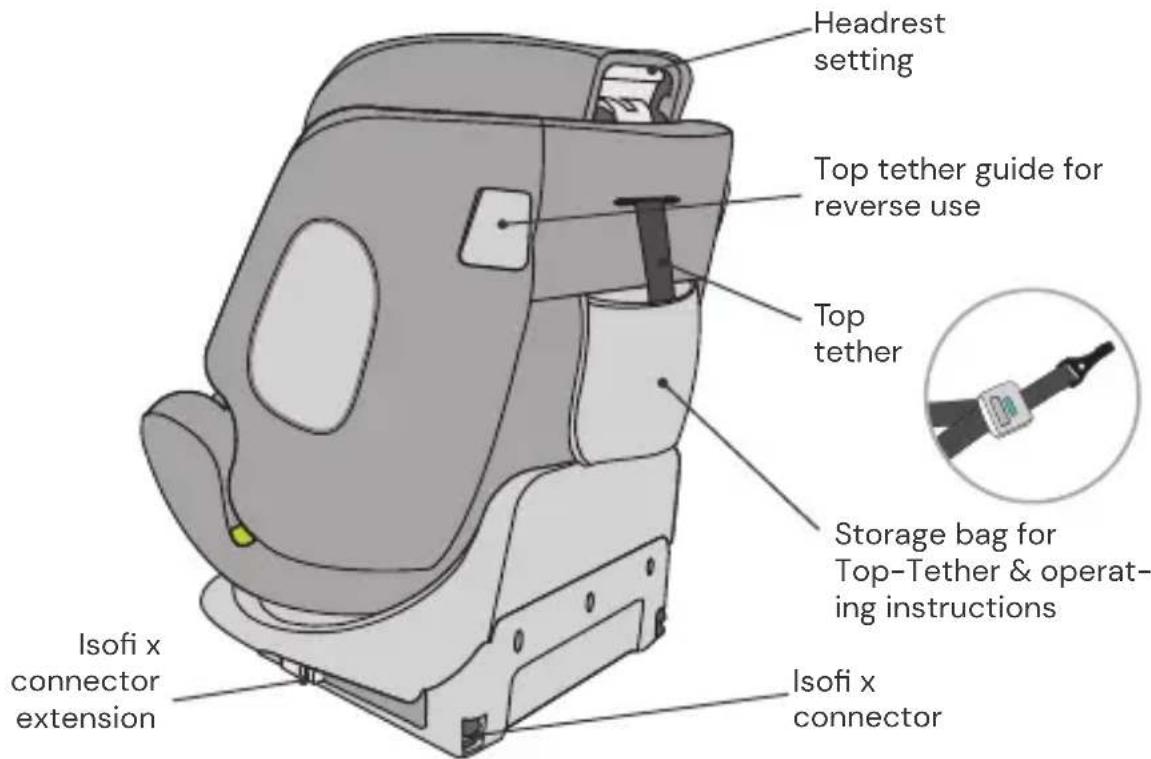

Rear view

USING THE CHILD CAR SEAT

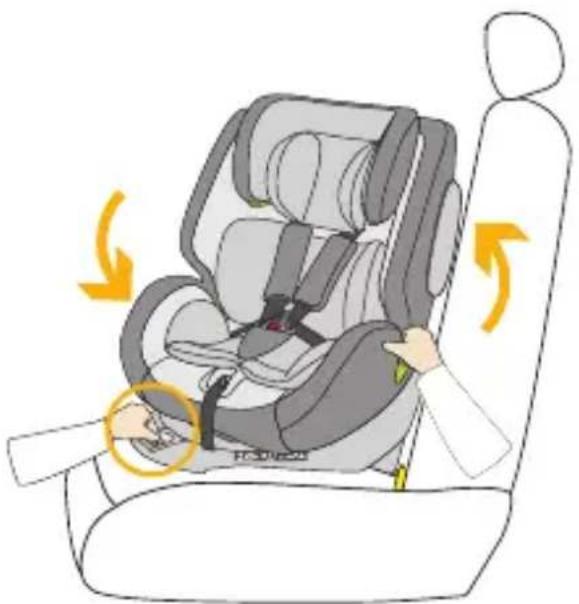

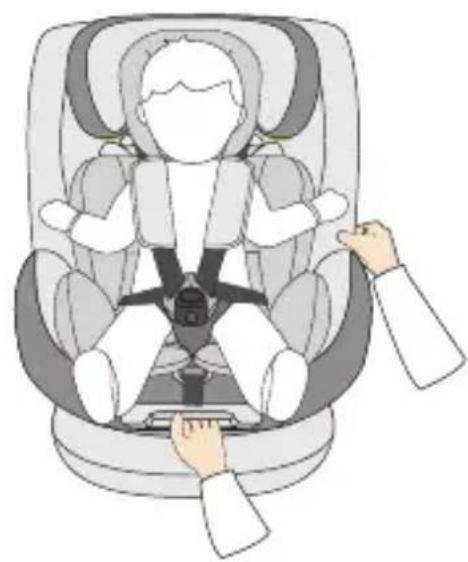

Setting the child car seat tilt angle

• Operate the position lever on the lower front of the seat bucket with one hand.
• Hold the seat pan with the other hand and adjust the angle.

The following seat positions are possible:

(Please see the label on the child car seat)

Rear-facing,

Body height 40-75 cm, position: R1

Body height 76-105 cm, position: R2

Forward-facing,

Height 76-105 cm,

min. 15 months:

4 positions (1-4)

Forward facing, body size:

100-150 cm: 1 position (1)

Illustration of a child seated in a car seat with hands adjusting the seat (no text or symbols)

Turning the child car seat

• Pull the rotation lever on the front of the base with one hand and with the other hand you can rotate the seat unit in the desired direction of travel.
• The forward-facing position is only suitable for children with a minimum age of 15 months and a minimum height of 76 cm. The rear-facing position is designed for children from 40 to 105 cm tall and a maximum weight of 18 kg.
• The side position is only intended to facilitate the child's entry. This position must not be used while driving.

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing no text or symbols on the seats or background.

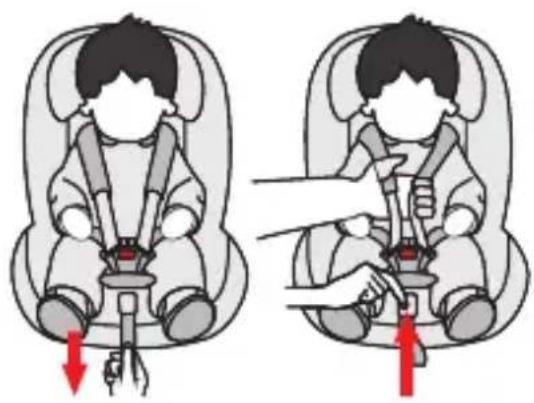

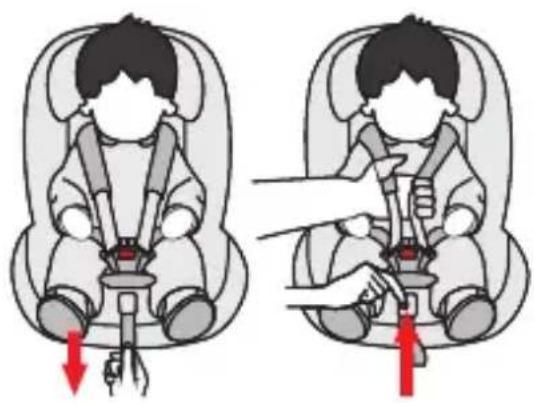

Adjusting the belt

• To loosen the belt, press the belt adjustment button in the seat area with one hand. Hold the belt buckle with the other hand and carefully loosen the attached straps.
• Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.

Illustration of a child in a car seat being lifted, showing two different positions (no text or symbols present)

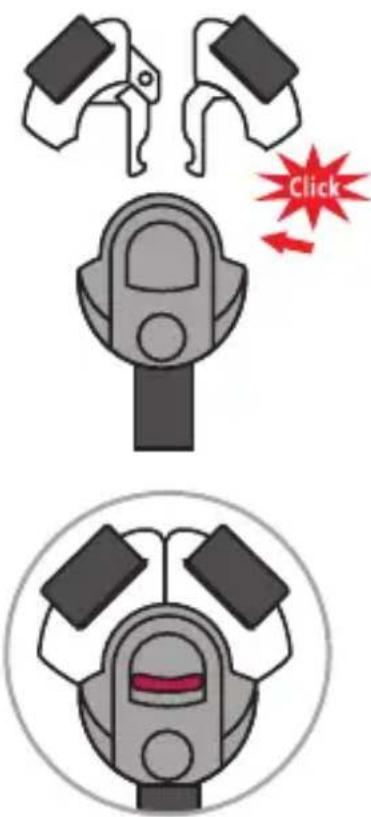

Opening/closing the belt

• To unlock the belt, press the button on the belt buckle, pull out the buckle tongues and separate them.
• To lock the belt, first, connect both tongues of the buckle and then insert them together into the belt buckle.

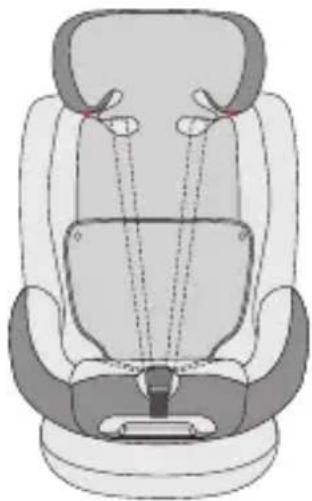

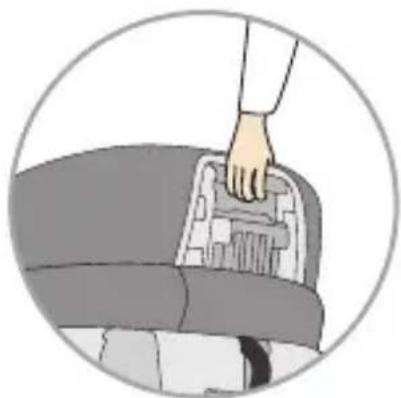

Adjusting the head support

• Release the belt and pull the lever to adjust the headrest on the back of the child car seat. Move the headrest until it engages at the correct height.

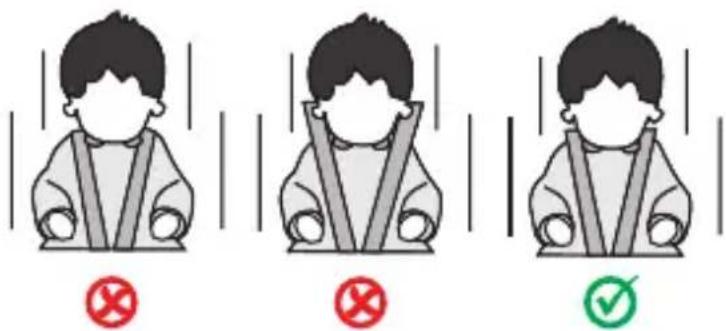

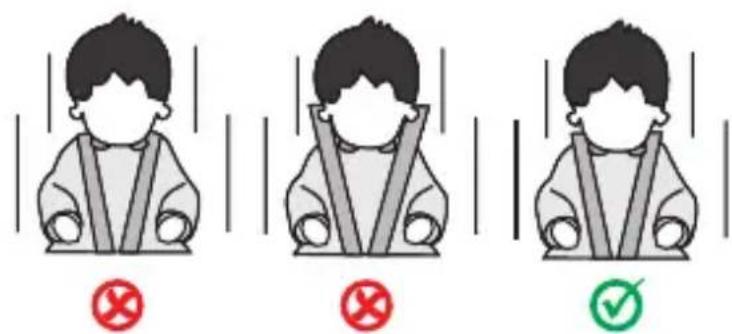

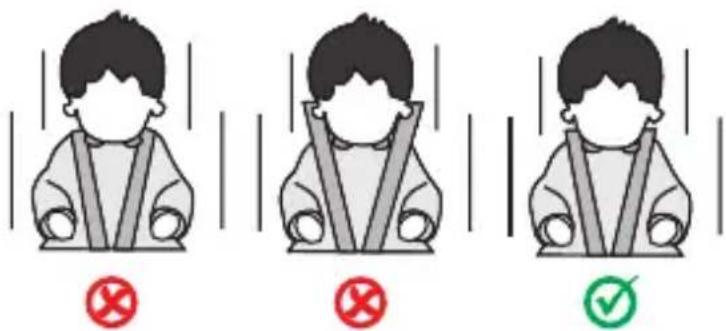

• Make sure the shoulder straps are positioned just above your child's shoulders when they come out of the child car seat.
• Release the lever and ensure that the head support is engaged.

Illustration of a hand pressing down on a car seat cover (no text or symbols)

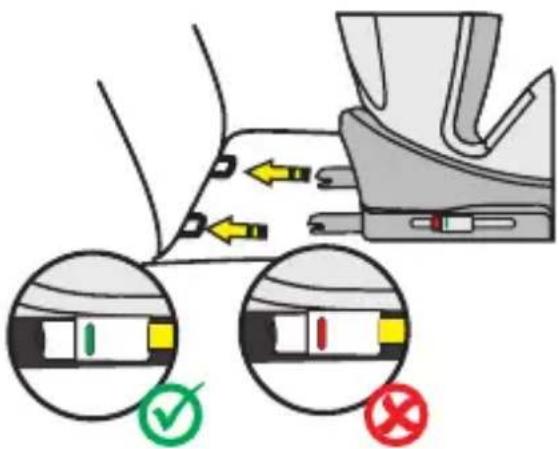

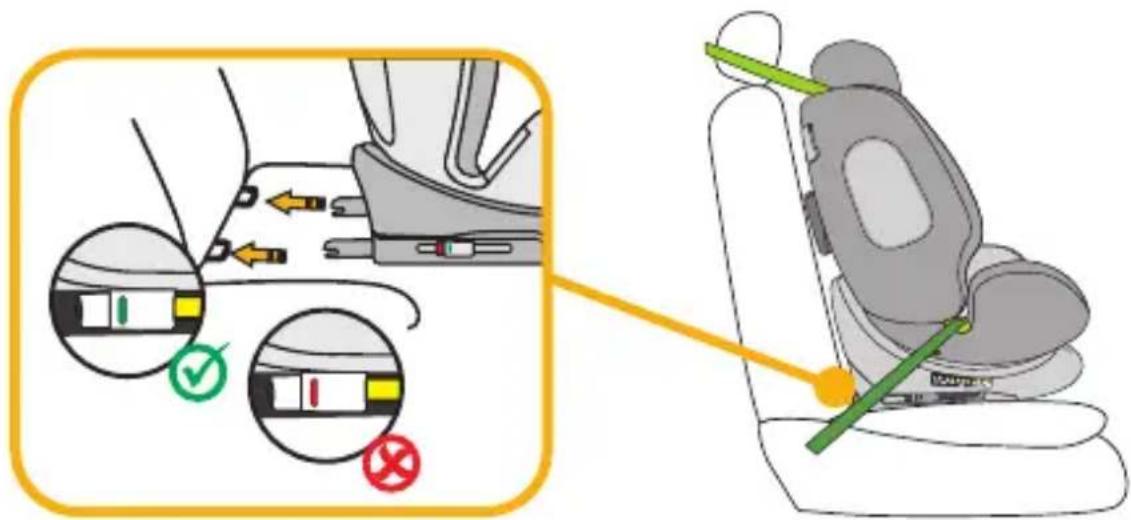

Isofi x connectors

• Press the two lateral Isofi x connector buttons in order to extend the length of the Isofi x connectors.
• Guide the Isofix connectors onto the Isofix anchor points on the seat of the vehicle and ensure that they lock into position.
• Push the child car seat in until it rests securely against the backrest of the seat of the vehicle. Press again individually on the left and right side of the child car seat and make sure that the connectors are fully engaged and that the child seat does not wobble. Ensure that both Isofi x indicators are showing green.

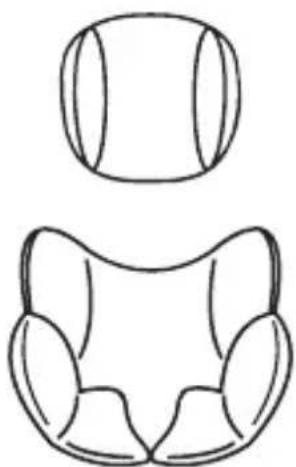

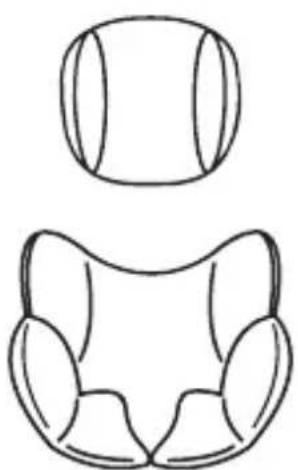

Head cushion & comfort insert

• The head cushion and comfort insert are designed for babies with a body height of 40-75 cm.
• Please remove both inserts as soon as your child has exceeded the specified body size.

Simple line drawing of a symmetrical abstract shape resembling a stylized face or mask (no text or symbols)

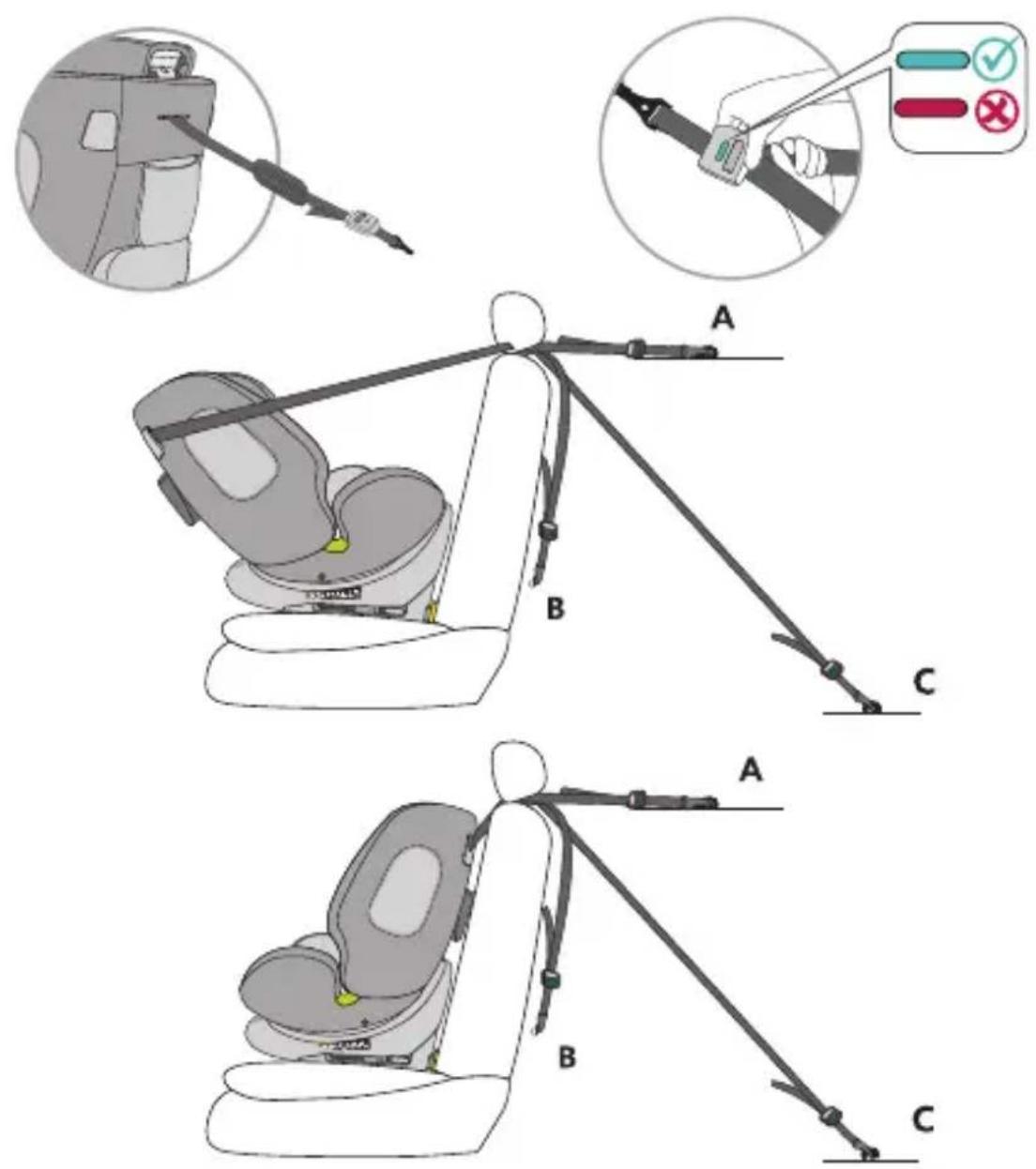

Top tether for size range 40-105 cm

• Remove the top tether from the storage bag.
• To release the top tether, press the grey button with one hand and pull the side of the belt anchor to the required length with the other hand.
• To fix the top tether, clip the anchor to the fixing point on the car seat and pull it as tight as possible. The display does not turn green until the belt is tightened sufficiently.
• When using the child car seat rearward facing, the top tether strap must be threaded through the top tether guide on the side of the child car seat. Ideally, use the guide towards the interior of your car to ensure rotation to the car door for easy entry and exit.
• The Top-Tether strap is only necessary for the size range 40-105 cm. In the 100-150 cm size class, you can stow the Top-Tether strap back in the storage bag.

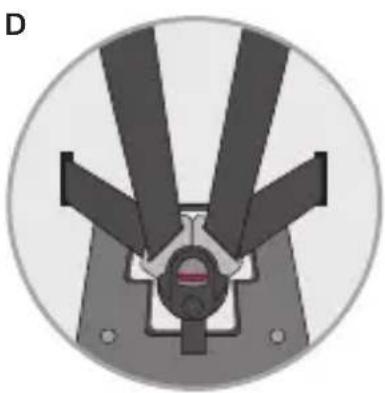

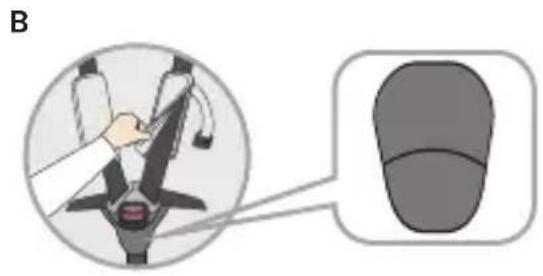

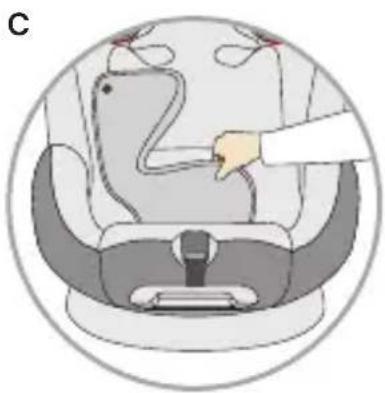

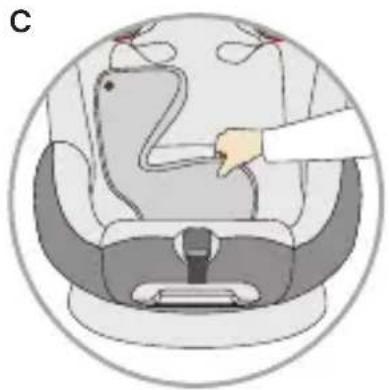

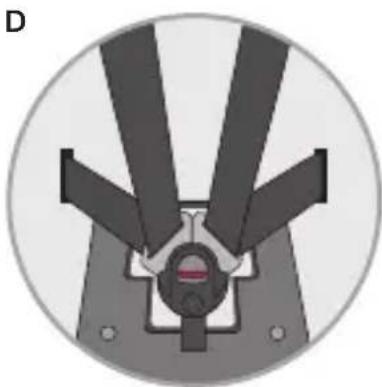

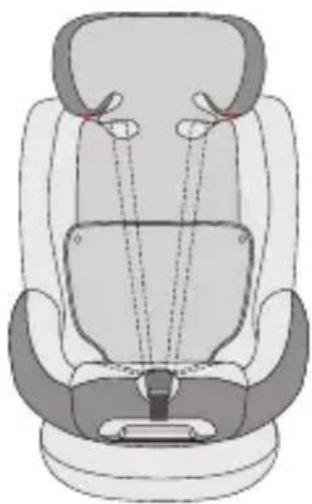

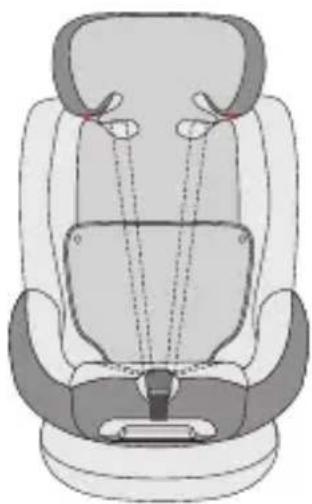

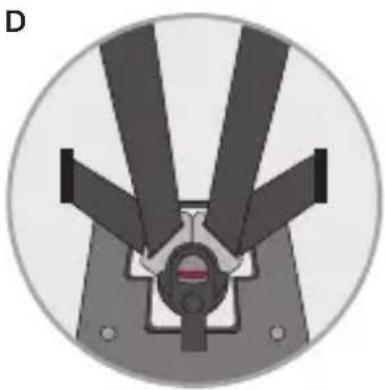

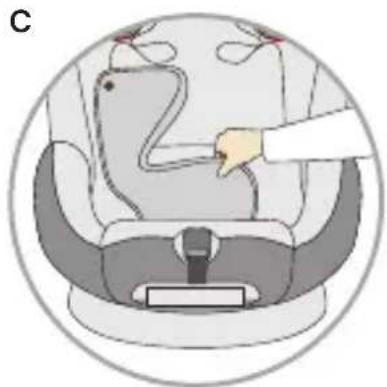

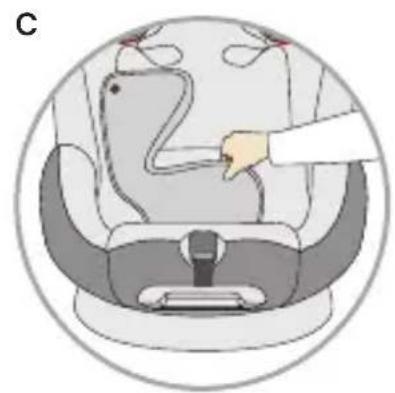

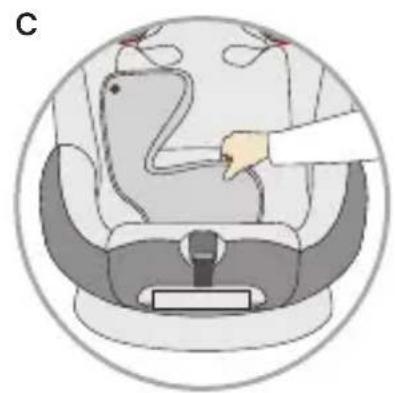

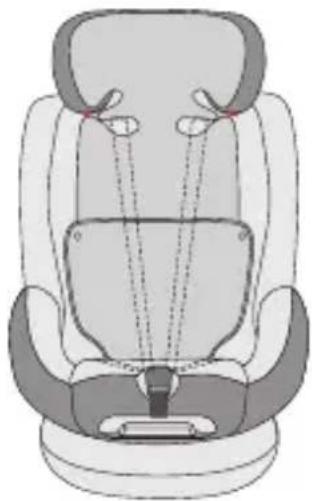

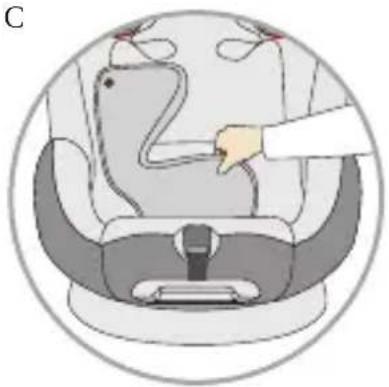

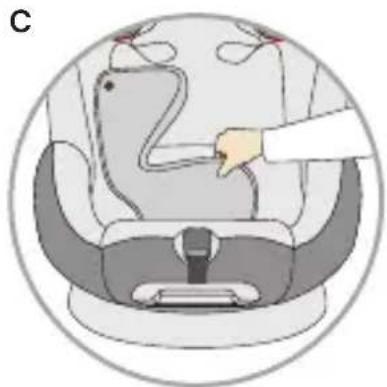

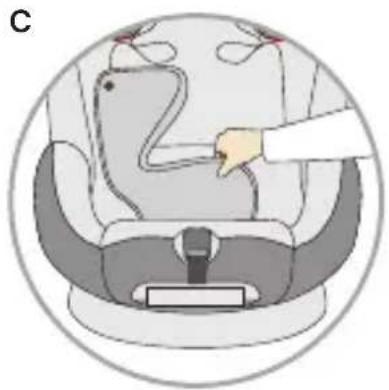

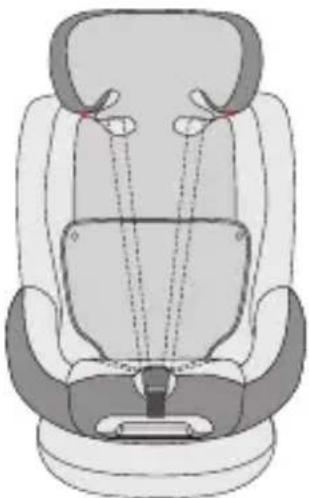

Stowing the 5-point seat belt for size class 100-150 cm

• Open the seat cover at the back of the child car seat and unthread the shoulder pads from their hooks (fi g. A). Open the shoulder pads by their press studs so that you can completely remove the shoulder pads from the child seat (Fig. B). Also remove the seat belt buckle pad.
• Loosen the belt system to the maximum length.
• Stow the Top-Tether belt in the storage bag at the back of the child car seat.
• Open the cover in the back area at its press studs and fold it away. Also fold the lower part of the headrest cover to the side (Fig. C).
• Open the harness system and bring the shoulder straps behind the cover.
• Carefully pull off the cover in the seat area so that you can pass the seat belt buckle through the opening in the seat cover.

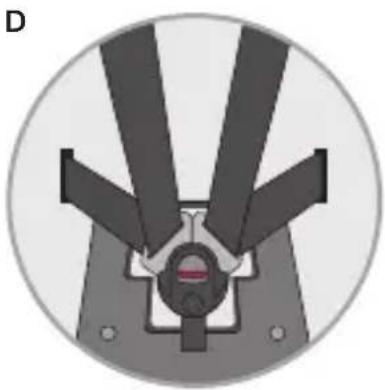

• Insert the belt buckle tongues into the belt buckle and stow it in the recess in the seat area (Fig. D).
• Put the cover back over the seat area, making sure that the cover is in its slot.
• Fold back the lower part of the headrest cover and fold up the backrest cover again and close it with its press studs.
• Keep the removed pads in a safe place for later use.

Diagram showing a mechanical assembly with a bracket and a close-up view of the component (no text or symbols)

Illustration of a person adjusting a car seatbelt device (no text or symbols visible)

Diagram of a mechanical assembly with symmetrical arms and central component (no text or symbols)

Illustration of a car seat with seatbelt and seat, showing no text or symbols

CLEANING

To guarantee the long-term usage of your child car seat, do not use any solvents, abrasive cleaners or aggressive cleaning agents to clean the car seat. Check the stability of the fabric and of the seams after each wash. When washing the fabric, carefully follow the instructions on the label (see below).

Wash at 30 °C, gentle wash cycle

DO NOT iron

DO NOT bleach

DO NOT dry clean

Tumble dry at low temperature

MAINTENANCE

Regularly check the condition of the product for possible damage. In the event of damage, the child car seat must no longer be used and must be stored out of the reach of children.

In case of any issues, please contact

Osann customer service on [phone].

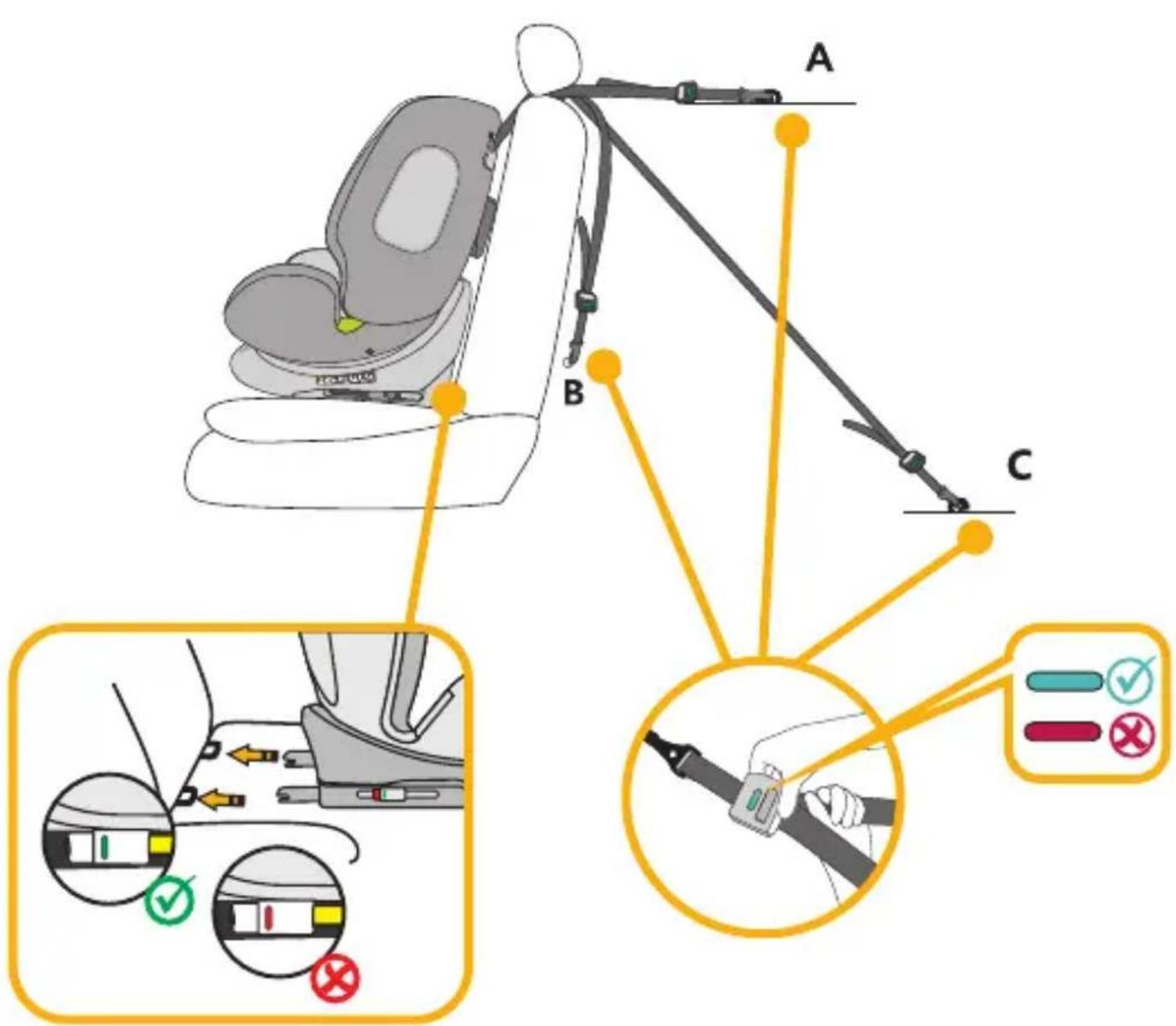

INSTALLATION OF THE CHILD CAR SEAT

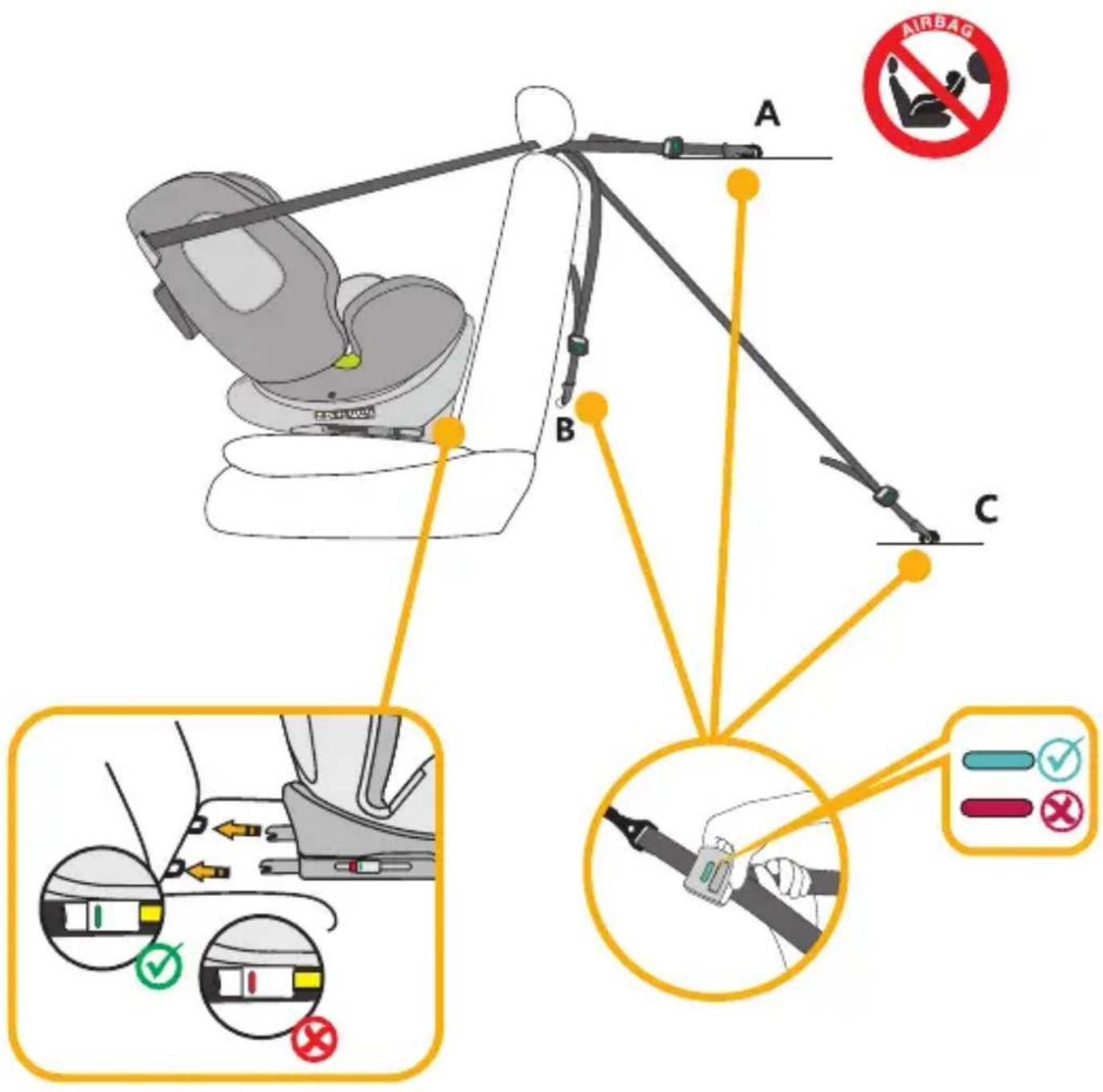

1) Size class 40-105 cm, max. 18 kg, rear-facing

1. Adjust the child car seat to the maximum reclining position and turn it so that it points to the R1 - 40-75 cm seating position in rear-facing orientation. If your child's height exceeds 75 cm, please change to the seat position R2 - 76-105 cm.
2. Press the two lateral Isofix connector buttons in order to extend the length of the Isofix connectors.
3. Guide the Isofix connectors onto the Isofix anchor points on the seat of the vehicle and ensure that they lock into position.
4. Push the child car seat in until it rests securely against the backrest of the seat of the vehicle. Press again individually on the left and right side of the child car seat and make sure that the connectors are fully engaged and that the child seat does not wobble. Ensure that both Isofi x indicators are showing green.
5. Take the top tether out of the storage bag and extend it to its full length.
6. The Top-Tether belt must be threaded through the Top-Tether guide on the side of the child car seat. Ideally, use the guide towards the interior of your car to ensure rotation to the car door for easy entry and exit.
7. Clip the top tether onto the hook provided in your car (e.g. on the back of the car seat or in the boot. Please consult your car manual for this).
8. Tighten the top tether until the display on the top tether turns green.
9. When placing your child in the child car seat, turn the car seat towards the car door for convenience.
10. Unfasten the belt buckle on the child car seat and place the belts on the outside of the seat.
11. Put your child in the child car seat.
12. Adjust the height of the headrest as described above.
13. Fasten the belt buckle again until you hear a click.
14. Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.
15. Turn the seat into the rear-facing position. Check that the child car seat is locked in this position.

INSTALLATION OF THE CHILD CAR SEAT

2) Height class 76–105 cm, min. 15 months, max. 18 kg, forward-facing

IMPORTANT: DO NOT USE THE CHILD CAR SEAT FACING IN THE DIRECTION OF TRAVEL UNTIL THE CHILD HAS REACHED THE AGE OF 15 MONTHS.

1. Press the two lateral Isofix connector buttons in order to extend the length of the Isofix connectors.
2. Guide the Isofix connectors onto the Isofix anchor points on the seat of the vehicle and ensure that they lock into position.
3. Push the child car seat in until it rests securely against the backrest of the seat of the vehicle. Press again individually on the left and right side of the child car seat and make sure that the connectors are fully engaged and that the child seat does not wobble. Ensure that both Isofi x indicators are showing green.
4. Take the top tether out of the storage bag and extend it to its full length.
5. Clip the top tether onto the hook provided in your car (e.g. on the back of the car seat or in the boot. Please consult your car manual for this).
6. Tighten the top tether until the display on the top tether turns green.
7. Unfasten the belt buckle on the child car seat and place the belts on the outside of the seat.
8. Put your child in the child car seat.
9. Adjust the height of the headrest as described above.
10. Fasten the belt buckle again until you hear a click.
11. Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.
12. When facing in the direction of travel, the child car seat offers four adjustable seat positions.

INSTALLATION OF THE CHILD CAR SEAT

3) Size class 100-150 cm, forward-facing

1. The 5-point seat belt and top-tether harness of the child car seat must be stowed as previously described. These are not needed in this size class.
2. Press the two lateral Isofix connector buttons in order to extend the length of the Isofix connectors.
3. Guide the Isofix connectors to the Isofix anchor points on the car seat and snap them into place.
4. Push the child car seat in until it rests securely against the backrest of the seat of the vehicle. Press again individually on the left and right side of the child car seat and make sure that the connectors are fully engaged and that the child seat does not wobble. Ensure that both Isofi x indicators are showing green.
5. Thread the diagonal belt of the 3-point seat belt in the car through the diagonal belt guide on the headrest of the child car seat.
6. Thread the lap belt of the car's 3-point seat belt through the first lap belt guide in the seat area of the child car seat.
7. When placing your child in the child car seat, turn the car seat towards the car door for convenience.
8. Put your child in the child car seat.
9. Adjust the height of the headrest so that the child's head is fully in the headrest and the diagonal belt comes out through the belt guide at the level of the child's shoulders.
10. Turn the seat into the forward-facing position. Check that the child car seat is locked in this position.
11. Close the belt buckle of the 3-point seat belt until you hear a click.
12. Make sure that both the diagonal belt and the lap belt run through the second lap belt guide on the child car seat which faces the car's seat belt buckle.
13. Pull on the diagonal strap to tighten it. Make sure that the straps are not twisted.
14. The seat position must be set to position 1.

Installation without Isofi x:

Alternatively, the child car seat in the 100–150 cm size class can also be fitted with the 3-point seat belt only. Attaching the seat with the Isofi x connectors is not absolutely essential but is recommended.

1. & 2.:

Illustration of a child wearing a car seat with hands adjusting the seat (no text or symbols)

Illustration of a car seatbelt with arrows indicating seat movement (no text or symbols)

Illustration of a child in a car seat being lifted, showing two different positions (no text or symbols present)

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Connecteurs Isofi x

Simple line drawing of a symmetrical abstract shape resembling a stylized face or mask (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a close-up view of a fastener (no text or symbols present)

Illustration of a hand holding a bicycle seatbelt with a magnified view of the seat (no text or symbols)

Illustration of a car seat with a hand holding the cable, no text or symbols present

Circular diagram showing a mechanical or electrical component with symmetrical blades and central hub (no text or symbols)

Illustration of a car seat with seatbelt and seat, no text or symbols present

NETTOYAGE

1. & 2.:

Illustration of a baby car seat with hands adjusting the seat (no text or symbols)

Illustration of a car seat with hands adjusting seatbelt, showing motion arrows (no text or symbols)

Illustration of a child in a car seat being lifted, showing two different positions (no text or symbols present)

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Connettori Isofi x

Simple line drawing of a symmetrical abstract shape resembling a stylized face or mask (no text or symbols)

Diagram showing a belt buckle assembly with a close-up view of the buckle (no text or symbols present)

B

Illustration of a hand adjusting a car seatbelt, with a close-up of the seat (no text or symbols present)

Illustration of a person adjusting a car seatbelt using a medical device (no text or symbols present)

Diagram of a mechanical assembly with four blades and a central component, enclosed in a circular frame (no text or symbols)

Illustration of a car seat with seatbelt and seat, no text or symbols present

PULIZIA

1 en 2:

Illustration of a baby car seat with hands adjusting the seat (no text or symbols)

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing no text or symbols on the seats or background.

Gordel instellen

Illustration of a child in a car seat being lifted, showing two different positions (no text or symbols present)

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Isofi x-connectoren

Two simple line drawings of abstract geometric shapes, one rounded and one symmetrical (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a close-up view of a fastener (no text or symbols present)

Illustration of a car seat with a hand holding the cable, no text or symbols present

Circular diagram showing a mechanical or electrical component with symmetrical blades and central hub (no text or symbols)

Illustration of a car seat with seatbelt and seat, no text or symbols present

REINIGING

1. y 2.:

Illustration of a child wearing a car seat with hands adjusting the seat (no text or symbols)

Illustration of a car seatbelt with arrows indicating seat movement (no text or symbols)

Ajustar el cinturón

Illustration of a child in a car seat being lifted, showing two different positions (no text or symbols present)

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Conectores Isofi x

Simple line drawings of a rounded object and a stylized cat face (no text or symbols)

Diagram showing a mechanical component with a close-up view of a hand holding a spring (no text or symbols present)

B

Illustration of a hand adjusting the seatbelt with a magnified view of the seat (no text or symbols)

Illustration of a car seat with a hand adjusting the seat area (no text or symbols)

Diagram of a mechanical or electrical component with symmetrical blades and central hub, enclosed in a circular frame (no text or symbols)

Illustration of a car seat with seatbelt and seat, no text or symbols present

LIMPIEZA

IMPORTANTE: NO UTILICE EL ASIENTO INFANTIL EN EL SENTIDO DE LA MARCHA HASTA QUE EL NIÑO CUMPLA 15 MESES.

Illustration of a person seated in a car seat with a green belt, showing the seatbelt being lifted (no text or symbols present)

1. a 2.:

Illustration of a baby car seat with hands adjusting the seat (no text or symbols)

Illustration of a car seat with a belt buckle and orange arrows indicating rotation (no text or symbols)

Nastavení pásu

Illustration of a child in a car seat being lifted, showing two different positions (no text or symbols present)

Diagram showing a belt buckle assembly with a close-up view of the component (no text or symbols)

B

Illustration of a hand adjusting a car seatbelt, with a close-up of the seat (no text or symbols present)

C

Illustration of a person adjusting a car seatbelt using a medical device (no text or symbols present)

D

Circular diagram with abstract geometric shapes and central elements, no text or symbols present

Illustration of a car seat with seatbelt and seat, showing no text or symbols

ČIŠTĚNÍ

1. & 2.:

Illustration of a car seat with hands adjusting the seat (no text or symbols)

Illustration of a car seatbelt with arrows indicating seat movement (no text or symbols)

Regulacja pasa

Illustration of a child in a car seat being lifted, showing two different positions (no text or symbols present)

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Łączniki ISOFIX

Two simple line drawings of abstract geometric shapes, one rounded and one symmetrical (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a close-up of a belt buckle (no text or symbols)

B

Illustration of a hand adjusting a car seatbelt, with a close-up of the seat (no text or symbols present)

Illustration of a person adjusting a car seatbelt using a medical device (no text or symbols present)

Diagram of a mechanical assembly with four blades and a central component, enclosed in a circular frame (no text or symbols)

Illustration of a car seat with seatbelt and seat, showing no text or symbols

CZYSZCZENIE

WAŻNA INFORMACJA: FOTELIKA DZIECIĘCEGO NIE NALEŻY UŻYWAĆ W POZYCJI PRZODEM DO KIERUNKU JAZDY, DOPÓKI DZIECKO NIE UKOŃCZY WIEKU 15 MIESIĘCY.

1. a 2.:

Illustration of a baby car seat with hands adjusting the seat (no text or symbols)

Illustration of a car seat with hands adjusting seatbelt, showing motion arrows (no text or symbols)

Nastavenie pásu

• Ak chcete pás uvol'nit, stlačte jednou rukou tlačidlo prestavenia pásu v sedacej časti. Druhou rukou držte zámok pásu a opatrne uvol'nite pripevnené pásy.
• Zatiahnite za prednú nastavovaciu sponu, aby ste pásy napli. Dbajte na to, aby sa remene nepretočili.

Illustration of a child in a car seat being lifted, showing two different positions (no text or symbols present)

Otvorenie/zatvorenie pásu

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Konektory Isofi x

Two simple line drawings of abstract geometric shapes, one rounded and one symmetrical (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a close-up of a belt buckle (no text or symbols present)

B

Illustration of a hand adjusting a car seatbelt, with a close-up of the seat (no text or symbols present)

Illustration of a person adjusting a car seatbelt using a medical device (no text or symbols present)

Diagram of a mechanical assembly with four blades and a central component, enclosed in a circular frame (no text or symbols)

Illustration of a car seat with seatbelt and seat, showing no text or symbols

ČISTENIE

DÔLEŽITÉ: NEPOUŽÍVAJTE DETSKÚ AUTOSEDAČKU V SMERE JAZDY, POKIAL' VEK DIĚTĚA ŤA NEPREKROČIL 15 MESIACOV.

1. i 2.:

40 – 105 cm: Samo ako su dostupni Isofi x priključci i kuka za pričvršćivanje Top Tether pojasa. Ugradnja okrenuta prema natrag smije se provesti samo ako se zračni jastuk može deaktivirati.

Illustration of a baby car seat with hands adjusting the seat (no text or symbols)

Illustration of a car seat with hands adjusting seatbelt, showing motion arrows (no text or symbols)

Namještanje pojasa

Illustration of a child in a car seat being lifted, showing two different positions (no text or symbols present)

Otvaranje/zatvaranje pojasa

• Za otključavanje pojasa pritisnite gumb na kopči pojasa, izvucite jezičce kopče i odvojite ih.
• Kako biste zaključali pojas, najprije spojite dva jezičca kopče i zajedno ih umetnite u kopču pojasa.

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Isofi x konektori

Simple line drawings of two abstract geometric shapes: a rounded rectangle and a symmetrical curved form (no text or symbols)

Top Tether za razred veličine 40 – 105 cm

Diagram showing a mechanical assembly with a bracket and a close-up view of the component (no text or symbols present)

Illustration of a hand holding a device with a close-up view of a computer mouse (no text or symbols)

Illustration of a person adjusting a car seatbelt, no text or symbols present

Diagram of a mechanical assembly with symmetrical arms and central component (no text or symbols)

Illustration of a car seat with neck, front, and side panels (no text or symbols)

ČIŠĆENJE

VAŽNO: NEMOJTE UPOTREBLJAVATI DJEČJU AUTOSJEDALCU POSTAVLJENU U SMJERU VOŽNJE DOK DIJETE NE NAVRŠI 15. MJESEC ŽIVOTA.

1. in 2.:

Illustration of a child wearing a car seat with hands adjusting the seat (no text or symbols)

Illustration of a car seatbelt with arrows indicating seat movement (no text or symbols)

Nastavitev pasu

Illustration of a child in a car seatbelt being lifted by adult hands, showing two scenarios with red arrows indicating force or pressure points (no text or symbols present)

Odpenjanje/pripenjanje pasu

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Priključki Isofi x

Two simple line drawings of a human head and upper body, no text or symbols present.

Pas Top-Tether za kategorijo 40-105 cm

Diagram showing a mechanical assembly with a bracket and a close-up of a belt buckle (no text or symbols present)

B

Illustration of a hand adjusting a car seatbelt, with a close-up of the seat (no text or symbols present)

Illustration of a person adjusting a car seatbelt using a medical device (no text or symbols present)

Diagram of a mechanical or electrical component with symmetrical arms and central hub, enclosed in a circular frame (no text or symbols)

Illustration of a car seat with seatbelt and seat, no text or symbols present

ČIŠČENJE

POMEMBNO: OTROŠKEGA AVTOSEDEŽA NE UPORABLJAJTE V SMERI VOŽNJE, DOKLER OTROK NE DOPOLNI 15 MESECEV STAROSTI.

1. és 2.:

Illustration of a child wearing a car seat with hands adjusting the seat (no text or symbols)

Illustration of a car seatbelt with arrows indicating seat movement (no text or symbols)

Az öv beállítása

Illustration of a child in a car seat being lifted, showing two different positions (no text or symbols present)

Illustration of a hand pressing down on a car seat cover (no text or symbols)

Isofi x-csatlakozók

Simple line drawings of a seated object with a rounded top and a flat base (no text or symbols)

Diagram showing a mechanical assembly with a bracket and fastener (no text or symbols)

B

Illustration of a hand adjusting the seatbelt with a magnified view of the seat (no text or symbols)

Illustration of a car seat with a hand adjusting the seat area (no text or symbols)

Diagram of a mechanical or electrical component with symmetrical arms and central hub, no visible text or symbols

Illustration of a car seat with seatbelt and seat, no text or symbols present

TISZTÍTÁS

FONTOS: NE HASZNÁLJA A GYERMEKÜLÉST MENETIRÁNYBAN, MIELŐTT GYERMEKE BETÖLTENÉ A 15 HÓNAPOS ÉLETKORT.
