USER MANUAL Taos360 midi Osann

Icon of an open book with an information symbol inside a yellow circle (no text or symbols)

DENLFRENIT

ESPLCZSKHR

SIHU

osann

Diagram of a car with numbered positions and checkmarks indicating status or options, including red 'X' and green checkmarks.

1. & 2.:

mind. 15 Monate alt:

Illustration of a car seat with a hand adjusting the seatbelt, showing a yellow curved arrow indicating rotation (no text or symbols present)

Illustration of a car seat with hands adjusting seatbelt, showing orange arrows indicating motion (no text or symbols)

Illustration of a child in a car seat being adjusted for seatbelt, showing two different states of change (no text or symbols present)

Illustration of a person adjusting a car seat with a hand placing a gold coin (no text or symbols present)

Isofi x-Konnektoren

Diagram showing seatbelt buckle assembly with directional arrows and safety check icons

Two identical line drawings of a car seat with yellow connectors and orange dots, no text or symbols present.

Safety warning illustration showing a hand using a cable to test a switch, with checkmarks and no symbols indicating inspection or failure.

Diagram illustrating car seatbelt usage and safety instructions, showing steps from seat to seatbelt with check and dislocation options.

Diagram illustrating car seatbelt usage with labeled parts and safety icons

Thank you for choosing our child car seat. If you need help with this product, please contact our customer service.

USE

• This product is suitable for children with a height of 76 to 150~cm .
• Rear-facing installation for children with a height of 76 to 105cm is carried out using the Isofix connectors and the top tether strap. The child is strapped in with the 5-point child car seat belt.
• Forward-facing installation for children with a height of 76 to 105cm and a minimum age of 15 months is carried out using the Isofix connectors and the top tether strap. The child is strapped in with the 5-point child car seat belt.
• Forward-facing installation for children with a height of 100 to 150 cm is carried out using the Isofi x connectors. The top tether strap is not needed in this height range. The child is strapped in with the 3-point car seat belt Alternatively, the child car seat can also be fitted with the 3-point child car seat belt only for children with a height of 100–150 cm. Attaching the seat with the Isofi x connectors is not absolutely essential but is recommended.

IMPORTANT

DO NOT USE THE CHILD CAR SEAT FACING IN THE DIRECTION OF TRAVEL UNTIL THE CHILD HAS REACHED THE AGE OF 15 MONTHS.

EXTREME DANGER

We recommend installing the child car seat on the rear seat of the vehicle. DO NOT attach the child car seat for rear-facing use for children with a height of 76 to 105 cm on a front seat where there is an airbag. It may be used on the front seat if the airbag can be deactivated. Please refer to the vehicle manual for more information about this.

PLEASE NOTE

NOTE (76–105 cm):

This is an i-Size child restraint system. It is approved under Regulation No. 129 for use on "i-Size compatible" vehicle seats as specified by the vehicle manufacturer in the vehicle manual. In cases of doubt, please contact the manufacturer of the child restraint system or your retailer.

The child restraint system can be used on all Isofi x seats as long as there is also an attachment hook for the top tether.

NOTE (100 - 150 cm):

This is an optimised i-Size children's booster seat. It is approved under Regulation No. 129 for use primarily on "i-Size vehicle seats" as specified by vehicle manufacturers in the vehicle manual. If

in doubt, contact either the manufacturer of the extended child restraint system or the dealer.

The optimised i-Size booster seat can also be used on all seats in the "universal" category, as long as this does not conflict with the vehicle interior.

If in doubt, please contact the car seat manufacturer or the dealer.

Diagram of a car with numbered positions and checkmarks indicating status or options, including red 'X' and green checkmarks.

1. & 2.:

76-105 cm: Only if Isofi x connectors and a fastening hook for the top tether are available. For rear-facing use and only if the airbag can be deactivated.

100-150 cm: Only if at least a 3-point car seat belt that complies with ECE R16 is available. If Isofi x connectors are available, these can also be used. Securing the child only with a 2-point seat belt is not approved.

The following table provides information about the fastening devices and methods:

Height range	Installation direction	Installation Type Child safety device
76–105 cm	Rear-facing	Isofi x connectors & top tether	i-Size 5-point child car seat belt
76–105 cm	Forward-facing	Isofi x connectors & top tether	i-Size 5-point child car seat belt
100–150 cm	Forward-facing	Isofi x connectors & 3-point car seat belt	i-Size booster seat	3-point car seat belt
100–150 cm	Forward-facing	3-point car seat belt	i-Size booster seat	3-point car seat belt

WARNING

• Please read through these instructions carefully before use in order to guarantee the safety of your child. Keep the instructions for future reference. Non-compliance with the instructions in this manual may result in serious injuries to your child.
• The child seat can only be used with its own 5-point belt system for children who weigh under 18 kg and are less than 105 cm in height.
• The child seat CANNOT be used with the 5-point belt system for children who weigh over 18 kg or are taller than 105 cm.
• The child seat can be installed rear-facing or forward-facing with the Isofix connectors and the top tether strap. Important: Do not install the child car seat in a forward-facing position until the child is at least 15 months old.
• For Isofi x installation: Be sure to read the car manufacturer's manual.
• Do not use load-bearing contact points other than those described in the instructions and indicated in the child restraint system.
• Do not use this child car seat at home. It has been designed exclusively for use in a car.
• Do not leave your child unsupervised in the seat at any time.
• Do not place the rear-facing child car seat on the front seat with an activated airbag. This could lead to serious injuries or death.
• The child seat must be replaced if it is exposed to heavy impact in an accident.
• For safety reasons, the child car seat must be secured in the vehicle even when there is no child sitting in the child car seat.
• Always make sure that all belts that attach the child car seat to the vehicle are secure and that all belts that restrain the child are adjusted to fit the child's body. Ensure that the belts are not twisted.
• Items of luggage and other objects that could cause injury in the event of a collision must be properly secured.
• The rigid elements and plastic parts of a child restraint system must be positioned and installed in such a away that they cannot become jammed by a movable seat or a vehicle door.
• It is important that belts that sit low hold the child's pelvis firmly in place. Your child should always be fastened in to stop them falling out.
• It is dangerous to make changes or additions to the product without approval from the responsible authority. Non-compliance with the installation instructions provided by the manufacturer of the child restraint system may also present risks to the safety of your child.
• This child seat is designed for children with a maximum height of 150 cm. Never overload the child seat by transporting more than one child or additional loads in it.
• The child restraint system must not be used without the seat cover.
• The seat cover must not be replaced by a cover other than that recommended by the manufacturer, as this seat cover is an important component of the restraint system.

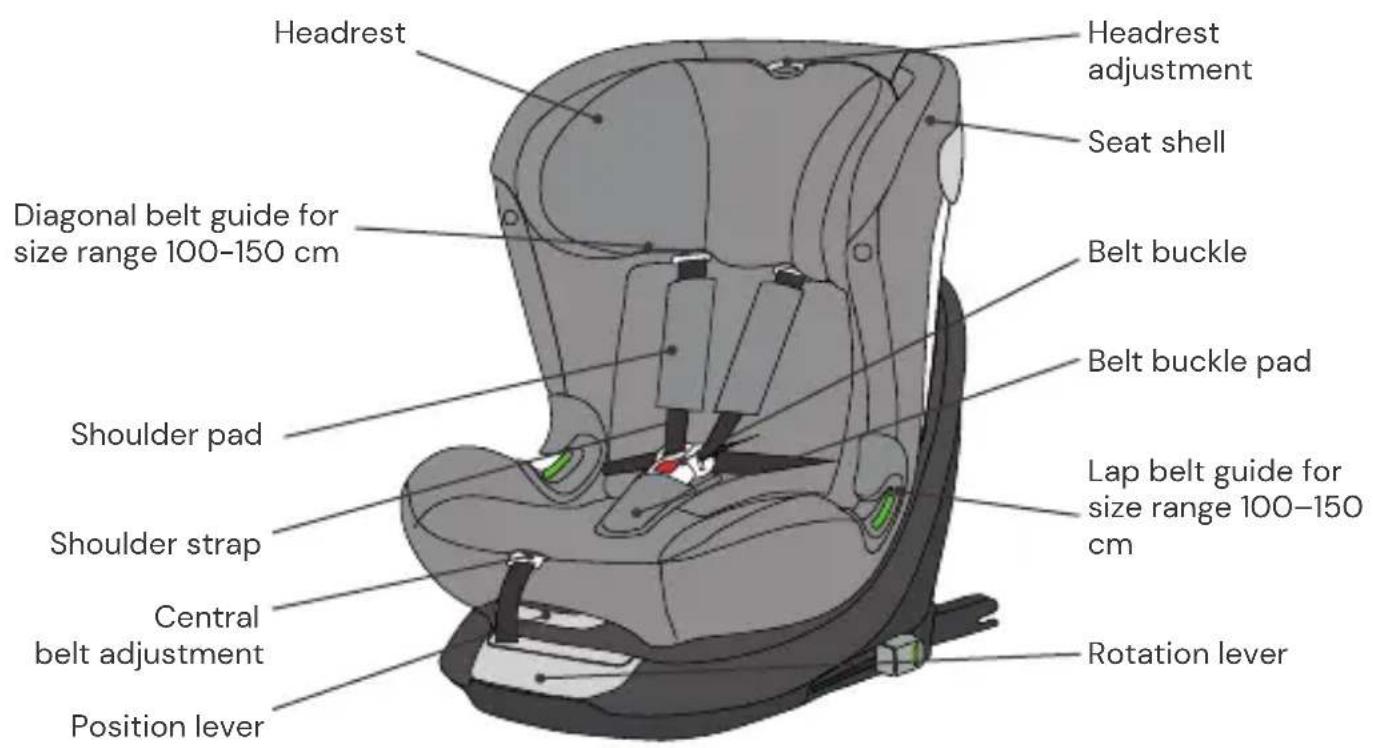

SEAT PARTS

Front view

Headrest Headrest adjustment Seat shell Diagonal belt guide for size range 100-150 cm Belt buckle Belt buckle pad Shoulder pad Lap belt guide for size range 100-150 cm Shoulder strap Central belt adjustment Rotation lever Position lever

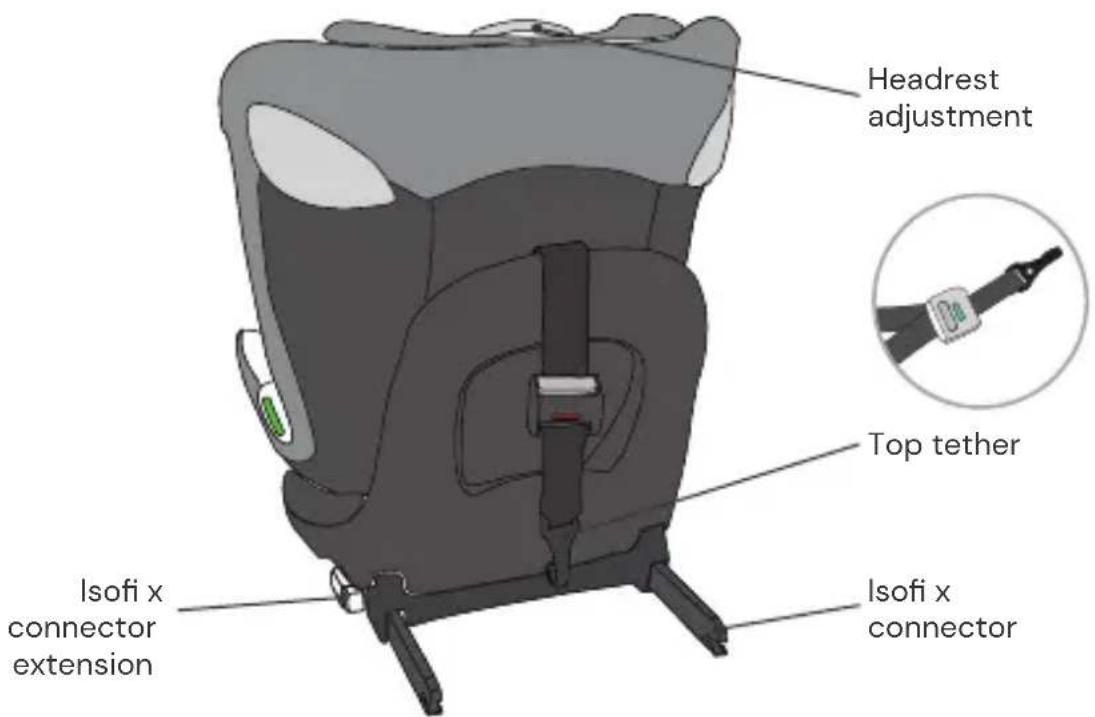

Rear view

Headrest adjustment Top tether Isofi x connector extension Isofi x connector

USING THE CHILD CAR SEAT

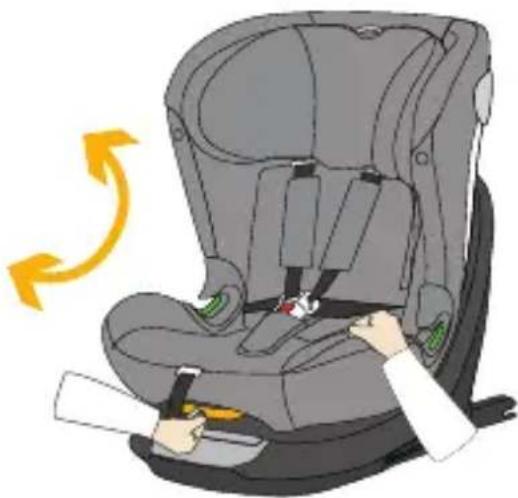

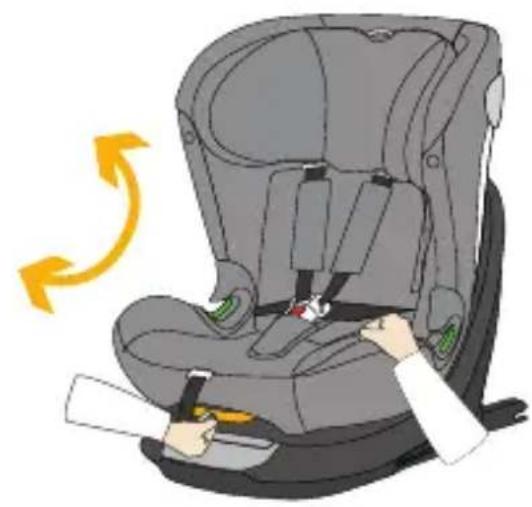

Adjusting the child car seat tilt angle

• Use one hand to operate the position lever on the lower front of the seat shell.
• Hold the seat shell with the other hand and adjust the angle.

The following seat positions are possible:

(Please see the label on the child car seat)

Rear-facing, height 76–105 cm, position: R

Forward-facing, height 76–105 cm, at least 15 months old: 4 positions (1-4)

Forward facing, body size: 100-125 cm: 4 positions (1-4) 126-150 cm: 1 position (1)

Illustration of a car seatbelt being adjusted for a person's seatbelt, with no text or symbols present.

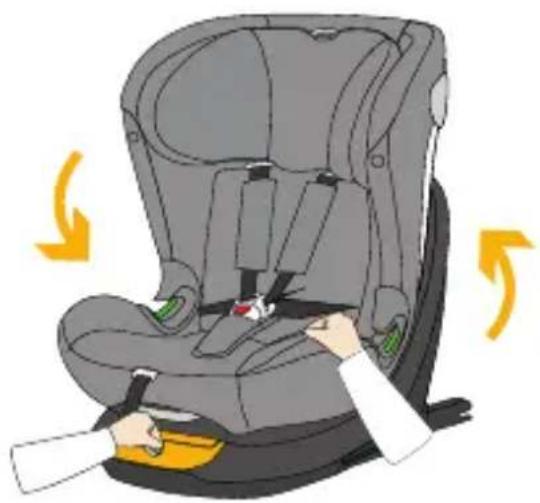

Turning the child car seat

• Pull the rotation lever on the front of the base with one hand and use the other hand to rotate the seat unit in the desired direction of travel.
• The forward-facing position is only suitable for children who are at least 15 months old with a minimum height of 76 cm. The rear-facing position is designed for children from 76 to 105 cm in height with a maximum weight of 18 kg.
• The side position is only intended to facilitate the child's entry. This position must not be used while driving.

Illustration of a car seat with hands adjusting seatbelt, showing orange motion arrows (no text or symbols)

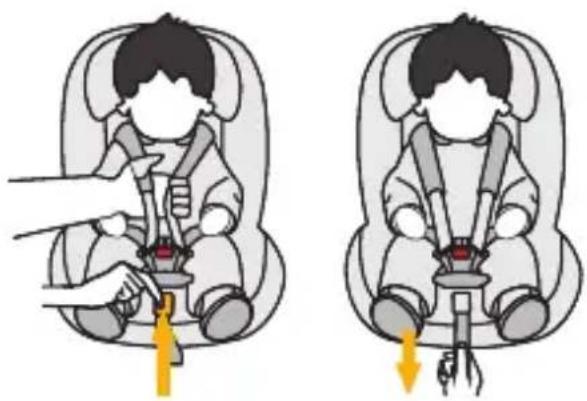

Adjusting the belt

• Press the belt adjustment button through the small opening at the front of the seat cover. Hold the belt buckle with the other hand and carefully loosen the attached belts.
• Pull the front adjustment strap to tighten the belts. Make sure that the straps are not twisted.

Illustration of a child in a car seat being adjusted for seatbelt, showing two different states of change (no text or symbols present)

Opening/closing the belt

• To unlock the belt, press the button on the belt buckle, pull out the buckle tongues and separate them.
• To lock the belt, first connect both tongues of the buckle and then insert them together into the belt buckle.

Click

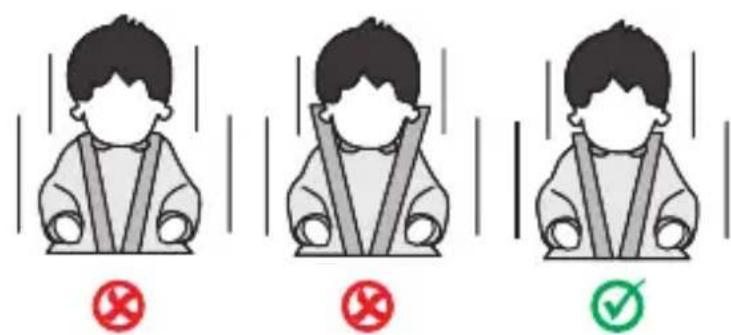

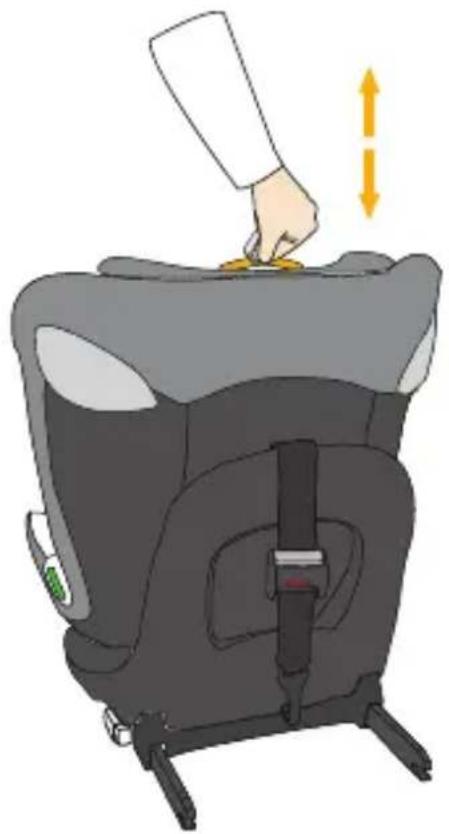

Adjusting the headrest

• Release the belt and pull the lever to adjust the headrest on the back of the child car seat. Move the headrest until it engages at the correct height.
• Make sure the shoulder straps are positioned just above your child's shoulders when they come out of the child car seat.
• Release the lever and ensure that the headrest is engaged.

Illustration of a person adjusting a car seat with a hand placing a gold coin (no text or symbols present)

Isofi x connectors

• Press the two side Isofi x connector buttons to extend the length of the Isofi x connectors.
• Guide the Isofi x connectors to the Isofi x anchor points on the car seat and snap them into place.
• Push the child car seat in until it rests securely against the backrest of the vehicle seat. Ensure that both Isofix indicators are showing green.

Diagram showing seatbelt buckle assembly with directional arrows and safety check icons

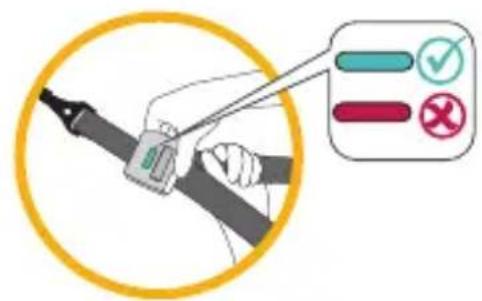

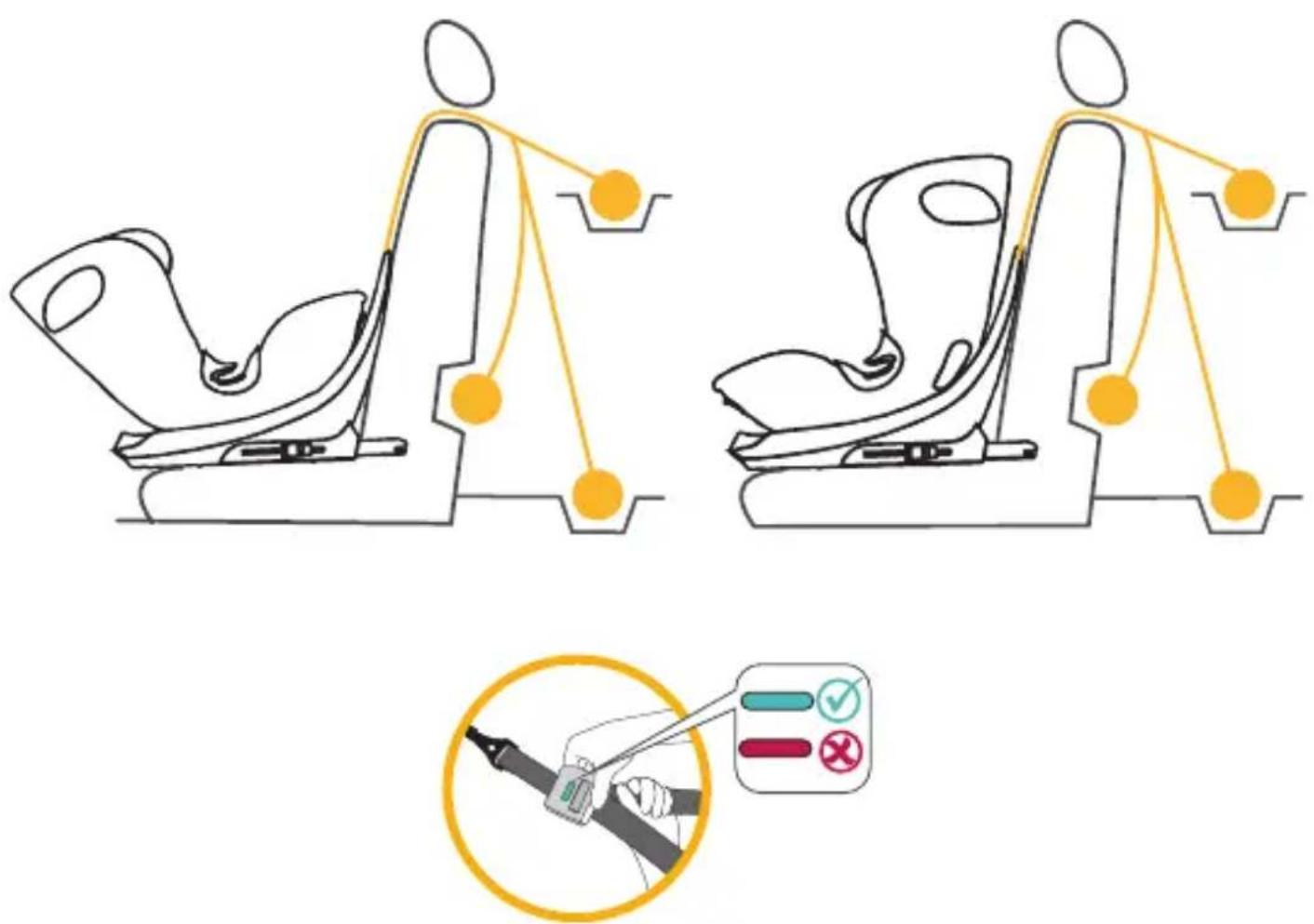

Top tether for size range 76-105 cm

• Remove the top tether from the pocket.
• To release the top tether, press the grey button with one hand and pull the side of the belt anchor to the required length with the other hand.
• To attach the top tether, hang the anchor on the attachment point on the car seat (e.g. back of the car seat or in the trunk. Please refer to your car's manual) and pull it as tight as possible. The display does not turn green until the belt is tightened sufficiently.
• The top tether strap is only necessary for children who are in the size range of 76–105 cm in height. For children in the size range of 100–150 cm, you can stow the top tether strap away in the storage bag.

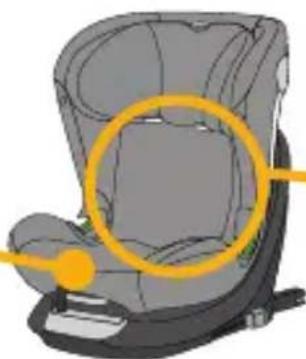

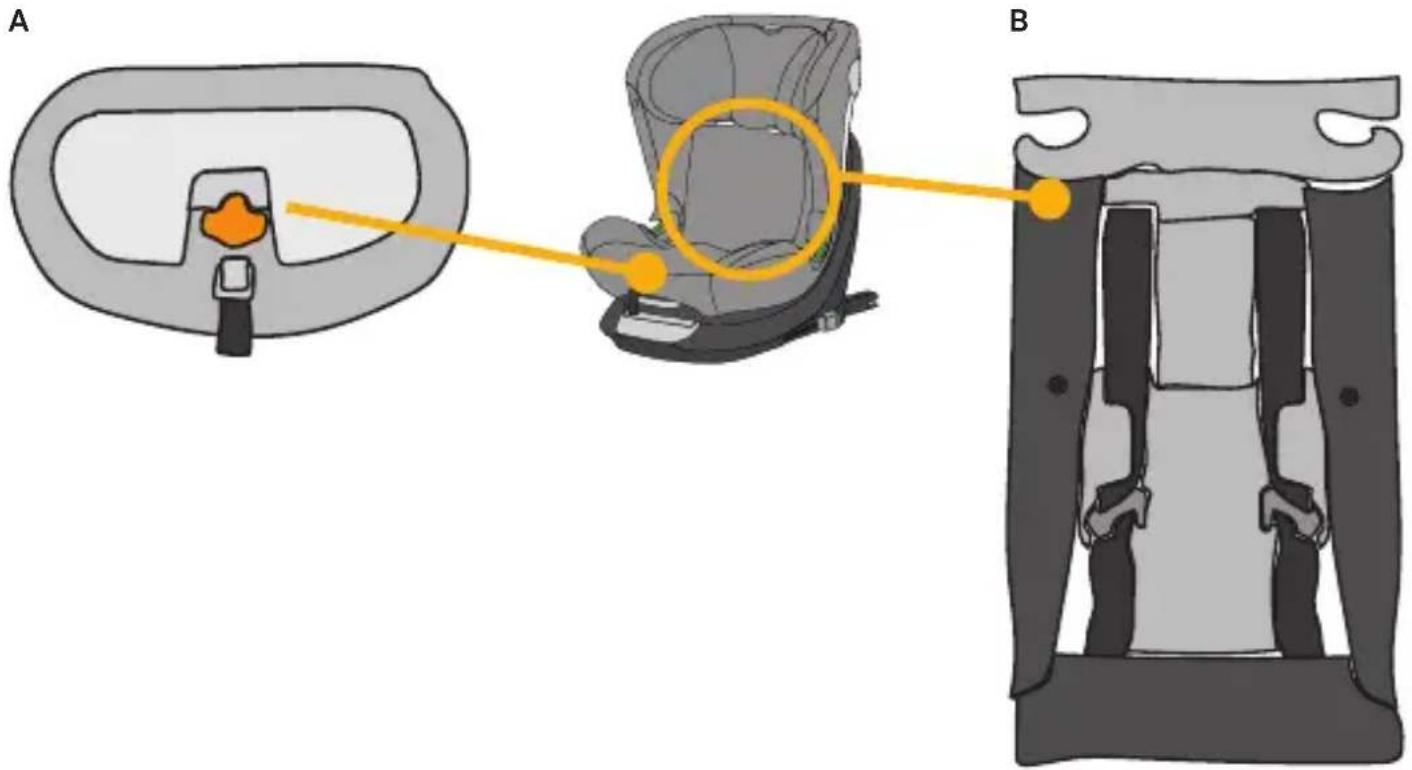

Stowing the 5-point seat belt away for size range 100 - 150 cm

• Loosen the belt system to the maximum length and open it.
• Open the shoulder pads using their snap buttons and unthread them from their hooks so that you can completely remove the shoulder pads from the child seat. Also remove the seat belt buckle pad.
• Carefully pull off the cover in the seat area so that you can pass the seat belt buckle through the opening in the seat cover.
• Store the belt buckle in the recess in the seat area (Fig. A).
• Put the cover back over the seating area.

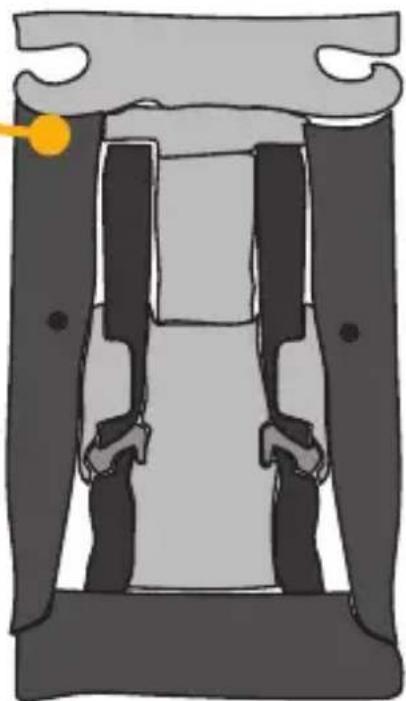

• Open the cover in the back area using its snap buttons and fold it away. Also fold the lower part of the headrest cover to the side.
• Place the shoulder straps behind the cover.
• Store the belt buckle tongues in the back area of the child car seat and thread the shoulder straps into their guide slots (Fig. B).
• Any excess length of the shoulder straps can be stored in the seating area under the seat cover and its padding.
• Fold back the lower part of the headrest cover and fold up the backrest cover again and close it with its snap buttons.
• Keep the removed pads in a safe place for later use.

A B

CLEANING

To guarantee long-term use of your child car seat, do not use any solvents, abrasive cleaners or aggressive cleaning agents to clean the car seat. Check the stability of the fabric and the seams after each wash. When washing the fabric, carefully follow the instructions on the label (see below).

Wash at 30 °C, gentle cycle

DO NOT iron

DO NOT bleach

DO NOT dry clean

Tumble dry at low temperature

MAINTENANCE

Regularly check the condition of the product for any damage. In the event of damage, do not use the product and keep it out of reach of children.

In case of any issues, please contact

Osann customer service on [phone].

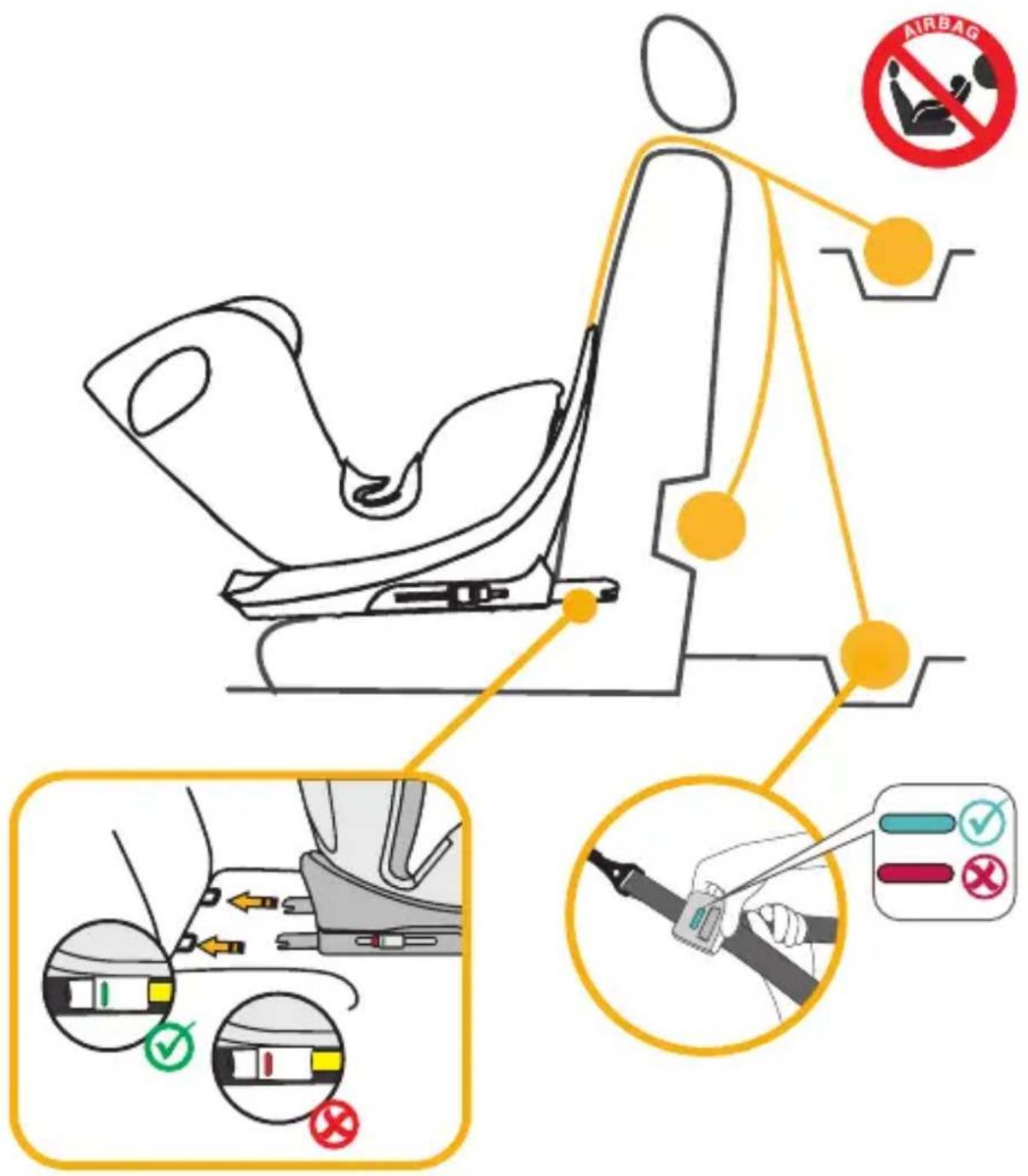

INSTALLATION OF THE CHILD CAR SEAT

1) Height range 76–105 cm, max. 18 kg, rear-facing

AIRBAG

1. Set the child car seat to the maximum reclining position and turn it until it is in rear-facing seat position R.
2. Press the two side Isofix connector buttons to extend the length of the Isofix connectors.
3. Guide the Isofix connectors to the Isofix anchor points on the car seat and snap them into place.
4. Push the child car seat in until it rests securely against the backrest of the vehicle seat. Ensure that both Isofi x indicators are showing green.
5. Take the top tether out of the storage bag and extend it to its full length.
6. Clip the top tether onto the hook provided in your car (e.g. on the back of the car seat or in the boot. Please consult your car manual for this).
7. Tighten the top tether until the display on it turns green.
8. When placing your child in the child car seat, turn the car seat towards the car door for convenience.
9. Unfasten the belt buckle on the child car seat and place the belts over the outside of the seat.
10. Put your child in the child car seat.
11. Adjust the height of the headrest as described above.
12. Fasten the belt buckle again until you hear a click.
13. Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.
14. Turn the seat into the rear-facing position. Check that the child car seat is locked in this position.

INSTALLATION OF THE CHILD CAR SEAT

2) Height range 76–105 cm, at least 15 months of age, max. 18 kg, forward-facing

Diagram illustrating car seatbelt usage and safety instructions, showing steps from seat to seatbelt with check and dislocation options.

IMPORTANT: DO NOT USE THE CHILD CAR SEAT FACING IN THE DIRECTION OF TRAVEL UNTIL THE CHILD HAS REACHED THE AGE OF 15 MONTHS.

1. Press the two side Isofix connector buttons to extend the length of the Isofix connectors.
2. Guide the Isofix connectors to the Isofix anchor points on the car seat and snap them into place.
3. Push the child car seat in until it rests securely against the backrest of the vehicle seat. Ensure that both Isofi x indicators have turned green.
4. Take the top tether out of the storage bag and extend it to its full length.
5. Clip the top tether onto the hook provided in your car (e.g. on the back of the car seat or in the boot. Please consult your car manual for this).
6. Tighten the top tether until the display on it turns green.
7. Unfasten the belt buckle on the child car seat and place the belts over the outside of the seat.
8. Put your child in the child car seat.
9. Adjust the height of the headrest as described above.
10. Fasten the belt buckle again until you hear a click.
11. Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.
12. When facing in the direction of travel, the child car seat offers four adjustable seat positions.

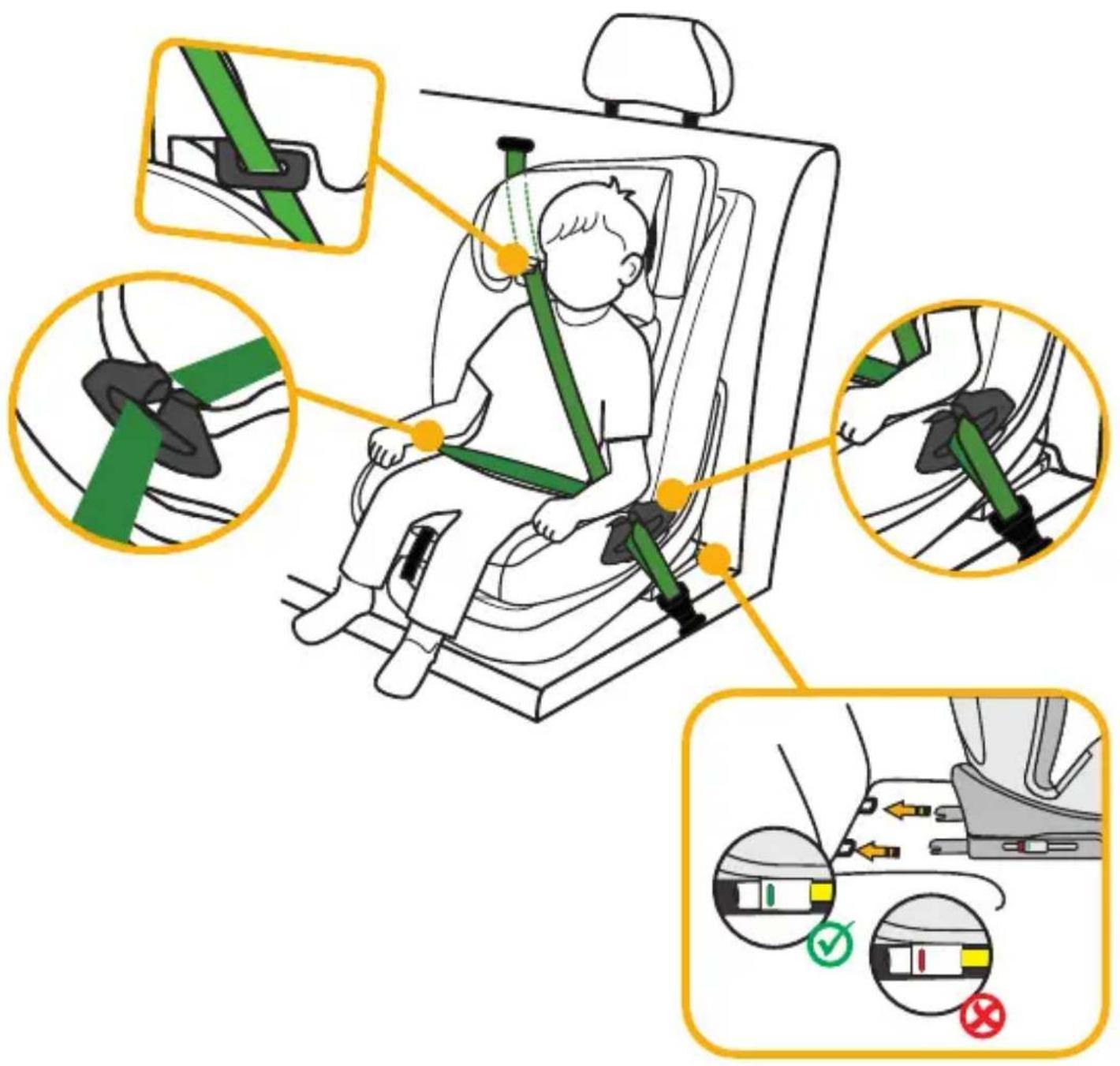

INSTALLATION OF THE CHILD CAR SEAT

3) Size range 100-150 cm, forward-facing

Diagram illustrating car seatbelt usage, showing green belt and safety icons with Chinese labels

1. The 5-point seat belt and top-tether strap of the child car seat must be stowed as previously described. These are not needed in this size range.
2. Press the two side Isofix connector buttons to extend the length of the Isofix connectors.
3. Guide the Isofix connectors to the Isofix anchor points on the car seat and snap them into place.
4. Push the child car seat in until it rests securely against the backrest of the vehicle seat. Ensure that both Isofi x indicators have turned green.
5. Thread the diagonal belt of the 3-point seat belt in the car through the diagonal belt guide on the headrest of the child car seat.
6. Thread the lap belt of the car's 3-point seat belt through the first lap belt guide in the seat area of the child car seat.
7. When placing your child in the child car seat, turn the car seat towards the car door for convenience.
8. Put your child in the child car seat.
9. Adjust the height of the headrest so that the child's head is fully in the headrest and the diagonal belt comes out through the belt guide at the level of the child's shoulders.
10. Turn the seat into the forward-facing position. Check that the child car seat is locked in this position.
11. Fasten the belt buckle of the 3-point seat belt until you hear a click.
12. Make sure that both the diagonal belt and the lap belt run through the second lap belt guide on the child car seat, which faces the car's seat belt buckle.
13. Pull on the diagonal strap to tighten it. Make sure that the straps are not twisted.
14. The child car seat has the following adjustable seat positions in the direction of travel: size range 100–125 cm: 4 positions (1 to 4); size range 126–150 cm: 1 position (1).

Installation without Isofi x:

Alternatively, the child car seat can also be fitted with the 3-point child car seat belt only for children with a height of 100–150 cm. Attaching the seat with the Isofi x connectors is not absolutely essential but is recommended.

Diagram of a car with numbered positions and checkmarks indicating status or options, marked with question marks.

1&2:

Illustration of a car seatbelt being adjusted for a person's seatbelt, with no text or symbols present.

Illustration of a car seat with hands adjusting seatbelt, showing orange arrows indicating motion (no text or symbols)

Illustration of a child in a car seat being adjusted for seatbelt, showing two different states of change (no text or symbols present)

Illustration of a person adjusting a car seat with a hand placing a gold coin (no text or symbols present)

Connecteurs Isofi x

Diagram illustrating seatbelt usage with checkmark and no crossing symbols, showing directional arrows and labeled parts.

Diagram illustrating car seatbelt usage and safety instructions, showing steps from seat to seatbelt with check and dislocation options.

IMPORTANT : N'UTILISEZ PAS LE SIÈGE AUTO POUR ENFANT DANS LA POSITION FACE À LA ROUTE SI L'ENFANT N'A PAS ENCORE ATTEINT L'ÂGE DE 15 MOIS RÉVOLUS.

Diagram illustrating car seatbelt usage, showing green belt and safety icons with Chinese labels

Diagram of a car with numbered positions and checkmarks indicating status or options, including red 'X' and green checkmarks.

1. e 2.:

Illustration of a car seatbelt being adjusted for a person's seatbelt, with no text or symbols present.

Illustration of a car seat with hands adjusting seatbelt, showing orange arrows indicating motion (no text or symbols)

Illustration of a child in a car seat being lifted, showing two different states of the seat (no text or symbols present)

Illustration of a person adjusting a car seat with a hand placing a coin on top, showing seatbelt and seat number (no text or symbols)

Connettori Isofi x

Diagram illustrating seatbelt usage with checkmark and no crossing symbols, showing directional arrows and labeled parts.

Diagram illustrating car seatbelt usage and safety instructions, showing steps from seat to seatbelt with check and dislocation options.

IMPORTANTE: NON UTILIZZARE IL SEGGIOLINO AUTO PER BAMBINI NELLA DIREZIONE DI MARCIA FINO A QUANDO IL BAMBINO NON ABBIA RAGGIUNTO I 15 MESI DI ETÀ.

Diagram illustrating car seatbelt usage, showing green belt and safety icons with Chinese labels

Diagram of a car with numbered positions and checkmarks indicating status or options, including red X and green checkmarks.

1 en 2:

Illustration of a car seatbelt being adjusted for a person's seatbelt, with no text or symbols present.

Illustration of a car seat with hands adjusting seatbelt, showing orange arrows indicating motion (no text or symbols)

Gordel instellen

Illustration of a child in a car seat being adjusted for seatbelt, showing two different states of change (no text or symbols present)

Illustration of a person adjusting a car seat with a hand placing a gold coin (no text or symbols present)

Isofi x-connectoren

Diagram illustrating seatbelt usage with checkmark and no crossing symbols, showing directional arrows and labeled parts.

Two identical line drawings of a car seat with yellow connectors and orange dots indicating positions (no text or symbols)

Safety warning illustration showing a hand using a cable to test a switch, with checkmarks and no symbols indicating inspection or failure.

Diagram illustrating car seatbelt usage and safety instructions, showing steps from seat to seatbelt with check and dislocation options.

BELANGRIJK: GEBRUIK HET AUTOSTOELTJE NIET IN DE RIJRICHTING, ALS HET KIND JONGER IS DAN 15 MAANDEN.

Diagram illustrating car seatbelt usage, showing green belt and safety icons with Chinese labels

Diagram of a car interior layout with numbered zones and vehicle symbols indicating inspection or testing points.

1. y 2.:

Illustration of a car seat with hands adjusting seatbelt, showing a yellow curved arrow indicating rotation (no text or symbols present)

Illustration of a car seat with hands adjusting seatbelt, showing orange arrows indicating motion (no text or symbols)

Ajustar el cinturón

Illustration of a child in a car seat being adjusted for seatbelt, showing two different states of change (no text or symbols present)

Illustration of a person adjusting a car seat with a hand placing a gold coin (no text or symbols present)

Conectores Isofi x

Diagram illustrating seatbelt usage with checkmark and no crossing symbols, showing directional arrows and labeled parts.

Diagram illustrating car seatbelt usage and safety instructions, showing steps from seat to seatbelt with check and dislocation options.

IMPORTANTE: NO UTILICE EL ASIENTO INFANTIL PARA AUTOMÓVIL EN EL SENTIDO DE LA MARCHA HASTA QUE EL NIÑO CUMPLA 15 MESES.

Diagram illustrating car seatbelt usage, showing green bands and safety icons with Chinese labels

Diagram of a car with numbered positions and checkmarks indicating status or options, including red 'X' and green checkmarks.

1. a 2.:

Illustration of a car seat with a hand adjusting the seatbelt, showing a yellow curved arrow indicating rotation (no text or symbols present)

Illustration of a car seat with hands adjusting seatbelt, showing orange arrows indicating rotation (no text or symbols)

Nastavení pásu

Illustration of a child in a car seat being lifted, showing two different states of the seat (no text or symbols present)

Illustration of a person adjusting a car seat with a hand placing a coin on top, showing seatbelt and seatbelt (no text or symbols)

Konektory Isofi x

Diagram showing seatbelt buckle adjustment with checkmark and no crossing symbols indicating status

Two identical line drawings of a person seated in a car seat, connected by yellow cables to the seat (no text or symbols)

Safety instruction diagram showing a hand using a belt buckle with check and rejection symbols

Diagram illustrating car seatbelt usage and safety instructions, showing steps from seat to seatbelt with check and dislocation options.

DŮLEŽITÉ: NEPOUŽÍVEJTE DĚTSKOU AUTOSEDAČKU PO SMĚRU JÍZDY, POKUD JE DÍTĚ MLADŠÍ 15 MĚSÍCŮ.

Diagram illustrating car seatbelt usage with labeled parts and safety icons

Diagram of a car with numbered compartments and checkmarks indicating status or options, marked with question marks.

1. & 2.:

Illustration of a car seatbelt with hands adjusting the seatbelt, showing a yellow curved arrow indicating rotation (no text or symbols present)

Illustration of a car seat with hands adjusting seatbelt, showing orange arrows indicating motion (no text or symbols)

Regulacja pasa

Illustration of a child in a car seat being lifted, showing two different states of the seat (no text or symbols present)

Illustration of a person adjusting a car seat with a hand placing a coin on top, showing seatbelt and seatbelt (no text or symbols)

Łączniki ISOFIX

Diagram showing seatbelt buckle adjustment with checkmark and no crossing symbols indicating status

Two identical line drawings of a car seat with yellow connectors and orange dots, no text or symbols present.

Safety warning illustration showing a hand using a cable to test a switch, with checkmarks and no symbols indicating inspection or failure.

Diagram illustrating car seatbelt usage and safety instructions, showing steps from seat to seatbelt with check and dislocation options.

WAŻNA INFORMACJA: FOTELIKA DZIECIEŻCEGO NIE NALEŻY UŻYWAĆ W POZYCJI PRZODEM DO KIERUNKU JAZDY, DOPÓKI DZIECKO NIE UKOŃCZY WIEKU 15 MIESIĘCY.

Diagram illustrating car seatbelt usage, showing green bands and safety icons with Chinese labels

Diagram of a car with numbered positions and checkmarks indicating status or options, including red 'X' and green checkmarks.

1. a 2.:

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing no text or symbols.

Illustration of a car seat with hands adjusting seatbelt, showing orange arrows indicating motion (no text or symbols)

Nastavenie pásu

Illustration of a child in a car seat being lifted, showing two different states of the seat (no text or symbols present)

Rozopnutie/zapnutie pásu

Illustration of a person adjusting a car seat with a hand placing a coin on top, showing seatbelt and seatbelt (no text or symbols)

Konektory Isofi x

Diagram showing seatbelt buckle adjustment with checkmark and no crossing symbols indicating status

Diagram illustrating car seatbelt usage and safety instructions, showing steps from seat to seatbelt with check and dislocation options.

DÔLEŽITÉ: NEPOUŽÍVAJTE DETSKÚ AUTOSEDAČKU V SMERE JAZDY, POKIAL' VEK DIĚTĚA ŢA NE- PREKROČIL 15 MESIACOV.

Diagram illustrating car seatbelt usage, showing green belt and safety icons with Chinese labels

Diagram of a car with numbered positions and checkmarks indicating status or options, including red X marks for selection.

1. i 2.:

76 – 105 cm: Samo ako su dostupni Isofi x konektori i kuka za pričvršćivanje Top Tether pojasa. Ugradnja prema natrag dozvoljena je samo ako se zračni jastuk može deaktivirati.

100 – 150 cm: Samo ako postoji pojas s minimalno 3 točke u skladu s ECE R16. Ako postoje Isofi x konektori, mogu se upotrijebiti i oni. Osiguravanje djeteta samo pojasom s 2 točke nije odobreno.

Illustration of a car seatbelt being adjusted for a person's seatbelt, with no text or symbols present.

Illustration of a car seat with hands adjusting seatbelt, showing orange motion arrows (no text or symbols)

Namještanje pojasa

• Pritisnite gumb za podešavanje pojasa kroz mali otvor na prednjoj strani presvlake sjedala. Pridržavajte kopču pojasa drugom rukom i pažljivo olabavite postavljene pojaseve.
• Povucite prednji jezičak za namještanje kako biste zategnuli pojaseve. Pazite da pojasevi nisu izokrenuti.

Illustration of a child in a car seat being adjusted for seatbelt, showing two different states of change (no text or symbols present)

Otvaranje/zatvaranje pojasa

• Za otvaranje pojasa pritisnite gumb na kopči pojasa, izvucite jezičce kopče i odvojite ih.
• Za zatvaranje pojasa najprije spojite dva jezičca kopče i zajedno ih umetnite u kopču pojasa.

Click

Three illustrated scenarios showing a person wearing a seatbelt with red and green checkmarks indicating compliance or rejection.

Illustration of a person adjusting a car seat with a hand placing a gold coin (no text or symbols present)

Isofi x konektori

Diagram showing seatbelt buckle assembly with directional arrows and safety check icons

Top Tether za djecu visine 76 – 105 cm

Diagram illustrating car seatbelt usage and safety instructions, showing steps from seat to seatbelt with check and dislocation options.

VAŽNO: NEMOJTE UPOTREBLJAVATI DJEČJU AUTOSJEDALCU UGRAĐENU U SMJERU VOŽNJE DOK DIJETE NE NAVRŠI 15. MJESEC ŽIVOTA.

Diagram illustrating car seatbelt usage with labeled steps and safety icons

Diagram of a car with numbered positions and checkmarks indicating status or options, including red X and green checkmarks.

1. in 2.:

76–105 cm: Samo će so na voljo priključki Isofi x in kavelj za pritrditev pasu Top-Tether. Za uporabo v nasprotni smeri vožnje dodatno le, će je mogoče izklopiti zračno blazino.

100–125 cm: 4 položaji (1–4)

126–150 cm: 1 položaj (1)

Illustration of a car seat with hands adjusting seatbelt, showing a yellow curved arrow indicating rotation (no text or symbols present)

Illustration of a car seat with hands adjusting seatbelt, showing orange arrows indicating rotation (no text or symbols)

Nastavitev pasu

Illustration of a child in a car seat being adjusted for seatbelt, showing two different states of change (no text or symbols present)

Odpenjanje/pripenjanje pasu

Illustration of a person adjusting a car seat with a hand placing a gold coin (no text or symbols present)

Priključki Isofi x

Diagram illustrating seatbelt usage with checkmark and no crossing symbols, showing directional arrows and labeled parts.

Diagram illustrating car seatbelt usage and safety instructions, showing steps from seat to seatbelt with check and dislocation options.

POMEMBNO: OTROŠKEGA AVTOSEDEŽA NE UPORABLJAJTE V SMERI VOŽNJE, DOKLER OTROK NE DOPOLNI 15 MESECEV STAROSTI.

Diagram illustrating car seatbelt usage, showing green belt and safety icons with Chinese labels

FONTOS TUDNIVALÓ (76–105 cm):

Diagram of a car with numbered positions and checkmarks indicating status or options, including red 'X' and green checkmarks.

1. és 2.:

Illustration of a car seat with hands adjusting seatbelt, showing a yellow curved arrow indicating rotation (no text or symbols present)

Illustration of a car seat with hands adjusting seatbelt, showing orange arrows indicating motion (no text or symbols)

Az öv beállítása

Illustration of a child in a car seat being adjusted for seatbelt, showing two different states of change (no text or symbols present)

Illustration of a person adjusting a car seat with a hand placing a gold coin (no text or symbols present)

Isofi x-csatlakozók

Diagram illustrating seatbelt usage with checkmark and no crossing symbols, showing directional arrows and labeled parts.

Two identical line drawings of a car seat with yellow connectors and orange dots, no text or symbols present.

Safety warning illustration showing a hand using a cable to test a switch, with checkmarks and no symbols indicating inspection or failure.

Simple line drawing of a car front bumper with orange flame and yellow arrow (no text or symbols)

Illustration of a car seat with highlighted circular area and yellow arrow (no text or symbols)

B

Diagram of a mechanical or electrical component with symmetrical slots and mounting brackets (no text or symbols)

TISZTÍTÁS

Diagram illustrating car seatbelt usage and safety instructions, showing steps from seat to seatbelt with check and dislocation options.

FONTOS: NE HASZNÁLJA A GYERMEKÜLÉST MENETIRÁNYBAN, MIELŐTT GYERMEKE BETÖLTE-NÉ A 15 HÓNAPOS ÉLETKORT.

Diagram illustrating car seatbelt usage, showing green belt and safety icons with Chinese labels
