Thank you for choosing our child car seat. If you need help with this product, please contact our customer service.

HOW TO USE

• This product is suitable for children with a height of 40 to 150~cm .
• Installation is rear-facing from 40 to 105cm body height using the Isofix connectors and the Top-Tether belt. The child is strapped in with the 5-point belt of the child car seat.
• Forward-facing installation from 76 to 105cm body height and a minimum age of 15 months with the aid of the Isofi x connectors and the Top-Tether belt. The child is strapped in with the child car seat's 5-point belt.
• Forward-facing installation from 100 to 150 cm body height is carried out with the aid of the Isofi x connectors. The Top-Tether strap is not needed in this size class. The child is strapped in with the car's 3-point seat belt. Alternatively, the child car seat in the 100-150 cm size class can also be fitted with the 3-point seat belt only. Attaching the seat with the Isofi x connectors is not absolutely essential but is recommended.

IMPORTANT

DO NOT USE THE CHILD CAR SEAT FACING IN THE DIRECTION OF TRAVEL UNTIL THE CHILD HAS REACHED THE AGE OF 15 MONTHS.

EXTREME DANGER

We recommend installing the child car seat on the rear seat of the vehicle. DO NOT attach the child car seat for rear-facing use in the 40 to 105 cm height class to the front seat where there is an airbag. It may be used on the front seat if the airbag can be deactivated. Please refer to the vehicle manual for more information on this.

PLEASE NOTE

NOTE (40-105 cm):

This is an i-Size child restraint system. It is approved under Regulation No 129 for use in 'i-Size compatible' vehicle seats as specified by the vehicle manufacturer in the vehicle owner's manual. In cases of doubt, please contact the manufacturer of the child restraint system or the dealer.

The child restraint system can be used on all Isofi x seats as long as there is also an attachment hook for the top tether.

NOTE (100-150 cm):

This is an optimised i-Size children's booster seat. It is approved under Regulation no. 129 for use primarily in "i-Size vehicle seats" as specified by vehicle manufacturers in the vehicle owner's manual. If in doubt, contact either the manufacturer of the extended child restraint system or the dealer.

The optimised i-Size booster seat can also be used on all seats in the "universal" category, as long as this does not conflict with the vehicle interior.

If you have any doubts, please contact the car seat manufacturer or the retailer.

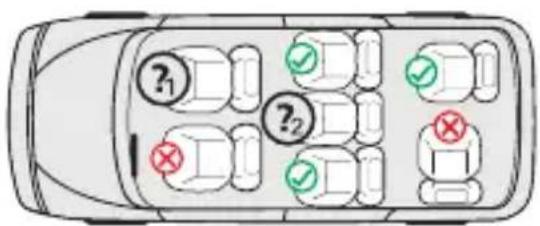

Diagram of a car with numbered positions and checkmarks indicating status or options, possibly for navigation or testing purposes.

1. & 2.:

40-105 cm: Only if Isofi x connectors and a fastening hook for the top tether are available. For rear-facing use additionally only if the airbag can be deactivated.

100-150 cm: Only if at least a 3-point belt that complies with ECE R16 is available. If Isofi x connectors are available, these can also be used. Securing the child only with a 2-point belt is not approved.

The following table provides information about the fastening devices and methods:

Size class	Installation direction	Installation Type Child safety device
40-105 cm	Rear-facing	Isofi x connectors & Top-Tether	i-Size	5-point seatbelt for the child seat
76-105 cm	Forward-facing	Isofi x connectors & Top-Tether	i-Size	5-point seatbelt for the child seat
100-150 cm	Forward-facing	Isofi x connectors & 3-point car seat belt	i-Size Booster seat	3-point car seat belt
100-150 cm	Forward-facing	3-point car seat belt	i-Size Booster seat	3-point car seat belt

WARNING

• Please read through these instructions carefully before use in order to guarantee the safety of your child. Retain the manual. Non-compliance with the instructions in this manual may result in serious injuries to your child.
• The child seat can only be used with its own 5-point belt system for children who weigh under 20 kg and are less than 105 cm in height.
• The child seat CANNOT be used with its own 5-point belt system for children who weigh over 20 kg and are taller than 105 cm.
• The child seat can be installed rear-facing or forward-facing with the Isofix connectors and the Top-Tether belt. Important: Do not install the child car seat in a forward-facing position until the child is at least 15 months old.
• For Isofi x installation: Be sure to read the car manufacturer's manual.
• Do not use load-bearing contact points other than those described in the instructions and indicated in the child restraint system.
• Do not use this child car seat at home. It has been designed exclusively for use in a car.
• Do not leave your child unsupervised in the seat at any time.
• Do not place the rear-facing child car seat on the front seat with an activated airbag. This could lead to serious injuries or death.
• The child seat must be replaced if it is exposed to heavy impact in an accident.
• For safety reasons, the child car seat must be secured in the vehicle even when there is no child sitting in the child car seat.
• Always make sure that all belts that attach the child car seat to the vehicle are secure and that all belts that restrain the child are adjusted to fit the child's body. Ensure that the belts are not twisted.
• Items of luggage or other objects that could cause injury in the event of a collision must be properly secured.
• The rigid items and plastic parts of a child restraint system must be positioned and installed so that they cannot get caught by a movable seat or a vehicle door.
• It is important that belts that sit low hold the child's pelvis firmly in place. To avoid the risk of falling, your child should always be strapped in.
• It is dangerous to make changes or additions to the product without approval from the responsible authority. Non-compliance with the installation instructions provided by the manufacturer of the child restraint system may also present risks to the safety of your child.
• This child seat is designed for children with a maximum height of 150 cm. Never overload the child seat by transporting more than one child or additional loads in it.
• The child restraint system must not be used without the seat cover.
• The seat cover must not be replaced by a cover other than that recommended by the manufacturer, as this seat cover is an important component of the restraint performance.

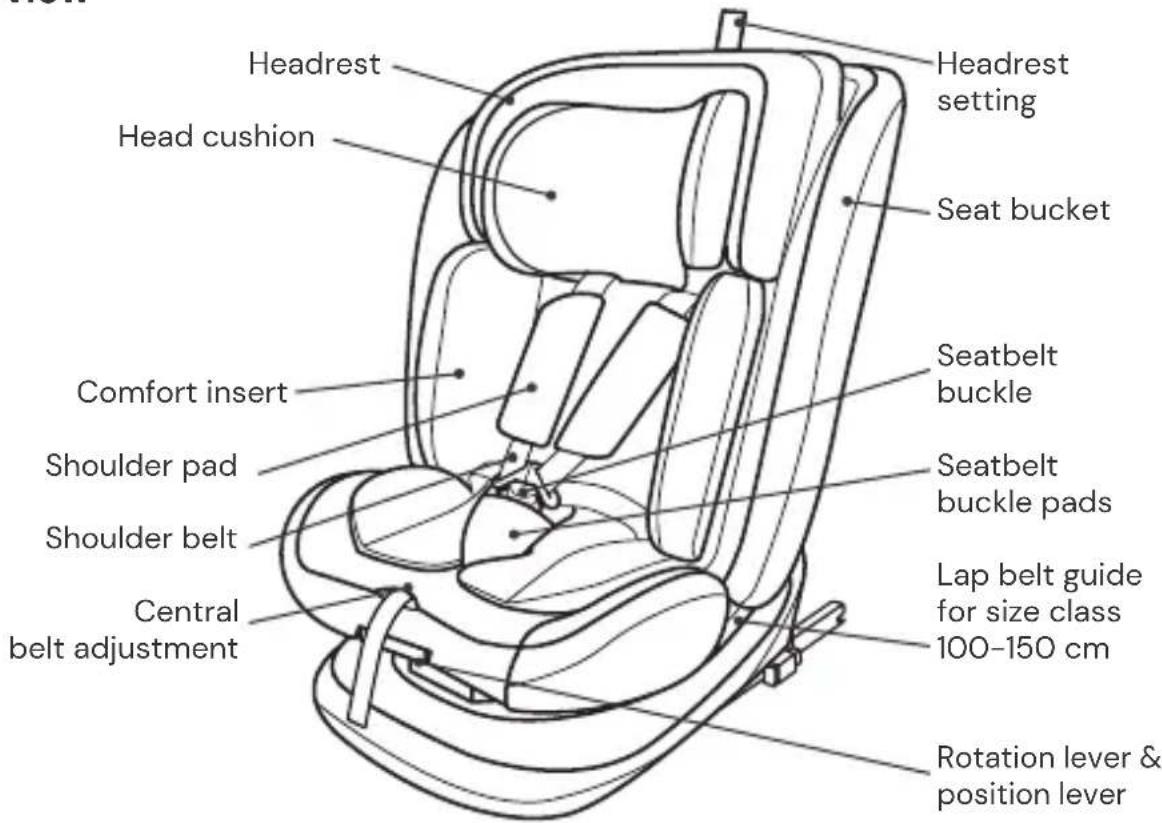

SEAT PARTS

Front view

Headrest Head cushion Comfort insert Shoulder pad Shoulder belt Central belt adjustment Headrest setting Seat bucket Seatbelt buckle Seatbelt buckle pads Lap belt guide for size class 100-150 cm Rotation lever & position lever

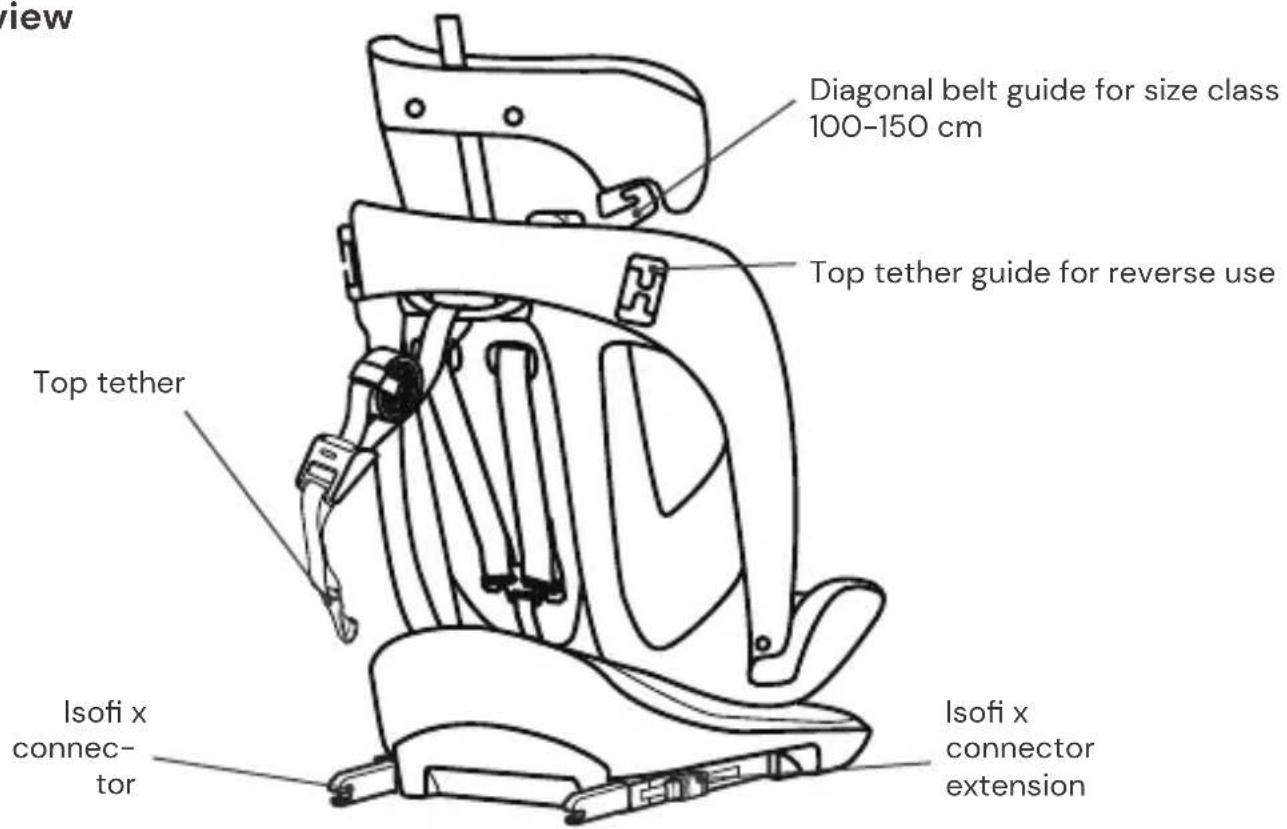

Rear view

View Diagonal belt guide for size class 100-150 cm Top tether guide for reverse use Top tether Isofi x connector Isofi x connector extension

USING THE CHILD CAR SEAT

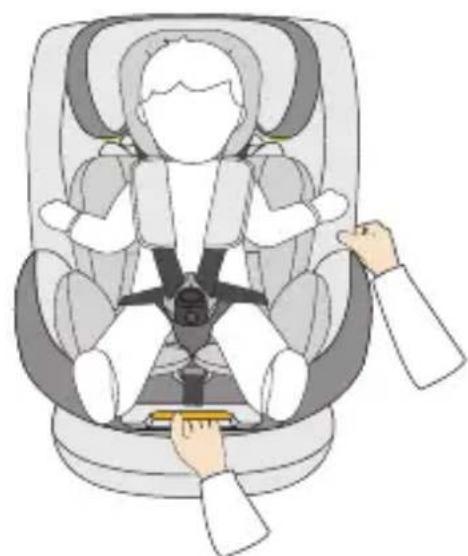

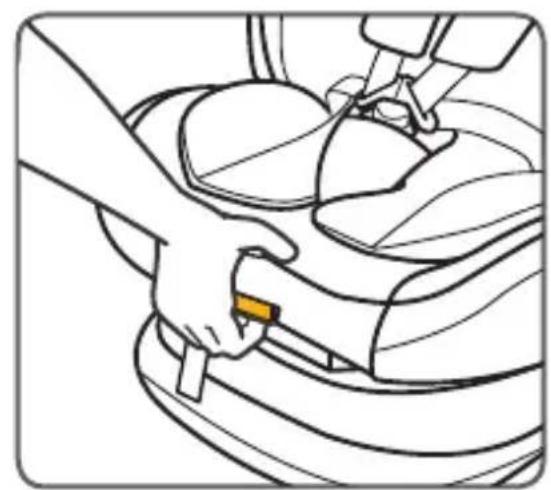

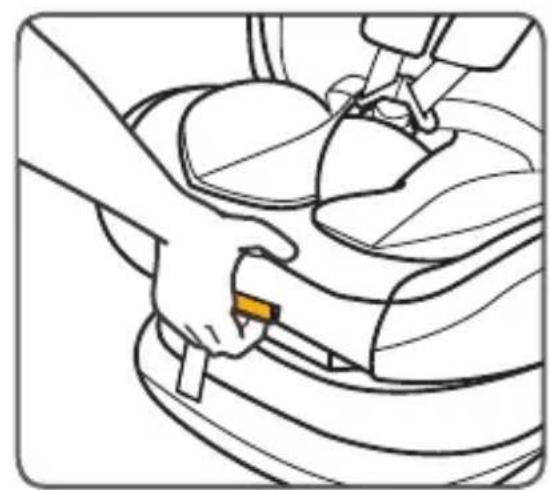

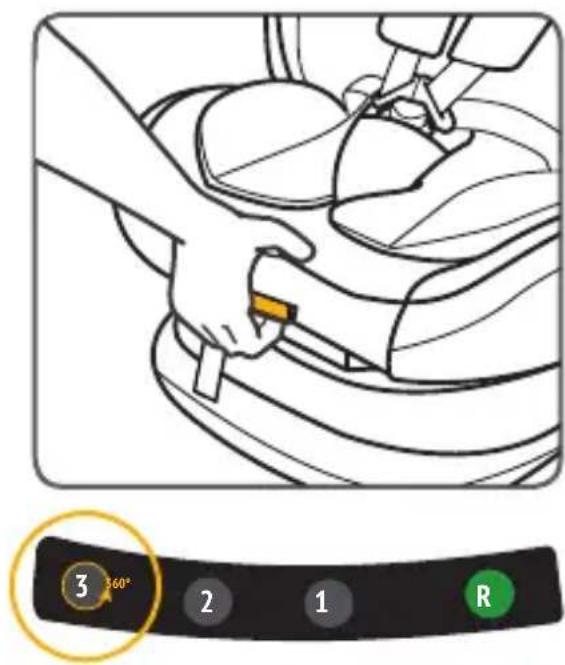

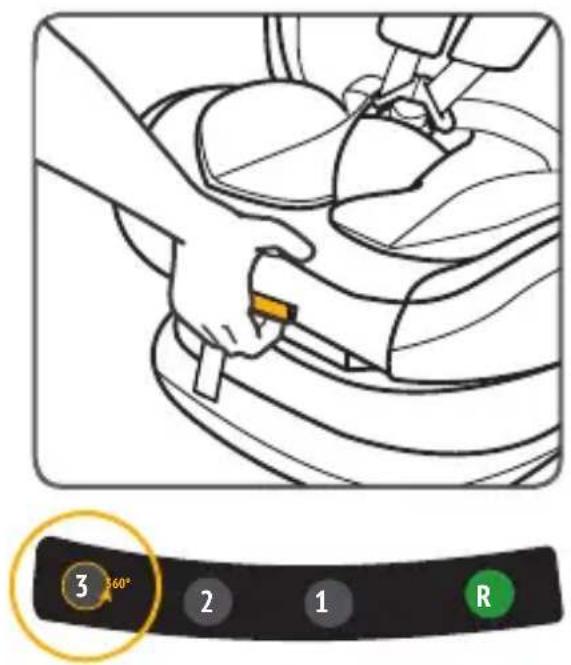

Setting the child car seat tilt angle

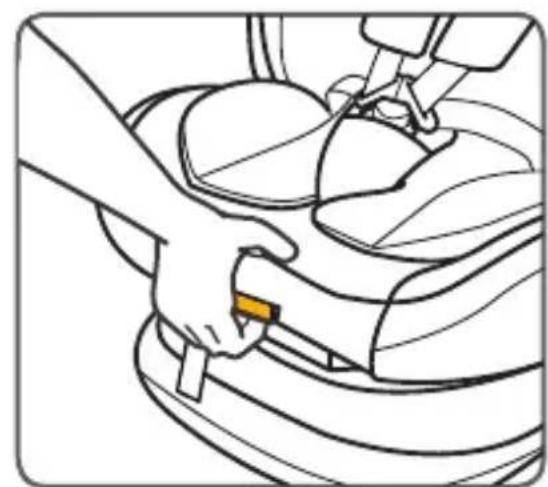

• Operate the position lever on the lower front of the seat bucket with one hand.
• Hold the seat pan with the other hand and adjust the angle.

The following seat positions are possible:

(Please see the label on the child car seat)

Rear-facing,

Body height 40-105 cm, position: R

Forward-facing,

Height 76-105 cm,

min. 15 months:

3 positions (1-3)

Forward facing, body size:

100-150 cm: 1 position (1)

Illustration of a child wearing a car seat with hands adjusting the seat (no text or symbols)

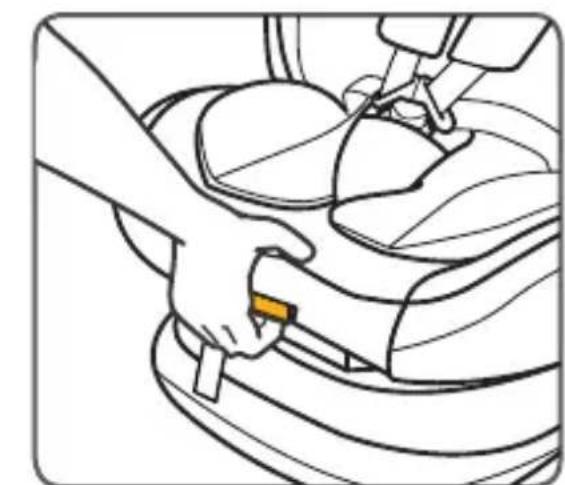

Turning the child car seat

• To rotate the child car seat in the forward-facing position, operate the rotation lever and first move the child car seat to seat position 3. Only then can you rotate the child car seat. In the rearward facing position, the child car seat can be rotated as soon as the seat position is set to R.
• The forward-facing position is only suitable for children with a minimum age of 15 months and a minimum height of 76 cm. The rear-facing position is designed for children from 40 to 105 cm tall and a maximum weight of 20 kg.
• The side position is only intended to facilitate the child's entry. This position must not be used while driving.

Line drawing of a hand adjusting a car seatbelt (no text or symbols)

3 160° 2 1 R

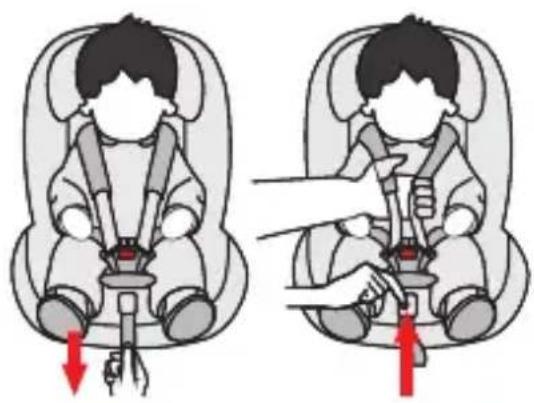

Adjusting the belt

• To loosen the belt, press the belt adjustment button in the seat area with one hand. Hold the belt buckle with the other hand and carefully loosen the attached straps.
• Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.

Illustration of a child in a car seat being lifted, showing two different positions (no text or symbols present)

Opening/closing the belt

• To unlock the belt, press the button on the belt buckle, pull out the buckle tongues and separate them.
• To lock the belt, first, connect both tongues of the buckle and then insert them together into the belt buckle.

Click

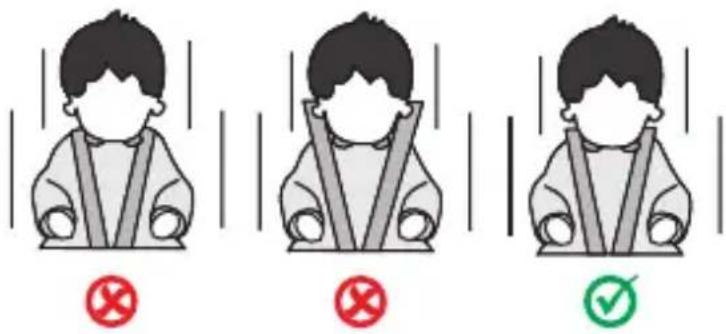

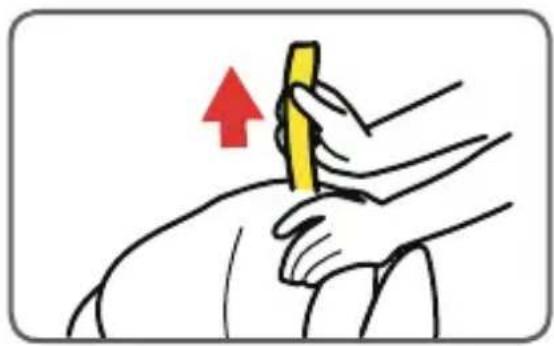

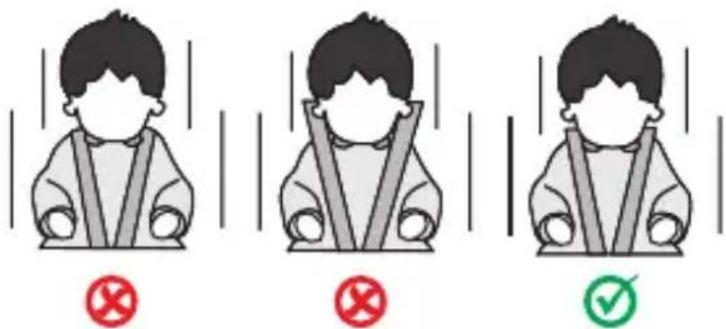

Adjusting the head support

• Loosen the belt and pull the strap on the top of the headrest. Move the headrest until it locks into place at the correct height.
• Make sure that the shoulder straps are guided out of the child car seat just above your child's shoulders.
• Release the webbing and make sure that the headrest is locked in place.

Illustration of a hand holding a yellow object with a red upward arrow, no text or symbols present

Three illustrated scenarios showing a person wearing a seatbelt, with red and green checkmarks indicating incorrect and correct responses.

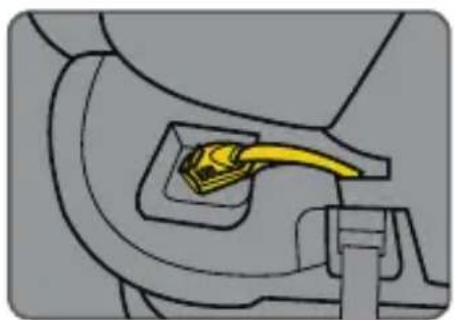

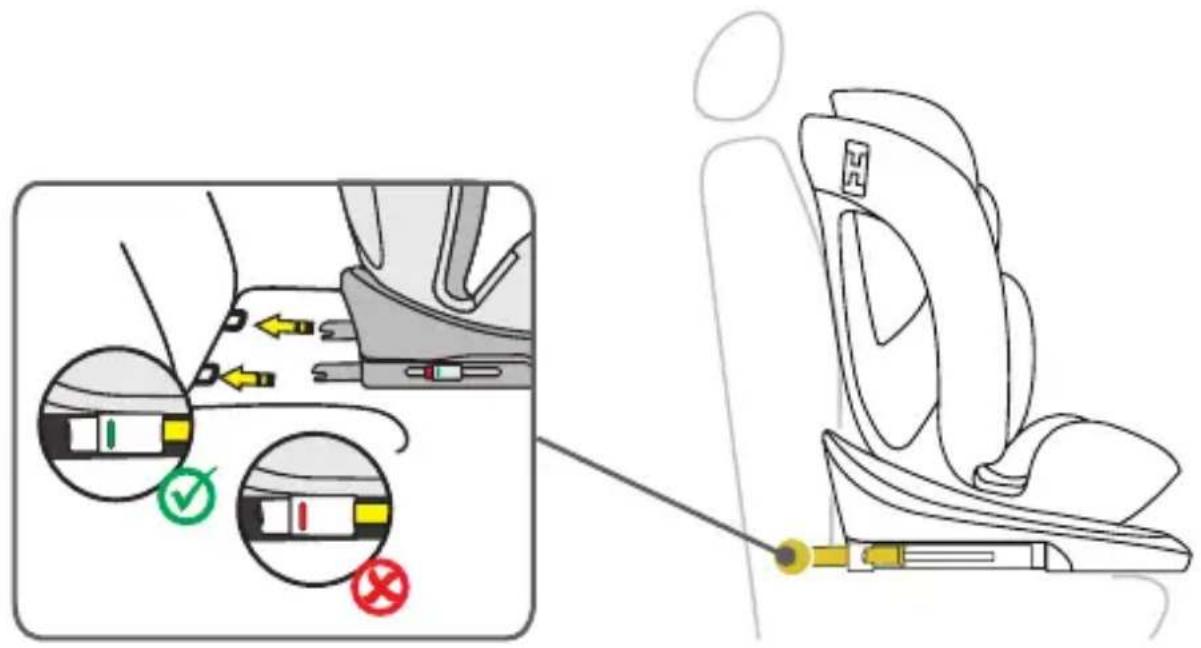

Isofi x connectors

• Press the two lateral Isofi x connector buttons in order to extend the length of the Isofi x connectors.
• Guide the Isofix connectors onto the Isofix anchor points on the seat of the vehicle and ensure that they lock into position.
• Push the child car seat in until it rests securely against the backrest of the seat of the vehicle. Ensure that both Isofi x indicators are showing green.

Diagram showing seatbelt connection with directional arrows and safety check icons for correct and incorrect states

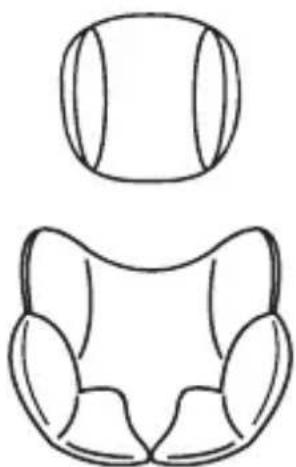

Head cushion & comfort insert

• The head cushion and comfort insert are designed for babies with a body height of 40-75 cm.
• Please remove both inserts as soon as your child has exceeded the specified body size.

Two simple line drawings of a stylized animal head and torso, no text or symbols present.

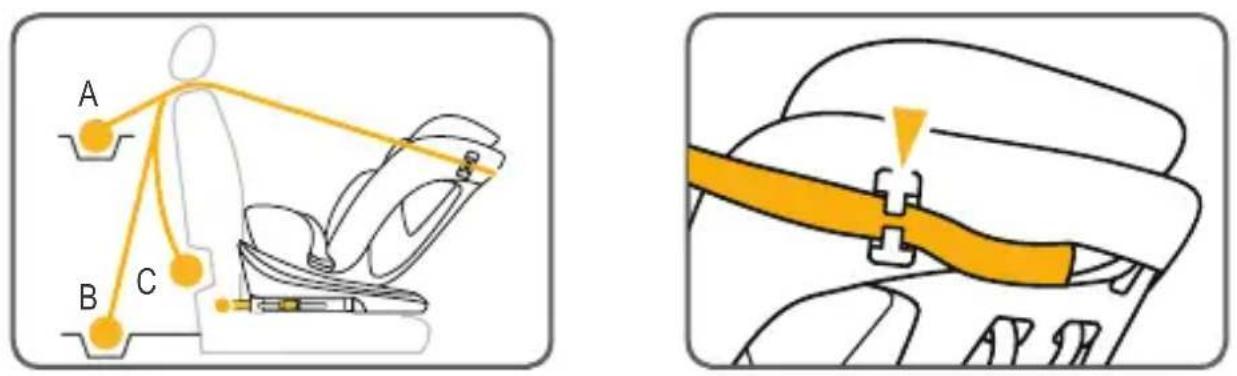

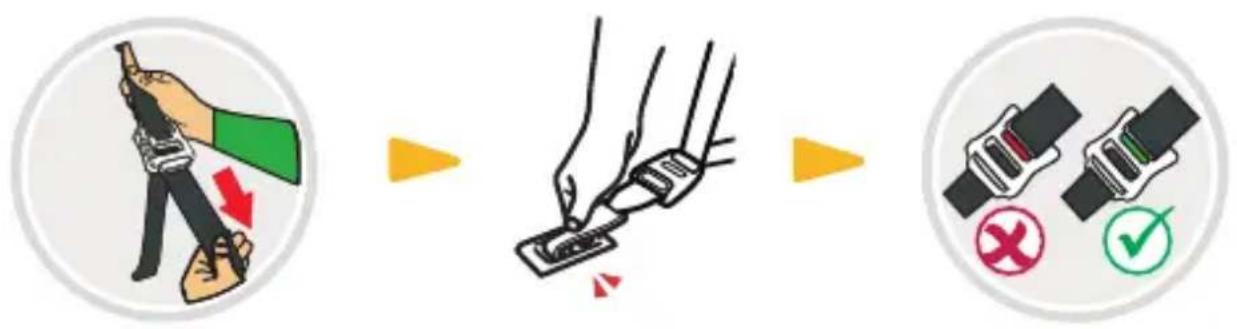

Top tether for size range 40-105 cm

• To release the top tether, press the grey button with one hand and pull the side of the belt anchor to the required length with the other hand.
• To fix the top tether, clip the anchor to the fixing point on the car seat and pull it as tight as possible. The display does not turn green until the belt is tightened sufficiently.
• When using the child car seat rearward facing, the top tether strap must be threaded through the top tether guide on the side of the child car seat. Ideally, use the guide towards the interior of your car to ensure rotation to the car door for easy entry and exit.
• The Top-Tether strap is only necessary for the size range 40–105 cm. In the 100–150 cm size class, the Top-Tether strap is not required.

Diagram illustrating three-step safety instructions for using a belt buckle, showing step-by-step change with warning symbols.

A B C

A B C

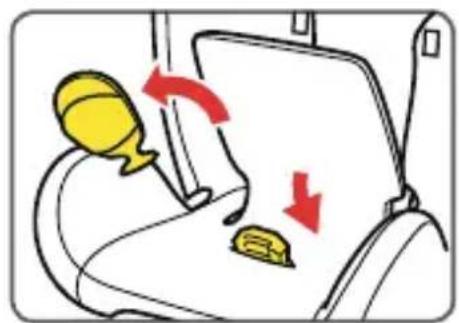

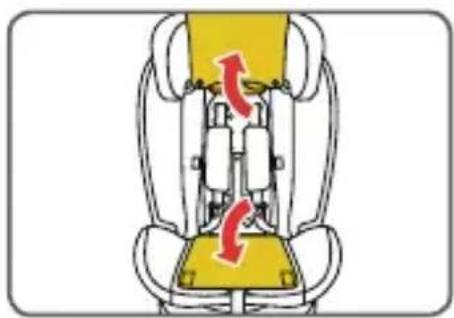

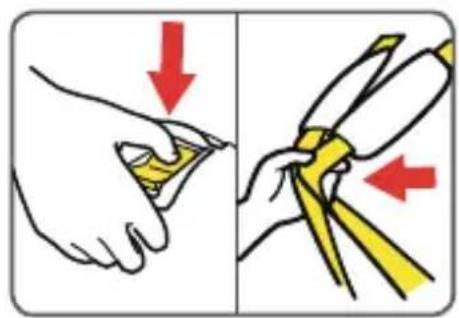

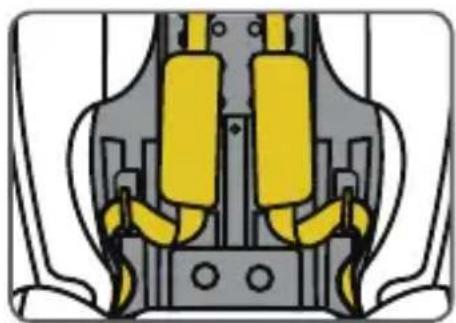

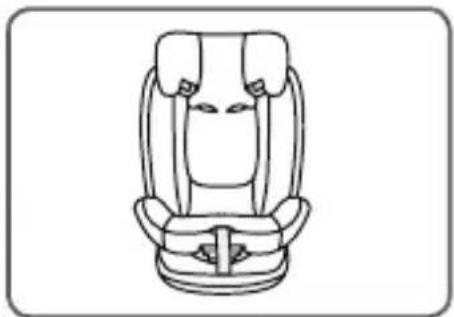

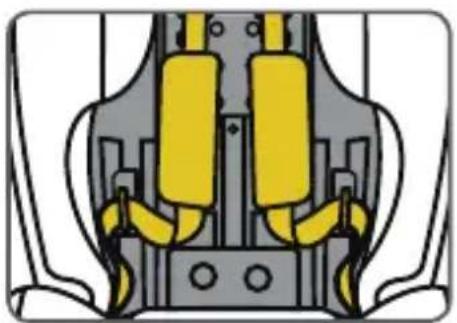

Stowing the 5-point seat belt for size class 100-150 cm

• Loosen the belt system to the maximum length and open the belt buckle.
• Open the press buttons on the lower part of the headrest cover so that you can place the shoulder straps behind the cover. Then fold up the lower part of the headrest cover. Also open the backrest cover and fold it downwards.
• Stow the 5-point harness system including shoulder pads in the back of the child car seat. You can store the belt buckle tongues in the recesses in the back area of the child car seat.
• Remove the harness buckle pad and thread the harness buckle through the slot in the seat cover. Then stow the belt buckle in the recess in the seat area.
• Fold up the backrest cover again and fasten it with its Velcro fasteners. Now fold down the lower part of the headrest cover.
• Keep the removed seat belt buckle pad in a safe place for later use.

Illustration showing two-step instructions for tying a ribbon, with red arrows indicating downward motion.

Diagram of a car seat with red directional arrows indicating motion or force (no text or symbols)

Diagram of a mechanical assembly with yellow components and gray housing (no text or symbols)

Diagram illustrating car seatbelt usage with directional arrows and a yellow speech bubble icon

Diagram of a mechanical component with a yellow handle and lever (no text or symbols)

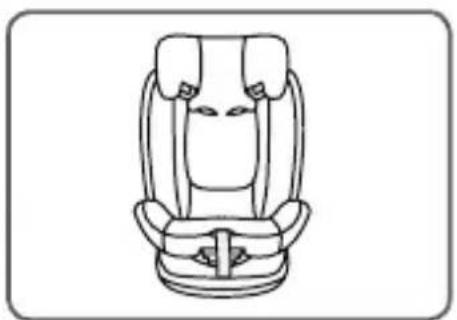

Line drawing of a car seat with straps and neck clips (no text or symbols)

CLEANING

To guarantee the long-term usage of your child car seat, do not use any solvents, abrasive cleaners or aggressive cleaning agents to clean the car seat. Check the stability of the fabric and of the seams after each wash. When washing the fabric, carefully follow the instructions on the label (see below).

Wash at 30 °C, gentle wash cycle

DO NOT iron

DO NOT bleach

DO NOT dry clean

Tumble dry at low temperature

MAINTENANCE

Regularly check the condition of the product for possible damage. In the event of damage, the child car seat must no longer be used and must be stored out of the reach of children.

In case of any issues, please contact

Osann customer service on [phone].

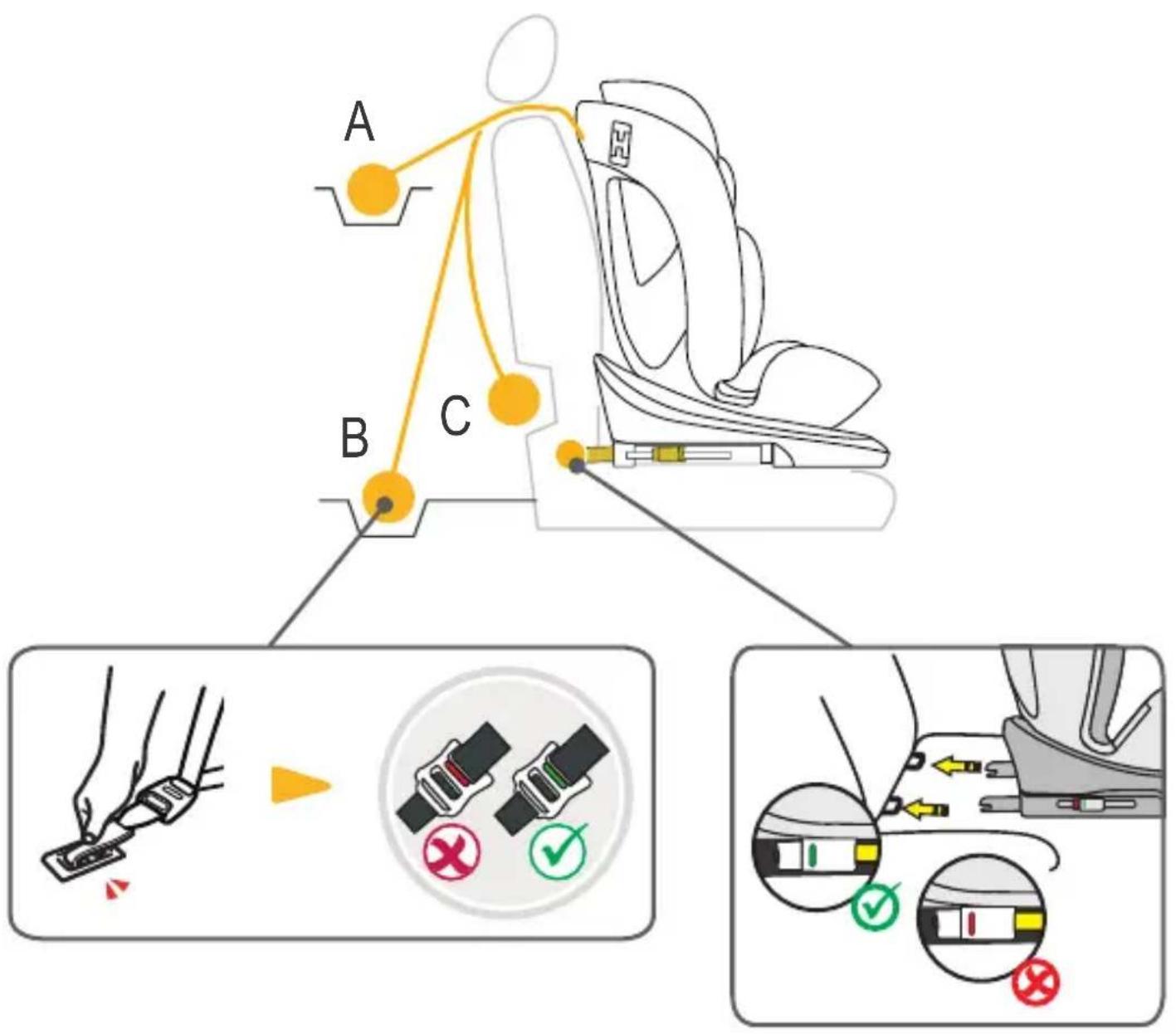

INSTALLATION OF THE CHILD CAR SEAT

1) Size class 40-105 cm, max. 20 kg, rear-facing

AIRBAQ A B C ✓ ✓ ✓

1. Adjust the child car seat to the maximum reclining position 3 and turn it so that it points to the seating position R in rearward facing orientation.
2. Press the two lateral Isofix connector buttons in order to extend the length of the Isofix connectors.
3. Guide the Isofix connectors onto the Isofix anchor points on the seat of the vehicle and ensure that they lock into position.
4. Push the child car seat in until it rests securely against the backrest of the seat of the vehicle. Ensure that both Isofi x indicators are showing green.
5. Take the top tether and extend it to its full length.
6. The Top-Tether belt must be threaded through the Top-Tether guide on the side of the child car seat. Ideally, use the guide towards the interior of your car to ensure rotation to the car door for easy entry and exit.
7. Clip the top tether onto the hook provided in your car (e.g. on the back of the car seat or in the boot. Please consult your car manual for this).
8. Tighten the top tether until the display on the top tether turns green.
9. When placing your child in the child car seat, turn the car seat towards the car door for convenience.
10. Unfasten the belt buckle on the child car seat and place the belts on the outside of the seat.
11. Put your child in the child car seat.
12. Adjust the height of the headrest as described above.
13. Fasten the belt buckle again until you hear a click.
14. Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.
15. Turn the seat into the rear-facing position. Check that the child car seat is locked in this position.

INSTALLATION OF THE CHILD CAR SEAT

2) Height class 76-105 cm, min. 15 months, max. 20 kg, forward-facing

A B C Disassembly ✓ ✓ ✓ ✓

IMPORTANT: DO NOT USE THE CHILD CAR SEAT IN THE DIRECTION OF TRAVEL UNTIL THE CHILD IS AT LEAST 15 MONTHS OLD.

1. Press the two lateral Isofix connector buttons in order to extend the length of the Isofix connectors.
2. Guide the Isofix connectors onto the Isofix anchor points on the seat of the vehicle and ensure that they lock into position.
3. Push the child car seat in until it rests securely against the backrest of the car seat. Ensure that both Isofi x indicators are switched to green.
4. Take the top tether and extend it to its full length.
5. Clip the top tether onto the hook provided in your car (e.g. on the back of the car seat or in the boot. Please consult your car manual for this).
6. Tighten the top tether until the display on the top tether turns green.
7. Unfasten the belt buckle on the child car seat and place the belts on the outside of the seat.
8. Put your child in the child car seat.
9. Adjust the height of the headrest as described above.
10. Fasten the belt buckle again until you hear a click.
11. Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.
12. When facing in the direction of travel, the child car seat offers four adjustable seat positions.

INSTALLATION OF THE CHILD CAR SEAT

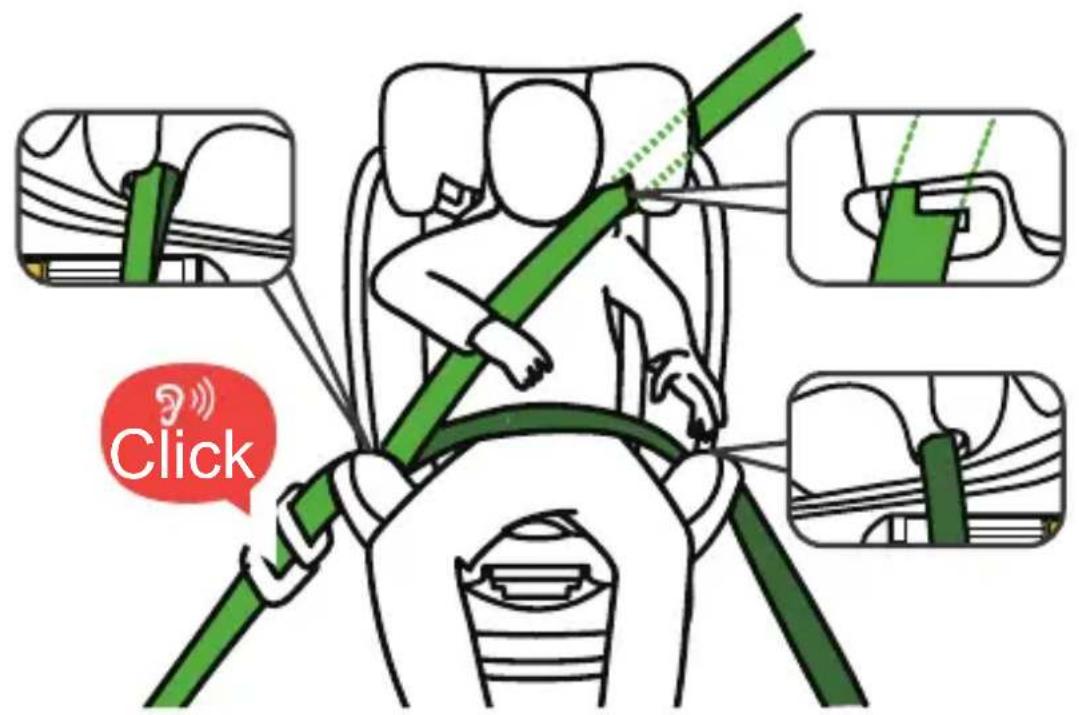

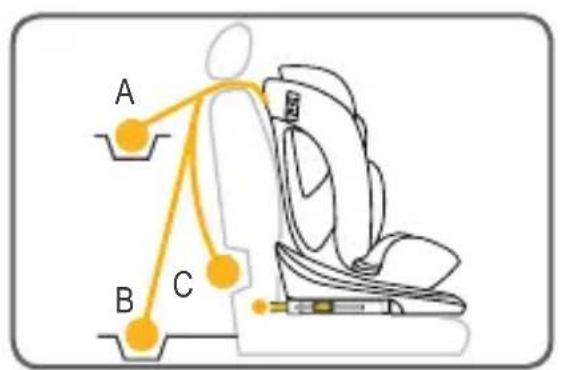

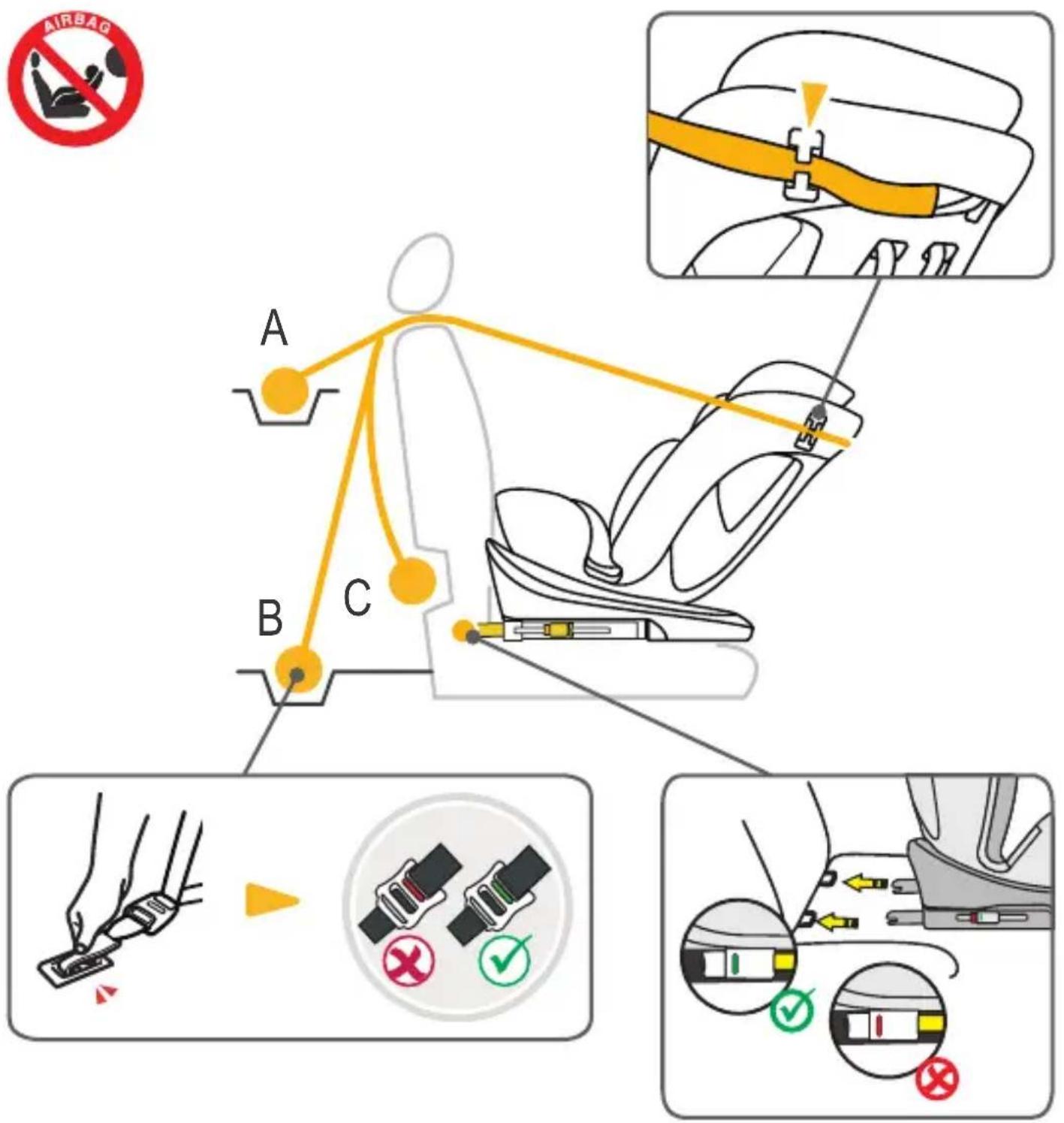

3) Size class 100-150 cm, forward-facing

Diagram showing car seatbelting instructions with check and rejection symbols, including a close-up of the seatbelt switch.

Click

1. The 5-point seat belt and top-tether harness of the child car seat must be stowed as previously described. These are not needed in this size class.
2. Press the two lateral Isofix connector buttons in order to extend the length of the Isofix connectors.
3. Guide the Isofix connectors to the Isofix anchor points on the car seat and snap them into place.
4. Push the child car seat in until it rests securely against the backrest of the car seat. Ensure that both Isofi x indicators are switched to green.
5. Thread the diagonal belt of the 3-point seat belt in the car through the diagonal belt guide on the headrest of the child car seat.
6. Thread the lap belt of the car's 3-point seat belt through the first lap belt guide in the seat area of the child car seat.
7. To insert your child comfortably, turn the child car seat towards the car door. Please note here that the child car seat must first be set to seat position 3 so that it can be rotated.
8. Put your child in the child car seat.
9. Adjust the height of the headrest so that the child's head is fully in the headrest and the diagonal belt comes out through the belt guide at the level of the child's shoulders.
10. Turn the seat to the forward-facing position and set it to seat position 1. Check that the child car seat is locked in this position.
11. Close the belt buckle of the 3-point seat belt until you hear a click.
12. Make sure that both the diagonal belt and the lap belt run through the second lap belt guide on the child car seat which faces the car's seat belt buckle.
13. Pull on the diagonal strap to tighten it. Make sure that the straps are not twisted.

Installation without Isofi x:

Alternatively, the child car seat in the 100-150 cm size class can also be fitted with the 3-point seat belt only. Attaching the seat with the Isofi x connectors is not absolutely essential but is recommended.

Diagram of a car with numbered positions and checkmarks indicating status or options, including red 'X' and green checkmarks.

1. & 2.:

Illustration of a child wearing a car seat with hands adjusting the seat (no text or symbols)

3 360° 2 1 R

Illustration of a child in a car seat being lifted, showing two different positions (no text or symbols present)

Illustration of a hand holding a yellow object with a red upward arrow, no text or symbols present

Three illustrated scenarios showing a person wearing a seatbelt, with red and green checkmarks indicating incorrect and correct safety measures respectively.

Connecteurs Isofi x

Diagram illustrating seatbelt usage with directional arrows and checkmark indicators for correct and incorrect use.

Two simple line drawings of abstract geometric shapes, one rounded and one symmetrical (no text or symbols)

Diagram illustrating three-step safety instructions for using a seatbelt: holding, adjusting, and checking.

A B C

A B C

Illustration showing two-step instructions for tying a ribbon, with red arrows indicating downward motion.

Diagram of a car seat with red directional arrows indicating motion or movement (no text or symbols)

Cross-sectional diagram of a mechanical device with yellow components and gray housing (no text or symbols)

Diagram illustrating car seatbelt usage with directional arrows and a yellow speech bubble icon

Diagram of a mechanical component with a yellow handle and lever (no text or symbols)

Line drawing of a car seat with front and back panels (no text or symbols)

NETTOYAGE

AIRBAQ A B C ✓ ✓ ✓

A B C Disassembly ✓ ✓ ✓ ✓

IMPORTANT : NE PAS UTILISER LE SIÈGE AUTO POUR ENFANT DANS LA POSITION FACE À LA ROUTE SI L'ENFANT N'A PAS ENCORE ATTEINT L'ÂGE DE 15 MOIS RÉVOLUS.

Diagram showing car seatbelting instructions with check and rejection symbols, including a close-up of the seatbelt switch.

Click

Diagram of a vehicle layout with labeled sections and checkmarks indicating options or status markers

1. & 2.:

Illustration of a child wearing a car seat with hands adjusting the seat (no text or symbols)

Line drawing of a hand adjusting a car seatbelt with a yellow clip (no text or symbols)

3 160° 2 1 R

Illustration of a child in a car seat being lifted, showing two different positions (no text or symbols present)

Illustration of a hand holding a yellow object with a red upward arrow, no text or symbols present

Three illustrated scenarios showing a person wearing a seatbelt with checkmarks indicating absence or compliance, each marked with a red X and green checkmark.

Connettori Isofi x

Diagram illustrating seatbelt usage with directional arrows and checkmark indicators for correct and incorrect use.

Two simple line drawings of a stylized animal head and body, no text or symbols present.

Diagram illustrating three-step safety instructions for using a belt buckle, showing step-by-step change with warning symbols.

A B C

A B C

Illustration showing two-step instructions for tying a ribbon, with red arrows indicating downward motion.

Diagram of a car seat with red directional arrows indicating motion or movement (no text or symbols)

Diagram of a mechanical assembly with yellow components and gray housing (no text or symbols)

Diagram illustrating car seatbelt usage with directional arrows and a yellow speech bubble icon

Diagram of a mechanical component with a yellow handle and lever (no text or symbols)

Line drawing of a car seat with straps and neck clips (no text or symbols)

PULIZIA

AIRBAQ A B C ✓ ✓ ✓

Diagram showing car seatbelting instructions with check and rejection symbols, including a close-up of the seatbelt switch.

Click

Diagram of a car with numbered positions and checkmarks indicating status or options, including red 'X' and green checkmarks.

1 en 2:

Illustration of a child wearing a car seat with hands adjusting the seat (no text or symbols)

Line drawing of a person using a belt switch to adjust or install a car seatbelt (no text or symbols present)

3 360° 2 1 R

Gordel instellen

Illustration of a child in a car seat being lifted, showing two different positions (no text or symbols present)

Illustration of a hand holding a yellow object with a red upward arrow, no text or symbols present

Three illustrated scenarios showing a person wearing a seatbelt with checkmarks indicating absence or compliance, each marked with a red X and green checkmark.

Isofi x-connectoren

Diagram illustrating seatbelt usage with directional arrows and checkmark indicators for correct and incorrect use.

Two simple line drawings of abstract geometric shapes, one rounded and one symmetrical, with no text or symbols.

Diagram illustrating three-step safety instructions for using a seatbelt: holding, adjusting, and checking.

A B C

A B C

Diagram showing two-step instructions for tying a ribbon, with red arrows indicating downward motion.

Diagram of a car seatbelt with red directional arrows indicating motion (no text or symbols)

Cross-sectional diagram of a mechanical device with yellow components and gray housing (no text or symbols)

Diagram illustrating car seatbelt usage with directional arrows and a yellow speech bubble icon

Diagram of a mechanical component with a yellow handle and lever (no text or symbols)

Line drawing of a car seat with front and back panels (no text or symbols)

REINIGING

AIRBAQ A B C ✓ ✓ ✓

A B C ✓ ✓ ✓

BELANGRIJK: GEBRUIK HET AUTOSTOELTJE NIET IN DE RIJRICHTING ALS HET KIND JONGER IS DAN 15 MAANDEN.

Diagram showing car seatbelting instructions with check and rejection symbols, including a close-up of the seatbelt switch.

Click

Diagram of a car with numbered positions and checkmarks indicating status or failure points

1. y 2.:

Illustration of a child wearing a car seat with hands adjusting the seat (no text or symbols)

3 360° 2 1 R

Ajustar el cinturón

Illustration of a child in a car seat being lifted, showing two different positions (no text or symbols present)

Illustration of a hand holding a yellow object with a red upward arrow, no text or symbols present

Three illustrated scenarios showing a person wearing a seatbelt with checkmarks indicating absence or compliance, each marked with a red X and green checkmark.

Conectores Isofi x

Diagram illustrating seatbelt usage with directional arrows and checkmark indicators for correct and incorrect use.

Simple line drawings of a rounded object and a stylized cat face (no text or symbols)

Diagram illustrating three-step safety instructions for using a seatbelt: holding, adjusting, and checking.

A B C

A B C

Diagram showing two-step instructions for tying a ribbon, with red arrows indicating downward motion.

Diagram of a car seatbelt with red directional arrows indicating motion (no text or symbols)

Cross-sectional diagram of a mechanical device with yellow components and gray housing (no text or symbols)

Diagram illustrating car seatbelt usage with directional arrows and a yellow speech bubble icon

Diagram of a mechanical component with a yellow handle and lever (no text or symbols)

Line drawing of a car seat with front and back panels (no text or symbols)

LIMPIEZA

AIRBAQ A B C ✓ ✓ ✓

A B C Disassembly ✓ ✓ ✓ ✓

IMPORTANTE: NO UTILICE EL ASIENTO INFANTIL PARA AUTOMÓVIL EN EL SENTIDO DE LA MARCHA HASTA QUE EL NIÑO CUMPLA 15 MESES.

Diagram showing car seatbelting instructions with check and rejection symbols, including a close-up of the seatbelt switch.

Click

Simple black-and-white cartoon illustration of two overlapping circles (no text or symbols)

FR NOTICE BAC DE TRI

BOOO
