USER MANUAL Safety Barcelona Osann
mind. 15 Monate alt:
Line drawing of a car seatbelt with a hand inserting a yellow object into the seat (no text or symbols)natural_image
Illustration of a child in a car seat being lifted, showing two different states of the seat (no text or symbols present)natural_image
Simple line drawing of a top and bottom views of a stylized animal head (no text or symbols)natural_image
Line drawing of a hand pressing down on a seated object (no text or symbols)
Illustration of a hand inserting a yellow belt into a device component (no text or symbols)
Illustration showing two-step cable stripping process with red arrows indicating direction of cutting and widening
Diagram illustrating seatbelt usage and safety symbols, showing seat positioning, seatbelt switch, and safety check icons.text_image
Diagram illustrating seatbelt usage with labeled icons and directional arrows, showing car seat positioning and safety indicators.Thank you for choosing our child car seat. If you need help with this product, please contact our customer service.
USE
- This product is suitable for children 40 to 150~cm in height.
- Rear-facing installation for children between 40 to 105cm in height takes place with the help of the Isofi x connectors and the support leg. The child is strapped in with the 5-point belt on the child car seat.
- Forward-facing installation for children between 76 and 105cm in height and a minimum age of 15 months takes place with the help of the Isofi x connectors and the support leg. The child is strapped in with the 5-point belt on the child car seat.
- Forward-facing installation for children 100 to 150 cm in height is carried out using the Isofix connectors. The support leg is not needed in this size class. The child is strapped in with the 3-point seat belt in the car. Alternatively, the child car seat can also be fitted with the 3-point seat belt only for children 100–150 cm in height. Attaching the seat with the Isofix connectors is not absolutely essential but is recommended.
IMPORTANT
DO NOT USE THE CHILD CAR SEAT FACING IN THE DIRECTION OF TRAVEL UNTIL THE CHILD HAS REACHED THE AGE OF 15 MONTHS.
EXTREME DANGER
We recommend installing the child car seat on the rear seat of the vehicle. DO NOT attach the child car seat for rear-facing use for children 40 to 105 cm in height on a front seat where there is an airbag. It may be used on the front seat if the airbag can be deactivated. Please refer to the vehicle manual for more information about this.
PLEASE NOTE
NOTE (40–105 cm):
This is an i-Size child restraint system. It is approved under Regulation No. 129 for use on "i-Size compatible" vehicle seats as specified by the vehicle manufacturer in the vehicle manual. In cases of doubt, please contact the manufacturer of the child restraint system or the dealer.
NOTE (100 - 150 cm):
This is an optimised i-Size children's booster seat. It is approved under Regulation No. 129 for use primarily on "i-Size vehicle seats" as specified by vehicle manufacturers in the vehicle manual. If in doubt, contact either the manufacturer of the extended child restraint system or the dealer.
The optimised i-Size booster seat can also be used on all seats in the "universal" category, as long as this does not conflict with the vehicle interior.
If you have any doubts, please contact the car seat manufacturer or the dealer.


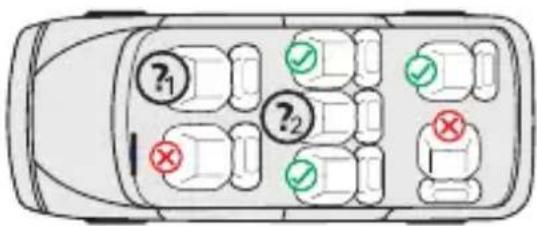

Diagram of a car interior layout with numbered compartments and checkmarks indicating status or options- & 2.:
40-105 cm: Only when Isofix connectors are available. Additionally, for rear-facing use, only if the airbag can be deactivated.
100-150 cm: Only if at least a 3-point belt that complies with ECE R16 is available. If Isofi x connectors are available, these can also be used. Securing the child only with a 2-point belt is not approved.
The following table provides information about the fastening devices and methods:
| Height range | Installation direction | Installation Type Child safety device | ||
| 40–105 cm | Rear-facing | Isofi x connectors & support leg | i-Size | 5-point seatbelt on the child seat |
| 76–105 cm | Forward-facing | Isofi x connectors & support leg | i-Size | 5-point seatbelt on the child seat |
| 100–150 cm | Forward-facing | Isofi x connectors & 3-point car seat belt | i-Size booster seat | 3-point car seat belt |
| 100–150 cm | Forward-facing | 3-point car seat belt | i-Size booster seat | 3-point car seat belt |
WARNING
- Please read through these instructions carefully before use in order to guarantee the safety of your child. Retain the instructions. Non-compliance with the instructions in this manual may result in serious injuries to your child.
- The child seat can only be used with its own 5-point belt system for children who weigh under 20 kg and are less than 105 cm in height.
- The child seat CANNOT be used with its own 5-point belt system for children who weigh over 20 kg or are taller than 105 cm.
- The child seat can be installed rear-facing and forward-facing with the Isofix connectors and the stand. When used with a support leg, the maximum height is 105 cm, and the maximum weight is 20 kg. Important: Do not install the child car seat in a forward-facing position until the child is at least 15 months old.
- For Isofi x installation: Be sure to read the car manufacturer's manual.
- Do not use load-bearing contact points other than those described in the instructions and indicated in the child restraint system.
- Do not use this child car seat at home. It has been designed exclusively for use in a car.
- Do not leave your child unsupervised in the seat at any time.
- Do not place the rear-facing child car seat on the front seat with an activated airbag. This could lead to serious injuries or death.
- The child seat must be replaced if it is exposed to heavy impact in an accident.
- For safety reasons, the child car seat must be secured in the vehicle even when there is no child sitting in the child car seat.
- Always make sure that all straps that attach the child car seat to the vehicle are secure and that all belts that restrain the child are adjusted to fit the child's body. Ensure that the belts are not twisted.
- Items of luggage and other objects that could cause injury in the event of a collision must be properly secured.
- The rigid elements and plastic parts of a child restraint system must be positioned and installed so that they cannot become jammed by a movable seat or a vehicle door.
- It is important that belts that sit low hold the child's pelvis firmly in place. Your child should always be fastened in to stop them from falling out.
- It is dangerous to make changes or additions to the product without approval from the responsible authority. Non-compliance with the installation instructions provided by the manufacturer of the child restraint system may also present risks to the safety of your child.
- This child seat is designed for children with a maximum height of 150 cm. Never overload the child seat by transporting more than one child or additional loads in it.
- The child restraint system must not be used without the seat cover.
- The seat cover must not be replaced by a cover other than that recommended by the manufacturer, as this seat cover is an important component of the restraint system.

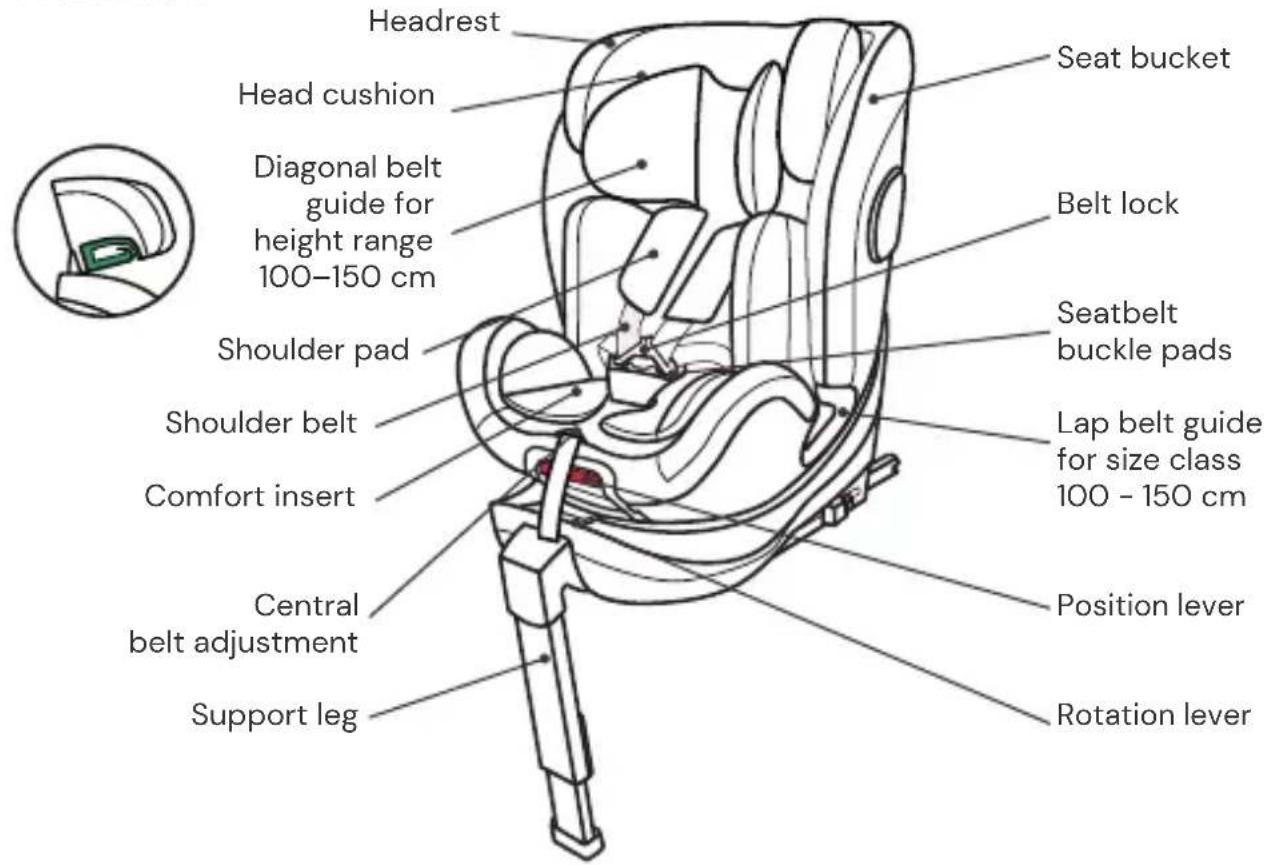

SEAT PARTS
Front view


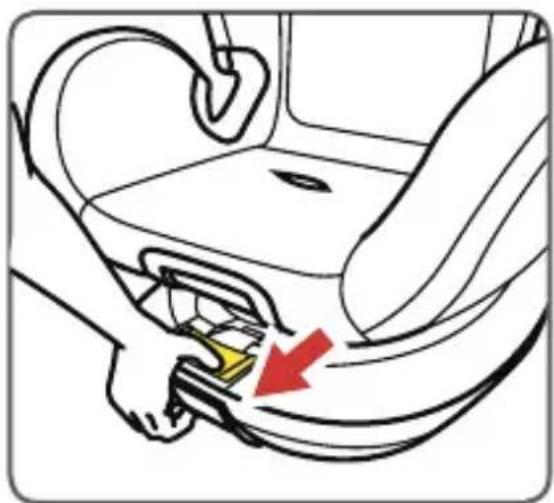

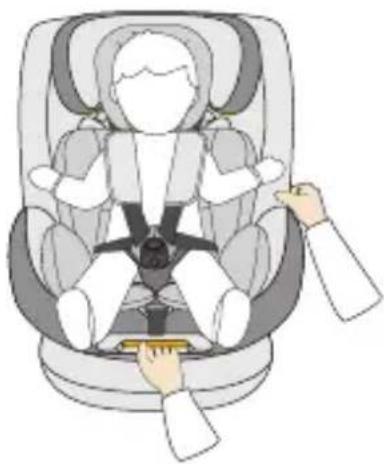

Setting the child car seat tilt angle
- Operate the position lever on the lower front of the seat bucket with one hand.
- Hold the seat bucket with the other hand and adjust the angle.
The following seat positions are possible:
(Please see the label on the child car seat)
Rear-facing,
height 40–105 cm: 1 position (R)
Forward-facing,
height 76–105 cm,
min. 15 months:
4 positions (1-4)
Forward facing, body size:
100 - 150 cm: 1 position (1)


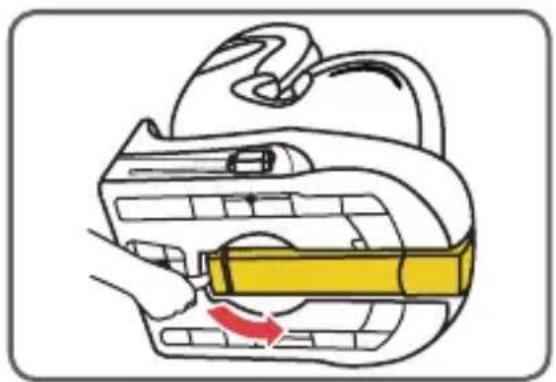

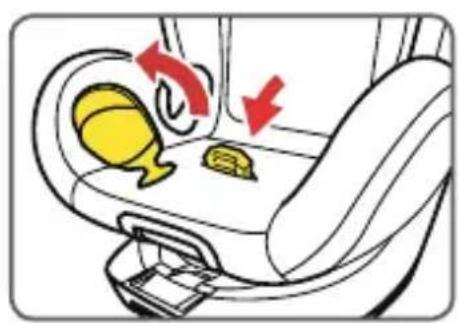

- Pull the rotation lever on the front of the base with one hand and with the other hand you can rotate the seat unit in the desired direction of travel.
- The forward-facing position is only suitable for children with a minimum age of 15 months and a minimum height of 76 cm. The rear-facing position is designed for children from 40 to 105 cm tall and a maximum weight of 20 kg.
- The side position is only intended to facilitate the child's entry. This position must not be used while driving.


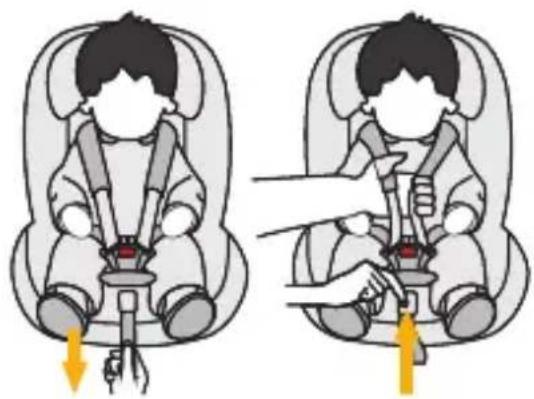

- To loosen the belt, press the belt adjustment button in the seat area with one hand. Hold the belt buckle with the other hand and carefully loosen the attached straps.
- Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.


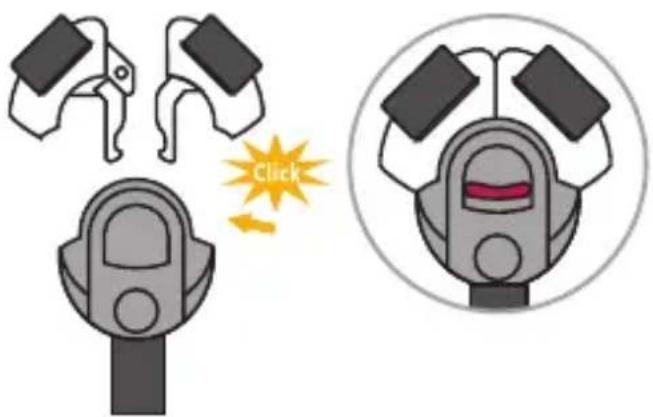

- To unlock the belt, press the button on the belt buckle, pull out the buckle tongues and separate them.

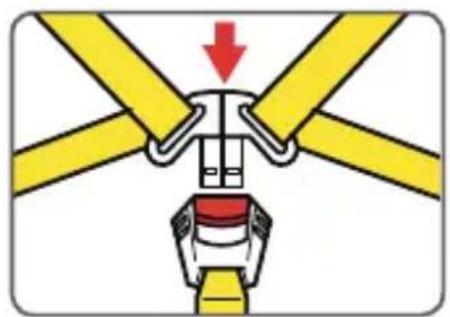

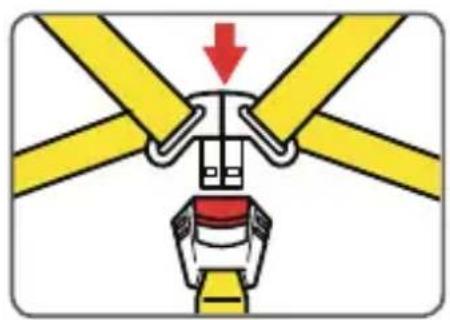

- To lock the belt, fi rst, connect both tongues of the buckle and then insert them together into the belt buckle.


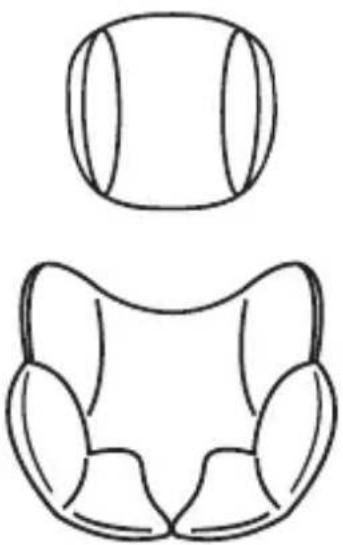

ClickHead cushion & comfort insert
- The head cushion and comfort insert are designed for babies with a body height of 40 - 75 cm.
- Please remove both inserts as soon as your child has exceeded the specified body size.


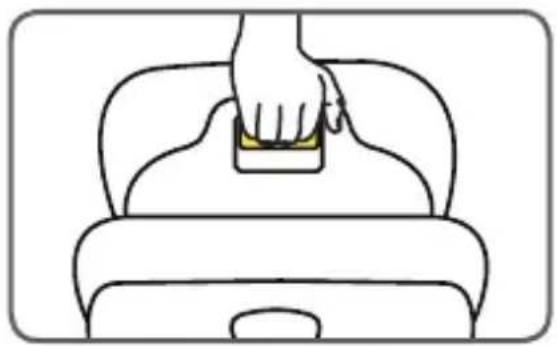

- Release the belt and pull the lever to adjust the headrest on the back of the child car seat. Move the headrest until it engages at the correct height.

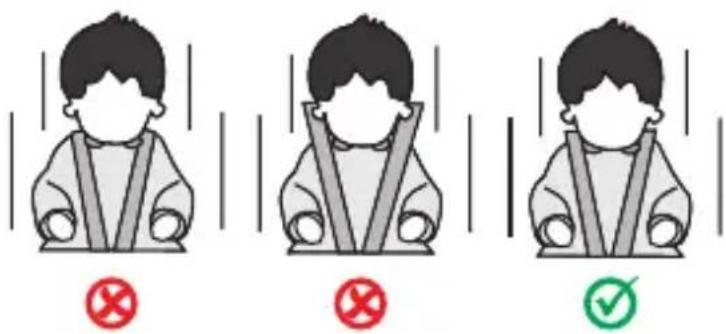

- Make sure the shoulder straps are positioned just above your child's shoulders when they come out of the child car seat.
- Release the lever and ensure that the head support is engaged.


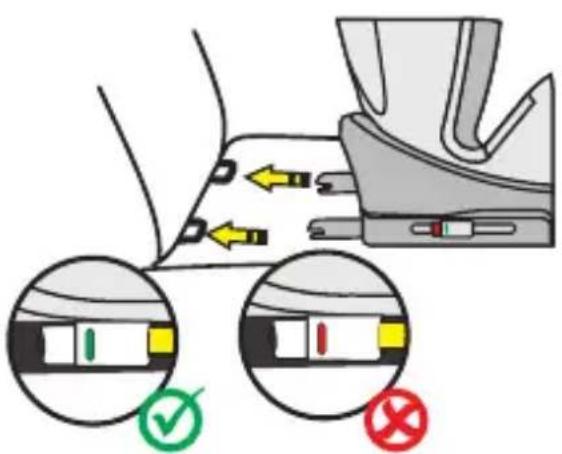

- Press the two lateral Isofi x connector buttons in order to extend the length of the Isofi x connectors.
- Guide the Isofix connectors onto the Isofix anchor points on the seat of the vehicle and ensure that they lock into position.
- Push the child car seat in until it rests securely against the backrest of the seat of the vehicle. Ensure that both Isofi x indicators are showing green.


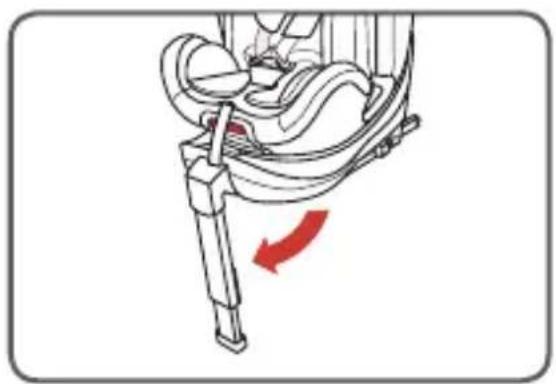

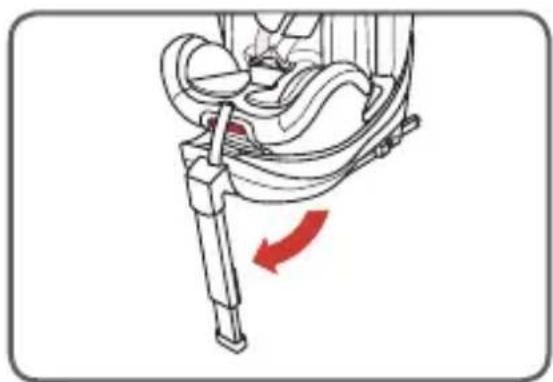

- Fold out the support leg underneath the child car seat. For children under 105 cm in height, the child car seat may only be used with the Isofi x support leg folded out together with the Isofi x connectors. Using the child car seat only with Isofi x connectors is not permitted.
- Press the button to adjust the height of the stand and extend the telescopic stand. Make sure that this is fully in contact with the foot-well of your vehicle.
- Ensure that the indicator on the support leg is showing green.
- Size class 100–150 cm: The support leg is not needed in this size class. Please fold the support leg.


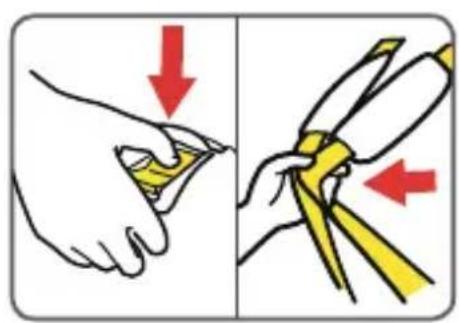

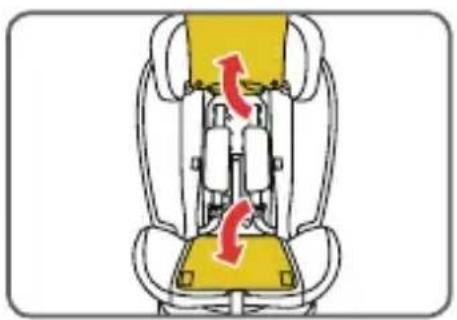

40-105 cm:Stowing the 5-point seat belt for size class 100-150 cm
- Loosen the belt system to the maximum length and open the belt buckle.
- Remove the belt buckle padding and thread the belt buckle through the slot in the seat area cover.
- Position the shoulder straps and shoulder pads behind the lower part of the headrest cover and fold it upwards. Also open the cover in the backrest area and fold it downwards.

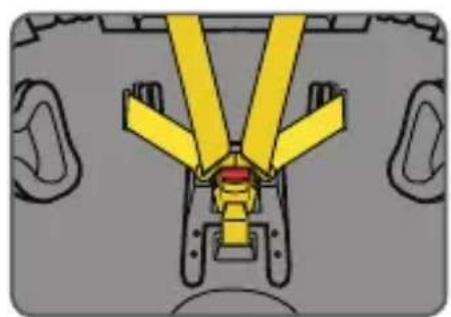

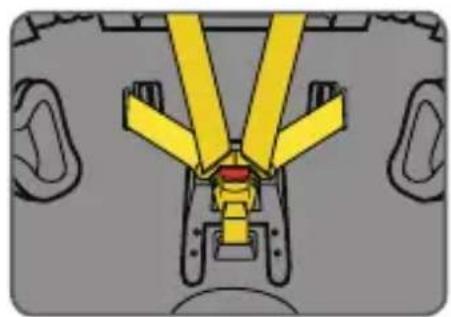

- Insert the belt buckle tongues into the belt buckle and stow it in the recess in the seat area.

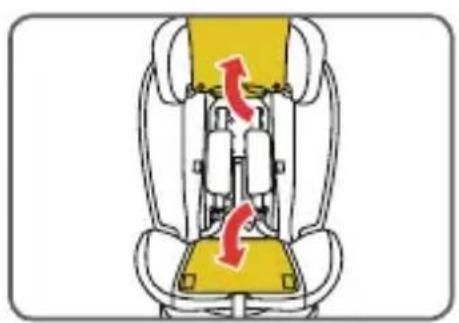

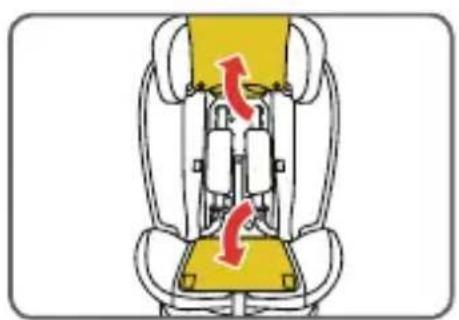

- Fold up the backrest cover again and fasten it using the Velcro fasteners or press studs (depending on the version). Now fold the lower part of the headrest cover back down.
• The child car seat is now ready for use for the 100-150 cm size category. - Keep the removed belt buckle padding in a safe place for later use.


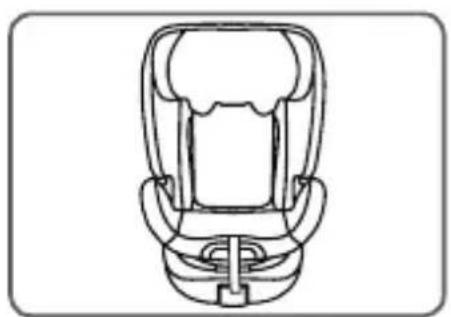

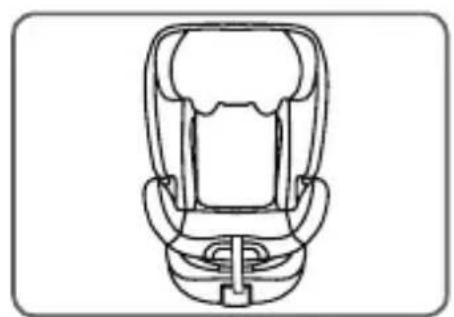

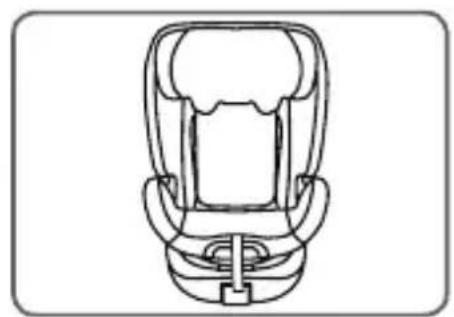

Line drawing of a car seat assembly (no text or symbols)CLEANING
To guarantee long-term use of your child car seat, do not use any solvents, abrasive cleaners or aggressive cleaning agents to clean the car seat. Check the stability of the fabric and the seams after each wash. When washing the fabric, carefully follow the instructions on the label (see below).

Wash at 30^ C, gentle wash cycle

DO NOT iron

DO NOT bleach

DO NOT dry clean

Tumble dry at low temperature
MAINTENANCE
Check the condition of the product for possible damage at regular intervals. In the event of damage, the child car seat must no longer be used and must be stored out of the reach of children.
In case of any issues, please contact
Osann customer service on +49 (0)7731 970077.
INSTALLATION OF THE CHILD CAR SEAT

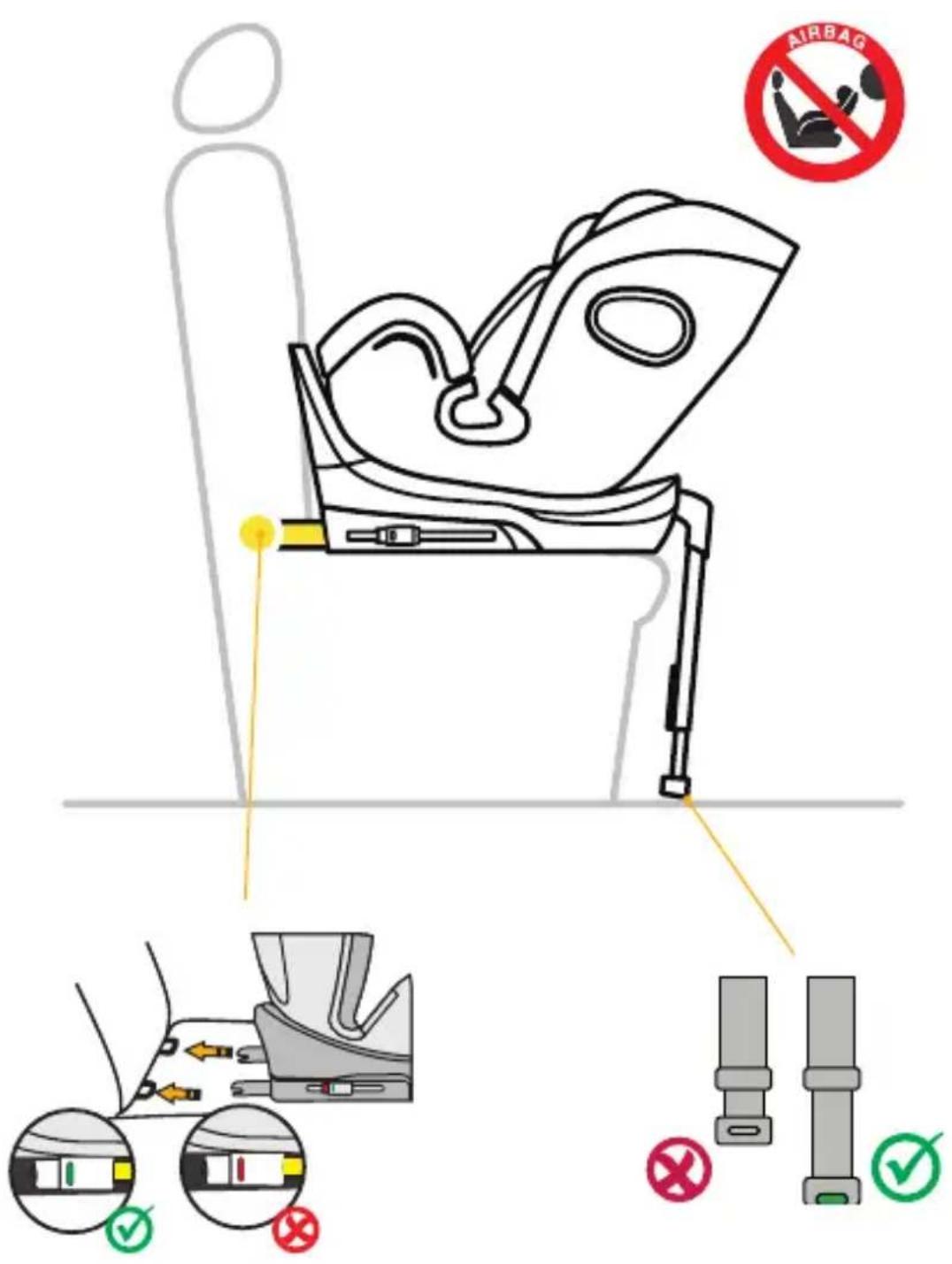

1) Height range 40–105 cm, max. 20 kg, rear-facing
- Press the two side Isofix connector buttons to extend the length of the Isofix connectors.
- Fold out the stand below the child car seat.
- Guide the Isofix connectors onto the Isofix anchor points on the vehicle seat and ensure that they lock into position.
- Push the child car seat in until it rests securely against the backrest of the vehicle seat. Ensure that both Isofi x indicators are showing green.
- Adjust the height of the support leg and ensure that this is fully in contact with the footwell of your vehicle.
- Ensure that the indicator on the support leg is switched to green.
- When placing your child in the child car seat, turn the car seat towards the car door for convenience.
- Unfasten the belt buckle on the child car seat and place the belts over the outside of the seat.
- Put your child in the child car seat.
- Adjust the height of the headrest as described above.
- Fasten the belt buckle again until you hear a click.
- Pull the front adjustment strap to tighten the belts.
- Ensure that the straps are not twisted.
- Turn the seat into the rear-facing position. Check that the child car seat is locked in this position.
INSTALLATION OF THE CHILD CAR SEAT
2) Height range 76–105 cm, min. 15 months, max. 20 kg, forward-facing


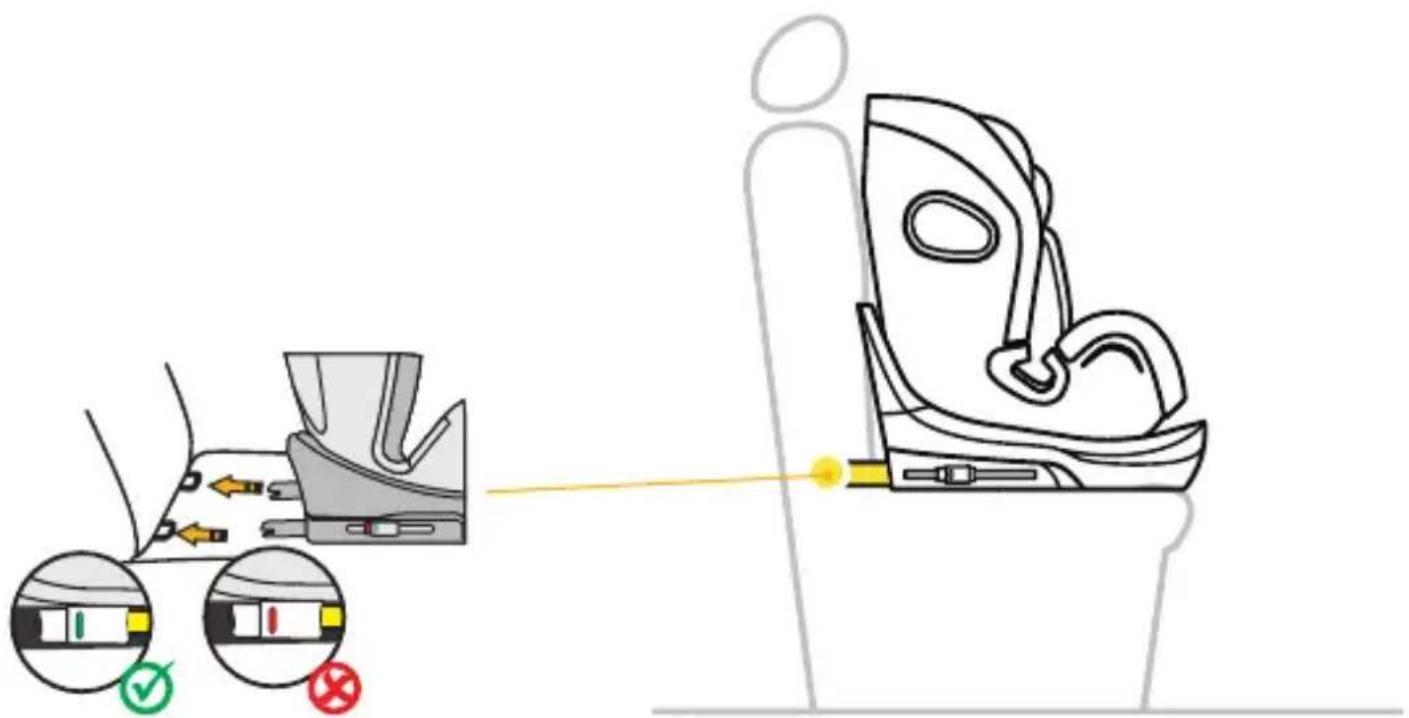

- Press the two side Isofix connector buttons to extend the length of the Isofix connectors.
- Fold out the stand below the child car seat.
- Guide the Isofix connectors onto the Isofix anchor points on the vehicle seat and ensure that they lock into position.
- Push the child car seat in until it rests securely against the backrest of the vehicle seat. Ensure that both Isofi x indicators have turned green.
- Adjust the height of the support leg and ensure that this is fully in contact with the footwell of your vehicle.
- Ensure that the indicator on the support leg is showing green.
- When facing in the direction of travel, the child car seat offers 4 adjustable seat positions.
- When placing your child in the child car seat, turn the car seat towards the car door for convenience.
- Unfasten the belt buckle on the child car seat and place the belts over the outside of the seat.
- Put your child in the child car seat.
- Adjust the height of the headrest as described above.
- Fasten the belt buckle again until you hear a click.
- Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.
- Turn the seat into the forward-facing position. Check that the child car seat is locked in this position.
INSTALLATION OF THE CHILD CAR SEAT

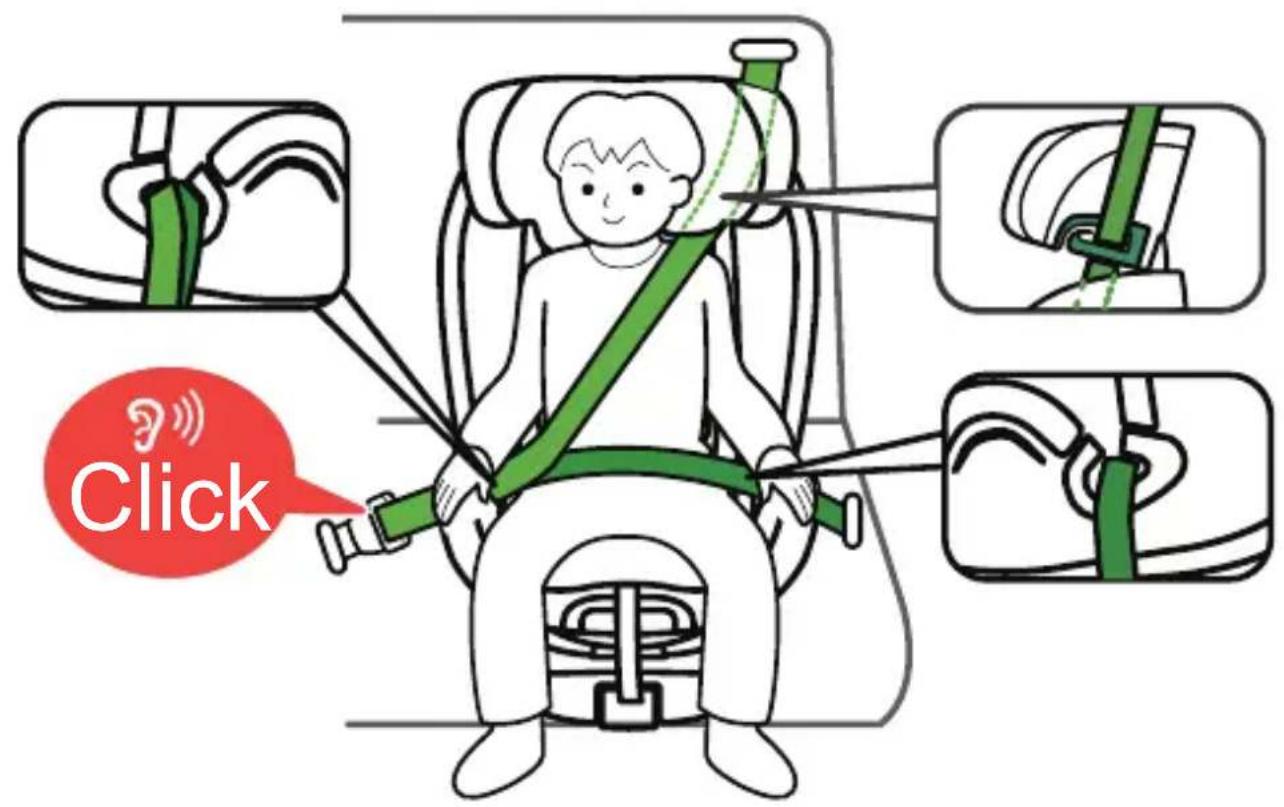

3) Height range 100–150 cm, forward-facing
- The 5-point harness of the child car seat must be stowed as previously described. It is not needed in this size class.
- Press the two side Isofix connector buttons to extend the length of the Isofix connectors.
- Guide the Isofix connectors to the Isofix anchor points on the car seat and snap them into place.
- Push the child car seat in until it rests securely against the backrest of the vehicle seat. Ensure that both Isofi x indicators have turned green.
- Thread the diagonal belt of the 3-point seat belt in the car through the diagonal belt guide on the headrest of the child car seat.
- Thread the lap belt of the car's 3-point seat belt through the first lap belt guide in the seat area of the child car seat.
- When placing your child in the child car seat, turn the car seat towards the car door for convenience.
- Put your child in the child car seat.
- Adjust the height of the headrest so that the child's head is fully in the headrest and the diagonal belt comes out through the belt guide at the level of the child's shoulders.
- Turn the seat into the forward-facing position. Check that the child car seat is locked in this position.
- Close the belt buckle of the 3-point seat belt until you hear a click.
- Make sure that both the diagonal belt and the lap belt run through the second lap belt guide on the child car seat, which faces the car's seat belt buckle.
- Pull on the diagonal strap to tighten it. Make sure that the straps are not twisted.
- The seat position must be set to position 1.
Installation without Isofi x:
Alternatively, the child car seat can also be fitted with the 3-point seat belt only for children 100–150 cm in height. Attaching the seat with the Isofi x connectors is not absolutely essential but is recommended.
Illustration of a child in a car seat being lifted, showing two different states of the seat (no text or symbols present)natural_image
Simple line drawings of a tennis ball and its head (no text or symbols)FR
Illustration of a hand inserting a yellow belt into a device component (no text or symbols)
Illustration showing two-step instructions for tying a ribbon, with red arrows indicating downward motion.
Diagram illustrating seatbelt usage and safety symbols, showing seat positioning, seatbelt switch, and safety check icons.IMPORTANT : N'UTILISEZ PAS LE SIÈGE AUTO POUR ENFANT DANS LA POSITION FACE À LA ROUTE SI L'ENFANT N'A PAS ENCORE ATTEINT L'ÂGE DE 15 MOIS RÉVOLUS.
Diagram of a car with numbered positions and checkmarks indicating status or options, including red 'X' and green checkmarks.- & 2.:
Illustration of a child in a car seat being lifted, showing two different positions (no text or symbols present)natural_image
Simple line drawing of a top and bottom views of a stylized animal head (no text or symbols)IT
Illustration of a hand inserting a yellow belt into a device component (no text or symbols)
Diagram illustrating seatbelt usage and safety symbols, showing seat positioning, seatbelt switch, and safety check icons.IMPORTANTE: NON UTILIZZARE IL SEGGIOLINO AUTO PER BAMBINI NELLA DIREZIONE DI MARCIA FINO A QUANDO IL BAMBINO NON ABBIA RAGGIUNTO I 15 MESI DI ETÀ.
Diagram of a car with numbered positions and checkmarks indicating status or options, including red 'X' and green checkmarks.1 en 2:
Simple line drawing of a top and bottom views of a stylized animal head (no text or symbols)natural_image
Line drawing of a hand pressing down on a small object on a surface (no text or symbols)
voor lengteklasse
Illustration showing two-step instructions for tying a yellow ribbon, with red arrows indicating downward motion.
Diagram illustrating seatbelt usage and safety symbols, showing seat positioning, seatbelt switch, and safety check icons.BELANGRIJK: GEBRUIK HET AUTOSTOELTJE NIET IN DE RIJRICHTING ALS HET KIND JONGER IS DAN 15 MAANDEN.
Diagram of a car with numbered positions and checkmarks indicating status or options, including red 'X' and green checkmarks.1. y 2.:
Simple line drawing of a top and bottom views of a stylized animal head (no text or symbols)ES
Illustration of a hand inserting a yellow belt into a device component (no text or symbols)
Illustration showing two-step instructions for tying a ribbon, with red arrows indicating downward motion.
Diagram illustrating seatbelt usage and safety symbols, showing seat positioning, seatbelt switch, and safety check icons.IMPORTANTE: NO UTILICE EL ASIENTO INFANTIL PARA AUTOMÓVIL EN EL SENTIDO DE LA MARCHA HASTA QUE EL NIÑO CUMPLA 15 MESES.
Simple black-and-white cartoon illustration of two overlapping circles (no text or symbols)
TPO2 - Safety Barcelona
