USER MANUAL Conquest HD 10x32 ZEISS

This product may be covered by one or more of the following United States patents: US5647302, US5816310, US5906862

2

We make it visible.

// CONQUEST HD

// CONQUEST HD ZEISS. PIONIER SEIT 1846.

Gebrauchshimweise /Garantie
Instructions for use /Guarantee
Mode d'emploi /Garantie
Instruzioni d'impiego /Garanzia
Modo de employ /Garantia
Bruksamsising /Garanti
Kayttohoe /Takuu
Pokorny k pouzivani /zaruika
Informaje do dotcazy zuytkowan
Hasnatali ulaslas /Jotalas
Интукун no поименe
使用提示/质保
使用上的注意/保证

Fig.1

Fig.2 Fig.3

1
78

Fig.5

GEBRAUCHSANWEISUNG

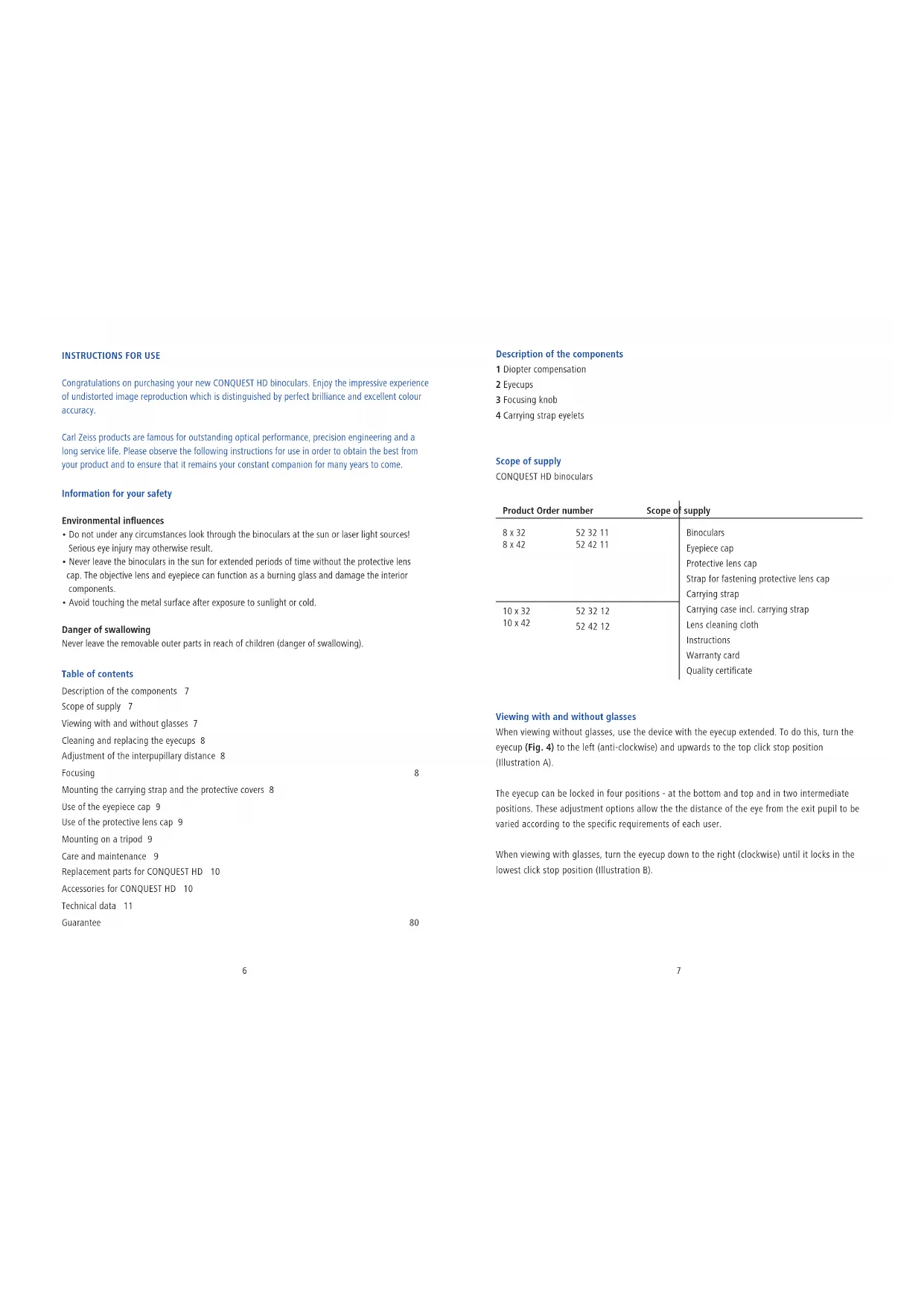

Congratulations on purchasing your new CONQUEST HD binoculars. Enjoy the impressive experience of undistorted image reproduction which is distinguished by perfect brilliance and excellent colour accuracy.

Carl Zeiss products are famous for outstanding optical performance, precision engineering and a long service life. Please observe the following instructions for use in order to obtain the best from your product and to ensure that it remains your constant companion for many years to come.

Information for your safety

Environmental influences

• Do not under any circumstances look through the binoculars at the sun or laser light sources! Serious eye injury may otherwise result.
• Never leave the binoculars in the sun for extended periods of time without the protective lens cap. The objective lens and eyepiece can function as a burning glass and damage the interior components.
• Avoid touching the metal surface after exposure to sunlight or cold.

Danger of swallowing

Never leave the removable outer parts in reach of children (danger of swallowing).

Table of contents

Description of the components 7

Scope of supply

Viewing with and without glasses 7

Cleaning and replacing the eyecups 8

Adjustment of the interpupillary distance 8

Focusing

Mounting the carrying strap and the protective covers 8

Use of the eyepiece cap 9

Use of the protective lens cap 9

Mounting on a tripod 9

Care and maintenance 9

Replacement parts for CONQUEST HD 10

Accessories for CONQUEST HD 10

Technical data 11

Guarantee

8

80

Description of the components

1 Diopter compensation
2 Eyecups
3 Focusing knob
4 Carrying strap eyelets

Scope of supply

CONQUEST HD binoculars

Product Order number		Scope of supply
8 x 32	52 32 11
8 x 42	52 42 11
10 x 32	52 32 12
10 x 42	52 42 12
Warranty cardQuality certificate

Viewing with and without glasses

When viewing without glasses, use the device with the eyecup extended. To do this, turn the eyecup (Fig. 4) to the left (anti-clockwise) and upwards to the top click stop position (Illustration A).

The eyecup can be locked in four positions - at the bottom and top and in two intermediate positions. These adjustment options allow the distance of the eye from the exit pupil to be varied according to the specific requirements of each user.

When viewing with glasses, turn the eyecup down to the right (clockwise) until it locks in the lowest click stop position (Illustration B).

Cleaning and replacing the eyecups

The eyecups (complete modules) can be removed from the binoculars for replacement or cleaning.

Turn the eyecup (Fig. 1/2) upwards to the stop, then unscrew it completely via the thread (continue to turn in the same direction). After cleaning or replacement, turn the eyecup clockwise to the lowest click stop position. Finally, place the eyecup onto the binoculars and screw on well by turning it clockwise until it stops and tightens.

Adjusting the interpupillary distance

Adjust the two barrels relative to each other about the central axis until you see one circular field of vision when viewing with both eyes.

Focusing

The binoculars have a focusing knob (Fig. 1/3) and a diopter adjustment wheel (Fig. 1/1). To adjust, close your right eye and focus the image in the left barrel using the centre focusing knob (Fig. 1/3). Then close your left eye and, if necessary, adjust the focus in the right barrel using the diopter adjustment wheel (Fig. 1/1).

The diopter adjustment is provided with a scale with "+" and "-" and has an index point as a reference point (setting the diopter adjustment for different users).

Note: Always use the same object to focus both images! For subsequent focusing on varying distances, use only the focusing knob (Fig. 1/3).

Mounting the carrying strap and the protective covers

The carrying strap, the eyepiece cap and the protective lens cap are supplied with the binoculars. Attach the carrying strap to the eyelets provided on the binoculars, and mount the eyepiece cap on the strap as shown in Figs. 2, 3 and 5.

The strap for the protective lens cap is attached directly (either right or left) to the protective lens cap. To fasten on the device, use either the carrying strap or one of the two carrying strap eyelets.

Note: Simply pass the carrying strap through the eyelets on the eyepiece cap. Before attaching the carrying strap, as shown in Fig. 3, the strap length should be set at the desired length by shortening or lengthening the strap.

Follow the same sequence for the opposite side. Some prefer to thread through the cap on both sides, and some on only one.

Use of the eyepiece cap

The eyepiece cap is kept on the eyecups. Remove the eyepiece cap with your index fingers before using the binoculars.

Use of the protective lens cap

The protective lens cap is kept on the eyecups. Remove the protective lens cap with your index fingers before using the binoculars.

Mounting on a tripod

Binoculars from the CONQUEST HD series can be mounted on any commercial camera tripod using the Carl Zeiss universal tripod adapter for binoculars. The order numbers for Carl Zeiss tripods and the Binofix tripod adapter can be found under Accessories for CONQUEST HD.

Care and maintenance

The binoculars are provided with Carl Zeiss LotuTec coating. The effective protective coating for the lens surfaces noticeably reduces contamination of the lenses through a special smooth surface and the combined beading effect. All types of contamination adhere less and can be quickly and easily removed, smear-free. The LotuTec coating is also durable and abrasion resistant.

We recommend using the Carl Zeiss lens cleaning cloth (included) to clean the surface of the lenses. Even grease, fingerprints and dirt can be removed with no effort and without smears. Do not wipe coarse dirt particles (e.g. sand) from the lenses; instead blow off or remove with a fine brush. Other textiles, such as clothing or handkerchiefs can scratch the lenses and statically charge them.

We recommend regular cleaning of the lens surfaces. Contamination, especially grease or fingerprints, can attack the lens surfaces after a while. Dry storage and keeping the outer lens surfaces well ventilated, especially in the tropics, helps to prevent a possible mould film forming on the optics.

Replacement parts for CONQUEST HD

If you need any replacement parts for your binoculars, e.g. protective lens caps, please contact your local dealer, your country's distributor or our customer service team.

Our customer service team is available from Monday to Friday from 8:00 am until 6:00 pm (CET) should you have any questions.

Tel.: [phone]

Fax:[phone]

Accessories for CONQUEST HD

Air Cell comfort carrying strap 52 91 13

Aluminum tripod set, incl. video head and carrying strap 00 00 00-1778-480

Carbon tripod set, incl. video head and carrying strap 00 00 00-1793-996

Binofix binocular tripodapter 528387

Magnification attachment 3 x12 mono 52 20 12

Adapter for CONQUEST HD 528377

Accessories are not included in the scope of supply!

Technical Data		8 x 32 10 x 32 8 x 42 10 x 42
Magnification 8 10 8 10
Objective lens diameter (mm) 32 32 42	42
Exit pupil diameter	(mm)	4,0	3,2	5,25	4,2
Twilight factor		16,0	17,9	18,3	20,5
Field of vision	(m/1000 m)	140	118	128	115
Subjective angle of view	(°)	64	68	59	66
Close-up setting limit	(m)	1,5	1,5	2,0	2,0
Diopter adjustment range	(dpt)	+/-4 dpt.
Exit pupil distance	(mm)	16		18
Interpupillary distance		54-74
Lens type		HD-Typ
Prism system		Schmidt-Pechan
Lens coating		LotuTec®/T*
Nitrogen filling		Yes
Watertightness	(mbar)	400
Functional temperature range	(℃)	-30/+63
Length	(mm)	132		150
Width with an eye spacing of 65mm	(mm)	118		120
Weight	(g)	630		795

MODE D'EMPLOI

Las anteojeras (unidad completa)SEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEO limpiarlas.

HhopmaunInBaweB63oNaChOCTN

BnHnOkpykaioeIcpebl

HnB KOEM cnyaHe HnPabnIte 6NHOKb Ha coJIne HnHa HcTOUHNKn
JaepeHoro CBeta,3To MOKeT npINBeCTN K TReJeBLm NOBpeJDeHNAM rJa3.
He octaBNITE np6Op Ha dOIORe Bpemr NaOD CoIHcEm 6e3 3auTHoH
KpbuHKn.ObBeKTHn HOKyIep 6e3 3auTHoH KpbuHKn MoryT DeiCTBOBaTb KaK
Co6HpateNBHar JInH3a n PnH tOM NobpeHt b YacTn, HaxOJauneCn BHYTp nPb6opa.
H36eRaTIe KOtAKTOB C MetaIIHHueCKIMn NOBepXHOCTAMn NocLe BO3DeJCTBn
COINua Hn XOLOda.

Onachoctb npornatbBaHn

CneDte 3a Tem, YTObI CHTble HaCTn He nonaII B pyKn Deten (onacnoctb nporNaBHaH).

CopekhaHne

HaHMeHOBaHneTeTaJIe 61

Osbem KomnneKta 61

Ha6nOHeHne C OuyKaMn Hnn 6e3 OyKOB 61

OuNCTKa 3aMeHa HArna3HKnOB 62

Corgacobahne paccOHHM MeKdy 3paKaAM (MeK3paKIOBoe pacCTOHHe) 62

Hactponka pe3Koctnn3o6paKeHH 62

YcTaHOBka pemHn nI nepeHoCKn 3aunTHbIX KpbIwek 62

PpimmeHHe 3aunTHoN KpbuKn OkyIpa 63

PpimmeHHe 3aunTHoN KpbIuK No6BeKtNbA 63

KpennneHnHa 7tTaHBe 63

Texyo63

3anactn dnn CONQUEST HD 64

Приhalдлжнодг CONQUEST HD 64

TexHHueckne daHHbIe 65

TapaHTn 98

HaHMeHOBaHne Detalei

1DnOHTPNHARKOPPEKUN
2 Hargna3nkn
3Фokycnpyuosra roJOBka
4PertnpeHra nepehockn

06bem kOMIIeKta

BnHokb cepm CONQUEST HD

Manufacturer's guarantee for binoculars, spotting scopes and riflescopes

The name Carl Zeiss stands for a high level of quality and reliability. As the manufacturer, we will therefore provide a 10-year guarantee for this Carl Zeiss product independently of the retailer's guarantee obligations to the customer. The guarantee covers the following:

• In the case of defects caused by faults in material or manufacturing, we will pay for the cost of labour and material for a period of 10 years from the date of purchase. We reserve the right, at our discretion, to repair defective products, replace defective parts or to replace the product with an equivalent product free from defects. Any further claims of any nature whatsoever and for whatever legal argument in connection with this guarantee are excluded.
• There is no claim under this guarantee if a defect has been caused by improper use or if accessories produced by another manufacturer are used.
• The guarantee lapses if the product has been interfered with or repaired by a service company which is not authorised by us. We guarantee wearing parts such as carrying straps, lens caps, rubber armouring, plastic parts and similar within the guarantee provisions defined by law.
  Further claims for redress under the guarantee, whether contractual or statutory, are excluded, especially claims for compensation for such damage which did not arise to the product itself (indirect loss or damage). This does not apply in so far as mandatory liability is imposed by statute in cases of intent or gross negligence.

• Act now to ensure that you receive your guarantee card! Our website www.zeiss.de/sportsoptics features a form for quick online registration. ALTERNATIVELY you can complete the answer card (which you will find enclosed with this guarantee brochure) and send it to us by post. After registration, you will receive a personal guarantee card in a practical credit card size. Please note that processing takes 4-6 weeks! You must always include this card if you return your purchase to us for servicing. We will unfortunately be unable to carry out any work under the guarantee without this card. We recommend that you always send goods to us in the original packaging via an authorised ZEISS dealer.

• This guarantee is subject to the law of the Federal Republic of Germany. The place of jurisdiction for retailers is Wetzlar.
