USER MANUAL Conquest HDX 8x56 ZEISS

www.zeiss.com/cop/safety

LIEFERUMFANG

www.zeiss.com/nature/binoculars/accessories

www.zeiss.com/nature/service

1050 Worldwide Blvd.

Hebron, KY 41048-8632, USA

Telefon [phone]

E-Mail [e-mail]

TECHNISCHE DATEN

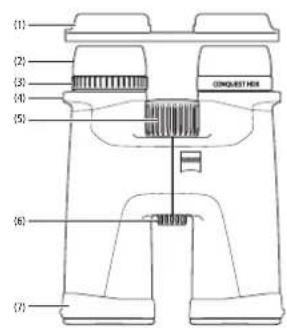

1. Eyepiece cap
2. Eyecups
3. Diopter compensation (lockable)
4. Carrying strap eyelets
5. Focusing wheel
6. Interface for tripod adapter 1/4"
7. Protective lens cap

Fig. 3

Fig. 4

Fig.6Fig.5

Fig.9Fig.8Fig.7

15x56 LRP

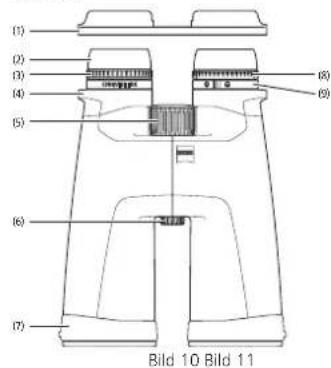

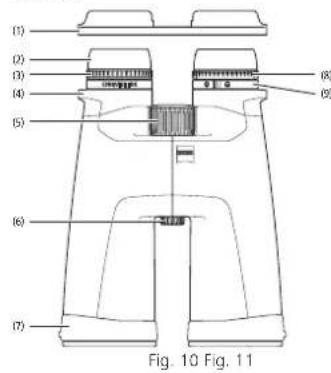

DESCRIPTION OF THE COMPONENTS

1. Eyepiece cap
2. Eyecups
3. Diopter compensation (lockable)
4. Carrying strap eyelets
5. Focusing wheel
6. Interface for tripod adapter 1/4"
7. Protective lens cap
8. Reticle locus
9. Reticle level adjustment

15x56LRP

15x56LRP

Fig. 12

Note:

The size of the reticle has been enlarged in the graphics for better presentation and does not correspond to the original.

INSTRUCTIONS FOR USE

Congratulations on purchasing your new ZEISS CONQUEST HDX binoculars. Enjoy the memorable experience of realistic image reproduction, characterized by brilliance and high color fidelity.

ZEISS products are famous for outstanding optical performance, precision engineering and a long service life. Please observe the following instructions for use in order to obtain the best from your product and to ensure that they remain your constant companion for many years to come.

Please note the safety instructions, they can be found under:

www.zeiss.com/cop/safety

SCOPE OF SUPPLY

Product Order number Scope of Supply

8 x 32 52 32 14 Binoculars
10 x 32 52 32 15	Eyepiece cap
	Protective lens cap
8 x 42 52 42 14	Carrying strap
	Carrying case
10 x 42 52 42 15	Lens cleaning cloth
8 x 56 52 56 34	Quick Guide
10 x 56 52 56 35	Safety instructions
	Tripod adapter ¼" (only for 15 x 56 and LRP 15x56)
15 x 56 52 56 36
15 x 56 LRP 52 56 36 -9901-000

Adjusting the eye spacing (pupillary distance)

Bend the two barrels toward each other around the central axis, until the distance of the two eyepieces corresponds to the distance between your eyes. This will provide the optimum image for your eyes. The optimum eye spacing is achieved when one circular image is seen when viewing through the binoculars with both eyes (Fig. 2).

Focusing

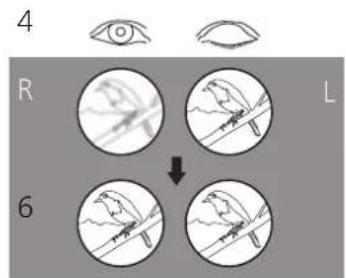

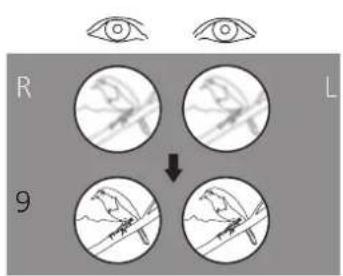

The binoculars have a focusing wheel and a diopter adjustment wheel. To adjust, close your right eye and focus the image in the left barrel using the center focusing wheel (Fig. 3).

Then close your left eye and, if necessary, adjust the focus in the right barrel using the diopter adjustment wheel (Fig. 4). Details on this can be found in the next section. The diopter adjustment wheel features a scale with the signs "+" and "-" and has an index point as a reference point. Note your personal setting, then you can quickly set your own diopter setting on any binoculars.

For additional focusing at different distances, use only the focusing wheel (Fig. 5).

Note: Always use the same object to focus both images!

Diopter locking mechanism

The binoculars have a diopter locking mechanism to prevent unwanted adjustment of the diopter compensation (Fig. 4).

To adjust the diopters, first unscrew the eyecups (a). Then you can pull the diopter adjustment ring upwards to unlock it (b). Change the diopters as described above by turning the diopter adjustment ring (c). After the focus is correctly adjusted, press the diopter adjustment ring back down to lock it (d).

Aligning the eyecups, Viewing with and without glasses

If you do not wear glasses when viewing, use the binoculars with the eyecups extended. To do this, turn the eyecups counter-clockwise and upwards to the top click stop position (Fig. 6 - Illustration A).

The eyecups can be locked in four positions - at the bottom and top and in two intermediate positions. These adjustment options allow the distance of the eye from the exit pupil to be varied according to the specific requirements of each user.

When viewing with glasses, turn the eyecups down (clockwise) until it locks in the lowest click stop position (Fig. 6 - Illustration B).

Note: If the eyecups are turned further counter-clockwise when in the extended position, they can loosen. This is by design. For more information, see "Cleaning and replacing the eyecups".

Cleaning and replacing the eyecups

To replace the eyecups or for cleaning, they can be completely screwed off of the binoculars. Turn the eyecups out as shown in Fig. 6 to the top click-stop position and turn the thread in the same direction until the eyecups are completely screwed out.

After cleaning or replacing the eyecups, turn them completely clockwise on the eyepiece (also refer to the section "Aligning the eyecups, Viewing with and without glasses"). By slightly tugging clockwise, the thread of the eyecups engages in the lowest setting. Finally, you can again set your desired distance between the eye and eyepiece using the click stops.

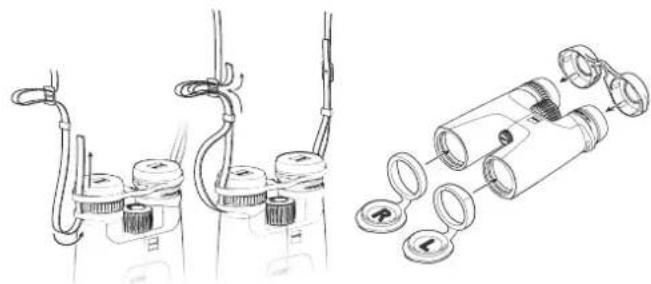

Attaching the carrying strap and protective cap

The carrying strap, eyepiece cap and protective lens cap are included in the packaging. As shown in Fig. 7, the eyepiece cap and carrying strap are attached to the binoculars by means of the carrying strap eyelet.

The strap length can be set to the desired length by shortening or lengthening the strap. On the other side of the eyepiece cap follow the same sequence. The eyepiece cap can also be put on only one side, if preferred.

The lens caps are marked "L" for left and "R" for right and are attached to the left and right tubes respectively (Fig. 8).

Use of eyepiece and lens cap

The eyepiece cap can be attached to the eyecups (Fig. 8). You can maintain the desired high-eyepoint design. Remove the cover before using the binoculars.

The lens caps can remain permanently on the binoculars after they have been attached and only need to be opened before use.

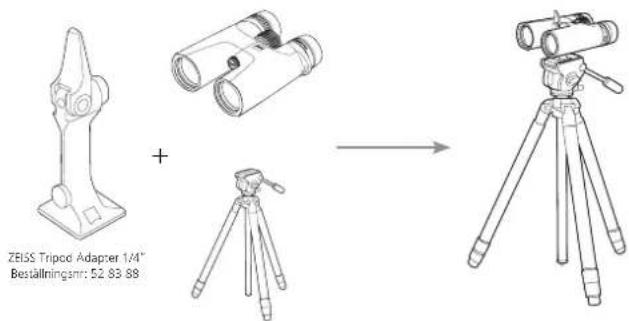

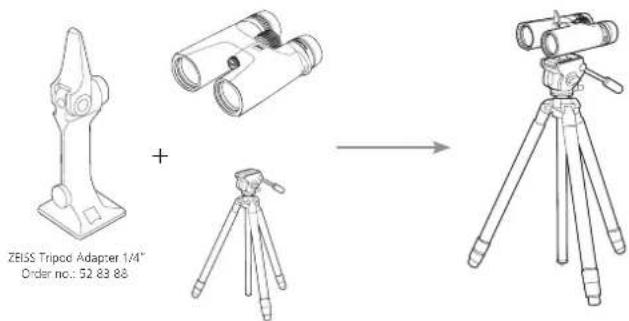

Attachment of tripod adapters

Binoculars from the ZEISS CONQUEST HDX series can be mounted on any commercial camera tripod using the ZEISS tripod adapter 1/4" or the ZEISS Binofix universal tripod adapter (Fig. 9).

The order numbers for ZEISS tripods and tripod adapters and other accessories can be found in the "Accessories for ZEISS CONQUEST HDX" chapter.

Special adjustments for ZEISS Conquest HDX LRP 15x56 binoculars - with MRAD reticle

The ZEISS Conquest HDX LRP 15x56 model is specifically designed for competition sport shooting. It incorporates a reticle that can be adjusted for both 'leveling' and 'focusing' needs (Fig. 10).

Note: The reticle is located in the left channel. When using, the reticle appears on the overall image.

Angle/Leveling adjustment of the reticle - from the viewing position

1) As with all binoculars you must first set the interpupillary distance (IPD) to your preferred and comfortable width (see section adjusting the eye spacing).

2) Once the IPD is set for your eyes, look through the binocular to check whether the reticle in the left barrel is leveled or not. If leveled, no further adjustment is needed. If not leveled, rotate the angle adjustment ring - the ring without rubber surface, located on the left side barrel, until the reticle is perfectly leveled (Fig. 11).

3) For assistance and confirmation of 'level' setting, you can use a trustworthy reference point such as a building.

Note: The angle adjustment ring is purposely stiff to rotate in order to prevent unintentional adjustment.

Focusing of the reticle

Once the reticle is leveled you will need to focus the reticle to obtain a clear and crisp view of the reticle (Fig. 12).

1) To focus the reticle, the eyecups must be adjusted outward to allow for unlocking of the reticle diopter adjustment (a).

2) Ensure the reticle diopter adjustment is in the unlocked position, by pulling out on the adjustment, away from the body of the binocular, until it unlocks (b).

3) While looking through the binoculars, close your right eye and rotate the reticle diopter adjustment left or right until the reticle is focused (c). After the reticle is focused, press the diopter adjustment ring back down to lock it (d).

Suggestions: For this adjustment, look through the binocular at a neutral background, e.g. a white or gray wall at a long distance. (Never look directly at the sun or any light source.)

Note: This final step of the reticle focus adjustment process should be accomplished in a short period of time, as your eye will want to 'auto-focus' the reticle for you after approx. 2 seconds. You may want to repeat this process a few times to confirm the setting is adjusted properly so that the reticle is 'in focus' immediately when you look at it. If the reticle is not 'in focus' the moment you look at it, this can cause unnecessary eye fatigue during extended observation sessions.

Care and maintenance

The binoculars feature the ZEISS LotuTec coating. The effective protective coating for the lens surfaces noticeably reduces contamination of the lenses through a special smooth surface and the strong beading effect connected with it. All types of contamination adhere less and can be quickly and easily removed, smear-free. The LotuTec coating is also durable and abrasion resistant.

Please do not wipe coarse particles from the lenses (e.g. sand), rather blow them away or use a fine brush to remove them. Over time, fingerprints can corrode the lens surface. Breathing on the lens and polishing with a clean optical cleaning cloth is the easiest method of cleaning the lens surface. Dry storage and keeping the outer lens surfaces well ventilated, especially in the tropics, helps to prevent a possible mold film forming on the optics. Your ZEISS CONQUEST HDX binoculars require no further special care.

Contamination on the rubber coating and the housing can usually be removed using warm water, a cotton cloth and light rubbing.

ACCESSIONS FOR ZEISS CONQUEST HDX

www.zeiss.com/nature/binoculars/accessories

Accessories are not included in the scope of supply.

CUSTOMER SERVICE, REPLACEMENT PARTS AND WARRANTY

For service or replacement part questions or obtaining the warranty

terms, please see our website:

www.zeiss.com/nature/service

For further questions, please feel free to contact:

ZEISS Customer Service

Carl Zeiss Sports Optics GmbH

Gloelstr.3-5,35576 Wetzlar, Germany

Phone [phone]

E-mail [e-mail]

ZEISS Customer Service USA

Carl Zeiss SBE, LLC

Consumer Products

1050 Worldwide Blvd.

Hebron, KY 41048-8632, USA

Phone [phone]

E-mail [e-mail]

TECHNICAL DATA

		8 × 32 10 × 32 8 × 42 10	42 8 × 56 10 × 56 15 × 56 15	56 LRP
Magnification 8 10 8 10 8 10 15 15
Objective lens diameter mm 32 32 42 42 56 56 56 56
Exit pupil diameter mm 4 3.2 5.25 4.2 7 5.6 3.7
Twilight factor		16.0 17.9	18.3 20.5	21.2 23.7	29.0 29.0	29.0 29.0
Field of view	m/1,000 m	140 118	128 115	125 115	80 80
	(ft/1,000 yds)	(420) (354)	(384) (345)	(375) (345)	(240) (240)
Subjective angle of view	°	64 68	59 66	57 66	69 69
Close focusing distance	m (ft)	1.5 (4.9)	2 (6.6)	3.5 (11.5)
Diopler adjustment range	dpt	+4	+4	+4
Exit pupil distance	mm	16.5	16.5	18
Interpupillary distance	mm	54-74	54-74	56-74
Prism system		Schmidt-Pechan	Schmidt-Pechan	Abbe-König
Coating		LotuTec® / T*	LotuTec® / T*	LotuTec® / T*
Nitrogen purged		√	√	√
Waterightness	mbar	400	400	400
Functional temperature range	°C (°F)	-20/+63 (-4/+145)	-20/+63 (-4/+145)	-20/+63 (-4/+145)
Length	mm (in)	132 (5.2)	150 (5.9)	210 (8.3)
Width with an eye spacing of 65 mm	mm (in)	115 (4.5)	119 (4.7)	145 (5.7)
Weight	g (oz)	620 (21.9)	715 (25.2)	1,235 (43.6)	1,250 (44.1)	1,265 (44.6)	1,280 (45.2)

Subject to changes in design and scope of supply due to technical improvements.
