GB/IE Translation of the original instructions Page

Intended purpose.....22

General description.....22

Extent of the delivery.....22

Description of functions.....22

Overview. 23

Technical Data. 23

Safety information..... 23

Symbols used in the instructions 24

Symbols on the device..... 24

Graphical symbols on the charger. 24

General safety instructions.24

Correct handling of the battery charger. 26

Charging process 27

Charging the battery 28

Initial start-up 28

Operation 29

Crevice nozzle. 29

Wet vacuuming 29

Working instructions...29

Switching on/off......30

Emptying the collection container 30

Cleaning 31

Maintenance 31

Replacing the fi Iter 31

Storage. 32

Disposal/environmental protection 32

Replacement parts/ Accessories 33

Guarantee 34

Repair Service............36

Service-Center 36

Importer 36

Translation of the original EC declaration of conformity .157/157

Exploded Drawing .... 173

Introduction

Congratulations on the purchase of your new device.

With it, you have chosen a high quality product.

During production, this equipment has been checked for

quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of product. They contain im

portant information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The cordless vacuum cleaner is only suitable for vacuuming dry and wet surfaces. You can vacuum dry and wet material and small volumes of liquid. The suction of flammable, explosive or hazardous substances is prohibited.

The device may be used by children aged 8 and older under supervision.

The device is intended to be used by do-it-yourselfers. It was not designed for commercial use. The warranty is void in the case of commercial use.

The manufacturer is not liable for damage caused by improper use or incorrect operation.

General description

The illustration of the principal func

tioning parts can be found on the front foldout page.

Extent of the delivery

Carefully unpack the appliance and check that it is complete: Dispose of the packaging material properly.

• Cordless Handheld Vacuum Cleaner
• Crevice nozzle
  USB-C cable
• Instruction Manual

No power adapter included in delivery.

Description of functions

The cordless vacuum cleaner is equipped with a robust, transparency plastic container for holding dirt.

Refer to the following descriptions for the function of control elements.

Overview

1 Collection container
2 "MAX" marking
3 Release button
4 On/Off switch
5 Handgrip area
6 Battery charge level indicator
7 Charging socket
8 Recharger cable plug
9 Charging cable
10 Crevice nozzle
1.1 Filter holder

A 11a Protrusions

12 Lamella fi ne fi lter (HEPA)
13 Foam fi Iter

Technical Data

Cordless Handheld Vacuum Cleaner... PMSSA 8 B2 Nominal voltage U.....8 V = Suction power ....max. 3.8 kPa Run time (idle)...approx. 20 min Collection volume (gross), maximum

Dust. 105 ml

Liquid 60 ml

Rechargeable battery (Li-Ion)

Battery cells. 2

Nominal voltage 8 V=

Capacity. 2 Ah

Charging time .... approx. 1 h

Charger ....XZ0900-2400ENCG

Input AC frequency .50/60 Hz

Input current 0.8 A

Output voltage.....9.0 V = =

Output current 2.4 A

Output power 21.6 W

Average

active efficiency .90.7 %

Efficiency at low

load (10%)……88.4%

Power consumption

at zero load 0.05 W

Protection class .

Protection type... IP20

Safety information

This section describes the basic safety rules when working with the device.

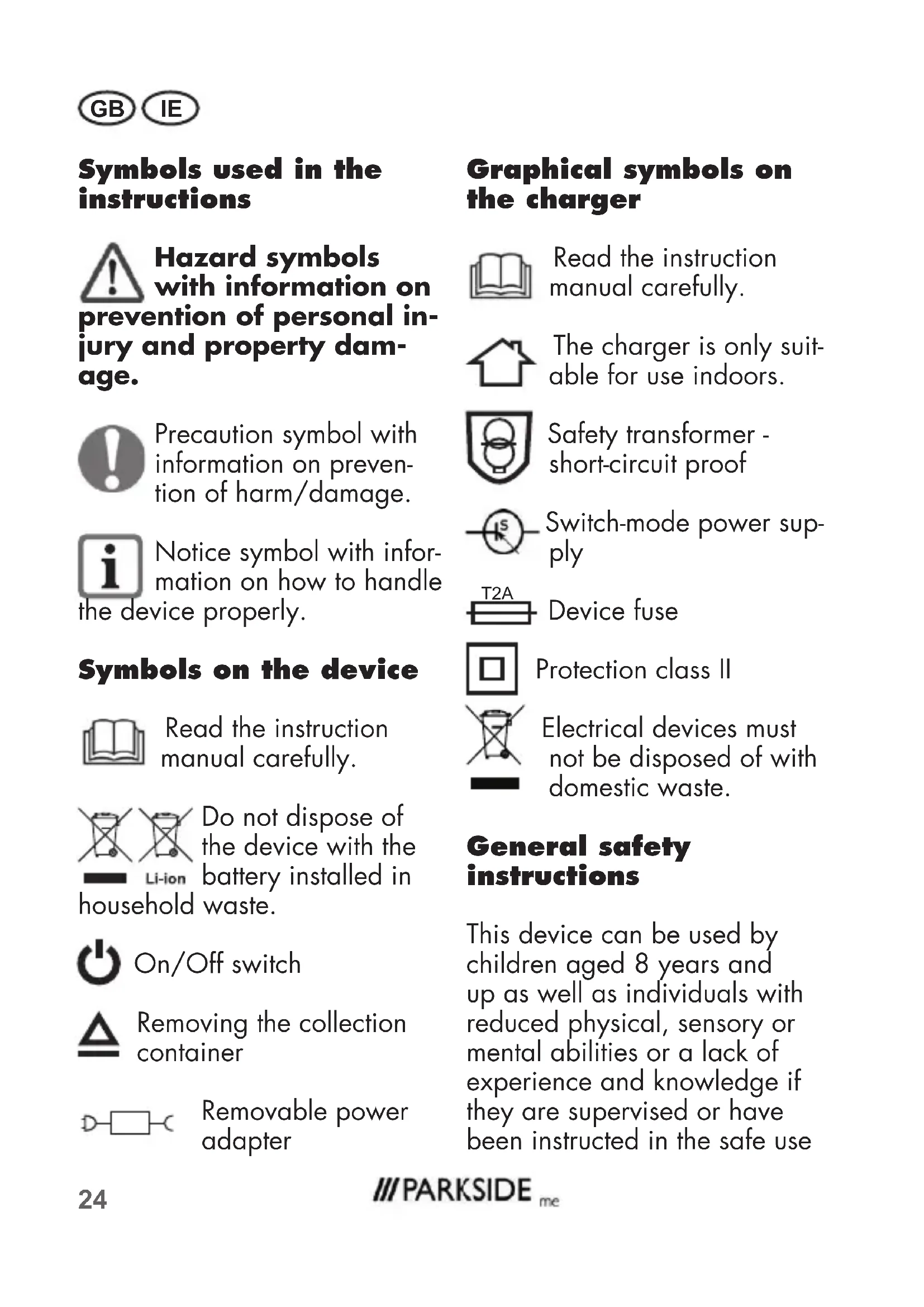

Symbols used in the instructions

Hazard symbols with information on prevention of personal injury and property damage.

Precaution symbol with information on prevention of harm/damage.

Notice symbol with information on how to handle

the device properly.

Symbols on the device

Read the instruction manual carefully.

Do not dispose of the device with the battery installed in

household waste.

On/Off switch

Removing the collection container

Removable power adapter

Graphical symbols on the charger

Read the instruction manual carefully.

The charger is only suitable for use indoors.

Safety transformer - short-circuit proof

Switch-mode power supply

Device fuse

Protection class II

Electrical devices must not be disposed of with domestic waste.

General safety instructions

This device can be used by children aged 8 years and up as well as individuals with reduced physical, sensory or mental abilities or a lack of experience and knowledge if they are supervised or have been instructed in the safe use

of the device and understand the resulting hazards. Children must never play with the device. Cleaning and user maintenance must not be carried out by children if they are not supervised.

Attention! The following basic safety precautions must be observed while using electrical devices to protect against electric shock, injury and risk of fire:

This is how to avoid accidents and injuries:

• Never leave the device unattended at the workplace when it is ready for use.

• Do not allow the vacuum to come into contact with people or animals.

While in operation, never aim the device and nozzles at yourself or other people; particularly not eyes or ears. There is a risk of injury.

• Do not vacuum hot, glowing, flammable, explosive or hazardous substances. These include hot ashes, petrol, solvents, acids or alkalis

amongst others. Risk of fire and injury.
- Check the device and accessories regularly for damage. Do not use the device or accessories if damaged.

This is how to avoid accidents and injuries from an electric shock:

• Switch the device off

• When you are not using the device or when you are transporting or leaving it unattended;

• When you inspect the device, clean it or remove blockages;
• When you perform cleaning or maintenance work, or swap accessories;

• After contact with foreign objects or if abnormal vibration occurs.

• Do not submerge the device in water and do not operate it in a damp environment.

• Do not submerge the device in water!
• Do not touch the device with wet or damp hands!

This is how to avoid damage to the equipment and possible personal injuries resulting from this:

• Make sure before use that the device is properly assembled and that the fi liters are in the correct position.
• Do not operate the device without fi lters. The device could become damaged.
• Only use original spare parts and accessories (see "Spare parts/accessories") which are supplied and recommended by our service centre. Using externally produced parts results in the immediate loss of the warranty claim.
• Only have repairs performed by customer service centres authorized by us.
• Comply with the device's cleaning and maintenance instructions.
• Store the device in a dry place and out of reach of children.
• Do not use any accessories that are not recommended by PARKSIDE. This can result in electric shock or fire.

Correct handling of the battery charger

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

a) The charger must only be connected to a mains socket via a residual-current circuit breaker (RCD) with a rated leakage current of not more than 30mA .
b) To charge the battery, use only the charger supplied. Risk of fire and explosion. Risk of fire and explosion.

c) Before each use, check the charger, cable and plug and have them repaired by qualifi ed professionals and only with original parts. Do not use a defective charger and do not open it up yourself. This ensures that the safety of the device is maintained.

d) Ensure that the mains voltage matches the specifications on the charger rating plate. Risk of electric shock.

e) Disconnect the charger from the mains before closing or opening connection to the battery/ power tool/device. This ensures that the battery and charger are not damaged.

f) Keep the charger clean and away from wet and rain. Do not use the charger outdoors. Dirt and the entry of water increase the risk of electric shock.

g) The charger must not be operated on or in the immediate vicinity of flammable surfaces

(e.g. paper, textiles). Risk of fire due to heating caused by charging.
h) Avoid mechanical damage to the charger. This can result in internal short circuits.
j) Do not use the charger to charge non-rechargeable batteries.
k) Do not connect a damaged cable to the power supply. Do not touch a damaged cable before it has been disconnected from the power supply, as you could come into contact with active parts.

Charging process

Do not expose the battery to extreme conditions such as heat and shocks. There is a risk of injury caused by leaking electrolyte solution! In case of contact with eyes or skin, rinse the affected sites with water or a neutralising agent and seek medical attention.

The battery must only be charged up in dry areas. There is a risk of personal injuries from an electric shock.

• The device may only be powered with SELV (Safety Extra Low Voltage) as indicated by the label on the appliance.

• Charge the battery before using it for the first time.

• To charge the Li-ion battery integrated in the device, use only the XZ0900-2400ENCG power adapter. The power adapter is available from our online shop. For charging use only protection class II power supply approved for use with household products.

Always comply with the latest safety instructions, as well as the regulations and information relating to environmental protection.

• Defects resulting from improper handling are not covered by the warranty.

Charging the battery

1. Connect the charging cable (9) to a power supply unit.

2. Connect the charger cable plug (8) with the charger socket on the tool (7).

3. Connect the power supply unit to a socket.

Red illuminated - battery < 30% , charging red/orange illuminated - battery >30% , charging Red/orange/green illuminated - battery fully charged

1. After the recharging process is completed, fi rst unplug the charger from the wall outlet, and then remove the charger cable plug from the tool.

Initial start-up

Before each use, ensure the fi ler (12) and fi ler holder (11) are sitting correctly in the collection container (1).

Also inspect the device visually for damage.

Do not operate the device if damaged or incorrectly assembled! Replace damaged parts and dirty fi iters. See "Spare parts/accessories".

1. Remove the collection container (1) by pressing the release button (3) and detaching the collection container (1).

2. Check that the fi ler holder (11) is sitting securely against the mechanical stop in the collection container (1) by lightly pressing the fi ler holder (11). Due to its shape, the fi ler holder (11) can only be inserted into the collection container (1) in one position. Note the protrusions (11a).

3. Check whether the fi ler (12) is sitting securely in the fi iter holder (11). Lightly press the fi iter into the fi iter holder (11).

4. Re-attach the collection container (1) onto the device. Place it on the underside of the device and allow it to latch into the interlock release on the top side of the

device. Note the catch on the bottom of the device and the collection container (1).

Operation

Crevice nozzle

The crevice nozzle (10) is suitable for dry vacuuming crevices, corners and radiators.

Wet vacuuming

• For wet vacuuming, remove the lamella fine filter.
• When vacuuming liquids, pay attention to the "MAX" marking on the collection container (1). The maximum volume for liquids is 60 ml .

Working instructions

• Ensure that the collection container (1), fi liter holder (11) and fi liter (12) are dry when changing directly from wet to dry vacuuming!

Remove the power supply unit before working with the equipment. Do not use

extension cables. The power supply unit is to be used only in enclosed spaces.

Switching on/off

Before switching on, ensure that the fi ler (12) and fi ler holder (11) are

ready for us. See "Initial startup".

Attach the crevice nozzle (10) as needed.

To switch on or off, briefly press the On/Off switch (4) once.

Emptying the collection container

Empty the collection container (1) after every use.

Empty the collection container if suction performance is decreasing.

If the collection container is full of dust or the fi liter becomes wet from wet vacuuming, the cordless hand-held vacuum cleaner may become damaged!

#

Emptying the collection container after vacuuming:

Hold the collection container with the tip pointing downwards when removing it to prevent liquid getting into the device!

1. Remove the collection container (1) carefully by pressing the release button (3) and removing the collection container (1).

2. Carefully remove the fi Iter (12) and fi Iter holder (11) from the collection container (1).

3. Empty the collection container (1).

4. Clean the collection container (1) with a damp cloth if required. If required, clean the fiiter (12) as indicated in the "Cleaning" section.

5. Place the fi lter holder (11) and the lamella fi ne fi lter (12) back into the collection container (1). Due to its shape, the fi lter holder (11) can only be inserted into the collection container (1) in one position. Note the protrusions (11a).

6. Re-attach the collection container (1) onto the device. Place it on the underside of the device and allow it to latch into the interlock release on the top side of the device.Note the catch on the bottom of the device and the collection container (1).

Cleaning

Always remove the rechargeable battery before carrying out work on the device. Risk of injury!

Never spray down the device with water or place it in water! Do not use any abrasive cleaning agents or solvents. The device could become damaged.

• Clean the housing with a dry cloth or paint brush.
• Tap the fi liter (12) and clean it with a brush or compressed air.
  If the fi liter is contaminated and cannot be cleaned, replace it!

See "Spare parts/Accessories".

• Wash the foam filter 13) with lukewarm water and soap and let it dry.
• Empty the collection container (1) after every use. Clean the collection container (1) with a damp cloth.
  Always keep the ventilation slit on the device housing unobstructed otherwise the device will overheat.

Maintenance

Replacing the fi lter

If contaminated, replace the fi liter with a new one. New fi lters can be acquired from the online shop. See "Replacement parts/Accessories".

1. Remove the collection container (1) by pressing the release button (3) and detaching the collection container (1).
2. Remove the fi lter (12) from the fi lter holder (11).
3. Place the new fi lter into the fi lter holder. Ensure the fi lter

is positioned correctly and securely.

1. Re-attach the collection container (1) onto the device by placing it on the underside of the device and allowing it to latch into the interlock release on the top side of the device.

Storage

• Store the device in a dry and dustproof location and out of reach of children.

• Only store the batteries in the partially-charged state. The charge status should amount to 40 - 60% during a lengthy storage period (1-2 LEDs are on).

• Store the device between 10^ and 25^ . Avoid extreme cold or heat during storage, so that the batteries do not lose power.

• Check the battery charge status approximately every 3 months during a lengthy storage period and recharge if necessary.

Disposal/ environmental protection

The device, accessories and packaging should be properly recycled.

Machines do not belong with domestic waste.

Do not dispose of the device with a built-in battery in the house, a fire (risk of explode water. Damaged bath harm the cent and your health if s fumes or liquids es

• Dispose of the device with the battery discharged. Do not open the device or battery.

• Dispose of the device in accordance with the local regulations. Return the device to a collection point from where it can be submitted for environmentally compatible recycling. For more information, please contact your local waste manage

ment provider or our service centre.

• We will dispose of any defective devices that you send to us free of charge.

Replacement parts/Accessories

Spare parts and accessories can be obtained at www.grizzlytools.shop

If you have issues ordering, please use the contact form. If you have any other questions, contact the "Service-Center" (see page 36).

Position	Description	Order
A	10 Crevic nezzle 91106174
	1 Collection container 91106173
	12 Lamella fi ne fi lter (HEPA) 91106176
A	13 Foam fi lter 91106177
	8+9 Power supply unit (9 V; 2400 mA)
	+ USB-C cable, EU 80001348
	8+9 Power supply unit (9 V; 2400 mA)
	+ USB-C cable, UK 80001349

Guarantee

Dear Customer,
This equipment is provided with a 3-year guarantee from the date of purchase.
In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace - at our choice - the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred. If the defect is covered by our guarantee, you will receive

either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. fi Iter) or to cover damage to

breakable parts (e.g. switches). This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and item number (IAN 373238_2104) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or

other defects occur, please initially contact the service department specifi ed below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specific cation of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

IE Service Ireland Tel.: [phone] (0,08 EUR/Min.,(peak) (0,06 EUR/Min., (off peak) E-Mail: [e-mail] IAN 373238_2104

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Service-Center......74

Importeur 74

Accu-stofzuiger.....PMSSA 8 B2

Nominate spanning U... 8 V= Zuigvermogen ....max. 3,8 kPa Looptij d (onbelast) ....20 min Opvangvolume (bruto), maximaal

Stof 105 ml

Vloeistof. 60 ml

Accu (Li-ion)

Batterij cellen 2

Nominate spanning.....8 V---

Capaciteit 2 Ah

Laadtijd ca. 1 h*

Voeding ....XZ0900-2400ENCG

Service-Center.....106

Dovozce 106

Překlad originániho

prohlášeni o shodě

CE 165/166

Robbantott ábra .... 173

zafazeni (10%) 88,4%

Príkon pri nulovom

zafαženi 0,05 W

Trieda ochrany.

Druh ochrany. IP20

BezpečnostnéPokyny

Service-Center.....154

Importador 154

Translation of the original EC declaration of conformity
We hereby confi rm that the Cordless Handheld Vacuum Cleaner model PMSSA 8 B2 Serial number 000001 - 049784 conforms with the following applicable relevant version of the EU guidelines:
2014/30/EU • 2014/35/EU 2011/65/EU* & (EU) 2015/863
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60335-1:2012/A2:2019 • EN 60335-2-2:2010/A1:2013 EN 62233:2008 • EN 55014-1:2017/A11:2020 EN IEC 61000-3-2:2019 • EN 61000-3-3:2013/A1:2019 EN 55014-2:2015 • EN IEC 63000:2018
This declaration of conformity (21)** is issued under the sole responsibility of the manufacturer:
CE Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großbostheim Germany 10.12.2021	Christian Frank Documentation Representative

• The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
  **The last two digits of the year in which the CE marking was affixed.

Translation of the original EC declaration of conformity
We hereby confi rm that the Power supply unit design series XZ0900-2400ENCG IAN 373238_2104 conforms with the following applicable relevant version of the EU guidelines:
2014/30/EU • 2014/35/EU • 2009/125/EC (EU) 2019/1782 • 2011/65/EU* & (EU) 2015/863
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60335-1:2012+A11+A13+A1+A14+A2 EN 60335-2-29:2004+A2+A11 EN 62233:2008 • EN 55014-1:2017+A11 EN IEC 61000-3-2:2019 • EN 61000-3-3:2013+A1 EN 55014-2:2015 • EN IEC 63000:2018
This declaration of conformity (21)** is issued under the sole responsibility of the manufacturer:
CE Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großbostheim Germany 10.12.2021	Christian Frank Documentation Representative

• The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

• *The last two digits of the year in which the CE marking was affixed.
