USER MANUAL PWDA 350 A1 PARKSIDE

3D rendering of a spray gun with clear plastic bottle and black handle (no text or symbols visible)

PDF ONLINE parkside-diy.com

WET/DRY VACUUM NOZZLE WITH WATER TANK - PWDA 350 A1 WASCHDÜSE MIT WASSERTANK FÜR NASS-/TROCKENSAUGER - PWDA 350 A1 BUSE DE NETTOYAGE AVEC RÉSERVOIR D'EAU POUR ASPIRATEUR EAU/ POUSSIÈRE - PWDA 350 A1

Wet/Dry Vacuum Nozzle With Water Tank

Operating and Safety Instructions

Translation of the original operating instructions

WARNING: READ CAREFULLY BEFORE USE AND STORE SAFELY FOR FUTURE REFERENCE.

Before reading, unfold the page with the illustrations and then familiarise yourself with all the functions of the product.

DE AT CH

GB / IE / NI / CY / MT Operating and Safety Instructions Page 1

Technical diagram of a spray gun with numbered parts for identification

2 7 5 6

3 4 10 A

4 1 9 2 3

5 1 ① ② 4

Table of contents

1 Explanation of the symbols on the product.... 2
2 Introduction.... 3
3 Description of the product.... 3
4 Scope of delivery 3
5 Proper use.... 3
6 Safety instructions 4
7 Technical data.... 4
8 Unpacking.... 4
9 Assembly and operation 5
10 Cleaning 5
11 Storage.... 5
12 Disposal and recycling.... 5
13 Warranty certificate.... 6
14 Exploded view.... 47

1 Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

Before commissioning, read and observe the operating manual and safety instructions!

Do not use flammable or chemically harmful liquids.

Weight kg.

Container volume.

2 Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
  • Non-compliance with the operating manual
• Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use

Note:

The operating manual is part of this product.

It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

3 Description of the product

A. Vacuum hose*
1. Top cover
2. Trigger lever
3. Handle
4. Suction port
5. Vacuum hose with suction ball
6. Water tank
7. Cap (water tank)
8. Spray nozzle
9. Brushes
10. Suction adapter

* = not included in the scope of delivery!

4 Scope of delivery

Item Quantity Designation

1. 1 x Suction adapter

1 x Washing nozzle (with water tank for wet/dry vacuum cleaner)

1 x Operating manual

5 Proper use

The product is an external accessory used in combination with conventional wet and dry vacuum cleaners.

The product is certainly intended for home use for cleaning upholstery and carpets (textile) exclusively in wet vacuum mode.

The product must not be used for vacuuming dust or in combination with conventional household vacuum cleaners.

Use only cleaning agents that are suitable for upholstery and carpets (textile). Observe the respective manufacturer's instructions.

The product may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

6 Safety instructions

WARNING

For your own safety, please thoroughly read this manual and the general safety instructions before turning the product on. If you give the product to third parties, always include these usage instructions.

Keep all safety information and instructions for future reference!

WARNING

Risk of explosion!

Do not spray flammable liquids, pesticides, undiluted chemical solvents or corrosive liquids.

6.1 General safety instructions

• Children are not permitted to use the product. Children should be supervised in order to ensure that they do not play with the product.
• The product shall not be operated by persons (including children) with reduced physical, sensory or mental abilities or who have inadequate experience or knowledge.
• The water jet must never be directed at any active electrical equipment or at the wet and dry vacuum cleaner.
• The water jet must never be directed at people or animals.
• Follow the operating instructions for the wet and dry vacuum cleaner used.

6.2 Residual risks

The product has been built according to state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation.

• Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.
• Use the product in the way that is recommended in this operating manual. This is how to ensure that your product provides optimum performance.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.

7 Technical data

Water tank contents 350 ml

Inner diameter of extraction port 35 mm

Inner diameter of suction adapter 31.5 mm

Weight approx. 0.37 kg

Subject to technical changes!

8 Unpacking

WARNING

The product and the packaging material are not children's toys!

Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. Immediately report any damage to the transport company that delivered the Product. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

9 Assembly and operation

ATTENTION

Always make sure the product is fully assembled before commissioning!

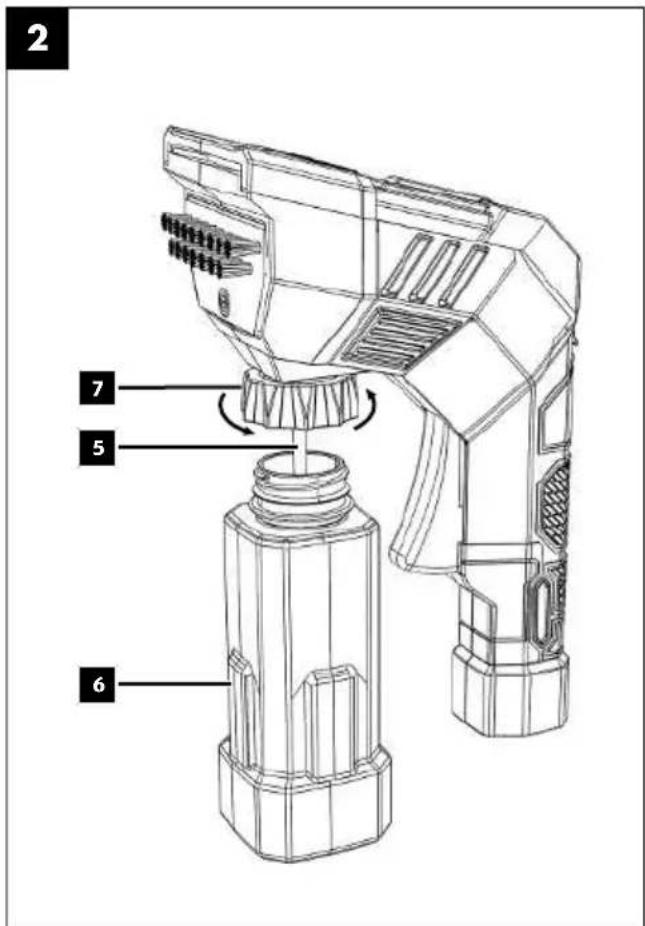

9.1 Inserting the water tank (6) (Fig. 2)

WARNING

Danger of crushing!

Pay attention to your fingers!

Note:

- Do not overtighten the water tank.

1. Fill the water tank (6) with a cleaning agent suitable for textiles. Observe the respective manufacturer's instructions.
2. Fill the water tank (6) to approx. 5 cm below the rim.
3. Insert the vacuum hose with suction ball (5) into the water tank (6) and screw the water tank (6) into the water tank cap (7).

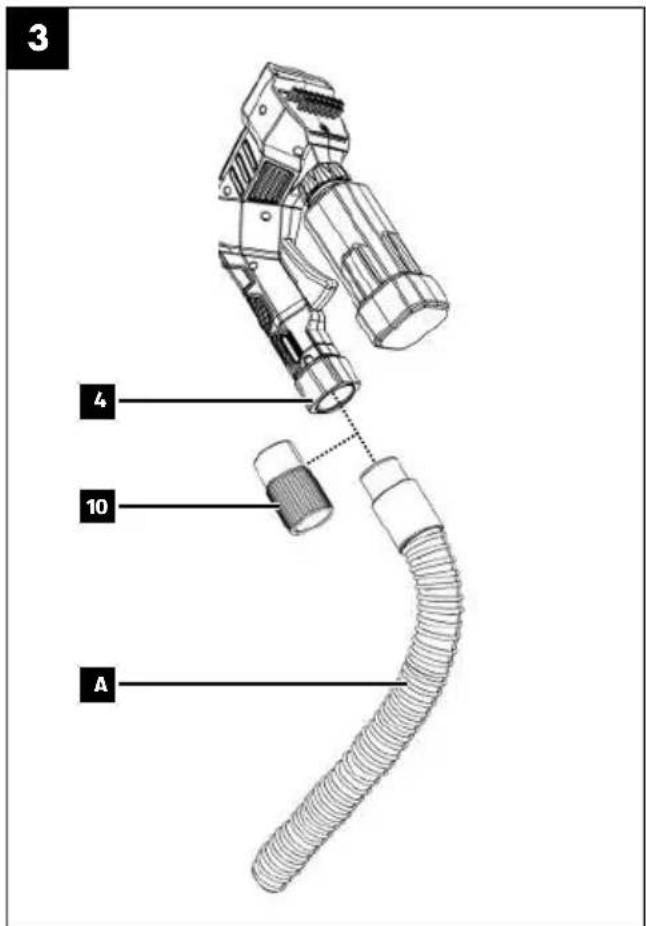

9.2 Connect the washing nozzle to the wet and dry vacuum cleaner (Fig. 3)

Note:

The product may only be used in conjunction with wet and dry vacuum cleaners. Only use the wet and dry vacuum cleaner in wet-suction mode. Observe the respective manufacturer's instructions.

Use with conventional household vacuum cleaners is not possible.

1. Connect the wet and dry vacuum cleaner's vacuum hose (A) (not included in scope of delivery) with a diameter of 31.5 mm directly to the extraction port (4) of the washing nozzle.

Use the suction adapter (10) for smaller diameters.

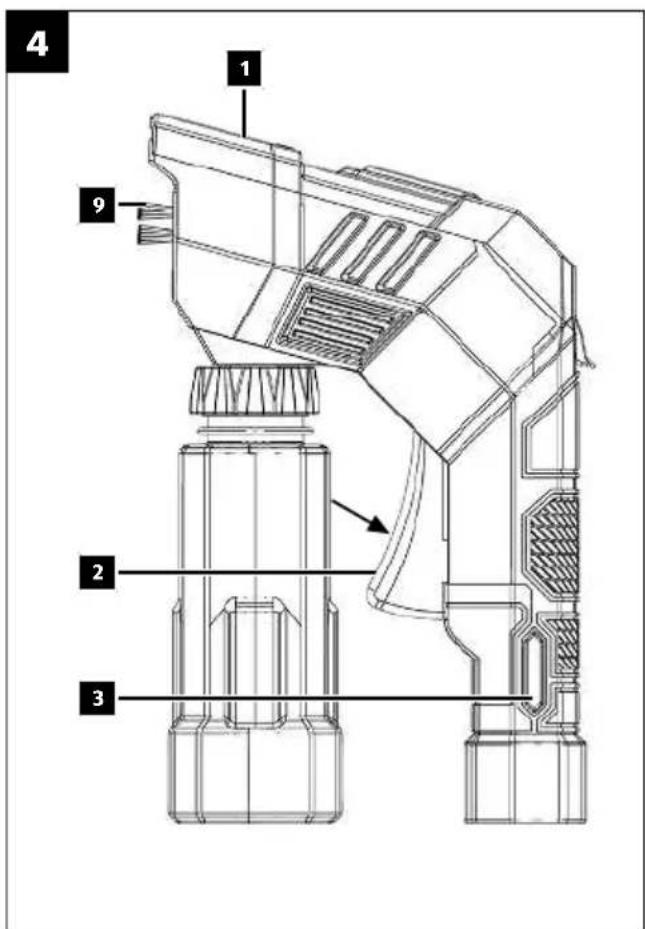

9.3 Operation (Fig. 4)

1. Switch on the wet and dry vacuum cleaner.
2. Hold the washing nozzle by the handle (3) and guide it onto the textile to be cleaned. The brushes (9) should touch the textile.
3. Spray the cleaning agent onto the textile by pressing the trigger lever (2).
4. Slowly pull the washing nozzle towards you. The washing nozzle draws the dirt out of the textile through the opening of the top cover (1).
5. Repeat the process until dirt is no longer being visibly drawn out.

10 Cleaning

• For larger soiling, you can wipe the product with a damp Cloths.
• We recommend that you clean the product directly after every use.
• Clean the product at regular intervals using a damp cloth* and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the product. Make sure that no water can penetrate the product interior.

10.1 Clean the extraction port (4) and the top cover (1) (Fig. 5)

1. Remove the top cover (1).
2. Clean the top cover (1) and the inside of the extraction port (4) under running water.

11 Storage

Preparation for storage

1. Disconnect the product from the wet and dry vacuum cleaner.
2. Empty the product completely.

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature is between 5^ C and 30^ C.

Store the product in its original packaging.

Cover the product to protect it from dust or moisture.

Store the operating manual with the product.

12 Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Warranty certificate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

• These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
• Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

- The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.

- In order to assert your guarantee claim, please contact the service partner shown below. If the complaint is within the guarantee period, we will provide you with a return slip, with which you can return your defective device free of charge to us. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Processing of warranty claims

To ensure that your request is processed quickly, please follow the instructions below:

• Please have the receipt and article number (e.g. IAN 470258_2404) ready as proof of purchase for all enquiries.
• Please refer to the type plate on the product, an engraving on the product, the title page of your instructions (bottom left) or the sticker on the back or underside of the product for the article number.
• If functional faults or other defects occur, first contact the service department named below by telephone or e-mail.

- You can then send a product recorded as defective to the service address provided to you free of charge, enclosing the proof of purchase (receipt) and stating what the defect is and when it occurred.

- You can view and download these and many other manuals at parkside-diy.com. This QR code will take you directly to parkside-diy.com. Select your country and use the search mask to search for the operating instructions. Enter the article number (IAN) 470258_2404 to access the operating instructions for your article.

Service contact (GB): Service contact (IE):

Name: Forest Park & Garden

Coed Court,

Taffsmead Road

Treforest, Ind. Estate,

Pontypridd CF375SW

Name: Forest Park & Garden

Coed Court,

Taffsmead Road

Treforest, Ind. Estate,

Pontypridd CF375SW

Tel: [phone] Tel: [phone]

E-Mail: [e-mail]

E-Mail: [e-mail]

Location: Great Britain Location: Great Britain
