USER MANUAL PHSSA 20Li D2 PARKSIDE

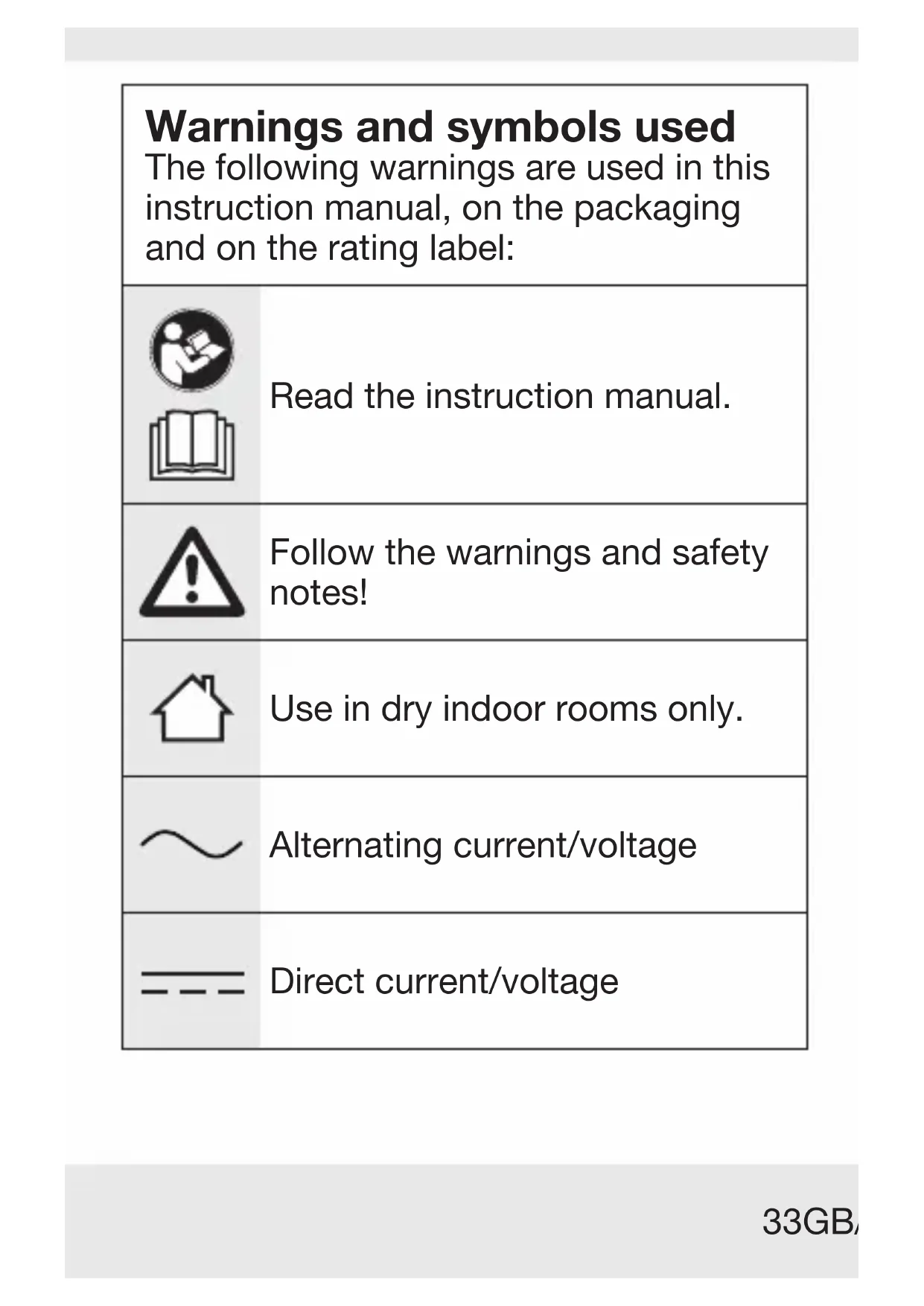

Introduction We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specied applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.36 GB/IE Intended use This product is exclusively intended for charging Parkside 20 V batteries of X 20 V Team series. The product is not intended for commercial use. Any other usage or modication of the product is deemed to be improper and carries a signicant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse. Scope of delivery 1 Charger 1 Instruction manual Parts description [1] Battery pack* [2] Mains cord with mains plug [3] Charger [4] Charging control LED – Red [5] Charging control LED – Green [6] Mounting holes (underside)

• Battery pack not included37GB/IE Technical data Charger: PLG 20 C1 Input: Rated voltage: 230–240 V~ Rated frequency: 50 Hz Rated power consumption: 65 W Fuse (internal): 3.15 A T3.15A Output: Rated voltage: 21.5 V Rated current: 2.4 A Battery pack type* Charging time

• Battery pack not included Customers can order compatible replacement batteries and chargers from Lidl online shops for the following countries: Germany (lidl.de), France (lidl.fr), Belgium (lidl.be), Czech Republic (lidl. cz), Netherlands (lidl.nl), Poland (lidl.pl), Slovakia (lidl.sk), Spain (lidl.es) Customers from all other countries can order from www.optimex-shop.com. Net weight: 0.315 kg Recommended ambient temperature: While charging: +4 to +40 °C During operation: +4 to +40 °C During storage: +20 to +26 °C39GB/IE Safety notes This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or men- tal capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made40 GB/IE by children without supervision. Do not charge regular or non-rechargeable batter- ies. Disregarding this instruc- tion is hazardous. If the mains cord is dam- aged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard. Protect the electrical parts against moisture. Do not immerse such parts in water or other liquids to avoid electrical shock. Never hold the41GB/IE product under running water. Pay attention to the instructions provided for cleaning, maintenance and repair. The product is suitable for indoor use only.

ATTENTION! This charger is only designed for charging following battery pack types: Parkside 20 V battery pack PAP 20 B1 2 Ah 5 cells PAP 20 B2 2 Ah 5 cells PAP 20 B3 4 Ah 10 cells PAPS 204 A1 4 Ah 5 cells PAPS 208 A1 8 Ah 10 cells42 GB/IE Operation Charging the battery pack INFO: The battery pack [1] may be charged at any time without reducing the service life. Interrupting the charging process does not damage the battery pack. Charge the battery pack [1] before use when it is at medium or low charging level.

1. Insert the battery pack

[1] into the charger [3].

2. Connect the mains plug

[2] to a socket-outlet.

3. When the battery pack is fully

charged, remove the battery pack from the charger. Disconnect the mains plug from the socket-outlet.43GB/IE Charging status The charging control LEDs (green [5] and red [4]) indicate the status of the charger [3] and the battery pack [1] (Fig. A): LED Status Red LED lights up Battery pack charging Green LED [5] lights up Battery pack [1] fully charged Green and red LED [4] ash Battery pack defective Red LED ashes Battery pack too cold or too warm Green LED [5] lights up (without battery pack) Charger [3] ready for use44 GB/IE Wall mounting

DAMAGE! When drilling, be careful not to damage any supply lines. Use suitable search devices to nd the supply lines or consult the installation plan for guidance. Contact with electrical cables can lead to electric shock and re. Contact with a gas pipe can result in an explosion. Damage to a water pipe can lead to property damage and electric shock. INFO: The charger [3] can be used either free-standing or mounted on the wall.

1) Drill 2 holes in the wall with a spacing

2) Place 2 dowels into the holes.

3) Screw 2 round-head screws with

screw head diameter of 7 to 8 mm into the dowels. Leave the screw head protruding at a distance of approx.45GB/IE 8 mm from the wall.

[3] on the screws using the mounting holes [6] located on the underside of the charger (Fig. B). The charging control LEDs (green [5] and red [4] ) have to be located on the lower end of the charger when the charger is mounted on the wall. Cleaning and care

NOTICE! RISK OF DAMAGE! Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces. INFO: Regular and proper cleaning will help ensure safe use and prolong the service life of the product. Never allow uids to get into the product.46 GB/IE Keep the product clean, dry and free from oil or grease. Remove debris from it after each use and before storage. o Clean the product with a dry cloth. Use a soft brush for areas that are hard to reach. o Always keep the vents clear. Clean the air vents after every use with a cloth and soft brush. Disposal The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities. Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and breboard/80–98: composite materials.47GB/IE Product: Cet appareil se recycle The product and packaging materials are recyclable and are subject to extended producer responsibility. Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment. The Triman logo is valid in France only. Contact your local refuse disposal authority for more details of how to dispose of your worn- out product.48 GB/IE To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority. Simplied EU declaration of conformity CE mark indicates conformity with relevant EU directives applicable for this product. Warranty The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.49GB/IE The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase. Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product. Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it –at our choice– free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts. This warranty becomes void if the product has been damaged, or used or maintained improperly.50 GB/IE The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts. Warranty claim procedure So that your request can be processed quickly, please observe the following instructions: For all inquiries, please have the receipt and item number (IAN479372_2410) ready as proof of purchase. The article number can be taken from the identication label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.51GB/IE If malfunctions or other defects arise, rst contact the service department indicated below by phone or email. You can then send a product recorded as defective to the communicated service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred. You can download and view this and numerous other manuals at parkside-diy.com. This QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the item number (IAN)479372_2410 takes you to the operating instructions for your item.52 GB/IE Service Service Great Britain Tel.: [phone] E-Mail: [e-mail] Service Ireland Tel.: [phone] E-Mail: [e-mail]53FR/BE Avertissements et symboles utilisés .......... Page 54 Introduction............... Page 56 Utilisation conforme aux prescriptions............ Page 57 Contenu de l'emballage ... Page 57 Description des pièces .... Page 58 Données techniques...... Page 58 Consignes de sécurité ...... Page 60 Fonctionnement ........... Page 64 Chargement de l’accu .... Page 64 Niveau de charge ........ Page 65 Montage au mur ........... Page 66 Nettoyage et entretien ...... Page 67 Mise au rebut ............. Page 69 Déclaration de conformité CE simpliée .............. Page 71 Garantie.................. Page 71 Procédure en cas de garantie................ Page 76 Service après-vente ........ Page 7854 FR/BE Avertissements et symboles utilisés Les avertissements suivants sont utilisés dans ce mode d'emploi, sur l'emballage et sur l'étiquette signalétique: Lisez le mode d’emploi. Respecter les consignes de sécurité et les avertissements! Utilisez le produit seulement à l’intérieur de locaux secs. Courant alternatif/tension alternative55FR/BE Courant continu/tension continue Classe de protection II (isolation double) T3.15A Fusible Ce symbole avec ce signal important «Info» propose plus d'informations utiles. Consignes de sécurité et informations complémentaires Instructions de manipulation CE znak označava sukladnost s relevantnim EU direktivama koje se odnose na ovaj proizvod.56 FR/BE
