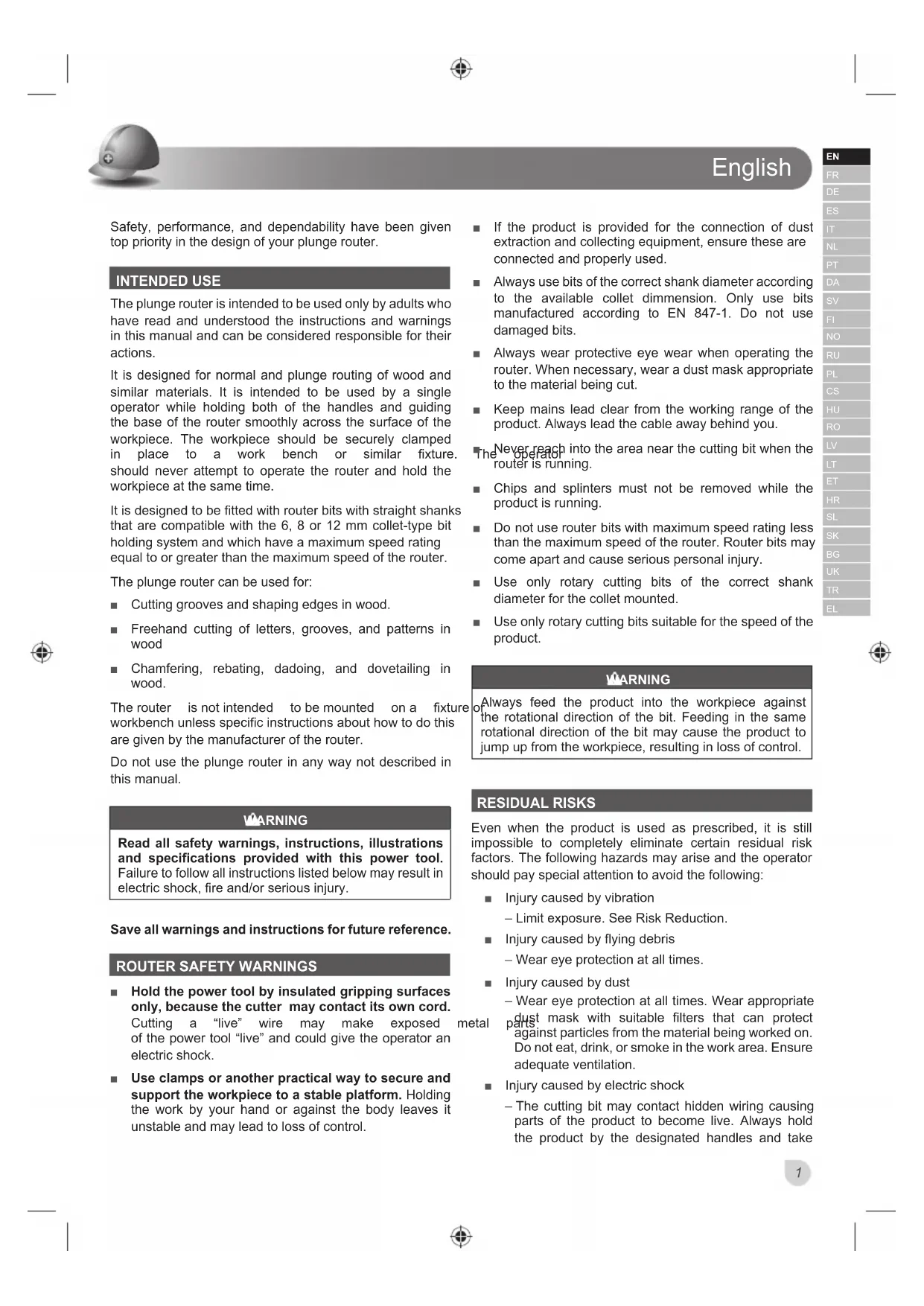

Safety, performance, and dependability have been given top priority in the design of your plunge router.

INTENDED USE

The plunge router is intended to be used only by adults who have read and understood the instructions and warnings in this manual and can be considered responsible for their actions.

It is designed for normal and plunge routing of wood and similar materials. It is intended to be used by a single operator while holding both of the handles and guiding the base of the router smoothly across the surface of the workpiece. The workpiece should be securely clamped in place to a work bench or similar fixture, should never attempt to operate the router and hold the workpiece at the same time.

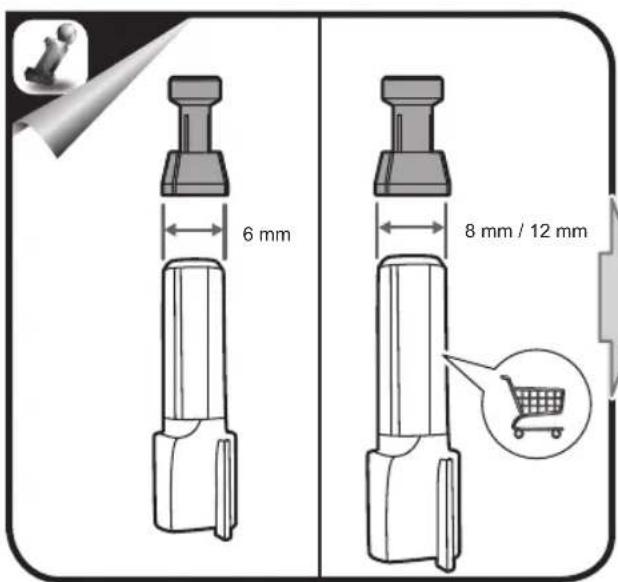

It is designed to be fitted with router bits with straight shanks that are compatible with the 6, 8 or 12 mm collet-type bit holding system and which have a maximum speed rating equal to or greater than the maximum speed of the router.

The plunge router can be used for:

■ Cutting grooves and shaping edges in wood.
■ Freehand cutting of letters, grooves, and patterns in wood
■ Chamfering, rebating, dadoing, and dovetailing in wood.

The router is not intended to be mounted on a fixture workbench unless specific instructions about how to do this are given by the manufacturer of the router.

Do not use the plunge router in any way not described in this manual.

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

ROUTER SAFETY WARNINGS

• Hold the power tool by insulated gripping surfaces only, because the cutter may contact its own cord. Cutting a "live" wire may make exposed of the power tool "live" and could give the operator an electric shock.
  ■ Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by your hand or against the body leaves it unstable and may lead to loss of control.

If the product is provided for the connection of dust extraction and collecting equipment, ensure these are connected and properly used.
■ Always use bits of the correct shank diameter according to the available collet dimension. Only use bits manufactured according to EN 847-1. Do not use damaged bits.
■ Always wear protective eye wear when operating the router. When necessary, wear a dust mask appropriate to the material being cut.
- Keep mains lead clear from the working range of the product. Always lead the cable away behind you.
■ The Never reach into the area near the cutting bit when the operator router is running.
- Chips and splinters must not be removed while the product is running.
- Do not use router bits with maximum speed rating less than the maximum speed of the router. Router bits may come apart and cause serious personal injury.
■ Use only rotary cutting bits of the correct shank diameter for the collet mounted.
■ Use only rotary cutting bits suitable for the speed of the product.

WARNING

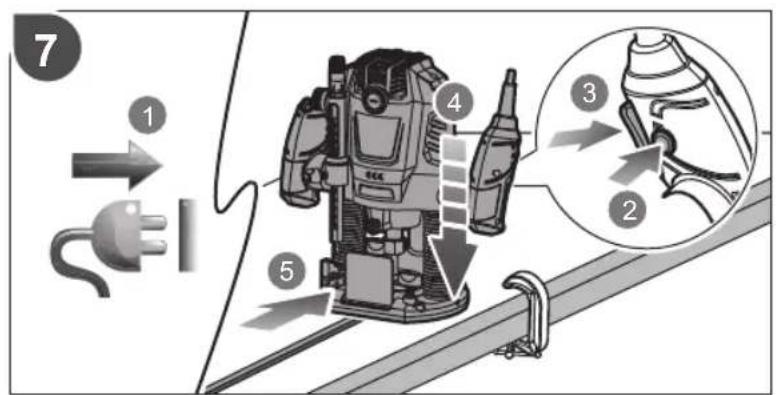

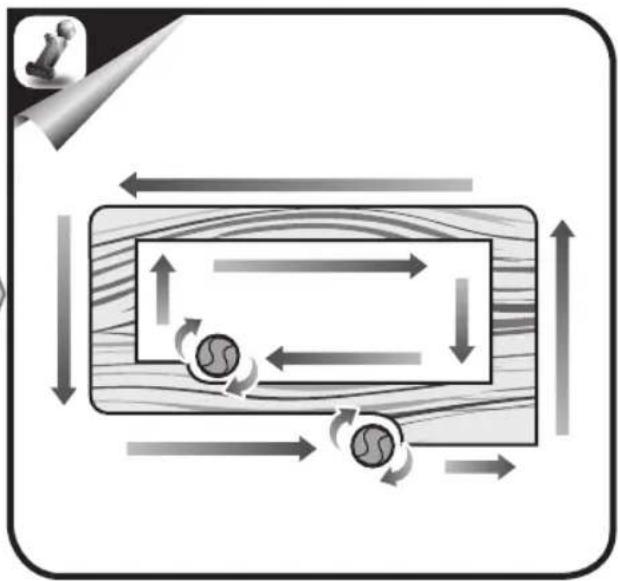

Always feed the product into the workpiece against the rotational direction of the bit. Feeding in the same rotational direction of the bit may cause the product to jump up from the workpiece, resulting in loss of control.

RESIDUAL RISKS

Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise and the operator should pay special attention to avoid the following:

■ Injury caused by vibration
- Limit exposure. See Risk Reduction.
■ Injury caused by flying debris
– Wear eye protection at all times.

■ Injury caused by dust

- Wear eye protection at all times. Wear appropriate dust mask with suitable filters that can protect against particles from the material being worked on. Do not eat, drink, or smoke in the work area. Ensure adequate ventilation.

■ Injury caused by electric shock

- The cutting bit may contact hidden wiring causing parts of the product to become live. Always hold the product by the designated handles and take

care when blind cutting into walls and floors where cables may be hidden.

■ Injury from contact with the cutting bits

- The bits are sharp and will become hot during use. Wear gloves when changing bits. Keep hands away from the cutting area at all times. Never hold the workpiece being cut in your hands or across your leg. Secure the workpiece whenever possible.

■ Injury caused by noise

– Prolonged exposure to noise will increase the risk of hearing damage, and the effects are cumulative. When using power tools for any extended period of time, wear hearing protection.

RISK REDUCTION

It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud's Syndrome in certain individuals. Symptoms may include tingling, numbness, and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, expos cold and dampness, diet, smoking, and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration:

• Keep your body warm in cold weather. When operating the product, wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud's Syndrome.
  ■ After each period of operation, exercise to increase blood circulation.
  ■ Take frequent work breaks. Limit the amount of exposure per day.

If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor about these symptoms.

WARNING

Injuries may be caused or aggravated by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

KNOW YOUR PRODUCT

See page 95.

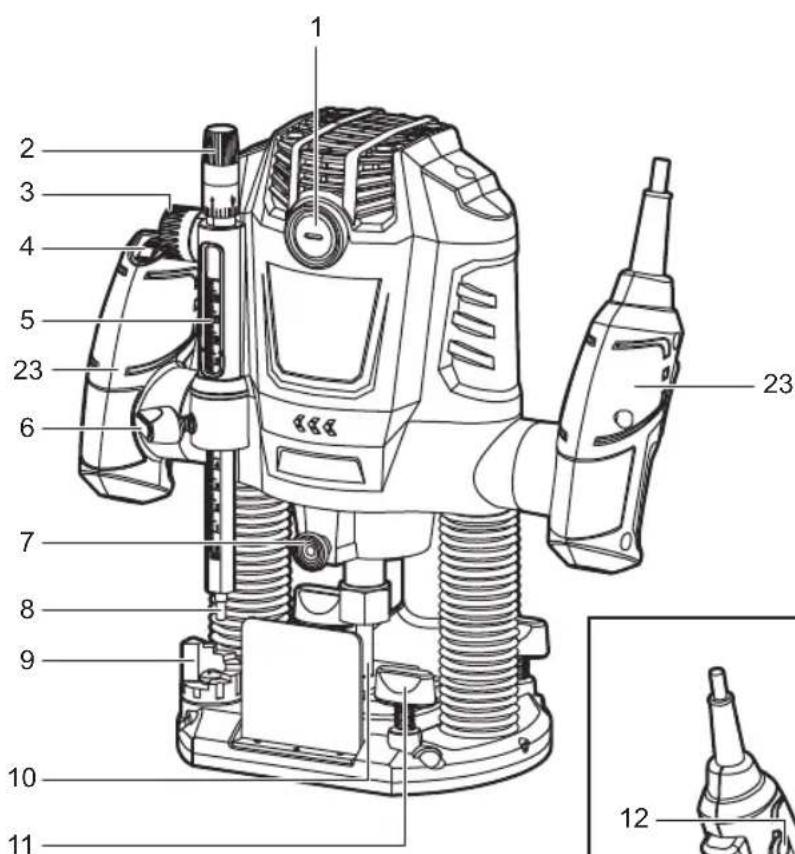

1. Brush cap
2. Ruler knob
3. Knob

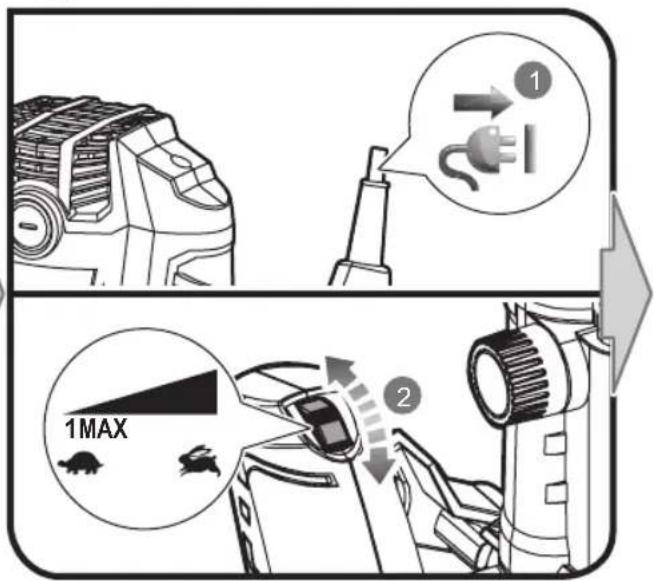

4. Speed regulator

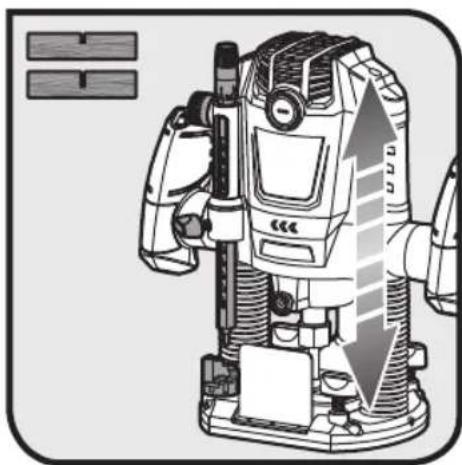

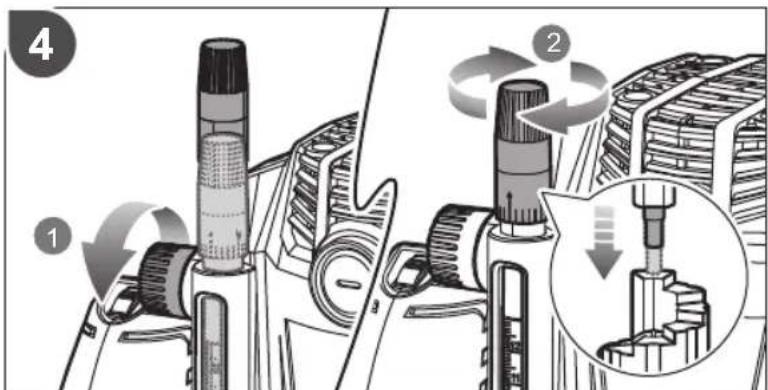

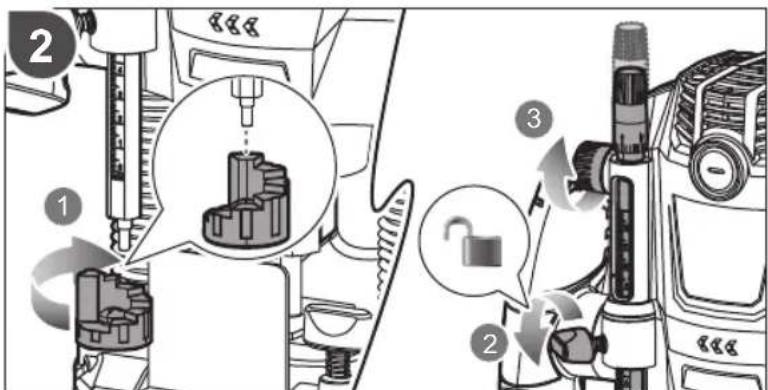

5. Fine height adjuster rod

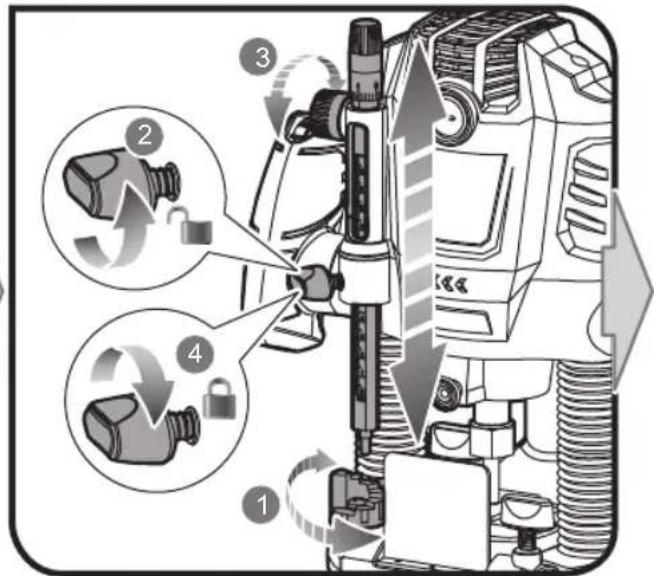

6. Stop bar lock knob

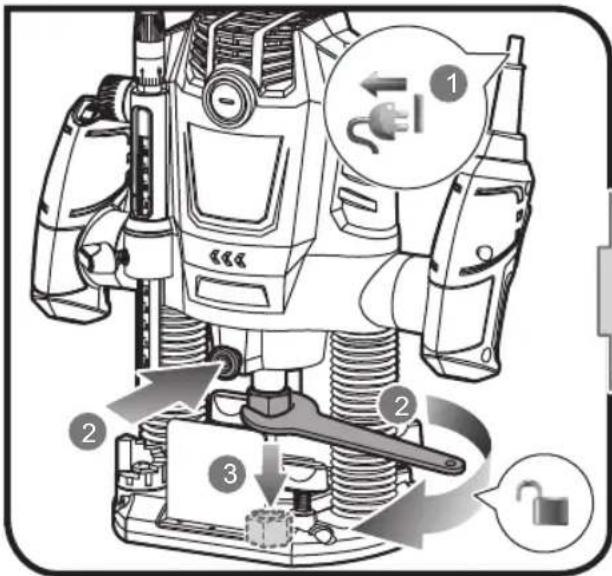

7. Spindle lock
8. Dynamic adjuster

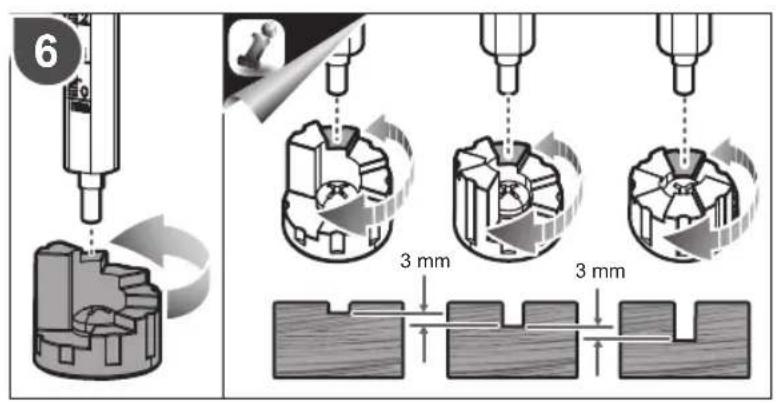

9. Depth gauge

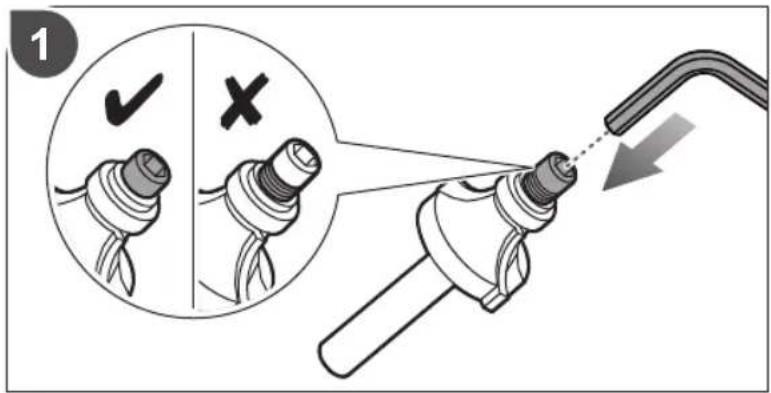

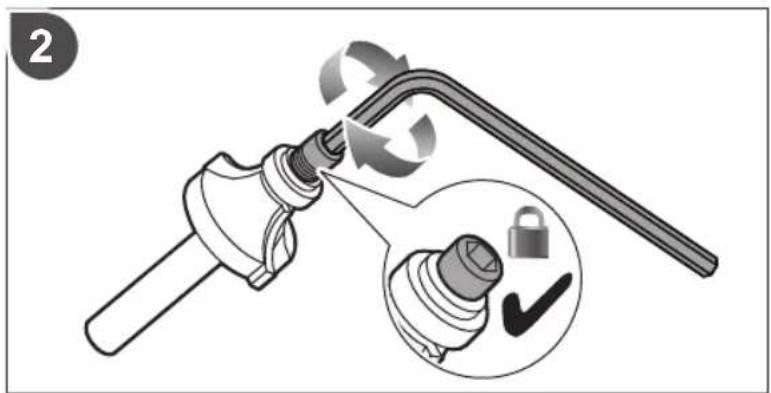

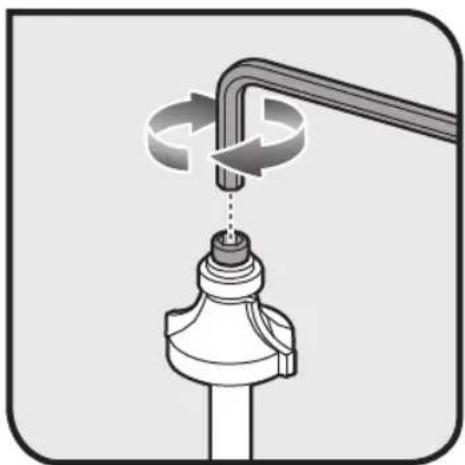

10. Bit

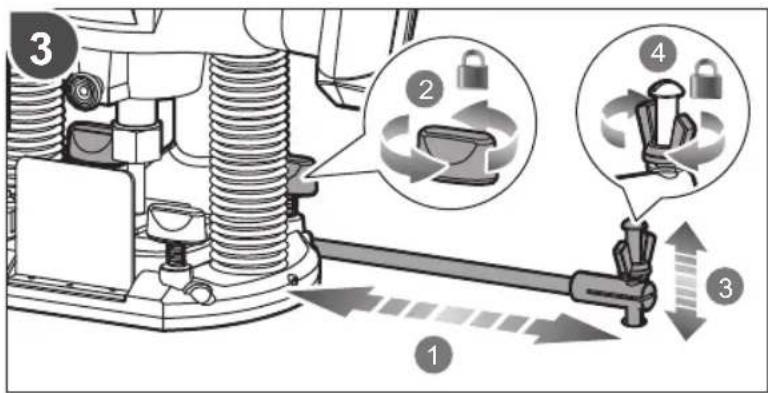

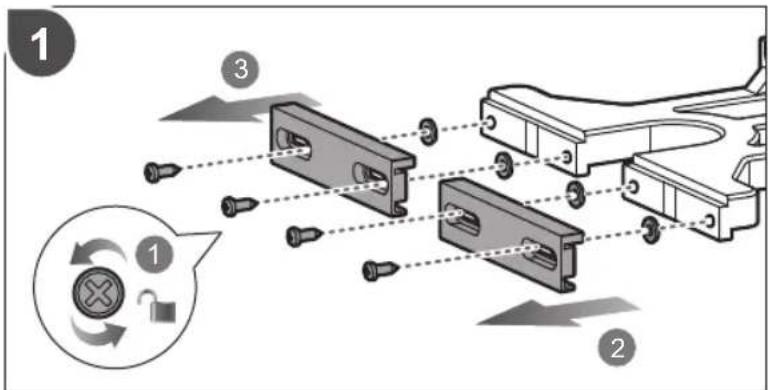

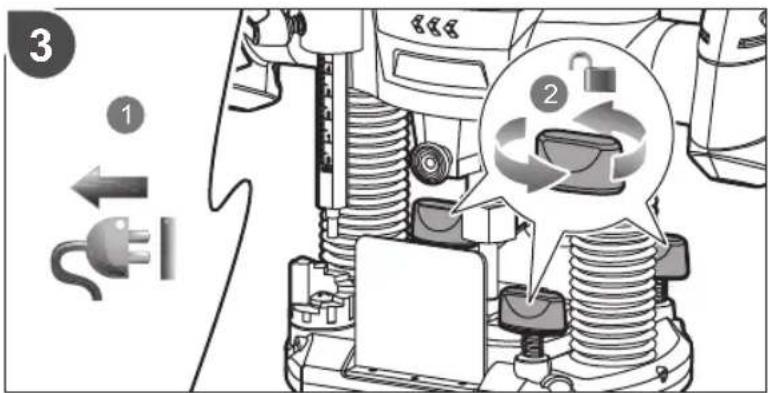

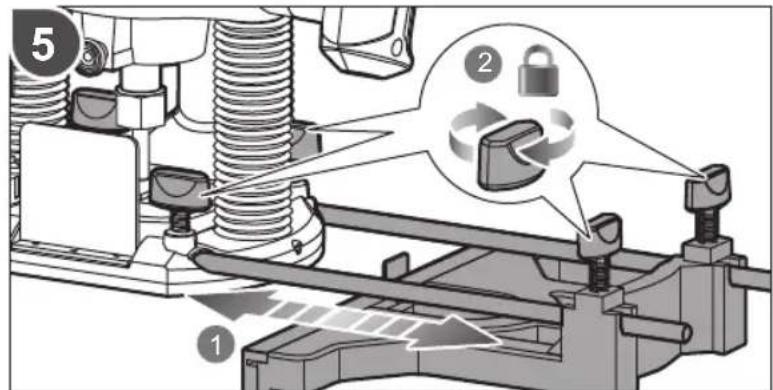

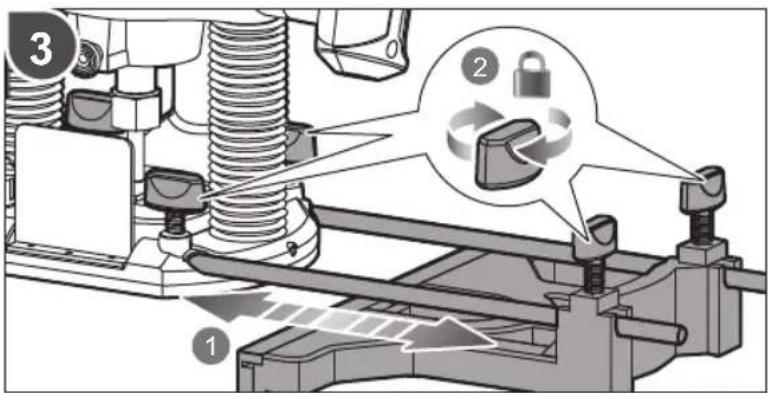

11. Parallel guide lock knob

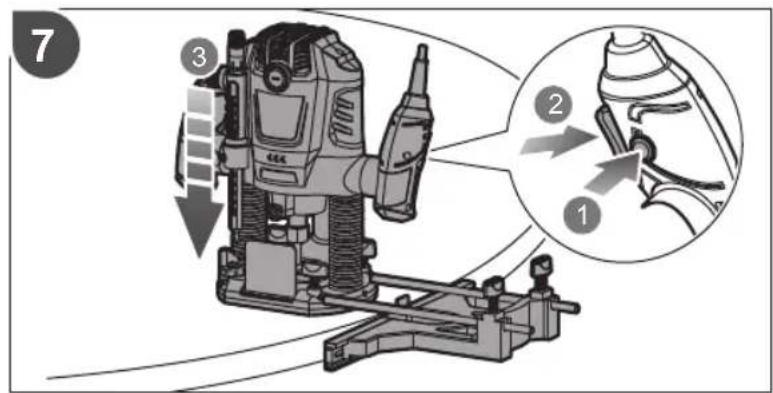

12. Lock on button

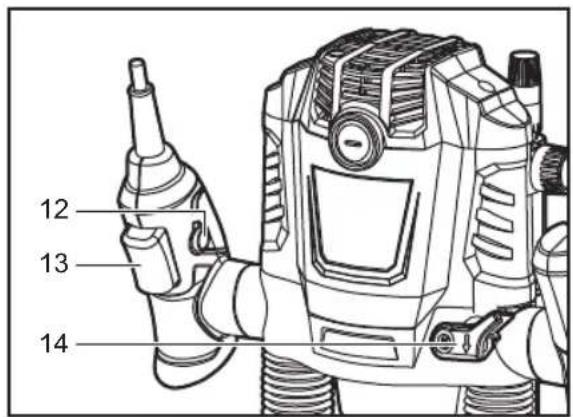

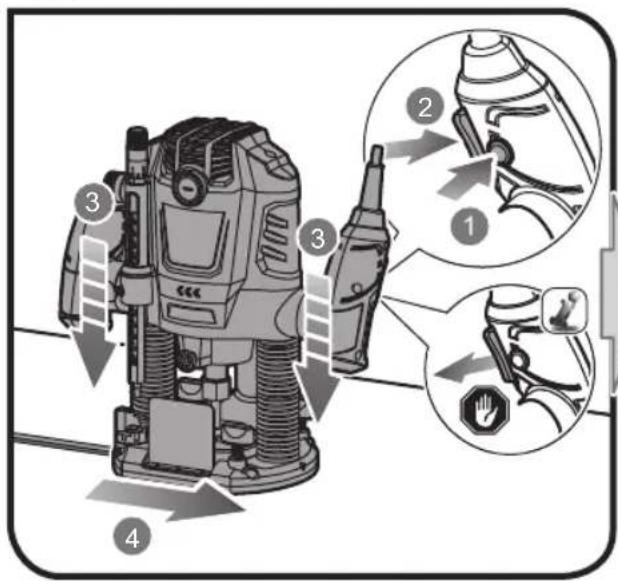

13. Trigger

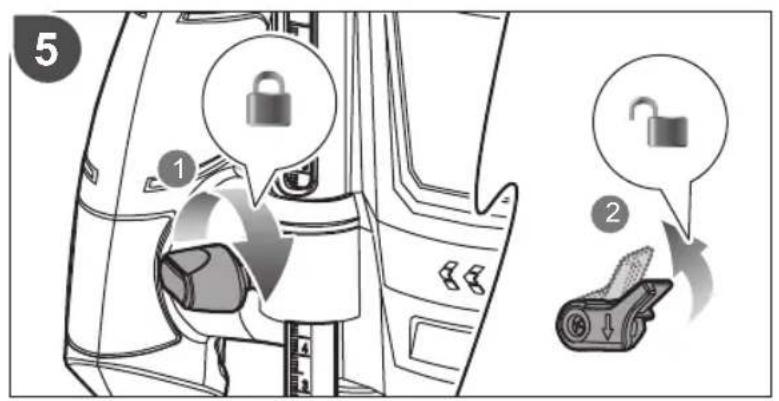

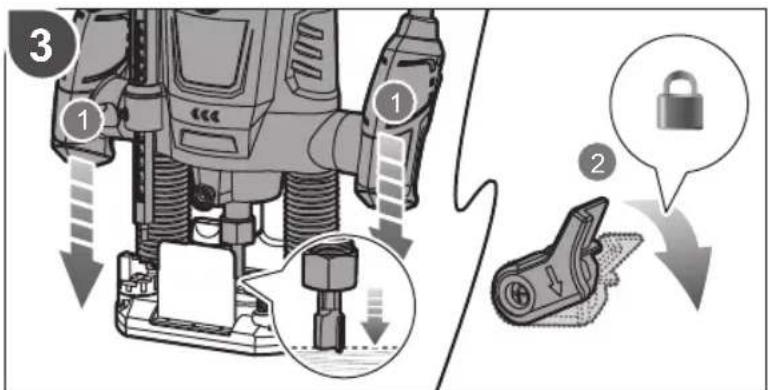

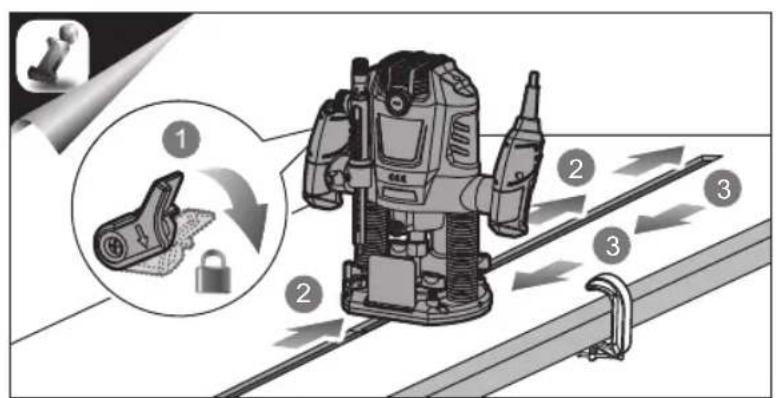

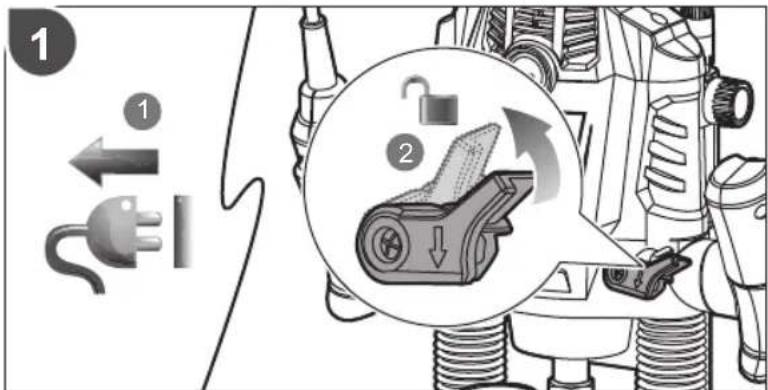

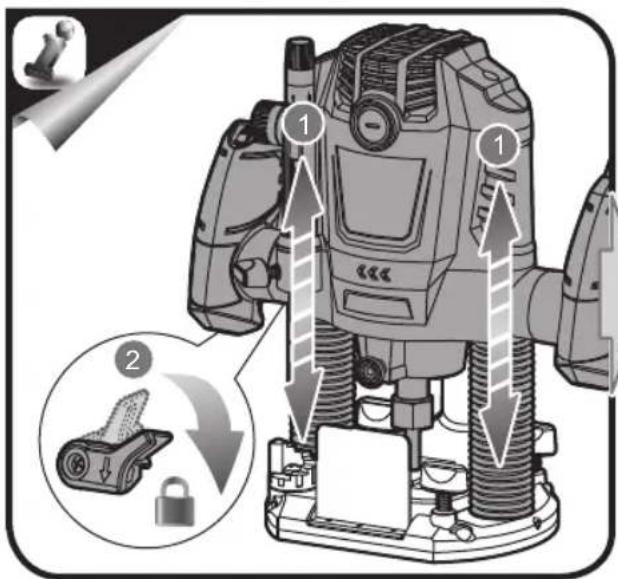

14. Plunge lock knob

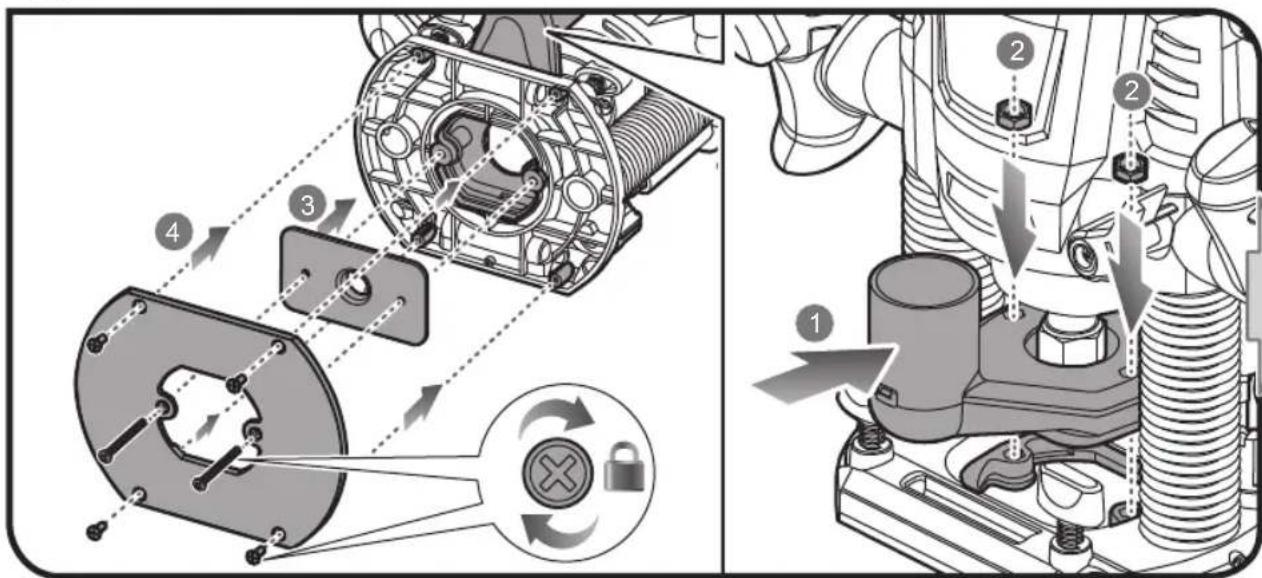

15. Template guide

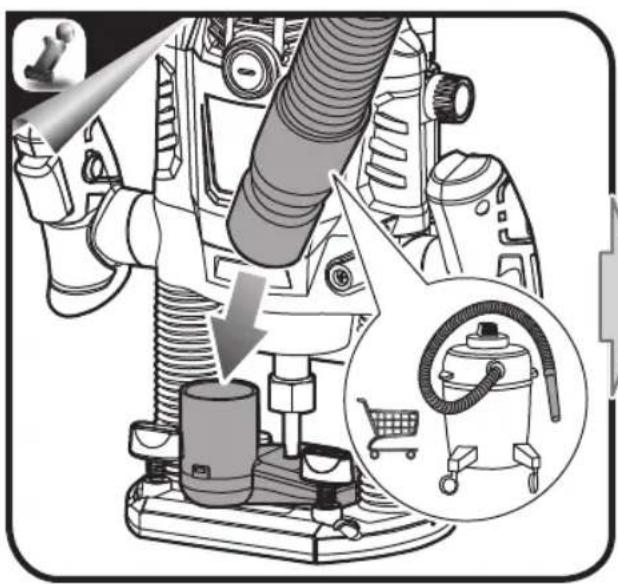

16. Dust port adapter

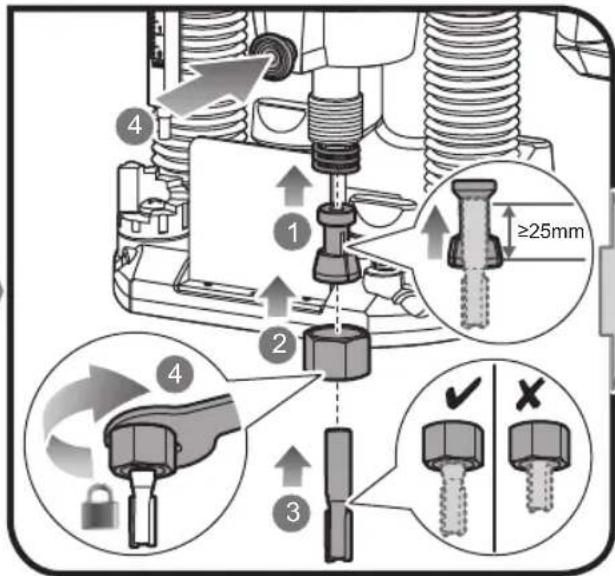

17. Collet

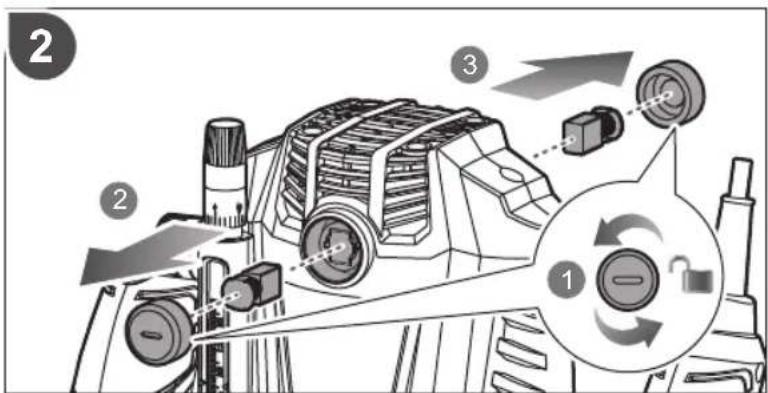

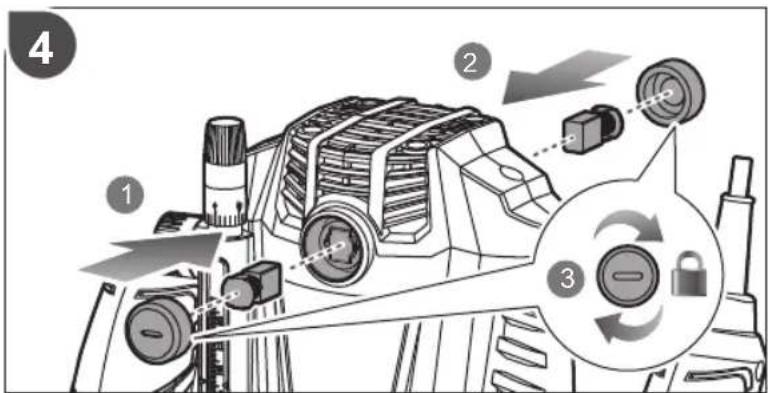

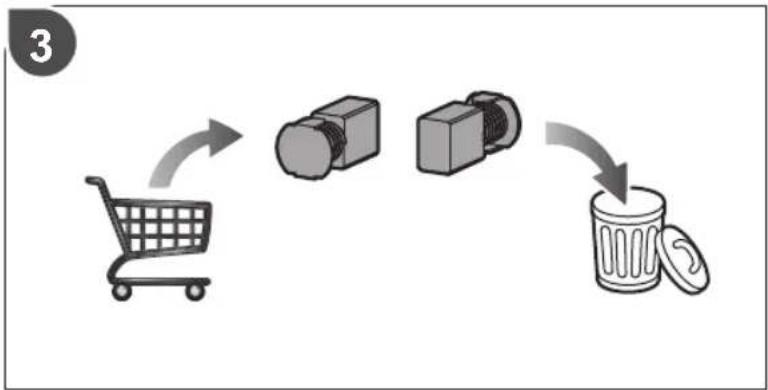

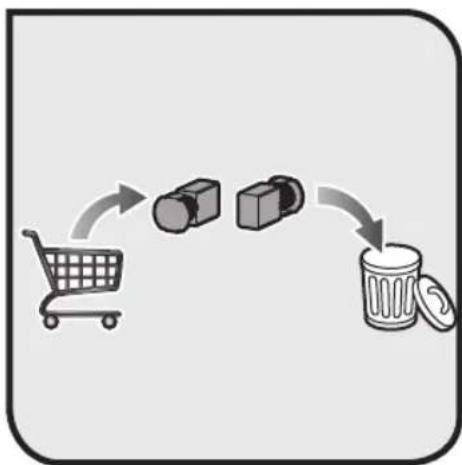

18. Carbon brush

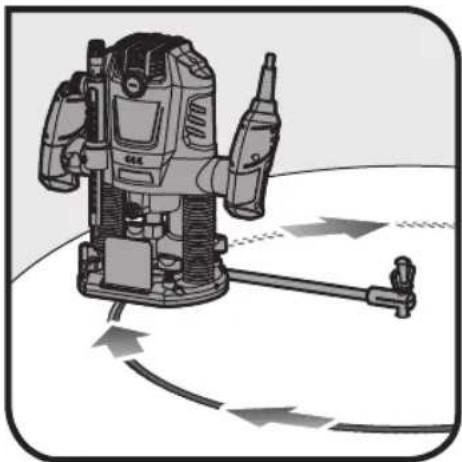

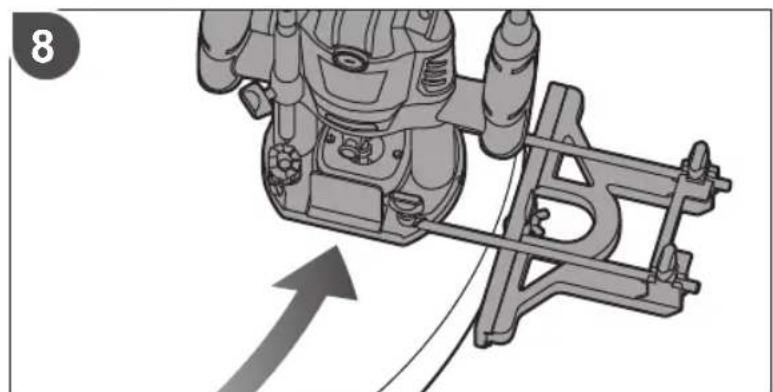

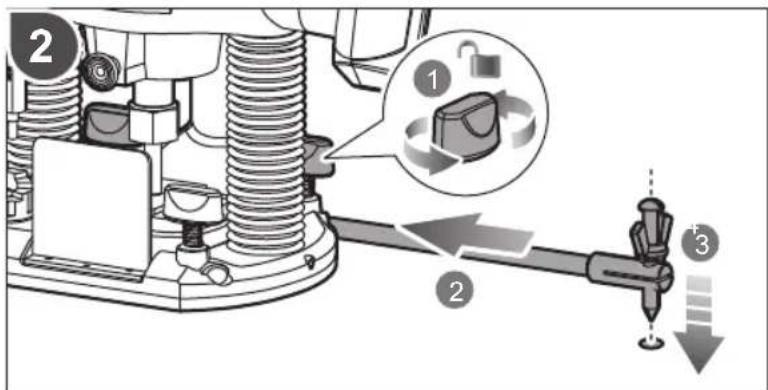

19. Centring pin

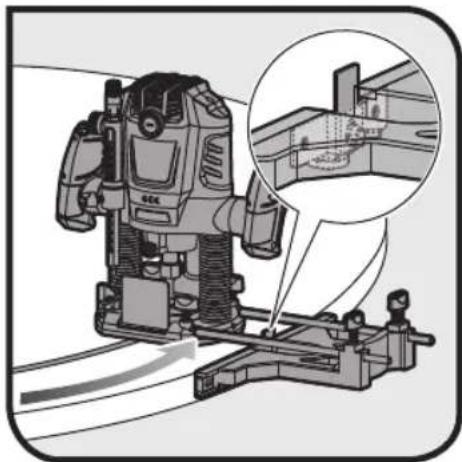

20. Copy follower

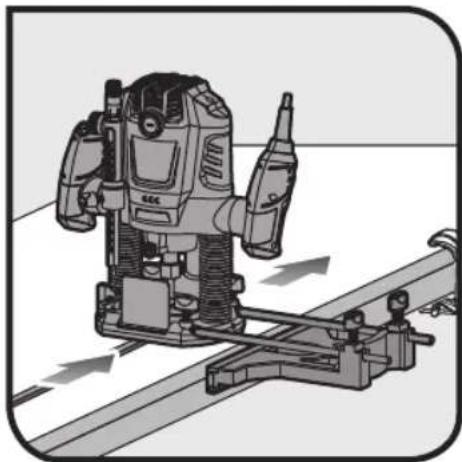

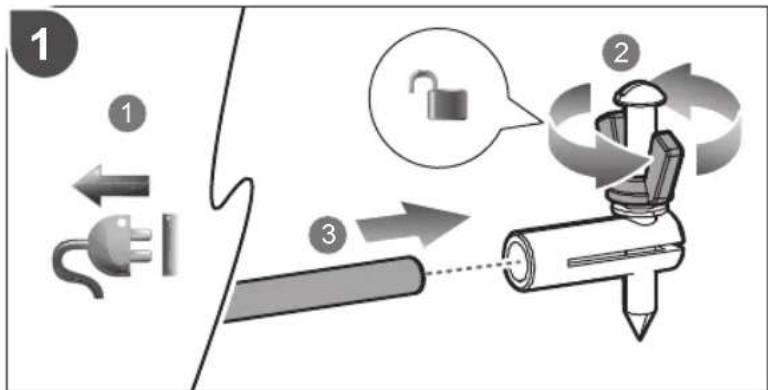

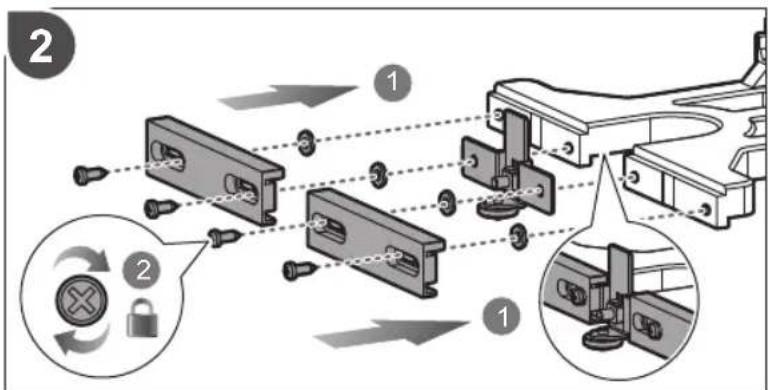

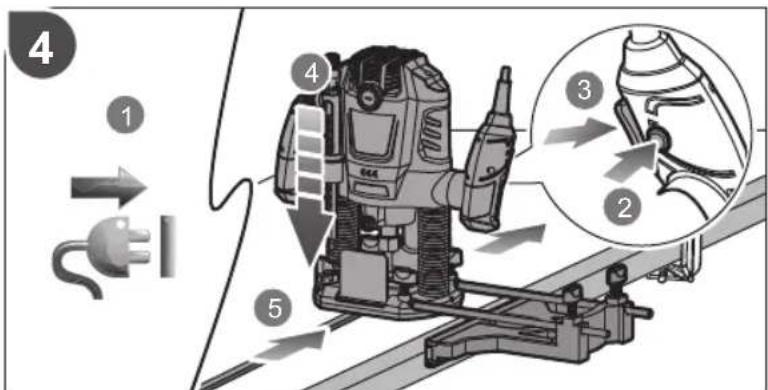

21. Guide rack

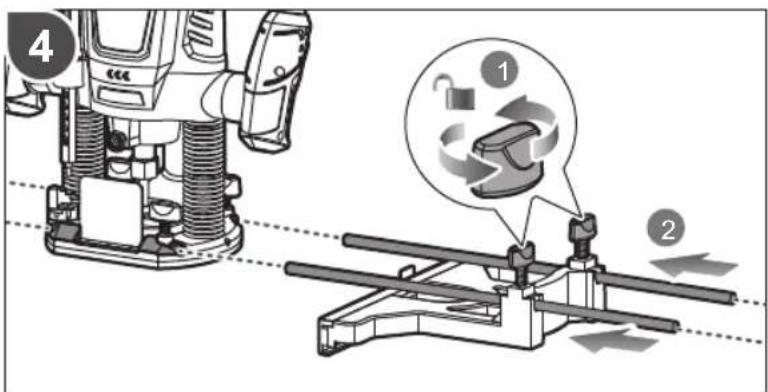

22. Guiding rod
23. Handle, insulated gripping surface

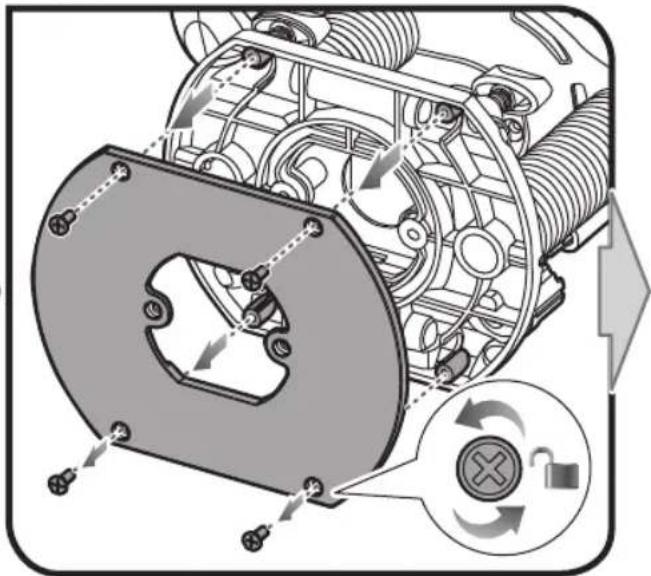

MAINTENANCE

WARNING

The product should never be connected to a power supply when assembling parts, making adjustments, cleaning, performing maintenance, or when the product is not in use. Disconnecting the product from the power supply will prevent accidental starting that could cause serious injury.

WARNING

When servicing, use only original manufacturer's replacement parts, accessories and attachments. Use of any other parts may create a hazard or cause product damage.

WARNING

Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

■ Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, carbon dust, etc.
■ Electrical tools used on fiberglass material, wallboard, spackling compounds, or plaster are subject to accelerated wear and possible premature failure because the fiberglass chips and grindings are highly abrasive to bearings, brushes, commutators, etc. We do not recommend using the product for extended work on these types of materials.

WARNING

Always wear safety goggles or safety glasses with side shields during power tool operation. If operation is dusty, also wear a dust mask.

If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
■ For greater safety and reliability, all repairs should be performed by an authorised service centre.

LUBRICATION

All of the bearings in the product are lubricated with a sufficient amount of high-grade lubricant for the life span of the product under normal operating conditions. Therefore, no further lubrication is required.

ENVIRONMENTAL PROTECTION

Recycle raw materials instead of disposing of as waste. The machine, accessories and packaging should be sorted for environment-friendly recycling.

SYMBOLS ON THE PRODUCT

Safety alert

V Volts

Hz Hertz

Alternating current

Watts

n No-load speed

min ^-1 Revolutions or reciprocations per minute

Class II tool, double insulation

CE conformity

EurAsian Conformity Mark

001

Please read the instructions carefully before starting the machine.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

SYMBOLS IN THIS MANUAL

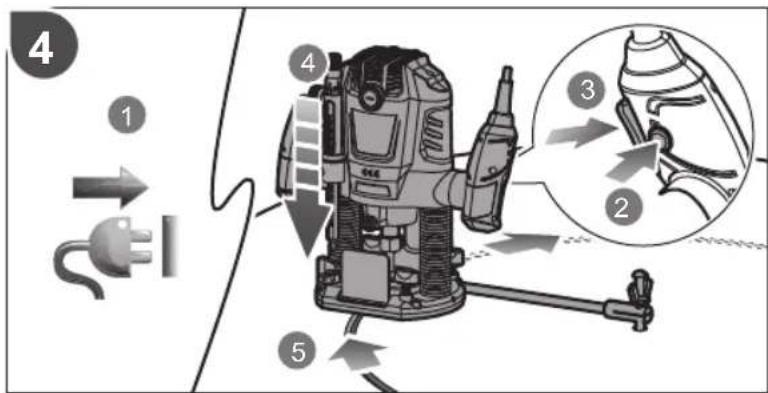

Connect to the power supply.

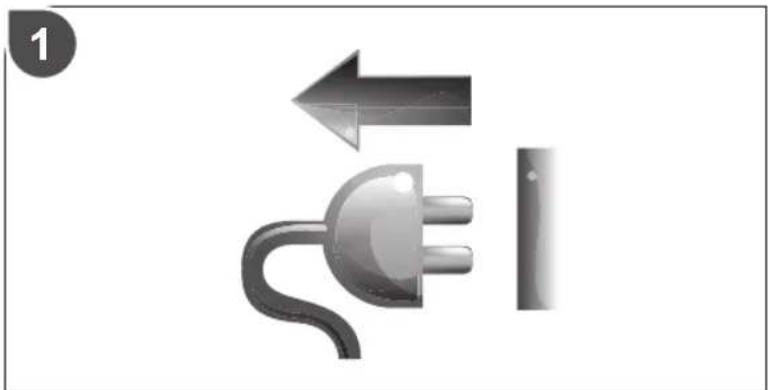

Disconnect from the power supply.

Parts or accessories sold separately

Note

Lock

Unlock

Speed, minimum

Speed, maximum

The following signal words and meanings are intended to explain the levels of risk associated with this product:

DANGER

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

CAUTION

(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

SYMBOLES APPLIQUÉS SUR LE PRODUIT

Alerte de sécurité

V Volts

Hz Hertz

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

Siehe Seite 95.

SYMBOLE AUF DEM PRODUKT

Sicherheitswarnung

V Volt

Hz Hertz

Wechselstrom

W a t t

VEILIGHEIDSWAARSCHUWINGEN FREES

SYMBOLER PÅ PRODUKTET

Sikkerhedsadvarsel

V Volt

Hz Hertz

\~

Vekselstrøm

W

w a t t

n. Tomgangshastighed

^-1

meli16 Damportadapter

1. Chuck

2. Kolborste

3. Centreringsstift

4. Kopierare

5. Guide

6. Guidestav

7. Handtag, isolerad greppyta

RISKMINSKNING

SYMBOLER PÅ PRODUKTEN

Säkerhetsvarning

V Volt

Hz Hertz

\~

Växelström

W

W a t t

SYMBOLER PÅ PRODUKTET

Sikkerhetsadvarsel

V Volt

Hz Hertz

\~

Vekselstrøm

W

W

a

t

t

n. Hastighet ubelastet

min ^-1 Antall omdreininger eller bevegelser pr. Minutt

No TC RU C-DE.AE11.B.04240

OBOZNÁMTE SA S VAŠÍM PRODUKTOM

Vid' strana 95.
