Brand	ASUS
Model	TUF Gaming TUFAX5400
Product type	Wireless Router
Wi-Fi Standards	802.11ax (Wi-Fi 6), dual band (2.4 GHz and 5 GHz)
Antennas	6 external adjustable antennas
Ports	4 Gigabit LAN ports, 1 Gigabit WAN port, 1 USB 3.2 Gen1 port
Buttons	WPS, Reset, Power
Power supply	DC power adapter 12V / 2.5A
Operating temperature	0°C to 40°C
Operating humidity	50% to 90%
Configuration	Via web interface (http://router.asus.com) or ASUS Router mobile app
Security	Password protection, Wi-Fi encryption (WPA2/WPA3)
Package contents	Router, power adapter, RJ-45 network cable, quick start guide
Care and cleaning	Disconnect before cleaning, use a soft dry cloth
Spare parts and repairability	Contact ASUS support for any replacement

Frequently Asked Questions - TUF Gaming TUFAX5400 ASUS

How to configure my TUF Gaming TUFAX5400 router?

Connect the router to your modem using the network cable, then plug in the power. Open a browser and go to http://router.asus.com or use the ASUS Router app. Follow the on-screen instructions to set a password and your Wi-Fi settings.

What is the default IP address to access the management interface?

The default address is http://router.asus.com. Make sure you are connected to the router's network (wired or Wi-Fi).

How to reset the router to factory settings?

Press and hold the Reset button (located on the back) for about 5 seconds until the lights flash. The router will reboot with default settings.

What are the default SSID and Wi-Fi password?

The default SSID is ASUS_XX (where XX corresponds to the last two digits of the 2.4 GHz MAC address). The default password is printed on the label on the back of the router.

What to do if I forgot the administration interface password?

Perform a hard reset (Reset button) to restore factory settings, then log in with the default credentials.

How to update the router firmware?

Access the management interface, go to Administration > Firmware Update. You can check online or download the file from the ASUS website and upload it.

Can I use the router with a DSL modem?

Yes, connect the DSL modem to the router's WAN port. You will need the credentials provided by your ISP to configure the Internet connection.

How to orient the antennas for better coverage?

The six external antennas should be oriented vertically or tilted at 45° for optimal coverage. Avoid metal obstacles and electronic devices.

Where to find ASUS technical support?

The technical support website is https://www.asus.com/fr/support. You will find downloads, FAQ, and customer service contact information.

Which devices are compatible with the ASUS Router app?

The ASUS Router app is available on iOS and Android. It allows you to configure and manage the router easily from a smartphone or tablet.

USER MANUAL TUF Gaming TUFAX5400 ASUS

Line drawing of a wireless router with five vertical antennas and a central control panel (no text or symbols)

Quick Start Guide

U18187 / First Edition / April 2021

Table of contents

English....3

العربية 9

Български....15

Hrvatski....21

Čeština....27

Dansk....33

Nederlands 39

Eesti 45

Français....51

Suomi....57

Deutsch....63

Ελληνικά....69

Magyar 75

Italiano 81

Lietuvių....87

Latviešu....93

Norsk....99

Português....105

Polski....111

Русский....117

Română....123

Español....129

Srpski 135

Slovensky....141

Slovenščina....147

Svenska 153

Türkçe 159

Українська....165

171

Package contents

√ TUF-AX5400 Wireless Router AC adapter
√ Network cable (RJ-45) Quick Star√Guide

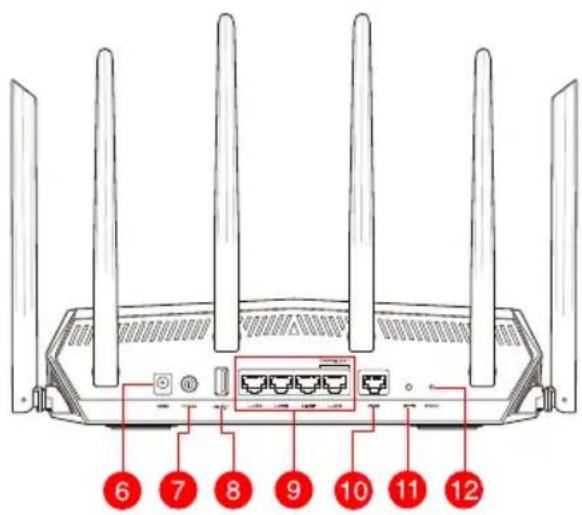

A quick look at TUF-AX5400

1 WAN (Internet) LED Power button	7
2 LAN 1 ~ 4 LEDs USB 3.2 Gen 1 port	8
3 5GHz LED LAN 1 ~ 4 ports	9
4 2.4GHz LED WAN (Internet) port	10
5 Power LED WPS button	11
6 Power (DC-IN) port Reset button	12

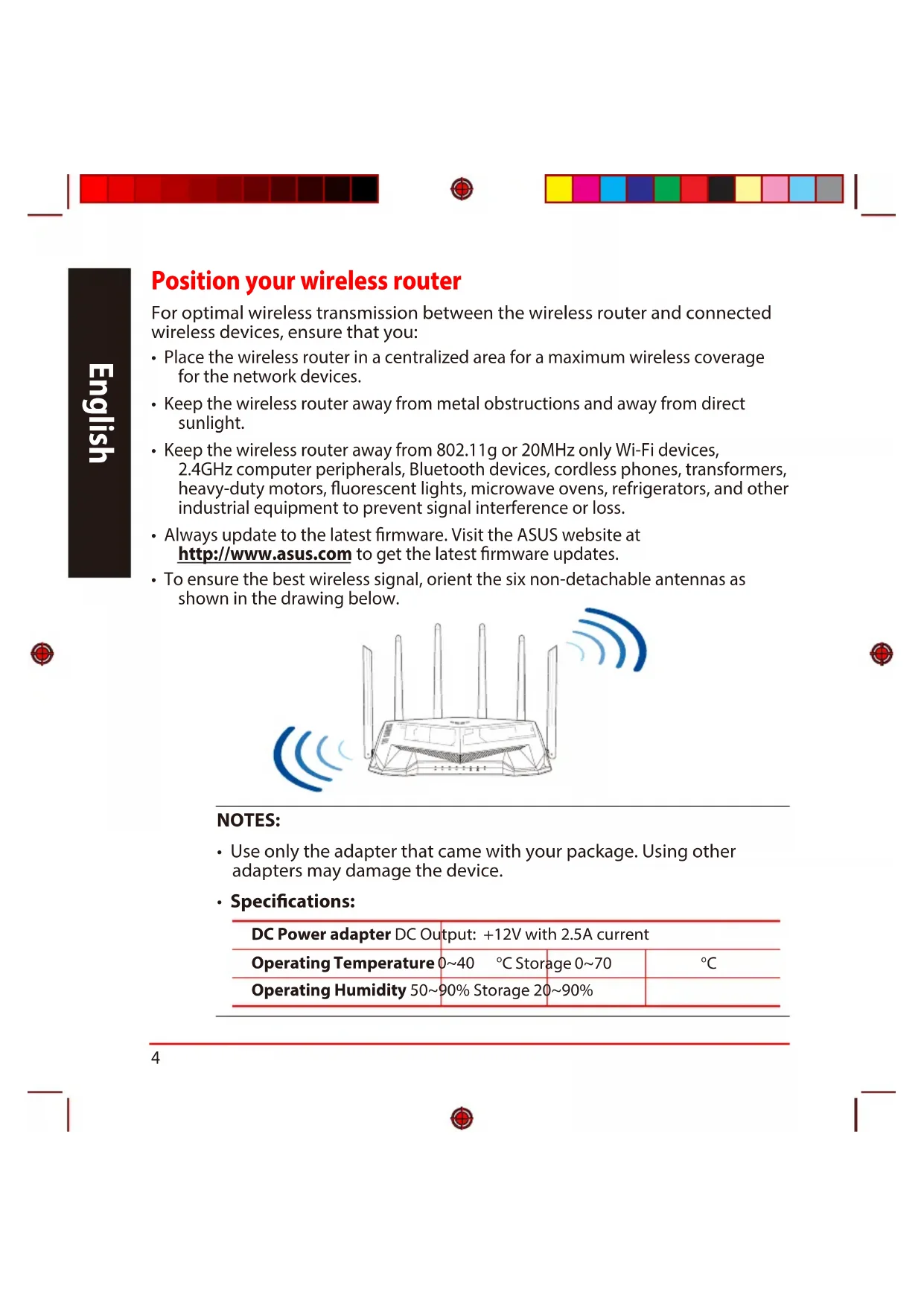

Position your wireless router

For optimal wireless transmission between the wireless router and connected wireless devices, ensure that you:

• Place the wireless router in a centralized area for a maximum wireless coverage for the network devices.
• Keep the wireless router away from metal obstructions and away from direct sunlight.
• Keep the wireless router away from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz computer peripherals, Bluetooth devices, cordless phones, transformers, heavy-duty motors, fluorescent lights, microwave ovens, refrigerators, and other industrial equipment to prevent signal interference or loss.
  • Always update to the latest firmware. Visit the ASUS website at http://www.asus.com to get the latest firmware updates.

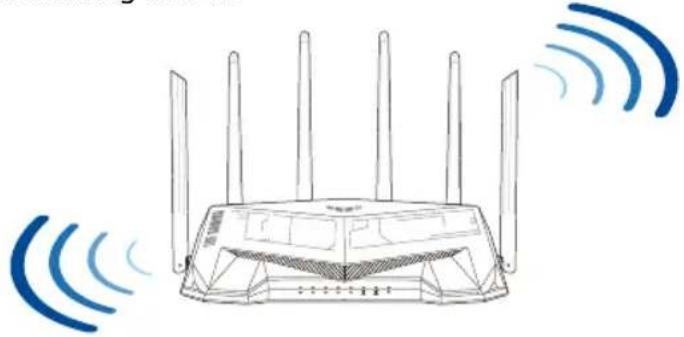

• To ensure the best wireless signal, orient the six non-detachable antennas as shown in the drawing below.

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

NOTES:

• Use only the adapter that came with your package. Using other adapters may damage the device.
• Specifications:

DC Power adapter DC Output: +12V with 2.5A current
Operating Temperature	0~40 °C Storage	0~70	°C
Operating Humidity	50~90% Storage	20~90%

Preparing your modem

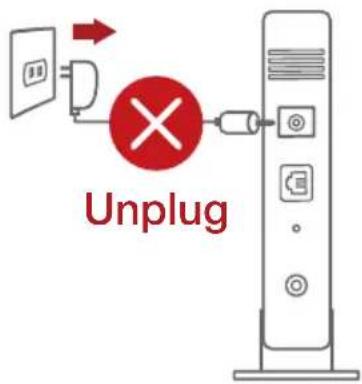

1. Unplug the power cable/DSL modem. If it has a battery backup, remove the battery.

NOTE: If you are using DSL for Internet, you will need your username/password from your Internet Service Provider (ISP) to properly configure the router.

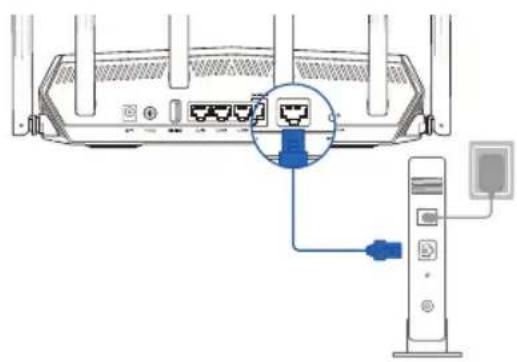

1. Connect your modem to the router with the bundled network cable.

Diagram of a router with ports and connections, showing a blue connector inserted into the rear panel and connected to a power outlet (no text or symbols present)

1. Power on your cable/DSL modem.
2. Check your cable/DSL modem LED lights to ensure the connection is active.

English

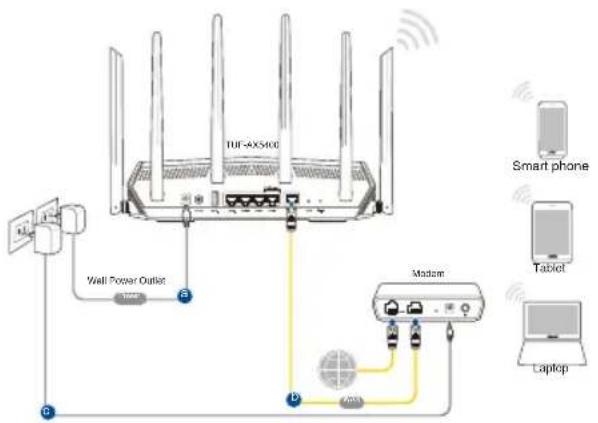

Setting up your TUF-AX5400

You can set up your router via wired or wireless connection.

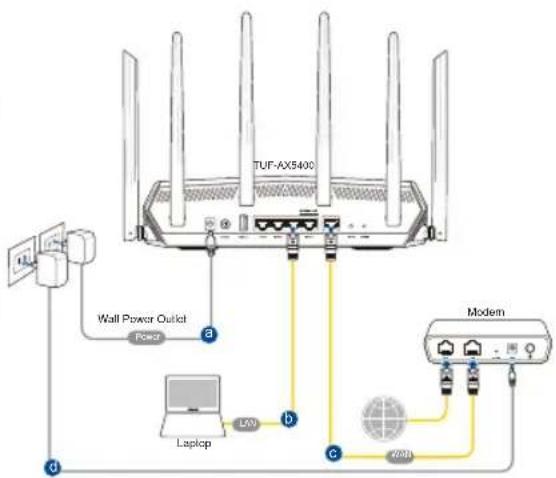

A. Wired connection

1. Plug your router into a power outlet and power it on. Connect the network cable from your computer to a LAN port on your router.

1. The web GUI launches automatically when you open a web browser. If it does not auto-launch, enter http://router.asus.com.

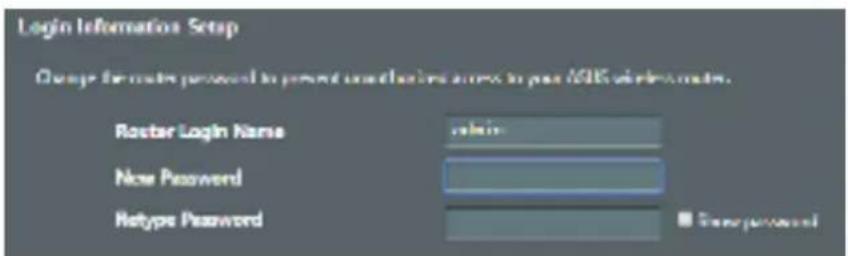

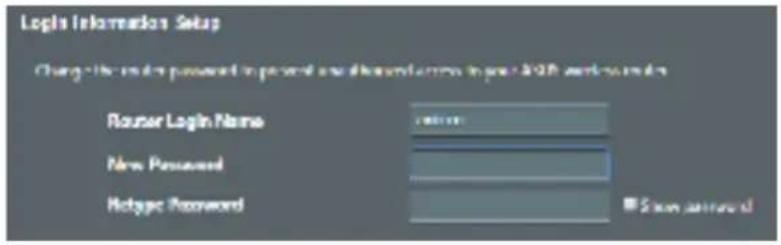

2. Set up a password for your router to prevent unauthorized access.

B. Wireless connection

1. Plug your router into a power outlet and power it on.


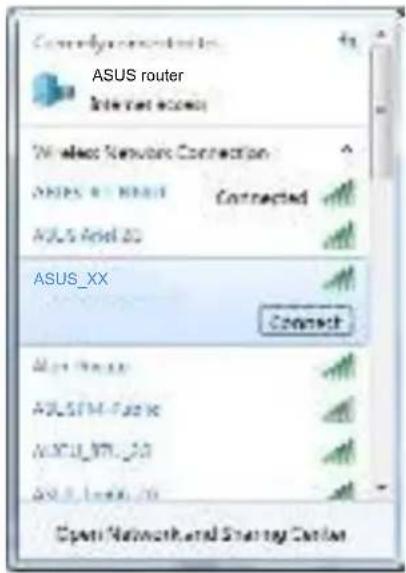

1. Connect to the network with SSID shown on the product label on the back side of the router. For better network security, change to a unique SSID and assign a password.

Wi-Fi Name (SSID): ASUS_XX

* XX refers to the last two digits of 2.4GHz MAC address. You can find it on the label on the back of your router.

1. You can choose either the web GUI or ASUS Router app to set up your router. a. Web GUI Setup

- Once connected, the web GUI launches automatically when you open a web browser. If it does not auto-launch, enter http://router.asus.com.

- Set up a password for your router to prevent unauthorized access.

b. App Setup

Download ASUS Router App to set up your router via your mobile devices.

• Turn on Wi-Fi on your mobile devices and connect to your router's network.
• Follow ASUS Router App setup instructions to complete the setup.

ASUS Router

ASUS Router

Remembering your wireless router settings

- Remember your wireless settings as you complete the router setup.

Router Name: Password:
2.4 GHz network SSID: Password:
5GHz network SSID: Password:

FAQ

1. Where can I find more information about the wireless router?

• Technical support site: https://www.asus.com/support
- Customer hotline: refer to the Support Hotline section in this Quick Start Guide.

محتويات العبوة

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

ملاحظات:

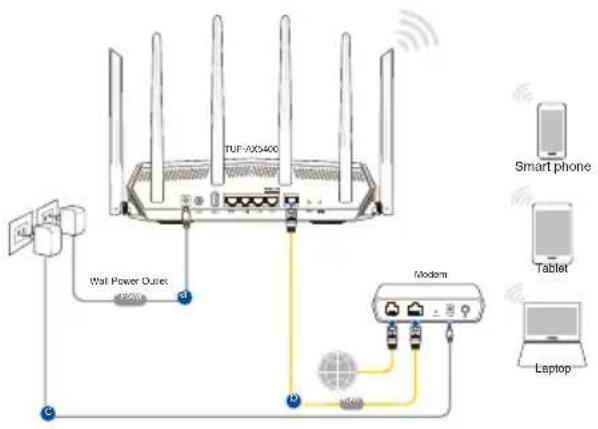

Diagram of a router with attached network ports and a connected device (no text or symbols)

.3. شغل موديم /DSL

ب. التوصيل اللا스لكي

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

ЗАБЕЛЕЖКА:

Diagram of a router with ports and connections, showing internal components and a connected device (no text or symbols)

В. Безжична връзка

Wi-Fi име (SSID): ASUS_XX

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

NAPOMENE:

• Koristite samo onaj adapter koji ste dobili u pakiranju. Korištenjem drugih adaptera možete oštetiti uređaj.
• Tehnički podaci:

Adapter DC napajanja	DC izlaz: +12 V s maksimalnom strujom od 2,5 A
Radna temperatura	0 ~ 40 °C Pohrana 0 ~ 70		°C
Radna vlažnost 50~90% Pohrana 20~90%

Pripremanje modema

1. Iskopčajte kabel za napajanje/DSL modem. Ako postoji baterijsko napajanje, uklonite bateriju.

Diagram of a router with attached network ports and a connected port (no text or symbols)

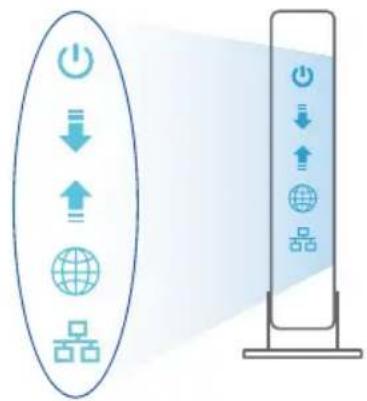

1. Uključite kabelski/DSL modem.
2. Pogledajte LED indikatore kabelskog/DSL modema za provjeru aktivnosti veze.

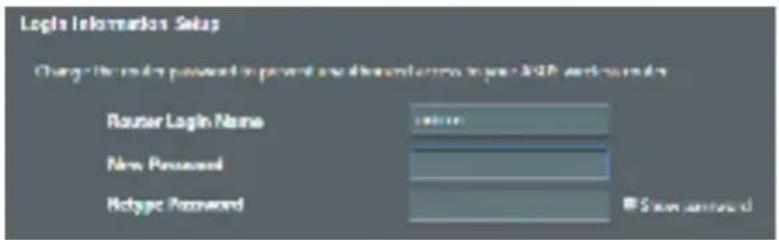

Postavljanje uređaja TUF-AX5400

Možete podesiti TUF-AX5400 putem žične ili bežične veze.

A. Žična veza

B. Bežična veza

Naziv za Wi-Fi (SSID): ASUS_XX

* XX se odnosi na posljednje dvije znamenke 2,4 GHz MAC adrese. Možete ih pronaći na naljepnici na stražnjoj strani uređaja TUF-AX5400.

1. Za podešavanje usmjerivača možete odabrati web GUI ili aplikaciju ASUS Router.

a. Podešavanje Web GUI

- Web grafičko sučelje pokreće se automatski kad otvorite web preglednik. Ako se ne pokrene automatski, unesite http://router.asus.com.

b. Podešavanje aplikacije

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

POZNÁMKA:

Diagram of a router with ports and connections, showing a blue connector inserted into the main panel (no text or symbols present)

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

BEMÆRKNINGE:

Diagram of a router with attached network ports and a connected device (no text or symbols)

Dansk

Sådan indstilles din router

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

OPMERKING:

Diagram of a router with ports and connections, showing a blue circle highlighting the internal components (no text or symbols present)

Nederlands

De router installeren

B. Draadloze verbinding

Nederlands

b. App-instelling

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

MÄRKUSED:

Diagram of a router with internal ports and connections, showing a blue connector inserted into the rear panel (no text or symbols present)

B. Traadita ühendus

Wi-Fi nimi (SSID): ASUS_XX

b. Rakenduse seadistamine

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

REMARQUES :

B. Connexion Wi-Fi

b. Configuration via l'application

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

HUOMAA:

Diagram of a router with attached network ports and a connected device (no text or symbols)

B. Langaton yhteys

Wi-Fi-nimi (SSID): ASUS_XX

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

HINWEISE:

Diagram of a router with attached network ports and a connected device (no text or symbols)

WLAN-Name (SSID): ASUS_XX

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

ΣΗΜΕΙΩΣΕΙΣ:

Diagram of a router with attached network ports and a power outlet (no text or symbols)

B. Ασύρματη σύνδεση

Wi-Fi'Ovoμα (SSID): ASUS_XX

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

MEGJEGYZÉSEK:

Diagram of a router with ports and connections, showing a highlighted internal port (no text or symbols present)

Wi-Fi neve (SSID): ASUS_XX

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

NOTE:

Diagram of a wireless router showing port, socket, and connection point (no text or labels)

Nome rete Wi-Fi (SSID): ASUS_XX

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

PASTABOS:

Diagram of a router with attached network ports and a connected device (no text or symbols)

Lieuviy

TUF-AX5400 nustatymas

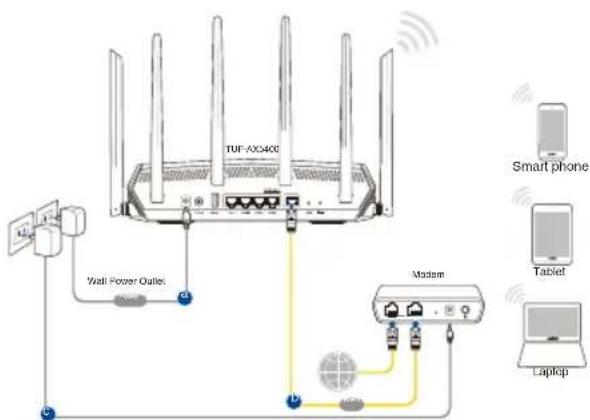

B. Belaidis ryšys
1. Prijunkite kelvedj prie maitinimo lizdo ir jjunkite ji.

Diagram of a wireless router with four blades and 45-degree angle indicators (no text or symbols)

PIEZÍMES:

Wi-Fi nosaukums (SSID): ASUS_XX

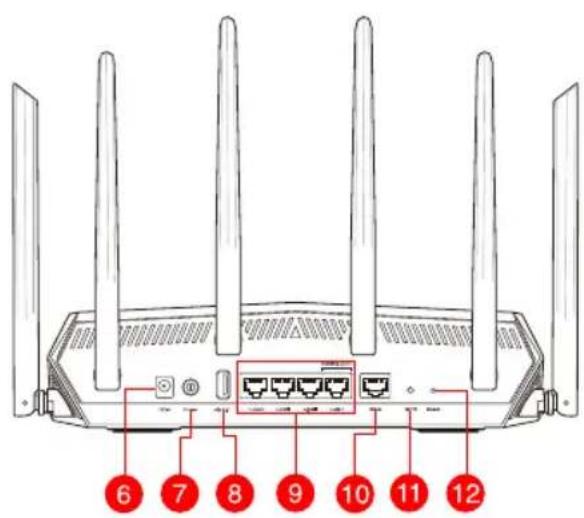

1 WAN (Internett) LED Strømbryter	7
2 LAN 1~4 LED USB 3.2 Gen 1-porter	8
3 5GHz LED LAN 1~4 porter	9
4 2,4GHz LED WAN (Internett) porter	10
5 Strøm LED WPS-knapp	11
6 Strømport (DC) Reset (Nullstill)-knapp	12

Plassere ruteren

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

MERKNADER:

Diagram of a router with attached network ports and a connected device (no text or symbols)

1. Slå på kabel-/DSL-modemet.
2. Se LED-lampen på kabel-/DSL-modemet for å kontrollere at forbindelsen er aktiv.

Sette opp TUF-AX5400

1. Web-grensesnittet startes automatisk när du åpner en nettleser. Hvis ikke, kan du gå til http://router.asus.com.

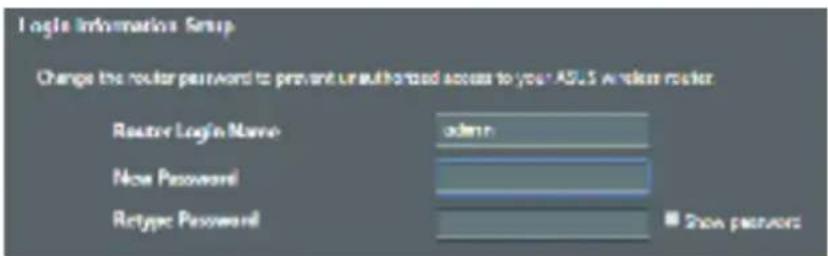

2. Sett opp et passord på ruteren for å hindre uautorisert tilgang.

b. Oppsett med app

Last ned ASUS Router-appen for å konfigurere ruteren via en mobilenhet.

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

NOTAS:

Diagram of a router with attached network ports and a connected port (no text or symbols)

Português

Configurar o TUF-AX5400

B. Ligação sem fios

Diagram of a wireless router with five antennas emitting signal waves (no text or labels)

UWAGI:

Diagram of a router with ports and connections, showing a blue circle highlighting a port (no text or symbols present)

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

ПРИМЕЧАНИЯ:

Diagram of a router with internal ports and connections, showing a blue connector inserted into the rear panel (no text or symbols present)

Имя Wi-Fi (SSID): ASUS_XX

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

NOTE:

Diagram of a router with ports and connections, showing a zoomed-in cable pointing to the internal port (no text or labels present)

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

NOTAS:

Diagram of a router with ports and connections, showing a cable connector and power outlet (no text or symbols)

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

NAPOMENE:

• Koristite isključivo adapter koji ste dobili u pakovanju. Korišćenje drugih adaptera može da ošteti uređaj.
• Specifikacija:

Adapter za jednosmernu struju	Izlaz jednosmerne struje: +12 V sa maks. strujom od 2,5 A
Radna temperatura	0°C–40°C Skladištenje	0°C–70°C
Radna vlažnost	50%–90% Skladištenje	20%–90%

Priprema vašeg modema

Diagram of a router with ports and connections, showing a blue-highlighted port (no text or symbols present)

1. Uključite svoj kabl/DSL modem.
2. Proverite LED lampice svog kabla/DSL modema da proverite da je veza aktivna.

Podešavanje vašeg TUF-AX5400

1. Mrežni GUI se pokreće automatski kada otvorite internet pregledač. Ukoliko se ne pokrene automatski, unesite http://router.asus.com.
2. Podesite lozinku za svoj ruter da sprečite neautorizovani pristup.

Wi-Fi ime (SSID): ASUS_XX

b. Podešavanje aplikacije

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

POZNÁMKY:

Diagram of a router with ports and connections, showing a blue circle highlighting the internal port (no text or labels present)

1. Zapnite káblový/DSL modem.
2. Skontrolujte kontrolky LED na modeme DSL/ napájací kábel a uistite sa, že pripojenie je aktívne.

Slovensky

b. App Setup

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

OPOMBE:

Diagram of a router with ports and connections, showing a zoomed-in cable pointing to the internal port (no text or labels present)

1. Vklopite kabelski modem/modem DSL.
2. Preverite lučke LED kabelskega modema/modema DSL in se prepričajte, da je povezava aktivna.

B. Brezžična povezava

Ime omrežja Wi-Fi (SSID): ASUS_XX

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

ANMÄRKNINGAR:

Diagram of a router with attached network ports and a connected device (no text or symbols)

Wi-Fi-namn (SSID): ASUS_XX

b. App-inställning

Diagram of a wireless router with five antennas and signal waves (no text or labels)

NOTLAR:

Diagram of a router with ports and connections, showing internal components and a connected device (no text or symbols)

Wi-Fi Adı (SSID): ASUS_XX

- Teknik destek sitesi: https://www.asus.com/support

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

ПРИМІТКИ:

Diagram of a router with attached network ports and a connected port (no text or symbols)

Назва Wi-Fi (SSID): ASUS_XX

Урехинска

802.11g Wi-Fi, 2.4GHz, 20MHz, Bluetooth,

Line drawing of a wireless router with five antennas and signal waves (no text or symbols)

:בַרְשָׁ

•

:תְרַעָה

2.5A הכלה +12V :DC הכלה			DC הכלה הכלה
70°C~0°C	הכלה	40°C~0°C	הכלה הכלה
90%~20%	הכלה	90%~50%	הכלה הכלה

תְרָה בְּרָה

Diagram of a router with ports and connections, showing a blue circle highlighting the internal components (no text or symbols present)

ASUS Router

ASUS Router

תְקַרִיָה בְּרִיָה.
