RT-AX5400 - Wireless Router ASUS - Free user manual and instructions

Product Type	Dual-band WiFi Router AX5400
WiFi Standards	IEEE 802.11a/b/g/n/ac/ax
Frequency Bands	2.4 GHz and 5 GHz
Max Speed	Up to 5400 Mbit/s (574 Mbit/s at 2.4 GHz + 4804 Mbit/s at 5 GHz)
Network Ports	1 WAN port (RJ-45 Gigabit), 4 LAN ports (RJ-45 Gigabit)
USB Ports	1 USB 3.2 Gen 1 port
Antennas	2 external antennas
Power Supply	Power adapter 19 V, 1.75 A
Wireless Security	WPA3-Personal, WPA2-Personal, WPA-Personal, WEP, MAC filtering, RADIUS
Advanced Features	AiProtection, parental controls, adaptive QoS, guest network, VPN, IPv6, AiMesh, media server, USB sharing (FTP/Samba/DLNA), AiCloud
Management	Web interface (http://www.asusrouter.com), ASUS Router mobile app
Dimensions (approx.)	230 x 150 x 50 mm
Weight (approx.)	500 g
Operating Temperature	0 to 40 °C
Operating Humidity	50 to 90 % (non-condensing)
Package Contents	RT-AX5400 router, power adapter, RJ-45 cable, quick start guide
Maintenance and Cleaning	Unplug before cleaning. Use a soft, dry cloth. Do not use chemicals.
Safety	Use only the supplied adapter. Keep away from heat sources and moisture.
Spare Parts and Repairability	Contact ASUS after-sales service. Parts are not supplied separately.
General Information	Brand: ASUS, Model: RT-AX5400, Category: Wireless Router, Warranty: by country

Frequently Asked Questions - RT-AX5400 ASUS

How to set up the RT-AX5400 router for the first time?

Connect the modem to the router's WAN port with an Ethernet cable. Plug in the power. Open a browser and go to http://www.asusrouter.com. Log in with admin/admin. The setup wizard will guide you to configure your internet connection and WiFi network.

What to do if I forgot my WiFi network password?

Connect a computer to the router via an Ethernet cable. Open the management interface at http://www.asusrouter.com (admin/admin if never changed). Go to General > Network Map, you will be able to view and modify the SSID and WiFi security key.

How to enable the guest network?

In the management interface, go to General > Guest Network. Select the band (2.4 or 5 GHz), click Enable, then Modify to customize the SSID, security, and access restrictions. Apply the changes.

How to set up parental controls?

Go to General > Parental Controls. Enable site and app filtering, then select the relevant clients and categories to block. You can also set time schedules to limit internet access.

How to update the firmware of the RT-AX5400?

Go to Advanced Settings > Administration > Firmware Upgrade. Click Check to check for updates. Download the latest firmware from the ASUS website, then click Browse to select the file and Upload to install it.

How to share a printer connected to the USB port?

In the interface, go to General > USB Application > Network Printer Server. Download the ASUS EZ Printer Sharing utility (Windows) or configure the LPR protocol (Mac). Follow the on-screen instructions to install the driver and share the printer.

How to configure port forwarding for a server?

Go to Advanced Settings > WAN > Virtual Server / Port Forwarding. Enable port forwarding. Enter the service name, port range, local IP address of the server, protocol, then click Apply. Ensure the local client has a static IP.

What to do if the management interface is not accessible?

Check the wired connection and LAN LEDs. If the router is in default mode, use the address http://www.asusrouter.com or the IP 192.168.50.1. Try resetting the router by holding the Reset button for 5 seconds. Clear your browser cache or disable the proxy.

How to enable AiProtection to secure my network?

Go to General > AiProtection. Click Network Protection, then Scan to analyze security. Enable features like malicious site blocking, Two-Way IPS, and infected device protection by toggling the switches to ON.

How to use the USB port to share files?

Plug a USB flash drive or hard drive into the router's USB port. In the interface, go to General > USB Application. Use AiDisk to set up an FTP server, or the Server Centers to enable Samba, DLNA, or FTP. Network clients can access files via \\192.168.50.1 (Samba) or ftp://yourdomain.asuscomm.com.

USER MANUAL RT-AX5400 ASUS

Line drawing of a wireless router with four pins and a base panel (no text or symbols)

F21831

Première Édition

Avril 2023

3.3 AiProtection....28

4.6 Administration....84

Sign In ASUS Router Sign in with your ASUS router account Sign In

REMARQUES:

Internet Settings Please select the Internet connection type from the options below. If you do not know the Internet connection type, contact your ISP. DHCP > PPPoE > Static IP > PPTP > L2TP > Special Requirement from ISP Previous

Internet ISP Account Setting Please enter the required information below. Username Password Previous Next

Internet Static IP Static IP allows your PC to use a fixed IP address provided by your ISP. IP Address 192.168.1.215 Subnet Mask 255.255.255.0 Default Gateway 192.168.1.1 DNS Server1 192.168.1.1 DNS Server2 Previous Next

REMARQUES:

Wireless Settings Assign a unique name or SSID (Service Set Identifier) to help identify your wireless network. Advanced Settings Network Name (SSID) ASUS Wireless Security ****** Previous Apply

System Status 2.4GHz 5GHz Status Network Name (SSID) ASUS_2G Authentication Method WPA2 - Personal WPA Encryption AES WPA PSK key ****** Apply LAN IP 192.108.50.1 PIN code 12345670 LAN MAC address 00:00:00:00:00:00 Wireless 2.4GHz MAC address 00:00:00:00:00:00

System Status 2.4GHz 5GHz Status Network Name ($SID) ASUS_5G Authentication Method WPA2-Personal WPA Encryption AES WPA-PSK key ****** Apply LAN IP 192.168.50.1 PIN code 12345670 LAN MAC address 00:00:00:00:00:00 Wireless 5GHz MAC address 00:00:00:00:00:00

Guest Network The Guest Network provides Internet connection for guests but restricts access to your local network. 2.4GHz Network Name (SSID) Authentication Method Network Key Enable Enable Enable Time Remaining Access Intranet Default setting by Alexa/FTTT 5GHz Network Name (SSID) Authentication Method Network Key Enable Enable Enable Time Remaining Access Intranet Default setting by Alexa/FTTT

Guest Network The Guest Network provides Internet connection for guests but restricts access to your local network. 2.4GHz Network Name ($SID) ASUS_2G_Guest Authentication Open System Method Network Key None Time Remaining Unlimited access Access Intranet(off Remove Enable enabling Default setting by AlexaFTTT 5GHz Network Name ($SID) ASUS_5G_Guest Authentication Open System Method Network Key None Time Remaining Unlimited access Access Intranet(off Remove Enable enabling Default setting by AlexaFTTT

ASUS RT-AX5400 Operation Mode: wireless router Firmware Version: 3.0.9.4.38.72091 SSID: ASUS RT-AX5400.26 ASUS RT-AX5400.56 Network Protection Malicious Sites Blocking Two-Way IPS Infected Device Prevention and Blocking AIProtection Network Protection with Trend Micro protects against network exploits to secure your network from unwanted access. AIProtection FAQ Enabled AIProtection ON Router Security Assessment Scan your router to find vulnerabilities and offer available options to enhance your devices protection. Scan Risk Malicious Siles Blocking Restricted access to known malicious websites to protect your network from malware, phishing, spam, adware, hacking, and ransomware attacks. ON Protection Two-Way IPS The Two-Way Infusion Prevention System protects any device connected to the network from spam or DDRs attacks. It also blocks malicious incoming packets to protect your router from network vulnerability attacks, such as Shellshocked, Heartbneed, Bitcoin mining, and ransomware. Additionally, Two-Way IPS detects suspicious outgoing packets from infected devices and avoids botnet attacks. ON Protection Infected Device Prevention and Blocking This feature prevents infected devices from being enshraved by botnets or zombie attacks which might steal your personal information or attack other devices. ON Protection Alert Preference TREND MICRO Help & Support Manual | Product Registration | Feedback FAQ 2022 ASUSTeK Computer Inc. All rights reserved.

Router Security Assessment Default router login username and password changed - Yes Wireless password strength check - Very Strong Wireless encryption enabled - Strong WPS Disabled - No UPnP service disabled - No Web access from WAN disabled - No PING from WAN disabled - Yes DMZ disabled - Yes Port trigger disabled - Yes Port forwarding disabled - No Anonymous login to FTP share disabled - Yes Disable guest login for Network Place Share - Yes Malicious Website Blocking enabled - Yes Vulnerability Protection enabled - Yes Infected Device Prevention and Blocking - Yes Close

ASUS RT-AX5400 Layout Reboot English Operation Mode: Wireless router. Firmware Version: 3.0.0.4.199_72093 SSID: ASUS_RT-AX-100_XG / ASUS_RT-AX-100_XG App Web & Apps Filters Time Scheduling Parental Controls - Web & Apps Filters Web & Apps Filters allows you to block access to unwanted websites and apps. To use web & apps Filters: 1. In the [Clients Name] column, select the client whose network usage you want to control. The client name can be modified in network map client list. 2. Check the unwanted content categories 3. Click the plus (+) icon to add rule then click apply. If you want to disable the rule temporarily, uncheck the check box in front of rule. Parental Controls FAQ Web & Apps Filters ON Client List (Max Limit : G4) Client Name (MAC Address) Content Category Add / Delete ■ Adult Stock infrastructure content to prevent children have working sites that contain rational of a secret, violent, and legal nature. ■ Instant Message and Communication Stock update communication software and messaging ups to prevent queries from becoming adapted in social networking sites. ■ P2P and File Transfer By blocking POP and File Transferring you can make sure your network has a better quality of data transmission. ■ Streaming and Entertainment By blocking streaming and entertainment services you can limit the time your children spend online. No data in Table Apply

ASUS RT-AX5400 Logout Reboot English Operation Mode: wireless router Firmware Version: 1.8.0.1.388.2206 SSID: ASIS_BT-AX5400_2G ASIS_BT-AX5400_CG App Web & Apps Filters Time Scheduling Parental Controls - Time Scheduling By enabling Block All Devices, all of the connected devices will be blocked from Internet access. Enable block all devices ON This feature allows you to set up a scheduled time for specific devices' Internet access. 1. In [Client Name] column, select a device you would like to manage. You can also manually key in MAC address in this column. 2. In the [Add / Delete] column, click the plus(+) icon to add the client. 3. In [Time Management] column, click the edit icon to set a schedule. 4. Click [Apply] to save the configurators. Enable Time Scheduling ON System Time Wed, Feb 01 10:46:24 2023 Client List (Max Limit : 64) Select all Client Name (MAC Address) Time Management Add / Delete Time No data is available Apply

ASUS RT-AX5400 Logout Reboot English Operation Mode: wireless router. Firmware Version: 1.0.0.4.188.27893 SSID: RT-AX5400 App Quick Internet Setup General Network Map AiMesh Guest Network AIProtection Parental Controls Adaptive QoS Traffic Analyzer USB Application AiCloud 2.0 Advanced Settings Wireless LAN WAN Alose & IFTTT Bandwidth Monitor QoS Web History Internet Speed QoS - QoS to configuration Quality of Service (QoS) ensures bandwidth for primitized tasks and applications. Adaptive QoS ensures inbound and outbound bandwidth on both wired and wireless connections for primitized applications and tasks via pre-defined, drag-and-drop presets, gaming, media streaming, VoIP, web surfing and file transferring. Traditional QoS ensures inbound and outbound bandwidth on both wired and wireless connections for primitized applications and tasks via manual user-defined parameters. Bandwidth Limiter lets you set limits on download and upload speeds. To enable QoS function, click the QoS slide switch and fill in the upload and download. QoS FAQ Enable QoS OFF Apply

ASUS Logout Reboot English Operation Mode: Wireless router Firmware Version: 1.8.0.4.384.4956 SSID: A385_76 A385_76 App Quick Internet Setup General Network Map Crest Network AIProtection Adaptive QoS Traffic Analyzer Game Board USB Application Welcome to AiDisk wizard AiDisk enables you to: • Share files in the USB disk through the Internet. • Create your own domain name for the FTP server. • For advanced file-sharing configuration. Click here GO

ASUS Quick Internet Setup General Network Map Guest Network AIProtection Adaptive QoS Traffic Analyzer Game Boost USB Application AiCloud 2.0 Advanced Settings Wireless Logout Reboot Operation Mode: Wireless Center: Firmware Version: 3.0.0.4.181.4369 SSID: ASRS_2G ASRS_5G App ① ② ③ My FTP server is shared : Decide how to share your folders. ● admin rights ● limited access rights ● wireless access rights Account Password Road.Write admin * Previous Next

General Network Map Guest Network AIProtection Traffic Manager Traffic Analyzer USB Application AirCloud 2.0 Advanced Settings 1 2 3 Create your domain name via the ASUS DDNS services. I will use the service copy on the user asuscamn.com Disable DDNS. Previous Next

ASUS RT-AX5400 Logout Reboot English Operation Mode: Wireless router Firmware Version: 1.0.0.4.388.72093 SSID: RT-AX5400 App Media Server Network Place (Samba) Share / Cloud Disk FTP Share USB Application - Network Place (Samba) Share / Cloud Disk Set the account and permission of network place(samba) service Enable Share ON Allow guest login OFF Username and password is necessary to log in network place(Samba) Device Name Work Group WORKGROUP Maximum number of concurrent connections 5 Apply 2022Me1odywang RT-AX5400 R/W R No Advanced Settings Wireless LAN WAN Alexa & IFITT IPv6

Add new account New account has no read/write access rights. Account: Password: Retype password: Add

Add new folder in sda1 The default access rights for a new folder is read/write. Folder Name: 1 Add

ASUS RT-AX5400 Logoret Reboot Operation Mode: Wireless router. Firmware Version: 3.6.0.4.388.22093 SSID: RT-AX5400 Media Server Network Race (Samba) Share / Cloud Disk FTP Share USB Application - FTP Share Set the account and permission of FTP service Enable FTP OFF Enable WAN access OFF Allow anonymous login OFF Username and password is necessary to log in FTP service Enable TLS support Yes No TLS doubled to remote. Maximum number of concurrent connections 5 Chassis set on FTP Server UTF-8 Apply 2522@1odywang AS37E94344DB90DC31CA7 9D88DC9FTIDE.asuscomm. R/W W R No com Access

ASUS RT-AX5400 Logout Reboot English Operation Mode: Wireless router Firmware Version: 1.0.9.4.188.220P3 SSID: RT-AX400 Internet Connection Dual WAN Port Trigger Virtual Server / Port Forwarding DM2 DDNS NAT Passthrough USB Modem / USB Tethering Switch to USB mode to use a 3G/4G USB wireless dongle or Android phone as a USB modem. Basic Config Enable USB Mode OFF Special Requirement from ISP Extend the TTL value Yes No Speed LAN TTL value Yes No Apply Quick Internet Setup General Network Map AiMesh Guest Network AiProtection Parental Controls Adaptive QoS Traffic Analyzer USB Application AiCloud 2.0 Advanced Settings Wireless LAN WAN Alexa & IFTTT IPv6

ASUS RT-AX5400 Operation Mode: Wireless router Firmware Version: 3.9.0.4.388.72093 5S10: RT-AX5400 App Quick Internet Setup General Network Map AiMesh Guest Network AIProtection Parental Controls Adoptive QoS Traffic Analyzer USB Application AiCloud 2.0 Advanced Settings Wireless LAN WAN Alexa & IFTTT IPv6 VPN AICloud 2.0 AICloud 2.0 AICloud Sync Sync Server Settings Log AICloud 2.0 ASUS AICloud 2.0 keeps you connected to your data wherever and whenever you have an Internet connection. It links your home network and online storage service and lets you access your data through the AICloud mobile app on your iOS or Android mobile device or through a personalized web link in a web browser. Now all your data can go where you go. Enter AICloud 2.0 https://www.asusrouter.com Find FAQs GO Google Play App Store The wireless router is currently using a private WAN IP address This router may be in a multiple-NAT environment, and accessing AICloud from WAN does not work USB Disk Enables USB-attached storage devices to be accessed streamed or shared through an Internet-connected PC or device. OFF Smart Access Enables Network Place (Samba) networked PCs and devices to be accessed remotely. Smart Access can also wake up a sleeping PC. OFF AICloud Sync Enables synchronization of USB-attached storage with cloud services like ASUS Webstorage and other AICloud 2.0-enabled networks GO

USB Cloud Disk Enables USB-attached storage devices to be accessed, streamed or shared through an Internet-connected PC or device. OFF Smart Access Enables Network Place (Samba) networked PCs and devices to be accessed remotely. Smart Access can also wake up a sleeping PC. OFF AiCloud Sync Enables synchronization of USB-attached storage with cloud services like ASUS Web storage and other AiCloud 2.0-enabled networks. GO

AiCloud Welcome. Who's coming home? Your Name Your Password

USB Cloud Disk Enables USB-attached storage devices to be accessed, streamed or shared through an Internet-connected PC or device. OFF Smart Access Enables Network Place (Samba) networked PCs and devices to be accessed remotely. Smart Access can also wake up a sleeping PC. OFF AiCloud Sync Enables synchronization of USB-attached storage with cloud services like ASUS Webstorage and other AiCloud 2.0-enabled networks. GO

REMARQUES :

ASUS RT-AX5400 Logout Reboot English Operation Mode: wireless router Firmware Version: 3.0.0.4.188_25093 SSD: RT-AX5400 AICloud 2.0 AICloud Sync Sync Server Settings Log AICloud 2.0 - AICloud Sync USB OFF Enables AICloud Sync functionality: For step-by-step instructions, go to FAD Cloud List Provider Username Role Folder Name Connection Status Delete No USB disk detected. Add new account Quick Internet Setup General Network Map AIMech Guest Network AiProtection Parental Controls Adoptive QoS Traffic Analyzer USB Application AiCloud 2.0 Advanced Settings

ASUS RT-AX5400 Logost Reboot English Operation Mode: Wireless router Firmware Version: 1.0.0.4.138_22093 SSID: RT-AX5400 General WPS WDS Wireless MAC Filter RAOBUS Setting Professional Roaming Block List Wireless - General Set up the wireless related information below Enable Smart Connect ON Smart Connect Rate Smart Connect Dual-Band Smart Connect (2.4 GHz and 5 GHz) Network Name (SSID) RT-AX5400 Hide S800 Yes No Wireless Mode Auto Disable TIB 802.11ax / WIFI6 mode Enable if compatibility case occurs when enabling 602.11ax / WIFI6 mode, please check FAQ WiFi Agile Multibond portable Target Wake Time Disable Authentication Method MFA2-Personal WPA Encryption AES WPA Pre-Shared Key ...... Very Strong Protected Management Frames usable Group Key Rotation Interval 3400 Advanced Settings Wireless LAN WAN

ASUS RT-AX5400 Operation Mode: Wireless router Firmware Version: 1.0.0.4.388_27095 SSID RT-AX5400 General WPS WCS Wireless MAC Filter RADIVS Setting Professional Reaming Block List Wireless - WPS WPS (WPS Protected Setup) provides navy and secure establishment of a wireless network. You can configure WPS here via the PIN code or the WPS button. Enable WPS ON Current Frequency 2.4 GHz Connection Status Configured Enabled Pressing the root button meets the network name (SSID) and WPS enterprise key AP PIN Code 25242234 You can easily connect a WPS client to the network in other of these two ways: • Method1: Click the WPS button on this interface (or press the physical WPS button on the router); then press the WPS button on the client's WLAN adapter and wait for about those minutes to make the connection • Method2: Start the client WPS process and get the client PIN code. Enter the client's PIN code on the Client PIN code field and click Start. Please check the user manual of your wireless client to see it will supports the WPS function. If your wireless client does not support the WPS function, you have to configure the wireless client manually and set the same network Name (SSID), and security settings as this router. WPS Method Push button Client PIN Code Start Advanced Settings Wireless LAN WAN Aloca & JFITT

ASUS RT-AX5400 Layout Reboot English Operation Mode: Wireless router: Firmware Version: 1.4.0.4.368_22983 SSID: RT-AX5400 App General WPS WDS Wireless MAC Filter RADIUS Setting Professional Roaming Block List Wireless - Bridge Bridge (or named WDS - Wireless Distribution System) function allows your RT-AX5400 to connect to an access point wirelessly WDS may also be considered a repeater mode. Note: The function only support [Open System/NONE, Open System/WDP] security authentication method. To set up the corresponding authentication method, please select Legacy as your wireless mode first. Click Here to modify. Please refer to the FAQ for more details. To enable WDS to extend the wireless signal, please follow these steps : 1. Select [WDS Only] or [hybrid] mode and add MAC address of APs in Remote AP List. 2. Ensure that this wireless router and the AP you want to connect to use the same channel. 3. Key in the remote AP mac in the remote AP list and open the remote AP's WDS management interface, key in the this router's MAC address. 4. To get the best performance, please go to Advanced Settings > Wireless > General and assign the same channel bandwidth, control channel, and extension channel to every router in the network. You are currently using the Auto channel bandwidth. Click Here to modify You are currently using the Auto channel. Click Here to modify Basic Binding 2.4 GHz MAC C1:77:154:41:13:08 5 GHz MAC C1:77:154:41:13:0C Band 2.4 GHz AP Mode AP Only Connect to APs in list Yes No Remote AP List (Max Limit i 4) Remote AP List Add / Delete No data on table. Apply

ASUS RT-AX5400 Login Reboot English Operation Mode: Wireless router Firmware Version: 3.0.0.4.JBB 22093 SSID: RT-AX5400 App Quick Internet Setup General WPS WDS Wireless MAC Filter RADIUS Setting Professional Roaming Block List Wireless - Wireless MAC Filter Wireless MAC filter allows you to control packets from devices with specified MAC address in your Wireless LAN. Basic Config Band 2.4 GHz Enable MAC Filter Yes No MAC Filter Mode Accept v MAC Filter list (Max Limit 1: 84) Client Name (MAC Address) Add / Delete no data to table. Apply

ASUS RT-AX5400 Logout Reboot English Operation Mode: wireless router Firmware Version: 1.0.0.4.388.22093 SSID: RT-AX5400 App Quick Internet Setup General Network Map AiMech Gust Network AIProtection Parental Controls Adaptive QoS Wireless - RADIUS Setting This section allows you to set up additional parameters for authoring wireless clients through RADIUS server. It is required while you select "Authentication Method" in "Wireless - General" as "WPA-Enterprise / WPA2-Enterprise" Server IP Address Server Port 1612 Connection Secret Apply

ASUS RT-AX5400 Layout Reboot English Operation Mode: Wireless reuter. Firmware Version: 3.0.6.4.388_22093 SSID: RT-AX5400 General WPS MDS Wireless MAC Fiber RADIUS Setting Professional Roaming Block Use General Network Map Abitash Gus-S Network AI protection Parental Controls Adaptive QoS Traffic Analyzer USB Application AcCloud 2.0 Advanced Settings Wireless LAN WAN Alexa & IPTT IPv6 VPN Firewall Administration System Log Network Tools Operation Mode: Wireless reuter. Firmware Version: 3.0.6.4.388_22093 SSID: RT-AX5400 General WPS MDS Wireless MAC Fiber RADIUS Setting Professional Roaming Block Use Wireless - Professional Wireless Professional Setting allows you to set up additional parameters for wireless. But default values are recommended. Band Enable Radio Yes No Enable wireless scheduler Yes No Set AP Isolated Yes No Poisoning assistant Enable Disconnect alerts with PCSI lower than -70 dsn Bluetooth Coherence Disable Enable Multiunit Rate(Mbps) Auto Present Type Long AMPDU RTS Enable RTS Threshold 2447 OTIM Interval 1 Beaser Imms# 190 Enable TX Bursing Enable Enable WMH Enable Enable WMH No Acknowledgment Disable Enable WMMAPO Enable Optimize AMPDU aggregation Disable Modulation Scheme Up to MCS 13 (DHToQAM/1024-QAM) Active Fairness Disable Multi-Layer MIMO Enable OPDMV02.11or MUAMMO Disable Explicit Deconturing Enable Universal Deconturing Enable To power adjustment Performance Apply

Operation Mode: Wireless router. Firmware Version: 1.0.0.4.184.4180 SSID: MSRS.2G MSRS.5G General WPS WOS Wireless MAC Filter RADIUS Setting Professional Roaming Block List Wireless - Professional * Hereafter The System line zone is different from your hours setting. Clock Format 24-hour Allow Deny Active Schedule System Time Thu, Aug 23 06:59:27 2018 Select All Sun Mon Tue Wed Thu Fri Set 00 ~ 01 01 ~ 02 02 ~ 03 03 ~ 04 04 ~ 05 05 ~ 06 06 ~ 07 07 ~ 08 08 ~ 09 09 ~ 10 10 ~ 11 11 ~ 12 12 ~ 13 13 ~ 14 14 ~ 15 15 ~ 16 16 ~ 17 17 ~ 18 18 ~ 19 19 ~ 20 20 ~ 21 21 ~ 22 22 ~ 23 23 ~ 24 Advanced Settings Wireless LAN WAN Always & ETTT IPv6 VPR Firewell Administration System Log Network Tools Cancel OK

ASUS RT-AX5400 Operation Mode: wireless router Firmware Version: 1.0.0.4.388_72961 SSID: RT-AX5400 App Quick Internet Setup General Network Map AiMesh Gurst Network AiProtection Parental Controls Adaptive QoS Traffic Analyzer USB Application AirCloud 2.0 Advanced Settings Wireless LAN WAN Alexa & IFTTT IPv6 VPN Firewall Administration System Log LAN IP DHCP Server Route DPTV Switch Control LAN - DHCP Server DHCP (Dynamic Host Configuration Protocol) is a protocol for the automatic configuration used on IP networks. The DHCP server can assign each client an IP address and informs the client of the DNS server IP and default gateway IP. RT-AX5400 supports up to 263 IP addresses for your local network. Manually Assigned JP around the DHCP list FAQ Basic Config Enable the DHCP Server Yes No RT-AX5400's Domain Name IP Pool Starting Address 192, 168, 56, 2 IP Pool Ending Address 192, 168, 56, 254 Lock time 56400 Default Gateway DNS and WINS Server Setting DNS Server 1 DNS Server 2 Advertise router's IP in addition to user-specified DNS Yes No WINS Server Manual Assignment Enable Manual Assignment Yes No Manually Assigned IP around the DHCP list (Max Limit : G4) Client Name (MAC Address) IP Address DNS Server (Optional) Host Name (Optional) Add / Delete No data in table. Apply

ASUS RT-AX5400 Logost Reboot English Operation Mode: wireless router. Firmware Version: 1.0.0.4.318_72093 SSID: RT-AX5400 App LAN IP DHCP Server Route IPTV Switch Control LAN - Route This function allows you to add routing rules into RT-AX5400. It is useful if you connect several routers behind RT-AX5400 to share the same connection to the Internet. Basic Config Enable static routes Yes No Static Route List (Max Limit : 32) Network/Host IP Network Gateway Metric Interface Add / Delete LAN no data to table. Apply

ASUS RT-AX5400 Layout Reboot English Operation Mode: Wireless router Firmware Version: 3.6.9.4.38E_22093 SSID: RT-AX5400 App LAN IP DHCP Server Route IPTV Switch Control LAN - IPTV To watch IPTV, the WAN port must be connected to the Internet. Please go to WAN - Dual WAN to confirm that WAN port is assigned to primary WAN. LAN Port Select ISP Profile None Choose IPTV STB Port None Special Applications Use DHCP routes Microsoft Enable multicast routing Disable UDP Proxy (Uqay) 8 Apply

ASUS RT-AX5400 Operation Node: Wireless router Firmware Version: 3.0.0.4.188_77091 SSID: RT-AX5400 Internet Connection Dual WAN Port Trigger Virtual Server / Port Forwarding DNZ DOIRS NAT Passthrough WAN - Internet Connection RT-AX5400 supports several connection types to WAN (wide area network). These types are selected from the dropdown menu beside WAN Connection Type. The setting fields differ depending on the connection type you selected. Configure the Ethernet WAN settings of RT-AX5400. Basic Config WAN Connection Type:AUTORETIC IP Enable WAN Yes No Enable NAT Yes No Enable LIPV® UPSP FAQ Yes No Enable WAN Aggregation Yes No WAN Aggregation combines two network connections to increase your WAN speed up to 2Gbps. Connect your router's WAN port and LAN 4 port to your wireless LAN ports (ensure you use two settings with the write specification). WWW Aggregation FAQ WAN DNS Setting DNS Server Default status : Get the DNS IP from your ISP automatically. Assign a DNS server to improve security, block advertisement and gain faster performance. Assign Forward tool domain queries to upstream DNS Yes No Enable DNS Blind protection Yes No Enable DNSSEC support Yes No Prevent client auto Dash:AUTO DNS Privacy Protocol NONE DHCP Option Class-Identifier (Option 60): Client-Identifier (Option 61): IADDUID Account Settings Authentication NONE PPP Echo Interval 6 PPP Echo Max Failures 10 Special Requirement from ISP Host Name: MAC Address MAC Close DHCP query frequency:AOPPOSITE NODE Extend the TTL value Yes No Spoof LANTTL value Yes No Apply

ASUS RT-AX5400 Logpost Reboot English Operation Mode: Wireless router Firmware Version: 3.0.6.4.188.22093 SSID: RT-AX5400 Internet Connection Dual WAN Port Trigger Virtual Server / Port Forwarding DMZ DDR5 NAT Passthrough WAN - Port Trigger Port Trigger allows you to temporarily open data ports when LAN devices require unrestricted access to the Internet. There are two methods for opening incoming data ports, port forwarding and port trigger. Port forwarding opens the specified data ports all the time and devices must use static IP addresses. Port trigger only opens the incoming port when a LAN device requests access to the trigger port. Unlike port forwarding, port trigger does not require static IP addresses for LAN devices. Port forwarding allows multiple devices to share a single open port and port trigger only allows one cluster at a time to access the open port. Port Trigger FAQ Basic Config Enable Port Trigger Yes No Well-Known Applications Please select Trigger Port List ( Max Limit : 32 ) Description Trigger Port Protocol Incoming Port Protocol Delete No data table Apply

ASUS RT-AX5400 Logout Reboot English Operation Mode: Wireless router Firmware Version: 3.0.0.4.388.22091 SSD: RT-AX5400 App Internet Connection Dual WAN Port Trigger Virtual Server / Port Forwarding DRZ CDRS NAT Pusethrough WAN - Virtual Server / Port Forwarding Virtual Server / Port forwarding allows remote computers to connect to a specific computer or service within a private local area network (LAN). For a factor connection, some P2P applications (such as DITament), may also require that you set the port forwarding setting. Please refer to the P2P application's user manual for details. You can open the multiple port or a range of ports in route and redirect data through these ports to a single client on your network. If you want to specify a Port Range for clients on the same network, enter the Service Name, the Port Range (e.g. 10200.10300), the LAN IP address, and leave the Local Port blank. • When your network's firewall is disabled and you set 80 as the HTTP server's port range for your WAN setup, then your http server/web server would be in conflict with RT-AX5400's web user interface. • When you set 28:21 as your FTP server's port range for your WAN setup, then your FTP server would be in conflict with RT-AX5400's native FTP server. Virtual Server / Port Forwarding FAQ Basic Config Enable Port Forwarding ON Port Forwarding List (Max Limit : 64) Service Name External Port Internal Port Internal IP Address Protocol Source IP Edit Delete No data in Table. Add profile

- Local IP (Adresse IP locale): Adresse IP locale du client.

ASUS RT-AX5400 Logout Reboot Operation Mode: Wireless router. Firmware Version: 3.0.9.4.188.22001 SSD: RT-AX5400 Internet Connection Dual WAN Port Trigger Virtual Server / Port Forwarding DHZ DDNS NAT FeedThrough WAN - DONS DDNS (Dynamic Domain Name System) is a service that allows network clients to connect to the wireless router, even with a dynamic public IP address, through its registered domain name. The wireless router is embedded with the ASUS DDNS service and other DLNS services. If you cannot use ASUS DDNS services, please go to https://ip.lockup.guws.com/no_lockup.php to reach your internet IP address to use this service. The wireless router currently uses a private WAN IP address. This router may be in the multiple NAT environment and DDNS service cannot work in this environment. The host name is successfully registered. You can use "TracFrame", askcomm care to access the service in remote network from WAN. Use "TracFrame", askcomm care to remotely access your network. Data Advanced Settings > WAN to configure the port forwarding or DHCP settings to allow other WAN clients to remotely access your network. If you want to remotely configure the wireless router, go to DEC. Enable the DDNS Client Yes No Server WINS. ASUS.COM Deregister Host Name AS IPEI#S#A#R#E##C#T#L#P#E##C#FPLDE www.asus.com DDNS Status Actual DDNS Registration Result Registration is successful. HTTP/PSLL Certificates Free Certificate from Leth Encrypt Import Your Own Certificates None Apply

4.3.6 NAT Passthrough

ASUS RT-AX5400 Layout Reboot English Operation Mode: Wireless router. Firmware Version: 3.0.0.4.388.22093 SSID: RT-AX5400 App General URL Filter Keyword Filter Network Services Filter Firewall - Keyword Filter Keyword Filter allows you to block the clients' access to webpages containing the specified keywords. Limitations of the filtering function : 1. Compressed webpages that use HTTP compression technology cannot be filtered. See here far more details. 2. Https webpages cannot be filtered. Basic Config Enable Keyword Filter ● Enabled ● Disabled Keyword Filter List (Max Line: 64) Keyword Filter List Add / Delete So data in table. Apply

ASUS RT-AX5400 Lognet Reboot English Operation Mode Wireless router Firmware Version: 3.0.9.4.288_22093 SSID: KT-AX5400 General URL Filter Keyword Filter Network Services Filter Firewall - Network Services Filter The Network Services Filter blocks the LAN to WAN packet exchanges and restricts devices from using specific network services. For example, if you do not want the device to use the Internet service, key in 30 is the destination port. The traffic that uses port 40 will be blocked (but https can not be blocked). Leave the source IP field blank to apply this rule to all LAN devices. Deny List Duration - During the scheduled duration, clients in the Deny List cannot use the specified network services. After the specified duration, all the clients in LAN can access the specified network services. Allow List Duration - During the scheduled duration, clients in the Allow List can ONLY use the specified network NOTE : If you set the subnet for the Allow List, IP addresses outside the subnet will not be able to access the Internet or any Internet service. Network Services Filter Enable Network Services Filter Yes No Filter table type Derry List Well Known Applications User Defined Date to Enable LAN to WAN Filter Mon Tue Wed Thu Fri Time of Day to Enable LAN to WAN Filter 00 00 - 23 - 59 Date to Enable LAN to WAN Filter Sat Sun Time of Day to Enable LAN to WAN Filter 00 00 - 23 - 59 Filtered ICMP packet types Advanced Settings Wireless LAN WAN Alexa & IFTTT IPv6 VPN TCP/IP Network Services Filter Table (Max Limit : 30) Source IP Port Range Destination IP Port Range Protocol Add / Delete No data In Table. Apply

ASUS RT-AX5400 Operation Mode: Wireless router. Firmware Version: 3.9.6.4.388_27091 SSID: RT-AX5400 Operation Mode System Firmware Upgrade Restore/Save/Upload Setting Feedback Privacy Administration - Operation Mode RT-AX5400 supports several operation modes to meet different requirements. Please select the mode that match your situation. ● Wireless router mode / AiMesh Router mode (Default) ● Access Point(AP) mode / AiMesh Router in AP mode ● Repeater mode ● Media Bridge ● AiMesh Node AiMesh Router mode is a traditional mode with AiMesh functionality, which connects to the Internet via PPPG, DHCP, PFTP, L2TP, or Static IP and switches the wireless network to LAN clients or devices. In this mode, NAV, firewall, and DHCP server are enabled by data alt. UPHP and Dynamic DNS are supported for SODIO and home users. Select this mode if you are a first-line user or you are not our remy using any wireless routers. You can add AiMesh nodes to form an AiMesh WiFi system to provide extra WiFi coverage.

AEUS RT-AX5400 Operation Mode: Wireless router Firmware Version: 1.0.0.4.388.22093 SSID: RT-AX5400 General Log Wireless Log DHCP leases IPv6 Routing Table Port Forwarding Connections System Log - General Log This page shows the detailed system's activities System Time Wed, Mar 01 10:13:19 2023 Uptime 12 days 15 hour(s) 20 minutes(s) 26 seconds Remote Log Server S14 * The default port is S14 if you reconfigured the port number, please make sure that the runtellog server or IoT device settings matches your current configuration Apply Mar 1 05:00:30 kernel: CSIMON: HCM use already registered ... Mar 1 05:00:30 kernel: Devyle to already up Mar 1 05:00:30 kernel: Hand not supported (>23) Mar 1 05:00:30 kernel: In wt info data notify status champsor CseO7e DPD state 0 Mar 1 05:00:31 kernel: uid: Gie Zimu nu.trig enable; HK UI-DYMEB net enabled Mar 1 05:00:32 kernel: CSIMON: CSIMON[1.1.07] Initialisation Mar 1 05:00:31 kernel: CSIMON: HCM use already registered ... Mar 1 05:00:31 kernel: IN wt info data notify status champsor Cn1001 EPS state 0 Mar 1 05:00:32 kernel: In wt info data notify status champsor fee26a DPD state 0 Mar 1 05:00:33 kernel: auth5: Selecting by hand ACS policy Mar 1 05:00:39 wicewntd main(96); wicewntd Start... Mar 1 05:00:44 kernel: auth5: selected channel spec: Cn1057 (7) Mar 1 05:00:44 kernel: auth5: adjusted channel spec: Cn1057 (7) Mar 1 05:00:44 kernel: auth5: selected channel spec: Cn1057 (7) Mar 1 05:00:44 kernel: auth5: Selecting by hand ACS policy Mar 1 05:00:49 wicewntd main(96); wicewntd Start ... Mar 1 05:00:52 kernel: auth5: selected channel spec: CseO6a (106/80) Mar 1 05:00:53 kernel: auth5: adjusted channel spec: CseO6a (106/80) Mar 1 05:00:58 kernel: auth5: selected channel spec: CseO6a (106/80) Mar 1 05:02:11 wicewntd service(96); auth5: Auth BQ.A4:BQ.A2.01.26, status: Successful (6), or Mar 1 05:02:11 wicewntd service(96); auth5: Anion BQ.A4:BQ.A2.01.26, status: Successful (6), or Mar 1 05:02:13 wicewntd service(96); auth5: Disseroc BQ.A4:BQ.A2.01.26, status: 9, reason, buy Mar 1 05:02:13 wicewntd service(96); auth5: Desuch ind BQ.A4:BQ.A2.01.26, status: 9, reason, buy Mar 1 16:07:89 sr_service: httpd zit6.notify.ro restart_firewall Mar 1 16:07:38 rc_service: httpd zit6.notify.ro restart_firewall Mar 1 16:07:33 sr_service: waiting "restart_firewall" via httpd ... Clear Save

REMARQUES :

Before you get started, please check the model name and hardware version from the label. 1. Please confirm the label at the bottom of your router model shows H/W Version, different hardware version needs different firmware version to process restoration. 2. Download firmware from ASUS support site: https://www.asus.com/support For example, if your label shows "RT-AC66U_B1", firmware of "RT-AC66U" is not available for restoration. Filename: Browse... Status After locating the firmware file, click Upload.

Operation Mode: Wireless router: Firmware Version: 3.0.0.1.388.27053 SSID: BT-AXS400 App Quick Internet Setup General Network Map AiMesh Guest Network AiProtection Parental Controls Adoptive QoS Traffic Analyzer USB Application Aicloud 2.0 Advanced Settings Wireless LAN USB Application To remove the hard disk from the router, click the USB icon at the upper right corner of your screen. AiDisk Share files in the USB disk through the Internet. Servers Center Setup the UPnP, iTunes, FTP and Network Place (Samba). Network Printer Server The network printer server supports two methods: (1) ASUS EZ printer sharing (2) LPR to share printer. 3G/4G Switch to USB mode to use a 3G/4G USB wireless dongle or Android phone as a USB modem. Support Time Machine Enable Time Machine functionality

ASUS RT-AX5400 Operation Mode: Wireless router Firmware Version: 3.0.0.4.388.27093 SSID: RT-AX5400 App Quick Internet Setup General Network Map AiMesh Guest Network AiProtection Network Printer Server The network printer server supports two methods: (1) ASUS EZ printer sharing (2) LPR to share printer • ASUS EZ printer sharing (Windows OS only) FAQ Download Now! • Use LPR protocol to sharing printing FAQ (Windows) • Use LPR protocol to sharing printing FAQ (MAC) Network Printer Server ON

Illustration of a printer with purple casing and white paper tray, labeled 'Printer.exe' below (no other text or symbols)

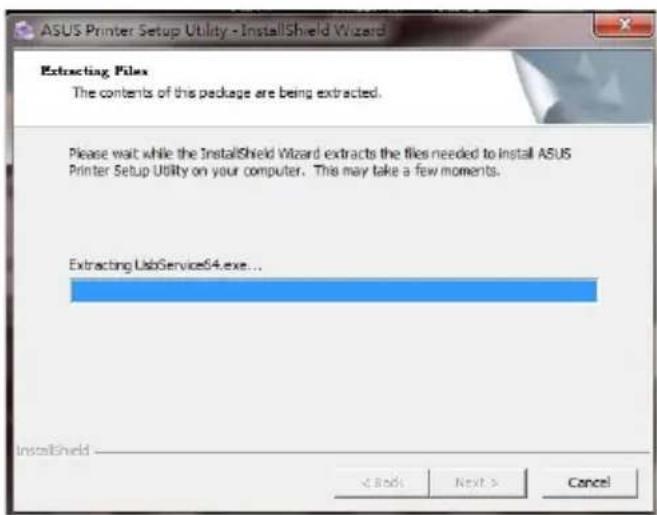

ASUS Printer Setup Utility - InstallShield Wizard Extracting Files The contents of this package are being extracted. Please wait while the InstallShield Wizard extracts the files needed to install ASUS Printer Setup Utility on your computer. This may take a few moments. Extracting LabService64.exe... InstallShield < Back Next > Cancel

ASUS Printer Setup Utility This utility will help you set up the USB printer. Connect your PC with the router through wired/wireless connection, then connect your printer to the router and power on it. Click "Next" to start printer installation. USB LAN Next Cancel

Found New Hardware Wizard Welcome to the Found New Hardware Wizard Windows will search for current and updated software by looking on your computer, on the hardware installation CD, or on the Windows Update Web site (with your permission). Read our privacy policy? Can Windows connect to Windows Update to search for software? ○ Yes, this time only ○ Yes, now and every time I connect a device ○ No, not this time Click Next to continue. < Back Next> Cancel

Printers and Faxes File Edit View Favorites Tools Help Back Search Folders Address Printers and Faxes Go Printer Tasks Add a printer Set up Faxing See Also Troubleshoot printing Get help with printing Other Places Control Panel Scanners and Cameras Canon MPI 40 series Printer 0 Ready

Control Panel > Hardware and Sound > Devices and Printers Add a device Add a printer Devices (5) ASUS GAMING MOUSE GX800 ASUS FM37TS DT 10L G2 ENGLISH-PC USB Keyboard Printers and Faxes (2) Fax Microsoft XPS Document Writer

Add Printer What type of printer do you want to install? → Add a local printer Use this option only if you don't have a USB printer. (Windows automatically installs USB printers when you plug them in.) → Add a network, wireless or Bluetooth printer Make sure that your computer is connected to the network, or that your Bluetooth or wireless printer is turned on. Next Cancel

Add Printer Choose a printer port A printer port is a type of connection that allows your computer to exchange information with a printer. Use an existing port: LPT1: (Printer Port) Create a new port: Type of port: Standard TCP/IP Port Next Cancel

Add Printer Type a printer hostname or IP address Device type: TCP/IP Device Hostname or IP address: 192.168.1.1 Port name: 192.168.1.1 ✓ Query the printer and automatically select the driver to use Next Cancel

Add Printer Additional port information required The device is not found on the network. Be sure that: 1. The device is turned on. 2. The network is connected. 3. The device is properly configured. 4. The address on the previous page is correct. If you think the address is not correct, click Back to return to the previous page. Then correct the address and perform another search on the network. If you are sure the address is correct, select the device type below. Device Type Standard Generic Network Card Custom Settings... Next Cancel

Add Printer Additional port information required The device is not found on the network. Be sure that: 1. The device is turned on. 2. The network is connected. 3. The device is properly configured. 4. The address on the previous page is correct. If you think the address is not correct, click Back to return to the previous page. Then correct the address and perform another search on the network. If you are sure the address is correct, select the device type below. Device Type Standard Genetic Network Card Custom Settings... Next Cancel

Add Printer Install the printer driver Choose your printer from the list. Click Windows Update to see more models. To install the driver from an installation CD, click Have Disk. Manufacturer Kycera Lanier Lexmark Microsoft UPC Printers Lexmark X422 (MS) Lexmark X543 PS (MS) Lexmark X548 PS (MS) Lexmark X642e (MS) This driver is digitally signed. Tell me why driver signing is important Windows Update Have Disk... Next Cancel

Add Printer Type a printer name Printer name: Lexmark XS44 PS (MS) This printer will be installed with the Lexmark XS44 PS (MS) driver. Next Cancel

Add Printer You've successfully added Lexmark X544 PS (M5) To check if your printer is working properly, or to see troubleshooting information for the printer, print a test page. Print a test page Finish Cancel

5.4 Download Master

ASUS Layout English Task Task Add Remove Pause Resume Pause All Resume All Clear Completed Home Tasks Settings General Bit Torrent NZB sRule 0 Tasks All | Downloading | Seading | Paused | Finished 0 Kbps 0 Kbps

Task Task Settings General Bit Torrent NZB aMule General Setting Download Schedule Immediately AI Scheduled Time Runout: The System line zone is different from your local setting Download to /top/wet/s/dt/Download2/Complete Browse Refresh rate 5 Seconds DownloadMaster Port 8481 Download Master Https Port 8481 WAN network OFF Enable/disable the WAN connection. Keep seeding after task completed ON Apply

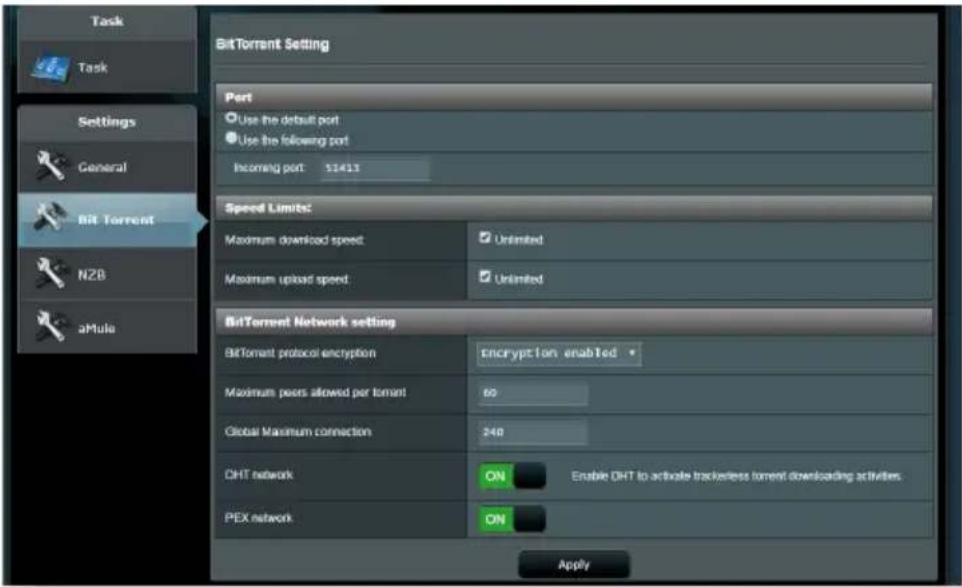

5.4.1 Configurer les paramètres BitTorrent

Task Task Settings General BIT Torrent NZB aMule BitTorrent Setting Port Use the default port Use the following port Incoming port: 51411 Speed Limits: Maximum download speed: Unlimited Maximum upload speed: Unlimited BitTorrent Network setting BitTorrent protocol encryption: encryption enabled Maximum peers allowed per tenant: 60 Global Maximum connection: 248 CHT network ON Enable CHT to activate trackless torrent downloading activities PEX network ON Apply

ASUS Task Task Settings General Bit Tarrant N2B eMable N2B Setting Setup USENET server to download N2B files USENET Server USENET Server Port 119 Maximum download speed ☑ Unlimited SSL/TLS connection only OFF User name Password Confirm Password Minimum number of simultaneous connections to this server 4 Apply 2018 ASUSTek Computer Inc. All rights reserved.

RT-AX5400 Operation Mode: Wireless router Firmware Version: 3.0.0.1.388.27003 SSD: RT-AX5400 Operation Mode Systems Firmware Upgrade Restore/Save/Upload Setting Feedback Privacy Administration - Firmware Upgrade Note: 1 The latest firmware version includes updates from the previous version. 2 Configuration parameters will keep their settings during the firmware update process. 3 In case the upgrade process fails, RT-AX5400 enters the emergency mode automatically. The LED signals at the level of RT-AX5400 will indicate such a situation. Please visit ASIUS Download Center to download ASIUS Firmware Restoration utility for a manual update. Check on FAQ for more instructions. 4 Get the latest firmware version from the ASIUS Support site Auto Firmware Upgrade Auto Firmware Upgrade OFF Firmware Version Signature version 2.238 Updated: 26550710 02:96 Check Check Update Check ■ I would like to retrieve basic firmware Address router RT-AX5400 Current Version: 16.8.4.188_27003-g4736/50x Manual firmware update Selected Note: Accessible firmware update will only update selected AltMesh routers / modes, when using the AltMesh system. Please have sure you are uploading the correct AltMesh firmware version to each applicable router / mode.

ASUS RT-AX5400 Logout Reboot Operation Mode: Wireless router Firmware Version: 3.0,0.4,388.22093 SSD: RT-AX5400 Quick Internet Setup General Network Map AiMush Quest Network AIProtection Parental Controls Adaptive QoS Traffic Analyzer USB Application AiCloud 2.0 Advanced Settings Wireless LAN WAN Alecca & BTITI IPv6 VPN Internet status: Connected WAN IP: 192.168.122.216 DONS: Sign up Security level: WPA2-Personal Clients: View List AiMush Node: USB I/O No Device System Status Wireless Status Smart Connect Dual-Band Smart Connect Dual-Band Smart Connect Network Name (SSID) RT-AX5400 Authentication Method WPA2-Personal WPA Encryption AES WPA-PSK key Apply

6.2 Foire aux questions (FAQ)

Internet Options General Security Privacy Content Connections Programs Advanced Home page To create home page tabs, type each address on its own line. https://www.msn.com/PC=UFO Use current Use default Use new tab Startup Start with tabs from the last session Start with home page Tabs Change how webpages are displayed in tabs. Tabs Browsing History Delete temporary files, history, cookies, saved passwords, and web form information. Delete browsing history on exit Delete... Settings Appearance Colors Languages Fonts Accessibility OK Cancel Apply

REMARQUES :

ASUS RT-AX5400 Layout Reboot English Operation Mode Wireless router Firmware Version 1.0.0.1.388.27961 SSDI-RT-AX5400 LAN IP DHCP Server Route IPTV Switch Control LAN - DHCP Server DHCP (Dynamic Host Configuration Protocol) is a protocol for the automatic configuration used on IP networks. The DHCP server can assign each client an IP address and informs the client of the IP DNS server IP and default gateway IP. RT-AX5400 supports up to 200 IP addresses for your local network. Recently Assigned IP around the DHCP list 7.60 Basic Specify Enable the DHCP Server Yes No RT-AX5400's Domain Name IP Path Starting Address 137.368.50.2 IP Path Ending Address 137.368.50.254 Launch time N=40 Default Gateway DNS and WINS Service Setting DNS Server 1 DNS Server 2 Active router's IP in addition to user-specified DNS Yes No WINS Server Manual Assignment Enable Manual Assignment Yes No Mostly Assigned IP around the DHCP slot (Max Limit: $4) Client Name (MAC Address) IP Address DNS Server (Optional) Host Name (Optional) Add/ Delete No data on Table. Apply

ASUS RT-AX5400 Operation Mode: Wireless router Firmware Version: 1.0.0.4.38L 72003 SSID: RT-AX5400 Operation Mode System Firmware Upgrade Restore/Save/Upload Setting Feedback Privacy Administration - Restore/Save/Upload Setting This function allows you to save current settings of RT-AX5400 to a file, or load settings from a file. Factory default Restore ■ Include all the settings, and clean all the data log for AProtection, Traffic Analysis, and Web History Save setting ■ Click on this checkbox if you want to close the config file for debugging. Since the original password in the config file will be removed, please do not import the file into your router. ■ Transfer ASUS CCNS name Restore setting Upload

ASUS RT-AX5400 Logout Reboot English Operation Mode: wireless router. Firmware Version: 1.8.9.4.388_27003 SSID: ASUS_RT-AX5400_DC ASUS_RT-AX5400_DC App Web & Apps Filters Time Scheduling Parental Controls - Web & Apps Filters Web & Apps Filters allows you to block access to unwanted websites and apps. To use web & apps filters: 1. In the [Clients Name] column, select the client whose network usage you want to control. The client name can be modified in network map client list. 2. Check the unwanted content categories 3. Click the plus (+) icon to add rule then click apply. If you want to disable the rule temporarily, uncheck the check box in front of rule. Parental Controls FAQ Web & Apps Filters ON

Internet Options General Security Privacy Content Connections Programs Advanced To set up an Internet connection, click Setup. Setup Dial-up and Virtual Private Network settings Access RD Network Resources - Go to vpn.as Add... Add VPN... Remove... Settings Choose Settings If you need to configure a proxy server for a connection. Never dial a connection Dial whenever a network connection is not present Always dial my default connection Current None Set default Local Area Network (LAN) settings LAN Settings do not apply to dial-up connections... Choose Settings above for dial-up settings. LAN settings OK Cancel Apply

Local Area Network (LAN) Settings Automatic configuration Automatic configuration may override manual settings. To ensure the use of manual settings, disable automatic configuration. □ Automatically detect settings □ Use automatic configuration script Address Proxy server □ Use a proxy server for your LAN (These settings will not apply to dial-up or VPN connections). Address: Port: 80 Advanced □ Bypass proxy server for local addresses OK Cancel

Sous MAC OS

Control Panel Home Change adapter settings Change advanced sharing settings View your basic network information and set up connections View your active networks corpnet.asus Domain network Access type: Internet Connections: Ethernet Change your networking settings Set up a new connection or network Set up a broadband, dial-up, or VPN connection; or set up a router or access point. Troubleshoot problems Diagnose and repair network problems, or get troubleshooting information.

Ethernet Status General Connection IPv4 Connectivity: Internet IPv6 Connectivity: No network access Media State: Enabled Duration: 03:29:31 Speed: 1.0 Gbps Details... Activity Sent — Received Bytes: 71,424,646 | 70,727,241 Properties Disable Diagnose

Ethernet Properties Networking Authentication Connect using: Intel(R) Ethernet Connection (2) (219-V) Configure... This connection uses the following items: On S Packet Scheduler Internet Protocol Version 4 (TCP/IPv4) Microsoft Network Adapter Multiplex Protocol Microsoft LLDP Protocol Driver Internet Protocol Version 6 (TCP/IPv6) Link-Layer Topology Discovery Responder Link-Layer Topology Discovery Mapper I/O Driver Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks.

Internet Protocol Version 4 (TCP/IPv4) Properties General Alternate Configuration You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: .... Subnet mask: .... Default gateway: .... Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: .... Alternate DNS server: .... Validate settings upon exit Advanced... OK Cancel

Sous MAC OS

Internet Options General Security Privacy Centers Connections Programs Advanced To set up an Internet connection, click Setup. Setup Dial-up and Virtual Private Network settings Access RD Network Resources - Go to vpn.as Add... Add VPN... Remove... Choose Settings if you need to configure a proxy server for a connection. Settings Never dial a connection Dial whenever a network connection is not present Always dial my default connection Current None Set default Local Area Network (LAN) settings LAN Settings do not apply to dial-up connections. Choose Settings above for dial-up settings. LAN settings OK Cancel Apply

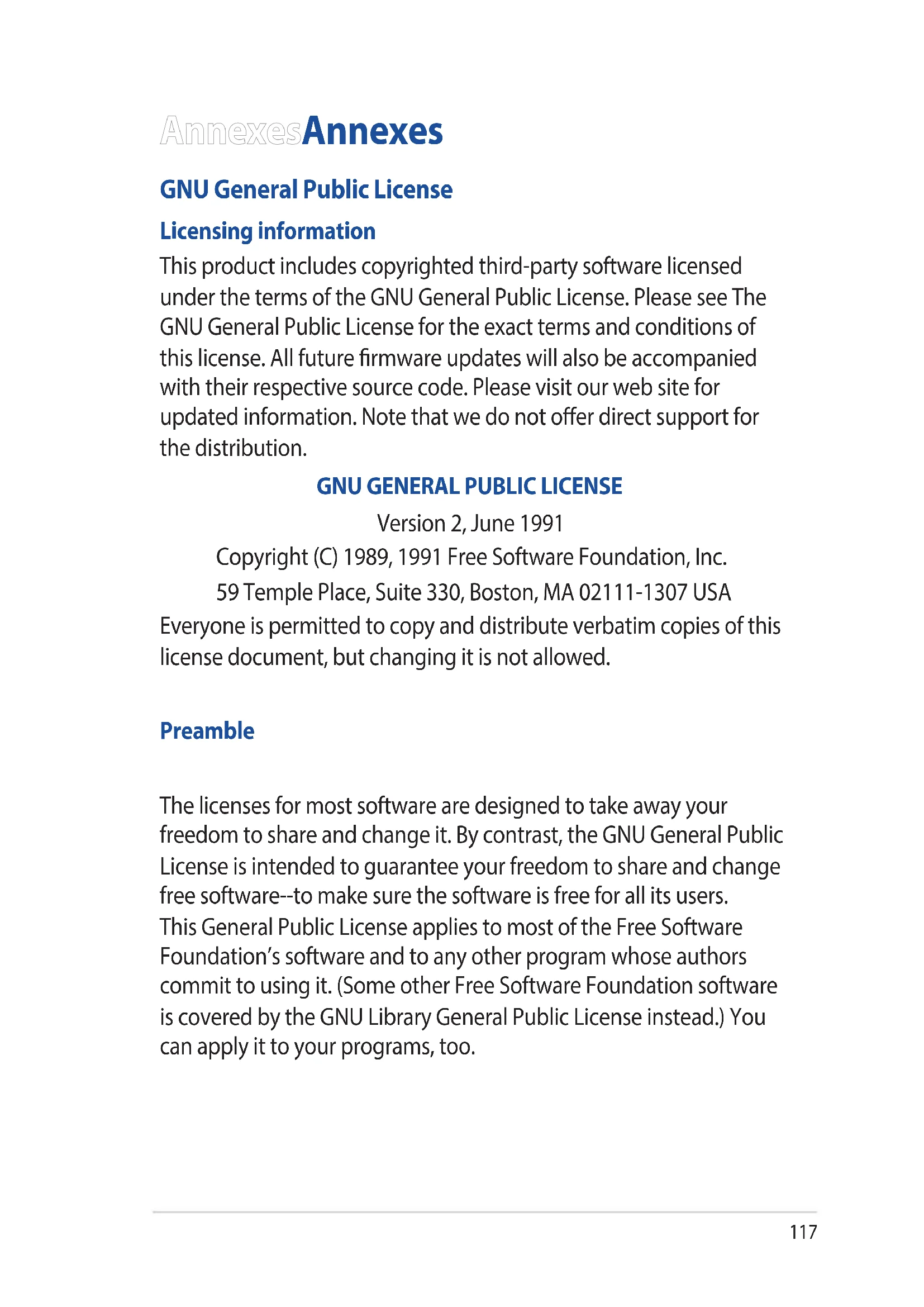

GNU General Public License

Licensing information

This product includes copyrighted third-party software licensed under the terms of the GNU General Public License. Please see The GNU General Public License for the exact terms and conditions of this license. All future firmware updates will also be accompanied with their respective source code. Please visit our web site for updated information. Note that we do not offer direct support for the distribution.

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc.

59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.

This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

Terms & conditions for copying, distribution, & modification

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License.

Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

1. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

2. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

2. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission.

For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

11 BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12 IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

Service et assistance
