USER MANUAL E5KM16GBP ELECTROLUX

Create 5 Kitchen Machine

User Manual

E5KM1-4BPT E5KM1-4SWB

Line drawing of a kitchen mixer with control panel and side-mounted fan (no text or symbols)

E5KM1-6GBP

Line drawing of a kitchen mixer with manual gauges and a side-mounted bowl (no text or symbols)

HR KORISNIČKI PRIRUČNIK

CZ NÁVOD K POUŽITÍ

DK BRUGSANVISNING

EN INSTRUCTION BOOK

EE KASUTUSJUHEND

FI KÄYTTÖOHJE

FR NOTICE D'UTILISATION

Technical line drawing of a pipe fitting with a flanged end (no text or symbols)

Illustration of various kitchen utensils and kitchen appliances including a faucet, drain, and blender (no text or labels)

2	Max speed 6		3-10eggs 100-600g			Meat grinder	Max speed 4		without bones, skin and muscles
	Max speed 4		1-10eggs	0.2-2kg					without bones, skin and muscles
	Max speed 2		70% 0.13-0.92kg 0.23-1.62kg 57% 0.175-1.05kg 0.29-1.74kg 40% 0.25-0.75kg 0.4-1.2kg			Salad maker	Max speed 4		Vegetables
									Hard cheese

Illustrated guide showing four steps of a kitchen appliance repair or cleaning procedure, including press, press valve, press button, and warning sign.

8 9 SUGAR SUGAR

Illustration of a plug inserted into a socket, with a cable being inserted (no text or symbols)

13 click 15

Illustration of a spoon lifting a bowl with an arrow indicating the process (no text or symbols)

Meat Grinder

17 SausageGround meat Meatball

Diagram illustrating the step-by-step installation of a device's electrical plug, showing component positioning and adjustment.

Salad Maker

18

Diagram showing three cylindrical components with cross-sectional views, connected to a 3D mechanical component (no text or symbols present)

WARNING!

The blades and inserts are very sharp!

Illustration of a pipe fitting with internal components and directional arrows (no text or symbols)

▶

Diagram showing a hand pressing a button on a device, with labeled parts and an inset showing a close-up of the button.

Illustration of a hand turning a component into a motor, with an inset showing the hand's rotation (no text or symbols present)

▶

Mechanical device with a lever and adjustment arrow, no visible text or symbols

▶

Illustration of a kitchen hand mixer blending liquid into a bowl (no text or symbols)

Illustration of a hand pump a carrot, showing the handle and outlet (no text or symbols)

▶

Illustration of a plug with a power outlet and cable, showing an upward arrow (no text or symbols)

▶

1~4 0

▶

Diagram of a hand operating a small appliance with a downward arrow indicating motion (no text or symbols present)

19

Illustration of a plug inserted into an electrical socket with a cable, showing a downward arrow (no text or symbols)

▶

Illustration of a hand operating a mechanical device with a rotating wheel and a ruler (no text or symbols)

▶

Illustration of a hand turning a small mechanical component with a magnified inset showing the process (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a hand inserting a component into a device, showing a magnified circular detail (no text or symbols)

▶

Diagram of a device with a handle and arrow indicating movement or force (no text or symbols)

CLEANING AND CARE

Illustration of a plug with a bulb inserted into a socket, showing a downward arrow indicating internal flow (no text or symbols)

Illustration of cleaning items including a toothbrush, soap dish, and spray bottle (no text or symbols)

Line drawing of a kitchen mixer with no visible text or symbols

Line drawings of kitchen utensils including a hand, kitchen sink, and bowl (no text or symbols)

Exploded view diagram of various kitchen utensils and components (no text or labels)

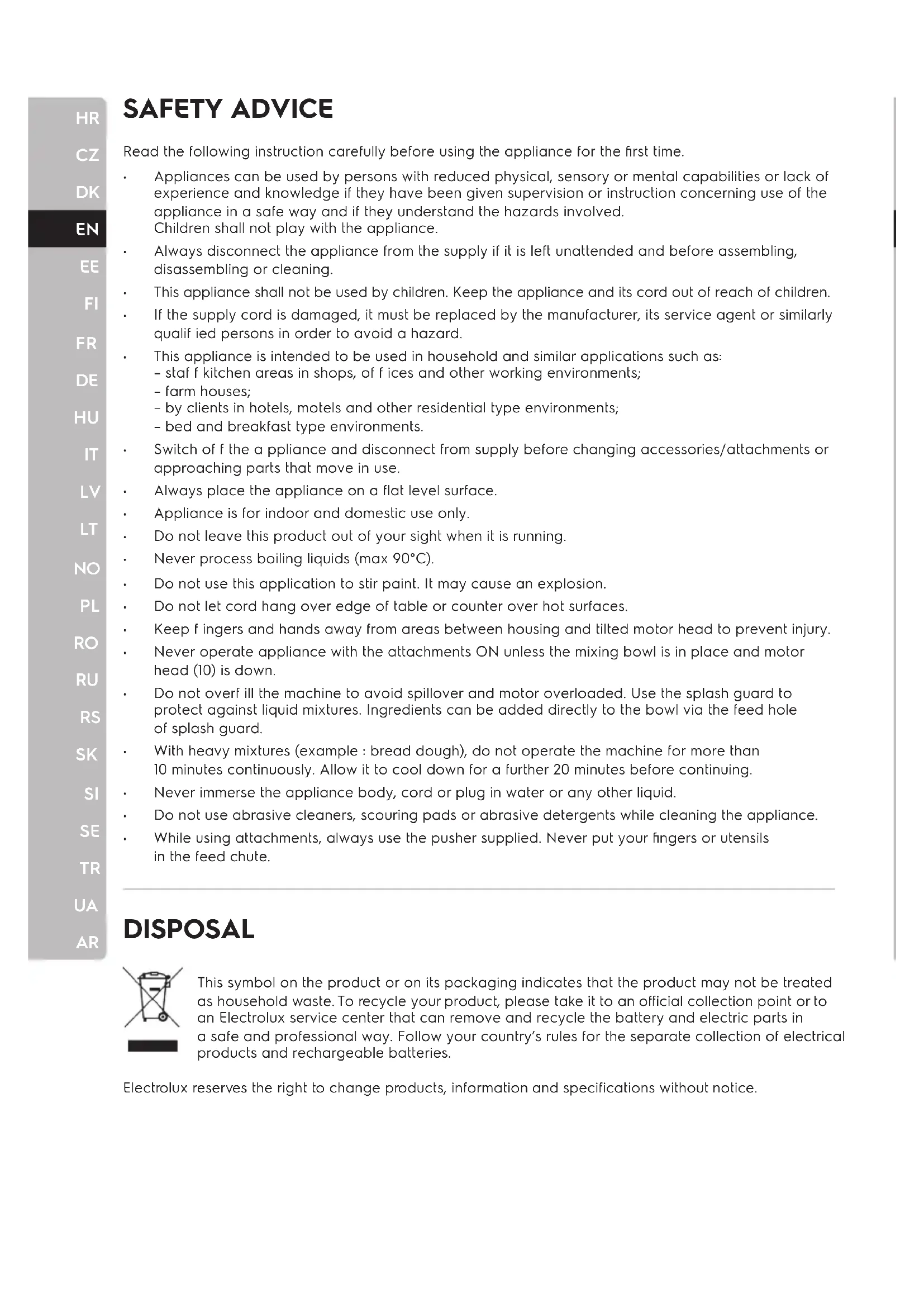

SAVJETI ZA SIGURNU UPOTREBU

Read the following instruction carefully before using the appliance for the first time.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
Children shall not play with the appliance.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is intended to be used in household and similar applications such as:
- staf f kitchen areas in shops, of f ices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.
- Switch of f the a appliance and disconnect from supply before changing accessories/attachments or approaching parts that move in use.
• Always place the appliance on a flat level surface.
• Appliance is for indoor and domestic use only.
• Do not leave this product out of your sight when it is running.
• Never process boiling liquids (max 90°C).
• Do not use this application to stir paint. It may cause an explosion.
• Do not let cord hang over edge of table or counter over hot surfaces.
- Keep fingers and hands away from areas between housing and tilted motor head to prevent injury.
- Never operate appliance with the attachments ON unless the mixing bowl is in place and motor head (10) is down.
- Do not overfill the machine to avoid spillover and motor overloaded. Use the splash guard to protect against liquid mixtures. Ingredients can be added directly to the bowl via the feed hole of splash guard.
- With heavy mixtures (example: bread dough), do not operate the machine for more than 10 minutes continuously. Allow it to cool down for a further 20 minutes before continuing.
- Never immerse the appliance body, cord or plug in water or any other liquid.

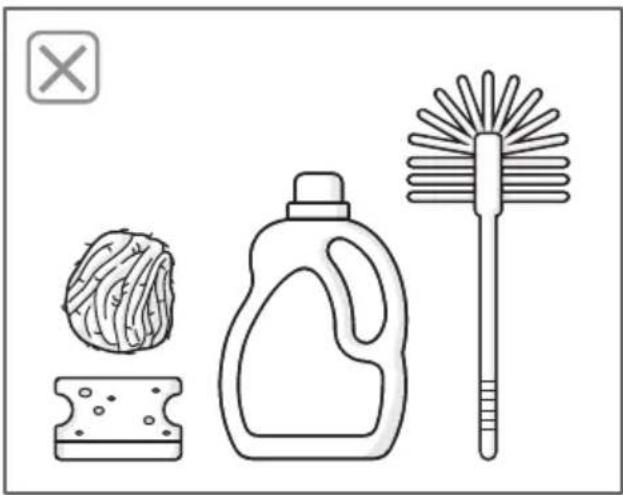

• Do not use abrasive cleaners, scouring pads or abrasive detergents while cleaning the appliance.
- While using attachments, always use the pusher supplied. Never put your fingers or utensils in the feed chute.

DISPOSAL

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

Electrolux reserves the right to change products, information and specifications without notice.

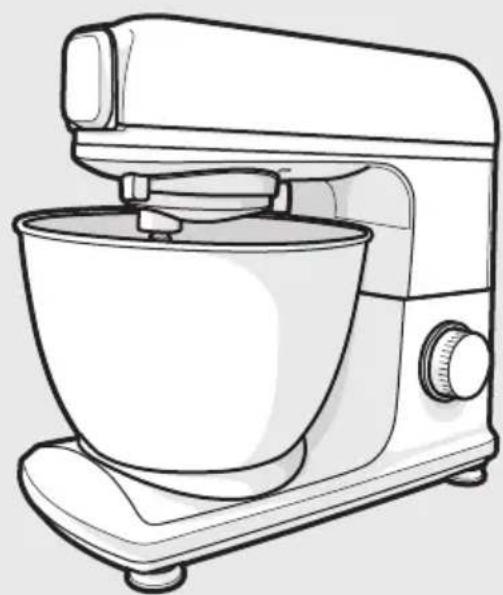

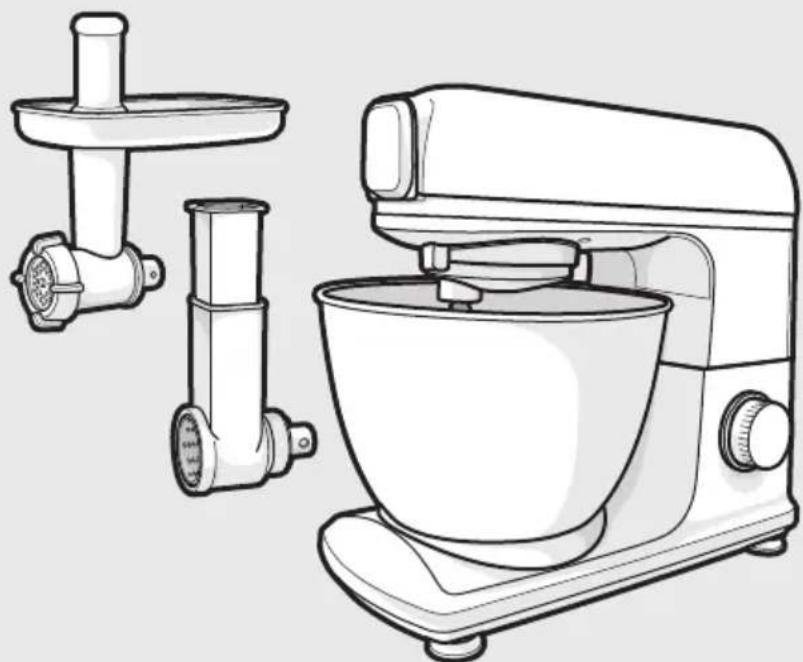

COMPONENT (picture page '2')

1 Attachment shaft
8a Flat Beater
2 Front attachment hub release button
8b Dough hook
3 Front attachment hub
8c Whisk
4 Release Lever
9 Splash guard
5 Speed control knob
10 Motor head (tiltable)
6 Power Cord
11 Housing
7 Stainless steel mixing bowl
12 Bowl cramping plate
13 Front attachment hub cover

Meat Grinder\*

A Grinder housing

E Grinder ring

B Grinder screw

F1 Top kubbe attachment

C Grinder knife

F2 Bottom kubbe attachment

D1 Fine grinder plate

G1 Top sausage attachment

D2 Medium grinder plate

G2 Bottom sausage attachment

D3 Coarse grinder plate

H Grinder tray

I Grinder pusher

Salad maker\*

J Salad maker housing

K1 Medium slicer

K2 Coarse slicer

K3 Shredder

* Available in certain models only.

L Salad maker pusher

Also Available for sale on brand website.

HOW TO USE (picture page '3-5')

1 Cleaning - Make sure that you clean bowl and tools before use.

2 Usage of tools and capacity.

Main tools

Speeds	Tools	Type of Mixture		Min Capacity	Max Capacity
Max2	Dough hook	Heavy mixtures of dough (e.g. bread, pizza or pastry dough)	75% hydration	130g flour or 230g dough	0.92kg flour or 1.62kg dough
			57% hydration	175g flour or 290g dough	1.05kg flour or 1.74kg dough
			40% hydration	250g flour or 400g dough	0.75kg flour or 1.2kg dough
Max4	Beater	Medium-heavy mixtures (e.g. crepes or sponge mixture)		1egg or 200g dough	10eggs or 2kg dough
Max6	Whisk	Light mixtures (e.g. cream, egg white, blancmange)		3eggs or 100g cream	10eggs or 600g cream
Pulse	Whisk	Interval (e.g. for mixing under sponge, egg white)

Hydration percentage means the weight proportion of water relative to the flour used in the dough recipe. Example: if a dough recipe uses 400 gr of water and 1000 gr of flour, means it has 40% hydration.

Attachments

Speeds	Tools Type of Food
Max4 Meat	at grinder	Ground meat	Common meat (chicken, pork, beef) without bones, skin and muscles
		Sausage/ Meatball	Mix meat (chicken, pork, beef including seafood) without bones, skin and muscles
Max4 Salad maker		Vegetables (carrot, cucumber, pumpkin, etc.)
		Hard cheese (cheddar, gouda, etc.)

Notes: It's not recommended to put ONLY seafood or vegetables in the meat grinder, as it will give juicy/watery result instead of proper ground meat.
Do not use high-f iber food (such as ginger, leek, etc) as it can't be processed.

3 Place the appliance on a flat surface.

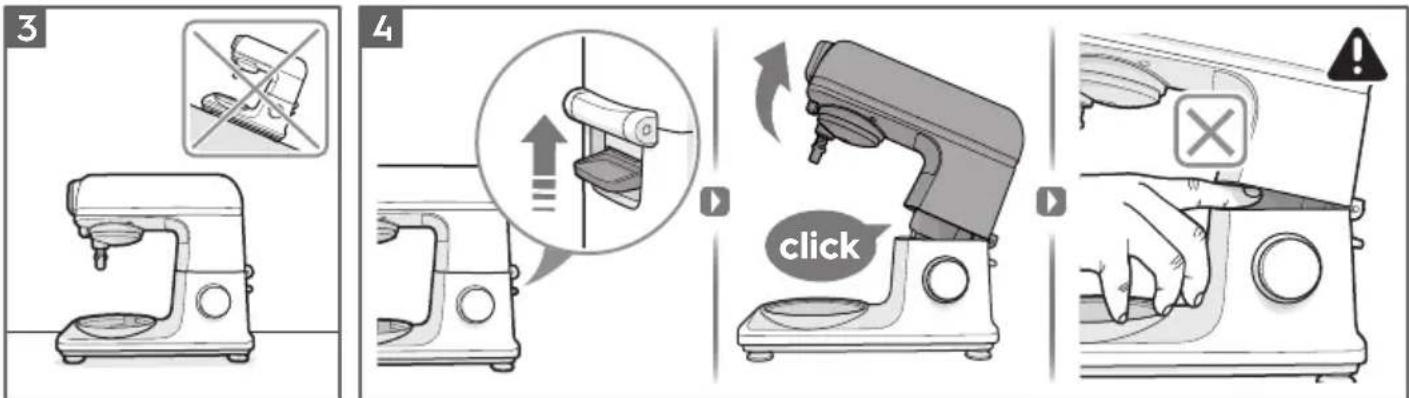

4 Tilt the motor head up until it locks by pressing the release lever (4) upwards.

WARNING! Keep fingers and hands away from areas between housing (11) and tilted motor head (10).

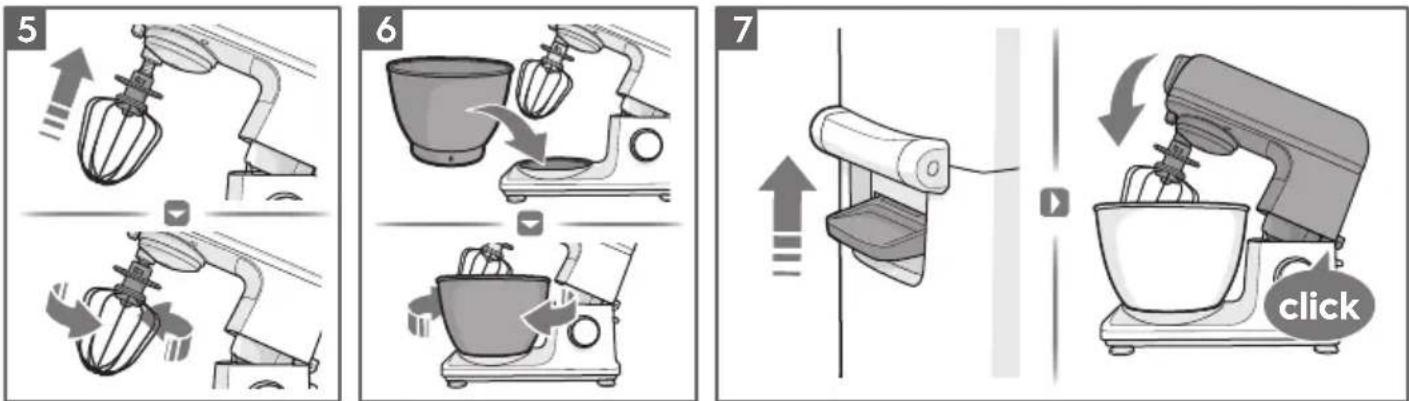

5 Place desired tool (Whisk, dough hook or beater) by pushing it up on the attachment shaft and turn it counterclockwise until the pin is locked into position.
6 Place the mixing bowl (7) into the bowl cramping plate (12) by turning it clockwise to lock into position.

WARNING! Never operate appliance with the attachments ON unless the mixing bowl (7) is in place and motor head (10) is down.

7 Tilt the motor head down until it locks by pressing the release lever (4) upwards.

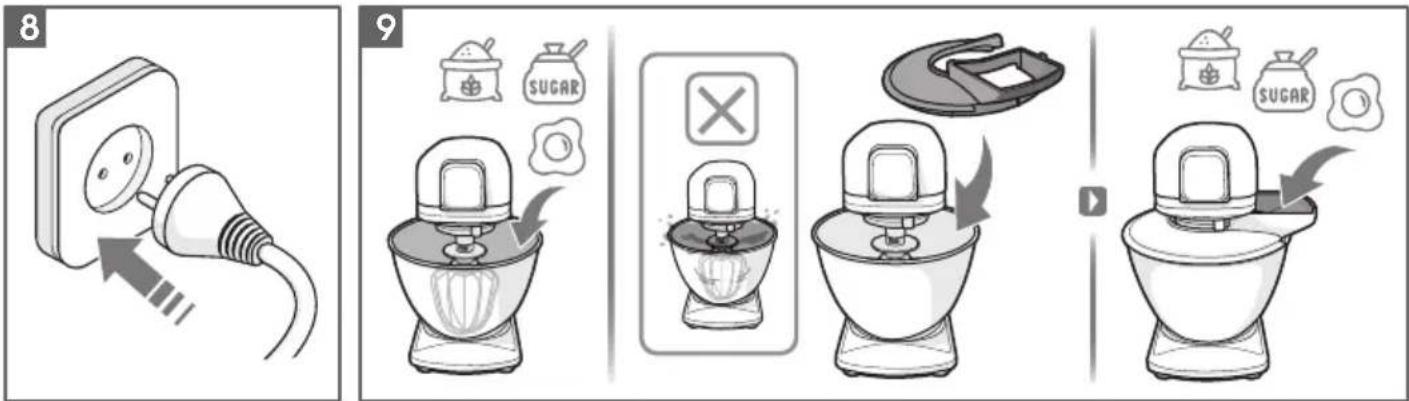

8 Plug into mains.
9 Fill in your ingredients to process.

WARNING! Do not overfill the machine to avoid spillover and motor overloaded. Use the splash guard to protect against liquid mixtures. Ingredients can be added directly to the bowl via the feed hole of splash guard.

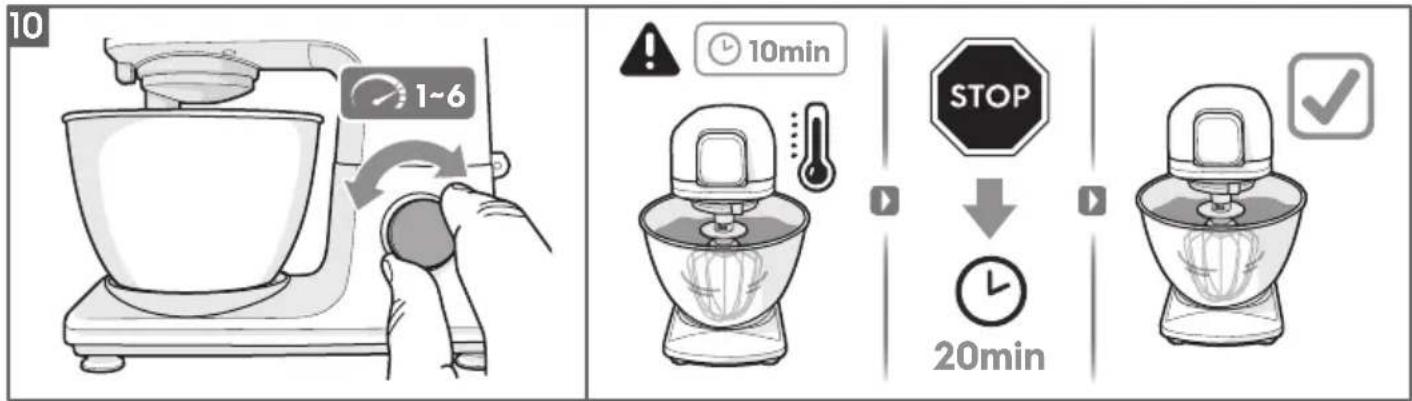

10 Turn the speed control knob from 0 to desired speed (between 1-6, corresponding to the tools and mixture).

WARNING! With heavy mixtures (example: bread dough), do not operate the machine for more than 10 minutes continuously. Allow it to cool down for a further 20 minutes before continuing.

PRO Tips: While mixing dough, in order to avoid flour splash, keep the appliance at setting 1 for 60 seconds, then turn to desired speed.

PRO Tips: For pulse operation (kneading at short intervals), turn and hold the knob to "P" position to your desired timing. When the knob is released it returns automatically to the "0" position.

11 After mixing completes, turn the knob back to 0.
12 Unplug the appliance.

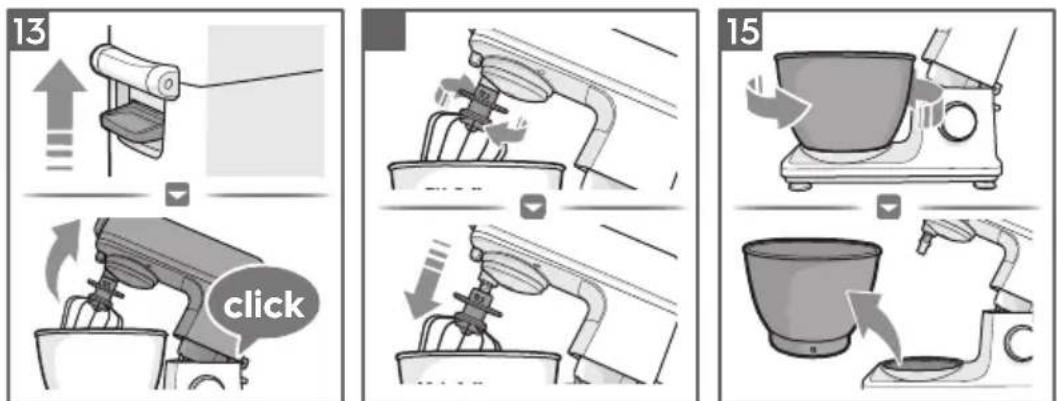

13 Tilt the motor head up until it locks by pressing the release lever (4) upwards.
14 Remove the tool from attachment shaft by turning it clockwise and pull of f.
15 Remove the mixing bowl from the bowl cramping plate by turning it counterclockwise.

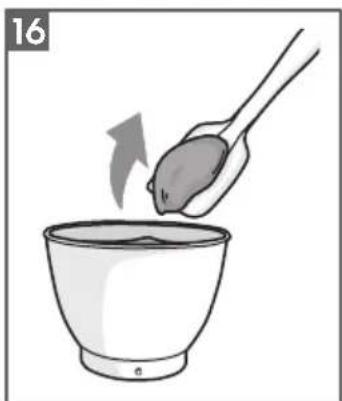

16 Take out the mixture from the mixing bowl.

PRO Tips: Mixture can be taken out with the help of spatula.

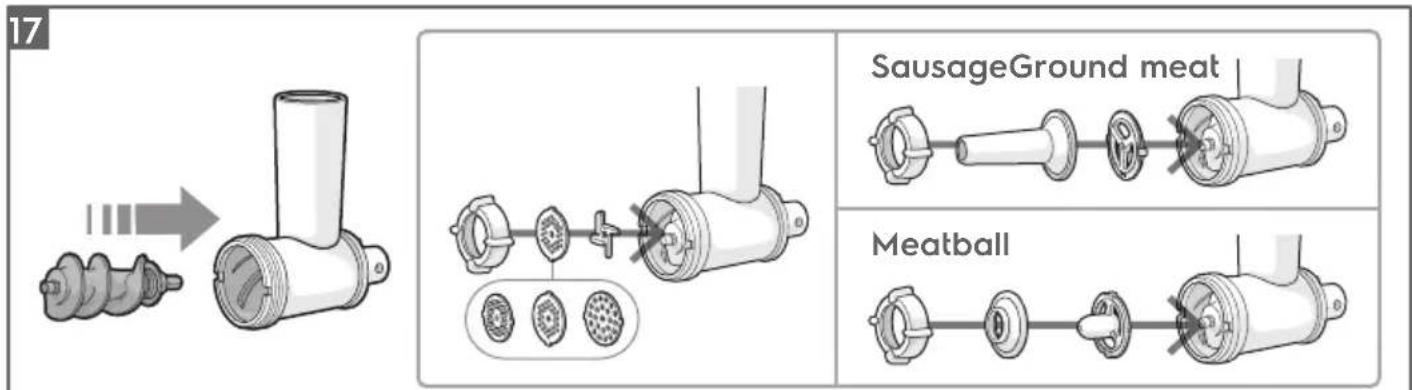

17 HOW TO USE THE MEAT GRINDER*

- Insert the grinder screw (B) into the grinder housing (A).

a. GROUND MEAT: Place the grinder knife (C) over the square shaft at the end of the grinder screw (B). Place the desired grinder plate (D) over the knife (C).
b. SAUSAGE: Assemble top and bottom sausage attachment (G) and place them over the square shaft at the end of the grinder screw (B).

c. MEATBALL: Assemble top and bottom kubbe attachment (F) and place them over the square shaft at the end of the grinder screw (B).

Tighten the grinder ring (E) by hand until the meat grinder is secured.

WARNING! Do not over tighten the ring.

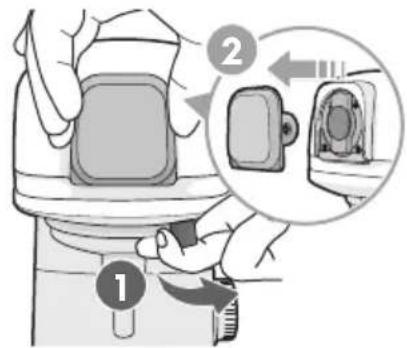

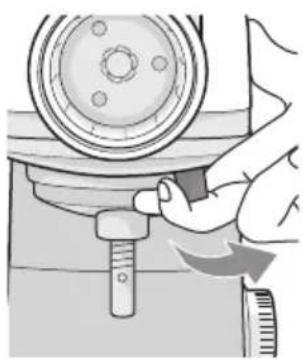

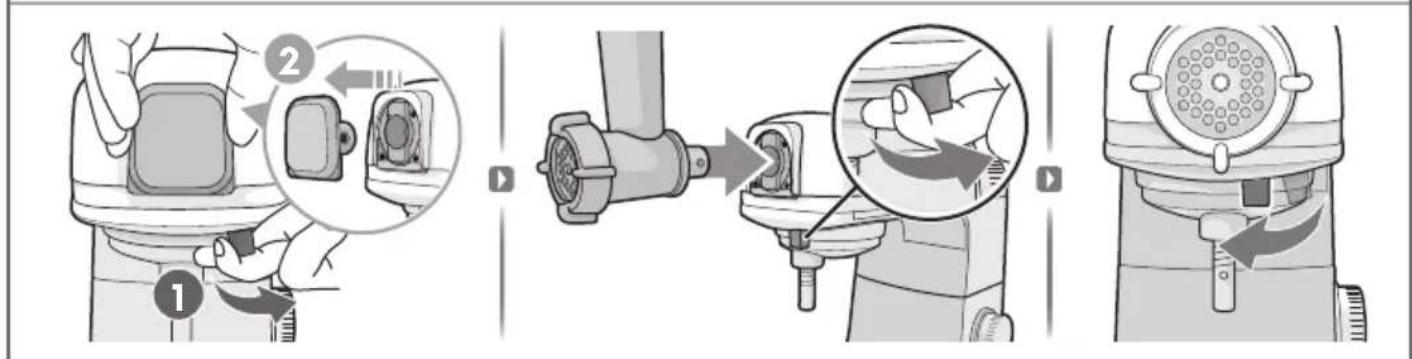

- Push the attachment hub release button (2) to the right and remove the attachment hub cover (13). Fit the assembled meat grinder in the front attachment hub (3) using the attachment hub release button (2).

The attachment hub release button (2) will click into position once the meat grinder is securely

attached.

WARNING! Before putting attachments turn off the appliance and unplug it.

• Place a mixing bowl (7) or other container under the attachment to collect the result.

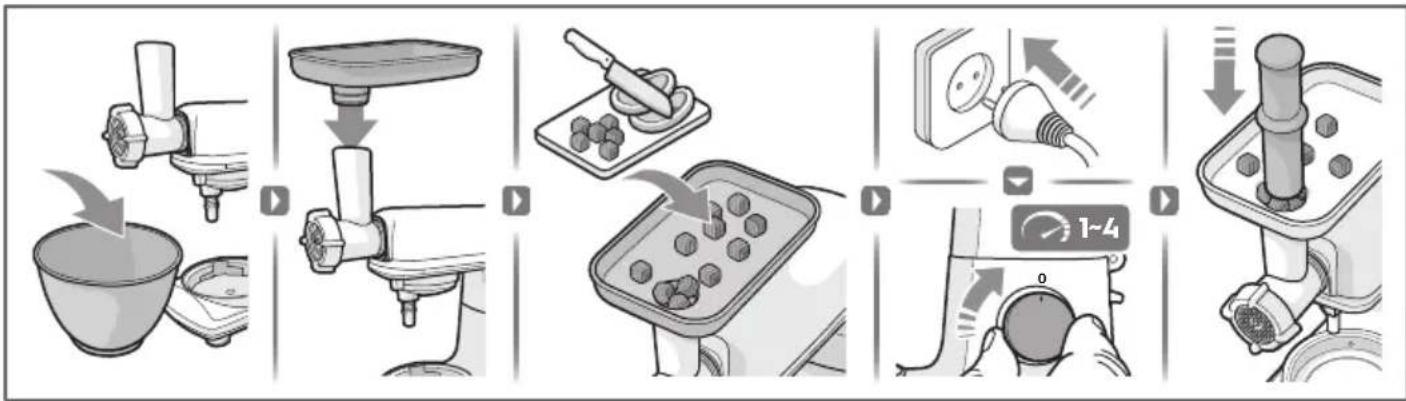

• Place the grinder tray (H) over the grinder housing (A). • Dice raw meat into small pieces (around 2.5cm) or sausage/meatball mixture and place it on the food tray. Plug in the appliance and turn the speed selector to recommended speed.
• Feed the meat into the feed chute by using the pusher (I).

WARNING! Do not put your fingers or other utensils in the feed chute.

Notes: Suggest to run the machine for another 1 min after the last meat was put, to have less remaining ground meat in the machine.

18 HOW TO USE THE SALAD MAKER\*

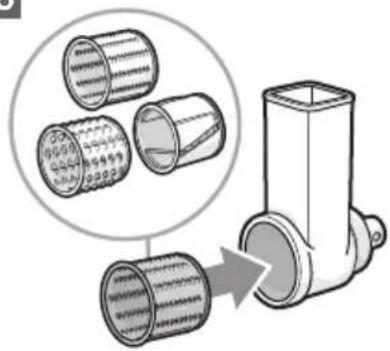

- Choose your slicer/shredder (K) and insert it into the salad maker housing (J) by turning it clockwise. Make sure the attachment is fully inserted.

WARNING! The blades and inserts are very sharp!

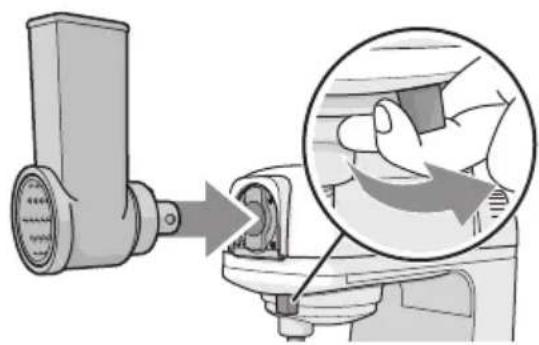

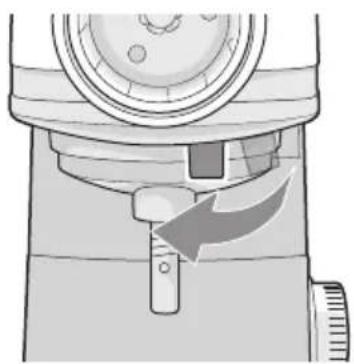

- Push the attachment hub release button (2) to the right and remove the attachment hub cover. Fit the assembled salad maker in the front attachment hub (3) using the attachment hub release button (2).

The attachment hub release button (2) will click into position once the salad maker is securely attached.

- Place a mixing bowl (7) or other container under the attachment to collect the result.

- Cut the food into a size that fits the feed chute. Plug in the appliance and turn the speed selector to desired speed.

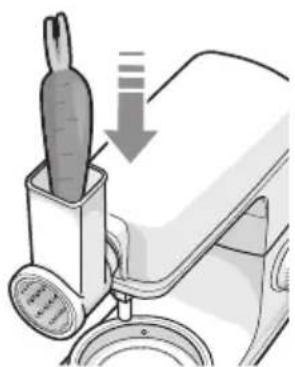

- Feed the food into the feed chute by using the pusher (L).

WARNING! Do not put your fingers or other utensils in the feed chute.

19 When f finished using your attachment, turn of f the appliance and unplug it.

Place back the front attachment hub cover (13) using the attachment hub release button (2).

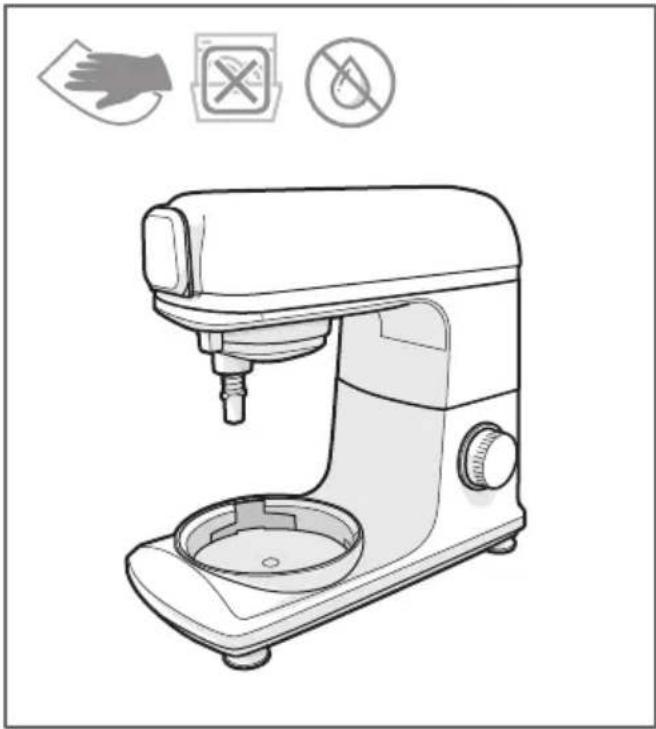

CLEANING AND CARE (picture page '6')

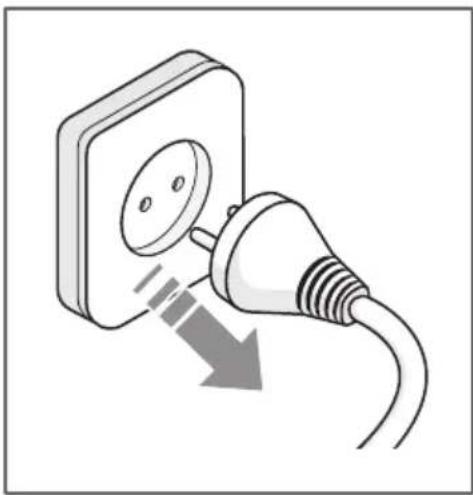

Always unplug the appliance before cleaning

1 Motor Housing. Never immerse the housing with motor in water! Clean the motor housing only with a damp cloth. Do not use abrasive cleaners, scouring pads or abrasive detergents while cleaning the appliance.

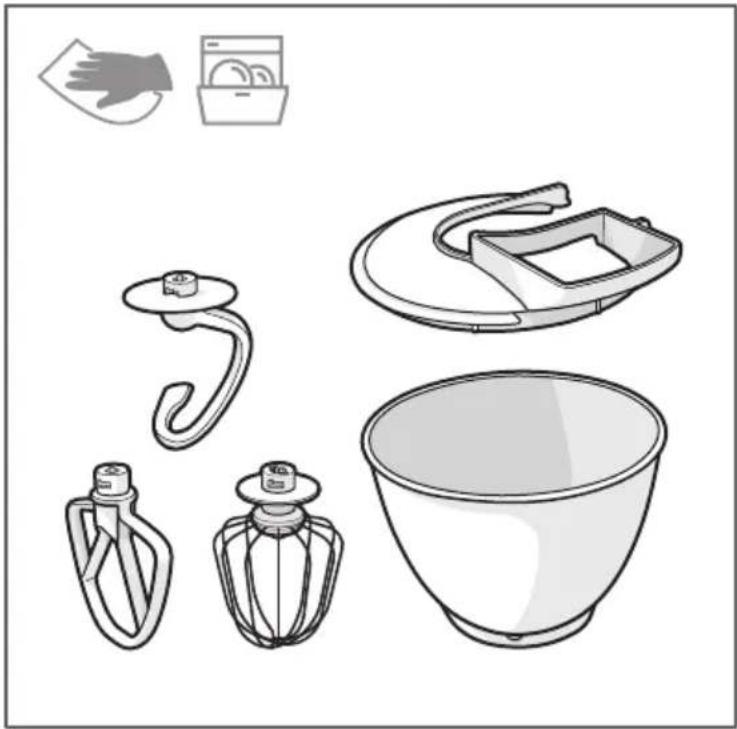

2 Mixing Bowl, Mixing Tools (dough hook, whisk, beater), and splash guard are dishwasher safe. If washing by hand, don't use wire brush, steel wool or bleach to avoid rust.

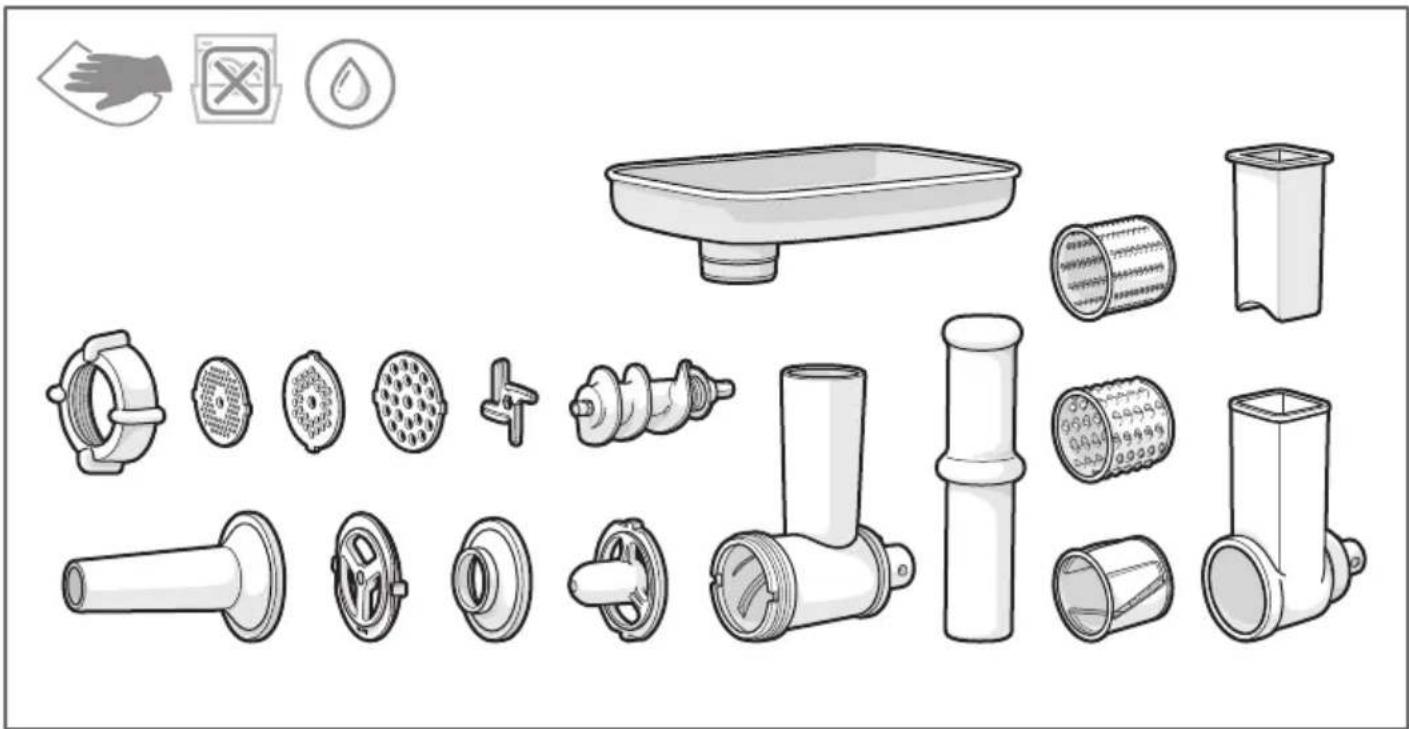

3 Meat grinder* and salad maker* attachments should only be washed by hand in warm soapy water.

*Available in certain models only. Also Available for sale on brand website.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
The motor slows down or stops during operation.	Amount of dough may exceed maximum capacity.	Unplug and remove half and process in two batches, wait for 20 minutes to cool down motor then restart machine.
Dough sticks onto the side or bottom of bowl.	Dough is too wet. Add more flour, until dough cleans the side or bottom of the bowl.
The motor does not work.	The appliance is not connected to the mains.	Make sure to plug in the appliance before operation.
	Motor head doesn't properly lock in position.	Make sure motor head locks in downward position.
The appliance vibrates/moves during operation.	The rubber feet are wet. Make sure the rubber feet at the bottom of the unit are clean and dry.
	It is normal for heavy loads (e.g heavy dough, cheese).	Remove half and process in two batches.
	Appliance operates at higher speed than suggested.	Lower down the speed to the recommended speed setting (available on 'How to use' section).
Mixture splashes.	The splashguard is not at proper position.	Make sure the splashguard is fitted at the right position.
	Appliance operates at higher setting.	Lower down the speed.
Ingredient or flour stick at the bottom or side of bowl and not properly mixed.	Tool can't reach the bowl bottom or side.	Add liquid first before dry ingredient, increase speed or use spatula to help incorporate the dough to the tool.

OHUTUSTEAVE

RECOMANDARI PENTRU SIGURANTĂ

Line drawing of a mechanical device with a tray, handle, and gear (no text or symbols)

Meat grinder

Ref: MGM01

PNC:900168891/1

Simple line drawing of a jar with three cylindrical containers, no text or symbols present

Salad Maker

Ref : SMM01

PNC: 900168892/9

Front view of a smartphone with control buttons and a display (no text or symbols visible)

Bluetooth Kitchen Scale

Ref : BKS1

PNC:900169098/2
